Hytera DS-6610 VPUC User manual

Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read this
manual carefully before use.
This manual is applicable to the following product:
DS-6610 VPUC

Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the
Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks
and product names. All other trademarks and/or product names that may be used in this software are
properties of their respective owners.
The product described in this manual may include the Company’s computer programs stored in memory
or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company
with respect to its computer programs. The purchase of this product shall not be deemed to grant, either
directly or by implication, any rights to the purchaser regarding the Company’s computer programs. Any
of the Company’s computer programs may not be copied, modified, distributed, decompiled, or
reverse-engineered in any manner without the prior written consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of
accuracy or reliability is given. All the specifications and designs are subject to change without notice
due to continuous technology development. No part of this manual may be copied, modified, translated,
or distributed in any manner without the express written permission of us.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or
completeness of the Third Party products and contents involved in this manual.
If you have any suggestions or would like to learn more details, please visit our website at:
http://www.hytera.com.
Warning
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 35cm between the radiator&
your body. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

i
Contents
Documentation Information...................................................................................................................1
1. Instructions.........................................................................................................................................2
2. Introduction ........................................................................................................................................3
3. Product Overview ...............................................................................................................................4
3.1 Product Controls .............................................................................................................................4
3.2 LED Indicator ..................................................................................................................................4
3.3 LCD Display....................................................................................................................................5
4. Basic Operations................................................................................................................................6
4.1 Turning the Gateway On/Off ...........................................................................................................6
4.2 Resetting the Gateway....................................................................................................................6
4.3 Making the Basic Settings...............................................................................................................6
5.3.1 DSP Settings ........................................................................................................................6
5.3.2 IP Settings ..........................................................................................................................10
5.3.3 Language Settings..............................................................................................................14
5.3.4 Gateway Information Check ...............................................................................................15
5. Product Configuration .....................................................................................................................18
6. Care and Cleaning............................................................................................................................19

1
Documentation Information
This section describes the conventions and revision history of this document.
Documentation Conventions
Icon Conventions
Icon Description
Tip Indicates information that can help you make better use of your product.
Note Indicates references that can further describe the related topics.
Caution Indicates situations that could cause data loss or equipment damage.
Warning Indicates situations that could cause minor personal injury.
Danger Indicates situations that could cause major personal injury or even death.
Notation Conventions
Item Description
“ ” The quotation marks enclose the name of a software interface element. For
example, click “OK”.
Bold The text in boldface denotes the name of a hardware button. For example, press the
PTT key.
-> The symbol directs you to access a multi-level menu. For example, to select “New”
from the “File” menu, we will describe it as follows: “File -> New”.
Revision History
Version Release Date Description
V00 09-2015 Initial release

2
1. Instructions
zRead the manuals of the product carefully before use.
zThis product shall be serviced by qualified technicians only.
zUse the accessories specified by the Company only, in order not to damage the product.
zKeep the product clean and dry for optimum performance.

3
2. Introduction
DS-6610 VPUC is a self-developed smart gateway of the Company. It can realize communications
between radios with different standards and frequencies and in the same or different networks. The
gateway connection is as shown in the following example.
CautionFollow the labels on the cables for cable connection between the gateway and the mobile
radios, so as to avoid device damage.
¾Keep the gateway at least 2 meters away from each sucker antenna, and also keep the sucker
antennas at least 2 meters away from each other.
¾The frequencies of the two mobile radios must be different, so as to avoid frequency interference.
¾DS-6610 VPUC uses installable external antennas for 2G and WLAN wireless communication.
The interface type of all the antenna is male and on the devices the interface type to the
corresponding SMA sockets is female. The device must be professionally installed. Antennas to
the devices can be swapped but the antennas must be provided by the manufacturer for ensuring
that the proper antennas are employed.

4
3. Product Overview
3.1 Product Controls
No. Part Name No. Part Name
1 Alarm Indicator 9 DC Power Inlet
2 Power Indicator 10 Radio 1 Connector (DB15)
3 Radio 1 Indicator 11 Radio 2 Connector (DB15)
4 Radio 2 Indicator 12 Serial Port (RS232)
5 LCD Display 13 Ethernet Port 0 (RJ45)
6 Function Keys (Menu/OK/Up/Down
Key)
14 Ethernet Port 1 (RJ45)
7 Reset Key 15 Ground Screw
8 Power Switch - -
3.2 LED Indicator
LED Indicator Gateway Status
Alarm Indicator (ALM)
zGlows red: the gateway is in the alarm state (this feature is not
available yet).
zOff: the gateway works properly.
Power Indicator (PWR) zGlows green: the gateway is on.

5
LED Indicator Gateway Status
zOff: the gateway is off.
Radio 1 Indicator (RADIO1)
zOff: the channel is idle.
zGlows orange: the gateway is transferring voice to Radio 1.
zGlows green: the gateway is receiving voice from Radio 1.
Radio 2 Indicator (RADIO2)
zOff: the channel is idle.
zGlows orange: the gateway is transferring voice to Radio 2.
zGlows green: the gateway is receiving voice from Radio 2.
3.3 LCD Display
The display information on the LCD display is shown below:
No. Name Description
1 Status Bar
Displays the connection status of the Ethernet ports and the radios:
z:The Ethernet cable is connected successfully.
z:The Ethernet cable is not connected or connected improperly.
z:The connected radio is online.
z:The radio is not connected, or the connected radio is offline.
Note
The icons from left to right indicate the Ethernet port 0, Ethernet port 1, Radio 1
connector and Radio 2 connector respectively.
2 Menu Pane Displays the menus.

6
4. Basic Operations
4.1 Turning the Gateway On/Off
Caution
Turn off the connected radio(s) before turning off the gateway.
zTo turn on the gateway, toggle the power switch to the “ON” position.
zTo turn off the gateway, toggle the power switch to the “OFF” position.
4.2 Resetting the Gateway
To reset the gateway, long press the Reset key for five seconds. Then the gateway will restart and be
reset to factory default settings.
4.3 Making the Basic Settings
You can use the function keys beside the LCD display to make basic settings, including the digital signal
processing (DSP) settings, IP settings and language settings, and view information about the gateway.
Note
¾To return to the previous menu from a submenu, press the Up/Down key to highlight “Back”, and
then press the OK key.
¾To directly return to the main menu from a submenu, press the Menu key.
5.3.1 DSP Settings
You can set the DSP for voice calls. The DSP settings include the settings of voice activity detection
(VAD), sensitivity, call hang time and RX audio delay time. The VAD feature is used to detect if the radio
is transmitting, so as to request or release the talk right via the gateway software. Thus the feature can
avoid the failure of communications between the radios due to no talk right event (including talk right
request and release) or talk right event loss in the system.
After the VAD feature is enabled, the audio may be muted between syllables or during pauses in speech.
To avoid this problem, you can set the call hang time to keep the channel occupied within preset time.
The RX audio delay feature is used to buffer the voice packet for a period of time, so as to prevent the
received voice from being lost due to the situation that the server detects the voice event later than the
transfer of the voice packet.

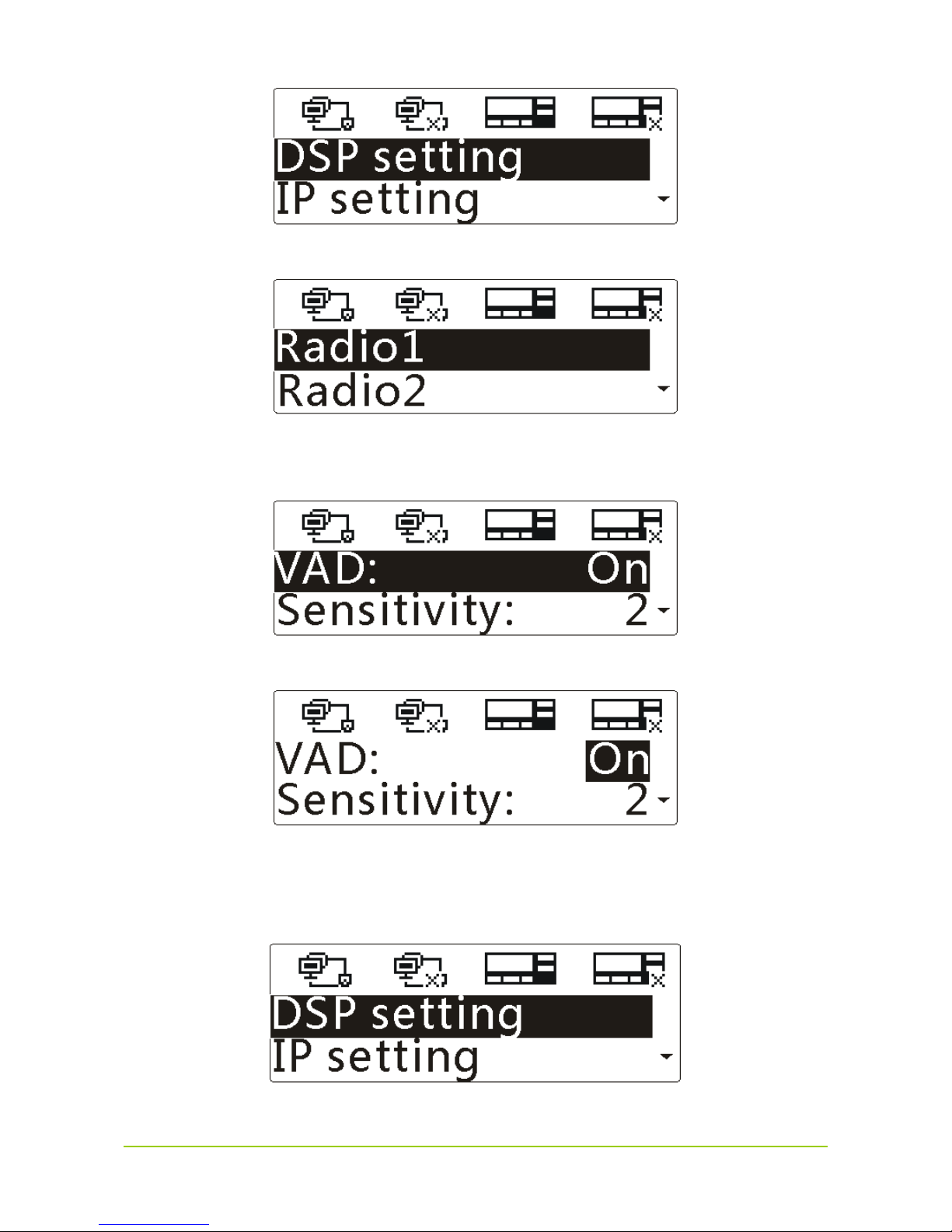

Setting the VAD
Step 1 Press the Up key to highlight “DSP setting” in the main menu, as shown below.

7
Step 2 Press the OK key to enter the menu, as shown below.
Step 3 Press the Up/Down key to highlight “Radio1” or “Radio2”, and then press the OK key to enter
the menu.
Step 4 Press the OK key to select “VAD”, and then press the Up/Down key to highlight “On” or “Off”.
Step 5 Press the OK key to finish.
Setting the Sensitivity
Step 1 Press the Up key to highlight “DSP setting” in the main menu, as shown below.
Step 2 Press the OK key to enter the menu, as shown below.

8
Step 3 Press the Up/Down key to highlight “Radio1” or “Radio2”, and then press the OK key to enter
the menu.
Step 4 Press the Down key to highlight “Sensitivity”, as shown below.
Step 5 Press the OK key, and then press the Up/Down key to set the sensitivity level, as shown below.
The smaller value indicates higher sensitivity.
Step 6 Press the OK key to finish.

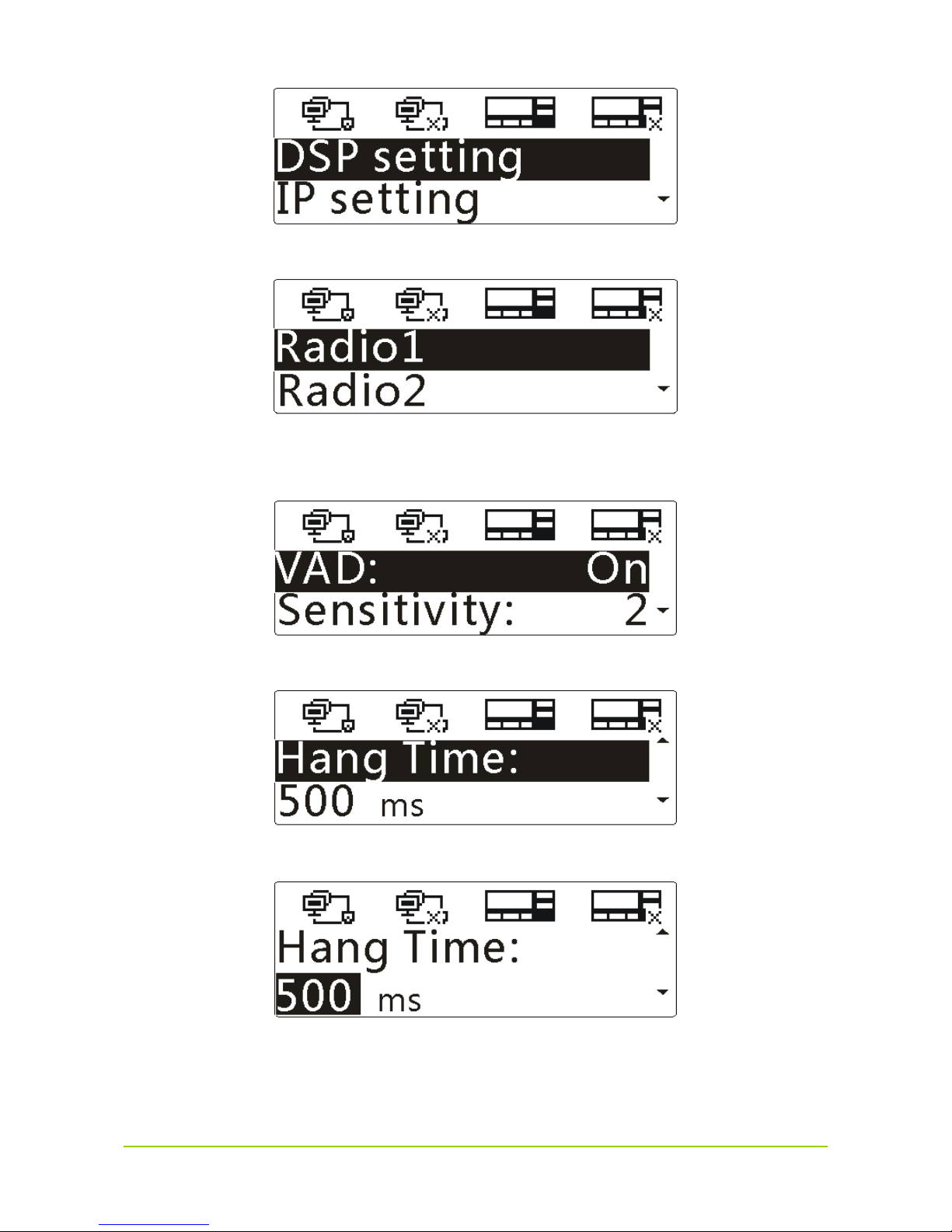

Setting the Call Hang Time
Step 1 Press the Up key to highlight “DSP setting” in the main menu, as shown below.

9
Step 2 Press the OK key to enter the menu, as shown below.
Step 3 Press the Up/Down key to highlight “Radio1” or “Radio2”, and then press the OK key to enter
the menu.
Step 4 Press the Down key to highlight “Hang Time”, as shown below.
Step 5 Press the OK key, and then press the Up/Down key to set the time, as shown below.
Step 6 Press the OK key to finish.

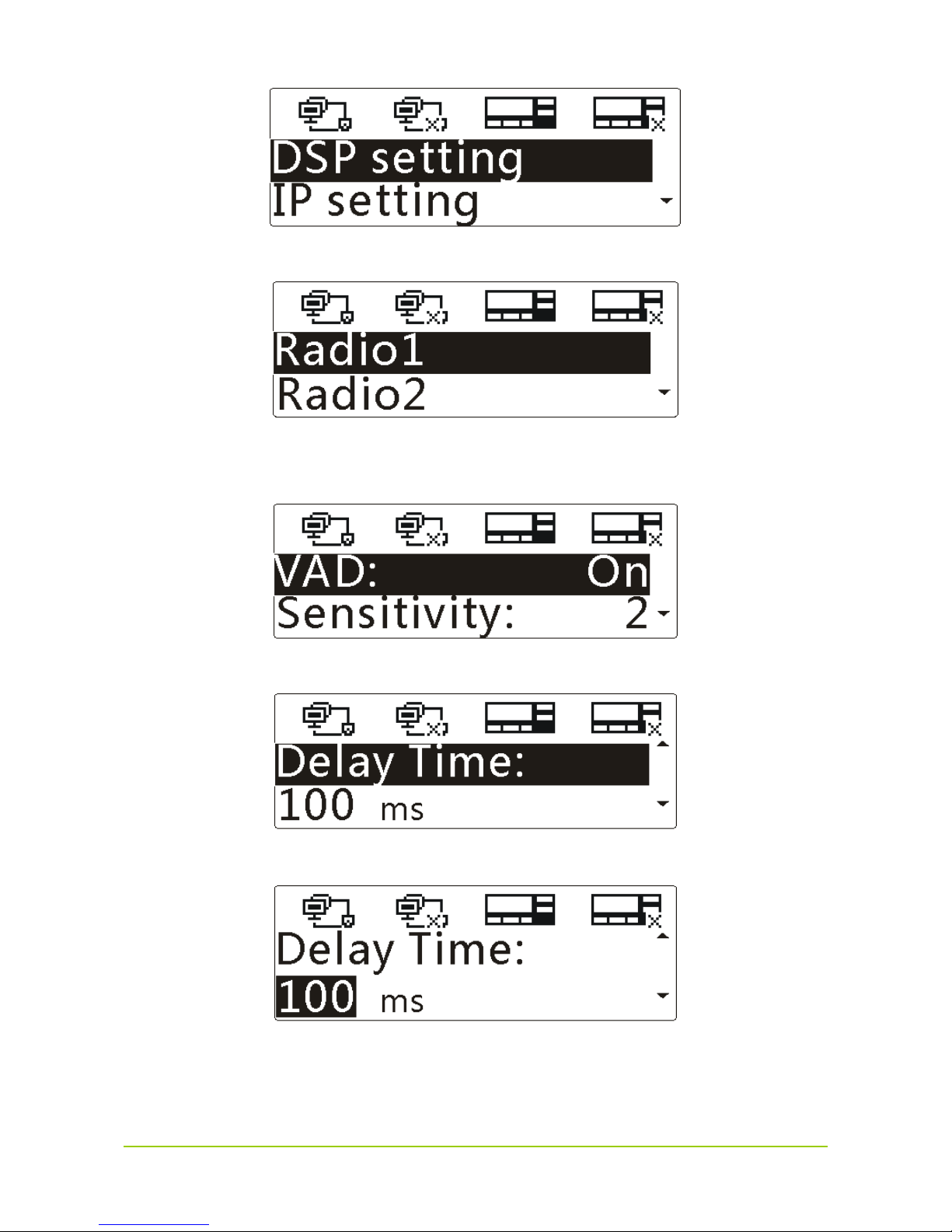

Setting the Rx Audio Delay Time
Step 1 Press the Up key to highlight “DSP setting” in the main menu, as shown below.

10
Step 2 Press the OK key to enter the menu, as shown below.
Step 3 Press the Up/Down key to highlight “Radio1” or “Radio2”, and then press the OK key to enter
the menu.
Step 4 Press the Down key to highlight “Delay Time”, as shown below.
Step 5 Press the OK key, and then press the Up/Down key to set the time, as shown below.
Step 6 Press the OK key to finish.
5.3.2 IP Settings
You can set the network card and the local IP address. The gateway has two Ethernet ports, each of

11
which is with a network card. The network cards can be enabled or disabled as per actual requirements.
To enable a network card, you need to set its IP address as the static IP address or a dynamic IP
address.

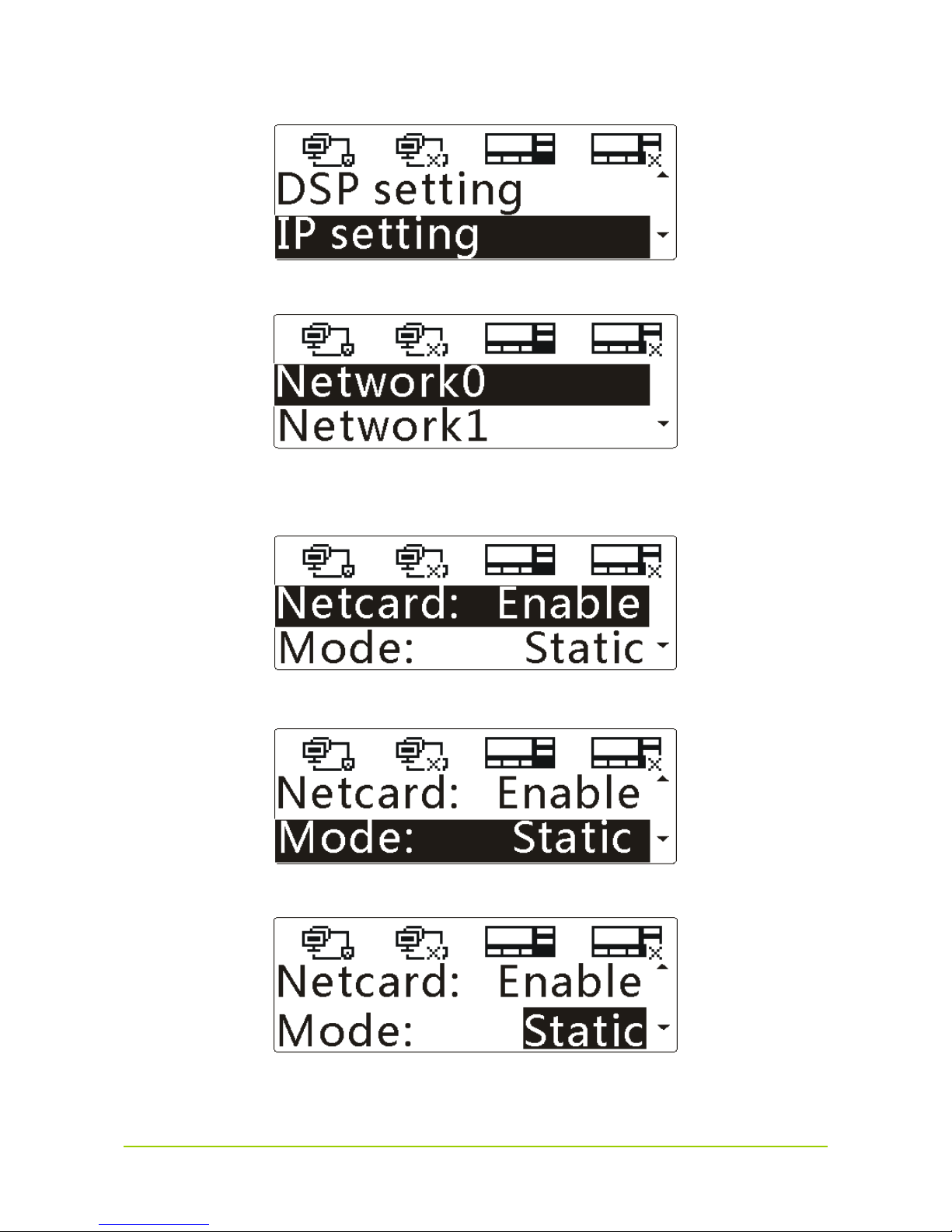

Setting the Network Card
Step 1 Press the Up/Down key to highlight “IP settings” in the main menu, as shown below.
Step 2 Press the OK key to enter the menu, as shown below.
Step 3 Press the Up/Down key to highlight “Network0” or “Network1”, and then press the OK key to
enter the menu.
Step 4 Press the OK key to select “Netcard”, and then press the Up/Down key to highlight “Enable” or
“Disable”.
Step 5 Press the OK key to finish.

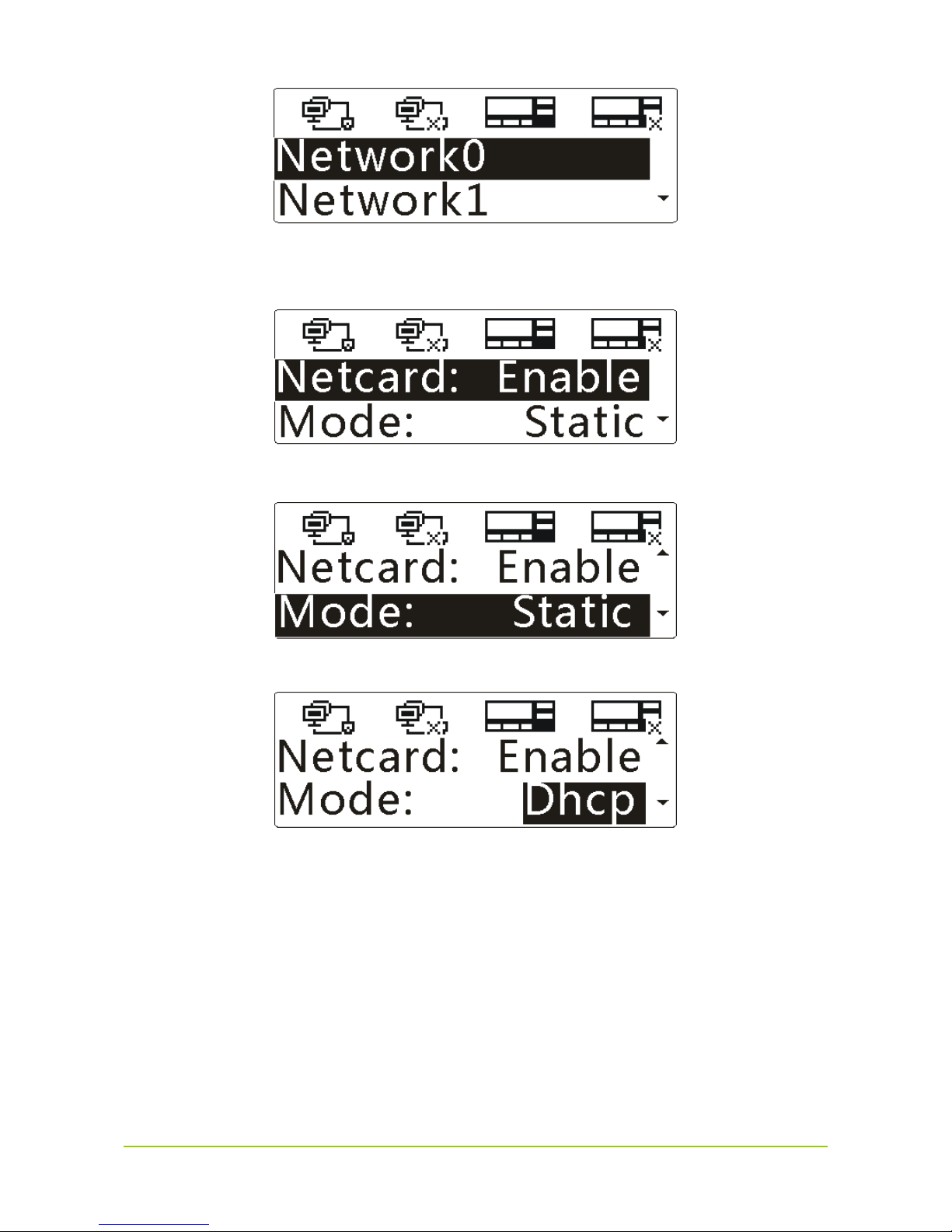

Setting the Local IP Address
zTo set the static IP address

12
Step 1 Press the Up/Down key to highlight “IP setting” in the main menu, as shown below.
Step 2 Press the OK key to enter the menu, as shown below.
Step 3 Press the Up/Down key to highlight “Network0” or “Network1”, and then press the OK key to
enter the menu.
Step 4 Press the Down key to highlight “Mode”, as shown below.
Step 5 Press the OK key, and then press the Up/Down key to highlight “Static”, as shown below.
Step 6 Press the OK key to enter the menu, as shown below.

13
Step 7 Press the Up/Down key to highlight “IP Address”, and then press the OK key.
Then the first digit of the IP address is highlighted, as shown below.
Step 8 Press the Up/Down key to change the value, and then press the OK key to confirm the value.
Then the next digit will be highlighted. Repeat above-mentioned steps until you finish setting
the IP address.
Note
Upon wrong settings of the IP address, the corresponding prompt will appear, and then you
need to set it again.
Step 9 Follow the same operations in Step 7 and Step 8 to set the “Subnet Mask” and “Default GW”
respectively.
zTo set the dynamic IP address
Step 1 Press the Up/Down key to highlight “IP setting” in the main menu, as shown below.
Step 2 Press the OK key to enter the menu, as shown below.

14
Step 3 Press the Up/Down key to highlight “Network0” or “Network1”, and then press the OK key to
enter the menu.
Step 4 Press the Down key to highlight “Mode”, as shown below.
Step 5 Press the OK key, and then press the Up/Down key to highlight “Dhcp”, as shown below.
Step 6 Press the OK key to finish.
5.3.3 Language Settings
You can set Chinese or English as the display language.
Step 1 Press the Up/Down key to highlight “Language” in the main menu, as shown below.

15
Step 2 Press the OK key to enter the menu, as shown below.
Step 3 Press the OK key, and then press the Up/Down key to highlight “中文” or “Eng”, as shown
below.
Step 4 Press the OK key to finish.
5.3.4 Gateway Information Check
You can view the gateway information, such as the software and hardware versions, network and the
storage.
Viewing the Version
Step 1 Press the Down key to highlight “About” in the main menu, as shown below.
Step 2 Press the OK key to enter the menu, as shown below.

16
Step 3 Press the OK key to enter the menu, as shown below.
Step 4 Press the Up/Down key to view the version of software and hardware.
Viewing the Network Information
Step 1 Press the Down key to highlight “About” in the main menu, as shown below.
Step 2 Press the OK key to enter the menu, as shown below.
Step 3 Press the Up/Down key to highlight “Network0 Info” or “Network1 Info”, and then press the OK
key to enter the menu.
