ELECTRIC LAWN MOWER
HTDE461RP
WARNING: Read thoroughly the instruction manual before use

2

3

4
SAFETY INSTRUCTIONS
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operating practices for electrically powered
lawnmowers
Training
a) Read the instructions carefully. Be familiar with
the controls and the correct use of the machine.
b) Never allow children or people unfamiliar with
these instructions to use the machine. Local
regulations can restrict the age of the operator.
c) Never operate the machine while people,
especially children, or pets are nearby.
d) Keep in mind that the operator or user is
responsible for accidents or hazards occurring to
other people or their property.
Preparation
a) While operating the machine always wear
substantial footwear and long trousers. Do not
operate the machine when barefoot or wearing open
sandals. Avoid wearing clothing that is loose fitting
or that has hanging cords or ties.
b) Thoroughly inspect the area where the machine is
to be used and remove all objects which can be
thrown by the machine.
c) Before using, always visually inspect to see that
the blade, blade bolt and the blade assembly are not
worn or damaged. Replace worn or damaged
components in sets to preserve balance. Replace
damaged or unreadable labels.

5
d) Before use check the supply and extension cord
for signs of damage or aging. If the cord becomes
damaged during use, disconnect the cord from the
supply immediately. DO NOT TOUCH THE CORD
BEFORE DISCONNECTING THE SUPPLY. Do not
use the machine if the cord is damaged or worn.
Operation
a) Operate the machine only in daylight or in good
artificial light.
b) Avoid operating the machine in wet grass.
c) Always be sure of your footing on slopes.
d) Walk, never run.
e) Mow across the face of slopes, never up and
down.
f) Exercise extreme caution when changing direction
on slopes.
g) Do not mow excessively steep slopes.
h) Use extreme caution when reversing or pulling
the machine towards you.
i) Stop the blade(s) if the machine has to be tilted for
transportation when crossing surfaces other than
grass, and when transporting the machine to and
from the area to be used.
j) Never operate the machine with defective guards
or shields, or without safety devices, for example
deflectors and/or grass collector, in place.
k) Switch on the motor carefully according to
instructions and with feet well away from the
blade(s).
l) Do not tilt the machine when switching on the
motor, except if the machine has to be tilted for
starting. In this case, do not tilt it more than
absolutely necessary and lift only the part, which is
away from the operator.

6
m) Do not start the machine when standing in front
of the discharge opening.
n) Do not put hands or feet near or under rotating
parts. Keep clear of the discharge opening at all
times.
o) Do not transport the machine while the power
source is running.
p) Stop the machine, and remove plug from the
socket. Make sure that all moving parts have come
to a complete stop:
- whenever you leave the machine,
- before clearing blockages or unclogging chute,
- before checking, cleaning or working on the
machine,
- after striking a foreign object.
Inspect the machine for damage and make repairs
before restarting and operating the machine;
If the machine starts to vibrate abnormally (check
immediately):
− inspect for damage,
− replace or repair any damaged parts,
− check for and tighten any loose parts.
Maintenance and storage
a) Keep all nuts, bolts and screws tight to be sure
the machine is in safe working condition.
b) Check the grass collector frequently for wear or
deterioration.
d) On machines with multi blade, take care as
rotating one blade can cause other blades to rotate
e) Be careful during adjustment of the machine to
prevent entrapment of the fingers between moving
blades and fixed parts of the machine.
Additional instructions
- Do not use this tool in wet weather.

7
- Do not use the tool in bad weather conditions (rain,
thunderstorms, storms, etc.).
- The handling / connection of the cables must be
dry.
- Use a residual current device of 30mA (RCD).
- Always avoid contact between an electrical outlet
or cable and a wet area (puddle or wet grass).
- The connections between the cables and the
plugs must be sealed. Use extension cords only
with commercially available waterproof plugs or
standards.
- The power supply cables must not be of a quality
inferior to type H05RN-F.
H05RR-f.H05WF.H05VVH2-F. for outdoor use,
with a minimum section of 1.5 m ².
- Secure the cable to the hook before turning on the
equipment.
- The permanent connection of any electrical
device in a building must be done by a qualified
electrician in accordance with the electrical
standards in force.
- An incorrect connection can cause serious injury
or death.
- Before connecting the appliance, check that the
plugs and extension cords are in good condition.
Do not use the appliance if the appliance is
damaged or worn.
- Never use the appliance if the guards are
defective or without safety devices, for example
the grass catcher in place.
- Use only an extension cord attached to a coupler
according to the IEC 60320-2-3 standard.
- Always direct the cable away from the device.
- Mow by day or under adequate artificial light.
- Avoid operating the unit in wet grass or in the rain.
- Never ride the power cable with the lawn mower.

8
- When mowing, the cable should always be behind
the mower and in the area where grass has
already been cut.
- Use the cable hook to prevent unexpected
disconnection of the cable.
- Make sure the plug is inserted correctly and do
not force the plug.
- Never pull the lawn mower by its power cable, and
never pull the cable out of the socket.
- Do not expose the cable to sources of heat. Do
not allow it to come into contact with solvents, oil,
fuels, or smudged objects.
- If a cable is damaged during use, disconnect the
plug immediately. DO NOT TOUCH THE CABLE
BEFORE DISCONNECTING THE SOCKET.
- Unplug the unit from the power sources:
oWhenever you leave the device
oBefore solving a problem.
oBefore checking, cleaning or working on the
unit.
oIf the unit starts to vibrate abnormally
- Always ensure your position on the slopes.
- Mow facing slopes, never up and down.
- Be extremely careful when changing direction on
slopes.
- Do not mow on slopes of more than 20 °.
- Walk, never run, do not get pulled by the lawn
mower.
- Be extremely careful when pulling the lawn mower
toward you.
- Stop the engine if you must tilt the lawnmower for
transport, when crossing areas other than grass,
and when transporting it to another area to be
mowed.

9
- Never operate the lawn mower with defective
protections, or without a safety device, such as a
deflector or grass catcher that is not in place.
- Start the engine with the switch on, cautiously as
instructed, and feet well away from the blade.
- Do not tilt the mower when starting the engine.
- Start the engine on a flat surface with no
obstacles or grass too high.
- Do not put your hands or feet under rotating parts.
- When working on the grass catcher or on the
ejection duct, stop the engine.
- Never lift or carry a lawnmower with the engine
running.
- When mowing, always keep a safe distance from
the rotating blade. This distance is the length of
the handlebars.
- After a breakdown, stop the engine immediately,
do not continue mowing, take the machine to an
authorized service center and ask qualified
personnel to eliminate the problem.
- If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Residual risks
Even if you use this product in compliance with all
safety requirements, the potential risks of injury and
damage remain. The following hazards may arise in
the structure and design of this product.
- There are adverse health consequences resulting
from the emission of vibration if the product is
used for long periods of time or not properly
managed and properly maintained.
- There are risks of injury and property damage due
to attachments or broken the sudden impact of
hidden objects when using cutting.

10
- Risk of injury to persons and property caused by
flying objects.
- Prolonged use of this product exposes the
operator to vibrations and can produce so-called
"white finger" disease. To reduce the risk, wear
gloves and keep your hands warm. If any of the
symptoms of "white finger syndrome" occur, seek
immediate medical attention. Symptoms of "white
finger" include numbness, loss of sensitivity,
tingling, tingling, and pain, loss of strength, color
changes or skin condition. These symptoms
usually appear on the fingers, hands or wrists.
Risk increases at low temperatures.
Intended use
This lawnmower is designed for natural grass
mowing. Any other use is prohibited.
It is suitable only for private use in a garden or plot.
Lawnmowers designed for private plots or gardens
are those used for the maintenance of grassy areas
and private lawns and should not be used in public
areas, parks, sports, agricultural or forest areas.
Symbols

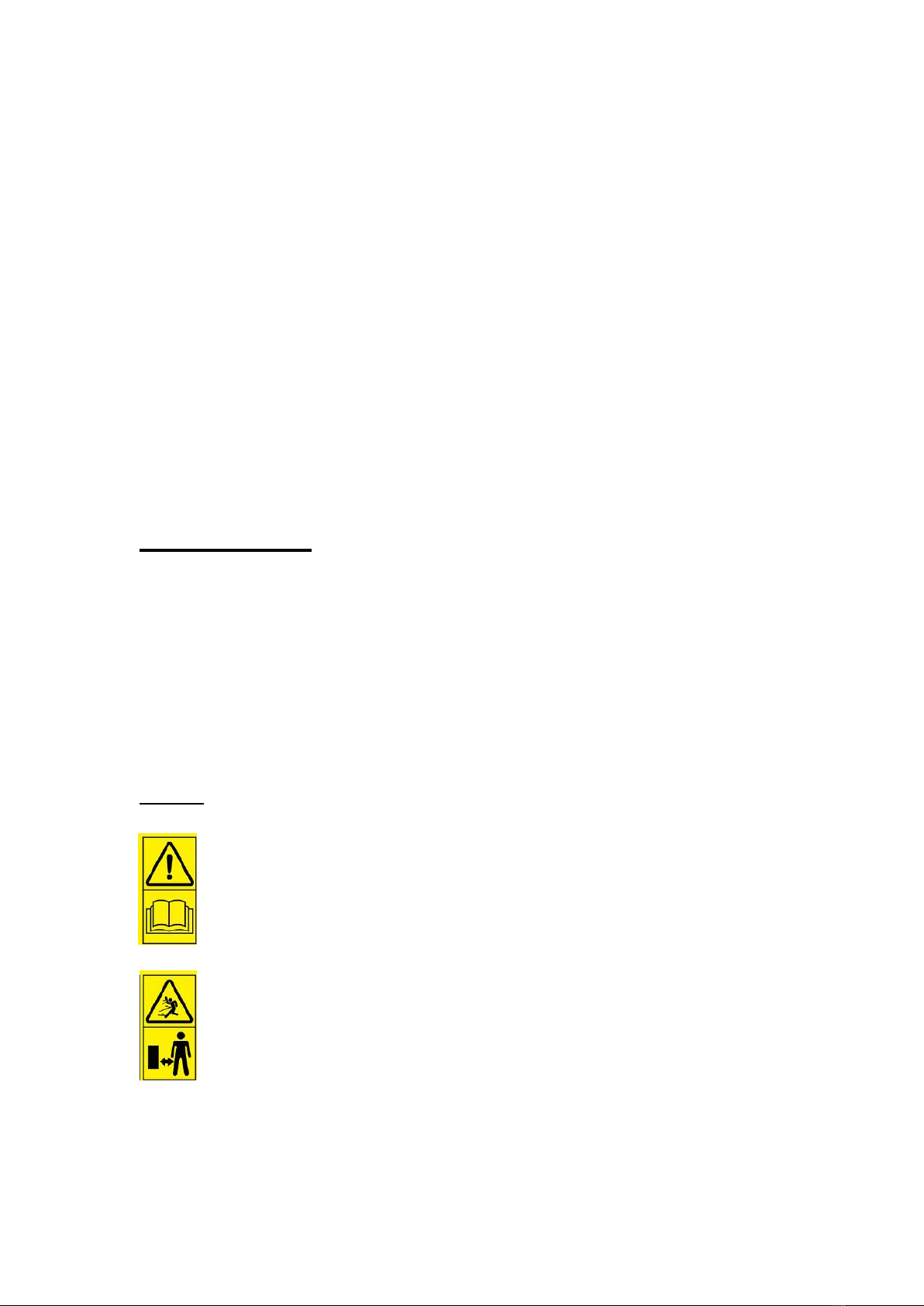

Read instructions manual
Risk of projections; Keep bystanders away

11

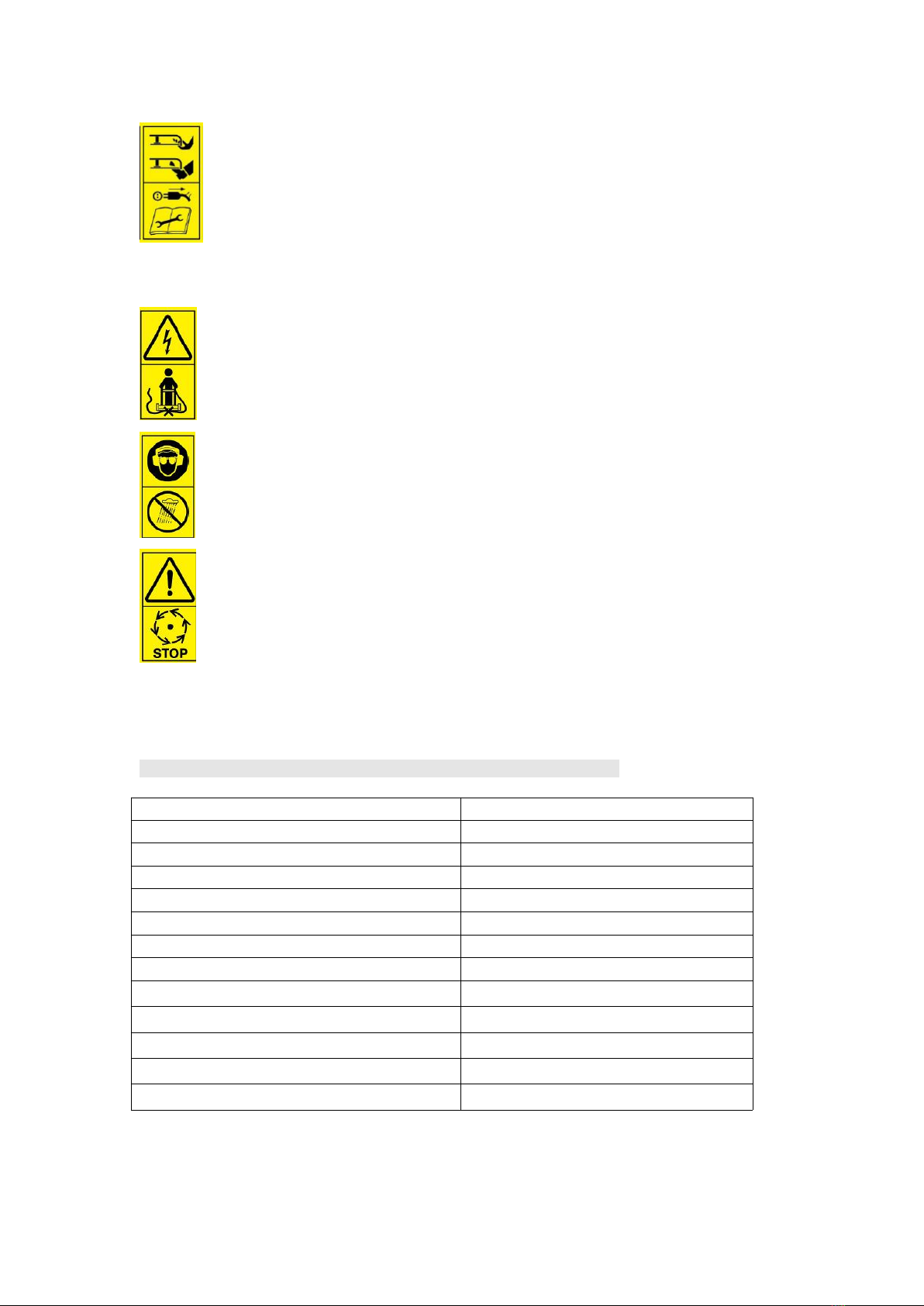

Beware of sharp blades. Blades continue to rotate after the motor is switched off –
Remove plug from mains before maintenance or if cord is damaged
Risk of electrical shock - “Keep supply flexible cord away from cutting means”
Wear hearing and ocular protection. Do not use the tool under rain
Warning! Rotating blades – the blades must be to a complete stop before
manipulation
Technical data
Type
HTDE461RP
Power
1800W
Voltage
230-240 VAC
Idling speed
2900/min
Working width
46cm
Cutting height
25-75 mm
Front wheel
150 mm
Back wheel
200 mm
Weight
24.3kg
Vibration value
Max. 0.984 m/s² K=1.5 m/s²
Sound power level(LwA)
Max.: LWA 93.32dB(A), K=1.11dB(A)
Sound pressure level(LpA)
Max.: LpA80.6dB(A), K=3.0dB(A)
guaranteed sound power level
LWA 96 dB(A)

12
Description Fig. A
1) Upper handle bar
2) Start lever
3) Lower bar
4) Flap
5) Front wheel
6) Lawnmower housing
7) Butterfly screw
8) Wheels
9) height adjustable handle
10) Grass catcher
11) Cable holder
12) filling indicator
13) quick fix handle
14) Power cable
15) Cable strain relief
16) Release button
17) LED
18) Blade
19) Blade screw
Assembly
Caution! Risk of injury from rotating blades. Carry out work on the equipment only when the
blade is switched offand stationary.
Disconnect the plug before any work on the equipment.
Assembling the Curved Handle
Select the greatest cutting height to help mount the bar. See chapter, adjusting the cutting
height.
Mount the front wheel (fig. B)
1. Insert the two screws from the inside through the recesses on the front sheet steel housing
(6).
2. Fix the front wheel (5) with the two washers and nuts.
3. Attach the front wheel (5) to the top of the lawnmower housing (6) with the nuts and bolts.
Installing the Handle Bar (Fig. C&D)
1. Slide the two ends of the lower handle bar (3) into the receptor on the mower housing.
2. Fix the lower bar using the supplied wing screws (7).
3. Fasten the upper handle bar (1) using the tensioning levers (13).

13

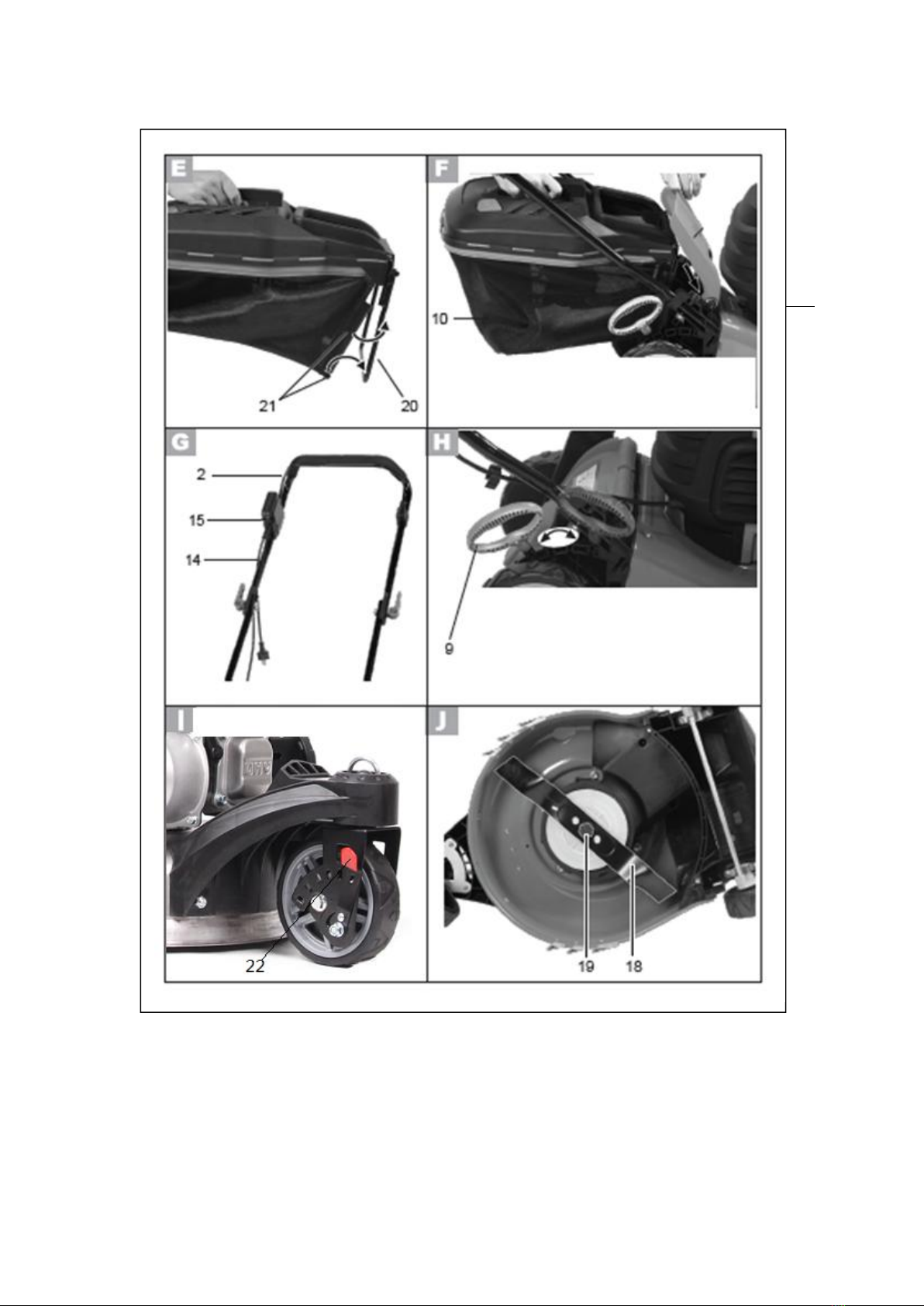

Assembling of grass catcher (Fig. E)
NOTE: The side discharge must not be installed when the grass catcher is used.
1. Pull plastic loops (21) over basket rods (20).
Fixing of the grass catcher to the tool (Fig. F)
2. Lift up the flap (4).
3. Hook the grass catcher (10) on the rear of the equipment.
4. Release the flap (4).
Dismantling/Empty the grass catcher
5. Lift the flap (4) and remove the grass catcher (10).
6. Empty the grass catcher
Level gauge
The level gauge is located on the side of the grass catcher. The aerodynamic air guidance
provided by the flap also optimizes the filling.
GO Flap open: grass catcher empty
STOP Flap closed: grass catcher full

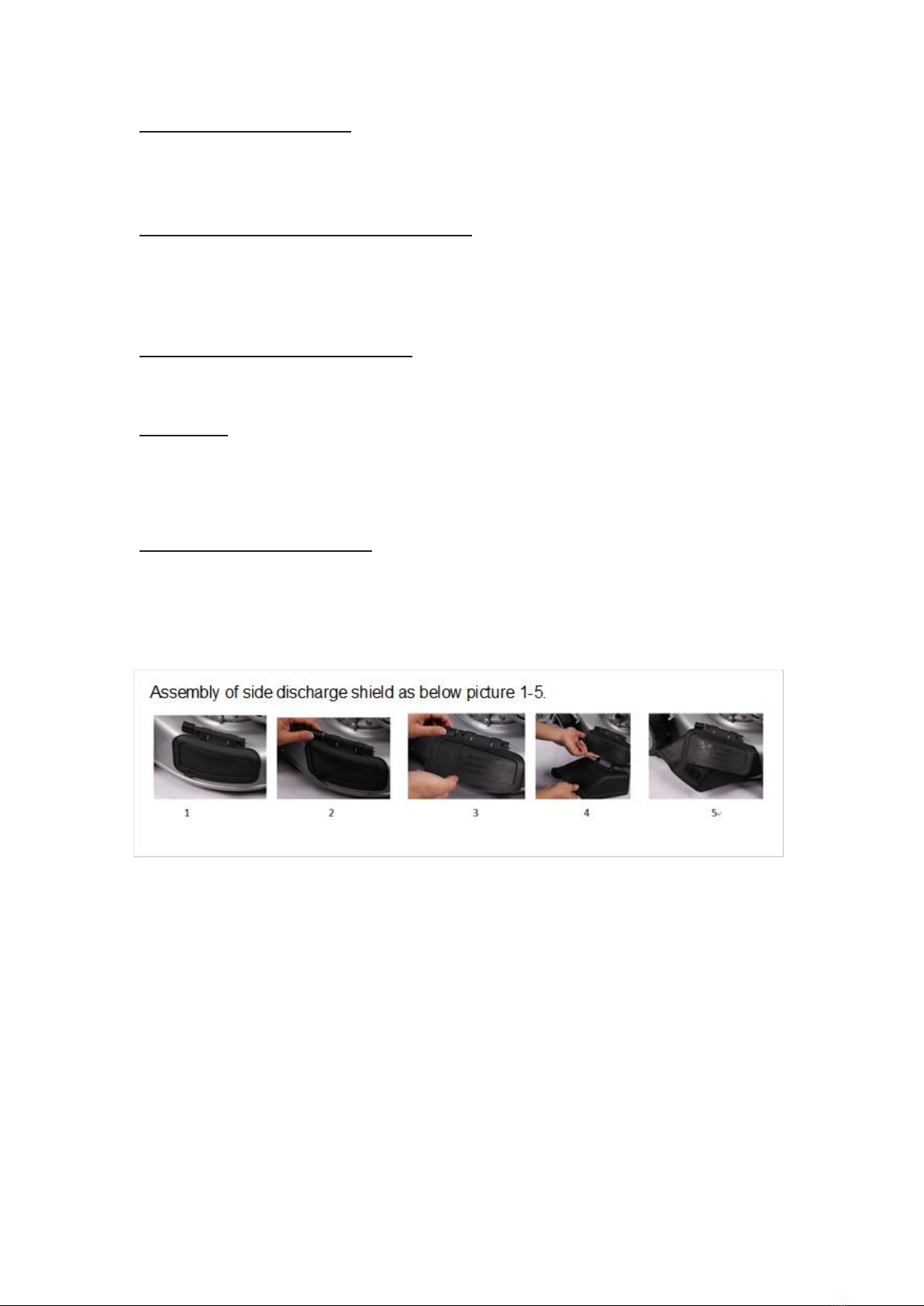

Assembly of the side discharge
NOTE: The grass catcher must not be installed when the discharge is used
- Unlock the side discharge cover
- Lift up the side discharge cover
- Install the side discharge on the hook
- Release the side discharge cover.
Switching On and Off (fig. G)
The red LED (17) above the release button will illuminate as soon as the lawn mower is
connected to a power supply.
2. To relieve the strain, form a loop with the end of the power cable (14) and hang this into the
strain relief (15).
3. Connect the equipment to the power supply.
4. Before switching on, ensure that the equipment is not in contact with any objects.
5. To switch on, press the release button (16) on the handle at the same time as pressing the
start lever. Release the release button (16).
6. To switch off, release the start lever (2).

14
Adjusting the Cutting Height (Fig. H)
Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of
injury.
The equipment has 6 positions for setting the cutting height (25-75 mm):
1. Pull the lever (9) outwards and push it to the desired position.
2. Push the lever back in.
3. Also set the appropriate height on the front wheel (5).
Pull the lever (22) outwards and push it to the desired position.
The correct height is around 25 – 40 mm for a decorative lawn and around 30 – 60 mm for a
used lawn.
Adjust front wheel (Fig. I)
The lawn mower is extremely flexible and maneuverable thanks to the special construction of
the front wheels.
These are to be adjusted according to the specific situation as follows:
1. The alignment of the wheel is fixed once the clamping brackets (23) snap into place. If the
wheel is desired in another running direction, lift clamping bracket to release it. Bring wheel
into new position and clamping brackets snaps into place once again.
2. Should the front wheels remain able to move freely, lift the clamping brackets (23) and do
not place them in the opening, but rather set them on the plate beside it.
Operation
Note: Use a residual current device (RCD) rated for a residual current not greater than 30 mA.
Important! The front and back wheels must be set to the same height.
Starting and Stopping
The blade continues to rotate for a few seconds after the machine is switched off.
Allow the motor/blade to stop rotating before switching “on”again.
Do not rapidly switch off and on.
Starting:
1. Press and hold the safety button.
2. Squeeze the switch lever towards the handle.
3.Release the safety button.
Stopping:
Release the switch lever.
Mowing:
Place the lawnmower on the edge of the lawn, as close to the power point as possible. Work
away from the power point
Position the cable to opposite side (already cut) at the end of each turn.
When mowing, do not allow the motor to labor particularly in heavy conditions. When the
motor labors the speed of the motor drops and you will hear a change in the motor
sound, when this occurs, stop mowing, release the switch lever and raise the height of cut.
Failure to do so could damage the machine.

15
Maintenance
Cleaning
Note: Disconnect electricity by unplugging cable at the socket before proceeding.
Attention: keep hands clear of moving blade.
Clean mower thoroughly after each mowing with cloth or brush.
Do not spray with water.
Winter storage
-Clean mower thoroughly before storing away.
- Have your mower thoroughly checked once a year by an approved service center
- Do not store it in a wet or humid place.
-Keep all nuts, bolts, and screws tight to be sure the appliance is in safe working condition.
-Check the grass catcher frequently for wear or deterioration.
-Replace worn or damaged parts for safety.
Change of cutter blade (Fig. J)
Stop, remove plug from the power supply and remove the collector.
If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or
showing signs of imbalance, it must be replaced.
1. Turn the equipment over.
2. Use sturdy gloves and hold the blade firmly (18). Use a spanner to turn the blade bolt (19)
counter-clockwise from the motor spindle.
3. Install the new blade in the reverse order. Ensure that the blade is positioned correctly and
the screw tightened firmly.
DISPOSAL
Electrical products should not be discarded with household products. According to the
European Directive 2012/19/EU on waste electrical and electronic equipment and its
implementation into national law, electrical products used must be collected separately and
disposed of at collection points provided for this purpose. Talk with your local authorities or
dealer for advice on recycling.

16
GB / DECLARATION OF CONFORMITY
BUILDER SAS
ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France
Tel : [phone] Fax : [phone]
declares that the machines:
ELECTRIC LAWN MOWER
Model: HTDE461RP
Serial No.: 20210305718-20210305825
the people name holding the technical file：Mr. Olivier Patriarca
have been designed in compliance with the following standards:
EN 60335-1:2012+A11+A13, EN 60335-2-77:2010, EN 62233:2008
EN 55014-1: 2017, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013
And in accordance with the following directives:
Directive Machine 2006/42/EC
Directive EMC 2014/30/EU
Rohs Directive (EU)2015/863 amending 2011/65/EU
noise Directive 2000/14/EC Annex VI & Directive 2005/88/EC
Sound power level: Max. 93.32 dB (A); K=1,11dB
Guarantee sound power level: LWA 96 dB(A)
Notified body
Société Nationale de Certification et d'Homologation NB 0499
11, route de Luxembourg L-5230 Sandweiler
Philippe MARIE / PDG
Cugnaux, 01-01-2021

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
WARRANTY
17

WHAT TO DO IF MY MACHINE BREAKS DOWN?
If you bought your product in a store:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
If you bought your product on a website:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping o󰀨 the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
PRODUCT FAILURE
18

THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modication and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insu󰀩cient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
• The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notication by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site). Batteries must
be charged before being stored.
WARRANTY EXCLUSIONS
19

17
