LAWN MOWER PETROL
HTDT5070ES-2
WARNING: Read thoroughly the instruction manual before use

2
CONTENTS
1. SAFETY INSTRUCTIONS 3
2. YOUR PRODUCT 9
3. ASSEMBLY 10
4. FILLING FUEL TANK 14
5. USE 15
6. MAINTENANCE AND STORAGE 17
7. EC DECLARATION 22
8. WARRANTY 23
9. PRODUCT FAILURE 24
10. WARRANTY EXCLUSIONS 25

3
1. SAFETY INSTRUCTIONS
Instructions
Read the instructions carefully. Be familiar with the controls and proper
use of the equipment.
Never allow children to use this mower. If the mower is given to an other
people, also give this manual. Also make sure that this person uses this
device only after receiving the necessary instructions. Local laws may
restrict the age of the user.
Never mow while people, especially children, or animals are nearby.
Keep in mind that the operator or user is responsible for accidents or risks
that may occur to other persons or their properties.
If necessary, have training with an experienced person in order to use in a
safe way this tool.
Preparation
During mowing, always wear slip-resistant foot protection and long pants.
Do not use the equipment barefoot or wearing sandals open.
Wear personal protective equipment including at least: clothes of
protection, gloves, foot protection, mask, ocular and hearing protection
Carefully inspect the area where equipment and remove all foreign objects
such as stones, toys, stick and wires.
WARNING - Gasoline is extremely flammable.
oAdd fuel before starting. Do not remove the fuel tank cap while the
machine is running or when it is hot.
oIf the fuel has spilled or leaked, do not attempt to start the machine
but move the machine away from the leakage area and avoid
creating a source of ignition until the gasoline vapours has dissipated.
oRefuel only outside and do not smoke during refuelling.
oStore fuel in tanks specifically designated for this purpose.
oReplace the fuel tank or the defective gasoline plug securely.
Replace defective mufflers.
Before use, always inspect visually that the blades, blade assembly and
blade lock are not worn or damaged. Replace blades and blade
assemblies that are not in good condition to maintain balance. Always use
recommended blades. Contact the manufacturer or your dealer in order to
have a list of recommended blades. Non-recommended blades can give a
risk of malfunctions, injuries and accidents.
The blades must be balanced to ensure proper operation and to be able to
work safely.
Operation
Do not use the machine in a confined space or hazardous carbon
monoxide emissions can be collected.
Mow only under daylight or under good artificial light. Always have a good

4
visibility.
Avoid using the equipment on greasy grass, where possible.
Always be sure of your walking on the slopes.
Walk, never run.
For lawn mowers, mow across slopes, never from top to bottom.
Exercise extreme caution when changing direction on slopes.
Stop the blades if the mower is to be tilted during transport when crossing
surfaces other than grass, and when transporting the mower due to the
area to be mowed.
Do not mow on steep slopes.
Use extreme caution when tipping or pulling the mower towards you.
Never use the mower with defective guards, or without safety devices
such as baffles and or collection bins, which are not in place.
Do not change the motor configuration or increase the speed.
For starting, disengage all blades, the gears must be in neutral, the
traction control lever must be released. Set foot well away from the blades.
Before starting the engine or starting the engine, carefully read and
understand all instructions.
Do not tilt the mower when starting the machine or turn on the engine,
unless the mower needs to be tilted for starting. In this case, do not tilt it
more than absolutely necessary and lift only the part that is furthest away
from the user.
Do not start the machine by standing in front of the ejection
Do not place hands or feet near or under rotating parts. Keep clean the
mouth of the grass extractor.
Never take or carry the mower while the machine is running.
Stop the machine and remove the ignition key, disconnect the spark plug
from the spark plug:
oBefore cleaning or unclogging the grass extractor.
oBefore checking, cleaning, and working on the mower.
oAfter hitting an object. Inspect the mower for damage and repair
before re-using the mower.
oIf the mower begins to vibrate abnormally, stop the engine
immediately and check according to previous recommendations.
The controls must be always checked if they are functioning correctly. In
case of malfunction, do not use the tool and bring to a service agent for
inspection.
Stop the engine immediately:
oEvery time you leave the tool alone and the working area
oBefore refuelling.
When the tool is stopped, park it in a safe place.
Move slowly when moving.
The lawnmower should not be used in slopes and near drop-offs, ditches
or embankments; if the tool must be used in these kinds of emplacements,
take an extreme precaution and operate carefully the tool.

5
The lawnmower safety systems or features shall not be tampered with or
disabled;
The operator should not alter or tamper with any sealed adjustments for
the engine speed control.
Maintenance and storage
Check and tighten all bolts and screws to ensure that the equipment is in
safe operating condition.
Never keep the mower with gasoline in the tank in a building or vapours
can cause a bright flame or spark.
Allow the machine to cool before storing it in an enclosed area.
To reduce the risk of fire, keep the machine clean without grass, without
grease, the muffler and the engine cools, disconnect the battery if
necessary and empty the fuel tank
Check the grass catcher frequently, its condition or deterioration.
Replace worn and damaged parts for safety.
If the fuel tank is to be drained, it must be made outdoors.
Special safety instructions
Always use the mower with its pick-up bag and / or deflector in the
intended position.
Switch off the engine before emptying the pick-up bag or before changing
the cutting height.
While the engine is running, never put your hands or feet under the mower
or under the grass ejection area.
Before mowing, remove all foreign objects from the grass that can be
propelled by the machine.
Keep children and pets at a safe distance while using the mower.
Never lift the mower when the engine starts.
Alcohol, drug, as well as illness, fever and fatigue affect your ability to
respond. Do not use power tools in such circumstances.
Never change the rated speed of the motor.
Never lift or carry the tool while the engine is running.
Before starting the engine, release the drawbar.
Before mowing, install the collection bag in its intended position.
Do not use the mower in the event of rain or when the grass is wet.
Never lift the rear of the mower when starting the engine and never place
your hands or feet under the mower deck or in the rear ejection port while
the engine is running.
Turn off the engine and remove the spark plug cap in the following cases:
oBefore operating under the mower deck or near the ejection opening.
oBefore any maintenance, repair or verification.
oBefore transporting, lifting or storing the mower.
oIf you leave the mower unattended or change the cutting height.
oTo remove and empty the collection bag.

6
After striking a foreign object, turn off the engine and carefully inspect the
mower for damage. Take the lawnmower to an authorized service center
for repair if necessary.
If the mower vibrates abnormally, try to understand the reason and bring
your lawnmower to an authorized repair center.
Regularly check that the bolts, nuts and screws are properly tightened for
safe use of the mower.
Do not use the tool where there is a risk of lighting.
Use the tool on daylight or under a good lighting. Always keep bystanders
away.
Warning: Take an extreme precaution when operating the lawnmower in
slopes and near drop-offs, ditches or embankments; always be sure of
your footing and stay in alert.
the lawnmower safety systems or features shall not be tampered with or
disabled;
the operator should not alter or tamper with any sealed adjustments for
the engine speed control;
The operator must have, before using the tool for the first time, an
adequate training with an experienced people.
Warning: do not use of the unit while being tired, ill or under influence of
alcohol or other drugs;
Park safely the tool before leave it. The tool must be switched off.
The lawnmower shall not be operated without either the entire grass
catcher or self-closing discharge opening guard in place;
Warning: be careful about exhaust gas. Do not inhale them.
Wear adequate clothing such as long trousers and a protective equipment:
slip-resistant foot protection, hearing protection, eyes protection and
gloves.
To avoid health issues, limit the time of operation. Take enough rest.
Exposure to noise and vibrate can have bas consequences on health.
WARNING: There is a danger about moving blade assemblies. Always
handle blades when they are in a complete stop and wear protective
gloves.
Fuel Handling
Use caution when handling fuels. They are flammable and the vapours are
explosive.
Use only an approved container.
Never remove the fuel cap or add fuel while the machine is on. Turn off the
unit and allow the engine and exhaust components to cool down before
refuelling.
Do not smoke.
Never refuel inside a room.
Never store the tool and the fuel tank indoors where there is a naked flame,
such as near a water heater.

7
If fuel has spilled, do not attempt to start the machine, but move it away from
the spill before starting to use it. Please clean up any spills.
Replace and tighten the fuel tank cap after refuelling.
Follow strictly the instructions in this manual for filling the tool with fuel.
During maintenance and storage
Switch off the tool and wait until it stops completely. Make sure that all moving
parts are stopped.
Allow the machine to cool before performing inspection, adjustments,
maintenance, servicing and storage.
Store the tool where fuel vapour will not reach a flame or spark.
The transport of the tool must be secured in order to avoid fuel spillage,
accidents and injuries.
Residual risks
Even if you use this product in compliance with all safety requirements, the
potential risks of injury and damage remain. The following hazards may arise
in the structure and design of this product:
There are risks of injury and property damage due to attachments or broken
the sudden impact of hidden objects when using cutting.
There are risks of injuries and accidents caused by flying objects.
Prolonged use of this product exposes the operator to vibrations and can
produce so-called "white finger" disease. To reduce the risk, wear gloves and
keep your hands warm.
If any of the symptoms of "white finger syndrome" occur, seek immediate
medical attention.
Symptoms of "white finger" include numbness, loss of sensitivity, tingling, pain,
loss of strength, colour changes or skin condition. These symptoms usually
appear on the fingers, hands or wrists. Risk increases at low temperatures.
A long exposition to noise can affect the health of the operator. A hearing
protection must be always used when operating the tool. The operation of the
tool must be limited and some rest must be taken between two sessions (e.g.
10min of operation and 20min of rest).
Symbols
Read the instructions

8
Watch out for projections! Keep viewers away from
work area
Danger! Keep your hands and feet away from the
cutting element
Warning – Exhaust gas. Do not be exposed to
exhausted gas and do not use the tool in a confined
place
Fuel is flammable, keep it away from fire. Do not add
fuel while the machine is running
During repair work, remove the spark plug and repair
according to the operating manual
Wear protective equipment. Wear eye and hearing
protection when using the tool
Warning – The engine is hot during the use
Guarantee sound power level
Do not use the machine in the rain and do not leave it
outside when it rains.
Wait until all machine components have come to a complete
stop before touching them. The blades continue to rotate
after the machine has stopped, a rotating blade can cause
injury.

9
Intended use
This model of thermal mower is designed for mowing natural grass. Any other
use is prohibited.
It is only suitable for private use in a garden or a plot. Lawn mowers designed
for private plots or gardens are those used for the maintenance of grassy
areas and private turf and should not be used in public areas, parks, sports,
agricultural or forestry areas.
2. YOUR PRODUCT

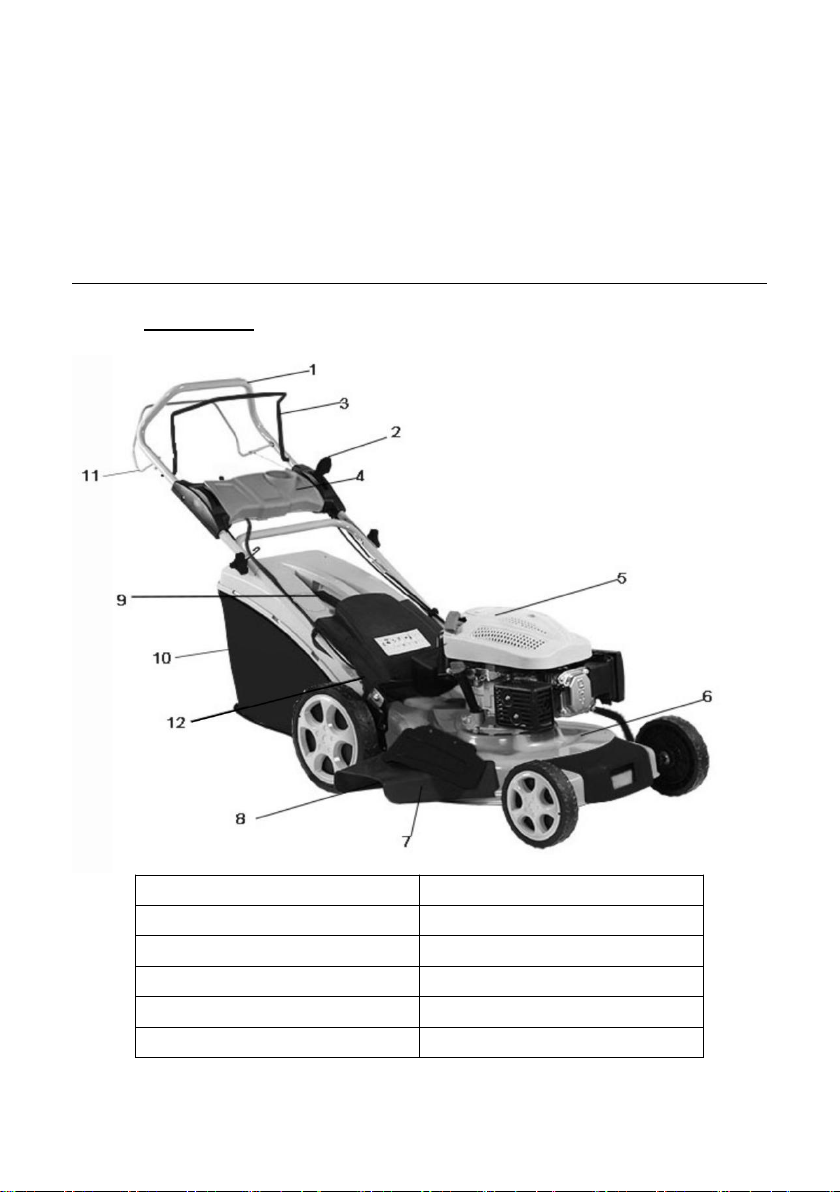

a. Description
1. Upper bar
7. Side discharger cover
2. Lever STARTER
8. Lateral discharge
3. Engine control bar
9. Flap
4. Dashboard
10. Grass catcher
5. Engine
11. Self-propeller bar
6. Deck
12. Cutting height lever

10
b) TECHNICAL DATA
a. Technical data
Model
HTDT5070ES-2
Nominal power
3kW
Displacement
173cm³
Max engine speed
2800/min
Cutting width
502mm
Volume of the collection bag
55l
Weight
36kg
Engine type
DY1P70FA
Blade type
DY0605-12
Fuel tank capacity
1,5l
Oil tank capacity
0,6l
Sound pressure level
Lpa: 83dB(A), K=3,0 dB(A)
Guaranteed Sound Power
Level
97dB(A)
Sound power level
LwA: 97dB(A)
Vibration value
Max. 5,4 m/s², K=1,5m/s²
3. ASSEMBLY AND SETTING

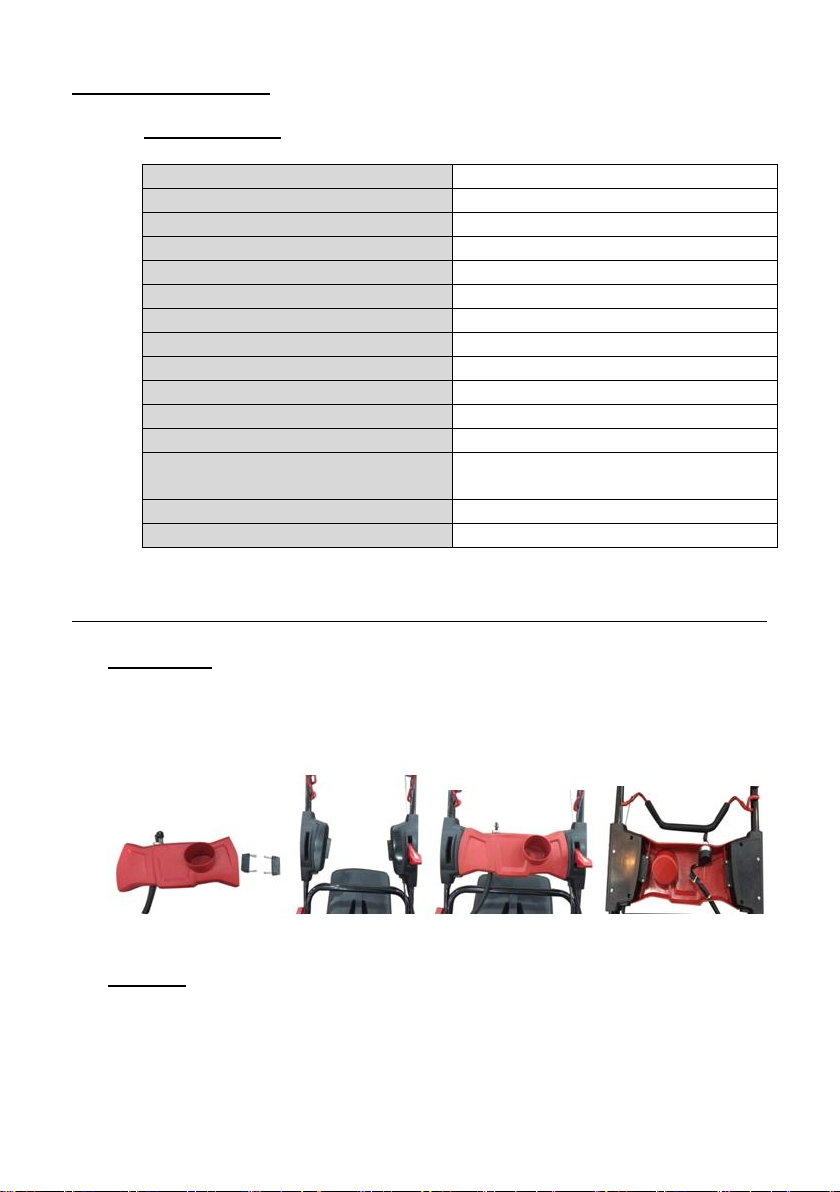

a) Dashboard
- Unscrew the screws located under the dashboard. Insert the plates into
the slots on the sides of the upper handle. Install the dashboard and
screw it with the screws.
b) Handles

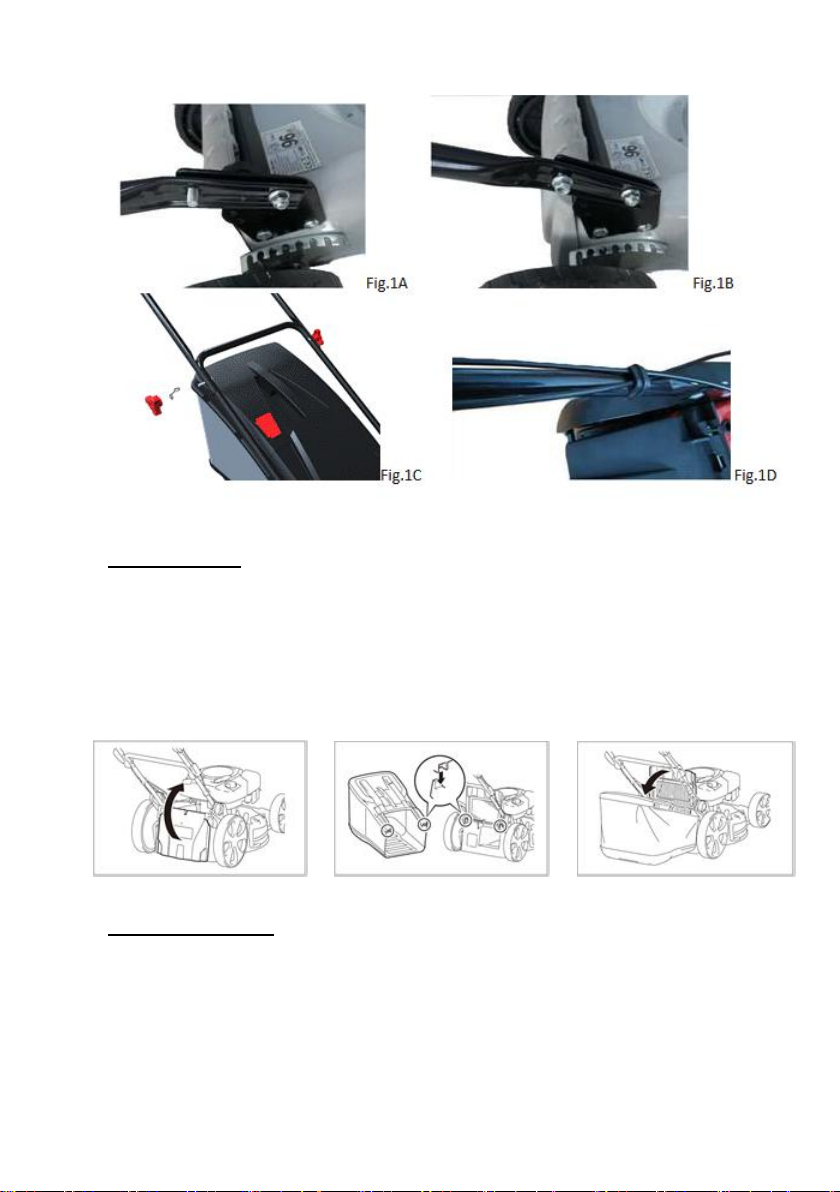

-Screw the lower handle onto the tool with the 4 screws and nuts (two on
each side).
-Combine the upper handle and the lower handle (and place the hook on
the right side of the handle) with the two nuts and their screws.
-Secure the cables with the rubber supports.

11
c) Grass catcher
NOTE: When installing the grass catcher, the side discharge and the
rear discharge must not be installed.
-To install: Lift the flap and hang the collection bag on the back of the
mower.
-To remove it: lift and hold the flap then remove the grass container.

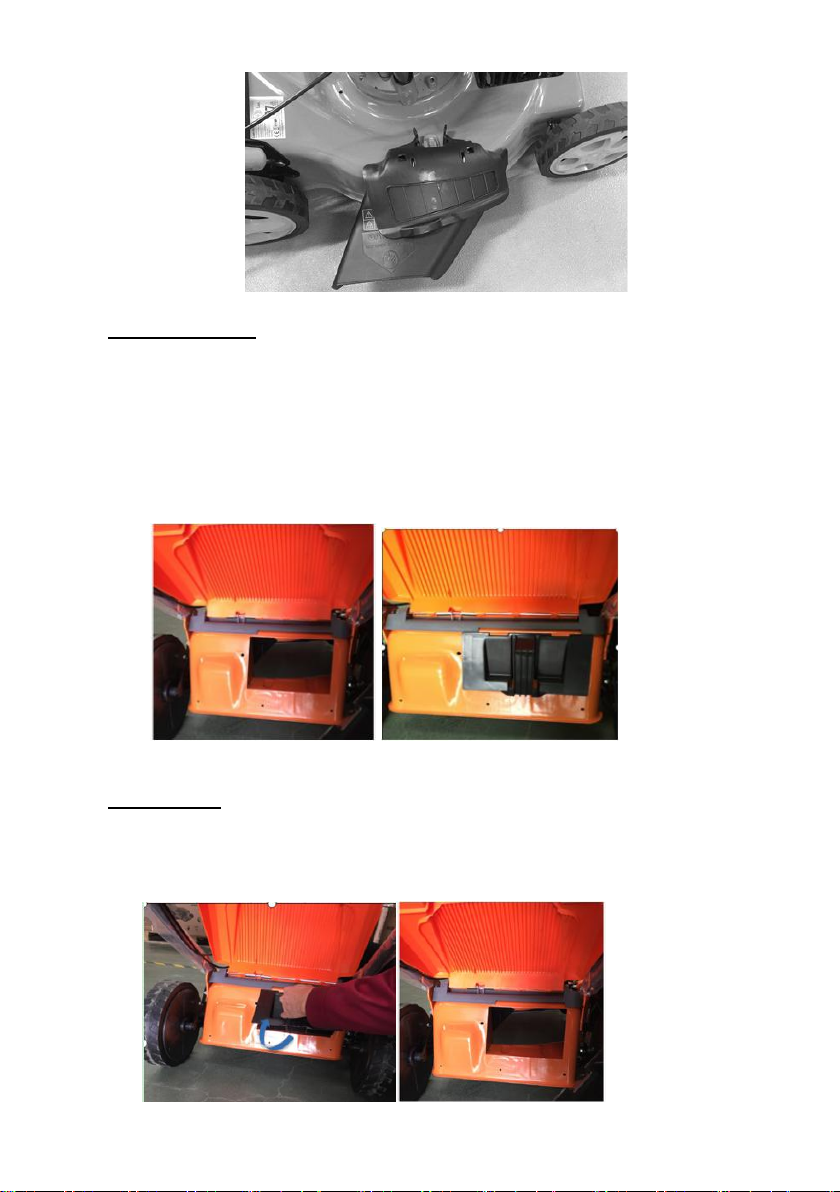

d) Lateral discharge
NOTE: When installing the side discharge, the rear discharge and the
grass catcher should not be installed.
- Press the tabs on the flap then lift the flap. Install the side discharge by
putting the hooks on the bar. Then release the flap.

12
e) Back discharge
NOTE: When installing the rear discharge, the side discharge and the
grass catcher should not be installed.
-Remove the grass catcher if it is installed.
-Lift the flap.
-Fully insert the discharge into the back of the tool.
-Press the kit to lock it in place.
Disassembly
-Lift the flap.
-Firmly press the center of the rear discharge.
-Hold and pull the handle to remove the rear discharge.

13

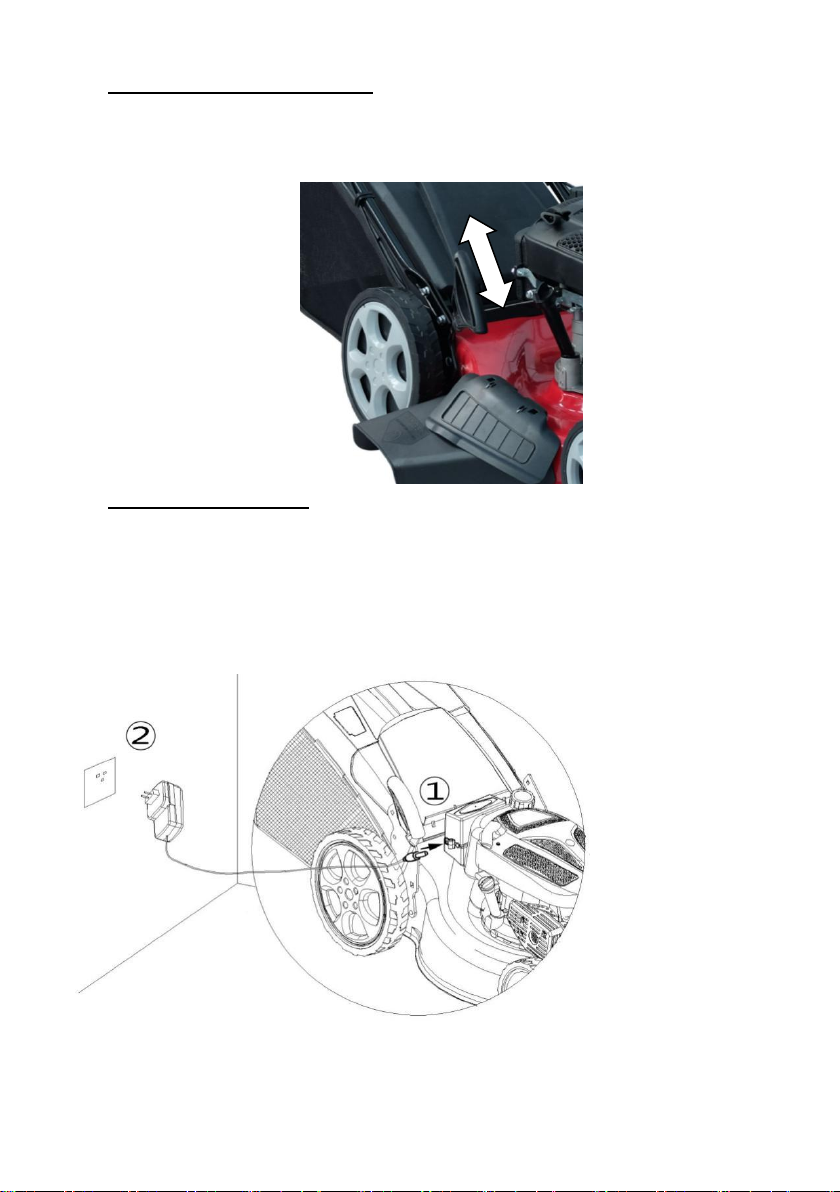

f) Setting of the cutting height
According operation to be performed, adjust the desired cutting height;
Grasp the lever, pull it to the right and then lower it to decrease the cutting
height or raise it to increase the cutting height
g) Charge of the battery
First, put the plug of the charger into the battery box per arrow direction
(pos.1);
Then, put the other plug of the charger into the power socket (pos.2).

14
4. FILLING FUEL TANK
a. Filling tank
WARNING! Gasoline is extremely flammable.
Store fuel in specially designed cans for this purpose.
Fill the fuel tank only outdoors and before starting the engine. Do not
smoke when filling the fuel tank or handling fuel.
Never open the fuel tank cap and never add fuel while the engine is
running or when it is hot.
If fuel has spilled, do not start the engine any further, move the tool away
from where the fuel has been spilled, and be careful not to create a spark
or flame until the fuel vapors have dissipated.
Fully close all fuel tank and fuel canisters.
Before tilting the mower to maintain the blade or drain the oil, empty the
fuel tank.
WARNING: Never fill the fuel tank indoors, while the engine is running,
or before the engine has cooled down for at least 15 minutes after use.
CAUTION: Do not use unapproved gasoline, such as E15 and E85. Do
not mix the oil with gasoline or modify the engine to operate with
alternative fuels. The use of unapproved fuels will damage the engine
parts and will void the engine warranty. To protect the fuel system from
scale formation, add a fuel stabilizer to the fuel. All fuels are not identical.
If startup or performance problems occur, change supplier or fuel brand.
Fuel must meet the following criteria:
-Clean, new and lead-free gasoline.
-A minimum octane rating of 87/87 AKI (91 RON).
-A gasoline containing up to 10% ethanol is acceptable.
-Remove the fuel tank cap. Add fuel.
-Close the fuel tank with the cap.
Do not overfill. Wipe off any fuel that has overflowed before starting the
engine.
a. Engine oil
Recommended oil: We recommend the use of high quality detergent oil
classified for SF, SG, SH, SJ or higher. Do not use special additives.
Filling oil tank
-Open the oil tank.
-Fill directly the oil in the tank. Do not overfill
-Close the oil tank. Wipe any spillage.

15

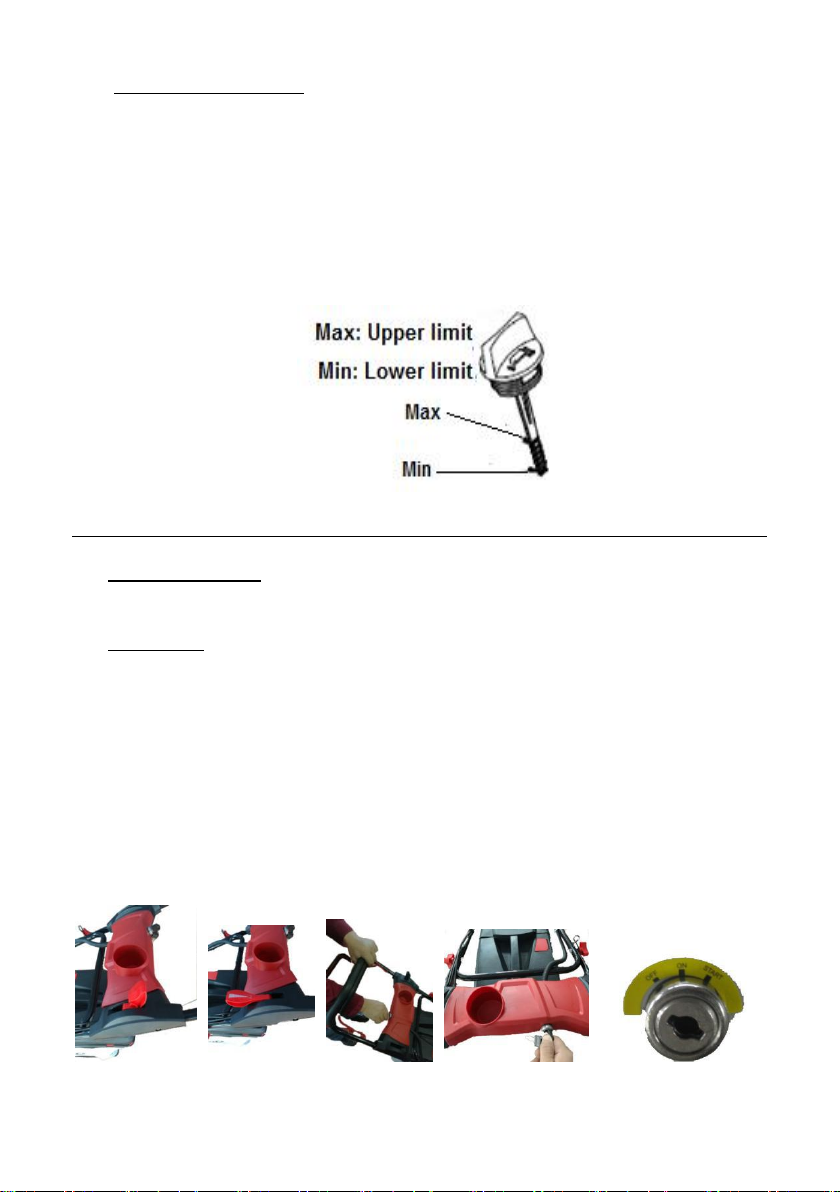

Checking the oil level
-Check the oil level when the engine is off and horizontal.
-Remove the plug / dipstick from the oil tank and wipe it off.
-Insert the oil tank plug / dipstick into the tank neck as shown, without
screwing it in, and then remove it to check the oil level.
-If the oil level is near or below the lower limit of the dipstick, remove the
dipstick and fill the recommended oil reservoir up to the upper limit of the
dipstick (bottom edge of the dipstick). Do not overfill.
-Replace the oil tank plug / dipstick.
5. USE
a. Starting the tool
This lawn mower can be started electrically or manually.
Electrically

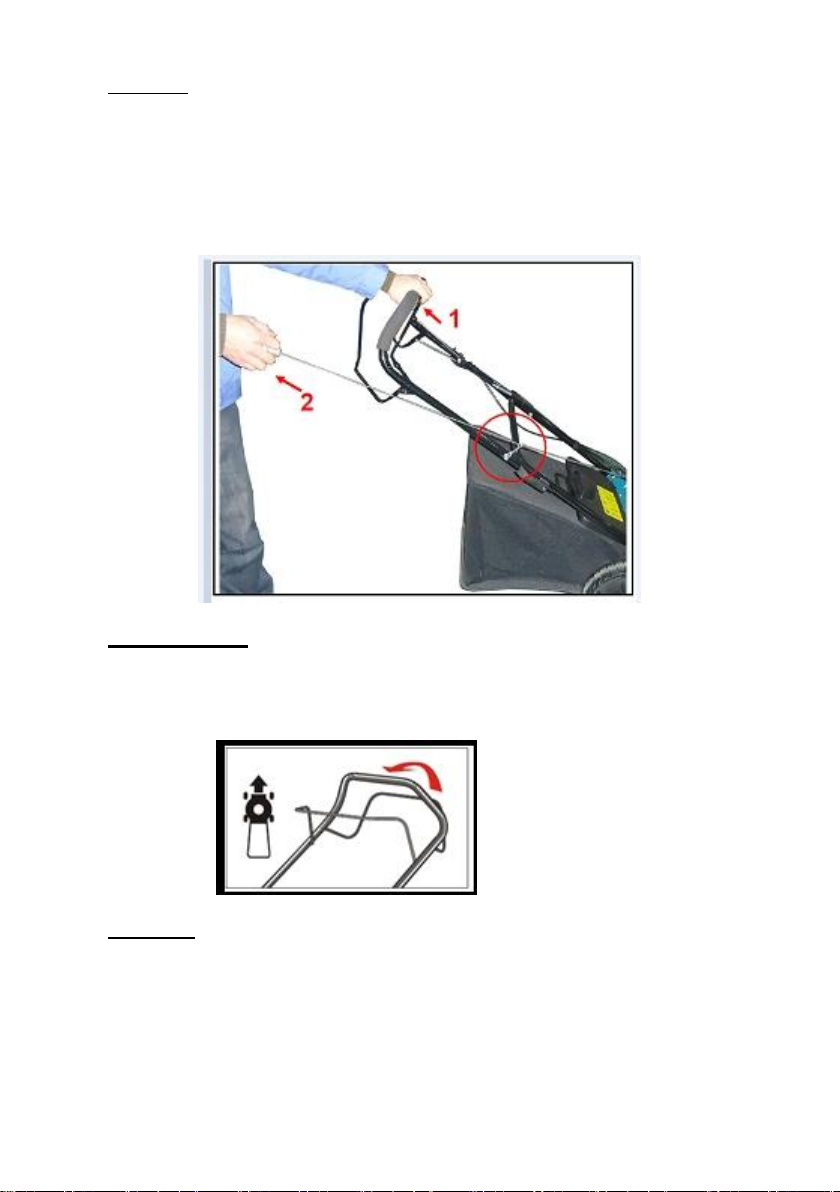

1. The unit is equipped with a rubber boot over the end of the spark plug,
make certain the metal loop on the end of the spark plug wire (inside the
rubber boot) is fastened securely over the metal tip on the spark plug.
2. When starting cool engine, lift the lever STARTER (Fig. 6G). When
starting warm engine and operating lower the lever STARTER (Fig.6H).
3. Standing behind the unit, grasp the brake control handle and hold it
against the upper handle as shown in (Fig. 6I).
4. Turn the ignition key fully to the right in the ignition lock (Fig.6J/Fig.6K).
5. As soon as the motor starts running, release the ignition key (Fig.6J).
Fig.6G Fig.6H Fig.6I Fig.6J Fig.6K

16
Manually
Take the starter rope with your right hand and pull slowly until you have
resistance, then pull hard on the starter rope. (If the cold start is not
sufficient, repeat this operation 2 or 3 times).
Standing behind the tool, bring the engine control bar toward the upper
handle.
b. Self-propelling
The mower can be self-propelled when in use. When the transmission is
operated, the rear wheels turn automatically. Push and hold the traction
bar forward.
c. Stopping
To stop the mower, release the operator control lever. The engine and the
blade will stop turning automatically.
If there is a build‐up of grass beneath the chassis, stop the engine,
remove the spark plug’s cap and wait until the engine has cooled before
clearing the grass.

17
6. MAINTENANCE AND STORAGE
Before working on the cutting system of the machine, switch off the
engine and remove the spark plug’s cap.
a. Cleaning the mower
-Cut grass is damp. Regular cleaning after each use will ensure better
functioning of the mower and reduce the risk of corrosion or seizure.
-Having finished mowing, allow the engine to cool then remove
accumulated grass clippings from and around the engine with a brush.
-Clean the grass collection bag annually with a brush or gentle spray of
water.
-Disconnect the spark plug’s cap and tilt the mower on its side with the air
filter and carburettor uppermost.
-Remove any remaining cut grass from the cutting system with a scraper
and a brush.
-Reposition the mower onto its four wheels.
-Do not use a pressure washer or hot water to clean the mower. Be careful
to avoid soaking parts such as the engine, air cleaner, wheel bearings and
metal fastenings. Dry off the machine before storing by leaving it running
for a few minutes on a flat, clear surface to prevent corrosion or seizure.
b. Blade maintenance
WARNING: Wear gloves, turn off the engine and remove the spark
plug before proceeding.

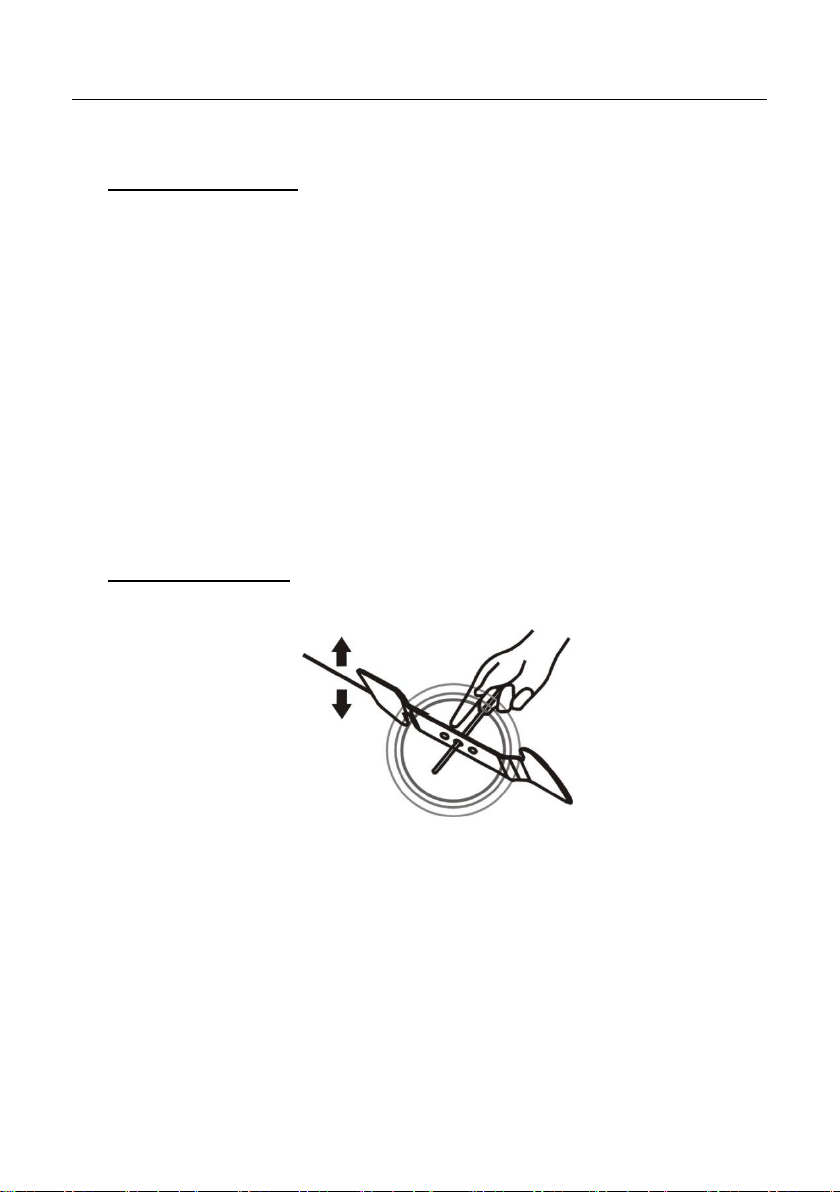

The blade is made of hardened steel. To get a clean job, sharpen the
blade frequently, about every 25 hours of use. Make sure the blade is
always well balanced.
Insert a small iron pin (2 or 3 mm in diameter) into the hole in the middle
of the blade: it must remain horizontal. If the blade does not stay
horizontal, balance it by sharpening it further on the side where it is
leaning.
WARNING: Use only original spare parts. Poor quality replacement parts
can cause serious damage to your mower and affect your safety.

18

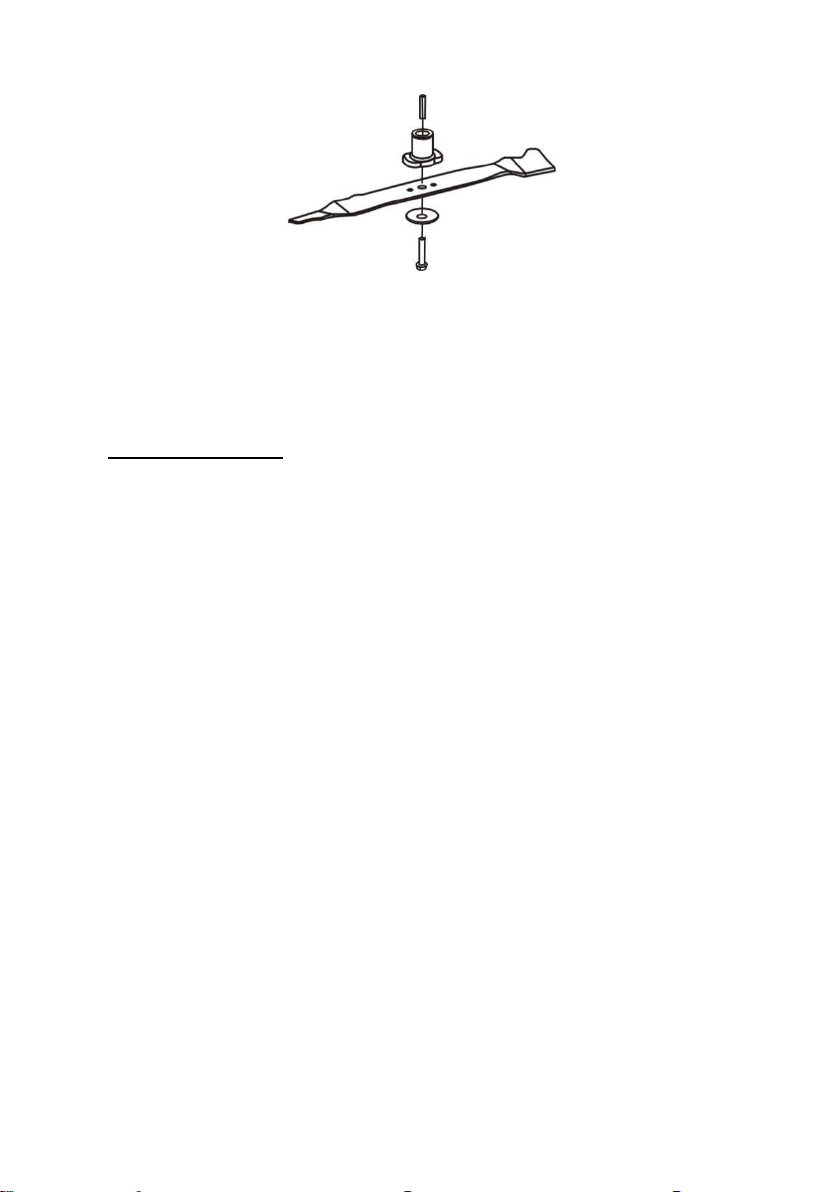

To remove the blade, loosen the screw, check the blade bracket, and
replace all parts if they are worn or damaged.
When reassembling the blade, make sure that the cutting edges are in the
same direction as the direction of rotation of the motor. The tightening
torque of the blade screw should be 3.7 kg * m / s 2 (37 Nm) and can be
checked with a torque wrench.
c. Storing the mower
Store your mower in a dry, well-ventilated area, away from flames, sparks
or heat sources. If the storage area is accessible to children, immobilise
the machine by disconnecting the spark plug’s cap. Storing the mower
beneath a tarpaulin or similar cover is not recommended as it may cause
a build‐up of condensation resulting in corrosion of the mower.
Extended shutdown and winter storage
Thoroughly clean the mower. Ideally, run the engine outdoors until the fuel
tank is empty. Alternatively, empty any remaining fuel using a fuel suction
pump.
Dispose of discarded fuel safely and responsibly, remembering that petrol
vapours can cause explosion or fire. Run the engine until any remaining
fuel is consumed. Allow the engine to cool. Check the condition and
cleanliness of the air cleaner. Remove the spark plug from the engine and
pour a tablespoon of engine oil into the cylinder. Gently pull the starter
rope several times to turn over the engine, distributing the oil to protect the
cylinder over winter. Replace and tighten the spark plug.
At the start of the new season
Remove the spark plug and gently clean off any carbon deposits from the
tip with a small copper wire brush, finishing off with petrol. Allow the spark
plug to dry. Pull the starter rope several times to expel excess oil from the
cylinder. Replace and tighten the spark plug. Fill the fuel tank with
unleaded petrol. Turn over the engine until it starts.

19
Before transporting the mower
Thoroughly clean the mower. Empty the fuel tank using a suction pump.
Dispose of discarded fuel safely and responsibly, remembering that petrol
vapours can cause explosion or fire. Run the engine until any remaining
fuel is consumed.
Allow the engine to cool. Remove the grass collection bag. Loosen the
quick release and fold down the top section of the handles taking care not
to bend the cables.
To avoid scratching the mower, insert corrugated cardboard or similar
padding between the upper and lower handlebars and the engine.
Due to the mower’s weight, use ramps or seek assistance when lifting or
loading the mower.
d. Mower maintenance
Cutting system
Before and after each mowing session, check that the blade, its
attachment bolts and drive shaft are not damaged or excessively worn.
Never try to straighten a bent blade. Replace a damaged, worn or bent
blade as soon as possible. Use only genuine parts. Excessive vibration
when mowing is a good indication of a problem with the cutting system.
WARNING: Vibration from a bent or damaged blade can cause costly
damage to the mower. Working with an excessively worn blade wastes
fuel and can lead to injury if the blade becomes detached from the
machine.
Warning: there is a danger about moving blade. Always handle the blade
when it is totally stopped. Wear protective gloves.
Sharpening the blade
For best mowing results, have the edges sharpened and the blade
balanced at least once a year by a specialist service dealer or agent.
Removing the blade
Wear appropriate protective gloves to prevent possible injury when
handling the blade. Disconnect the spark plug cap and tilt the mower on
its side with air filter and carburettor side uppermost.
Holding the blade firmly in one hand, use a spanner or socket to loosen
the blade screw.
Mounting the blade
Wear appropriate protective gloves to prevent possible injury when
handling the blade. Disconnect the spark plug cap and tilt the mower on
its side with air filter and carburettor side uppermost.
Check that all components (the blade, key, blade holder, screws and
washers).are present, clean and in good condition.

20
Position the blade on its support with the cooling fins facing the engine.
Check the correct alignment and matching of pads with the blade. The
blade must be positioned precisely on its stand.
Tighten the screws connecting all of the components. Make a final visual
check that all parts are present and aligned before tightening the fixing
bolt very firmly with a wrench while holding the blade firmly in one hand
(NB wear suitable gloves).
Spark plug
Check the spark plug initially after the first five hours of mower use.
Thereafter, maintenance of the spark plug should take place every 25
hours.
Remove the spark plug cap using a rotary motion and then remove the
spark plug with the wrench provided.
Clean off any carbon deposits using a copper brush and check the
electrode gap with a feeler gauge.
Replace and retighten the serviced spark plug and replace the cap.
If the spark plug is worn or damaged, replace with a new spark plug of the
same or suitable type for the engine.
Air Filter
An air filter in poor condition will reduce the performance and life of the
engine while making it harder to start. Regular checks are therefore
essential, especially when using the mower in dusty conditions. Check
and clean the air filter every 25 hours of use or more often if the engine is
used in a dusty environment.
Remove the air box lid and carefully remove the foam filter cartridge.
Clean the cartridge in a small bowl of warm water containing a few drops
of washing up liquid until it is perfectly clean and free from all traces of
grease and dust. Rinse the filter cartridge in clean water and then
squeeze gently to remove most of the water. Let it air dry until it is
completely dry.
WARNING: Never clean the foam cartridge in petrol, white spirit or other
solvents. These products will degrade the filter cartridge.
Clean the cover and inside of the air box with a clean lint ‐free cloth.
Apply a uniform layer of oil to the outside of the cartridge filter with a brush
(you can use clean engine oil for this). Insert the filter cartridge into its
housing and replace the air box lid, ensuring that each component is in
place and properly installed. If the filter cartridge is damaged or is very
dirty, replace it using a genuine part.
WARNING: Do not twist the cartridge to clean foam, as you could damage
it. This mower is equipped with a dual filtration system comprising a foam
pre‐filter and a cartridge filter paper.
The maintenance of a foam pre ‐filter is identical to that of a foam
cartridge filter, as described above. The cartridge filter paper should be
