Hyundai power products HTDER21V User manual

ORIGINALS INSTRUCTIONS

1. Introduction and safety
WARNING! Before using your tool, please read this manual carefully and
understand the instructions. Please keep these instructions for future use. If
you give this tool to a third party, please also give this manual.
- Failure to comply with these safety rules is not only dangerous, but also voids the
warranty conditions.
- Never allow children, persons with reduced physical or sensory or mental
abilities, or no experience or knowledge, or persons unfamiliar with these
instructions to use this machine. Local laws may restrict the age of the operator.
- Children should not close to the machine when it is in use.
- Do not let children play with this machine, whether it is in operation or not.
- Please ensure that the machine is in good working order. In case of damage or
defect, do not use the tool and have it repaired by a qualified service.
- Never turn the mower on if it is turned over or if it is not in the working position.
- Switch off the machine when:
o You do not use it,
o When left unattended,
o When performing an intervention on the machine,
o When the battery fails,
o During maintenance work,
o When you transport the machine from one place to another.
- Keep children and animals out of reach of the machine.
- Before working, inspect the work area; remove any cables, stones, debris and
any objects / materials from the area to be mowed that could cause an accident
and damage.
- Avoid using the mower to cut grass that is not on the ground, for example, grass
growing on walls or rocks, etc.
- In the presence of flammable and / or explosive substances such as liquids,
gases and powders.
- The operator is responsible for any damage caused to third parties within the
work area.
- Mow only in daylight or with adequate artificial light.
- If you do not use the mower, store it in a dry place out of the reach of children.
- The mower must be used in accordance with these instructions and only in a
vertical position relative to the ground. Any other position is forbidden because
dangerous.
- Check regularly that the screws are correctly tightened.
- Before using the appliance and after any impact, check for signs of wear or
damage and have the tool repaired if necessary.
- Never use spare parts or accessories not supplied or recommended by the
manufacturer.
- Never allow children, persons with reduced physical, sensory or mental abilities
or lacking experience or knowledge, or persons unfamiliar with these instructions
to use this machine.
- Never use this machine when people, especially children or animals are nearby.
- Never replace non-metallic cutting means with metal cutting means.
- Do not touch dangerous moving parts before stopping the unit completely.
- Do not use the tool without guards.
1

- Never replace non-metallic cutting elements with metal cutting elements.
- Do not expose the tool to rain or moisture.
- Do not use the tool when there is a risk of thunderstorms and lightning. Do not
use the tool when weather conditions are poor.
- Do not insert metal objects into the charger or the battery connections, as this
may cause a short circuit or be a source of danger.
- When the mower is in operation:
o Do not open it and do not disassemble it
o Do not carry repairs
o Do not lift it
o Do not check the blade
- Any inspection, repair, maintenance must be done completely off machine.

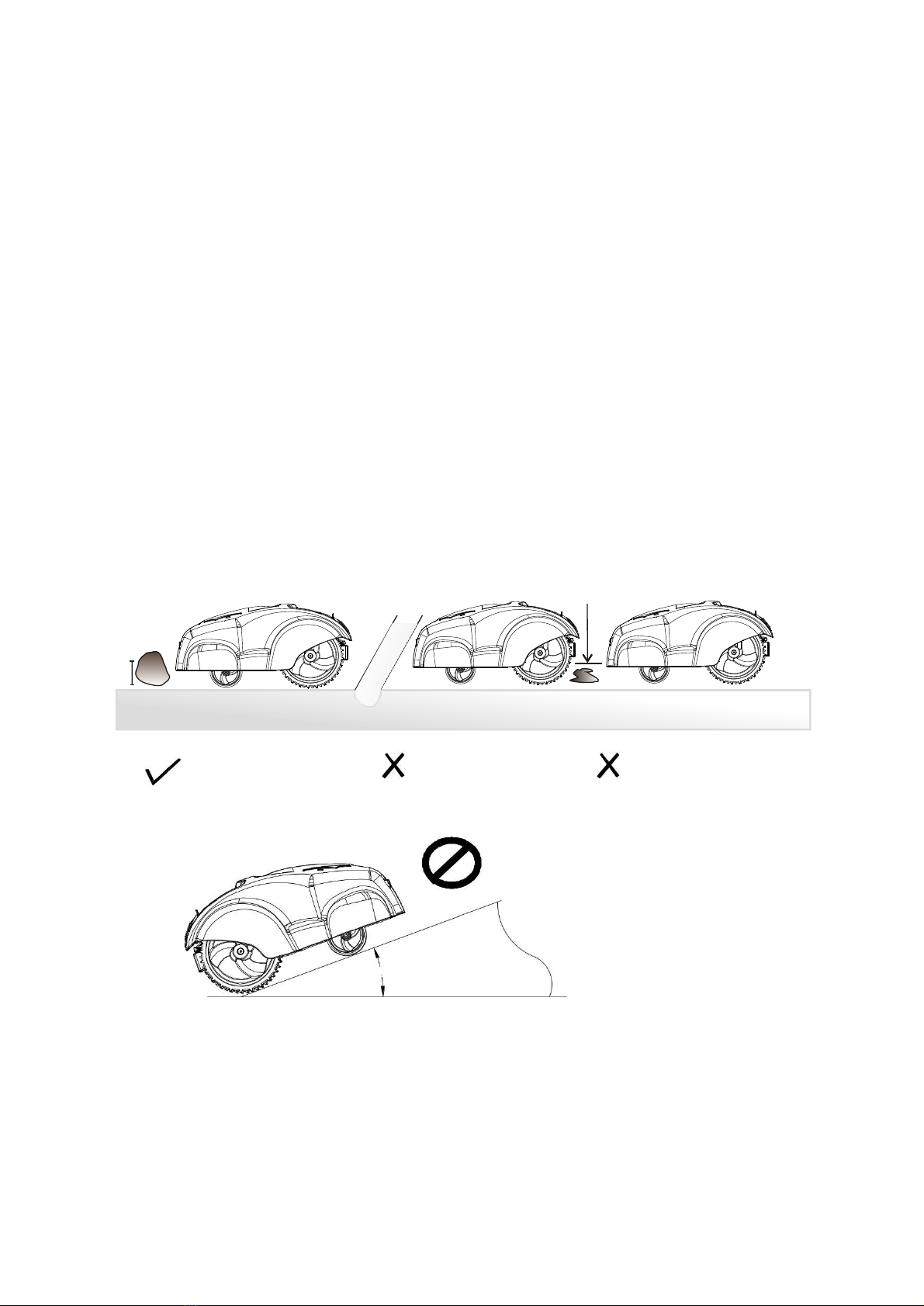

- Do not use the mower on slopes of more than 30 degrees max.
- Do not use the mower when its safety device is damaged.
- When the machine is no longer used, turn off the main switch and keep the
appliance in a place out of the reach of children, to avoid damage to children or
the lawn mower.
- The battery should always be charged when using the mower.
- Always use the battery and charger supplied. Do not use or mix these elements
with other similar products. Incorrect use may result in electric shock,
overheating, or leaking corrosive liquid from the battery.
- Never use the mower when it is raining. Do not expose it to water and moisture.
Do not leave it outside during the night. Avoid cutting wet or damp grass.
- Familiarize yourself with the controls and proper use of the equipment.
- After the operation, perform the maintenance of the tool. Carefully follow the
instructions in the chapter "Care and maintenance". These instructions will help
keep the tool in good condition.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operating practices
Training
a) Read the instructions carefully. Be familiar with the controls and the proper use
of the machine.
b) Never allow people unfamiliar with these instructions or children to use the
machine. Local regulations may restrict the age of the operator.
c) The operator or user is responsible for accidents or hazards occurring to other
people or their property.
Preparation
a) Ensure the correct installation of the automatic perimeter delineation system as
instructed.
2

b) Periodically inspect the area where the machine is to be used and remove all
stones, sticks, wires, bones, and other foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly
are not worn or damaged. Replace worn or damaged blades and bolts in sets to
preserve balance.
d) On multi-spindle machines, take care as rotating one blade can cause other
blades to rotate.
Operation
General
a) Never operate the machine with defective guards, or without safety devices,
for example deflectors and/or grass catchers, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times.
c) Never pick up or carry machine while the motor is running.
d) Remove (or Operate) the disabling device from the machine
- Before clearing a blockage;
- Before checking, cleaning or working on the machine.
Additionally when the machine is operating automatically
Do not leave the machine to operate unattended if you know that there are pets,
children or people in the vicinity.
Additionally when using the manual controller
a) Mow only in daylight or in good artificial light.
b) Avoid operating the machine in wet grass.
c) Do not operate the machine when barefoot or wearing open sandals. Always wear
substantial footwear and long trousers.
d) Always be sure of your footing on slopes.
e) Use extreme caution when reversing the machine towards you.
f) Always switch on the motor according to instructions with feet well away from the
blade(s).
Maintenance and storage
a) Keep all nuts, bolts, and screws tight to be sure the machine is in safe working
condition.
b) Check the grass catcher frequently for wear or deterioration.
c) Replace worn or damaged parts for safety.
d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the
manufacturer.
Incorrect use may result in electric shock, overheating or leakage of corrosive liquid
from the battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek
medical help if it comes into contact with the eyes, etc.
g) Servicing of the machine should be according to manufacturer instructions.
3

Additional instructions
1. Congratulations on the purchase of this exceptional quality product. For best
results with your mower, read all of these features. This user manual contains
important information regarding the specifications of this product, its installation
and use.
2. Read this user manual carefully before using the automatic mower.
3. The mower may be damaged if not used properly.
4. Do not modify the original design of this mower. Any changes to this instruction
manual will damage the mower and may cause accidents.
5. Check for stones, branches, tools, toys and other objects on the lawn that
may damage the blades and stop the mower.
6. Never use a pressure washer or water to clean the mower.
7. Do not sit on the mower and do not use it as a means of transportation. Children
and pets should be kept away from the lawn mower.
8. Turn off the mower before lifting or transporting it.
9. WARNING - Never allow children, people with reduced physical, sensory or
mental abilities or lack of experience and knowledge or persons unfamiliar with
these instructions to use the machine, local regulations may restrict the age of
the operator;
10. WARNING - Do not allow children to be near or play with the machine during
operation.
11. WARNING - Do not use the machine to create a hazard. Only use a machine in
good working order, on grass, with a work area free of obstacles.
12.Persons who are inexperienced and/or have no knowledge of the instructions
should not use this automatic mower (to avoid serious injury)
13.Do not place anything on the mower or its signal generator.
14. Do not operate the mower with defective or damaged components such as
blades, screws, nuts, etc.
15. Never put your hands and feet under the mower.
16. The mower does not guarantee full compatibility between the mower and other
types of wireless systems such as remote controls, radio transmitters,
electrified fences, etc.
17. Start the mower according to these instructions.
18. It is recommended that the cutting height be less than 7cm.
19. It is forbidden to use the mower on a lawn with a slope of more than 30 degrees.
20. Turn off the power before cleaning.
21.Carefully read all warnings on the machine, the battery, the signal generator
and in this manual.
22.Turn off the mower before transporting or repositioning.
23.Carry the mower by the handle at the back under the
mower. Carry the mower with the blade disc away
from the body.
24.Do not lift the mower by the outer protective case.
25. Turn off the mower and make sure it is completely
shut down before performing any maintenance and cleaning.
26. Inspect the mower weekly and have damaged or
worn parts replaced, such as blades or brushes. Any
replacement of parts and accessories must be done
by the manufacturer or an authorized after-sales
service.
4

27. CAUTION: Do not touch the rotating blade. The blade must stop completely
before handling.
28. Always check the baffle condition to keep the material discharge chute clean and
unhindered.
29. Never run using the machine or its peripherals;
30. Always use the battery supplied with this machine. In case of replacement,
contact your dealer or the manufacturer for the type (s) of batteries that can be
used with this machine.
31. Stop the machine by pressing the STOP button when you need to:
- remove a blocked item
- check, clean or work on the machine.
- Inspect the machine for damage after striking a foreign object.
-Check the machine if it starts to vibrate abnormally. Check the damage before
restarting;
32. The boundary wire must be disconnected from the docking station if it is dam-
aged or intermingled. The mower must be extinguished before the power plug
of the adapter must be removed from the wall outlet.
33. Avoid using the machine and its peripherals in bad weather, especially in case of
lightning, thunderstorms and generally in bad weather.
Residual risks
Even if you use this product in compliance with all safety requirements, the potential
risks of injury and damage remain. The following hazards may occur in the structure
and design of this product.
There is a risk of injury and damage to property due to attachments or broken the
sudden impact of hidden objects when using cutting.
Risks of damage to personal injury and property, which caused are by flying objects.
To reduce residual risk, always inspect the work area, wear safety shoes and
protective equipment.
Intended use
This mower model is designed for mowing natural grass. Any other use is prohibited.
It is only suitable for private use in a garden or a plot. Lawn mowers designed for
private plots or gardens are those used for the maintenance of grassy areas and
private lawns.
WARNING - These types of mowers should not be used in public areas, parks,
sports, agricultural or forestry areas.
5

Symbols
WARNING - Read instruction manual before use the tool
WARNING - Risk of projections. Keep bystanders away
In conformity with CE, RoHS
WARNING - Sharp tines. Beware of cutting fingers or toes.
Press the STOP button before working or lifting the machine.
Read the instruction manual
WARNING - Keep feet and hands away from rotating blades.
Do not ride on this machine or use it as a means of transportation
Avoid disassembling and reassembling this unit.
These operations must only be performed by qualified persons.
Do not repair yourself. Any intervention must be done by a
qualified service
Never perform maintenance or debugging on this device
without wearing personal protective equipment (PPE)
CAUTION - Do not touch the rotating blades.
Symbol for recycling
Class III protection
Degree of protection: IPX44
Guarantee sound power level
6

2. Main units and Accessories

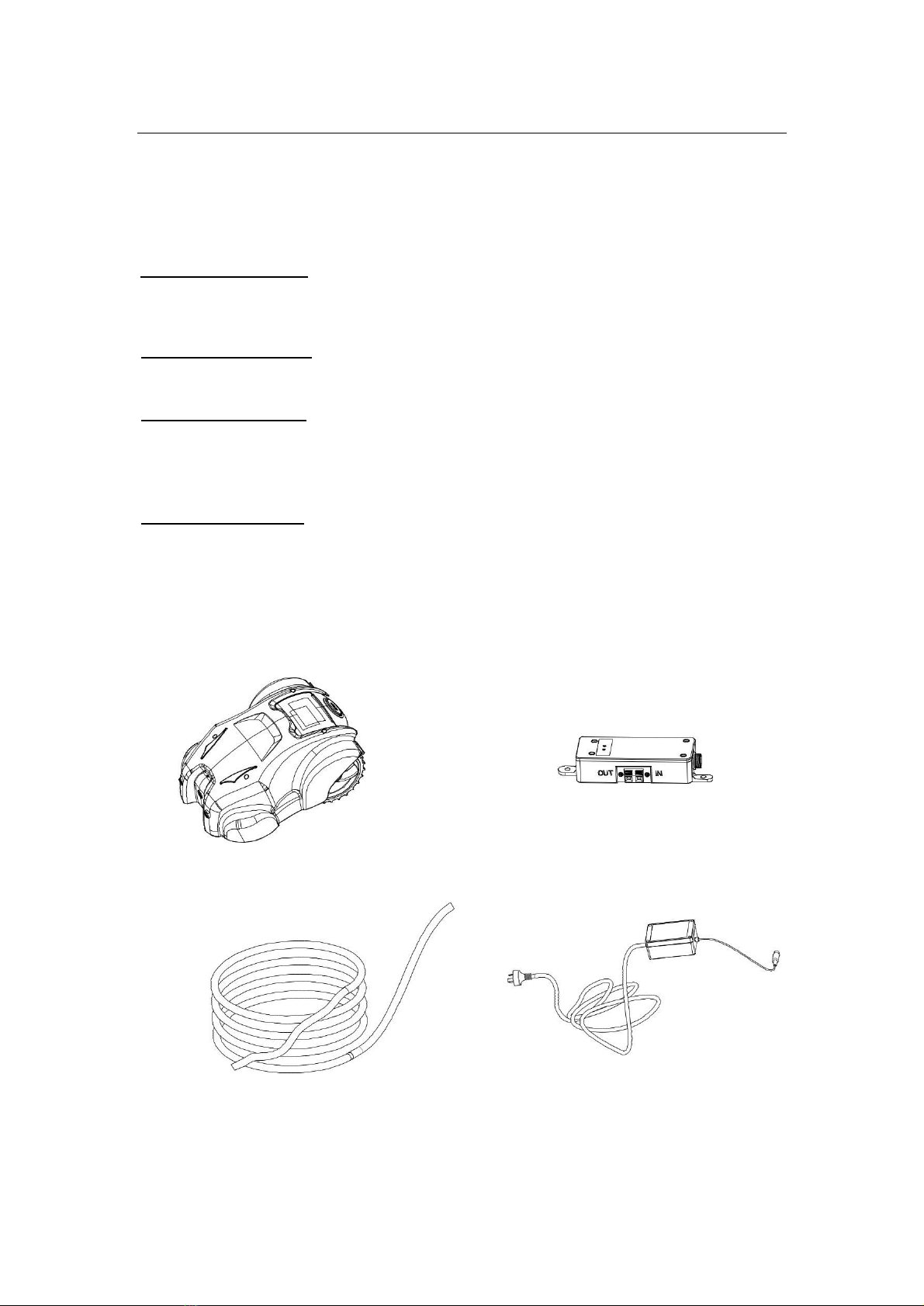

2.1 Four main units
This section contains information you should be aware of when planning to install the
robotic mower.
2.1.1. Robotic Mower:
An automatic lawn mower that mows the lawn by moving in an irregular pattern, the
mower is powered by a rechargeable battery.
2.1.2. Signal Generator:
Be connected between boundary wire and power adapter.
2.1.3. Boundary Wire:
Be buried in a loop around mower's working area. The boundary wire is buried
around the edges of the lawn and around objects and plants that the mower must not
run into. The wire is also used for guide wires to find station.
2.1.4. Power adapter:
Be connected between the signal generator and a 120V (230V) wall sock. The
adapter is connected to the wall socket via an integrated power cord and to the
signal generator .
1 2
3 4
7

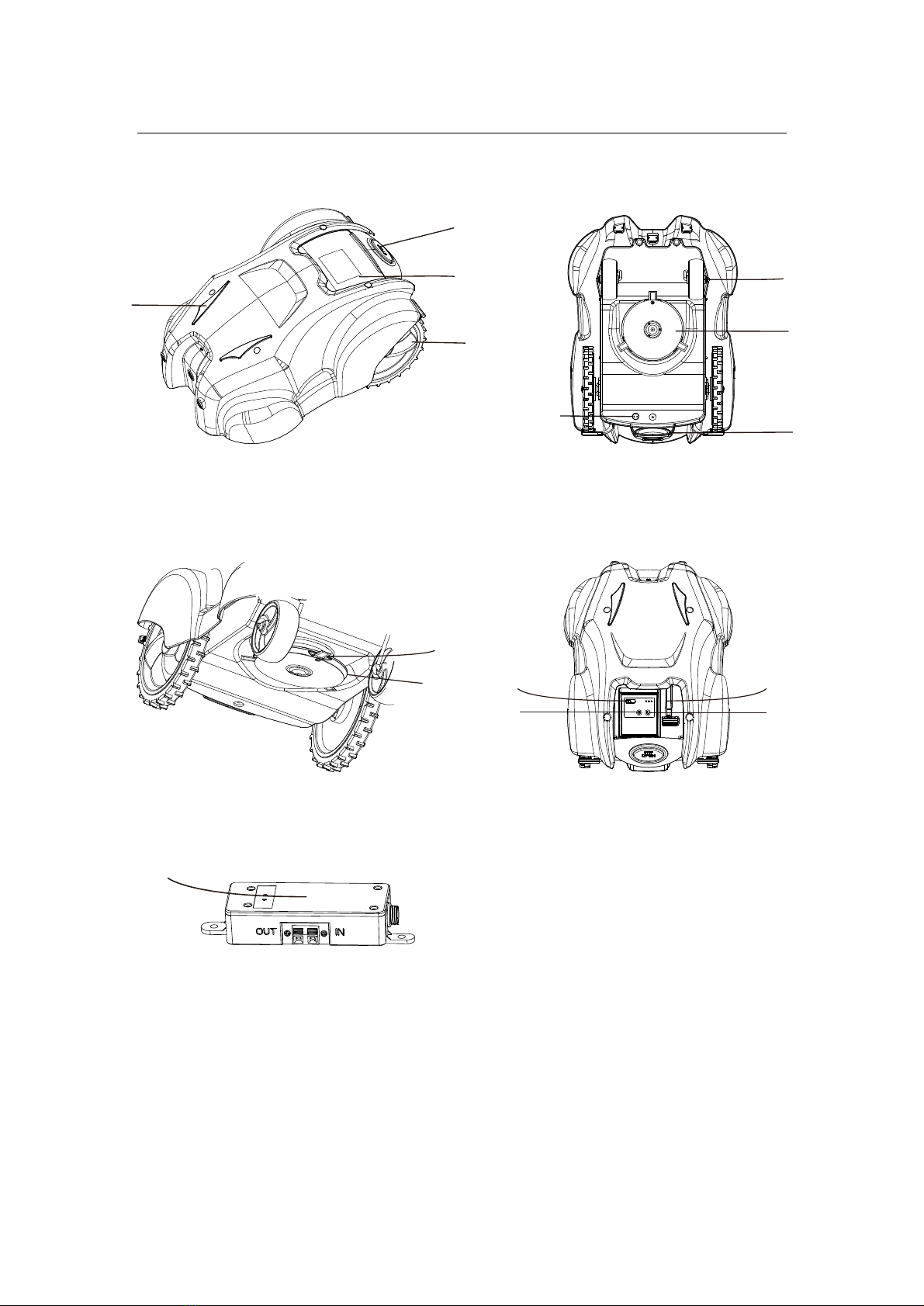

2.2. Knowing Robotic Mower and Accessories
1
2
3
4
5
6
7
8
9
10
11 12
13 14
15
8

16
17
18 19
20
1.Stop button
2.The control panel cover
3. Drive wheel
4. Charging strip
5. Front wheel
6. Protect plate
7. Handle
8. Charge
9. Blade
10. Blade Plate
11. LCD display
12. Cutting height adjustment
13. Power switch
14. Sonic switch
15. Signal Generator
16. Power adapter
17. Operator's Manual
18. Boundary wire
19. Staples for boundary wire
20. Nails
3. Function of Mower
3.1 Capacity
Robotic Mower is recommended for lawns up to 1500 m2.
The maximum mown area depends on the condition of the blades and the type of grass,
growth rate, humidity and the shape of the garden.
How long mower mows and recharges can vary due to the ambient temperature. Up to
about 25, one battery fully charged mower mows for approximately 280 -360 minutes
depending on the age of the battery and the thickness of the grass.
9

3.2 Mowing technique
1. The mowing way used by mower is based on an effective and energy efficient
components. We recommend you allow mower to mainly mow in dry weather
to obtain the best possible effect.
2. Mower can mow in the rain, you may fix wheel brushes to keep the drive wheels
clean and increase traction.
3. When there is a risk of thunder mower should not stand in the Dock station.
4. When there is a risk of a thunder storm, the adapter plug should be removed from.
The socket and the perimeter wire disconnected from the Dock station.
5. The blades must be in good condition to obtain the best mowing effect.
In order to keep the blades sharp for as long as possible, it is important to keep the
lawn free from branches, small stones and other objects.
3.3 Working method
1. Mower automatically mows the lawn. It continuously combines mowing and
charging.
2. The signal generator sends out a signal that mower can sense. The mower starts
to search for the signal generator when the battery power becomes low. Mower
does not mow when it is searching for the signal generator.
3. When there is a big object (such as human, big tree etc.) higher than 20cm in front of
mower, the mower can avoid hit it and reverses and selects a new direction.
4. When mower body hits an obstacle higher than 13cm, the mower reverses and
selects a new direction.
13cm(5") over Under 7cm(2.8")
Turn then pass. Cannot cross. Need to pick away.
Mower cease operation
30
5. When the rain is too heavy, the Mower may stop working and return to station.
6. If the slope is steeper than 30 degree, the mower may cease operation
and mowing motor will stop in one minute.
7. When the mower is operating, if user holds the handle, the mower will stop, and
the mowing motor will stop in one minute.
10

Handle Sensor
8. The OPEN/STOP button in the back of mower is used to stop the mower when
it's running. Pressing the bottom will also open the control panel cover, if you need to
get the mower back to work, you must close the cover.
Open /Stop Button
9. Under the control panel cover, there is a control panel, it is used to manage
all the mower settings.
10. If you power on the mower, you must close the cover, then the mower will star
performing requested actions.
11. If the cover is left open after power on, the mower will automatically power off
after 6 minutes.
Power Switch: If you press the button, the mower will power on, and if you press once
again, the mower will power off.
Sonic Switch: If you press the button one time, sonic function will be open, and Uled will
light, twice sonic function close, Uled off.
11

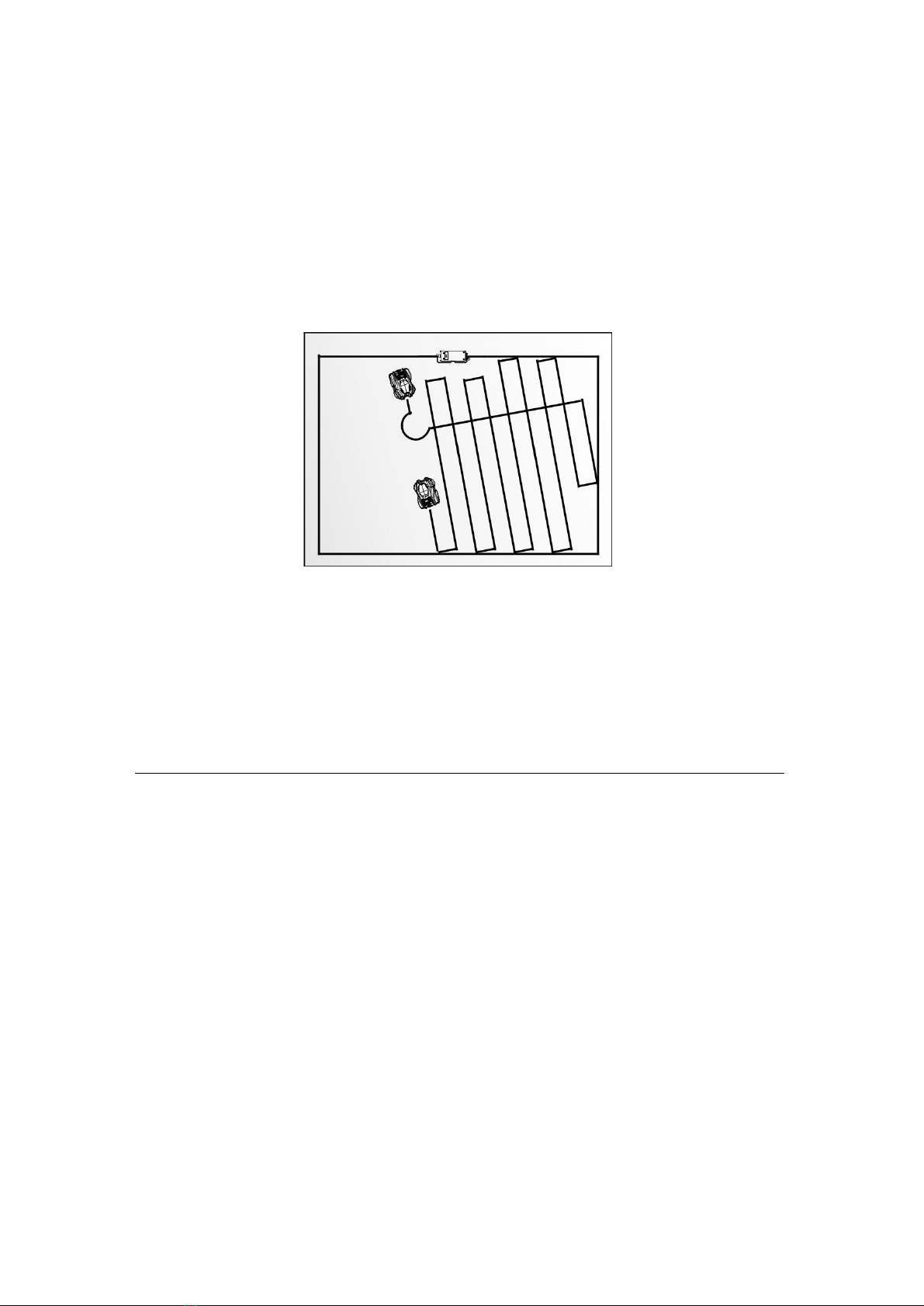

3.4 Movement pattern
The mower's movement pattern is paralleled determined by mower itself. When the
mower senses that it has reached all boundaries of the lawn, the mower will enter
into random pattern.
This mowing system enables the lawn to be mown equally without any mowing lines.
If mower enters an area where it senses the grass is longer than earlier, it can
change the moving speed low. If the grass is in normal height the mower accelerate
back to regular speed.
4. Installation
Please read the whole chapter before installation. Only proper installation will enable
the mower to operate as intended. It is therefore important to plan the installation
care-fully.
Before installation, Please draw a sketch of the operating area, including all
obstacles. This makes it easier to see the ideal positions for the signal generator,
boundary wire and guide wire.
Carry out the installation in the following steps:
4.1 Preparations.
4.2. Installation of the signal generator.
4.3 Charging the battery.
4.4 Installation of the boundary wire
4.5 Obstacle instruction.
4.6 Connecting the boundary wire with signal generator.
4.7 Checking the installation.
4.8 Linking Mower to the signal generator.
12

4.1 Preparations
1. If the grass in the proposed working area is taller than 10cm,
Please mow it first using a normal lawn mower. Then collect the clippings.
2. Check that all components are included:
a. Operator's Manual
b. Mower
c. Signal Generator
d. Boundary wire
e. Nails
f. Adapter
g. Staples
h. Add ->hammer for Staples and a straight spade, plier for bury wire.
4.2 Installation of the signal generator
1. Select position of the signal generator
a. The signal generator must be positioned with wide open area 1.5 meters (5ft) in front
of it.
1.5m
13
a
a
d
g
b
e
h
c
f
a
d
g
d
g
b
e
h
c
f
a
d
g
b
e
h
c

b. The signal generator must be positioned on the same horizontal level.
The height difference must not differ more than 3cm.
c. It is possible to let the low voltage cable being laid across the working area.
It must be either stapled down or buried. In some cases, a better option is to position the
signal generator close to a house wall .
d. Avoid placing the signal generator near hydrant.
e. Avoid exposing the adaptor to direct sunlight.
f. Make sure the opening of the signal generator points towards the direction of
counterclockwise.
2. Installing and connecting the signal generator
a. place the signal generator in an suitable spot;
b. secure the signal generator to the ground using the supplied nails (1,2 )
1 2
c. Connect the low voltage cable to the signal generator.
d. Connect the adapter power cord to a 120V (230V) wall socket.
14

4.3 Charging the battery
Mower is supplied with an uncharged batter. You can insert the plug of the power
adapter in back of the mower
4.4 Installation of the boundary wire
1. If you want to make adjustments to the boundary wire in the future, it is preferable
to staple the boundary wire on the ground. You may water the desired position to
make it easier to insert the staples.
2. If you will not adjust the boundary in the near future, it is preferable to bury the wire.
You may utilize both methods to achieve a better performance based on scenario.
3. The boundary wire should be laid in a loop around mower's working area.
It is preferable to begin bury wire from one end of the signal generator, and work
your way back to the end of the signal generator.
From here Start bury From here Start bury
Or
4. The boundary wire should be laid 40cm away from the area edge, obstacles,
fence and flower bed, etc. This will prevent mower from colliding with the
obstacle and reduce body wear.
5. In all corners, don’t lay the boundary wire by acute angle and right angle; it is
preferable to lay it by an arc that has at least a 50cm radius.
6. When there are several working areas, the width of the passage should be
wider than 1.2m (4ft); otherwise it is difficult for the mower to move between
areas.
Min.40cm Min. Radius 50cm
Min. 150cm
Prefer min.1.2m
Prefer min.1.2m
Max. 1.0cm
15

4.5 Obstacle instruction
1. Tree, pole, brick, or heavy obstacle with hard and sturdy materials may serve as
natural boarders; boundary wire is optional around these obstacles.
2. Plants and objects with refined and fragile surface materials need to be bound by
wire for protection.
3. However, complex terrain such as tree root may also require boundary wire to
protect and avoid the blades of the mower being worn.

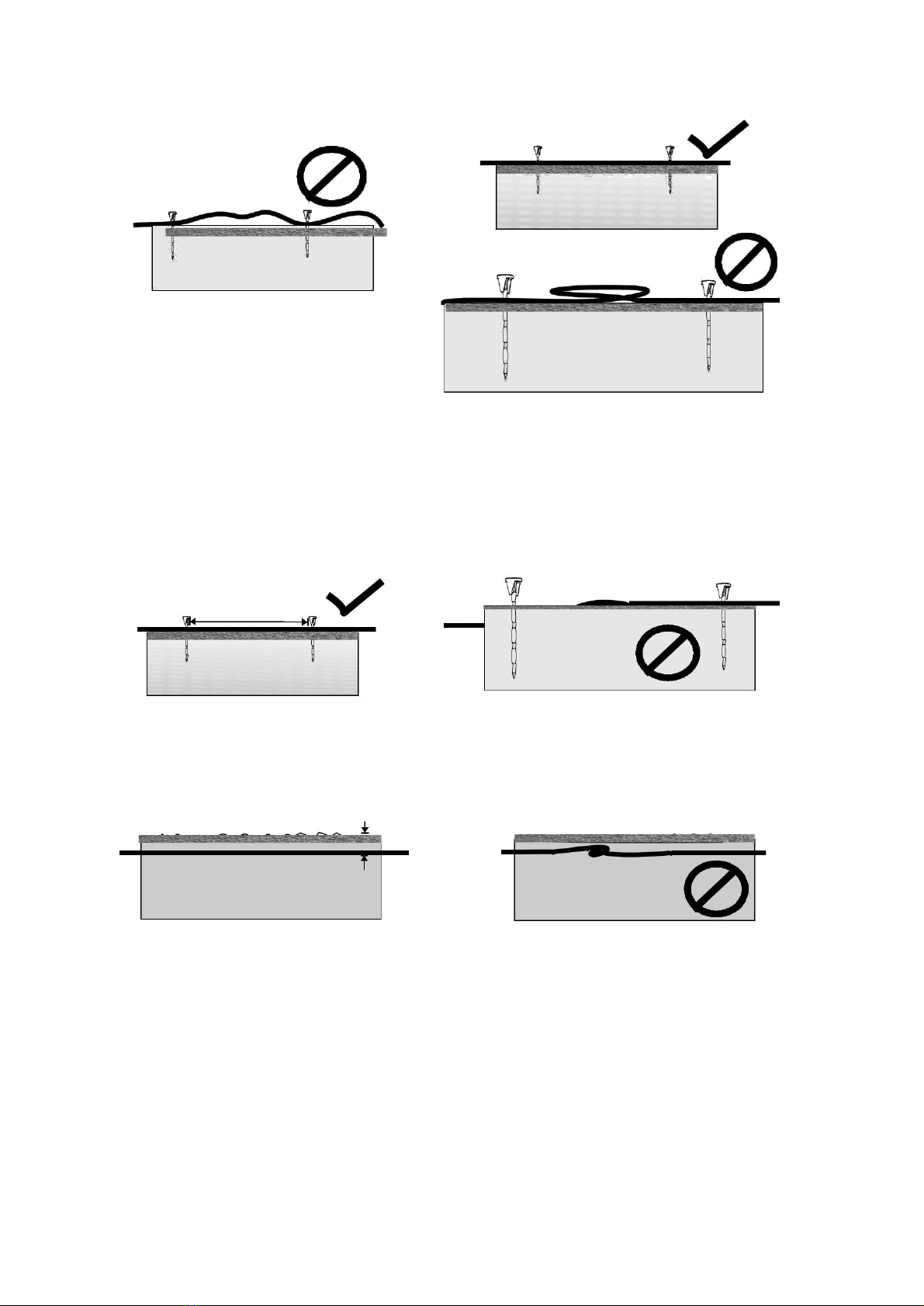

4. Make sure to lay the boundary wire tight to the ground. If the boundary wire is
loosed or rolled on the lawn, the mower may cut off the wire and the signal maybe
not good enough for mower to receive.
16

5. Use a hammer to hammer down the staples into the ground. Exercise with care
When knocking the staples and make sure the wire is flat on the lawn, the
distance of each staple should be approximately 100cm (3ft). But around the
corner, staples distance is 30~ 50cm (1~2ft) maybe.
6. Wire should stay straight and untangled, do not roll to shorten the length or for
any purpose.
100cm
7. If you intend to bury the boundary wire, make sure to place the boundary wire
between 1cm to 15cm (0.4 to 6inches) into the ground, and the boundary wire
should stay straight and untangled.
Max.15cm
Earth
boundary wire
Earth
4.6 Connecting the boundary wire with Signal generator
1. There are 2 guide wires being installed in signal generator. See Illustration 1 and 2.
2. Use a plier to peel off the robber skin of the wire, and strand the copper wire, see
Illustration “a”.
3. Use the electrical tape pack; bind the wire like Illustration “b”.
4. Connecting 2 ends of boundary wire with 2 guide wires complete the close loop of
boundary area.
Please follow below method to connecting.
17

1
Boundary
2
Wire
Guide wire
a b
4.7 Checking the installation
Check the green LED signal light on the signal generator to ensure the boundary
wire is properly installed.
●Flashing once every other second: The signal is good.
●Not light: Means fail to connect the loop and no signal is found.
5. Use
5.1 Charging a discharged battery
When mower is new or has been stored for a long period, the battery needs to be
charged before starting. Charging takes 4 hours.
If the connection is proper, information about the charging process is shown on
the display during the entire charging process.
5.2 Using the timer
To obtain optimal the quality of your lawn, the lawn should not be cut too often.
For example, the mowing time must match lawn area, mown every other day is
better than 12 hours each day, benefited grass rest completely during at least a
three-day period once a month.
5.3 Starting mower
1. Press the STOP/OPEN button to open the control panel cover.
2. Press power ON-OFF button of control panel, to power on the Egen Mower.
3. Close the cover.
The message mowing should be showing on the panel, the blade motor turn on
firstly then the driver wheels start to run.
18

5.4 Stopping mower
Press the STOP/OPEN button, the mower will stops, and the blade motor stops in
one second, and the control panel cover will be opened.
Press
5.5 Restart
When completed the control panel operating, you may close the control panel
cover to restart Egen Mower automatically.
If more than 4 minutes has elapsed since the last time the STOP/OPEN button
was pressed, the Restart function is unable. You must Close the control panel
cover.
5.6 Switching off mower
1. Press the STOP/OPEN button.
2. Press power switch.
Display should be clear if the machine
is properly shut down.
Press this button
5.7 Adjusting the cutting height
The cutting height can be varied from MIN.2cm (0.8") to MAX. 7cm (2.8"). If the
grass is tall it is appropriate to let Mower start mowing at the MAX cutting height.
Once the grass is shorter, you can gradually lower the cutting height. To adjust the
cutting height:
Step1: Press the STOP/OPEN button to stop the mower, and then open the cover of
control panel.
Step2: Lift up the handle then pulls or push to the desired position.
The selected position is marked on the right of the handle.
Step3: Pull and keep T-bar in Horizontal direction to raise the cutting height.
Step4: Push and keep T-bar in Horizontal direction to lower the cutting height.
Step5: Lower down the handle, and ensure that it is locked.
19
