Hyundai power products HTDT5070ES-1 User manual

1
ORIGINAL INSTRUCTIONS
GASOLINE LAWNMOWER
HTDT5070ES-1
Instruction manual
WARNING: READ THE INSTRUCTIONS BEFORE USE THE TOOL
HYUNDAI
32, rue Aristide Bergès - ZI 31270 Cugnaux - France
Licensed by Hyundai Corporation, Korea

2
CONTENTS
1. SAFETY INSTRUCTIONS 3
2. YOUR PRODUCT 7
3. ASSEMBLY 8
4. FILLING FUEL TANK 10
5. USE 11
6. MAINTENANCE AND STORAGE 13
7. EC DECLARATION 16

3
1. SAFETY INSTRUCTIONS
Instructions
•Read the instructions carefully. Be familiar with the controls and proper use of the
equipment.
•Never allow children to use this mower. If the mower is given to an other people, also give
this manual. Also make sure that this person uses this device only after receiving the
necessary instructions. Local laws may restrict the age of the user.
•Never mow while people, especially children, or animals are nearby.
•Keep in mind that the operator or user is responsible for accidents or risks that may occur
to other persons or their properties.
Preparation
•During mowing, always wear safety shoes and long pants. Do not use the equipment
barefoot or wearing sandals open.
•Carefully inspect the area where equipment is being used by removing all objects that may
be affected by the machine.
•WARNING - Gasoline is extremely flammable.
oAdd fuel before starting. Do not remove the fuel tank cap while the machine is running
or when it is hot.
oIf the fuel has spilled or leaked, do not attempt to start the machine but move the
machine away from the leakage area and avoid creating a source of ignition until the
gasoline vapors has dissipated.
oRefuel only outside and do not smoke during refueling.
oStore fuel in tanks specifically designated for this purpose.
oReplace the fuel tank or the defective gasoline plug securely.
•Replace defective mufflers.
•Before use, always inspect visually that the blades, blade assembly and blade lock are not
worn or damaged. Replace blades and blade assemblies that are not in good condition to
maintain balance.
•The blades must be balanced to ensure proper operation and to be able to work safely.
Operation
•Do not use the machine in a confined space or hazardous carbon monoxide emissions can
be collected.
•Mow only under daylight or under good artificial light.
•Avoid using the equipment on greasy grass, where possible.
•Always be sure of your walking on the slopes.
•Walk, never run.
•For lawn mowers, mow across slopes, never from top to bottom.
•Exercise extreme caution when changing direction on slopes.
•Stop the blades if the mower is to be tilted during transport when crossing surfaces other
than grass, and when transporting the mower due to the area to be mowed.
•Do not mow on steep slopes.
•Use extreme caution when tipping or pulling the mower towards you.
•Never use the mower with defective guards, or without safety devices such as baffles and
or collection bins, which are not in place.
•Do not change the motor configuration or increase the speed.
•For starting, disengage all blades, the gears must be in neutral, the traction control lever
must be released. Set foot well away from the blades.
•Before starting the engine or starting the engine, carefully read and understand all
instructions.
•Do not tilt the mower when starting the machine or turn on the engine, unless the mower
needs to be tilted for starting. In this case, do not tilt it more than absolutely necessary and
lift only the part that is furthest away from the user.
•Do not start the machine by standing in front of the ejection
•Do not place hands or feet near or under rotating parts. Keep clean the mouth of the grass
extractor.

4
•Never take or carry the mower while the machine is running.
•Stop the machine and remove the ignition key, disconnect the spark plug from the spark
plug:
oBefore cleaning or unclogging the grass extractor.
oBefore checking, cleaning, and working on the mower.
oAfter hitting an object. Inspect the mower for damage and repair before re-using the
mower.
oIf the mower begins to vibrate abnormally, stop the engine immediately and check
according to previous recommendations.
•Stop the engine immediately:
oEvery time you leave the craft.
oBefore refueling.
•To stop the engine, reduce the throttle setting, turn off the ignition and release the operator
presence grip, close the fuel cock (depending on the equipment).
•Move slowly when moving.
Maintenance and storage
•Check, check and tighten all bolts, bolts, and screws to ensure that the equipment is in safe
operating condition.
•Never keep the mower with gasoline in the tank in a building or vapors can cause a bright
flame or spark.
•Allow the machine to cool before storing it in an enclosed area.
•To reduce the risk of fire, keep the machine clean without grass, without grease, the muffler
and the engine cools, disconnect the battery if necessary and empty the fuel tank
•Check the grass catcher frequently, its condition or deterioration.
•Replace worn and damaged parts for safety.
•If the fuel tank is to be drained, it must be made outdoors.
•Proceed for the maintenance after each use. Regular maintenance must be provided to the
tool. Improper maintenance will reduce the life of the tool, and can cause damages and
accidents.
•Always keep the tool in good working condition.
Special safety instructions
•Always use the mower with its pick-up bag and / or deflector in the intended position.
•Switch off the engine before emptying the pick-up bag or before changing the cutting height.
•While the engine is running, never put your hands or feet under the mower or under the
grass ejection area.
•Before mowing, remove all foreign objects from the grass that can be propelled by the
machine.
•Keep children and pets at a safe distance while using the mower.
•Never lift the mower when the engine starts.
•Alcohol, drug, as well as illness, fever and fatigue affect your ability to respond. Do not use
power tools in such circumstances.
•Never change the rated speed of the motor.
•Never lift or carry the tool while the engine is running.
•Before starting the engine, release the drawbar.
•Before mowing, install the collection bag in its intended position.
•Do not use the mower in the event of rain or when the grass is wet.
•Never lift the rear of the mower when starting the engine and never place your hands or
feet under the mower deck or in the rear ejection port while the engine is running.
•Turn off the engine and remove the spark plug cap in the following cases:
oBefore operating under the mower deck or near the ejection opening.
oBefore any maintenance, repair or verification.
oBefore transporting, lifting or storing the mower.
oIf you leave the mower unattended or change the cutting height.
oTo remove and empty the collection bag.
•After striking a foreign object, turn off the engine and carefully inspect the mower for
damage. Take the lawnmower to an authorized service center for repair if necessary.

5
•If the mower vibrates abnormally, try to understand the reason and bring your lawnmower
to an authorized repair center.
•Regularly check that the bolts, nuts and screws are properly tightened for safe use of the
mower.
•Do not use the tool where there is a risk of lighting.
•Use the tool on daylight or under a good lighting. Always keep bystanders away.
•Warning: Take an extreme precaution when operating the lawnmower in slopes and near
drop-offs, ditches or embankments; always be sure of your footing and stay in alert.
•the lawnmower safety systems or features shall not be tampered with or disabled;
•the operator should not alter or tamper with any sealed adjustments for the engine speed
control;
•The operator must have, before using the tool for the first time, an adequate training with
an experienced people.
•Warning: do not use of the unit while being tired, ill or under influence of alcohol or other
drugs;
•Park safely the tool before leave it. The tool must be switched off.
•The lawnmower shall not be operated without either the entire grass catcher or self-closing
discharge opening guard in place;
•Warning: be careful about exhaust gas. Do not inhale them.
•Wear adequate clothing such as long trousers and a protective equipment: slip-resistant
foot protection, hearing protection, eyes protection and gloves.
•To avoid health issues, limit the time of operation. Take enough rest. Exposure to noise and
vibrate can have bas consequences on health.
Fuel Handling
Use caution when handling fuels. They are flammable and the vapors are explosive.
Use only an approved container.
Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the
engine and exhaust components to cool down before refueling.
Do not smoke.
Never refuel inside a room.
Never store the tool and the fuel tank indoors where there is a naked flame, such as near a
water heater.
If fuel has spilled, do not attempt to start the machine, but move it away from the spill before
starting to use it. Please clean up any spills.
Replace and tighten the fuel tank cap after refueling.
Follow strictly the instructions in this manual for filling the tool with fuel.
During maintenance and storage
Switch off the tool and wait until it stops completely. Make sure that all moving parts are stopped.
Allow the machine to cool before performing inspection, adjustments, maintenance, servicing
and storage.
Store the tool where fuel vapor will not reach a flame or spark.
When transporting and storing the tool, always use a protection device to avoid fuel spillage,
accidents and injuries.
Residual risks
Even if you use this product in compliance with all safety requirements, the potential risks of
injury and damage remain. The following hazards may arise in the structure and design of this
product:
There are adverse health consequences resulting from the emission of vibration if the product
is used for long periods of time or not properly managed and properly maintained.
There are risks of injury and property damage due to attachments or broken the sudden impact
of hidden objects when using cutting.
Risk of injury to persons and property caused by flying objects.
Prolonged use of this product exposes the operator to vibrations and can produce so-called
"white finger" disease. To reduce the risk, wear gloves and keep your hands warm.

6
If any of the symptoms of "white finger syndrome" occur, seek immediate medical attention.
Symptoms of "white finger" include numbness, loss of sensitivity, tingling, tingling, and pain,
loss of strength, color changes or skin condition. These symptoms usually appear on the fingers,
hands or wrists. Risk increases at low temperatures.
There is of hearing loss in case of prolonged use and when a hearing protection is not worn.
Intended use
This model of thermal mower is designed for natural grass mowing. Any other use is prohibited.
It is suitable only for private use in a garden or plot. Lawnmowers designed for private plots or
gardens are those used for the maintenance of grassy areas and private lawns and should not
be used in public areas, parks, sports, agricultural or forest areas.
Symbols
Read the instructions
Watch out for projections! Keep viewers away from work area
Danger! Keep your hands and feet away from the cutting element
Do not use the tool under rain. Blades continue to rotate after the engine stops
Wear protective equipment. Wear eye and hearing protection when using the tool

7
Guarantee sound power level
2. YOUR PRODUCT
a. Description
1. Upper bar
2. Operator control lever
3. Self-propeller bar
4. Throttle control
5. Fuel tank
6. Engine
7. Air filter
8. Cutting height lever
9. Flap
10. Grass catcher
11. Starter rope
12. Lower bar
13. Flap of the lateral discharge
14. Lateral discharge

8
b. Technical data
Model
RACTDT5070-AC
Nominal power
3kW
Displacement
173cm³
Max engine speed
2800/min
Cutting width
502mm
Volume of the collection bag
55l
Weight
36kg
Engine type
DY1P70FA
Blade type
DY0608-12
Fuel tank capacity
1,5l
Oil tank capacity
0,6l
Sound pressure level
Lpa: 83dB(A), K=3,0 dB(A)
Guaranteed Sound Power Level
97dB(A)
Sound power level
LwA: 97dB(A)
Vibration value
Max. 5,37 m/s², K=1,5m/s²
3. ASSEMBLY
a. Handles/bar
- Install the lower handle (2) on the machine and screw it with the provided screws and
nuts. Combine the upper handle (1) and the lower handle (2). Place the hook (3) on
the right side of the handle. Screw the
handle with the two nut knobs and their
screws.
b. Grass catcher
- Open and hold the flap. Insert the grass catcher and attach it to the bar with the hooks.
The flap should fit securely.
- To remove the grass catcher, remove the hooks from the bar and remove the tray.

9
c. Setting of the cutting height
According operation to be performed, adjust the
desired cutting height; Grasp the lever, pull it to the
right and then lower it to decrease the cutting
height or raise it to increase the cutting height
d. Lateral discharge
Open and hold the flap of the side discharge. Install the lateral discharge by putting the
hooks on the bar. Then release the flap.
You must fit the mulching adapter in order to use the side ejector. Hook in the side ejector
adapter.
e. Back discharge

10
If need to use the back discharge function, screw out the bolt about 40mm.
To use the back discharge function you must open the ejector flap slightly.
The mulching adapter is not allowed to be fitted when the rear ejector is used.
4. FILLING FUEL TANK
a. Filling tank
WARNING! Gasoline is extremely flammable.
Store fuel in specially designed cans for this purpose.
Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling
the fuel tank or handling fuel.
Never open the fuel tank cap and never add fuel while the engine is running or when it
is hot.
If fuel has spilled, do not start the engine any further, move the tool away from where the
fuel has been spilled, and be careful not to create a spark or flame until the fuel vapors
have dissipated.
Fully close all fuel tank and fuel canisters.
Before tilting the mower to maintain the blade or drain the oil, empty the fuel tank.
WARNING: Never fill the fuel tank indoors, while the engine is running, or before the
engine has cooled down for at least 15 minutes after use.
CAUTION: Do not use unapproved gasoline, such as E15 and E85. Do not mix the oil
with gasoline or modify the engine to operate with alternative fuels. The use of
unapproved fuels will damage the engine parts and will void the engine warranty. To
protect the fuel system from scale formation, add a fuel stabilizer to the fuel. All fuels
are not identical. If startup or performance problems occur, change supplier or fuel
brand.
Fuel must meet the following criteria:
- Clean, new and lead-free gasoline.
- A minimum octane rating of 87/87 AKI (91 RON). For use at high altitudes, see below
- A gasoline containing up to 10% ethanol is acceptable.
- Remove the fuel tank cap. Add fuel.
- Close the fuel tank with the cap.
Do not overfill. Wipe off any fuel that has overflowed before starting the engine.
a. Engine oil
Recommended oil: We recommend the use of high quality detergent oil classified for SF,
SG, SH, SJ or higher. Do not use special additives.

11
Filling oil tank
- Open the oil tank.
- Fill directly the oil in the tank. Do not overfill.
- Close the oil tank. Wipe any spillage.
Checking the oil level
- Check the oil level when the engine is off and horizontal.
- Remove the plug / dipstick from the oil tank and
wipe it off.
- Insert the oil tank plug / dipstick into the tank neck
as shown, without screwing it in, and then remove
it to check the oil level.
- If the oil level is near or below the lower limit of the
dipstick, remove the dipstick and fill the
recommended oil reservoir up to the upper limit of
the dipstick (bottom edge of the dipstick). Do not
overfill.
- Replace the oil tank plug / dipstick.
5. USE
a. Starting the tool
Before starting and using the mower, check for the presence and operation of safety
devices. Also, check the condition of the blade and its securing bolt. If necessary, replace
or repair defective items. Use only genuine original parts.
If possible, mow only when the grass is dry. If the grass is wet or excessively long, perform
two cutting passes. Make the first pass at maximum cutting height to avoid overloading the
mower. The second pass should be made at the required finished height. If grass builds up
beneath the mower’s chassis, stop the engine and remove the spark plug’s cap before
cleaning the underside of the cutter deck.
- Slide the throttle lever to and for several times to ensure that it is moving smoothly and
correctly.
- Start the mower in a clear, level area. Do not start the engine if the cutting blade is
resting on rough and uncut grass as this may cause difficulties at start‐up.

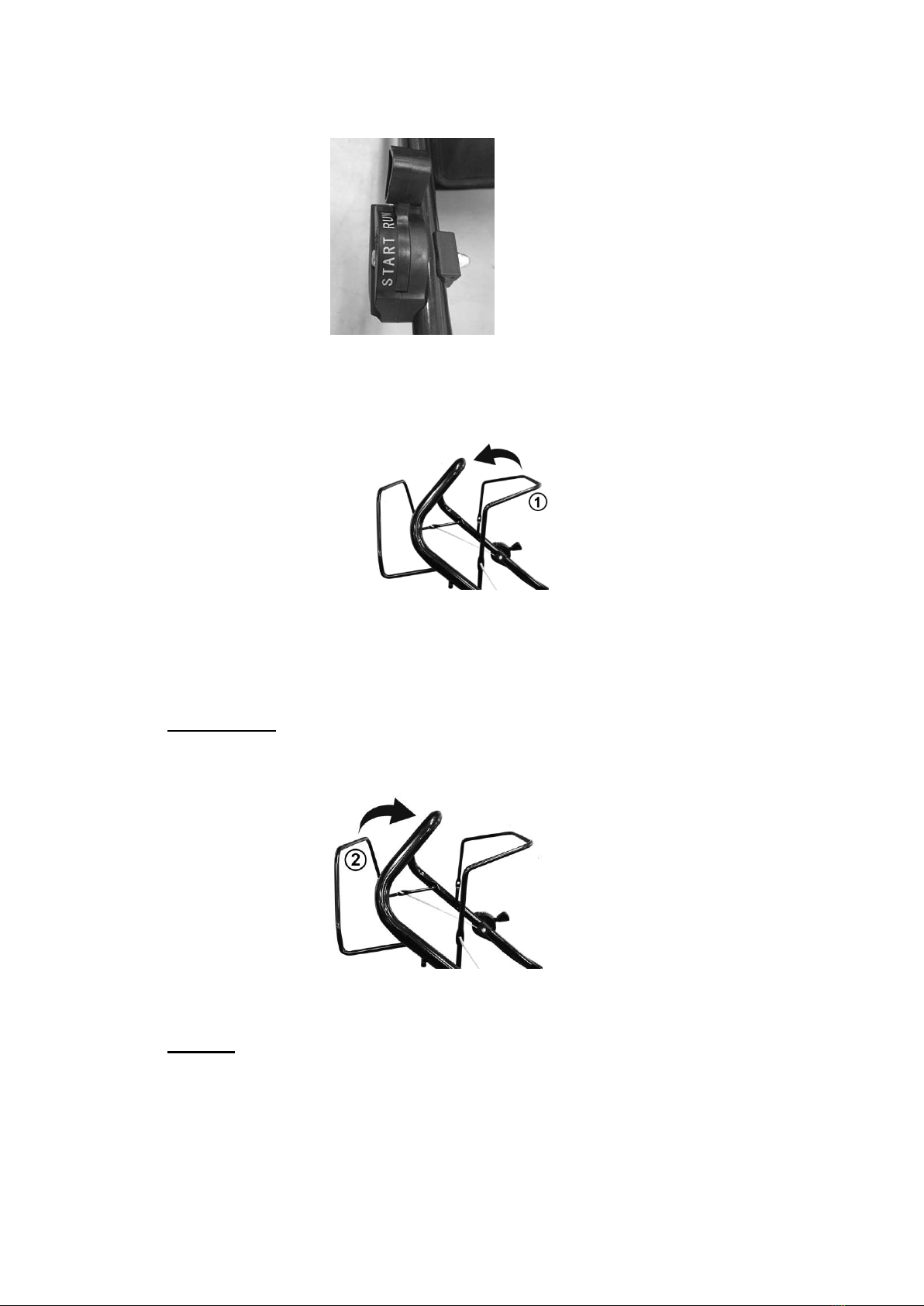

- For a cold start, move the throttle lever to the position marked: START
- For a hot start, move the lever to the position marked: RUN

12
- Stand behind the handlebars. Move the operator control lever positioned in front of the
handlebars rearwards so that the lever is resting against the handlebars. Take hold of
the starter handle firmly with the other hand.
- Pull back the starter until you feel resistance and then pull the handle firmly and briskly
to turn the engine
- Repeat the above procedure as necessary until the engine starts.
- When starting from cold, gradually move the throttle lever to the full throttle position
after a few moments of running.
b. Self-propelling
The mower can be self-propelled when in use. When the transmission is operated, the rear
wheels turn automatically. Push and hold the traction bar forward.
Release this bar to stop this function.
c. Stopping
To stop the mower, release the operator control lever. The engine and the blade will stop
turning automatically.
If there is a build‐up of grass beneath the chassis, stop the engine, remove the spark plug’s
cap and wait until the engine has cooled before clearing the grass.

13
6. MAINTENANCE AND STORAGE
Before working on the cutting system of the machine, switch off the engine and remove
the spark plug’s cap.
a. Cleaning the mower
- Cut grass is damp. Regular cleaning after each use will ensure better functioning of
the mower and reduce the risk of corrosion or seizure.
- Having finished mowing, allow the engine to cool then remove accumulated grass
clippings from and around the engine with a brush.
- Clean the grass collection bag annually with a brush or gentle spray of water.
- Disconnect the spark plug’s cap and tilt the mower on its side with the air filter and
carburettor uppermost.
- Remove any remaining cut grass from the cutting system with a scraper and a brush.
- Reposition the mower onto its four wheels.
- Do not use a pressure washer or hot water to clean the mower. Be careful to avoid
soaking parts such as the engine, air cleaner, wheel bearings and metal fastenings.
Dry off the machine before storing by leaving it running for a few minutes on a flat,
clear surface to prevent corrosion or seizure.
b. Blade maintenance
WARNING: Wear gloves, turn off the engine and remove the spark plug before
proceeding.

14
The blade is made of hardened steel. To get a clean job, sharpen the blade frequently,
about every 25 hours of use. Make sure the blade is always well balanced.

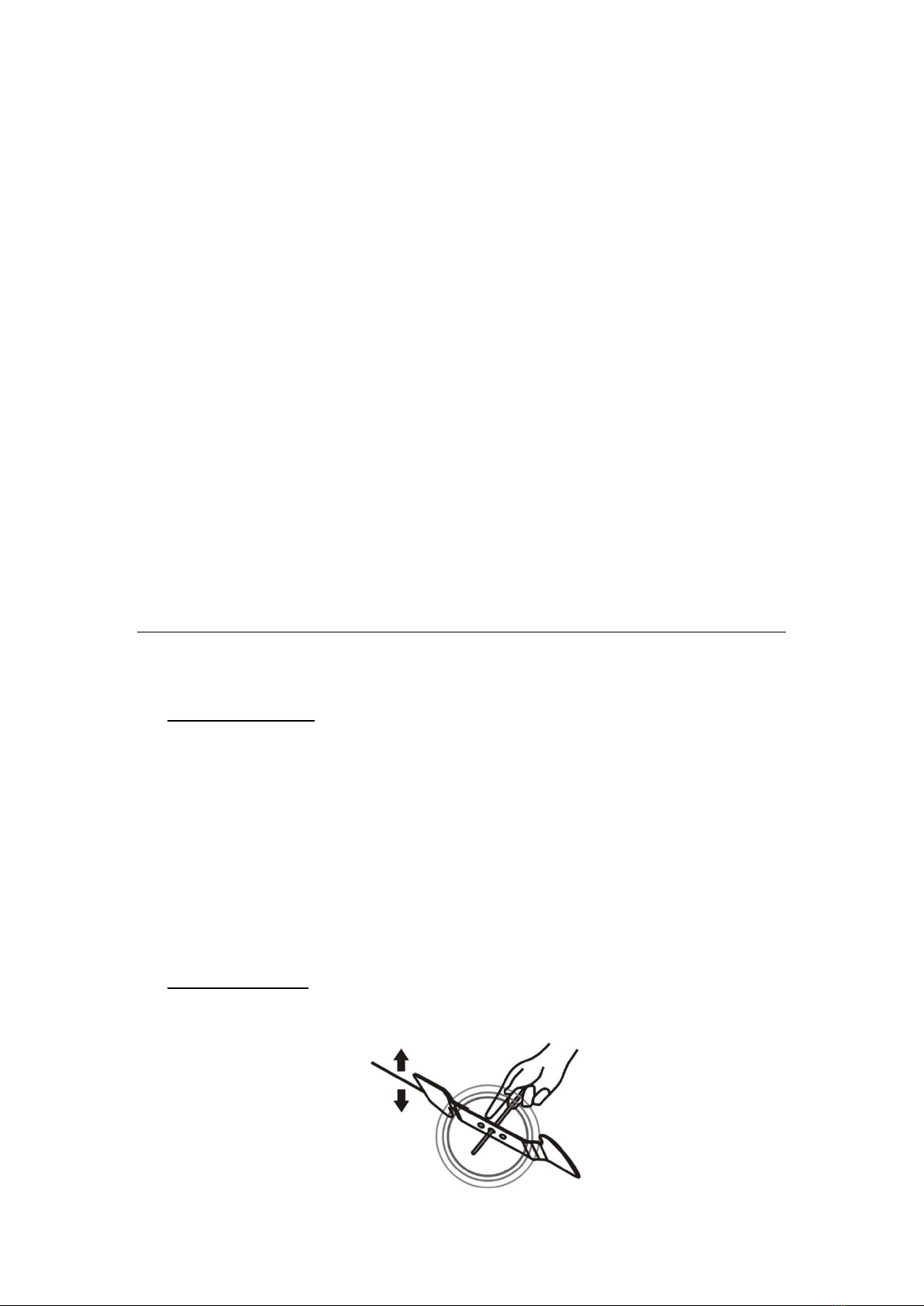

Insert a small iron pin (2 or 3 mm in diameter) into the hole in the middle of the blade: it
must remain horizontal. If the blade does not stay horizontal, balance it by sharpening it
further on the side where it is leaning.
WARNING: Use only original spare parts. Poor quality replacement parts can cause serious
damage to your mower and affect your safety.
To remove the blade, loosen the screw, check the blade bracket, and replace all parts if
they are worn or damaged.
When reassembling the blade, make sure that the cutting edges are in the same direction
as the direction of rotation of the motor. The tightening torque of the blade screw should be
3.7 kg * m / s 2 (37 Nm) and can be checked with a torque wrench.
c. Storing the mower
Store your mower in a dry, well-ventilated area, away from flames, sparks or heat sources.
If the storage area is accessible to children, immobilise the machine by disconnecting the
spark plug’s cap. Storing the mower beneath a tarpaulin or similar cover is not
recommended as it may cause a build‐up of condensation resulting in corrosion of the
mower.
Extended shutdown and winter storage
Thoroughly clean the mower. Ideally, run the engine outdoors until the fuel tank is empty.
Alternatively, empty any remaining fuel using a fuel suction pump.
Dispose of discarded fuel safely and responsibly, remembering that petrol vapours can
cause explosion or fire. Run the engine until any remaining fuel is consumed. Allow the
engine to cool. Check the condition and cleanliness of the air cleaner. Remove the spark
plug from the engine and pour a tablespoon of engine oil into the cylinder. Gently pull the
starter rope several times to turn over the engine, distributing the oil to protect the cylinder
over winter. Replace and tighten the spark plug.
At the start of the new season
Remove the spark plug and gently clean off any carbon deposits from the tip with a small
copper wire brush, finishing off with petrol. Allow the spark plug to dry. Pull the starter rope
several times to expel excess oil from the cylinder. Replace and tighten the spark plug. Fill
the fuel tank with unleaded petrol. Turn over the engine until it starts.
Before transporting the mower
Thoroughly clean the mower. Empty the fuel tank using a suction pump. Dispose of
discarded fuel safely and responsibly, remembering that petrol vapours can cause
explosion or fire. Run the engine until any remaining fuel is consumed.
Allow the engine to cool. Remove the grass collection bag. Loosen the quick release and
fold down the top section of the handles taking care not to bend the cables.
To avoid scratching the mower, insert corrugated cardboard or similar padding between
the upper and lower handlebars and the engine.
Due to the mower’s weight, use ramps or seek assistance when lifting or loading the mower.
d. Mower maintenance
Cutting system

15
Before and after each mowing session, check that the blade, its attachment bolts and drive
shaft are not damaged or excessively worn. Never try to straighten a bent blade. Replace
a damaged, worn or bent blade as soon as possible. Use only genuine parts. Excessive
vibration when mowing is a good indication of a problem with the cutting system.
WARNING: Vibration from a bent or damaged blade can cause costly damage to the mower.
Working with an excessively worn blade wastes fuel and can lead to injury if the blade
becomes detached from the machine.
Warning: there is a danger about moving blade. Always handle the blade when it is totally
stopped. Wear protective gloves.
Sharpening the blade
For best mowing results, have the edges sharpened and the blade balanced at least once
a year by a specialist service dealer or agent.
Removing the blade
Wear appropriate protective gloves to prevent possible injury when handling the blade.
Disconnect the spark plug cap and tilt the mower on its side with air filter and carburettor
side uppermost.
Holding the blade firmly in one hand, use a spanner or socket to loosen the blade screw.

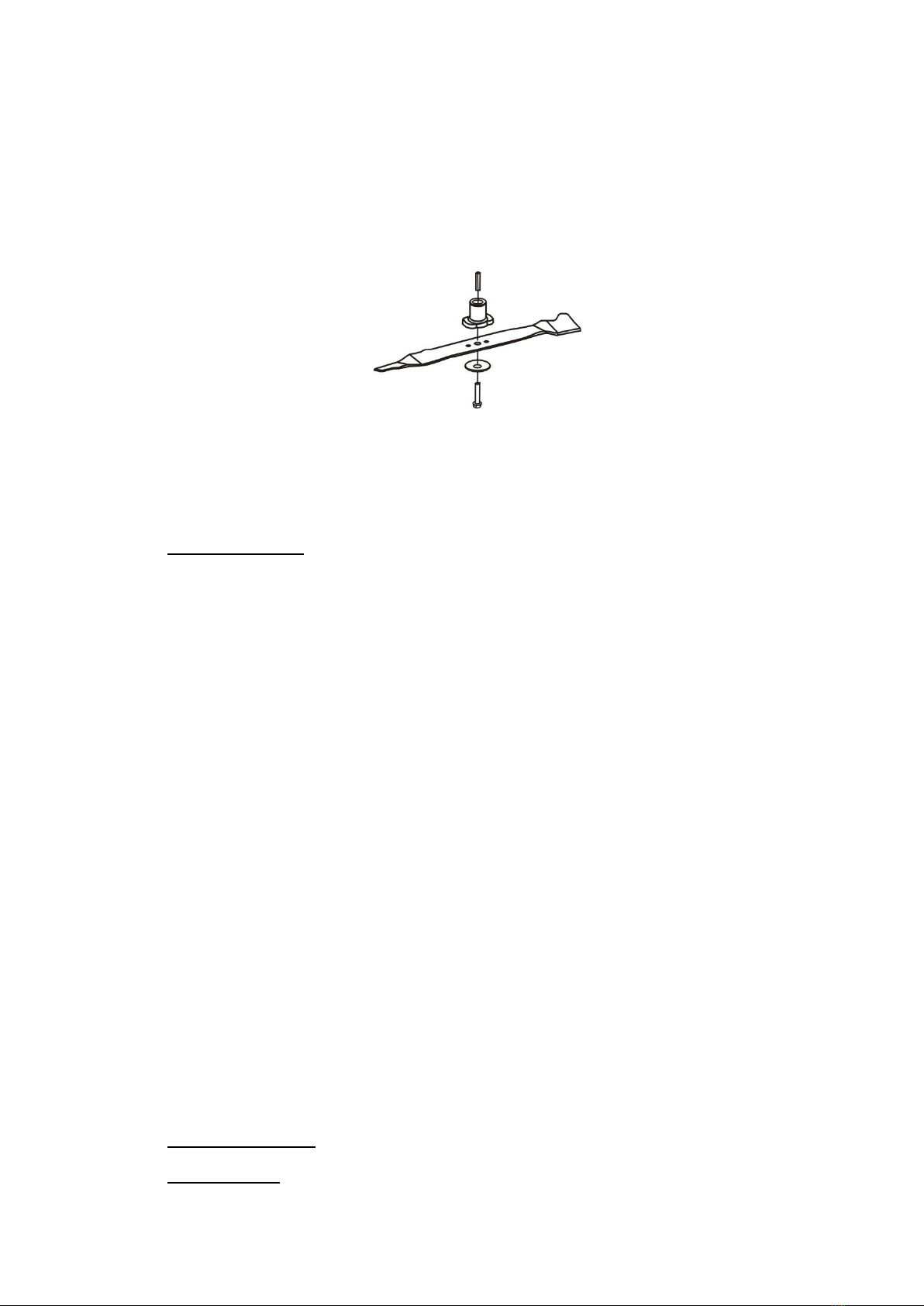

Mounting the blade
Wear appropriate protective gloves to prevent possible injury when handling the blade.
Disconnect the spark plug cap and tilt the mower on its side with air filter and carburettor
side uppermost.
Check that all components (the blade, key, blade holder, screws and washers).are present,
clean and in good condition.
Position the blade on its support with the cooling fins facing the engine.
Check the correct alignment and matching of pads with the blade. The blade must be
positioned precisely on its stand.
Tighten the screws connecting all of the components. Make a final visual check that all
parts are present and aligned before tightening the fixing bolt very firmly with a wrench
while holding the blade firmly in one hand (NB wear suitable gloves).
Spark plug
Check the spark plug initially after the first five hours of mower use. Thereafter,
maintenance of the spark plug should take place every 25 hours.
Remove the spark plug cap using a rotary motion and then remove the spark plug with the
wrench provided.
Clean off any carbon deposits using a copper brush and check the electrode gap with a
feeler gauge.
Replace and retighten the serviced spark plug and replace the cap.
If the spark plug is worn or damaged, replace with a new spark plug of the same or suitable
type for the engine.
Air Filter
An air filter in poor condition will reduce the performance and life of the engine while making
it harder to start. Regular checks are therefore essential, especially when using the mower
in dusty conditions. Check and clean the air filter every 25 hours of use or more often if the
engine is used in a dusty environment.
Remove the air box lid and carefully remove the foam filter cartridge. Clean the cartridge in
a small bowl of warm water containing a few drops of washing up liquid until it is perfectly
clean and free from all traces of grease and dust. Rinse the filter cartridge in clean water
and then squeeze gently to remove most of the water. Let it air dry until it is completely dry.
WARNING: Never clean the foam cartridge in petrol, white spirit or other solvents. These
products will degrade the filter cartridge.
Clean the cover and inside of the air box with a clean lint‐free cloth. Apply a uniform layer
of oil to the outside of the cartridge filter with a brush (you can use clean engine oil for this).
Insert the filter cartridge into its housing and replace the air box lid, ensuring that each
component is in place and properly installed. If the filter cartridge is damaged or is very
dirty, replace it using a genuine part.

16
WARNING: Do not twist the cartridge to clean foam, as you could damage it. This mower
is equipped with a dual filtration system comprising a foam pre‐filter and a cartridge filter
paper.
The maintenance of a foam pre‐filter is identical to that of a foam cartridge filter, as
described above. The cartridge filter paper should be cleaned with a vacuum cleaner. If it
is dirty or contaminated with oil or petrol, replace it.
Clean the cover and inside of the air box with a clean cloth. Evenly apply a thin layer of oil
to the outside of the cartridge filter with a brush (you can use clean engine oil for this).
Replace the filter cartridge in its housing and then replace the lid of the air box, ensuring
that each component is in place and properly installed.
Adjusting the transmission cable
In its transmission‐engaged position, the mower’s advance lever is pushed fully towards
the handlebar. An incorrectly‐adjusted transmission cable can cause premature wear to
the mower’s drive system.
If the transmission cable is too tight, it will be difficult to move the advance lever towards
the handlebars. Conversely, if the transmission cable is not tight enough, the transmission
will function poorly and will lack power.
To adjust the tension of the cable transmission, increase or reduce the length of the
adjustment device using the key. Check the effectiveness of the transmission and the
resistance of the lever.
Once proper adjustment has been reached, secure the adjustment device by tightening the
lock nuts.

17
7. DECLARATION OF CONFORMITY
Hyundai
32, rue Aristide Bergès -Z1 31270 Cugnaux - France
Tel. [phone] Fax: [phone]
Declares that the machine named below
GASOLINE LAWNMOWER
HTDT5070ES-1
Serial number:
Complies with the following European Directives:
Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU
Other applicable guidelines:
Noise Directive 2000/14/EC Annex VI and 2005/88/EC
Guaranteed Sound Power Level
97 dB(A)
Sound power level
97 dB(A)
Applicable harmonized standards:
EN ISO 5395-1:2013
EN ISO 5395-2:2013+A1:2016+A2:2017
EN ISO 14982: 2009
Notified body
Intertek Testing & Certification Ltd. (Notified Body 0359)
Davy Avenue, Know hill, Milton Keynes, MK5 8NL
Phone: [phone] Fax: [phone]
Cugnaux, 06/11/2018
Philippe MARIE / CEO
Responsible of technical file: M. Olivier Patriarca
