Hyundai N300-P User manual

SAFETY
For the Best Results with N300 Series inverter, read this manual and all of the warning sign
attached to the inverter carefully before installing and operating it, and follow the instructions exactly.
Keep this manual handy for your quick reference.
Definitions and Symbols
A safety instruction (message) is given with a hazard alert symbol and a signal word,
WARNING or CAUTION. Each signal word has the following meaning throughout this manual.
This symbol means hazardous high voltage. It used to call your attention to items or operations
that could be dangerous to you or other persons operating this equipment.
Read these message and follow these instructions carefully.
This is the "Safety Alert Symbol" This symbol is used to call your attention to items or operations
that could be dangerous to you or other persons operating this equipment.
Read these messages and follow these instructions carefully.
CAUTION
WARNING Indicates a potentially hazardous situation which, if not avoided, can result in serious
injury or death.
CAUTION Indicates a potentially hazardous situation which, if not avoided, can result in minor to
moderate injury, or serious damage of product.
The matters described under may, if not avoided, lead to serious
results depending on the situation. Important matters are described in CAUTION (as
well as WARNING), so be sure to observe them.
NOTE Notes indicate an area or subject of special merit, emphasizing either the product's
capabilities or common errors in operation or maintenance.
HAZARDOUS HIGH VOLTAGE
Motor control equipment and electronic controllers are connected to hazardous line voltages.
When servicing drives and electronic controllers, there might be exposed components with cases
or protrusions at or above line potential. Extreme care should be taken to product against shock.
Stand on an insulating pad and make it a habit to use only one hand when checking components.
Always work with another person in case an emergency occurs. Disconnect power before
checking controllers or performing maintenance. Be sure equipment is properly grounded. Wear
safety glasses whenever working on an electronic controller or rotating electrical equipment.
N300-P INSTRUCTION MANUAL

PRECAUTION
CAUTION : These instructions should be read and clearly understood before working on
N300 series equipment.
NOTE : POLLUTION DEGREE2
The inverter must be used environment of the degree 2.
Typical constructions that reduce the possibility of conductive pollution are,
1) The use of an unventilated enclosure
2) The use of a filtered ventilated enclosure when the ventilation is fan forced that is, ventilation is
accomplished by one more blowers within the enclosure that provide a positive intake and
exhaust.
WARNING : This is equipment should be installed, adjusted and serviced by qualified electrical
maintenance personal familiar with the construction and operation of the equipment and the hazards
involved. Failure to observe this precaution could results in bodily injury.
WARNING :The user is responsible for ensuring that all driven machinery, drive train mechanism not
supplied by HYUNDAI and process line material are capable of safe operation at an applied frequency
of 150% of the maximum selected frequency range to the AC motor. Failure to do so can result in
destruction of equipment and injury to personnel should a single point failure occur.
WARNING : For protection, install an earth leakage breaker with a high frequency circuit capable of
large currents to avoid an unnecessary operation. The ground fault protection circuit is not designed
to protect personal injury.
WARNING : Hazard of electrical shock. Disconnect incoming power before working on this control.
WARNING : Separate motor overcurrent, overload and overheating protection is required to be
provided in accordance with the safety codes required by jurisdictional authorities.
CAUTION : Proper grounds, disconnecting devices and other safety devices and their
location are the responsibility of the user and are not provided by HYUNDAI.
CAUTION : Be sure to connect a motor thermal switch or overload devices to the N300
series controller to assure that inverter will shut down in the event of an overload or an
overheated motor.
CAUTION : Dangerous voltage exists until charge lamp is off.
CAUTION : Rotating shafts and above ground electrical potentials can be hazardous.
Therefore, it is strongly recommended that all electrical work conform to the National
Electrical Codes and local regulations. Only qualified personnel should perform installation,
alignment and maintenance. Factory recommended test procedures, included in the
instruction manual, should be followed. Always disconnect electrical power before working
on the unit.
N300-P INSTRUCTION MANUAL

Cautions for EMC (Electromagnetic Compatibility)
To safety the EMC directive and to comply with standard, follows the checklist below.
WARNING
This equipment should be installed, adjusted, and serviced by qualified personal familiar with
construction and operation of the equipment and the hazards involved. Failure to observe
this precaution could result in bodily injury.
1. The power supply to N300-P inverter must meet these specifications
a. Voltage fluctuation 10% or less.
b. Voltage imbalance 3% or less.
c. Frequency variation 4% or less.
d. Voltage distortion THD = 10% or less.
2. Installation measure :
a. Use a filter designed for N300-P inverter
3. Wiring
a. Shielded wire (screened cable) is required for motor wiring, and the length must be less
than 20 meters.
b. The carrier frequency setting must be less than 3kHz to satisfy EMC requirements.
c. Separate the main circuit from the signal/process circuit wiring.
d. In case of remote operating with connector cable, the inverter does not conform to EMC.
4. Environmental conditions - when using a filter, follow these guidelines:
a. Ambient air temperature : -10 - +50 .
b. Humidity : 20 to 90% RH(non-condensing)
2
c. Vibration : 5.9 m/sec (0.6 G) 10 - 55Hz ( N300- 055 - 300LFP / 055 - 300HFP)
2.94 2
m/sec (0.6 G) 10 - 55Hz ( N300- 370 - 750LFP / 370 - 1600HFP)
d. Location : 1000meters of less altitude, indoors (no corrosive gas or dust)
N300-P INSTRUCTION MANUAL

Conformity to the Low Voltage Directive (LVD)
The protective enclosure must conform to the Low Voltage Directive.
The inverter can conform to the LVD by mounting into a cabinet or by adding covers as follows.
1. Cabinet and Cover
The inverter must be installed into a cabinet which has the protection degree of Type IP2X.
In addition the top surfaces of cabinet are easily accessible shall meet at least the requirements of
the protective Type IP4X, or which is constructed to prevent small objects from entering inverter.
IP4X cabinet IP20 with louver
Fig. Inverter cabinet
Air
Air
N300-P INSTRUCTION MANUAL

UL Warnings and Cautions Manual for N300 series
This auxiliary instruction manual should be delivered to the end user.
1. Wiring warnings for Electrical Practices and Wire Specifications
2. Tightening Torque and Wire Range
WARNING : "Use 60/75 CU wire only" or equivalent.
WARNING : "Open Type Equipment."
For models with N300 900-1600HFP
WARNING : "Suitable for use on a circuit capable or delivering not more than 10,000 rms
symmetrical amperes, 240V maximum. "For models with suffix L.
WARNING : "Suitable for use on a circuit capable or delivering not more than 10,000 rms
symmetrical amperes, 480 V maximum." For models with suffix H.
WARNING : Tightening torque and wire range for field wiring terminals are marked adjacent to
the terminal or on the wiring diagram.
8
8
6
4
2
1
1/0
3/0 or 2 parallel of 1 AWG
250kcmil or 2 parallel of 1 AWG
350kcmil or 2 paralleI of 1/0 AWG
3/0 or 2 parallel of 1 AWG
(75 )
Model Name Tightening Torque [N m] Wire Range(AWG)
N300-055LFP
N300-075LFP
N300-110LFP
N300-150LFP
N300-185LFP
N300-220LFP
N300-300LFP
N300-370LFP
N300-450LFP
N300-550LFP
N300-750-LFP
2.5
2.5
2.5
4.9
4.9
4.9
8.8
8.8
8.8
13.7
13.7
N300-P INSTRUCTION MANUAL

12
10
8
6
6
4
3
1
1
1/0
250kcmil or 2 parallel of 1 AWG(75 )
250kcmil or 2 parallel of 1 AWG(75 )
350kcmil or 2 parallel of 1/0 AWG
2 parallel of 2/0 AWG
2 Parallel of 2/0 AWG
Model Name Tightening Torque [N m] Wire Range(AWG)
N300-055HFP
N300-075HFP
N300-110HFP
N300-150HFP
N300-185HFP
N300-220HFP
N300-300HFP
N300-370HFP
N300-450HFP
N300-550HFP
N300-750HFP
N300-900HFP
N300-1100HFP
N300-1320HFP
N300-1600HFP
2.5
2.5
4.9
4.9
4.9
4.9
4.9
4.9
8.8
8.8
8.8
13.7
13.7
13.7
13.7
3. Circuit Breaker / Fuse Size
WARNING : Distribution fuse/circuit breaker size marking is included in the manual to indicate
that the unit shall be connected with an UL Listed inverse time circuit breaker,
rated 600V with the current ratings or an UL Listed fuse as shown in the table
below.
30
40
60
80
100
125
150
175
225
250
400
Model Name Circuit Breaker [A] Fuse [A]
N300-055LFP
N300-075LFP
N300-110LFP
N300-150LFP
N300-185LFP
N300-220LFP
N300-300LFP
N300-370LFP
N300-450LFP
N300-550LFP
N300-750LFP
30
40
60
80
100
125
150
175
225
250
400
N300-P INSTRUCTION MANUAL

15
20
30
40
50
60
70
90
125
125
175
200
250
300
400
Model Name
N300-055HFP
N300-075HFP
N300-110HFP
N300-150HFP
N300-185HFP
N300-220HFP
N300-300HFP
N300-370HFP
N300-450HFP
N300-550HFP
N300-750HFP
N300-900HFP
N300-1100HFP
N300-1320HFP
N300-1600HFP
15
20
30
40
50
60
70
90
125
125
-
-
-
-
-
4. Others
WARNING : "Field wiring connection must be made by an UL Listed and CSA Certified closed-
loop terminal connector sized for the wire gauge involved.
Connector must be fixed using the crimp tool specified by the connector manuf-
acturer.", or equivalent wording included in the manual.
Circuit Breaker [A] Fuse [A]
N300-P INSTRUCTION MANUAL

Revision History Table
No Revision Contents The Date of
lssue
Operation Manual
Number
1Initial Release of Manual July. 2003 HHIS-WZ-PE-032(00)
N300-P INSTRUCTION MANUAL
2The Modification of Parameter Initial Value. Feb. 2004 HHIS-WZ-PE-032(01)

SAFETY PRECAUTIONS
1. Installation
CAUTION
Be sure to install the unit on flame resistant material such as metal
Otherwise, there is a danger of fire.
Be sure not to place anything inflammable in the vicinity.
Otherwise, there is a danger of fire.
Do not carry unit by top cover, always carry by supporting base of unit.
There is a risk of falling and injury.
Be sure not to let the foreign matter enter such as cut wire refuse, spatter
from welding, iron refuse, wire, dust, etc.
Otherwise, there is a danger of fire.
Be sure to install it in a place which can bear the weight according to the
specifications in the text. (Chapter 6. Specifications)
Otherwise, it may fall and there is a danger of injury.
Be sure to install the unit on a perpendicular wall which is not subject to
vibration
Otherwise, it may fall and there is a danger of injury.
Be sure not to install and operate an inverter which is damaged or parts of
which are missing
Otherwise, there is a danger of injury.
Be sure install it in a room which is not exposed to direct sunlight and is
well ventilated. Avoid environments which tend to be high in temperature,
high in humidity or to have dew condensation, as well as places with dust,
corrosive gas, explosive gas, inflammable gas, grinding-fluid mist, salt
damage, etc.
Otherwise, there is a danger off fire.
P.2-2
P.2-2
P.2-2
P.2-5
P.2-1
P.2-3
P.2-2
P.2-2
N300-P INSTRUCTION MANUAL

2. Wiring
WARNING
Be sure to ground the unit.
Otherwise, there is a danger of electric shock and/or fire.
Wiring work shall be carried out by electrical experts.
Otherwise, there is a danger of electric shock and/or fire.
Implement wiring after checking that the power supply is off.
It might incur electric shock and/of fire.
After installing the main body, carry out wiring.
Otherwise, there is a danger of electric shock and/or injury.
Do not remove the rubber bush. (5.5 to 75kW)
Due to the possibility that a wire may be damaged, shorted or may have
a ground fault with the edge of the wiring cover.
P.2-9
P.2-6
P.2-8
P.2-5
P.2-4
CAUTION
Make sure that the input voltage is:
Three phase 200 to 240V 50/60Hz(for models with suffix L)
Three phase 380 to 480V 50/60Hz(for models with suffix H)
Be sure not to input a single phase.
Otherwise, there is a danger of fire.
Be sure not connect AC power supply to the output terminals(U, V, W).
Otherwise, there is a danger of injury and/or fire.
Be sure not to connect the resistor to DC terminals(PD, P and N) directly.
Otherwise, there is a danger of fire.
Be sure to set the earth leakage breaker or the fuse(s)(the same phase as
the main power supply) in the operation circuit.
Otherwise, there is a danger of fire.
As for motor leads, earth leakage breakers and electromagnetic contactors,
be sure to use the equivalent ones with the specified capacity(rated).
Otherwise, there is a danger of fire.
Do not stop operation by switching off the electromagnetic contactors on the
primary or secondary sides of the inverter.
Otherwise, there is a danger of injury and/or machine breakage.
Fasten the screws with the specified fastening torque. Check so that there
is no loosening of screws.
Otherwise, there is a danger of fire.
P.2-6
P.2-8
P.2-5
P.2-5
P.2-12
P.2-12
P.2-6
P.2-12
SAFETY PRECAUTIONS
N300-P INSTRUCTION MANUAL

WARNING
While the inverter is energized, be sure not to touch the main terminal or to
check the signal or put on/off wire and/or connector.
Otherwise, there is a danger of electric shock.
Be sure to turn on the input power supply after closing the front case.
While being energized, be sure not to open the front case.
Otherwise, there is a danger of electric shock.
Be sure not to operate the switches with wet hands.
Otherwise, there is a danger of electric shock.
While the inverter is energized, be sure not to touch the inverter terminals
even during stoppage.
Otherwise, there is a danger of electric shock.
If the retry mode is selected, it may suddenly restart during the trip stop. Be
sure not to approach the machine. (Be sure to design the machine so that
personnel safety will be secured even if it restarts.)
Otherwise, there is a danger of injury.
Be sure not to select retry mode for up and down equipment or traveling
equipment, because there is output free-running mode in term of retry.
Otherwise, there is a danger of injury and/or machine breakage.
Even if the power supply is cut for a short period of time, it may restart
operation after the power supply is recovered if the operation command is
given. If it may incur danger to personnel, be sure to make a circuit so that it
will not restart after power recovery.
Otherwise, there is a danger of injury.
The stop key is effective only when the function is set. Be sure to prepare
the key separately from the emergency stop.
Otherwise, there is a danger of injury.
After the operation command is given, if the alarm reset is conducted, it will
restart suddenly. Be sure to set the alarm reset after checking the operation
command is off.
Otherwise, there is a danger of injury.
Be sure not to touch the inside of the energized inverter or to put a bar into it.
Otherwise, there is a danger of electric shock and/or fire.
P.3-1
P.3-1
P.3-1
P.3-1
P.3-1
P.3-1
P.3-1
P.3-1
3. Control and operation
P.3-1
P.3-1
SAFETY PRECAUTIONS
N300-P INSTRUCTION MANUAL

CAUTION
Cooling fin will have high temperature. Be sure not to touch them.
Otherwise, there is a danger of getting burned.
Low to high speed operation of the inverter can be easily set. Be sure to
operate it after checking the tolerance of the motor and machine.
Otherwise, there is a danger of injury.
Install external break system if needed.
Otherwise, there is a danger of injury.
If a motor is operated at a frequency higher than standard setting value
(50Hz/60Hz), be sure to check the speeds of the motor and the machine
with each manufacturer, and after getting their consent, operate them.
Otherwise, there is a danger of machine breakage.
Check the following before and during the test run.
Otherwise, there is a danger of machine breakage.
Was the direction of the motor correct?
Was the inverter tripped during acceleration or deceleration?
Were the rpm and frequency motor correct?
Were there any abnormal motor vibrations or noise?
P.3-2
P.3-2
P.3-2
P.3-2
P.3-2
WARNING
WARNING
After a lapse of more than 10 minutes after turning off the input power
supply, perform the maintenance and inspection.
Otherwise, there is a danger of electric shock.
Make sure that only qualified persons will perform maintenance, inspection
and part replacement. (Before starting the work, remove metallic objects
from your person(wristwatch, bracelet, etc.)
(Be sure to use tools protected with insulation)
Otherwise, there is a danger of electric shock and/or injury.
Never modify the unit.
Otherwise, there is a danger of electric shock and/or injury.
P.5-1
P.5-1
4. Maintenance, inspection and part replacement
5. Others
SAFETY PRECAUTIONS
N300-P INSTRUCTION MANUAL

Table of Contents
TABLE OF CONTENTS
Chapter 1 General Descriptions
1.1 Inspection upon Unpacking
Inspection of the unit
Instruction manual
1.2 Question and Warranty of the Unit
Request upon asking
Warranty for the unit
1.3 Appearance
Appearance and Names of parts
Chapter 2 Installation and Wiring
2.1 Installation
2.1.1 Installation
2.1.2 Blind cover of wiring parts
2.2 Wiring
2.2.1 Terminal Connection Diagram
2.2.2 Main circuit wiring
2.2.3 Terminal Connection Diagram
2.2.4 Digital operator wiring
Chapter 3 Operation
3.1 Operation
3.2 Test Run
Chapter 4 Explanation of Function
4.1 About Digital Operator (OPE-S)
4.2 Code list
4.3 Explanation of function
4.3.1 Monitor mode
Output frequency monitor, Output current monitor, Operation direction monitor,
PID feedback monitor
Intelligent input monitor, Intelligent output monitor
Frequency conversion monitor, Output torque monitor, Output voltage monitor,
Input electric power monitor
Accumulated time monitor on Run, Power ON time monitor, Trip time monitor,
Trip monitor
N300-P INSTRUCTION MANUAL

Table of Contents
4.3.2 Function mode
Output frequency setting, Operation direction, Selection with limits of operation direction,
Frequency command selection
Operation command selection, Selection no stop, Selection of stop key
Adjustable time
Base frequency
Maximum frequency, Carrier frequency
External analog input (0, 02, 01)
External frequency Start / End
Setting analog input filter, Output voltage gain
Control system (V/f Characteristic)
Torque boost
Direct current braking (DB)
Frequency limiter
Frequency jump function, Acceleration stop function
PID function
Automatic energy-saving operation function
Two-stage acceleration and deceleration on function (2CH)
Acceleration and deceleration pattern
Instantaneous power failure / under-voltage
Open phase protection function selection, Electronic thermal function
Overload restriction / Overload advance notice
Start frequency, Reduced voltage start selection
BRD (Dynamic breaking) function, Cooling fan operating selection
Intelligent input terminal setting
Input terminal a/b (NO / NC) selection, Multi-speed operation function
Jogging operation (JG)
Second / Third control function (SET, SET3)
Software lock mode selection (SFT), Force operation ope function (OPE)
Free-run stop (FRS)
Commercial power source switching (CS)
Reset (RS)
Unattended start protection (USP), UP / DOWN selection (UP, DWN, UDC)
External trip (EXT), 3 wire input function (STA, STP, F/R)
Intelligent output terminal setting
Intelligent output terminal a/b (NO / NC) selection
Signal during run (RUN), Frequency arrival signal (FA1, FA2, FA3, FA4, FA5)
N300-P INSTRUCTION MANUAL

RUN time / power ON time over (RNT / ONT), Zero speed signal (ZS)
Alarm code output (AC0 - AC3)
FM terminal
AM terminal, AMI terminal, External thermistor
Initialization setting
Display selection
Stabilized factor, Motor constant
Fuzzy most suitable acceleration and deceleration
Braking control function
Stopping of deceleration at power off
Motor constant selection
4.4 Protection function list
4.4.1 Protection function
4.4.2 Trip monitor display
4.4.3 Warning Monitor display
Chapter 5 Maintenance, Inspection
5.1 Precaution for Maintenance / Inspection
5.1.1 Daily inspection
5.1.2 Cleaning
5.1.3 Regular inspection
5.2 Daily inspection and regular inspection
5.3 Megger test
5.4 Withstand Voltage test
5.5 The method to check Inverter, converter part
5.6 Capacitor Life Curve
Chapter 6 Specification
6.1 Standard specification list
6.2 Dimension
Communication function
Table of Contents
N300-P INSTRUCTION MANUAL

Chapter 1 General Descriptions
1.1 Inspection upon Unpacking
1.1.1 Inspection of the nuit
Open the package and pick out the inverter, please check the following item.
If you discover any unknown parts or the unit is in bad condition, please contact your supplier or the
local HYUNDAI Distributor.
(1) Make sure that there was no damage (injury, falling or dents in the body) during transportation
of the unit.
(2) After unpacking the unit, make sure that the package contains one operation manual for the
Inverter.
(3) Make sure that the product is the one you ordered by checking the specification label.
Specifications label
Model : N300-075HFP
KW/(HP) : 7.5/(11)
Input : 50Hz, 60Hz 400 480 V 3ph A
Output 0.1 400Hz 3ph 15A
MFG No.
HYUNDAI

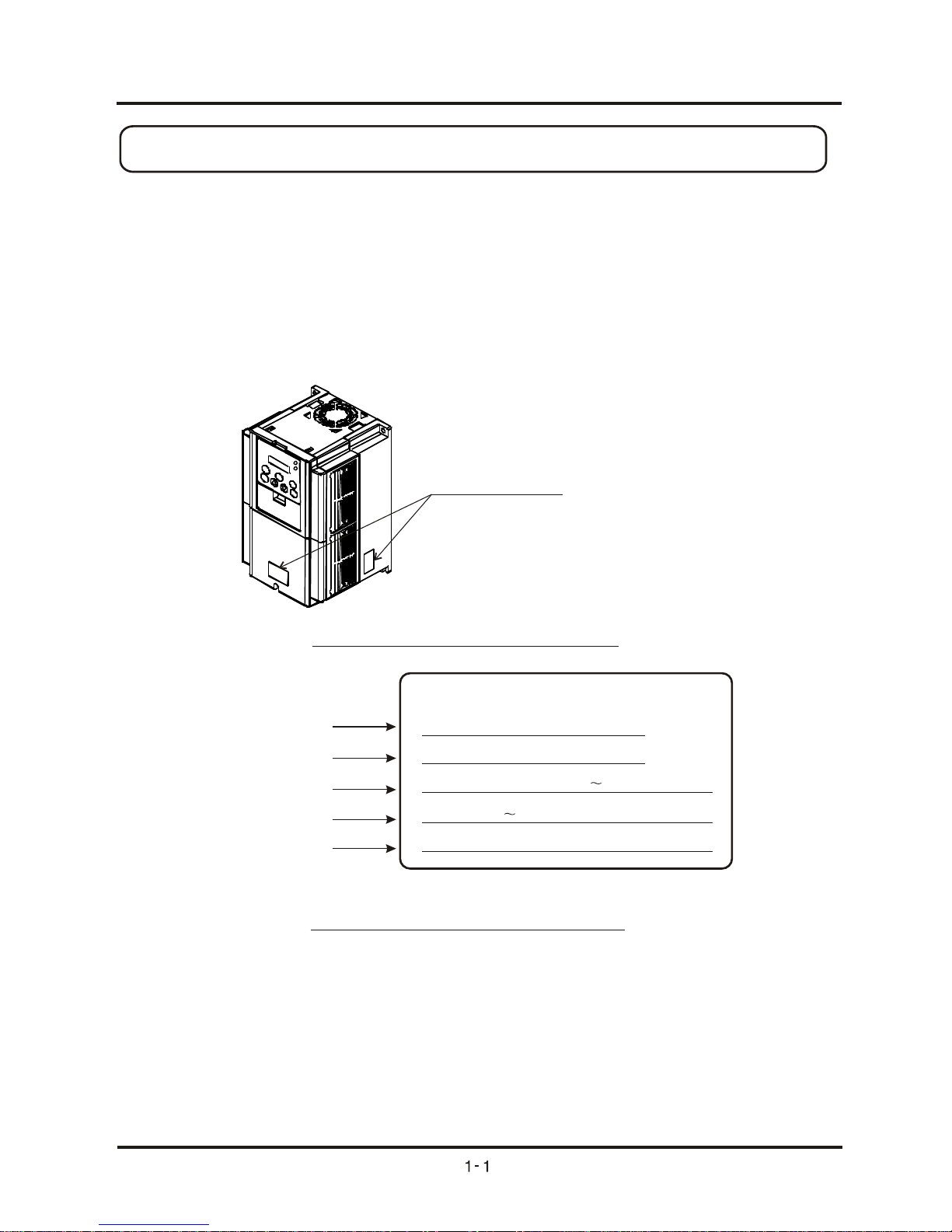

Picture 1-1 Position of specification label
Picture 1-2 Contents of specification label
Inverter model
Maximum applicable motor
Input ratings
Output ratings
Production number
1.1.2 Instruction manual
This instruction manual is the manual for the HYUNDAI Inverter N300-P Series.
Before operation of the Inverter, read the manual carefully. After Reading this manual, keep it to hand
for future reference.
When using optional units for this inverter ; please refer to the instruction manuals packed with the
optional units.
This instruction manual should be delivered to the end user.
N300-P INSTRUCTION MANUAL

1.2 Question and Warranty of the Unit
1.2.1 Request upon asking
If you have any questions regarding damage to the unit, unknown parts or for general enquiries
please contact your supplier or the local HYUNDAI Distributor with the following information.
(1) Inverter Model
(2) Production Number (MFG No.)
(3) Date of purchase
(4) Reason for Calling
Damaged part and its condition etc.
Unknown parts and their contents etc.
1.2.2 Warranty for the unit
The warranty period of the unit is one year after the purchase date. However within the warranty
period, the warranty will be void if the fault is due to;
(1) Incorrect use as directed in this manual, or attempted repair by unauthorized personnel.
(2) Any damage sustained other than from transportation (Which should be reported immediately).
(3) Using the unit beyond the limits of the specification.
(4) Natural Disasters : Earthquakes, Lightning, etc
The warranty is for inverter only, any damage caused to other equipment by malfunction of the inverter
is not covered by the warranty.
Any examination or repair after the warranty period (one-year) is not covered. And within the warranty
period any repair and examination which results in information showing the fault was caused by any of
the items mentioned above, the repair and examination cost are not covered. If you have any questions
regarding the warranty please contact either your supplier or the local HYUNDAI Distributor.
Please refer to the back cover for a list of the local HYUNDAI Distributors.
Chapter 1 General Descriptions
N300-P INSTRUCTION MANUAL

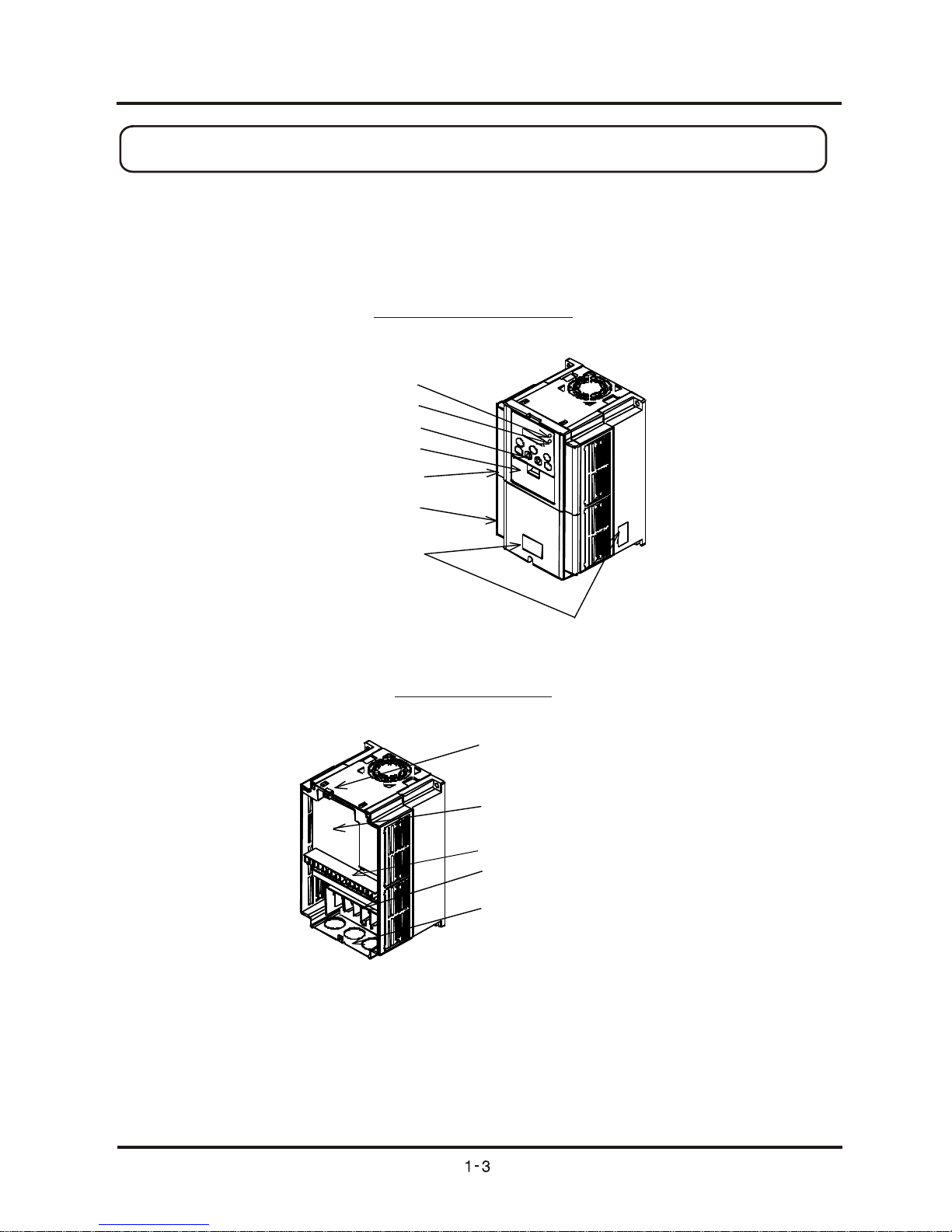

1.3 Appearance
1.3.1 Appearance and Names of Parts
Appearance from the front
Front cover removed
Power lamp
Alarm lamp
Digital operator
Spacer cover
Front cover
Terminals cover
Specifications
Label
Connector
Installation point
of self-contained option
Main circuit terminals
Wiring blind cover
Control circuit terminals
(Note) When you use cable for remote operation, please remove connector.
Chapter 1 General Descriptions
N300-P INSTRUCTION MANUAL

1.4 Application Method for J61 Connector Pin according to Input
Power Grounding Condition
1.4.1 Usage of J61 Connector Pin and its application
(1) Usage of J61 Connector Pin
For N300 Inverter, a protection circuit is built-in case of lightning while being used, and it can be
also protected when J61 Connector Pin is connected.
However, the Inverter can be seriously affected according to its grounding condition(grounding
or non-grounding) of input transformer.
As a result, when Inverter products are yielded, J61 Connector Pin is separately provided (open
condition). Users should choose a set of J61 Connector Pin according to the second grounding
condition of input power as the below picture after deep consideration of your field situation.
(2) Comparison according to J61 Connector Pin Using or Non-using
a) Advantage of using J61 Connector Pin
Electronic products are often damaged by lightning or thunderbolt due to its sensitivity for the
weather changing. For N300 Inverter, a protection circuit is built-in to protect the inverter from
lightning or thunderbolt by using J61 Connector Pin.
Pre-caution
You should confirm the grounding condition of power source.
When using the second inverter(inverter power input), you should confirm if Y wiring is in neutral
ground system and if wiring is in upper ground system. If you use J61 Connector Pin in
non-grounding system, Inverter can be easily damaged by excessive noise from being
expressed through ZNR .
Chapter 1 General Descriptions
N300-P INSTRUCTION MANUAL
Inverter
ZNR5
J61
Power input
R
S
T
Motor
U
V
W
- J61 Connector Pin Applying Condition according to grounding -
Grounding
condition Wiring Diagram of Input
Applying Condition
of J61 Connector
Pin
Remarks
See Application
Method of
Connector in
Chapter 1.4.2
Available for J61
Connector Pin
Running open of J61
Connector Pin
(not connected)
YY
First Second
Or
YY
Or
Non-grounding
Grounding
Original
Product
First Second
First Second First Second
