Hyundai HY2200RV User manual

HY2200RV
User Manual

This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov
©2019 Hyundai Power Equipment. All Rights Reserved.
Licensed by Hyundai Corporation, Korea.
HY2200RV_UG_EN_2019-11-15

Thanks for choosing the HY Series!
You're excited to power up, so we'll keep this brief. Let's get started!

THIS PRODUCT MEETS ALL CERTIFICATION REQUIREMENTS FROM:

WE'VE GOT YOU COVERED!
Contact us by phone at 1-877-528-3772,
email us at [e-mail], or visit us online
at www.hyundaipower.ca if you have any questions.
SAVE THESE INSTRUCTIONS
This user guide contains important instructions for your
product, that should be followed during installation and
maintenance of the generator.
This user guide covers the safety, operation and
maintenance procedures for the HY2200RV.
All information in this publication is based on the latest
product information available at the time of print.
Visit www.hyundaipower.ca for user guide
updates and operation notices.
No part of this publication may be reproduced
without written permission.

WARRANTY INFORMATION
YOU CAN REGISTER EASILY USING OUR ONLINE FORM:
www.hyundaipower.ca/register-warranty
See ‘Limited Warranty’ for more information.
Product registration will allow you to request warranty support in
the future. Product registration is required for all product support
and warranty coverage.
Warranty support, operation assistance and product support
is provided by Midland Power Inc., a licensed manufacturer of
Hyundai Power Equipment. Please contact us directly for any
warranty service questions.
1-877-528-3772
[e-mail]
www.hyundaipower.ca

HY SERIES
TABLE OF CONTENTS
1. Safety 1
1.1 Operator Safety 1
1.2 AC Safety 2
1.3 Maintenance Safety 3
1.4 Running Generators in Parallel 3
1.5 Other Safety Tips 4
2. Learn About Your Generator 5
2.1 Component Identification 5
2.2 Control Panel 6
2.3 Control Functions 7
2.4 Make Sure You Have Everything 8
3. Pre-Operation Check 9
4. Starting the Engine 13
4.1 Starting Your Generator 14
5. Generator Use 16
5.1 Output, Overload, and Oil Alert Indicator 16
5.2 DC Applications 17
5.3 AC Applications 18
5.4 AC Parallel Operation 19
6. Stopping the Engine 20
7. Maintenance 20
7.1 Maintenance Schedule 21
7.2 Emission Control System 22
7.3 Changing the Oil 24
7.4 Cleaning The Air-Filter 26
7.5 Spark Plug Service 27
7.6 Spark Arrester Maintenance 28
7.7 Fuel Filter Maintenance 28
8. Transportation & Storage 29
9. Troubleshooting 31
10. Technical Specifications 33
11. Wiring Diagram 34
12. Appendix 35
13. Limited Warranty 36

1
1. SAFETY
DANGER!
Using a generator indoors can kill you in minutes.
Generator exhaust contains carbon monoxide. This is a poison
that you cannot see or smell.
NEVER use inside a home or garage.
The engine exhaust from this product contains chemicals known
to cause cancer, birth defects or other reproductive harm.
WARNING!
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov
1.1 OPERATOR SAFETY
WARNING!
Always perform an oil, fuel and air lter check before starting the engine.
Properly clean and maintain the equipment.
Operate the generator according to instructions for safe and
dependable service.
Before operating the generator, read the user guide carefully. Otherwise,
it may result in personal injuries or equipment damage.
Never run the generator in an enclosed area to avoid harm from exhaust
emissions of a poisonous carbon monoxide gas.
Pay attention to the warning labels. The engine exhaust system will
become heated during operation and remain hot immediately after the
Avoid other generator hazards
READ MANUAL BEFORE USE.
Using a generator indoors can KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide.
This is poison that you cannot see or smell.
NEVER use inside a home
or garage. EVEN if doors
and windows are open.
Only use OUTSIDE and
far away from windows,
doors, and vents.

2
engine is stopped.
Gasoline is a highly ammable and explosive liquid. Refuel in a well
ventilated area with the engine stopped.
Use of gasoline with an ethanol content greater than 10% can damage
the engine and fuel system and will void the manufacturer’s warranty.
When refueling the generator, keep it away from cigarettes, open ames,
smoke and/or sparks.
Place the generator at least 3 feet away from buildings or other
equipment during operation.
Run the generator on a level surface. Tilting the generator may result in
fuel spills.
Know how to stop the generator quickly and understand operation of
all the controls. Never permit anyone to operate the generator without
proper instructions.
Keep children, pets and machinery with rotating parts away during
operation.
Do not operate the generator in rain or snow.
Do not allow any moisture to come in contact with the generator.
Do not touch the spark plug while the engine is operating or shortly after
the engine has been shut down.
1.2 AC SAFETY
WARNING!
Before connecting the generator to an electrical device or power cord:
Make sure that everything is in proper working order. Faulty devices or
power cords can lead to an electrical shock.
Turn off the generator immediately if the device begins to operate
abnormally. Then disconnect the device and investigate the problem.
Make sure that the electrical rating of the device does not exceed
that of the generator. If the power level of the device is between the
maximum output power and the running power of the generator, the
generator should not be used for more than 30 minutes.
Connections for standby power to a building’s electrical system must
be done by a qualied electrician and must comply with all applicable
laws and electrical codes. Improper connections may cause serious
injuries to electrical workers during a power outage, and when the
utility power is restored, the generator may explode or cause res. The
generator shall be connected through transfer equipment that switches
all conductors other than the equipment grounding conductor. The
HY SERIES

3
frame of the generator shall be connected to an approved grounding
electrode.
For power outages, permanently installed stationary generators are
better suited for providing backup power to the home. Even a properly
connected portable generator can become overloaded. This may result
in overheating or stressing the generator components, possibly leading
to a generator failure.
1.3 MAINTENANCE SAFETY
WARNING!
After any maintenance is performed, wash immediately using soap and
clean water because repeated exposure to lubricant may cause skin
irritation.
Do not clean the lter element with ammable liquids like gasoline due
to risk of explosion.
Turn off the engine before performing any maintenance. Otherwise it can
cause severe personal injury or death.
Allow the generator set to cool down before performing any
maintenance.
Always wear safety glasses when cleaning the generator set with air.
Do not clean the generator set with a pressure washer because it can
cause damage to the generator set.
When working with batteries, ventilate the area, use safety glasses, do
not smoke. Always disconnect the negative rst and reconnect it last.
Use rubber gloves when coming into contact with engine oil.
Always stop the generator set before removing the oil ller cap.
Only qualied maintenance personnel with knowledge of fuels,
electricity, and machinery hazards should perform maintenance
procedures.
Lubricate all exposed metal parts regularly. See chapter 7.1 for
maintenance schedule.
1.4 RUNNING GENERATORS IN PARALLEL
WARNING!
Only connect in parallel with a Hyundai HY-P model with the approved
parallel kit (sold separately). Attempting to connect other brands or
models will void your warranty and could cause bodily injury.

4
1.5 OTHER SAFETY TIPS
WARNING!
To avoid breathing in poisonous carbon monoxide from the exhaust
gases, adequate ventilation should be provided if the generator set is
running in a partially enclosed space.
If the generator set is stored outdoors, check all the electrical
components on the control panel before each use. Moisture can
damage the generator and can lead to an electric shock.
Generators vibrate in normal use. During and after the use of the
generator, inspect the generator as well as extension cords and power
supply cords connected to it for damage resulting from vibration. Have
damaged items repaired or replaced as necessary. Do not use plugs or
cords that show signs of damage such as broken or cracked insulation
or damaged blades.
If you start to feel sick, dizzy, or weak after the generator has been
running, move to fresh air RIGHT AWAY. See a doctor. You could have
carbon monoxide poisoning.
HY SERIES

5
2. LEARN ABOUT YOUR GENERATOR
This section will show you how to identify key parts of your generator. Going over
the terminology below will make sure we’re on the same page.
2.1 COMPONENT IDENTIFICATION
Fuel Cap Vent Lever
Fuel Cap
Control Panel
Fuel Valve
Spark Plug
Access Panel
Engine Access
Cover
Muffler &
Spark Arrester
Rear Maintenance
Panel
Choke Knob
Recoil Grip

6
2.2 CONTROL PANEL
1. Power Button
2. EcoMode Switch
3. Reset
4. Indicator Lights
5. DC Outlet
6. DC Breaker
7. AC Breaker
8. USB Ports
9. Parallel Port
10. 120V 20A 5-20R Outlet
11. Ground Terminal
1
4
5
6
7
8
9
10
11
2
3
HY SERIES

7
2.3 CONTROL FUNCTIONS
AC Circuit Breakers
While the generator is running, the breakers should be in the ON
position.
If the current has exceeded its limits the breaker will automatically pop
out to the OFF position. Reduce the electrical load on the generator and
push the button back to the ON position.
AC Parallel Port (If Equipped)
This socket allows two compatible inverter generators to be connected
for additional power. The parallel kit is an optional accessory, please
contact your dealer, visit us online, or call 1-877-528-3772 to purchase.
DC Circuit Breakers
The DC circuit breaker automatically shuts off when the charging circuit
is overloaded.
If the current has exceeded its limits the breaker will automatically pop
out to the OFF position. Reduce the electrical load on the generator and
push the button back to the ON position.
EcoMode (Economy Control Switch)
Turn EcoMode ON to minimize fuel consumption. In this mode the
engine will dynamically meet the demand of the electrical load and will
automatically go into an idle state if all loads are disconnected.
Before connecting or removing a high load device to the generator, turn
EcoMode OFF until that device has reached running power.
When EcoMode is OFF, the engine runs at full speed.
Output and Overload Indicator
In normal operation, the green output indicator light (READY TO USE)
will remain on.
If the generator is overloaded (producing more than 1700W) or a
connected appliance has short-circuited, the output indicator light will
turn off and the overload indicator light will turn on.

8
Low Oil Indicator Light
The oil alert system is designed to prevent engine damage caused by
an insufcient amount of oil in the crankcase. Before the oil level in the
crankcase reaches an unsafe limit, the oil alert system will automatically
shut down the engine (the power switch remains in the ON position).
If the oil alert system shuts down the engine, the low oil indicator light
(red) will turn on. Check the engine oil level.
Reset Button
If the red overload indicator light is on, press and hold the reset button
for 1 second until the overload indicator light turns off and the green
output indicator light turns on. This will recover generator output without
shutting down the engine.
If the generator is running normally, the RESET button will have no
effect.
NOTE
The RESET button is available a maximum of 5 times for every full start
of the generator. Shut down the generator and restart using the power
switch to refresh available resets.
USB Ports (If Equipped)
A total of 2.1A is available at 5.0V. A single port can draw the full 2.1A or
it will be distributed as needed. For example, a 1A device will only draw
1A.
2.4 MAKE SURE YOU HAVE EVERYTHING
Make sure your generator has everything listed in the table below.
Part Name Quantity
Inverter Generator 1
User Guide 1
Spark Plug Wrench - Sleeve 1
Spark Plug Wrench - Bar 1
Multi Screwdriver 1
DC Charging Cable 1
Oil Transfer Tool 1
HY SERIES

9
3. PRE-OPERATION CHECK
Set the generator on a level surface and the power switch to OFF.
3.1 PREPARE THE AIR CLEANER
Clean and oil the air lter before your rst use. Check the maintenance schedule for
a complete cleaning guide.
1. Unscrew and remove the engine access panel. With the screws loose work
the snapts free around the perimeter, it may require some force.
2. Unscrew the air lter cover and remove the lter.
3. Clean the air lter with soap and water or solvent and squeeze dry.
4. Soak in clean engine oil.
5. Squeeze out all excess oil and reinstall.
NOTE
Running the engine without the air lter will quickly degrade the engine
1 2
Air Filter

10
3.2 CHECK THE OIL LEVEL
1. Place the generator on a level surface.
2. Unscrew and remove the engine access panel.
3. Unscrew the oil cap and clean the dipstick.
4. Add 12 . oz / 0.35L of fresh engine oil then reinsert the oil cap without
threading it in. Remove the cap and examine the oil level on the dipstick.
5. Add additional oil up to the maximum mark.
6. Reinsert the oil cap and tighten securely. Replace the engine access panel
and screws.
NOTE
SAE 10W-30 or SAE synthetic 5W-30 oil is recommended for general
use.
Use of synthetic oil does not change maintenance intervals.
Oil Capacity: 12 . oz. / 0.35L
DO NOT OVERFILL.
Max Oil Level
Min Oil Level
Oil Capacity
12 . Oz / 0.35L
10 20 30 40 50-10-20-30
20 40 60 80 100 120
°C
°F0-20
15W-50
10W-30
5W-30
Synthetic 5W-30

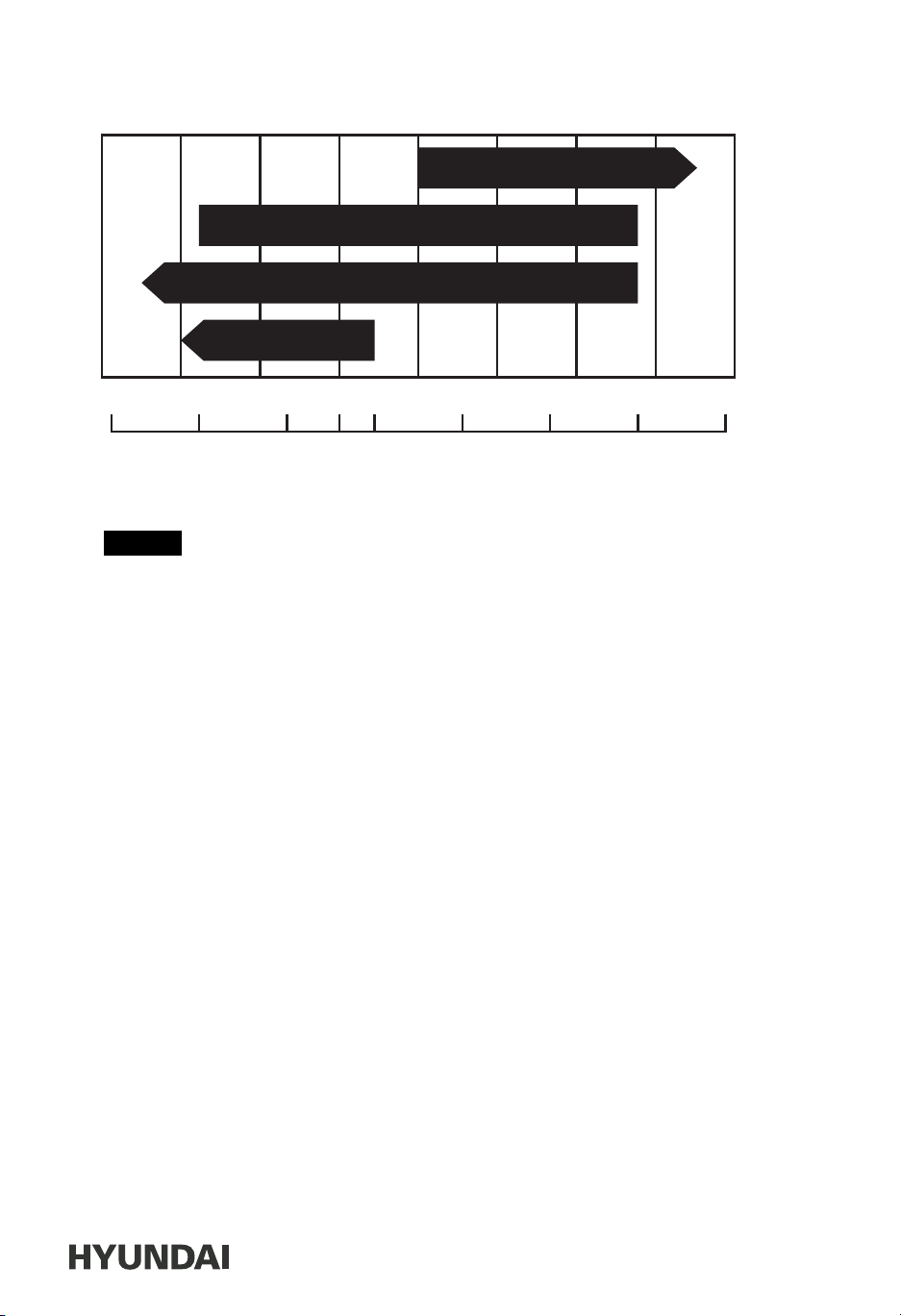

Effective Viscosity Range of Engine Oils
(Ambient Air Temp.)
0°C
32°F
Oil Transfer Tool Oil Cap & Dipstick
Max Oil Level
Min Oil Level
Oil Capacity
12 . Oz / 0.35L
10 20 30 40 50-10-20-30
20 40 60 80 100 120
°C
°F0-20
15W-50
10W-30
5W-30
Synthetic 5W-30
Effective Viscosity Range of Engine Oils
(Ambient Air Temp.)
0°C
32°F
Oil Transfer Tool Oil Cap & Dipstick
HY SERIES

11
NOTE
Do not tilt the generator when adding engine oil. This could result in
overlling and damage to the engine.
Use high quality 4-stroke engine oil, certied to meet or exceed API
standard SG, SF, SAE ratings with strong detergents. Using non-
detergent or 2-stroke oil could shorten the engine’s working life.
Do not mix different engine oils.
Handle and store the engine oil with care, avoid getting dirt or dust into
the engine oil.
Before the engine oil falls below the safety margin, the low oil alert
system will automatically shut off the engine. The low oil light will turn
on.
To avoid the inconvenience of unexpected engine shutoff, check the
engine oil level as often as possible.
Max Oil Level
Min Oil Level
Oil Capacity
12 . Oz / 0.35L
10 20 30 40 50-10-20-30
20 40 60 80 100 120
°C
°F0-20
15W-50
10W-30
5W-30
Synthetic 5W-30
Effective Viscosity Range of Engine Oils
(Ambient Air Temp.)
0°C
32°F
Oil Transfer Tool Oil Cap & Dipstick

12
3.3 CHECK THE FUEL LEVEL
WARNING!
Gasoline is highly flammable and explosive under certain
conditions. Refuel in a well-ventilated area with the engine
stopped. Do not smoke or allow open flames or sparks in the
area where the generator is being refueled or where gasoline
is stored. Do not overfill the tank. Be careful not to spill fuel
when refueling. Wipe up any spilled gasoline and let the area dry
before starting the engine.
Gasoline substitutes such as gasohol are not recommended.
They may be harmful to the fuel system components.
NOTE
Use of gasoline with an ethanol content greater than 10% can damage
the engine and the fuel system and will void the manufacturer’s
warranty.
Only use unleaded gasoline (Octane 85 or higher).
Never use stale or contaminated gasoline, or an oil/gasoline mixture.
Avoid getting dirt or water into the fuel tank.
Do not use a mixture of gasoline containing methanol. This will cause
serious damage to the engine.
Upper Limit
Mark (Red)Fuel Cap
OPEN
Fuel Capacity
0.9 US gal (3.4L)
HY SERIES

13
4. STARTING THE ENGINE
DANGER!
Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon monoxide
(CO), a poisonous gas you cannot see or smell. If you can smell
the generator exhaust you are breathing CO. Even if you cannot
smell the exhaust, you could be breathing CO.
NEVER use a generator inside a home, garage, crawlspace, or
other partly enclosed area, deadly levels of carbon monoxide
can build up in these areas. Using a fan or opening windows and
doors will NOT supply enough fresh air.
ONLY use a generator outdoors and far away from open windows,
doors, and vents. These openings can pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the
home. ALWAYS use a CO alarm in your home.
If you start to feel sick, dizzy, or weak after the generator has
been running, move to fresh air RIGHT AWAY and seek medical
attention. You could have carbon monoxide poisoning. Never
run the generator in an enclosed or even partially enclosed area
where people may be present.
Avoid other generator hazards
READ MANUAL BEFORE USE.
Using a generator indoors can KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide.
This is poison that you cannot see or smell.
NEVER use inside a home
or garage. EVEN if doors
and windows are open.
Only use OUTSIDE and
far away from windows,
doors, and vents.
