Hyundai HG3600-A User manual

WARNING: Read thoroughly the instruction manual before use.
OPEN FRAME PETROL GENERATOR
HG3600-A

CONTENTS
1. SAFETY INSTRUCTION 3
2. COMPONENT IDENTIFICATION 7
3. INSTALLATION 7
4. CONTROLS 8
5. GENERATOR USE 10
6. PRE-OPERATION CHECK 12
7. STARTING / STOPPING THE ENGINE 14
8. MAINTENANCE 14
9. TRANSPORTING AND STORAGE 18
10. TROUBLESHOOTING 20
11. WIRING DIAGRAM 21
12. SPECIFICATIONS 22
13. EC DECLARATION OF CONFORMITY 23
14. WARRANTY 24
15. PRODUCT FAILURE 25
16. WARRANTY EXCLUSIONS 26
02

1. SAFETY INSTRUCTION
Warning:
1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system!
2. Children should be protected by keeping them at a safe distance from the generator set!
3. Refilling of the generating sets are not allowed during the operation!
4. If the generator will be mounted in a closed room, relevant safety regulations against fire and
explosion should be followed!
5. Do not connect to household circuit!
6. Do not use in wet condition!
7. Keep in flammable away!
8. When refuelling:
a) stop engine;
b) no smoking;
c) do not spill.
1.1 GENERAL SECURITY INSTRUCTIONS
The operator must know the principles of functioning and the structure of the generator and the motor.
He must know how to stop the motor in case of urgency and how to manipulate the controls.
Never let children use this device.
Never let people who do not know these instructions use this device. Local regulations may impose
restrictions on the age of the user.
Please do not use this device when people, especially children, or pets are nearby. Direct them away
from the working area.
The operator or the user are responsible for possible accidents or damage to other persons or to their
property.
Do not wear loose clothing or jewellery as this can get caught in the machinery as it runs.
Use safety equipment. Wear protective gear such as an anti-dust mask, non-slip safety shoes, a helmet
or hearing protection.
Stay vigilant, watch what you are doing and show good sense when you use the generator. Do not use
if you are tired or under the influence of drugs, alcohol or medicines.
Install the generator in a place that is well ventilated and make sure that there is at least 1.5 metres
between the generator and the walls of the building or other equipment. Do not place flammable liquids
or gases near the generator.
Do not run the generator in an enclosed or badly-ventilated space. The exhaust gas from the motor
contains carbon monoxide which is toxic and may lead to a loss of consciousness or death.
Run the generator in respect of the power indicated in the user’s manual. Do not run the generator with
an overload or at excessive speed.
The silencer of the generator becomes extremely hot when the motor runs or even for a time after it has
stopped. Do not touch it as it will burn you.
Do not transport or move the generator until it has cooled down.
Perform periodic maintenance and resolve problems that appear immediately. Do not run the generator
before correcting any fault detected.
03

The generator uses a system of air-cooling, and it is necessary to clean its components regularly,
including the grilles, the cover of the fan and the fan itself so as to ensure cooling.
Keep the fuel filter clean, and change the oil of the motor regularly.
Periodically check the installation of the connections and the tightness of the fixations, re-tightening
them if necessary.
Clean the components of the air filter periodically, and replace the air filter when necessary.
Remove any electrical equipment that is plugged in before starting or stopping the generator.
Before transporting the generator, you must empty the fuel tank.
Maintenance and repair of the generator must be carried out by a qualified technician from an
authorized after-sales service center.
The generator must not be altered or modified. Any intervention must be done by an authorized after-
sales service center.
Installation and major repair work shall be carried out only by specifically trained personnel
Warning: when you start the generator with the cord, watch out for sudden changes in the rotation of the
motor!!! Risk of wounding!!! Never cover the generator when it is running. The cut-out mounted on the
generator has the aime of reducing the risk of electric shock. If it needs to be replaced with another cut-out,
the latter must correspond to the technical specifications of the generator. Due to important mechanical
constraints, it is necessary to use a flexible sheathed cable with a strong rubber protective layer
(conforming to IEC 245-4) or a similar cable. If using an electrical extension cable, the total length of the
extension must not exceed 60m when the section of the wire is 1.5mm2and must not exceed 100m when
the section of the wire is 2.5mm2.
1.2 ADDITIONAL REQUIREMENTS FOR LOW-POWER
GENERATING SETS FOR USE BY LAYMEN
Protect children by keeping them at a safe distance from the generating set.
Fuel is combustible and easily ignited. Do not refuel during operation. Do not refuel while smoking or
near naked flames. Do not spill fuel.
Some parts of the internal combustion engine are hot and may cause burns. Pay attention to the
warnings on the generating set.
Engine exhaust gases are toxic. Do not operate the generating set in unventilated rooms. When
installed in ventilated rooms, additional requirements for fire and explosion protection shall be observed.
Before use, the generating set and its electrical equipment (including lines and plug connections)
should be checked to ensure that they are not defective.
Protection against electrical shock depends on circuit breakers specially matched to the generating set.
If the circuit breakers require replacement, they should be replaced with a circuit breaker having
identical ratings and performances characteristics.
Due to high mechanical stresses, only tough rubber-sheathed flexible cable (in accordance with IEC
60245-4) or the equivalent should be used.
The user shall conform to regulations of electrical safety applicable to the place where the generating
sets are used.
04

The user must respect the requirements and precautions in the case of resupply by generating sets of
an installation, depending on existing protective measures in this installation and applicable regulations.
Generating sets should only be loaded up to their rated power under the rated ambient conditions.
Prior to commencing maintenance work it shall be ensured that untimely start-up is not possible.
1.3 SECURITY MEASURES WHEN FILLING THE FUEL TANK
The fuel is extremely flammable and poisonous.
This generator only uses petrol (gasoline); any other kind of fuel will damage the motor.
Do not overfill the tank with petrol to avoid spilling. If you notice a spill, it must be wiped up completely
with a dry cloth before starting the motor.
If you swallow fuel by mistake, if you inhale fuel vapours or if you get drops of fuel in your eyes, see a
doctor immediately. If a certain quantity of fuel is spilt on your skin or clothing, wash or change your
clothes.
Always stop the motor of the generator when filling it with fuel.
Never fill the fuel tank while smoking or near a naked flame.
Make sure you don’t spill fuel on the motor and the exhaust grille of the generator during filling with fuel.
Keep the fuel in an appropriate recipient and sheltered from any sources of fire.
Carry out filling in a safe place, and slowly open the fuel cap to release the pressure which has built up
inside the tank. Wipe up any drops of petrol that have spilled before starting the motor.
To prevent fire, move the generator at least 4 metres away from the area for filling with fuel.
Make sure that the fuel cap is tightly closed before starting.
Do not keep petrol in the tank for a long time.
While using or transporting the generator, make sure you keep the generator upright, otherwise
the fuel may escape from the carburettor or the fuel tank.
1.4 ELECTRICAL SAFETY
Before each use ensure that the load to be connected does not exceed the power of the current
produced by the generator.
To avoid electric shock, you must follow the following instructions:
Do not touch the generator with wet hands.
Do not run the generator under rain or snow.
Do not run the generator near water.
Connect the generator to earth. Use a sufficiently thick conductor for the earth wire.
Do not operate the generator in parallel with another generator.
If using electrical extensions, make sure that they are sufficiently thick to transport the current and that
they are used correctly.
The connection of a generator used for auxiliary power to the electrical installation of a building
must be performed by a qualified electrician, and in conformity to the provisions of the applicable laws
and norms in the field of electricity. Incorrect connections will cause leakage of the current from the
05

generator into the lines of the public electricity company. Such leakage could electrocute the workers of
the public electricity company working on the network or other persons in contact with the line during a
power cut. Also, when the public power supply is re-established, the generator can explode, catch fire
or generate fires in the building’s electrical installation.
Before connecting electrical devices to the generator, make sure that their voltage
specifications and frequency of functioning correspond to the technical characteristics of the generator.
There may be damage if the device connected is not designed to function with a voltage tolerance of +/-
10% or a frequency tolerance of +/- 3 % compared with those of the generator.
1.5 PROTECTION OF THE ENVIRONMENT
You must periodically check the silencer (Before doing this, switch off the generator and let it cool
completely). A damaged silencer increases noise.
Do not throw motor oil into the drains but deposit it at a collection point set up for that purpose.
The fuel for this machine is combustible and explosive. After stopping the machine, you must handle
the remaining fuel correctly and meet local environmental requirements.
To dispose residual fluids, proceed as follows:
- Close the fuel tap
- Drain fuel from the fuel tank
- Empty carburetor fuel
1.6 SYMBOL EXPLANATION
Attention!
Please read the manual carefully before using the unit!
Conforms to relevant safety standards
Do not dispose of old appliances with domestic rubbish .
Add engine oil.
Guaranteed sound power level
No naked flames
Ground connection
Electrical hazard
06

Carbon monoxide (CO)danger
Fire hazard
Risk of being burnt
2. COMPONENT IDENTIFICATION
NOTE: Diagrams may vary according to the types.
3. ASSEMBLY
3.1 WHEELS
- Put upside down the tool.
- Add the axis on the support
- On each side add a washer, a wheel, a washer and a pin to lock the wheel in place.
07

3.2 FOOT PAD
- Keep the tool upside down.
- In the food pad (2 pieces), put a washer and a screw on each foot pad
- Localise the two holes on the bar. Screw each foot bar in each hole
3.3 HANDLE
- Put the tool in the normal position.
- On each side, localise two holes. It is the place where install the handles.
- Install the handles and then fix them fix the screw and nut.
4. CONTROLS

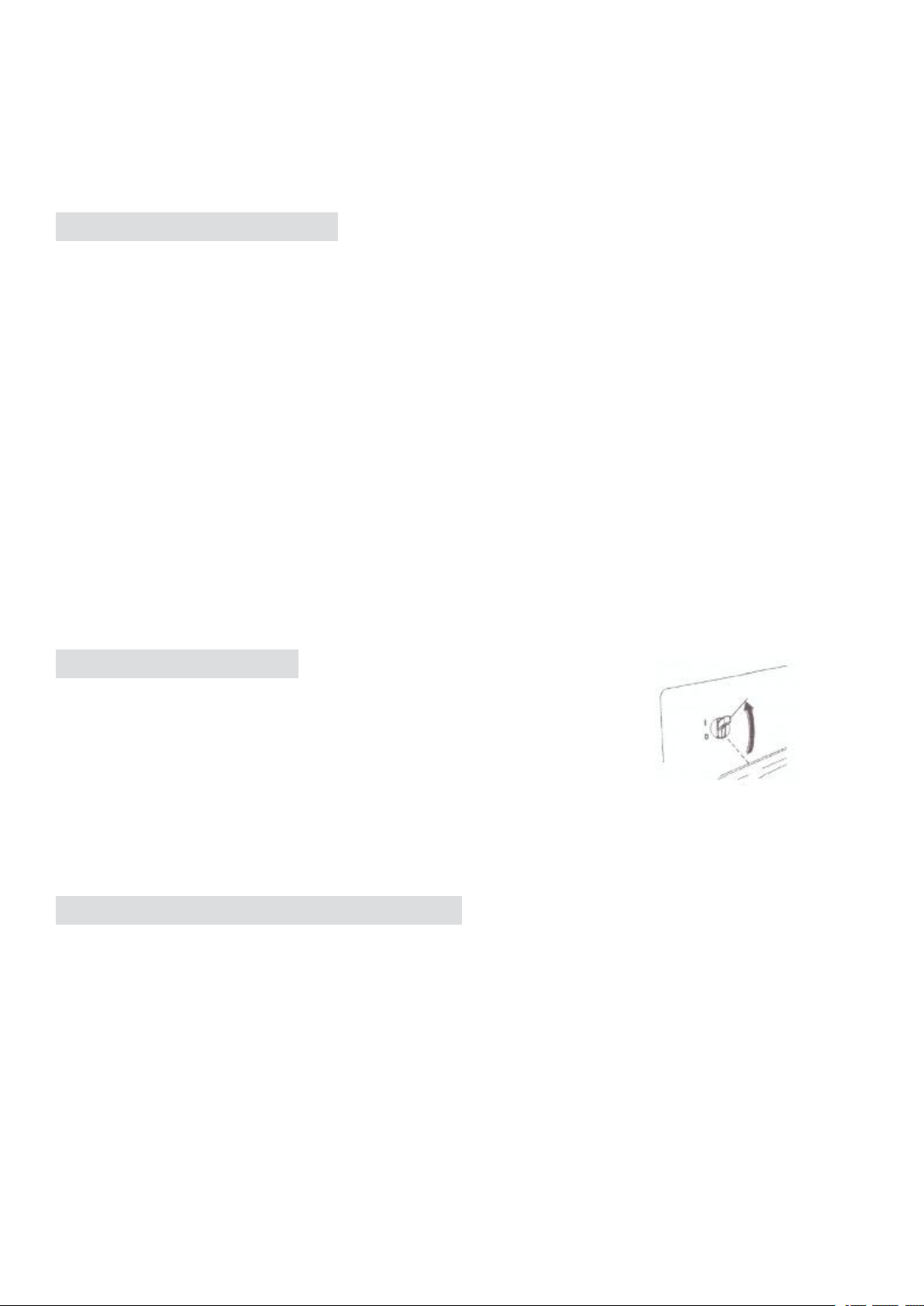

4.1 ENGINE SWITCH
To start and stop the engine.
Switch position:
OFF: To Stop the engine.
ON: To run the engine after starting.
08

4.2 RECOIL STARTER
To start the engine, pull the starter grip lightly until resistance is felt, then pull briskly.
NOTE: Do not allow the starter to snap back against the engine. Return it gently to prevent damage
to the starter.
4.3 FUEL VALVE
The fuel valve is located between the fuel tank and carburetor. When the valve lever is in the ON position,
fuel is allowed to flow from the fuel tank to the carburetor. Be sure to return the lever to OFF after stopping
the engine.
4.4 CHOKE
The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and
closed by operating the choke lever or choke rod manually. Move the lever or the rod to the CLOSE
position to enrich the mixture.
4.5 CIRCUIT BREAKER
The circuit breaker will automatically switch OFF if there is a short circuit or a significant overload of the
generator at the receptacle. If the circuit breaker is switched OFF automatically, check that the appliance is
working properly and does not exceed the rated load capacity of the circuit before switching the circuit
breaker ON again. The circuit breaker may be used to switch the generator power ON or OFF.
09

4.6 GROUND TERMINAL
The generator ground terminal is connected to the panel of the generator, the metal non-current carrying
parts of the generator, and the ground terminals of each receptacle. Before using the ground terminal,
consult a qualified electrician, electrical inspector or local agency having jurisdiction for local codes or
ordinances that apply to the intended use of the generator.
4.7 OIL ALERT SYSTEM
The oil alert system is designed to prevent engine damage caused by an insufficient amount of oil in the
crankcase. Before the oil level in the crankcase can fall below a safe limit, the oil alert system will
automatically shut down the engine (the engine switch will remain in the ON position). The oil alert system
shuts down the engine and the engine will not start. If this occurs, first-check engine oil.
5. GENERATOR USE
5.1 CONNECTIONS TO A BUILDING’S ELECTRICAL SYSTEM
Connections for standby power to a building's electrical system must be made by a qualified electrician.
The connection must isolate the generator power from utility power, and must comply with all applicable
laws and electrical codes.
WARNING
Improper connections to a building's electrical system, can allow electrical current from the generator to
feedback into the utility lines. Such feedback may electrocute utility company workers or others who contact
the lines during a power outage. Consult the utility company or a qualified electrician.
CAUTION
Improper connections to a building’s electrical system can allow electrical current from the utility company
to feedback into the generator. When utility power is restored, the generator may explode, burn, or cause
fires in the building’s electrical system.
5.2 GROUND SYSTEM
To prevent electrical shock from faulty appliances, the generator should be grounded. Connect a length of
heavy wire between the ground terminal and the ground source. The generators have a system ground that
connects generator frame components to the ground terminals in the AC output receptacles. The system
ground is not connected to the AC neutral wire.
If the generator is tested by a receptacle tester, it will not show the same ground circuit condition as for a
home receptacle.
10

Special Requirements
There may be Federal or State Occupational Safety and Health Administration (OSHA)
regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a
qualified electrician, electrical inspector, or the local agency having jurisdiction.
• In some areas, generators are required to be registered with local utility companies.
• If the generator is used at a construction site, there may be additional regulations which must be observed.
5.3 AC APPLICATIONS
Before connecting an appliance or power cord to the generator:
• Make sure that it is in good working order. Faulty appliances or power cords can create a potential for
electrical shock.
• If an appliance begins to operate abnormally, becomes sluggish or stops suddenly, turn it off immediately.
Disconnect the appliance, and determine whether the problem is the appliance, or if the rated load capacity
of the generator has been exceeded.
• Make sure that the electrical, rating of the tool or appliance does not exceed that of the generator. Never
exceed the maximum power rating of the generator. Power levels between rated and maximum may be
used for no more than 30 minutes.
NOTE: Substantial overloading will switch off the circuit breaker.
Exceeding the time limit for maximum power operation or slightly overloading the generator may
not switch the circuit breaker OFF, but will shorten the service life of the generator.
Limit operation requiring maximum power to 30 minutes.
For continuous operation, do not exceed the rated power.
In any case, the total power requirements (VA) of all appliances connected must be considered. Appliance
and power tool manufacturers usually list rating information near the model number or serial number.
5.4 AC OPERATION
①Start the engine
②Switch the AC circuit breaker ON.
③Plug in the appliance.
Most motorized appliances require more than their rated wattage for startup.
Do not exceed the current limit specified for any one receptacle. If an overloaded circuit causes the AC
circuit breaker to switch OFF, reduce the electrical load on the circuit, wait a few minutes and then reset the
circuit breaker.
5.5 HIGH ALTITUDE OPERATION
At high altitude, the standard carburetor air-fuel mixture will be excessively rich. Performance will decrease,
and fuel consumption will increase.
High altitude performance can be improved by installing a smaller diameter main fuel jet in the carburetor
and readjusting the pilot screw. If you always operate the engine at altitudes higher than 5000 feet (1500
meters) above sea level, have an authorized generator dealer perform this carburetor modification.
Even with suitable carburetor jetting, engine horsepower will decrease approximately 3.5% for each 1000
foot (300 meter) increase in altitude. The effect of altitude on horsepower will be greater than this if no
carburetor modification is made.
NOTE: If a engine jetted for high altitude is used at a lower altitude, the lean air fuel mixture will
reduce performance and may over-heat and seriously damage the engine.
11

6. PRE-OPERATION CHECK
6.1 ENGINE OIL
NOTE: Engine oil is a major factor affecting engine performance and service life. Non-detergent and
2-stroke engine oils will damage the engine and are not recommended.
Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped.
Use 4-stroke oil, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S.
automobile manufacturer’s requirements for Service Classification SG, SF/CC, CD. Motor oils classified SG,
SF/CC, CD will show this designation on the container.
SAE 10W-30 is recommended for general temperature use. Other viscosities shown in the chart may be
used when the average temperature in your area is within the indicated range.
1. Remove the oil filler cap and wipe the dipstick clean.
2. Check the oil level by inserting the dipstick into the filler neck without screwing it in.
3. If the level is low, add the recommended oil to the upper mark on the dipstick.
6.2 FUEL RECOMMENDATION
1. Check the fuel level gauge.
2. Refill the tank if the fuel level is low. Do not fill above the shoulder of the fuel strainer.
WARNING
• Gasoline is extremely flammable and is explosive under certain conditions.
12

• Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the
area where the engine is refueled or where gasoline is stored.
• Do not overfill the fuel tank (there should be no fuel in the filler neck). After refueling, make sure the tank
cap is closed properly and securely. Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor
may ignite. If any fuel is spilled, make sure the area is dry before starting the engine.
• Avoid repeated or prolonged contact with skin or breathing of vapor.
• KEEP OUT OF REACH OF CHILDREN.
Use gasoline with a pump octane rating of 86 or higher.
We recommend unleaded gasoline because it produces fewer engine and spark plug deposits and extends
exhaust system life.
Never use stale or contaminated gasoline or oil/gasoline mixture. Avoid getting dirt or water in the fuel tank.
Occasionally you may hear light “spark knock" or “pinging" (metallic rapping noise) while operating under
heavy loads. This is no cause for concern.
If spark knock or pinging occurs at a steady engine speed, under normal load, change brands of gasoline. If
spark knock or pinging persists, see an authorized generator dealer.
NOTE: Running the engine with persistent spark knock or pinging can cause engine damage.
Running the engine with persistent spark knock or pinging is misuse, and the Distributor's Limited Warranty
does not cover parts damaged by misuse.
Oxygenated Fuels
Some gasoline are blended with alcohol or an ether compound to increase the octane. These gasoline are
collectively referred to as oxygenated fuels. Some areas of the United States use oxygenated fuels to help
meet clean air standards. If you use an oxygenated fuel, be sure its pump octane rating is 86 or higher.
Ethanol (ethyl or grain alcohol)
Gasoline containing more than 10% ethanol by volume may cause starting or performance problems.
Gasoline containing ethanol may be marketed under the name “Gasohol".
Methanol (methyl or wood alcohol)
Gasoline containing methanol must contain cosolvents and corrosion inhibitors to protect the fuel system.
Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems
and may damage metal, rubber and plastic parts of your fuel system.
MTBE (methyl tertiary butyl ether)
You may use gasoline containing up to 15% MTBE by volume. Before using an oxygenated fuel, try to
confirm the fuel’s contents. Some states (provinces in Canada) require this information to be posted on the
pump. If you notice any undesirable operating symptoms, switch to a conventional unleaded gasoline. Fuel
system damage or performance problems resulting from the use of an oxygenated fuel are not ours
responsibility and are not covered under warranty.
NOTE: Oxygenated fuels can damage paint and plastic. Be careful not to spill fuel when filling your
fuel tank. Damage caused by spilled fuel is not covered under warranty.
13

7. STARTING/STOPPING THE ENGINE
7.1 STARTING THE ENGINE
1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load
is connected.
2. Turn the fuel valve to the ON position.
3. Turn the choke lever or to the CLOSE position, or pull the choke rod out to the CLOSE position.
4. Start the engine
• With recoil starter:
Turn the engine switch to the ON position.
Pull the starter grip until compression is felt, then pull briskly.
NOTE: Do not allow the starter grip to snap back against the engine. Return it gently to prevent
damage to the starter or housing.
• With electric starter: (Optional kit)
Turn the engine switch to the START position and hold it there for 5 seconds or until the engine starts.
NOTE: Operating the starter motor for more than 5 seconds can damage the motor. If the engine
fails to start, release the switch and wait 10 seconds before operating the starter again. If the speed
of the starter motor drops after a period of time, it indicates that the battery should be recharged.
When the engine starts, allow the engine switch to return to the ON position.
1. Turn the choke lever or push the choke rod to the OPEN position as the engine warms up.
7.2 STOPPING THE ENGINE
In an emergency:
To stop the engine in an emergency, move the engine switch to the OFF position.
In normal use:
1. Turn the AC circuit breaker to the OFF position..
2. Turn the engine switch to the OFF position.
3. Turn the fuel valve to the OFF position.
8. MAINTENANCE
Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air
pollution.
WARNING
Exhaust gas contains poisonous carbon modoxide. Shut off the engine before performing any
maintenance. If the engine must be run, make sure the area is well ventilated.
Periodic maintenance and adjustment is necessary to keep the generator in good operating condition.
Perform the service and inspection at the intervals shown in the Maintenance schedule below.
14

8.1 MAINTENANCE SCHEDULE
REGULAR SERVICE PERIOD
Performed at every indicated month or
operating hour interval, whichever comes
first.
Each
use
First
month or
20 Hrs.
(3)
Every 3
months or
50 Hrs. (3)
Every 6
months or
100 Hrs.
(3)
Every
year or
300 Hrs.
(3)
ITEM
Engine oil
Check level
o
Change
o
o
Air cleaner
Check
o
Clean
o(1)
Sediment Cup
Clean
o
Spark plug
Check-Clean
o
Spark arrester
Clean
o
Valve clearance
Check-Adjust
o(2)
Fuel tank and strainer
Clean
o(2)
Fuel line
Check
Every 2 years (Replace if necessary) (2)
1) Service more frequently when used in dusty areas.
2) These items should be serviced by an authorized generator dealer, unless the owner has the proper
tools and is mechanically proficient.
(3) For professional commercial use, long hours of operation to determine proper maintenance intervals.
WARNING
Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in
which you can be seriously hurt or killed. Always follow the inspection and maintenance
recommendations and schedules in this owner's manual.
The maintenance schedule applies to normal operating conditions. If you operate your generator under
severe conditions, such as sustained high-load or high-temperature operation, or use it in unusually wet or
dusty conditions, consult your servicing dealer for recommendations applicable to your individual needs
and use.
8.2 TOOL KIT
The tools supplied with the generator will help you to perform the owner maintenance procedures listed on
the following page. Always keep this tool kit with the generator.
NOTE: Diagrams may vary according to the types.
8.3 ENGINE OIL CHANGE
Drain the oil while the engine is warm to assure complete and rapid draining
1. Remove the drain plug and sealing washer, oil filler cap, and drain the oil
2. Reinstall the drain plug and sealing washer. Tighten the plug securely.
3. Refill with the recommended oil and check the oil level.
15

Used motor oil may cause skin cancer if repeatedly left in.
CAUTION
Used motor oil may cause cancer if repeatedly left in contact with the skin for prolonged periods.
Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to
thoroughly wash your hands with soap and water as soon as possible after handling used oil.
Please dispose of used motor oil in a manner that is compatible with the environment We suggest you take
it in a sealed container to your local service station or recycling center for reclamation.
Do not throw it in the trash or pour it on the ground.
8.4 AIR CLEANER SERVICE
A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air
cleaner regularly. Service more frequently when operating the generator in extremely dusty areas.
WARNING
Using gasoline or flammable solvent to clean the filter element can cause a fire or explosion. Use
only soapy water or nonflammable solvent.
NOTICE
Never run the generator without the air cleaner. Rapid engine wear will result.
1) Unsnap the air cleaner cover clips, remove the air cleaner cover, and remove the element.
2) Wash the element in a solution of household detergent and warm water, then rinse thoroughly; or wash
in nonflammable or high flash point solvent. Allow the element to dry thoroughly
3) Soak the element in clean engine oil and squeeze out the excess oil. The engine will smoke during initial
start-up it too much oil is left in the element.
4) Reinstall the air cleaner element and the cover.
16

8.5 FUEL SEDIMENT CUP CLEANING
The sediment cup prevents dirt or water which may be in the
fuel tank from entering the carburetor. If the engine has not
been run for a long time, the sediment cup should be cleaned.
1) Turn the fuel valve to the OFF position. Remove the
sediment cup, and O-ring.
2) Clean the sediment cup, and O-ring, in nonflammable or
high flash point solvent.
3) Reinstall O-ring, and sediment cup.
4) Turn the fuel valve ON and check for leaks.
8.6 SPARK PLUG SERVICE
Recommended spark plugs: F5T or F6TC or F7TJC or other equivalents
To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.
If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler.
1) Remove the spark plug cap.
2) Clean any dirt from around the spark plug base.
3) Use the wrench supplied in the tool kit to remove the spark plug.
4) Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark plug with
a wire brush if it is to be reused.
5) Measure the plug gap with a feeler gauge. Correct as necessary by carefully bending the side electrode.
The gap should be: 0.70-0.80 mm (0.028-0.031 in).
17

6) Check that the spark plug washer is in good condition, and thread the spark plug in by hand to prevent
cross-threading.
7) After the spark plug is seated, tighten with a spark plug wrench to compress the washer. If installing a
new spark plug, tighten I/2 turn after the spark plug seats to compress the washer. If reinstalling a used
spark plug, tighten I/8 -1/4 turn after the spark plug seats to compress the washer.
NOTE: The spark plug must be securely tightened. An improperly tightened spark plug can become
very hot and could damage the engine. Never use spark plugs which have an improper heat range.
Use only the recommended spark plugs or equivalent.
9. TRANSPORTING/STORAGE
When transporting the generator, turn the engine switch and the fuel valve OFF. Keep the generator level
to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
Not turn the machine to any side, and keep the machine under horizontal position during the transporting
process.
WARNING
Contact with a hot engine or exhaust system can cause serious bums or fires. Let the engine cool
before transporting or storing the generator.
Take care not to drop or strike the generator when transporting. Do not place heavy objects on the
generator.
Before storing the unit for an extended period:
• Be sure the storage area is free of excessive humidity and dust.
• Service according to the table below:
STORAGE TIME
RECOMMENDED SERVICE PROCEDURE TO PREVENT HARD STARTING
Less than 1 month
No preparation required.
1 to 2 months
Fill with fresh gasoline and add gasoline conditioner*
2 months to 1 year
Fill with fresh gasoline and add gasoline conditioner*
Drain the carburetor float bowl.
Drain the fuel sediment cup.
1 year or more
Fill with fresh gasoline and add gasoline conditioner*
Drain the carburetor float bowl.
Drain the fuel sediment cup.
Remove the spark plug. Put a tablespoon of engine oil into the cylinder. Turn the
engine slowly with the pull rope to distribute the oil.
Reinstall the spark plug.
Change the engine oil.
After removal from storage, drain the stored gasoline into a suitable container,
and fill with fresh gasoline before starting.
*Use gasoline conditioners that are formulated to extend storage life.
Contact your authorized generator dealer for conditioner recommendations.
1) Drain the carburetor by loosening the drain screw. Drain the gasoline into a suitable container.
18

WARNING
Gasoline is extremely flammable and is explosive under certain conditions. Perform this task in a
well ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area
during this procedure.
The fuel of this machine is combustible and deflagrating. After the machine has been shut down, the
additional fuel must be treated properly and the local environmental requirements must be met.
2) Change the engine oil
3) Remove the spark plug, and pour about a tablespoon of clean engine oil into the cylinder. Crank the
engine several revolutions to distribute the oil, then reinstall the spark plug.
4) Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression
stroke and both the intake and exhaust valves are closed Storing the engine in this position will help to
protect it from internal corrosion.
Align the notch on the starter pulley
with the hole at the top of recoil starter.
The disassembled or damaged machine must be transferred to the professional organ for processing.
Please make sure that the fuel and lubricant inside the machine have already been drained. Some parts of
the machine are potentially dangerous for children. Place and handle all parts properly to avoid children
reaching.
A
l
19

10. TROUBLESHOOTING
When the engine will not start:
No electricity at the AC receptacles
Is there fuel in the tank?
Refill the fuel tank
NO
Is there oil in the tank?
YES
NO
YES
Is there spark from
the spark plug?
Add the recommended oil.
Replace the
spark plug.
NO
Take the generator to an
authorized generator
dealer.
STILL
NO
SPARK
WARNING: Be sure
there is no spilled fuel
around the spark
plug, spilled fuel may
ignite.
To check:
1) Remove the spark plug cap
and clean any dirt from
around the spark plug.
2) Remove the spark plug and
install the spark plug in the
plug cap.
3) Set the plug side electrode
on the cylinder head.
4) Crank the engine, sparks
should jump across the
gap.
YES
YES
Is the fuel reaching
the carburetor
Clean the fuel sediment cup
If the engine still does
not start, take the
generator to an
authorized generator
dealer.
NO
To check:
1) Turn off the engine switch
and lossen the drain screw.
2) Fuel should flow from the
drain when the engine switch
is turned on.
DRAIN SCREW
Is the AC circuit breaker ON
Turn the AC circuit breaker ON
Check the electrical appliance or
equipment for any defects.
YES
YES
NO
Take the generator to an
authorized generator dealer.
NO DEFECTS
Replace the electrical appliance
or equipment.
Take the electrical appliance or
equipment to an electrical shop
for repair.
DEFECTS
20
