Hyundai HY1000SI User manual

PETROL INVERTER GENERATOR
Models HY1000Si - HY2000Si

CONTENTS
1.0 Safety Information 03
2.0 Safety Label Location 04
3.0 Component Identification 05
1 Control Panel 06
2 ECON Switch 06
3 Hour Meter 07
4.0 Pre-operation Checks 08
1 Oil Level Check 09
2 Fuel Level Check 10
3 Air Filter Check 10
5.0 Starting the Engine 11
6 .0 Generator Use 13
1 DC Applications 14
2 AC Applications 16
3 Output & Overload Indicator 16
4 Oil Alert System 17
7.0 Stopping the Engine 18
8.0 Maintenance 19
1 Oil Change 19
2 Air Cleaner Service 20
3 Spark Plug Service 22
4 Spark Arrester Maintenance 23
9.0 Transporting/Storage 25
10.0 Troubleshooting 27
11.0 Technical Specifications 28
12.0 Wiring Diagrams 29
13.0 Appendix 30
1 EC DEclarations of Conformity 30
2 Environmental Corrections 31
3 Noise & Access 32
14.0 Consumer Information 32
PAGE 2

1.0 Safety Information.
To protect yourself and your property, please carefully read the following instructions.
● Read and understand the user manual before using the generator.
● DO NOT use in an enclosed area or a moving vehicle. The engine exhaust gas contains
poisonous carbon monoxide. Use the generator in a well ventilated area.
● DO NOT touch the hot exhaust. When the generator is running, or before cooling.
● Petrol is explosive and flammable. When refuelling, the generator needs to be stopped,
and fuel kept away from all ignition sources i.e. heaters, lamps, sparks from grinding or welding.
● DO NOT connect to the building’s electrical system or another generator, in order to avoid
electric shocks and fires.
● The generator must be kept one metre away from all other equipment and flammable materials.
● Place the generator on a the level surface, in order to avoid overturning or spilling fuel.
● Children and pets should be kept away from the generator at all times especially when in operation.
● DO NOT operate with wet hand/s.
● DO NOT let the generator to come into contact with rain, moisture or snow.
● All major repair work should be carried out by a professionally trained person.
● DO NOT use the generator for underground work.
● DO NOT use the generator in potentially explosive atmospheres.
● Always use personal protective equipment when you operate or maintain the generator, e.g. gloves,
mask, earplugs.
WARNING
PAGE 3

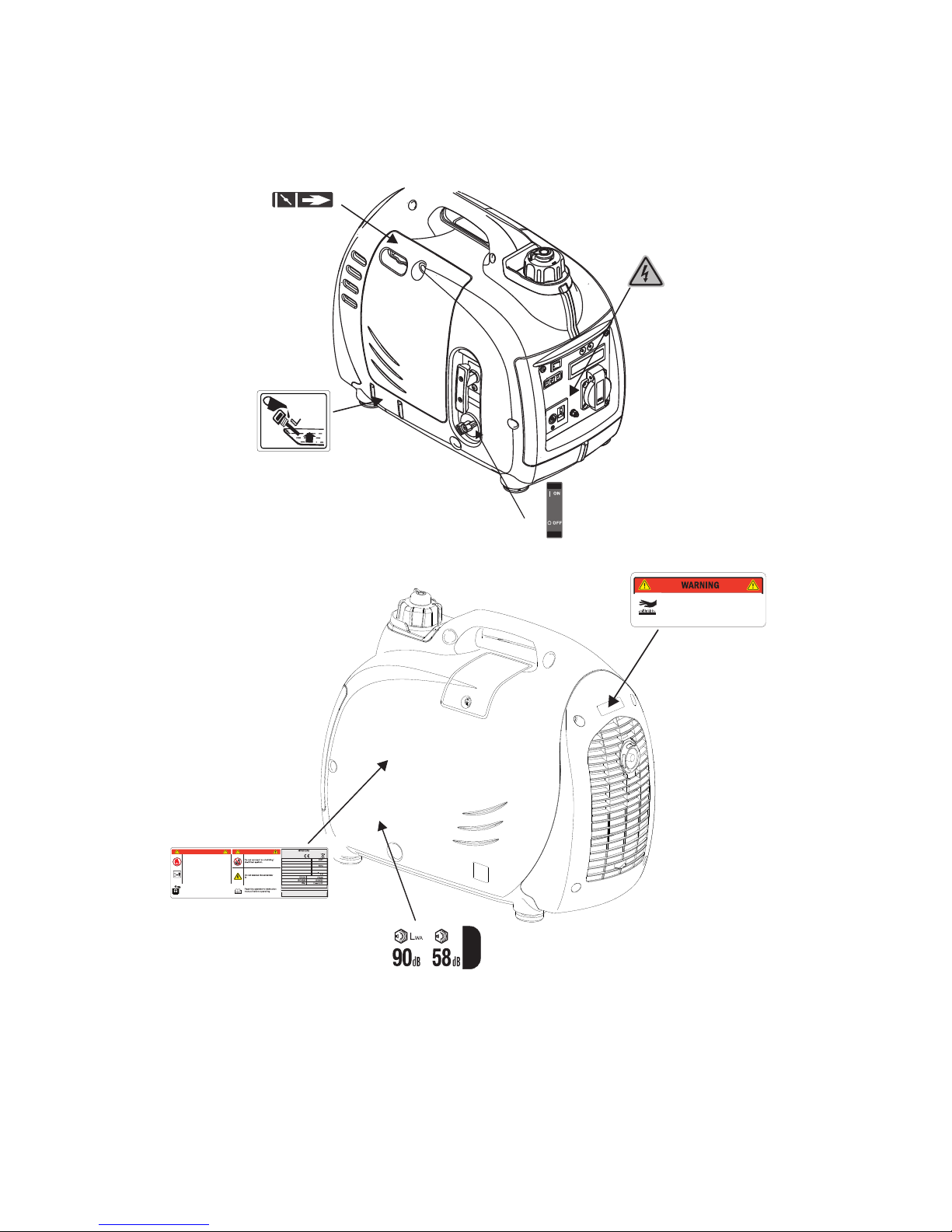

2.0 Safety Label Locations.
ATTENTION ATTENTION
Voltage
AC Current
Frequency
Nominal Power
Max Power
Power Factor
Charging Output
Fire Protection
Net Weight
Year of Manufacture
s
• Do not efuel when in use.
• Do not efuel while smoking or near flames.
• Please clean up any spilt fuel
• Let the generator cool befo e storing.
• Pet ol is explosive and flammable.
• Only use the generator outdoors
DO NOT USE inside a home or in an
unventilated area
(exhaust fumes contain
carbon monoxide).
HY1000Si
4.3A
900w
1000w
Serial Number
Licensed by Hyundai Corporation, Korea.
rain, moistur
rain, moisture or snow.
e or snow
ENGINEENGINE
SWITCHSWITCH
DEL DEL
INTERRUPTOR INTERRUPTOR
MOTORMOTOR
PAGE 4
HOT SURFACE.
DO NOT TOUCH!

CHOKE LEVER
FUEL CAP VENT LEVER
FUEL CAP
LEFT SIDE
MAINTENANCE
COVER
STARTER GRIP
ENGINE SWITCH CONTROL
PANEL
SPARK PLUG
MAINTENANCE
COVER
EXHAUST
3.0 Component Locations.
PAGE 5

3.1 Control Panel.
1
2
3
4
5
6
7
8
9
ECON Switch
Oil Alert Indicator Light RED
Overload Indicator Light RED
Output Indicator Light GREEN
DC Circuit Fuse
DC Output Socket
Ground/Earth Terminal
AC Output Socket
Hour Meter
1
2
3
4
5
6
7
8
9
3.2 ECON Switch (Economy Control Switch)
"ON" ( )
When the economy control switch is turned to "ON" ( ) the engine keeps running
at idle state automatically when the electrical appliance is disconnected, and will
return to the proper speed when the electrical load requires it.
The "ON" ( ) function is recommended to minimise fuel consumption, reduce noise and
prolong engine life.
ON
OFF
ONOFF
ECON Switch
PAGE 6

NOTE
When a high load electrical appliance is connected and in order to reduce voltage change, turn
the economy control switch to the “OFF”( ) position. This will allow the engine speed to
increase before the load is applied
In DC operation, turn the economy control switch to the “OFF”( )position.
Connect both AC load and DC load, turn the economy control switch to the “OFF”( ) position.
“OFF” ( )
When the economy control switch turns to the “OFF” ( ) the engine runs at high speed.
3.3 Hour Meter
When the generator goes into overload protection mode, the overload indicator light (RED) will
come on, by pressing the "RESET" button the output of the generator can be recovered. It will be
unnecessary to restart engine.
Press and hold the “RESET” button for one second, until the overload indicator light (RED) goes off,
and the output indicator light (GREEN) comes on.
Under non-overload condition the "RESET" button does not have any function.
When the "DISP" button is pressed the backlight will come on. Successive presses of the "DISP"
button will display in turn at each press the Voltage - Frequency - Engine Speed & Cumulative Run
Time.
NOTE
If the "DISP" button is not pressed for more than 10 seconds the backlight will turn off.
NOTE
When in protection condition, the output indicator light (GREEN) is off and the overload indicator
light (RED) is on.
When the generator is started the "RESET" function is available to recover from an overload
condition five times, after which time you will have to restart the engine.
RESET DISP
BACKLIGHT
PAGE 7

4.0 Pre-Operation Checks.

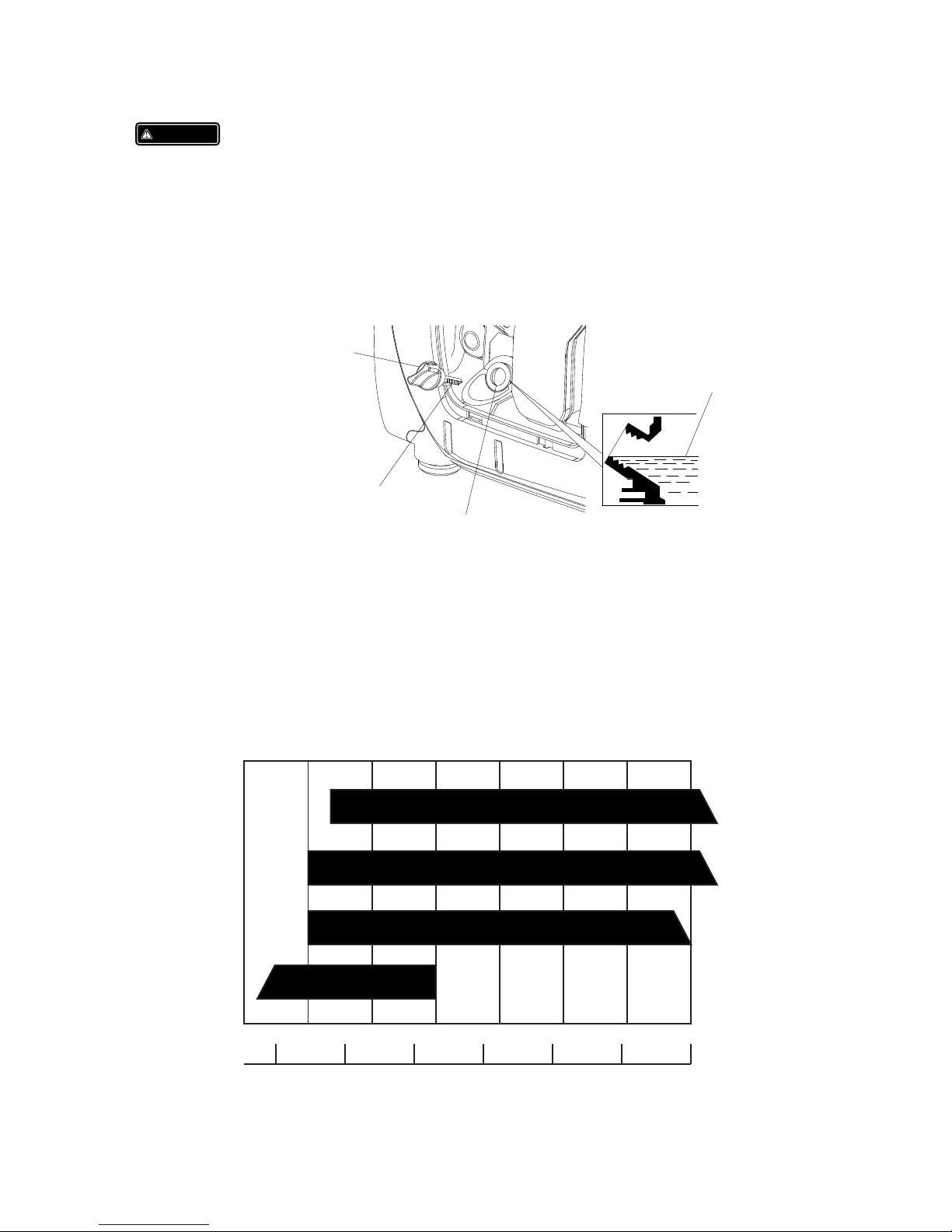

4.1 Oil Level Check.
Make sure that the generator has been stopped and is on a level surface.
Remove the oil filler cap, and clean it with a clean cloth, reinsert the oil filler cap (do not
screw it in) remove and check the oil level on the dipstick.
If the level is low, fill to the upper limit of the oil filler neck with the recommended oil.
WARNING
NOTE
DO NOT use non-detergent or 2 stroke oil this could shorten the engines working life.
DO NOT mix different types of engine oil in this engine.
Use a 4 stroke engine oil, certified to meet or exceed API standards: SG, SF or SAE
rating.
Make sure that you carefully use and store the engine oil. Avoid getting dirt or dust into the
engine oil.
-30 -20 -10 0 10 20 30 40℃
15W-40
10W-40
10W-30
5W-30
-20 020 40 60 80 100F
DIPSTICK
OIL FILLER HOLE
UPPER LEVEL
OIL FILLER
CAP
Oil Capacities HY1000Si - 0.25L
HY2000Si - 0.40L
PAGE 8

NOTE
If the engine oil falls below the safety margin the low oil alert system will automatically shut
off the engine. The oil alert indicator light (RED) will come on. To avoid this inconvenience it
is advisable to check the oil regularly
4.2 Fuel Level Check.
Unleaded petrol is the recommended fuel.
Never use stale or contaminated petrol or an oil/petrol mixture.
Avoid getting dirt or water into the fuel tank.
Do not use a mixture petrol containing ethanol or methanol. This will seriously damage
the engine.
Fuel capacities: HY1000Si - 2.2L, HY2000Si 3.8L
OPEN
FUEL CAP
UPPER LIMIT MARK
WARNING
Petrol is extremely explosive and flammable.
DO NOT smoke or allow naked flames or sources of ignition in or around the fuelling area or in fuel
storage areas.
DO NOT overfill the fuel tank (DO NOT fuel above the RED upper limit mark). After refuelling make
sure that the fuel cap is closed and secure properly.
Avoid spilling fuel by using correct refuelling methods. ALWAYS clean up spilt fuel immediately
after it occurs.
Avoid breathing in petrol vapours and direct contact with the skin.
KEEP all fuels and oils away from and out of reach from children.
PAGE 9

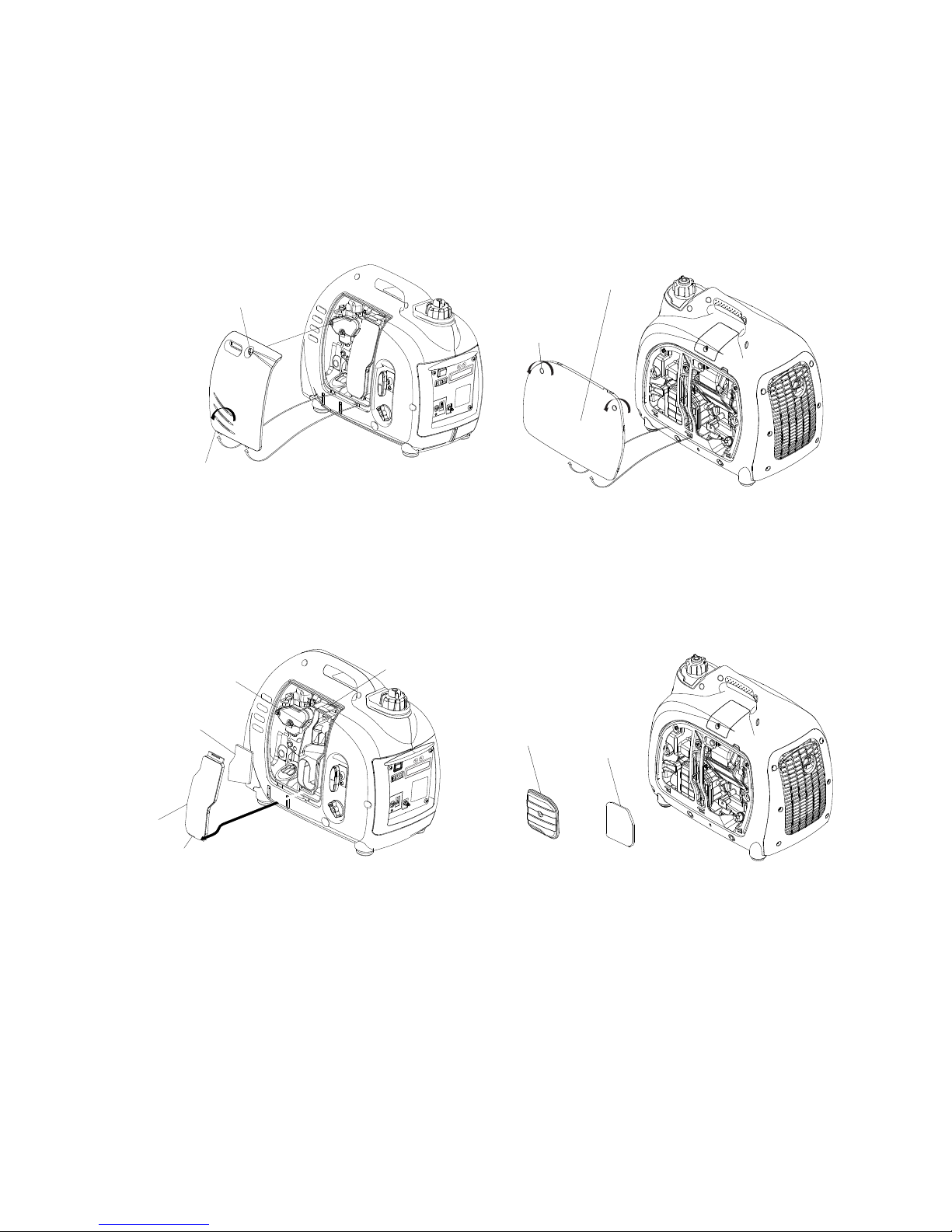

4.3 Air Filter Check.
Check the air cleaner element to make sure that it is clean and in good condition.
a) Undo and remove the maintenance cover screws, and remove the cover.
b) Press the latch tab on the top of the air cleaner.
c) Remove the air cleaner cover.
d) Check the element, clean and replace as necessary.
COVER
SCREW
MAINTENANCE COVER
LOWER
TAB
AIR CLEANER
COVER
AIR CLEANER
ELEMENT
AIR
CLEANER
BODY
LATCH
TAB
COVER
SCREW
MAINTENANCE COVER
HY1000Si HY2000Si
AIR CLEANER
ELEMENT
AIR CLEANER
COVER
HY1000Si HY2000Si
PAGE 10

5.0 Starting the Engine.
NOTE
Before starting the engine ALWAYS disconnect the load from the AC Socket.
When fuelling for the first time, or refuelling after long time storage, the engine switch should be
turned on wait for 20 seconds. You will then need to pull the recoil starter 10 to 20 times to
draw fuel into the carburettor.
5.1 Turn the fuel cap vent to the "ON" position. When transporting the generator, turn the
fuel cap vent lever to the "OFF" position.
OFF
ON
ON
FUEL CAP VENT LEVER
5.2 Turn the engine switch to the "ON" position.
O
N
OF
F
O
N
5.3 HY1000Si - Move the choke lever to the "START" position. HY2000Si - Pull the
choke knob fully out.
CHOKE LEVER
START
START
ON
OFF
ON
ENGINE SWITCH
HY1000Si HY2000Si
CHOKE KNOB
HY1000Si HY2000Si
PAGE 11

NOTE
DO NOT move the choke lever (HY1000Si) to the "START" position when the engine is hot
or ambient temperature is high.
DO NOT pull the choke knob (HY2000Si) to the fully out position when the engine is hot or
ambient temperature is high.
5.4 Pull the starter grip lightly until you feel resistance, then pull quickly toward the arrow as
shown below.
STARTER GRIP
CHOKE LEVER
RUN
RUN
NOTE
If the generator stops and cannot be restarted check the oil level first.
Carburettor Modification for High Altitude Operation.
At high altitude, the standard carburetor air-fuel mixture will be too rich. Performance will
decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug
and cause difficult starting. If the generator operates at high altitude, change the main-nozzle
or adjust the idling screw of carburetor.
STARTER GRIP
HY1000Si HY2000Si
CHOKE KNOB
NOTE
Return the starter grip slowly by hand. DO NOT let the starter grip spring back.
5.5 After starting and warming up the engine, turn the choke lever (HY1000Si) to the "RUN" position.
After starting and warming up the engine, push the choke knob (HY2000Si) to the normal position.
HY1000Si HY2000Si
PAGE 12

If the generator always operates at altitude above 1,000 meters, contact your dealer to modify
the carburetor.
Generator output power should be modified according to the altitude and ambient
temperature. The correction factor refers to 13-2.
If the carburetor has been modified for high altitude operation, the air-fuel mixture will be too
lean for low altitude use. Operation at low altitude may cause the engine to overheat and
result in serious engine damage. The carburetor needs to be returned to its original
specification.
6.0 Generator Use.
WARNING
WARNING
Make sure to ground/earth the generator when the connected appliance is grounded/earthed.
DO NOT connect to the buildings electrical system. Back feeding it is both illegal and highly
dangerous.
GROUND
TERMINAL
EARTH MARK
(SYMBOL)
GROUND TERMINAL
EARTH MARK
(SYMBOL)
HY1000Si HY2000Si
PAGE 13

For continuous operation, do not exceed the rated output power of the generator.
DO NOT make parallel connection with mains electrical installations or other generators.
DO NOT connect an extension to the exhaust pipe.
When an extension cable is required, make sure that you use a tough rubber sheathed
flexible cable (according to IEC245 or equivalent standards). The length of the extension
cable:
60m for cable of 1.5 mm
100m for cable of 2.5 mm
Keep away from other electric cables or wires.
NOTE
The AC socket outlet can be used while the DC power is in use. If using both at same time, be
sure not to exceed the total power for AC and DC. (HY1000Si AC - 0.9kVA, DC - 5A) (HY2000Si
AC - 1.6kVA, DC - 5A).
Most motor appliances require upto 3 times more than their rated wattage when starting.
6.1 DC Application.
The DC receptacle, 15-30V under no-load condition, may be used for charging a 12V battery only.
NOTE
In DC operation, turn the ECON Switch to the "OFF" position ( )

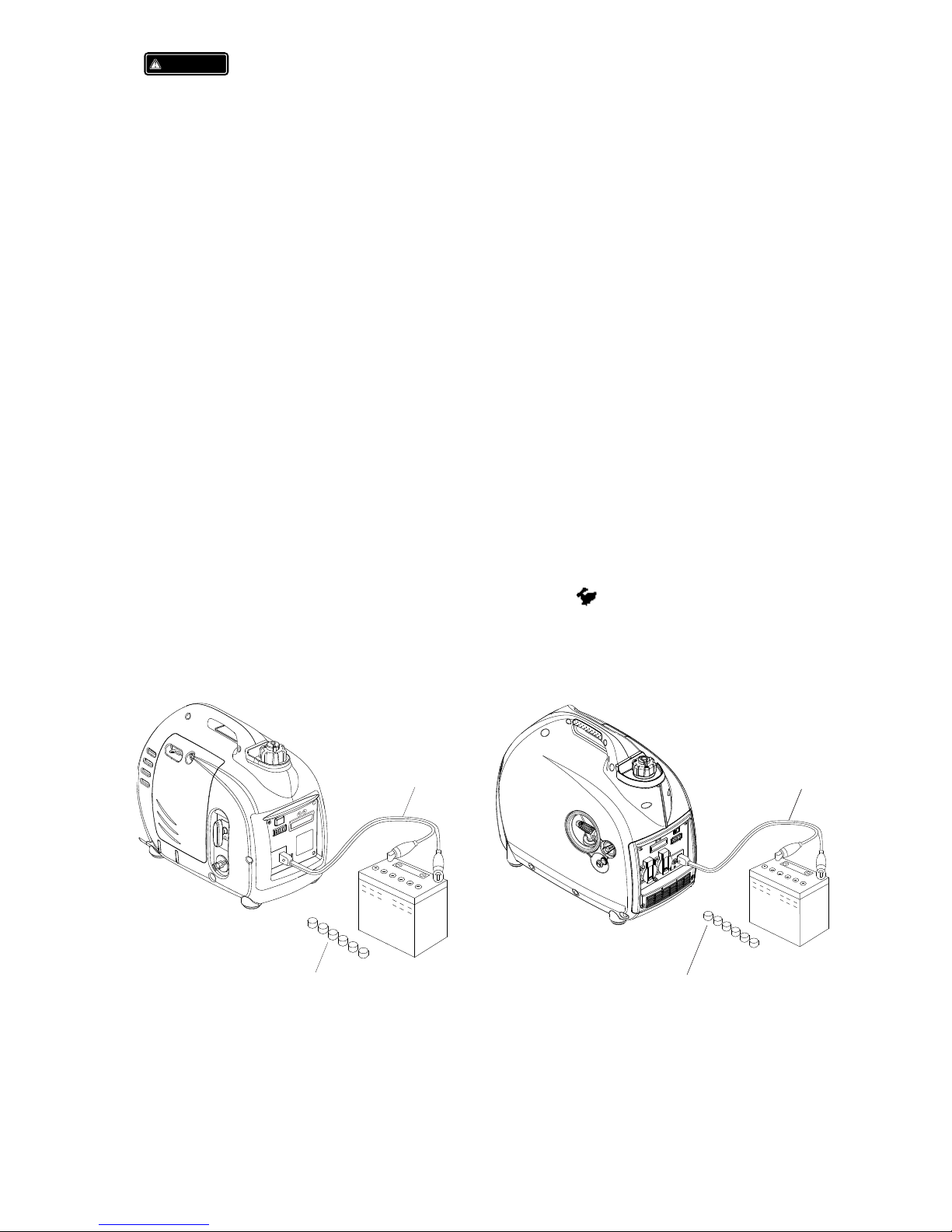

6.1.1 Connect the DC receptacle to the battery terminals with the charging cable.
WARNING
CHARGING
CABLE
BATTERY
VENT CAPS
CHARGING CABLE
BATTERY
VENT CAPS
HY1000Si HY2000Si
PAGE 14

To avoid producing the sparks at the terminals of battery, connect the charging cables firstly
to the battery terminals, and then to the generator. When disconnecting the cables do so first
at the generator.
Before connecting the charging cables to a battery that is installed in a vehicle, the grounded/
chassis cable of the battery should be disconnected first. This sequence will prevent sparks or
a short-circuit, if the cable accidentally contacts the vehicle’s frame or body.
NOTE
Do not start the car's engine when the generator is still connected to the battery, otherwise the
generator will be damaged.
Connect the positive battery terminal to the positive charging cable. Do not reverse the charging
cable, otherwise generator or battery will be damaged seriously.
WARNING
WARNING
When charging the battery releases highly explosive oxygen/hydrogen gases. Keep the battery
away from sparks/fire and other sources of ignition. Always charge the battery in a well
ventilated area.
Battery electrolyte contains sulphuric acid which will cause severe burns if it comes into
contact with the skin and eyes. Therefore it is necessary to wear the protective clothing and
mask.
If battery electrolyte gets into eyes or onto skin, flush thoroughly with warm water for 15
minutes at least, and call a doctor immediately.
If you accidently swallow any battery electrolyte, call for medical/first aid assistance
immediately. If no medical/first aid assistance is available call or get someone else to dial 999.
Keep batteries and electrolyte OUT OF REACH OF CHILDREN.
NOTE
The DC receptacle can be used while the AC power is in use.
When DC circuit overload will trip the DC circuit protector, remove load firstly, and then reset the
protector after a few minutes.
ON
DC CIRCUIT PROTECTOR OFF ON OFF
DC CIRCUIT PROTECTOR
HY1000Si HY2000Si
PAGE 15

6.2 AC Applications.
6.2.1 Start engine and make sure the output indicator light (GREEN) is on.
6.2.2 Confirm all electrical appliances are switched off, then connect the appliance plugs to
the generator AC socket.
NOTE
To obtain the best working and longest working life of the generator, you should make
sure that you run the generator for 20 hours at 50% rated load.
OVERLOAD
INDICATOR
LIGHT(RED)
OUTPUT
INDICATOR
LIGHT (GREEN)
PLUG
NOTE
Confirm all electrical appliances are in good working condition before connecting them to the
generator. If an electrical appliance becomes abnormal, sluggish, or stops suddenly, shut off the
generator engine immediately, and disconnect the appliance.
6.3 Output and Overload Indicator
In normal operating conditions, the output indicator light (GREEN) will remain on.
If the generator is overloaded (HY1000Si - over 1000w, HY2000Si - 2000w), or the connected
appliance is short-circuited, the output indicator light (GREEN) will go out, and overload
indicator light (RED) will come on. The 230v output will be cut and the engine will remain
running.
OVERLOAD
INDICATOR
LIGHT(RED)
OUTPUT
INDICATOR
LIGHT (GREEN) PLUG
HY1000Si HY2000Si
PAGE 16

If the overload indicator light (RED) is on, disconnect the electrical appliances first, then press
and hold the reset button for 1 second. If the overload indicator light (RED) is off and the
output indicator light (GREEN) is on, reconnect the electrical appliances. Otherwise stop the
engine and check the generator.
OUTPUT
INDICATOR
LIGHT (GREEN)
OVERLOAD
INDICATOR
LIGHT (RED)
OVERLOAD
INDICATOR
LIGHT (RED)
OUTPUT
INDICATOR
LIGHT (GREEN)
HY1000Si HY2000Si
NOTE
When you start the engine, it is normal for both the overload indicator light (RED) and output
indicator light (GREEN) to be ON simultaneously. The overload indicator light will go OFF after 5
seconds, otherwise contact your dealer.
6.4 Oil Alert System.
The oil alert system is designed to prevent engine damage caused by an insufficient amount of oil
in the crankcase. Before the oil level in the crankcase falls below a safe limit, the oil alert system
will automatically shut down the engine (the engine switch remains in the “ON“ position).
If the oil alert system shuts down the engine, the oil alert indicator light (red) will be on. Check
the engine oil level.
OIL ALERT INDICATOR LIGHT (RED)
OIL ALERT INDICATOR LIGHT
(RED)
HY1000Si HY2000Si
PAGE 17

7.0 Stopping the Engine.
To stop the engine in an emergency, turn the engine switch to the “OFF” position.
7.1 Switch off the connected electrical appliances and remove their plugs from the AC sockets.
PLUG
PLUG
HY1000Si HY2000Si
7.2 Turn the engine switch to the “OFF” position.
ON
OFF
OFF
ENGINE
SWITCH
NOTE
Make sure the fuel cap vent lever and engine switch are in the “OFF” position, after stopping
and when transporting and storing the generator.
OFF
ON
OFF
ENGINE SWITCH
HY1000Si HY2000Si
PAGE 18

8.0 Maintenance.
The purpose of the maintenance schedule is to keep the generator in the best operating
condition.
Stop the engine before performing any maintenance. If the engine must run, be sure the area is
well ventilated. The exhaust contains poisonous carbon monoxide gas.
Only use genuine Hyundai spares to replace worn components.
Maintenance Schedule.
WARNING
Each
use
Regular Service
Period (3)
Item
First
month
or
10 hrs.
Engine
oil
Check level


Change
Air
cleaner
Check

Clean

Every 3
months
or
50 hrs.
Every 6
months
or
100 hrs.
Every
2 years
or
300 hrs.

Spark plug Check-adjust
 (1)
Combustion
chamber
Fuel tank & filter
Fuel line
After every 300 hrs(2)
Every year(2)
Every 2 years (Replace if necessary)(2)
Clean
Check
Spark plug
Replace
Spark arrester
Valve clearance
(2)
Check-adjust



NOTE
(1) Service more frequently when used in dusty areas.
(2) These items should be serviced by your servicing dealer, unless you have the proper tools and
are mechanically proficient. Refer to dealer for service procedures.
(3) For commercial use and/or long hours of operation you must maintain proper maintenance
intervals.
8.1 Oil Change.
Drain the oil whilst the engine is still warm.
8.1.1 Loosen the maintenance cover screw, and remove the cover. 8.1.2
Remove the oil filler cap.
Clean
PAGE 19

8.1.3 Drain dirty oil into a container thoroughly.
8.1.4 Refill the recommended oil and check the oil level.
8.1.5 Reinstall the oil filler cap.
8.1.6 Reinstall the maintenance cover and tighten the cover screw.
HY1000Si Oil Capacity: 0.25L
HY2000Si Oil Capacity: 0.40L
COVER SCREW
MAINTENANCE COVER
OIL FILLER
CAP
OIL FILLER HOLE
UPPER LEVEL
OIL POT
After oil change, wash your hands with soap.
NOTE
To conform with environmental requirements, the used oil should be put into a sealed
container and then be transported to an amenity recycling centre. Do not throw it into the
rubbish or pour it on the ground.
8.2 Air Cleaner - Service.
A dirty air cleaner will restrict air flow into the carburetor. Clean and maintain the air
cleaner regularly, especially in the extremely dusty areas.
PAGE 20
