I Luv Coffee Life User manual

USER MANUAL
Life

INDEX
Declaration of CE conformity
Water pressure test
Introduction
Technology

Recommendations and Security .
Use of softened water
LIFE Features
General layout
Technical features.
General features

Programming the doses

« SENSITIVE BREWING » group regulation

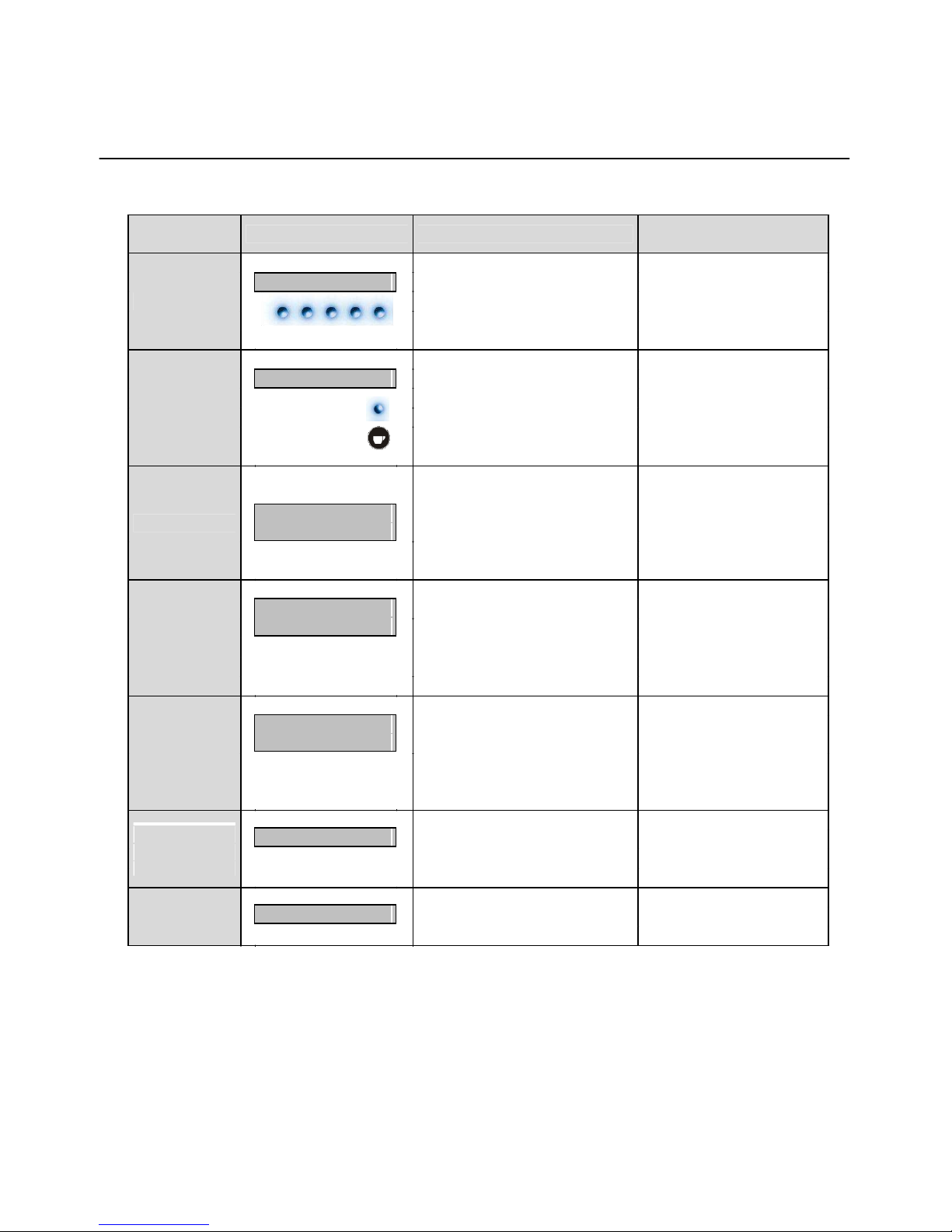

Alarms and decription
Advises
Cleaning and maintenance
General conditions
Checking form
1
Warranty Terms
Cleaning Guide
Before Calling Service

Certificat de conformité CE EC
–Declaration of conformity EG
–Konformitätserklärung
Certificado de conformidad CE
Certifie que le produit
Certifies that the product
Erklärt dass das Produkt
Certifica queel producto
Avec la désignation
With the type designation
Mit der Typbezeichnung
Con designacion
Machine àcafé expresso
Espresso coffee machine
Espressokaffeemaschine
Cafetera exprés
MOSAIC 1,MOSAIC BISTRO,MOSAIC BARISTA
HP
LIFE 1, LIFE 2, LIFE 3
STREAMLINE 2,STREAMLINE 3
Objet ce cette déclaration, est conforme aux directives européènnes ci-dessous :
This declaration refers to correspondswith thefollowing EC-directives:
Auf das sich diese Erklärung bezieht, mit den nachfolgenden EG-Richtlinien übereinstimmt:
Objetode la presentedeclaracion, cumple conlas siguientes directivas europeas:
73/23/CEE
98/37/CE
89/336/CEE
Normes appliquées
Applied standards
Angewandte Normen
Normas aplicadas
Rosheim 01/01/2009
EN61000-3-2; EN61000-3-3
EN 55 014
EN 55 014-2
EN 60 335-2-63
Gérant
Managing Director
Geschäftsführer
Gerente
2

CONTRÔLE PRESSION CHAUDIERE
WATER PRESSURE TEST
WASSERDRUCKPRUEFUNGSBESCHEINIGUNG
Nous certifions que la chaudière de cette machine a été testée en pression
d'eau à 2.6 bar, conformément aux prescriptions du paragraphe 9.4 du TDR
801.
We certifythat the boiler of this machine has been subjected to water
pressure of 2.6 Barcomplying withthe paragraph 9.4of TDR 801.
Hiermit bestätigen wir, dass der Kessel mit Erfolg einer Wasserdruckpruefung
von 2.6 Bar entsprechend den Vorschriften von Paragraph 9.4 der TRD 801
unterzogen worden ist.
Rosheim, 1 Januar 2009
Gérant
Managing Director
Gesc häftsführer
3

INTRODUCTION
Thank you for choosing a I Luv Coffee coffee machine! We are sure that your new machine
will meet with your satisfaction. The Life machines are designed and manufactured to the
most up-to-date processes in compliance with stringent quality standards in order to
provide reliable and durable service. Please read the instructions for use contained in this
brochure very carefully. By following them, you will be able to take advantage of all the
capacities of your machine, and ensure that it has a long and trouble-free working life.
Lastly, we would like to remind you that the reneka network is at your disposal for any
information you might need and for the maintenance of your reneka coffee machine.
TECHNOLOGY
Our aim
We have usedthe best materials and processes to ensure customer’s satisfaction.
Heat exchangesystem
Thesystem for instant heating of the cold waterwith which the coffee is made usesa
special processwhich guarantees quality and reliability.
Internaldesign
Themachine is continuously ventilated, regardless of the number of cups on the cup tray. It provides
thermal protection to theelectronicsystemand the pump unit.
Electronic
Theelectronic system performsmost of the controls.
RECOMMENDATIONS
Only I Luv Coffee After Sales Service or its distributor are authorized to carry out the servicing of Life
coffee machines.
Please post thisnotice next to your machine.It will thus be readily available for consultationby users as
need be.
Reneka International declines all responsibility for any damage that may arise as a result of failure to
maintain the machines as need be, of inappropriate operations on the machine, or from the use of non-I
Luv Coffee parts.
I LUv Coffee reserves the right to carry out any desirable modification without notice so as to update the
product to meet market requirementsor make technical improvements.
SECURITY
During installation of the machine, check that the cup holder is at a minimum height of 1,20 meter above the ground
The machine should be placed on a horizontal surface, enough stable and sturdy to bear its weight, in a sufficiently
ventilated atmosphere, so that there is no danger from the humidity caused by the machine.
Leak enough space around the machine so that air circulates around it.
Air admission louvers of the machine should not be obstructed by towels etc.
The supply cable should not be in contact with the source of heat nor should it be hanging from the surface on which the
machine is placed nor be crushed by the machine.
Do not immerse all or even part of the machine.
Do not place the machine in an area where there may be projections.
Set the ON/OFF machine on “O” (Off) before moving the machine and before plugging it out.
Leave the machine to cool down and plug it out before taking on any repairs on the machine.
Do not use the machine for any other use except for that for which it is meant.
4

If the power cord is damaged, it must be replaced by ourafter-sales
service or persons with similar qualifications, to avoida potential
danger.
Use the machine for the purpose it is intended.
Room temperature should be between 5°C and 45°C to allow proper operation of the machine.
Avoid all contact with the hot zones (cup tray, brewheads, hot water and heating outlets).
The machine should not be exposed to freezing, in case of danger of frost, place the machine away from freezing area.
The sound pressure level is less than 70 dB.
Avoid exposure to steam and hot water projections.
The machine is not suitable for outdoor use.
The machine should not be cleaned by water jet.
Do not use the machine if there are children nearby.
The machine should not be used by children.
USE OF SOFTENED WATER
Whatever water treatment method is used, it is important that the coffee machine operates on a permanent basis with water at
a maximum of 7 °TH (resin softener) or 3° KH (Water and More).
Lime scaling, whether due to poor functioning or bad maintenance of the water treatment systems, gradually limits the
performance of the machine and the quality of the coffee obtained while increasing the exploitation costs and the technical
risks.
Important: Problems connected with scaling are not covered by the guarantee and/or themaintenance
contracts. It istherefore important to regenerate your softener every 2weeks, in thecase of aresin softener.
In the case of Water&More watertreatments, refer to theinstructionsof your installer.
5

GENERAL LAYOUT
Adjustable feet
Steam arm and nozzle
Hot water nozzle
Steam button
Coffee outlet
Filter holder
Double gauge: boiler (up) and pump (down) pressure
General main switch
Drip tray
10 Keyboards
11 Barista Steam
12 LCD Screen
1
2
3
4
5
6
7
8
9
6

TECHNICAL FEATURES
Voltage
Heating element
power (230 V mono)
Heating element
power (400 V 3
phases)
Max installed power
(230 V mono)
Max installed power
(400 V tri)
Total boiler volume
Volumes Hot water volume
1 group
230V / 50Hz
2100W
X
2300W
10,5 Amp
X
5,8 L
4,8 L
VIVA
2 groups
230V / 50Hz
400V / 50Hz
3100W
3800W
3300W
14,5 Amp
4000W
6,5 Amp / phase
10 L
7,5 L
3 groups
230V / 50Hz
400V / 50Hz
4000W
6000W
4200W
18,5 Amp
6200W
10 Amp / phase
16,5 L
12 L
Length (m m)
Depth (mm)
Height (mm)
Weight (kg)
Barista Steam
Hot water mixed and
automatic purge
Economic mode
Timer fonction
Start-up and
programmed
economic mode
430 710 940
510 510 510
510 510 510
42 60 80
OPTION OPTION OPTION
YES YES YES
YES YES YES
YES YES YES
Electrical features
Dimensions
Special functions
7

GENERAL FEATURES

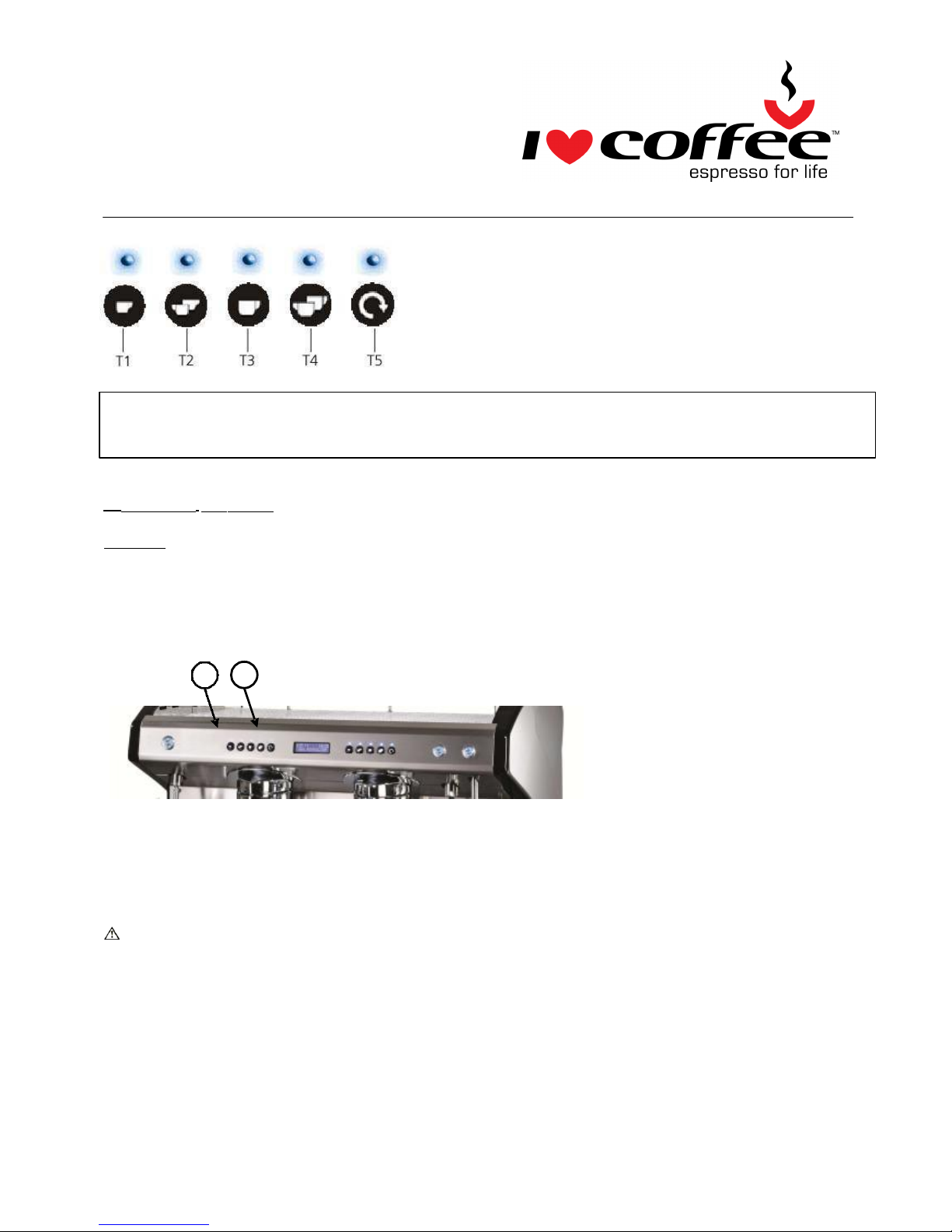

1. Keyboards
T1 = 1 short coffee button
T2 = 2 short coffees button
T3 = 1 long coffee button
T4 = 2 long coffees button
T5 = ‘Continuous’ button
2. Producing coffee
HOW TO MAKE AGOOD ESPRESSO
The coffee
Two types of coffee :
 Arabica : beans are flat, elongated. It has a subtel aroma and a sweet flavor, tasty and perfumed. It is
the most common coffee and has a low caffeine rate.
 Robusta : beans are rather convex, rounded. It contains more caffeine, which gives a full-bodied taste to
the coffee and provides a thick cream. It contains about twice more caffeine.
To make agood espresso, you need:
 A fresh ground coffee.
 A well-adjusted grinder:
→If the ground coffee is too fine, the cream is thin and uneven.
→If the coffee is too coarsely ground, the espresso is too « light ».
 Have the right dose of coffee: 7 grams for 1 cup.
The temperature
 The cups must be hot (40° C). Serve the coffee quickly once it has been made.
Put the appropriate
dose of coffeeinto the
filter. Pressthe ground
coffee and remove any
possible tracesof coffee
powder from the egde of
the filter with the palm
of the hand.
Connect the filter holder to
the brewheadand Placethe
cup(s) under the pouring
spouts.
Selectthe desireddose.
8

Thecycle can be interrupted at any time by pressing the selected button.
It is advisableto leave thefilter holder connected to thebrewhead (after emptyingit) until thenext
preparation, in order to retain theheat.
Remark :In the morning,or after a period of prolonged disuse, switch on the heating andhot watertaps then
perform a cycle while emptyon each brewhead in orderto stabilize the temperatures and purge the machine.
3. Hot water preparation
Put thecup or thepotunder the hotwater
outlet. Press the buttonhotwater to start
the cycle.
It stops automatically.
Thehot waterbutton is nowplaced above the hotwater nozzle.
Specific buttonwith 2programmablevolumes :
- shortpress (<1sec)   First
dose - long press (>1sec) 

Second dose
4. How to usethesteam arm
Manipulation
Press the keyslightly to allow the condensation to escape.
Plunge the steam tube intothe contents and press on the keymachine.
After each use, clean thespout by rubbing awetcloth over it. The nozzle is purged automatically (after 30
seconds).
5. How to use the Barista Steam (emulsion/heating milk)
For an optimal system Barista Steam use, it is advisable to usefresh milk at the ideal
temperature of 5 ° C. How to adjustthedensity of thefoam
It is possible to adjustthe density of the foam by acting on the adjusting
screw (see photo). If youturn the adjustment screwclockwise: finer
foam.
If youturn the adjustment screwcounterclockwise: thickerfoam.
Remark : Barista Steam nozzle is purged automatically after each use(after30 seconds).
9

Emulsion mode
Fill a stainless steel jug of half of fresh milk and place the Barista Steam into the jug and start the cycle
by pressing the Barista Steam button (short press).
It stops automatically when the milk reaches the requiredtemperature.
Heating milk mode
Place the liquid to be heated in the Barista Steam arm and start the cycle by pressing the Barista
Steam button (long press).
It stops automatically when the milk reaches the required temperature.
6. Economic mode (ECO mode)
Your coffeemachine reneka is equipped with a power button in ECOmode (right under the drip tray).
Thispermits to set the coffeemachine in sleep mode by turning theboiler temperature of 122°C to 80°C.
Note: Setting the coffeemachine in economic mode can be automaticif youprogram it during the
installation of the machine.
ECOmode setting
Press the ECObutton(square buttonunder the drip tray) during 3 seconds then release.The ECO
mode is clearlyindicated on the screenand LEDSof the keyboards areturning off.
In ECOmode,the boiler temperature is returnedto 80°C to reducethe energy consumption and to
permita 122°C temperature back as soon as possible.
Exit of theECO mode
Press the ECObutton, then release.
10

PROGRAMMING THE DOSES
T1 = 1 short coffee button
T2 = 2 short coffees button
T3 = 1 long coffee button
T4 = 2 long coffees button
T5 = ‘Continuous’ button
If youexceed 30 seconds(inprogramming mode)before starting adosing
cycle, youleave theprogramming mode.Thenrepeat all theoperations.
Youcan also leave theprogramming mode by pressing again button T5.
1. Procedureforcoffee
Principle
Theleft-hand brewhead is the masterbrewhead. In otherwords,everycoffee dose programmedon the
left-hand keyboardwill automatically be programmed on the right one.After that, it is always possible
to re-programme- and alter the doses on the right-hand brewhead(s) by repeating the procedure
describedbelow in this respect.
Theprogramming operation requires the useof coffeeto be precise.
T1 T5

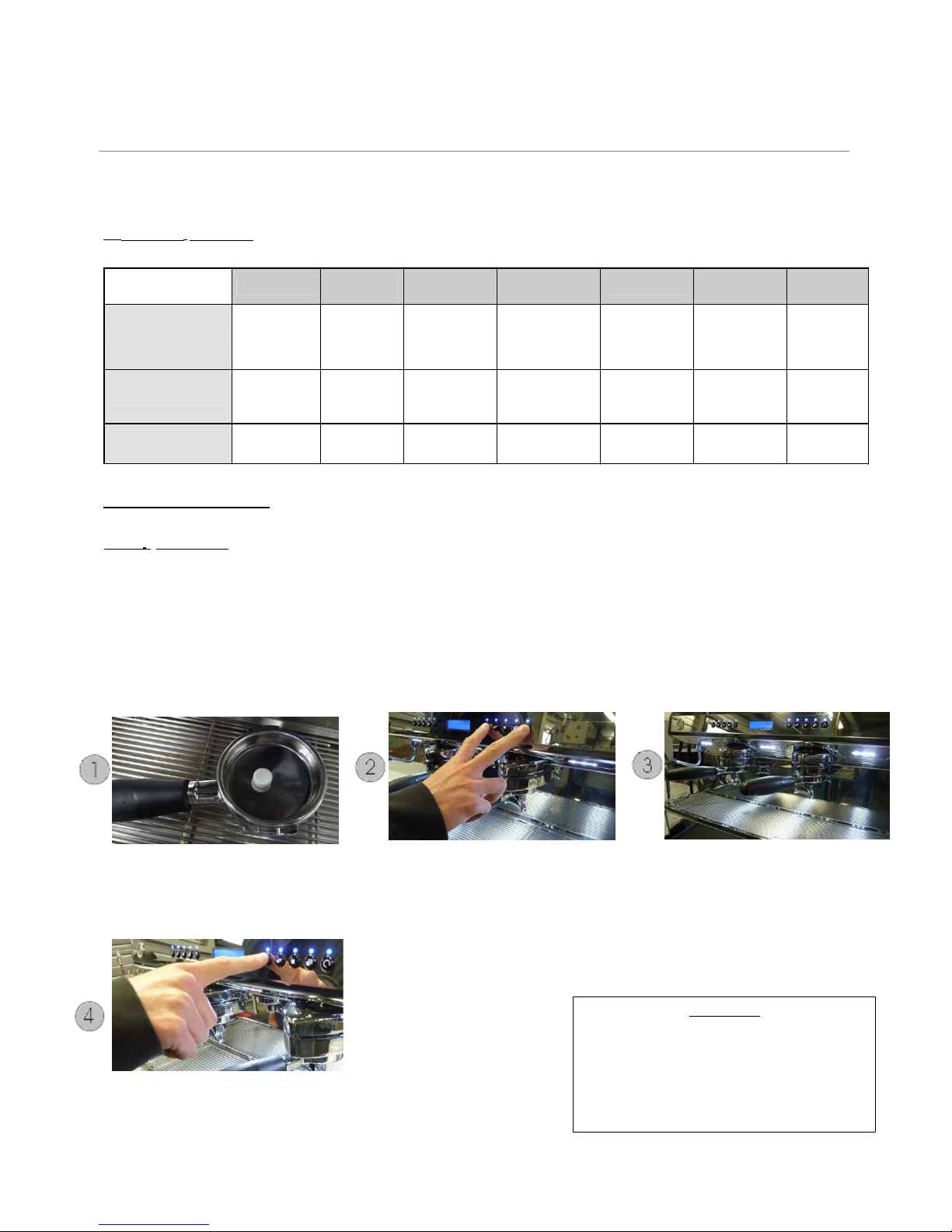

Prepare the suitable coffeedose and connect the filterholderto the left-hand brewhead.
Put the cup(s) under the spout of the filter holder.
Press the continuous button T5 (about 5 sec).
Press the button corresponding to the dose you want to programme (for example dose of a little cup T1). As
soon as the desired dose is complete, press the selected button to stop the coffee cycle and memorise the dose.
Repeat operations 1. to 3.to memorise the other coffee doses.
11

2. Procedureforhot water(H. W.) :2programmable doses
T5 H.W
Placea cup under the hotwater exit. Press the button T5 (about 5
seconds) until the LED T5 flashes.
Press on the « Hotwater » (H. W.) button corresponding to the requesteddose.
Oncethe requested dose is reached, press the selected buttonagainto stop the cycle and
memorize the dose.
Caution, the 2 hot water doses have to be programmed separately.
3. Programming of temperatureof BaristaSteam (B. S.) (emulsion/heatingmilk)
Emulsionmode
T5 B.S
Placea containerwith fresh milk (or water) under
the Barista Steam nozzle.
Press the button T5 (about 5 seconds) untilthe LED T5 flashes.
Press the B. S. button to start the programming.
Whenthe liquid reachesthe desiredtemperature(maxi. 65°C), press againthe Barista
Steam to stop the cycle and memorize the scheduled temperature.
Heating mode
Repeat the previous operations (emulsion mode)by pressing the B. S. button (long press) in orderto
switch to the heating mode and start up the cycle.
Whenyou useheating milk mode,the desired temperaturecan be higherthan 65°C.
12

«SENSITIVE BREWING »GROUPS REGULATION
This exclusivedevice enables boiler operation to 125° C for bettersteam performance, while
accurately controlling the coffee extraction temperatureof coffee extraction (located underthe drip
tray).
Procedure
To increasethe coffee extraction temperature: Close the ‘’SENSITIVE BREWING’’
adjusting wheel (clockwise) by ¼ turn stages.
To decreasethe coffeeextraction temperature: Openthe ‘’SENSITIVE BREWING’’ adjusting
wheel (anticlockwise) by ¼ turnstages.
Factory setting :The factory setting is seton 1/4 turn open(0 point + 1/4) –Boiler 122°C
Finding the zeropoint :Turn theSensitive Brewing control knob clockwise until it stops and re-
openit in the anticlockwisedirection of 1/4 turn.
13

ALARMS AND DESCRIPTION
Type
Filling alarm
Flowmeter alarm
Filter alarm
Maintenance
alarm
Boiler
temperature
alarm
Alarm of the
water level of
the boiler
Alarm
temperature
probe cut
Signaling
FILLING ALARM
LEDS flashing
FLOWMETERALARM
This LEDflashing
FILTER ALARM
01 99 99 99 99
Buzzer
MAINTENANCE
01 99 99 99 99
Buzzer
000°C (boiler temp.)
TEMP. TROP BASSE
Buzzer
EMPTY BOILER
Heating stopping
CUT PROBE
Buzzer
Description
Thedisplay shows
"FILLING ALARM" and all
the LEDSare Flashing.
Thedisplay shows
"FLOWMETER ALARM"and
the LED of the concerned
button is flashing.
Thefilterarrives at a remaining
capacity of 100 L.
Start-upof a buzzer.
Thedisplay shows"FILTER ALARM"
and the after-sales service
telephone number.
Start-up of a buzzer during one
coffee cycle every 250 cycles.
The display shows .
"MAINTENANCE" and the after-
sales service telephone number.
The boiler is less than 108°C.
The display shows "TEMP. TOO
LOW ".
Start-up of a buzzer (5 “beeps
“of 1 second each).
Water level in the boiler goes
under the security probe
The display shows "EMPTY
BOILER".
An audible alarm is turning on
and the display shows "CUT
PROBE".
Solution
Turn offthe machine
(5s). Then turn it on
again.
Theuse of the machine is
still possible in manuel
operation on the
concernedgroup. Inquire
to the after-sales service.
Inquire to the after-sales
service.
Inquire to the after-sales
service.
The temperature is
automatically regulated.
Otherwise, inquire to the
after-sales service.
Filling is automatic.
Otherwise, inquire to the
after-sales service.
Inquire to the after-sales
service.
14

ADVISES
Coffee flowing too slowly
Too muchground coffee. Comply with
recommended quantities.
Coffeetoo tightlypacked.
Check if the coffeeis not
groundedtoo fine.
Ensure that the showers and
filters are clean.
Coffee flowing too quickly
Not enoughground coffee.Comply with
recommended quantities.
Coffeenotpackeddown enough.
Check if the coffeeis notground too coarse.
Espresso too light
Temperaturetoolow (insufficient pre-
heating, scale).
Not enoughcoffee or oldor coarsecoffee.
Espresso bitter
Too muchcoffee,temperature toohigh, dirty filters.
Cream too light
Machine too cold, coffee too coarse, cold cups.
Cream too dark
Machine too hot, coffee toofine,overheatedcups (mind any cloths which may block the machine
ventilation outlets).
Coffee grounds in the cup
Clean the brewhead and the bayonet.
Wet grounds
Not enoughcoffee. Comply with
recommended quantities.
Check if the coffeeis notground too fine.
Call theafter-sales service department for all otherproblems.
15

CLEANING AND MAINTENANCE
CAUTION :THE MACHINE SHOULD NOT BE CLEANEDBY WATER JET
1. Cleaning schedule
After each use
Daily on
completion
of service
Once aweek
Steam Tube
X
( automatic purge)
Barista
Steam
X
(automatic
purge)
x
Brewheads
x
Filter holder
x
Drip tray
x
Evacuation
dish
x
Bodywork
x
2. Cleaning procedures
Coffee brewhead
Reneka cleaning kit, ref 9003479:
Designedto ease and improve the daily upkeep of your reneka machine to enable you to make better
coffees. The cleaning kitcomes with the following accessories:
 A rubber obturator.
A box of 100 reneka tablets (reference1011014).
A cleaning brush
Place the obturator in the
two-cup filter-holderand
add a reneka detergent
tablet.
Connect the filter-holder.
Hold down both buttons
simultaneouslyon the ends
to start the cleaning cycle.The
LEDsflashfrom left to right.
After a fewminutes LEDS
flash and youneed to
remove the obturator.
After switching the filter holder,
press any button for the
program rinses. The cleaning
cycle is automatically canceled.
Comment :
The cleaning cycle can be run
independently n each group or on all
the groups simultaneously.
The cleaning cycle, once
started, continues to completion
16

Filter holder
Cleanthe whole filter unit and the filterholderby soaking overnight in hotwaterwith
twotablets of reneka detergent (ref. 1011014). Do notsoak the handles.
Rinse afterwards with warm water.
Shower
With a screwdriver, remove the shower and the shower holder.
Put these two elements in a containerwhich contains water and
two detergenttablets (ref 9003479). Leave it overnight and
clean these parts with a brushto removeallgrease of coffee
and assemblethem back on the brewhead.
CAUTION : Assemble the shower back properly by placing the
hole’s shower in the notchof the holdershower (positioned
towards the back of the group).
Steam tube
After each use
Rub a wet clothover the spout and open the steam tube for 5 seconds to purge.
If the tube becomes blocked (more steamon opening
thetap), despite taking meticulouscare with cleaning,
dismountthediffuser andthen cleanit.
Barista Steam
Thenozzle is purgedautomatically after
each use. At theendof service: start a
cleaning cycle.
Cleaning cycle
Cleaning the Barista Steam (about 3 minutes) at the end of the service and
before turning off the machine.
The cleaning solution must be cold (maximum temperature: 25 ° C)
Once started, the only way out of the cleaning cycle is to turn off then on the
machine.
Follow directions on the displayduring the cleaning phase.
17
