i-MO VXR-EFC User manual

Instruction Manual
IMOJaguarVXR
PG Interface Cards “VXR-EFC” &
“VXR-EFC-5V”
Thank you for purchasing our EFC interface card.
• Read through this instruction manual and be familiar with the option card before
proceeding with installation, connections (wiring), operation, or maintenance and
inspection.
• Deliver this manual to the end user of this product. Keep this manual in a safe place until
this product is discarded.
• Specifications of this option card are subject to change without prior notice for
improvement.
IMO Precision Controls Ltd.

Copyright © 2006. IMO Precision Controls Ltd.
All rights reserved.
No part of this publication may be reproduced or copied without prior written permission from IMO
Precision Controls Ltd.
All products and company names mentioned in this manual are trademarks or registered trademarks
of their respective holders.
The information contained herein is subject to change without prior notice for improvement.

i
Preface
Thank you for purchasing our EFC interface card "VXR-EFC."
Mounting this optional card into your Jaguar VXR inverter enables speed control with EFC (e.g. V/f
control with EFC and dynamic torque vector control with EFC), pulse train input and positioning
control.
Read through this instruction manual in conjunction with the Jaguar VXR Instruction Manual and
be familiar with proper handling and operation of this product. Improper handling might result in
incorrect operation, a short life, or even a failure of this product.
This instruction manual does not contain inverter handling instructions. Refer to the Jaguar VXR
Instruction Manual, and keep this manual in a safe place.
Safety precautions
Read this manual thoroughly before proceeding with installation, connections (wiring), operation, or
maintenance and inspection. Ensure you have sound knowledge of the device and familiarize
yourself with all safety information and precautions before proceeding to operate the inverter.
Safety precautions are classified into the following two categories in this manual.
Failure to heed the information indicated by this symbol may
lead to dangerous conditions, possibly resulting in death or
serious bodily injuries.
Failure to heed the information indicated by this symbol may
lead to dangerous conditions, possibly resulting in minor or
light bodily injuries and/or substantial property damage.
Failure to heed the information contained under the CAUTION title can also result in serious
consequences. These safety precautions are of utmost importance and must be observed at all
times.

ii
Installation and wiring
• Turn the inverter's power OFF and wait for at least five minutes before starting
installation and wiring.
• Qualified electricians should carry out wiring.
Otherwise, electric shock could occur.
• Do not use the product that is damaged or lacking parts.
Doing so could cause failure or injuries.
• Prevent lint, paper fibers, sawdust, dust, metallic chips, or other foreign materials from
getting into the inverter.
Otherwise, a fire or an accident might result.
• Incorrect handling in installation/removal jobs could cause a failure.
A failure might result.
• Noise may be emitted from the inverter, motor and wires. Implement appropriate
measure to prevent the nearby sensors and devices from malfunctioning due to such
noise.
Otherwise, an accident could occur.
Operation
• Be sure to install the terminal cover before turning the power ON.
Do not remove the cover while the power is on.
Doing so could cause electric shock.
• Confirm and adjust the setting of the function codes before running the inverter.
Otherwise, an accident could occur.
Maintenance and inspection, and parts replacement
• Turn the power OFF and wait for at least five minutes before starting inspection or parts
replacement.
Otherwise, electric shock could occur
• Maintenance, inspection, and parts replacement should be made only by qualified
persons.
• Take off the watch, rings and other metallic objects before starting work.
• Use insulated tools.
Otherwise, electric shock or injuries could occur.

iii
Disposal
• Treat the EFC interface card as an industrial waste when disposing of it.
Otherwise injuries could occur.
Others
• Never attempt to modify the EFC interface card or inverter.
Doing so could cause electric shock or injuries.
Icons
The following icons are used throughout this manual.
This icon indicates information which, if not heeded, can result in the inverter not
operating to full efficiency, as well as information concerning incorrect operations and
settings which can result in accidents.
This icon indicates information that can prove handy when performing certain settings
or operations.
This icon indicates a reference to more detailed information.

iv
Table of Contents
Preface .................................................................. i
Safety precautions.................................................... i
Chapter 1 BEFORE USING THE INVERTER........1-1
1.1 Acceptance Inspection..................................1-1
1.2 Mounting the EFC Interface Card.................1-2
1.3 EFC Specifications and EFC Mounting
Instructions..................................................1-3
1.3.1 EFC specifications.............................1-3
1.3.2 Mounting the EFC to the motor..........1-3
1.3.3 Wiring between the EFC interface
card and EFC ....................................1-4
1.3.4 Setting up the power supply for the
EFC or pulse train generator .............1-5
1.3.5 Connecting to option terminals..........1-5
1.3.6 Option terminals ................................1-6
Chapter 2 CONNECTION DIAGRAMS..................2-1
2.1 For Frequency Control with Pulse Rate
Input..............................................................2-1
2.2 For Speed and Positioning Controls .............2-2
Chapter 3 PREPARATION FOR OPERATING.......3-1
Chapter 4 EFC INTERFACE CARD FUNCTIONS.4-1
4.1 Speed Control...............................................4-1
4.2 Frequency Control with Pulse Rate Input .....4-1
4.3 Positioning Control........................................4-1
Chapter 5 FREQUENCY CONTROL WITH
PULSE RATE INPUT.............................5-1
5.1 Specifications................................................5-1
5.2 Terminal Functions........................................5-1
5.3 Function Code List........................................5-1
5.4 Function Code Details...................................5-2
5.5 Description of the Control .............................5-3
5.5.1 Input pulse command polarity............5-3
5.5.2 Block diagram....................................5-3
Chapter 6 SPEED CONTROL................................6-1
6.1 Specifications................................................6-1
6.2 Terminal Functions........................................6-1
6.3 Function Code List........................................6-2
6.4 Function Code Details...................................6-2
Chapter 7 POSITIONING CONTROL.....................7-1
7.1 Specifications................................................7-1
7.2 Terminal Functions........................................7-1
7.3 Function Code List........................................7-2
7.4 Description of the Control..............................7-3
7.4.1 Symbols .............................................7-4
7.4.2 Input/output terminal functions...........7-5
7.5 Function Code Details...................................7-6
7.6 Monitoring .....................................................7-6
7.6.1 Monitoring items.................................7-6
7.6.2 Displaying system on the LED
monitor...............................................7-7
7.6.3 Positioning control status ...................7-7
7.7 Serial Pulse Receiving Function....................7-8
7.8 Assignment of EFC Terminals When Shared7-9
Chapter 8 PROTECTIVE FUNCTIONS..................8-1
8.1 Overspeed Alarm ( os )....................................8-1
8.2 Excessive Speed DeviationAlarm ( ere )........8-1
8.2.1 Function codes...................................8-2
8.2.2 Excessive speed deviation
detection.............................................8-2
8.3 Positioning Control Alarm ( ero ) .....................8-3
8.3.1 Function codes...................................8-3

1-1
Chapter 1 BEFORE USING THE INVERTER
1.1 Acceptance Inspection
Unpack the package and check the following:
(1) The EFC interface card is the model you ordered.
(2) The EFC interface card is not damaged during transportation--no defective parts or lacking
parts.
(3) The model name "VXR-EFC" is printed on the EFC interface card. (See Figure 1.2.)
(4) The EFC interface card is applicable to your inverter.
Table 1.1 lists the inverter's ROM version to which the EFC interface card is applicable.
Table 1.1 Applicable ROM Version
Series Type of inverter Applicable motor rating ROM version
Jaguar VXR VXRE1- All capacities 0700 or later
Checking the ROM version
Use Menu #5 "Maintenance Information" on the keypad. (Refer to the Jaguar VXR Instruction
Manual, Chapter 3, Section 3.4.6 "Reading maintenance information."
Display on LED Monitor Item Description
5_14 Inverter's ROM version Shows the inverter's ROM version as a
4-digit code.
If you suspect the product is not working properly or if you have any questions about your product,
contact your Fuji Electric representative.
Figure 1.1 Figure 1.2
Hooks CN3
Model
name

1-2
1.2 Mounting the EFC Interface Card
• Turn the power OFF and wait for at least five minutes before starting installation.
Otherwise, electric shock could occur.
• Do not use the product that is damaged or lacking parts.
Doing so could cause a failure and injuries.
• Prevent lint, paper fibers, sawdust, dust, metallic chips, or other foreign materials from
getting into the inverter.
Otherwise, a fire or an accident might result.
• Incorrect handling when mounting or removing the product could cause a failure.
A failure might result.
When handling the EFC interface card and interface printed circuit board (interface PCB), take any
antistatic measure or hold their hooks taking care not to directly touch their circuit boards;
otherwise, the static electricity charged in your body may damage them.

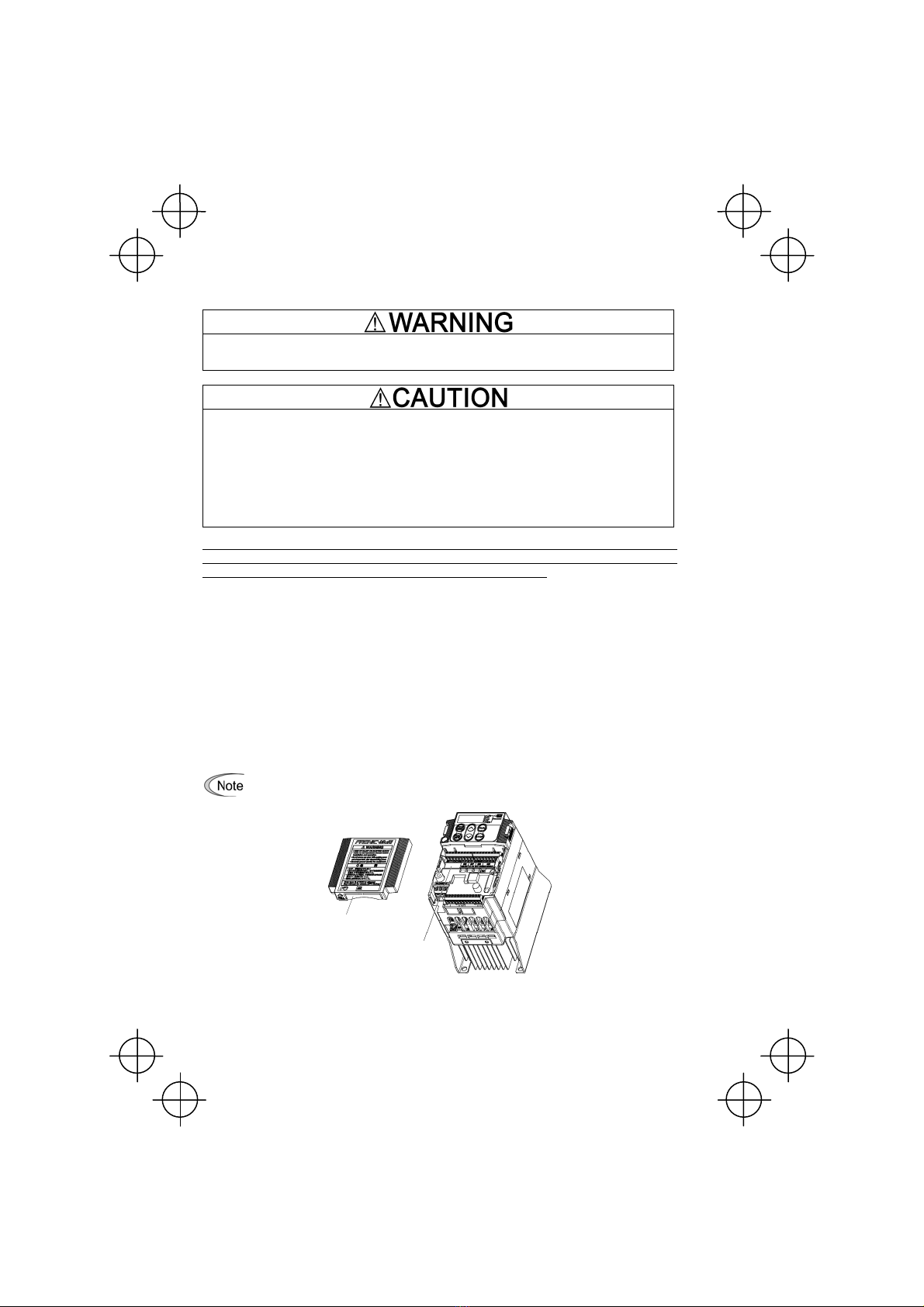

(1) Remove the terminal cover.
For details on how to remove the terminal cover, refer to the Jaguar VXR Instruction
Manual, Chapter 2, Section 2.3 "Wiring."
(2) If the interface PCB is installed on the inverter, push the hooks provided on both ends of the
interface PCB and pull it up and out of the inverter with both hands. (Store the removed
interface PCB for future use.)
(3) Connect the CN3 connector (shown in Figure 1.2) on the EFC interface card to the connector
on the inverter until it clicks into place.

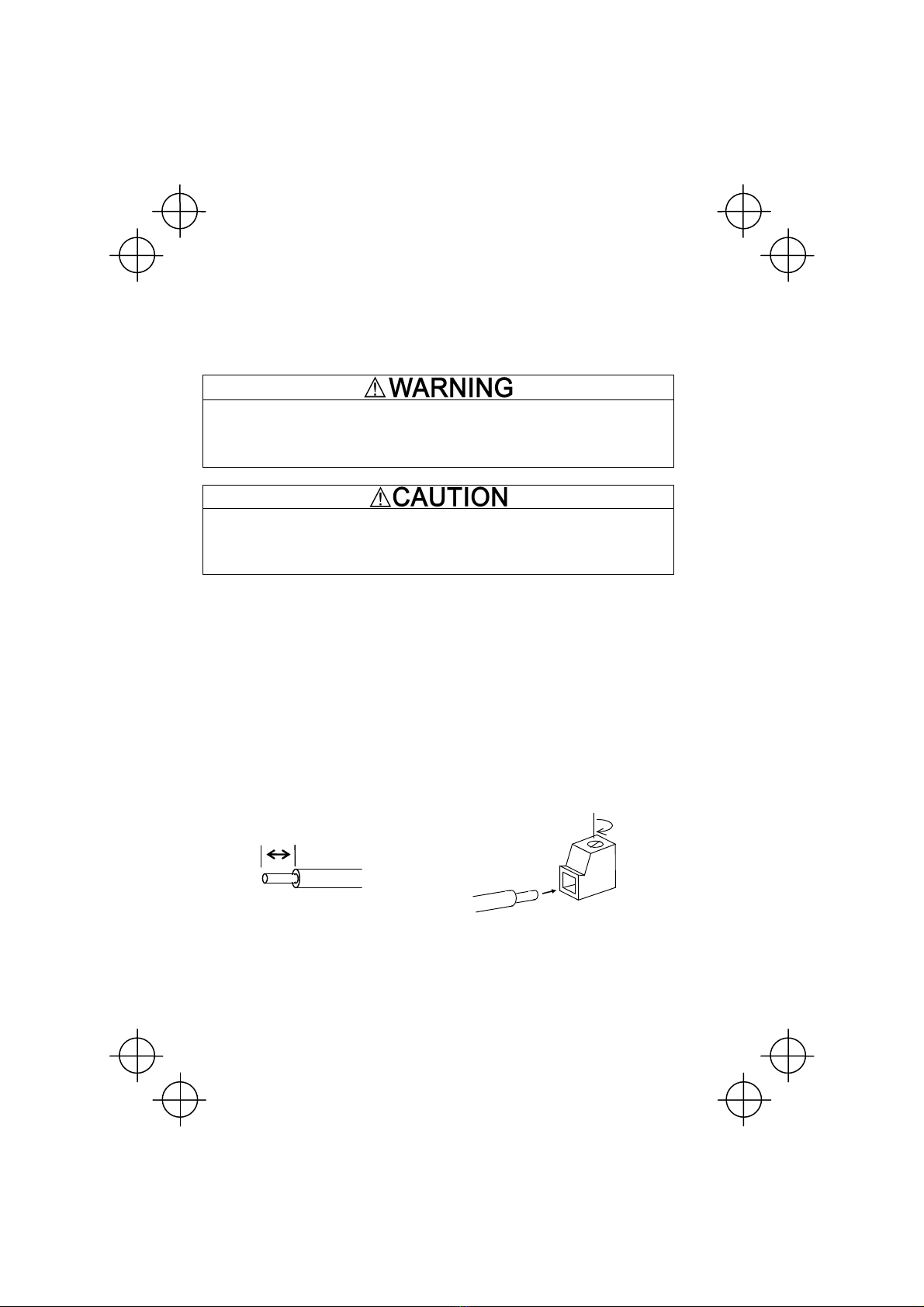

(4) For inverters of 0.75 kW or below: Before reinstalling the terminal cover, cut off the barrier (see
Figure 1.3) of the terminal cover using nippers or the like
(5) Reinstall the terminal cover, taking care not to pinch control signal lines.
When reinstalling the terminal cover, refer to the Jaguar VXR Instruction Manual, Chapter 2,
Section 2.3 "Wiring."
For inverters of 3.7 kW or below: When performing the wiring for the main circuit
terminals, you need to remove the EFC interface card beforehand.
Figure 1.3
Barrier of the cable outlet
EFC interface card

1-3
1.3 EFC Specifications and EFC Mounting Instructions
• Using the EFC whose specifications are not satisfied may cause the inverter and
equipment to malfunction.
Doing so could cause failure or injuries.
1.3.1 EFC specifications
Table 1.2 lists the applicable EFC specifications.
Table 1.2 Specifications of Applicable EFC and EFC Interface Card
Item Specifications
Applicable EFC
Encoder system Incremental system
Pulse resolution 20 to 3000 P/R
Input power requirements 5 VDC ±10% / 100 mA
(200 mA, when a single EFC is mounted.)
EFC power
supply Internal power supply +5 VDC ±10% / 200 mA
External power supply +5 VDC ±10%, 200 mA or more
Output signal Open collector (pull-up resistor: 620)
Complementary (totem-pole push-pull) voltage output
Note 1: The wiring length between the EFC and inverter should not exceed 20 m.
Note 2: When the EFC power is 200 mA or more, use an external power supply.
Note 3: The external power supply should satisfy the voltage specifications of the EFC.
1.3.2 Mounting the EFC to the motor
The counterclockwise rotation when viewed from the motor output shaft is regarded as "forward
rotation" (see Figure 1.4). During rotation in the forward direction, the EFC output pulse forms the
forward signal as shown in Figure 1.5 (B phase advances 90 degrees from A phase). During
rotation in the reverse direction, the EFC output pulse forms reverse signal (A phase advances 90
degrees from B phase).
Mount the EFC to the motor with a coupling, etc.
Table 1.3 lists the correct configurations of commands, rotational directions, and motor wiring. Any
other configuration fails to perform speed control normally.
Table 1.3 Rotational Direction of Encoder and Motor Shafts
Run command Rotational direction Motor wiring
Encoder shaft Motor shaft
FWD Forward Forward U V W phases in order
REV Reverse Reverse U V W phases in order
FWD Forward Reverse U V W phases in reverse order
REV Reverse Forward U V W phases in reverse order
Motor PG
Forward direction
Figure 1.4 Forward Direction of Motor and
EFC
Forward
signal
Reverse
signal
A phase
B phase
90°
Figure 1.5 Rotational Direction and Output Signal
of EFC

1-4
You can monitor the digital input status of the EFC interface card with the inverter keypad. For
details, refer to the Jaguar VXR Instruction Manual, Chapter 3, Section 3.4.5 "Checking I/O signal
status."
1.3.3 Wiring between the EFC interface card and EFC
• Turn the inverter's power OFF and wait for at least five minutes before starting
connection.
• Qualified electricians should carry out wiring.
Otherwise, electric shock could occur.
• Noise may be emitted from the inverter, motor and wires. Implement appropriate
measure to prevent the nearby sensors and devices from malfunctioning due to such
noise.
Otherwise, an accident could occur.
Wire the EFC to the EFC interface card, observing the following precautions and referring to the
connection diagrams given in Figures 2.1 to 2.3.
(1) Turn the inverter's power OFF.
(2) Use a shielded wire for wiring between the EFC and the EFC interface card.
(3) To prevent malfunction due to noise, keep the wiring away from the main circuit wiring of the
inverter and the power wiring of other devices as far as possible (at least 10 cm). Do not route
them in the same duct.
(4) Complete the wiring for the EFC before turning the inverter's power ON.
(5) The wire size applicable to the option connection terminal on the inverter is AWG 18-24.
When using a wire with its end being stripped, strip its end by 5 to 7 mm. When using a ferrule,
use a vinyl-insulated ferrule.
Loosen the fixing screw, insert the wire end into the opening of the terminal block, and tighten
the screw.
Figure 1.6 Stripping the Wire End Before Connection to Terminal Board
Recommended wire: AWG 18-24 for rated temperature 105°C (UL)
5 to 7 mm

1-5
1.3.4 Setting up the power supply for the EFC or pulse train generator
The external power supply should match the EFC power voltage or pulse train generator
voltage.
Otherwise, a failure might result.
When using an internal power supply
Connect the power supply wire to the terminal [PO] on the EFC interface card.
When using an external power supply
Connect the power supply wire to the terminal [PI] on the EFC interface card.
1.3.5 Connecting to option terminals
Table 1.4 lists terminal symbols, names and functions of the option terminals on the EFC interface
card. Table 1.4 Option Terminals and Their Specifications
Classifi-
cation Terminal symbol Name Functions
EFC/ Pulse input
PI External power supply
input
Power input terminal from the external device
External power supply capacity:
5 VDC ±10%, 200 mA or more
PO Power supply for EFC Power output terminal
5 VDC ±10%, Maximum output 200 mA
CM EFC common Common terminal for power supply and EFC input
XA A phase pulse input X Pulse input terminal for commands
To supply speed commands from the pulse train
generator or EFC, connect an open-collector output
signal or complementary output signal to these
terminals.
Since [XZ] is not used for train input control,
connection to [XZ] is not required if there is no
corresponding output at the EFC. In positioning
control, however, connection to [XZ] enables
positioning correction.
XB B phase pulse input X
XZ Z phase pulse input X
YA A phase pulse input Y Pulse input terminal for feedback
These terminals are for the detection of the
inverter-driven motor speed. Connect an
open-collector output signal or complementary
output signal to these terminals
Since [YZ] is not used for speed control, connection
to [YZ] is not required if there is no corresponding
output at the EFC. In positioning control, however,
connection to [YZ] enables positioning correction.
YB B phase pulse input Y
YZ Z phase pulse input Y
Note: Incorrect wiring of A/B phase could fail to run the motor normally or cause an inverter trip.

1-6
1.3.6 Option terminals
CM XA XB XZ PO CM YA YB YZ PO PI CM
Screw size: M2
Tightening torque: 0.22 to 0.25 N·m
Figure 1.8 Option Terminals
Terminal [PLC] on the EFC interface card cannot supply power to external equipment.
Use the terminal only for receiving power from external equipment.

2-1
Chapter 2 CONNECTION DIAGRAMS
2.1 For Frequency Control with Pulse Rate Input
Figure 2.1 shows connection diagram examples for frequency control with pulse rate input.
Figure 2.1 Connection Diagrams for Frequency Control with Pulse Rate Input
(Note 1) For details about applicable PG specifications, refer to Table 1.2 in Chapter 1,
Section 1.3.1 "PG specifications."
Pulse train
generator
or
PG (Note 1)
Pulse train
generator
or
PG (Note 1)
When using inverter internal power supply When using external power suppl
y

2-2
2.2 For Speed and Positioning Controls
Figure 2.2 shows connection diagram examples for speed and positioning controls.

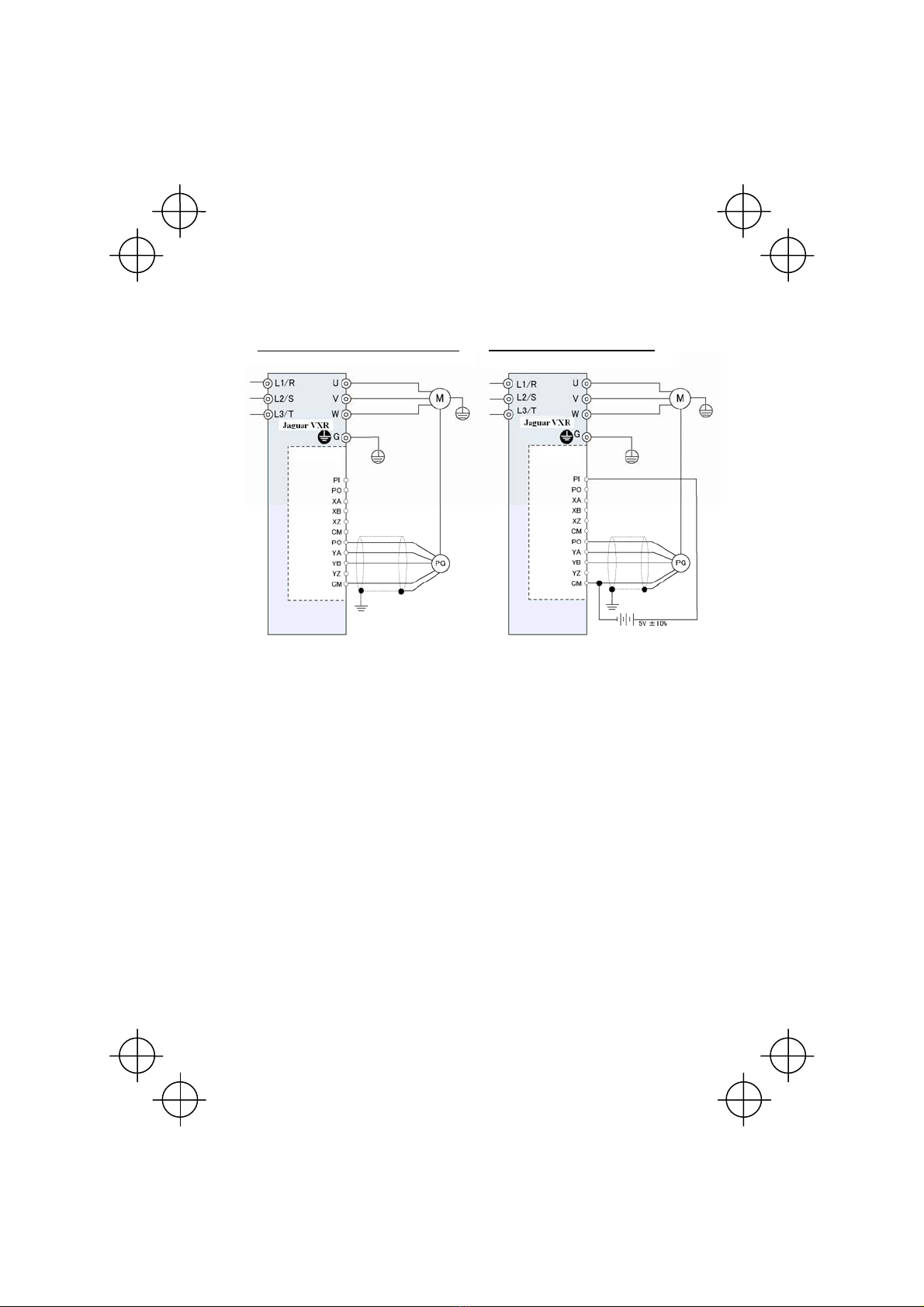

Figure 2.2 Connection Diagrams for Speed Control with PG and Positioning Control
When using inverter internal power supply When using external power suppl
y

2-3
In order to conform the inverter to the requirements of the Electromagnetic Compatibility (EMC)
Directive, connect the shielded cable to the ground of the inverter as shown below.
Figure 2.3 Connection Diagrams for Compliance with EMC Directive
When using inverter internal power supply When using external power suppl
y

3-1
Chapter 3 PREPARATION FOR OPERATING
After completion of mounting/wiring but before turning the inverter's power ON, check the
followings.
(1) The wiring is correct.
(2) There is no cable waste or screws left.
(3) The screws and terminals are firmly tightened.
(4) The straggling wires at ferrules are not short-circuited to other terminals.
Furthermore, after powering the inverter ON but before starting inverter operation, check the
followings.
• Check the wiring surely before running the inverter. Incorrect wiring causes the inverter
or other devices to malfunction.
Failure to do so could cause failure or injuries.
• Be sure to mount the terminal cover before turning the power ON.
Do not remove any cover while the power is ON.
Doing so could cause electric shock.
• Confirm and adjust the setting of the function codes before running the inverter.
Otherwise, an accident could occur.

4-1
Chapter 4 EFC INTERFACE CARD FUNCTIONS
The combination of the EFC interface card and the EFC (open collector or complementary output)
makes feedback signals available, enabling the following controls.
4.1 Speed Control
This refers to speed control with EFC. (For details, refer to Chapter 6.)
4.2 Frequency Control with Pulse Rate Input
This control specifies a frequency command with pulse trains. (For details, refer to Chapter 5.)
It can be used together with speed control with EFC at the same time.
4.3 Positioning Control
This refers to simplified positioning control that detects the pulse count with feedback signals sent
from the EFC. (For details, refer to Chapter 7.)
This control can be used together with speed control with EFC and frequency control with pulse
rate input at the same time.

5-1
Chapter 5 FREQUENCY CONTROL WITH PULSE RATE INPUT
The pulse rate input feature supplies a frequencycommand to the inverter in pulse trains. Two pulse
input modes are available--B phase pulse (with signs) and forward/reverse rotation pulse trains.
The frequency control with pulse rate input can be enabled concurrently with the speed and posi-
tioning controls with EFC.
5.1 Specifications
Table 5.1 lists the specifications of frequency control with pulse rate input.
Table 5.1 Specifications for Pulse Train Inputs
Item Specifications
Reference frequency range 0 to 400 Hz
Frequency accuracy

0.2% of maximum frequency
Output circuits Open collector
Complementary
Input pulse level 5 VDC

10%
Maximum cable length and maximum input pulse rate 20 m, 30 kp/s
5.2 Terminal Functions
Table 5.2 lists terminal specifications.
Table 5.2 Terminal Specifications
Terminal
symbol Name Descriptions
PI Power input terminal Receives power for the EFC from an external source.
PO Power output terminal Outputs power to the EFC.
CM Common terminal Common terminal for the EFC power.
XA Command input terminal
for A phase pulse train Receives an A phase feedback pulse train.
XB Command input terminal
for B phase pulse train Receives a B phase feedback pulse train.
XZ -- Reserved.
The pulse count of [XA] and [XB] terminal inputs can be displayed on the keypad by
using Menu #4 "I/O Checking," Check item 4_15. For details, refer to the inverter’s
instruction manual. (See the description of function code E52.)
5.3 Function Code List
Table 5.3 lists function codes to be used for pulse rate input. Mounting the EFC interface card can
display o codes. Table 5.3 Related Function Codes
Code Name Data setting range Unit Default
setting Change
when
runnin
g
F01
(C30) Frequency Command 1 (Frequency Command 2) 0 to 3, 5. 7. 11, 12 - 0 (2) N
o01 Command/Feedback
Input (Input mode) 0, 1, 2,
10, 11, 12
20, 21, 22 - 0 N
o06 Command:
(Pulse train input) (Filter time constant) 0.000 to 5.000 s 0.005 Y
o07 (Pulse count factor 1) 1 to 9999 - 1 N
o08 (Pulse count factor 2) 1 to 9999 - 1 N

5-2
5.4 Function Code Details
F01 Frequency Command 1 (C30: Frequency Command 2)
To drive the inverter with the pulse input frequency command, set the F01 (C30) data to "12"
for frequency command 1 (frequency command 2).
o01 Command/Feedback Input (Input mode)
This function code switches the pulse input mode with the data in the ones place as listed in
Table 5.4.
Table 5.4 Data for o01
Pulse input mode Data for o01 Remarks
B phase pulse input 0
Pulse input with polarity 1
A/B phase pulse input 2 Not available (This setting produces 0 p/s.)
o06 Command (Pulse train input) (Filter time constant)
This function code specifies a time constant determining a linear delay of the low pass filter for
the reference speed given by pulse train. Adjusting this time constant can stabilize the speed
command in low pulse rate.
o07
o08 Command (Pulse train input) (Pulse count factor 1)
Command (Pulse train input) (Pulse count factor 2)
For the pulse input command, these function codes define the relationship between the input
pulse rate and reference frequency.
Input pulse rate
Np (kp/s)
Reference frequency
f* (Hz)
0o07
o08
Figure 5.1 Relationship between the Input Pulse Rate and Reference Frequency
As shown in Figure 5.1, set the input pulse rate (kp/s) to the o07 data and set the reference fre-
quency (Hz) at the pulse rate (specified by o07) to the o08 data. The relationship between the input
pulse rate at A or B phase input and the reference frequency f* (or reference speed) can be calcu-
lated by the following expression.
f* (Hz) = Np (kp/s) Pulse count factor 2 (o08)
Pulse count factor 1 (o07)
f* (Hz) : Reference frequency (In speed control, the frequency corresponding to the speed)
Np (kp/s) : Input pulse rate at A or B phase input

5-3
5.5 Description of the Control
5.5.1 Input pulse command polarity
In the B phase pulse input system shown in Figure 5.2, the A phase voltage determines the polarity
of commands. In the run forward/reverse pulse input system shown in Figure 5.3, the presence of A
or B phase input determines the polarity of commands.
The combination of the command pulseinput and FWD/REV command determines the actual motor
rotational direction. Table 5.5 lists the relationship between the polarity of thepulse input, FWD/REV
command and motor rotational direction.
+ -
B phase input
A phase input
Polarity

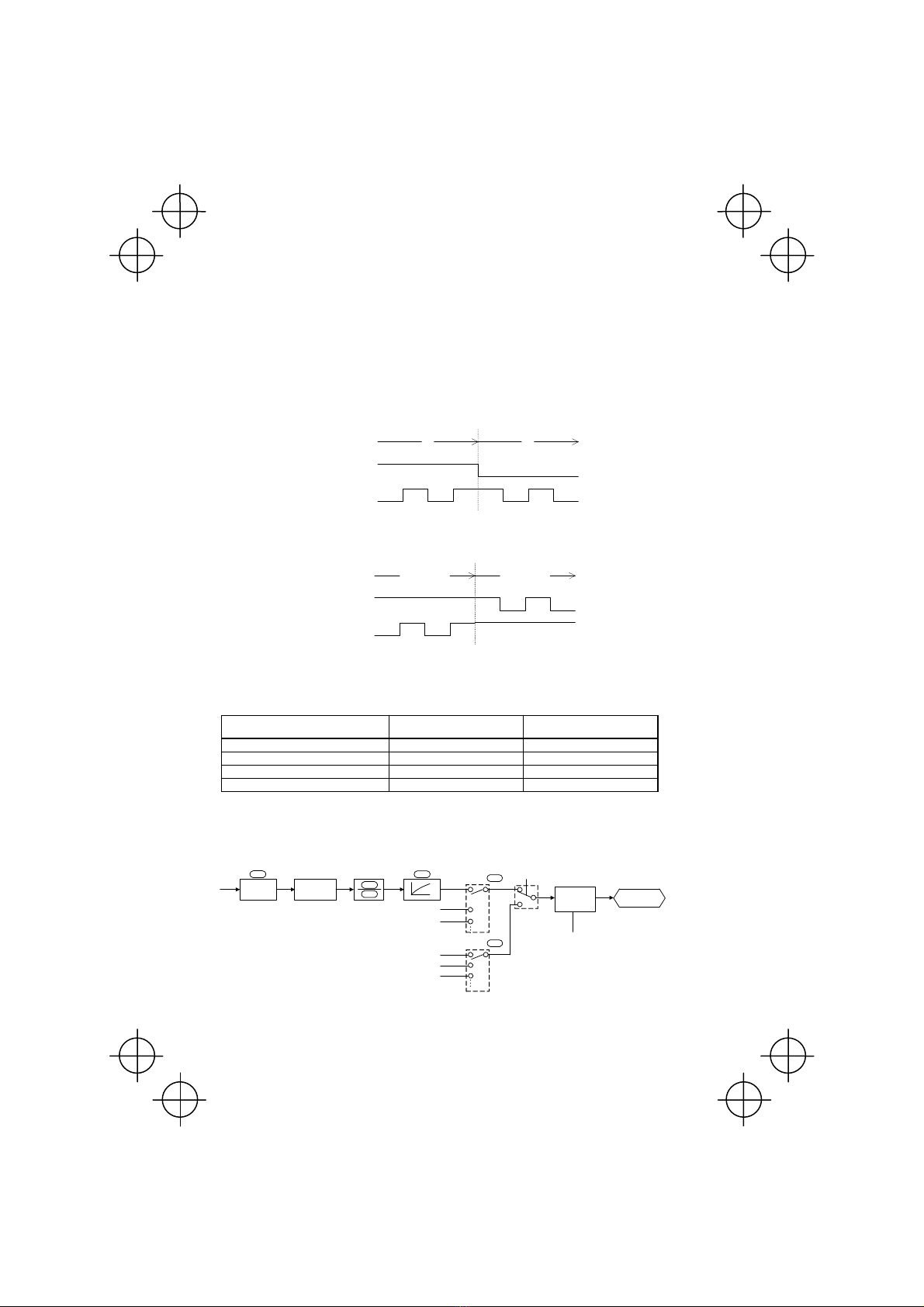

Figure 5.2 Polarity of the B Phase Pulse Input
+ -
B phase input
A phase input
Polarity
Figure 5.3 Polarity of the Run Forward/Reverse Pulse Input
Table 5.5 Relationship between Polarity of the Pulse Input, FWD/REV Command
and Motor Rotational Direction
Command polarity determined by
pulse input Run command Motor rotational direction
+ FWD Forward
+ REV Reverse
- FWD Reverse
- REV Forward
5.5.2 Block diagram
Figure 5.4 shows a block diagram of the pulse train input command system.
FWD
REV
Pulse count
factoring o06
Select frequency
command 2/1
Hz2/Hz1
0
1
Frequency
command 1 F01
12
[12]
UP/DOWN keys on keypad
1
Frequency
command 2 C30
0
UP/DOWN keys on keypad
[12] 2
[C1]
Frequency
measuring o07
o08
Input
mode
o01
[XA]
[XB] Rotation
direction
processing Drive frequency
command
Figure 5.4 Block Diagram of the Pulse Train Input System
