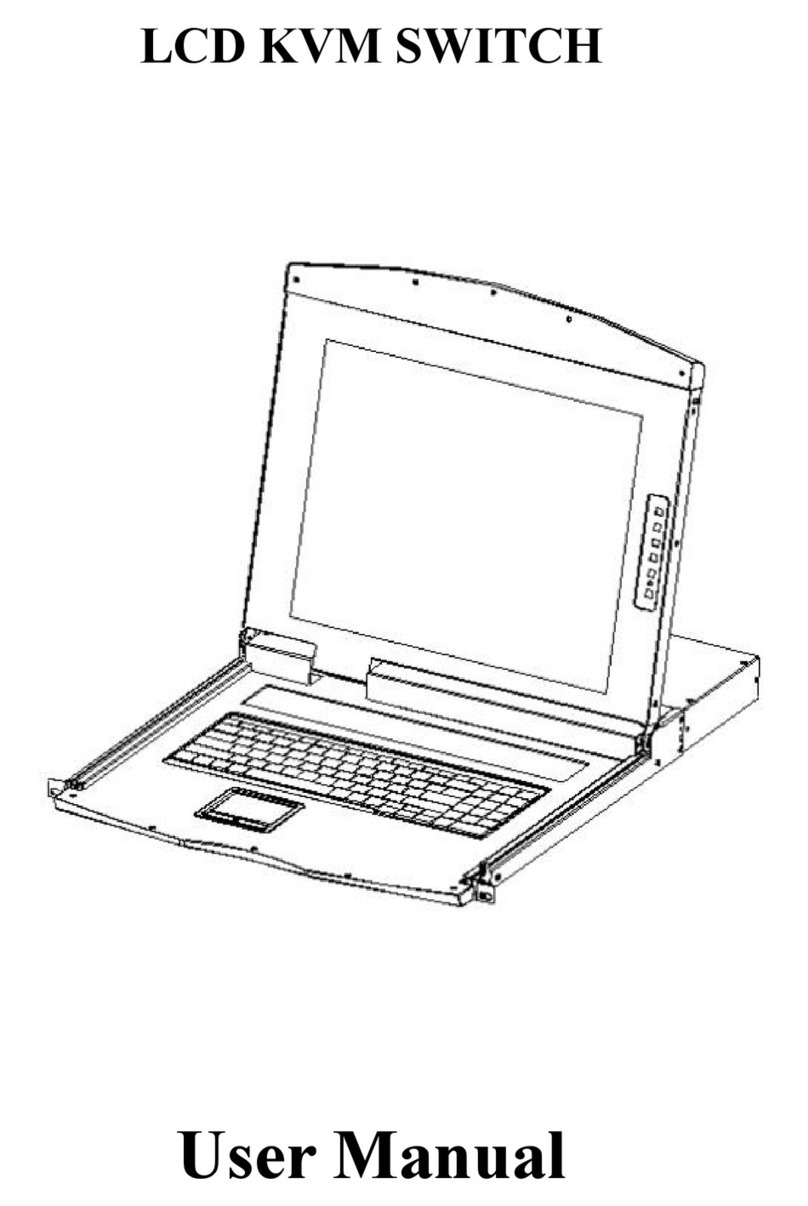

I-Tech ELD117e User manual

Model: ELD117e
Features:
• 1U 17" rack mount LCD keyboard drawer
• Built- in speakers and audio- in jack
• Notebook keyboard (IBM PC / AT compatible)
• PS/2 touch-pad
• Max depth with adjustable bracket: 30.12 inches
• 88- key separated numerical key pad
• Integrated 2-button touch pad pointing device
• Removable power supply.
• Operating temperature 0 to 60 degree C
• Humidity 20% to 85%RH
• 19"(W) x 17.5"(D) x 1.75"(H)
• Detached Power supply unit
• Black color
Display Performance
Items Specifications
Screen Diagonal 17 inches
Active Area 337.92 (H) x 270.336(V)
Pixel H x V 1280 x 1024
Pixel Pitch 0.264(H) x 0,264(W)
Pixel Arrangement R.G.B Vertical Stripe
Display Mode Normally White
White Luminance 250 cd/m2
Contrast Ratio 350:1 (Typ)
Optical Response Time Tr = 5ms / Tf = 20ms
Nominal Input Voltage +5.0 V
Power Consumption 45W
Support Color 16.7 M colors (RGB 8-bit data)
Temperature Range
Operating
Storage (Shipping)
0 to +50 0C
-20 to +65 0C
Mechanical Drawings
Power supply
Built-in adapter: 110V - 220V AC Input 12V 5A Output
Cable length from mains plug to adapter: 6ft (182cm)
Safety approval: UL, CE
Product dimension 19" (W) x 1.75" (H) x 19.4" (D)
Packing dimension 24” (L) x 24” (W) x 7” (H)
Weight
Model No KVM Net / Gross weight
ELD117e Non Approx 35 lbs
ELD-117e : 1U Rackmount 17” LCD Drawer Touch - Pad Keyboard with Speakers
