I-Tech I-PRESS 4 User manual

User manual
PG219 Rev 00 Editi 250316
Pressotherapy model
I-PRESS 4

I.A.C.E.R. Srl
Via S. Pertini 24/A – 30030
Martellago (VE) ITALY
Tel. [phone] • Fax [phone]
e-mail: [e-mail] - www.itechmedicaldivision.com

IACER SRL Page 3 MNPG219-00 25/03/16
Summary
Summary 3
Pressotherapy 4
Machine body and accessories 5
Accessories size 5
Configurations 7
Specifications 8
Technical Specifications 8
Purpose 8
Labels 9
Working instructions 11
Troubleshooting 15
Warnings 16
Cleaning 18
Maintenance, carriage and storage 19
Disposal 20
Assistance 20
Spare parts 20
Warranty 20
EMC Tables 21

IACER SRL Page 4 MNPG219-00 25/03/16
Pressotherapy
Compressive limbs therapy is able to promote a right venous circulation
by decreasing muscle tension caused by stress or chronic and acute
pains: thanks to its pump action it favorites venous return by increasing
tissues blood circulation and finally their physiological renewal.
Compressive limbs therapy can solve blood stagnation problem in
damaged sanguine vessels or in body zones not correctly bedewed.
External compression allows excess interstitial fluids to return in
circulatory system in order to be quickly removed.
Most common applications are:
•Body massage increase;
•Blood flow promotion thanks to a slow and progressive
pressure;
•Lymphatic drainage;
•Lower limbs relief and comfort;
•Substances stagnation prevention in peripheral tissues;
•Blood insufficiency prevention caused by an inadequate pump
action;
•Muscle tone loss in disabled or paralyzed patients.
Compressive limbs therapy substitutes the manual massage for
trophic purposes.

IACER SRL Page 5 MNPG219-00 25/03/16
Machine body and accessories
(1)
ON/OFF
(2)
TIMER
(3)
AIR DISCHARGE
OUTPUT
(5)
PRESSURE
ADJUSTEMENT
(4)
ELECTRIC
CABLE
(8)
PRESSURE
PLANTARS
(9)
2 DERIVATIONS
CONNECTION TUBE
FOR LEGGINGS
(6)
LEGGINGS
(11)
ARMBAND
(12)
ABDOMINAL
BAND
(10)
1 DERIVATION
CONNECTION TUBE
(7)
EXTENSIONS
FOR LEGGINGS
(13)
SPECIAL SPLITTER FOR SIMULTANEOUS THERAPY ON BOTH LEGS AND
ABDOMINAL BAND

IACER SRL Page 6 MNPG219-00 25/03/16
Accessories size
Legging:
•Length around 76 cm (from upper side to heel)
•Thigh circumference around 65
•Ankle circumference around 38 cm
Armband:
•Max. length around 86 cm
•Biceps circumference around 50 cm
•Wrist circumference around 36 cm
Abdominal band:
•Abdominal around 136 cm
•Height around 46 cm
•Velcro height around 31 cm
Extensions:
•Max. width around 13 cm
•Min. width around 6 cm

IACER SRL Page 7 MNPG219-00 25/03/16
Configurations
I-PRESS 4 can be supplied in 5 different versions:
I-PRESS 4 TOT – compressive limb therapy system comprising
machine body, double legging (6), 2 derivations connection tube
(9), 2 pressure plantars (8), armband (11), abdominal band (12), 1
derivation connection tube (10), special connector for
simultaneous therapy on both legs and abdominal band (13).
I-PRESS 4 LEG2-ABD – compressive limb therapy system
comprising machine body, double legging (6), 2 derivations
connection tube (9), 2 pressure plantars (8), abdominal band (12),
1 derivation connection tube (10), special connector for
simultaneous therapy on both legs and abdominal band (13).
I-PRESS 4 LEG2 – compressive limb therapy system comprising
machine body, double legging (6), 2 derivations connection tube
(9), 2 pressure plantars (8).
I-PRESS 4 LEG1 – compressive limb therapy system comprising
machine body, single legging (6), 1 derivation connection tube
(10).
I-PRESS 4 ARM1 – compressive limb therapy system comprising
machine body, armband (11), 1 derivation connection tube (10).
Extensions for wide legs (7) and special connector for simultaneous
therapy on both legs and abdominal band (13) are available as
accessories.
Single accessories are available as optional to complete I-PRESS 4
content and potentiality.

IACER SRL Page 8 MNPG219-00 25/03/16
Specifications
I-PRESS 4 has the following specifications:
•Class IIa equipment (Directive 93/42/EEC, annexed IX, rule 9);
•Class II, applied part type BF (Classif. CEI EN 60601-1);
•CE0476 certificate;
•Equipment not protected against liquids penetration;
•Equipment and accessories not subjected to sterilization;
•Use of the equipment is prohibited close to flammable substances
or in environments with high concentrations of oxygen;
•Continuous operating mode equipment;
•Equipment not suited to be used in external.
Technical Specifications
Power Supply
220
-
240 VAC,
50-60 Hz
Therapy time
Impostabile 0÷30
min
Current
0,2 A
Max pressure
300
mm Hg
(±10%)
Max output
power
50
VA
Weight
2
Kg
Purpose
Compressive limbs therapy device designed for the treatment of
vascular system diseases. It promotes the blood flow and prevents
thrombosis and/or vessels obstructions.
Clinical Purpose: Therapeutic
Use: Clinic and domestic use

IACER SRL Page 9 MNPG219-00 25/03/16
Labels
Warning
Product subject to WEEE regulations concerning separate
waste collection of electronic equipment
Applied part type BF
Class II equipment
Compliance with Directive 93/42/EEC
Manufacturing date
Compressible Limb Therapy
System
Model I-PRESS 4
Voltage AC220~240V Frequency 50/60Hz
Maximum output
power 50VA Maximum pressure 300mmHg±10%
I.A.C.E.R srl
Via Sandro Pertini 24/A
30030 Martellago (VE), Italy

IACER SRL Page 10 MNPG219-00 25/03/16
Attention, consult operating instructions
Instructions for use
Device with IP21 level protection
Not protected against liquids entrance, keep dry.
Relative humidity for product storage
Temperature range for product storage
Pushing prohibited
Sitting prohibited
Stepping prohibited

IACER SRL Page 11 MNPG219-00 25/03/16
Working instructions
1) Connect cable to the domestic plug 220-240 VAC, then turn ON (1)
the ON/OFF switch (1);
2) Wear the applicators
a) Leggings use
i) Wear the leggings (or single legging) and close the zip up
to the end, then close the retaining Velcro straps; in case of
wide circumferences legs, connect the extensions available
as accessories;
i) Insert the pressure plantars under the feet (available only
with double leggings);
ii) When wearing the leggings pay attention to position the
tubes connection cables in the internal side of each
legging; in single legging version connection cables
position is not important;
iii) Connect 4 tubes to the 4 plugs positioned on each legging,
paying attention to connect the longer tube to the higher
position connector (darker color) of legging (thigh);
CONNECTION
PLUGS
PRESSURE PLANTARS
VELCRO
ZIP

IACER SRL Page 12 MNPG219-00 25/03/16
iv) After connecting the tubes to the relatives leggings,
connect the tubes to the air discharge output (5).
b) Abdominal band use
i) Wear the band and connect the tubes to the band plugs,
paying attention to connect the longer tube to the higher
position connector on abdominal band;
ii) After connecting the tubes to the band, connect the tubes
to the air discharge output (5).
b) Simultaneous use of double leggings and abdominal band
i) Connect the
special splitter for
simultaneous
therapy (13) to
the air discharge
output (5). Then
connect double
leggings and
abdominal band
connectors to the
splitter;
CONNECTION
PLUGS

IACER SRL Page 13 MNPG219-00 25/03/16
ii) Wear the leggings (or single legging) and close the zip up
to the end, then close the retaining Velcro straps; in case of
wide circumferences legs, connect the extensions available
as accessories;
iii) Insert the pressure plantars under the feet (available only
with double leggings);
iii) When wearing the leggings pay attention to position the
tubes connection cables in the internal side of each
legging; in single legging version connection cables
position is not important;
iv) Connect 4 tubes to the 4 plugs positioned on each legging,
paying attention to connect the longer tube to the higher
position connector (darker color) of legging (thigh);
iv) After connecting the tubes to the relatives leggings,
connect the tube to the splitter connected to the air
discharge output (13);
v) Wear the band and connect the tubes to the band plugs,
paying attention to connect the longer tube to the higher
position connector on abdominal band;
vi) After connecting the tubes to the band, connect the tubes
to the splitter connected to the air discharge output (13).
c) Armband use
i) Wear the armband and
connect the tubes to the
armband plugs, paying
attention to connect the
longer tube to the higher
position connector
(darker color) on
armband;
ii) After connecting the
tubes to the armband
connect the tubes to the
air discharge output (5).

IACER SRL Page 14 MNPG219-00 25/03/16
3) Therapy time (selector (2) on machine body)
a) Therapy time can be adjusted from 0 to 30 minutes: pump
motor of main body will start operating;
b) The air will fill up in applicator chambers in 2 minutes.
Attention: The time selector cannot be moved counterclockwise
during the treatment. Please wait the session end to adjust a new
therapy time
4) Pressure regulator (selector (3) on machine body)
c) Air pressure in compression chambers can be adjusted from 0
to maximum pressure (around 300 mmHg ± 20%) by rotating
the knob in clockwise;
a) Start the treatment with a middle pressure and increase it
progressively according to your needs.

IACER SRL Page 15 MNPG219-00 25/03/16
Troubleshooting
Problem Solution
I-PRESS 4 doesn’t
switch on
•Check the connection to the domestic
plug
•Check the ON/OFF button
•Check the power supply status (no sign
of damages)
I-PRESS 4 emits a
strange sound like
air leakage
•Check if there are any damages and/or
holes in the tubes and connectors
•Check the applicators right connection to
the main body
•Check if the tubes are pressed or bent
There is no
pressure or the air
doesn’t go into the
applicators
•Check the applicator right connection to
the main body
•Check if the tubes are pressed or bent
•Check if the compression chambers
swell up in a progressive way
Air goes into the
compression
chambers and/or
an air leakage is
present in the
applicators
•Check if there are any holes or
damages in the compression chambers.
If there are not any air leakages, switch
off the device then switch on it and re-
check the right working
ATTENTION: with I-PRESS 4 double leggings version, always connect
both leggings to the connection tube even if you use only one legging
during the treatment.

IACER SRL Page 16 MNPG219-00 25/03/16

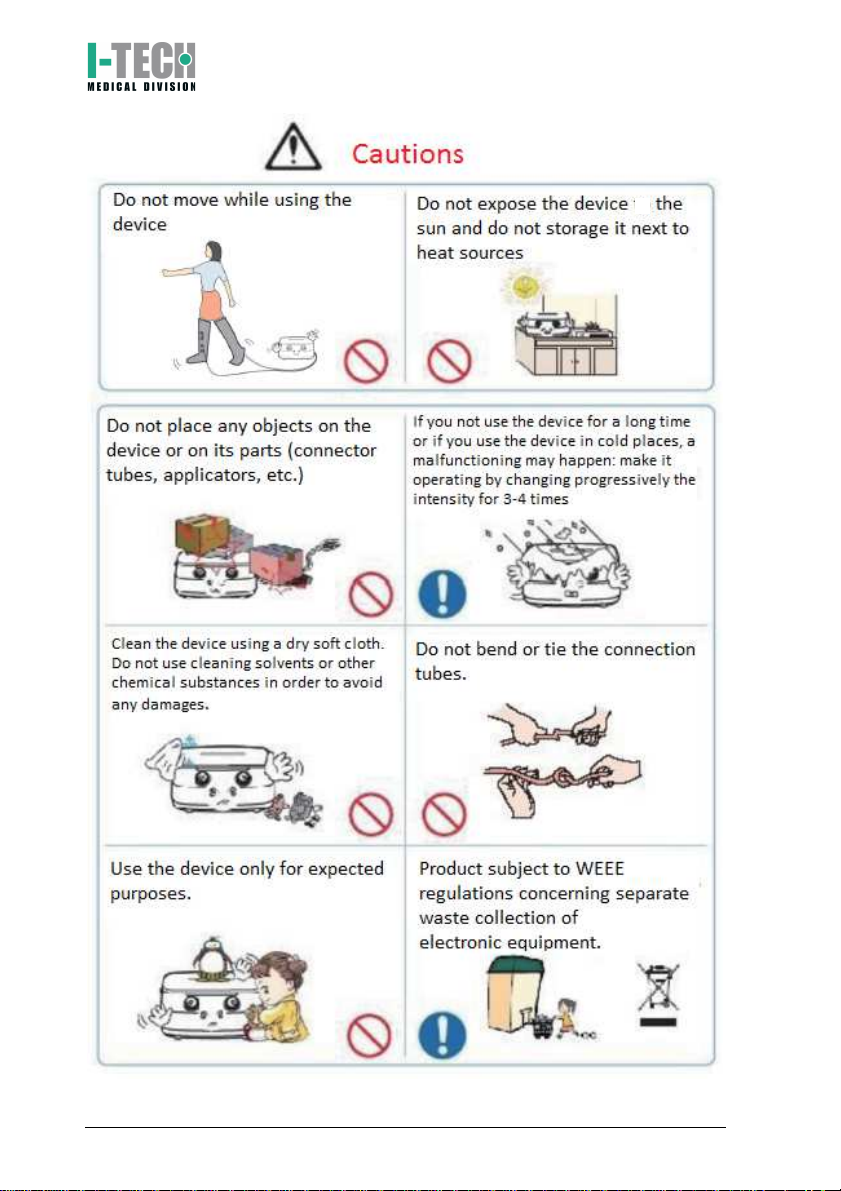

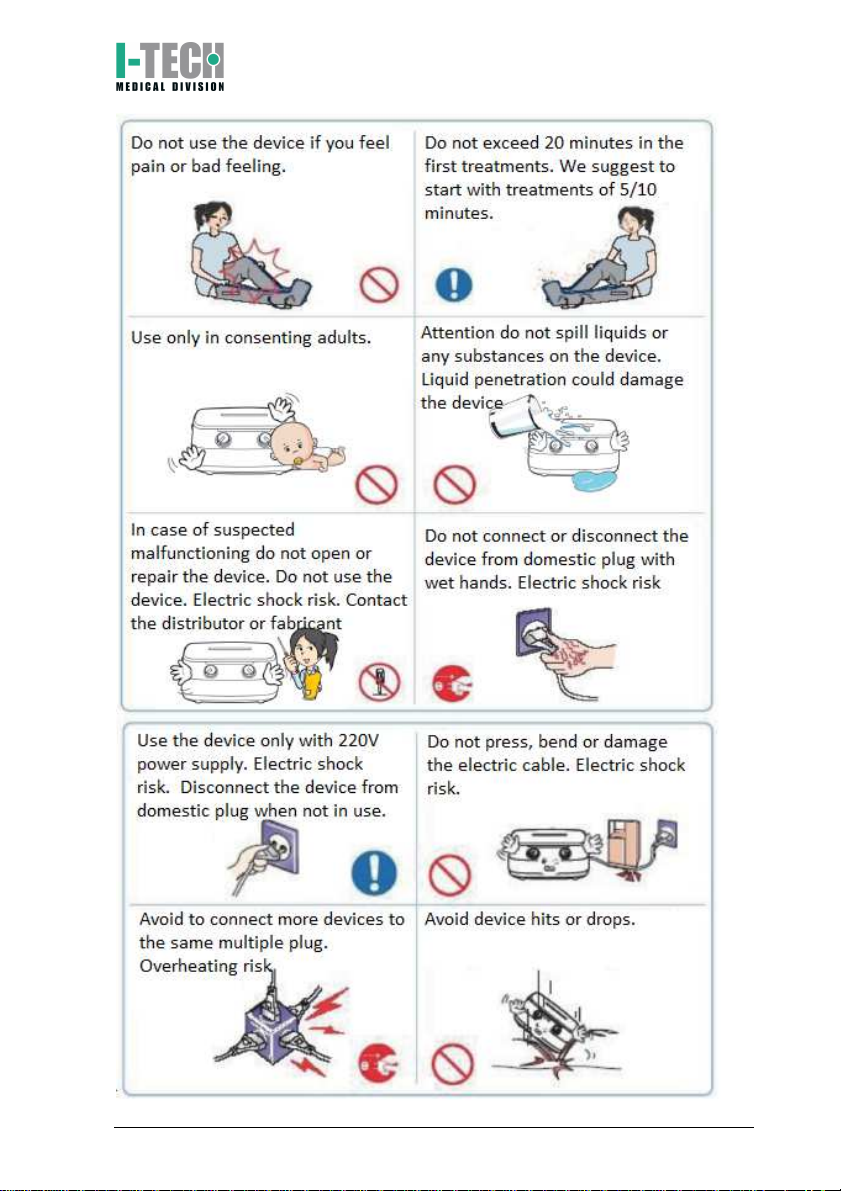

Warnings
The following warnings guarantee user safety and prevention against
damages and/or lesions.
Please read it carefully before using I-PRESS 4.

IACER SRL Page 17 MNPG219-00 25/03/16

IACER SRL Page 18 MNPG219-00 25/03/16

IACER SRL Page 19 MNPG219-00 25/03/16
Cleaning
Clean the device and its accessories using a soft cloth.
Resistant stains can be removed using a sponge soaked in solution of
water and mild soap.
Wait for the complete drying before using the device and its
accessories.
Do not use chemical substances, solvents or cleaners to avoid device
and accessories damage.
Maintenance, carriage and storage
If it is used in accordance with the instructions of the user manual, the
device does not need a particular regular maintenance.
Carriage precautions
It doesn’t need any particular carriage precautions: however we
recommend to put away I-PRESS 4 and its accessories in their own box
after every treatment.
Storage precautions
I-PRESS 4 is protected till following environmental conditions.
Outside of the packaging
temperature from +5 to + 40 °C
humidity from 30 to 80%
pressure from 500 to 1060 hPa
Inside of the packaging
temperature from –10 to +55 °C
humidity from 10 to 90%
pressure from 500 to 1060 hPa

IACER SRL Page 20 MNPG219-00 25/03/16
Disposal
The equipment is subjected to WEEE regulations (see the symbol
on the label) concerning separate waste collection: when
disposing this product, please use the designed areas for disposing
electronic waste or contact the manufacturer.
Assistance
Every intervention on device must be performed by manufacturer. For
any assistance intervention contact the national distributor or:
I.A.C.E.R. S.r.l.
Via S. Pertini, 24/a • 30030 Martellago (VE) -ITALY
Tel. [phone] • Fax [phone]
You can get any technical documentation on spare parts but only prior
business authorization.
Spare parts
Contact the distributor or the fabricant for original spare parts at
following address:
I.A.C.E.R. S.r.l.
Via S. Pertini, 24/a • 30030 Martellago (VE)
Tel. [phone] • Fax [phone]
To preserve product warranty, functionality and product safety we
recommend to use only original spare parts.
Warranty
Make reference to the national laws for any warranty conditions by
contacting the national distributor (or directly the manufacturer IACER).
