IAC INDUSTRIES Workmaster E Series User manual

INDUSTRIES
WORKMASTER SERIES
Part #1
IAC INDUSTRIES
3831 S BULLARD AVE., GOODYEAR, AZ 85338
Phone [phone] Fax [phone]
www.iacindustries.com
Workmaster
REV. (042318P65)Assembly Instructions

2
Table Of Contents
Page #
3 Attention Notes
4 Pre-assembly Check List
5- 6 E Series Bench Assembly
7- 8 E Series with Pedestal Cabinet Assembly
9 C Series 2 Pedestal Cabinet Assembly
5 & 10 TE1 and TE2 Electrical Channel
11- 12 Instrument Shelf / Riser Electrical
13-14 Under shelf Light
15-16 Single Drawer
17 Footrest Tube
18 Ergo Footpan
19-20 Footrest Tube One Cabinet
21-22 Footrest Tube Two Cabinets
23 Lower Metal Shelves
24-25 Lower Metal Shelf One Cabinet
26 Lower Metal Shelf Two Cabinets
27-28 Universal CPU Holder Slide-Out Assembly
29 End Panel
30 Modesty Panel
31 ISO Screen Panel
32 Upper Bin Panel
33 Plate Caster Leg Extender Kit
34 Installing the Drawer Body back into Drawer Housing
35 ESD Grounding & Cleaning

3
ATTENTION NOTES:
IAC Industries takes great care in the packaging of its products, however damage
can occur during shipment. Check all packages and parts for any signs of damage. If
damage is evident STOP and contact the carrier that delivered your order. Request a
freight claim inspector to document the damage and begin the freight claim process.
Tools required to assemble your WM BENCH products are:
7/16” and 1/2” wrench or socket with ratchet.
Phillips screwdriver 8” long.
Utility knife.
Safety glasses and light duty protective gloves.
NOTE: Power tools are NOT recommended unless they are equipped with a torque
limiting device which can limit the torque to 10 foot lbs maximum at aluminum
attachment points, and 15 foot lbs maximum for all other attachment points.
Unpack your order and separate like parts into separate areas. Be careful not to
damage parts as they are being moved around and put into position. Also be sure all
parts are removed from the packing materials before these materials are thrown
away.
Locate the Hardware Kits and keep them in a central area. If the assembly is going to
take more than one day, all individual hardware pieces should be returned to a
central location.
Check all parts and Hardware Kits against the itemized packing list found with the
assembly instructions. If you believe there are parts missing from your order please
contact IAC Industries customer service HOTLINE at 800-989-1422.
If your order has ESD worksurfaces or accessories please review page 35 for helpful
instructions and cautions before you begin assembling the workstations.
WARNING:
ALL PARTICLE BOARD USED IN IAC INDUSTRIES PRODUCTS ARE SOURCED ONLY FROM VENDORS THAT
ARE CARB ATCM PHASE 2 AND TSCA TITLE VI COMPLIANT WITH VALID CERTIFICATES.Drilling, Sawing, Sanding
or Machining Wood products can expose you to wood dust, a substance known to the state of California to cause cancer. Avoid inhaling
dust generated from wood products or use a dust mask to other safeguards for personal protection. This product can expose you to
chemicals, including formaldehyde, which is known to the state of California to cause cancer, and methanol, which is known to the state
of California to cause birth defects or other reproductive harm. For more information please visit, www.P65WARNINGS.CA.GOV/WOOD.
COPY OF VENDOR CERTIFICATE AVAILABLE UPON REQUEST.

4
PRE ASSEMBLY CHECK LIST
Your bench has been carefully packed at the factory to prevent damage during shipment. Unpack all parts
and examine them for damage. Contact your freight carrier for freight claims information if your order was
shipped "freight collect" or "pre-pay and add". Contact IAC Industries at 800 989-1422 if parts are missing.
1/4-20x.75 Hex Head Bolt 1/4 Flat Washer 5/16-18x.75 Hex Head Bolt Beam Connector Plate
Description Qty
Worksurface 1
Pedestal Leg 2
Support Beam 2
Support Beam 2
Leg Extender 4
HARDWARE KIT #HWR001
Description Qty
1/4-20 x .75" Hex Head Bolt 16
1/4 Flat Washer 24 Floor Glide 5/16-18
5/16-18 x .75" Hex Head Bolt 8
Beam Connector Plate 4
Floor Glide 4
Workmaster E Series Bench Exploded View:

5
Workmaster E Series Bench Assembly:
Step 1:
Attach beam connector plates to the ends of the bench support beams using the 5/16-18 x .75 hex head bolts
and 1/4 flat washers supplied as shown. DO NOT TIGHTEN THE HARDWARE. If you have ordered a TE1
Electrical Channel it installs in the same way as the standard support beam and can be installed in the front or
rear beam location. (See Part 2, page 17)
Step 2:
Place worksurface topside down on smooth flat surface being sure to protect it from damage by foreign
objects. IAC recommends the use of packing type blankets or clean cardboard. Place the support beams on
the worksurface with the open side toward the center of the worksurface and align the slots of the support
beams over the threaded inserts in the worksurface as shown. Thread 1/4-20 x .75 hex head bolts and 1/4 flat
washers into the threaded inserts to attach the beams to the worksurface. DO NOT TIGHTEN THE
HARDWARE.

6
Workmaster E Series Bench Assembly:
Step 3:
Align the workbench pedestals over the ends of the support beams and lower them down over the beam
connector plates so that the plates are on the inside of the pedestal tubing. Align the slots in the pedestal
support beam over the inserts in the worksurface and thread the 1/4-20 x .75 hex head bolts with the 1/4 flat
washers into the inserts. Tighten the beam connector hardware. The frame should now be aligned on the
worksurface to even the overhangs on the right and left sides tighten the beam attachment and the pedestal
support hardware. NOTE: Do not over tighten the hardware that goes into the threaded inserts in the
worksurface as this could cause the inserts to pull out of the worksurface.
Step 4:
Slide the workbench leg extender into the pedestal tube making sure the plastic insert in the end of the leg
extender is exposed. Align the threads of the leg extender with the holes in the pedestal tube and select the
desired height of the bench. Thread the 1/4-20 x .75 hex head bolts with the 1/4 flat washers into the threaded
holes in the leg extender and tighten. Thread the floor glide into the plastic insert of the leg extender. The floor
glides are used to level the bench when assembly is complete and it is put into position.
If you have ordered footrests, drawers, lower shelves or suspended cabinets for this bench please see
pages15 thru 26 for assembly instructions. If not the workbench can be turned over for assembly of above the
worksurface accessories or it can be put into place.
Workmaster E Series with Pedestal Cabinet Assembly:

7
1/4-20x.75 Hex Head Bolt 1/4 Flat Washer 5/16-18x.75Hex Head Bolt #14 X 1.00 Screw Beam Connector Plate
Item Description Qty
1 Worksurface 1
2 Pedestal 1
3 Support Beam Assy (Front) 1
4 Support Beam Assy (Rear) 1
5 Leg Ext. 12L Sub-Assy 2
6 Cabinet Pedestal Sub-Assy 1
HARDWARE KIT #HWR002 Floor Glide 5/16-18
A 1/4-20x.75 Hex Head Bolt 16
B 1/4 Flat Washer 20
C Hex Head Bolt 5/16-18 4
D Floor Glide 5/16-18 6
E Beam Connector Plate 2
F Screw, #14 X 1.00 PPH SMS Black 4 Ratchet Plug Cap Black
HARDWARE KIT #HWR021
G Ratchet Plug Cap Black 12
Step 1:
To assemble the beams and pedestal to the worksurface follow the instructions on pages 5 and 6. Do not
tighten hardware until the pedestal cabinet is in place and is aligned properly. Be sure to set the height of the
leg extenders to match the height of the pedestal cabinet.
Step 2:
Remove the all the drawer bodies of the pedestal cabinet by pulling them all the way out and depressing the
plastic retainer clips found on each of the drawer slides. One clip will be pushed down and the other clip will
be pulled up. Set the drawers aside carefully so they do not get damaged.

8
Step 3:
Carefully turn the pedestal cabinet up side down and position it onto the worksurface and align it with the
support beams and the inserts in the worksurface. Attach the pedestal cabinet to the support beams using
four #14 X 1.00 screws and 1/4 flat washers and attach the worksurface using the 1/4-20 x .75 hex head bolts
and 1/4 flat washers as shown. Tighten all hardware at this time being sure not to over tighten the bolts going
in the inserts in the worksurface. If you have purchased items such as footrests, lower metal shelves or CPU
holders please see pages 17- 26 for assembly instructions.
Step 4:
Install floor glides into pedestal cabinet base. With the help of at least another person carefully roll the
workbench right side up. Install the drawer bodies into the pedestal cabinet in their original locations.
Step 5:
Use the Ratchet Plug Caps found in hardware kit 021 to cover all open holes in the cabinet.

9

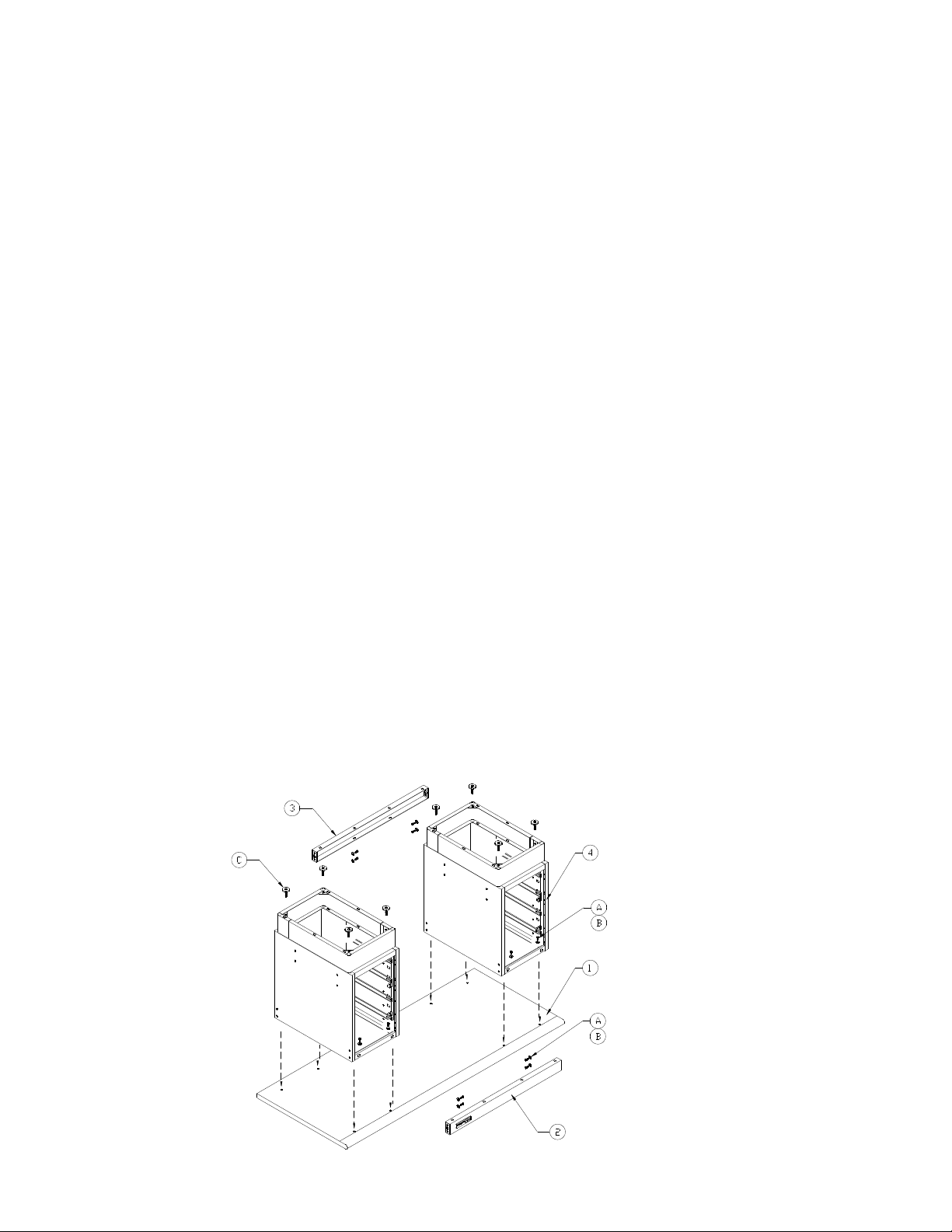

Workmaster C Series 2 Pedestal Cabinet Assembly:
Item Description Qty
1 Worksurface 1
2 Support Beam Assy Front 1
3 Support Beam Assy Rear 1
4 Cabinet Pedestal Sub-Assy 2
HARDWARE KIT #HWR006
A 1/4-20x3/4” Hex Head Bolt 20
B 1/4 Flat Washer 20
C Floor Glide 5/16-18 8
D Screw, #14 X 1.00 PPH SMS Black 8
HARDWARE KIT #HWR021
E Ratchet Plug Cap Black 12
Step 1:
Place worksurface topside down on smooth flat surface being sure to protect it from damage by foreign
objects. IAC recommends the use of packing type blankets or clean cardboard. Refer to page 7 Step 2 for
instructions to removed the drawers from the pedestal cabinets.
Step 2:
Carefully turn the pedestal cabinets up side down and position them onto the worksurface and align them with
the inserts in the worksurface. Attach the pedestal cabinets to the worksurface using the 1/4-20 x .75 hex
head bolts and 1/4 flat washers as shown. Do not tighten hardware at this time.
Step 3:
Install the support beams to the pedestal cabinets using the #14 X 1.00 screws and 1/4 flat washers as
shown. Adjust the position of the pedestal cabinets making sure the overhang of the worksurface is equal on
each end. Tighten hardware at this time being sure not to over tighten the bolts attaching the pedestal
cabinets to the worksurface. If you have purchased items such as footrests, lower metal shelves or CPU
holders please see pages 17-26 for assembly instructions.
Step 4:
Install floor glides into pedestal cabinet base. With the help of at least another person carefully roll the
workbench right side up. Install the drawer bodies into the pedestal cabinets in their original locations.
Step 5:
Use the Ratchet Plug Caps found in hardware kit 021 to cover all open holes in the cabinets.

10
Workmaster TE2 Electrical Channel
Item Description Qty
1 TE2 Electrical Channel 1
HARDWARE KIT HWR028
A 1/4-20 X .75 Hex Head Bolt 4
B 1/4 Flat Washer 4
Step 1:
Remove the 1/4-20 x .50 self-threading phillips screws that are installed in the back of the TE2 Electrical
Channel and use them to attach the TE2 mounting brackets as shown.
Please Note: Maple Top Upgrades use a longer mounting bracket, same hardware and is found in HWR086.
Please Note2: If your order also has SE2, SE3, or SE4 for your Instrument shelf please see page 17 of Part 2
before installing your TE-2 Electrical Channel.
Step 2:
Slide the TE2 Electrical Channel over the top of the back edge of the worksurface. Attach the TE2 mounting
brackets to the worksurface by threading the 1/4-20 x .75 hex head bolts with the 1/4 flat washers into the
inserts in the underside of the worksurface.
Step 3:
Tighten the 1/4-20 x .75 hex head bolts and then the 1/4 x .50 self-threading phillips screws while holding the
TE2 channel in place.
Note: CAUTION: Risk of Electric Shock. Do NOT plug into another Relocatable power tap.

11
Workmaster Instrument Shelf
Item Description Qty
1 Instrument Shelf 1
2 Support Beam Assy Front 1
3 Riser Boxes 2
HARDWARE KIT HWR133
A 1/4-20 X .75 Hex Head Bolt 20
B 1/4 Flat Washer 28
C 1/4-20 Hex Head Keps Nut 8
D #8 X .375 PHP Screw 16
E Plug Cap .875 Dia Black 6
F Plug Cap .375 Dia Black 16
G Plug Cap .500 Dia Black 4
Step 1:
Place the instrument shelf upside down on smooth flat surface being sure to protect it from damage by foreign
objects. IAC recommends the use of packing type blankets or clean cardboard. Place the riser boxes onto the
instrument shelf aligning the slots in the riser boxes with the threaded inserts in the instrument shelf as
shown. Thread 1/4-20 X .75 hex head bolts and 1/4 flat washers into the threaded inserts and hand tighten.
DO NOT TIGHTEN THIS HARDWARE. NOTE: If you have ordered electrical options such as SE1, SE2 or
SE3 please use the Workmaster Assembly Instructions Part 2 for electrical option installation instructions.
Step 2:
Connect the support beam to the riser boxes using the 1/4-20 X .75 hex head bolts 1/4 flat washers and 1/4-
20 hex keps nuts. Align support beam-ends with holes in riser boxes and feed bolts through the support
beam-ends plate and the holes in the riser boxes. Attach the hex keps nuts to bolts on the inside of riser
boxes and hand tighten. Align the riser boxes to even the overhangs and then tighten all riser box attachment
hardware being careful not to over tighten hardware going into the inserts in the instrument shelves. Install the
plastic cap plugs that apply. Note: If you are assembling a 96” instrument shelf you will have a second
support beam that will be mounted in rear of the shelf the same as in the front.
Note: If you are installing an Undershelf Light please see page 13 & 14 at this time.

12
Step 3:
Carefully turn instrument shelf over and align the holes on the bottom of riser boxes with the inserts in the
instrument shelf. Attach the riser boxes with the 1/4-20 x .75 hex head bolts and 1/4 flat washers as shown.
Tighten hardware at this time being careful not to over tighten the hardware going into the inserts in the
instrument shelf.
If you have ordered Upper Bin Panels please see page 32 before going onto Step 3. If you have ordered riser
electrical panels and/or instrument shelf electrical channels see Part 2 of the assembly instruction packet for
wiring instructions.
Step 4:
Align the riser covers holes with the holes in the riser box and thread #8 x .375 screws item D into each hole.
Tighten at this time.
Step 5:
Install plug caps items E, F, G to all open holes on the riser boxes.

13
WM Undershelf Light
Item Description Qty
1 Under shelf Light 1
HARDWARE KIT HWR048
A 1/4-20 X .625 Phillips Head Screw 2
B 1/4 Flat Washer 2
Step 1:
Carefully remove the plastic diffuser to expose the inside of the light housing.
Step 2:
Align the slots in the light housing over the inserts in the underside of the instrument shelf. Thread 2 each
1/4-20 x .625 phillips screws item A with 1/4 flat washers item B in the inserts in the shelf and tighten.
Step 3:

14
Install only the IAC recommended light tubes for these light fixtures. For the 36” light fixture the recommended
light tube is F25 T8. For the 48” light fixture the recommended light tube is F32 T8. Install the light tube into
the light tube holders located at each end of the light fixture by inserting one of the two pins on each end of
the light tube into the channel of light tube holders.
Step 4:
Insert the second pin of the light tube in the channel of the light tube holders and slowly turn the light tube into
the channels as shown.
Step 5:
Rotate the light tube into the light tube holders being sure both pins of the light tube are in the light tube
holder channels until the light tube locks into place. Double check the installation to make sure all four pins of
the light tube are in the light tube holders.
Step 6:
Carefully reinstall the diffuser into the under shelf light fixture taking care not to force it into place as this could
cause it to break.

15
Single Drawer
Item Description Qty
1 Drawer Hanger Bracket 1
HARDWARE KIT HWR015
A 1/4-20 Hex Keps Nut 4
B 1/4 Flat Washer 8
C 1/4-20X.75 Hex Head Bolt 7
D 1/4-20 Captive Retainer Nut 4
E #14 X 1.00 PPH Screw 3
Note: Applies to all drawers and suspended cabinet configurations.
It is best to install drawer bracket and drawer(s) while bench in upside down.
Step 1:
Install rear mounting bracket to worksurface as shown on below using hardware listed above.
Note: The position of your bracket will be determined by the size of your front beam.
Step 2:
Install the captive retainer nuts into the drawer mounting bracket and the bench front beam as shown below.

16
Step 3:
Remove drawer from drawer case by pulling the drawer body out of the case. Locate the slide release tabs.
Lift up on the left side tab and press down on the right side tab and pull on drawer body.
Step 4:
With the drawer removed from the case, place the case over the front beam and the drawer mounting bracket
as shown. Use supplied hardware to fasten.
Note: To double stack drawers use bolts washer and nuts supplied in Hardware Kit to attach the stacked
drawer case to the first case.

17
Workmaster Footrest Tube
Item Description Qty
1 Footrest Tube 1
HARDWARE KIT HWR008
A Nut, 1/4-20 Unistrut Long Spring 2
B Washer, 1/4 ETL Black 2
C Washer, 1/4 Flat Black 2
D Bolt, 1/4-20 X 1.00 HH Black 2
Step 1:
Install the unistrut nut item A into the pedestal leg assembly channel by first aligning the nut with the opening
of the channel then pushing it into the pedestal channel compressing the spring. Rotate the nut clockwise and
release the tension on the spring. The unistrut nut can be moved forward and backward to adjust the location
of the footrest in relationship to the front of the bench.
Step 2:
Align the slots in the ends of the footrest tube over the unistrut nuts in the pedestal channels and attach it
using 1/4-20 X 1.00 hex head bolt, 1/4 star washer, and 1/4 flat washer as shown. The footrest can be
adjusted forward and backward to fit the operator’s needs. Tighten hardware.

18

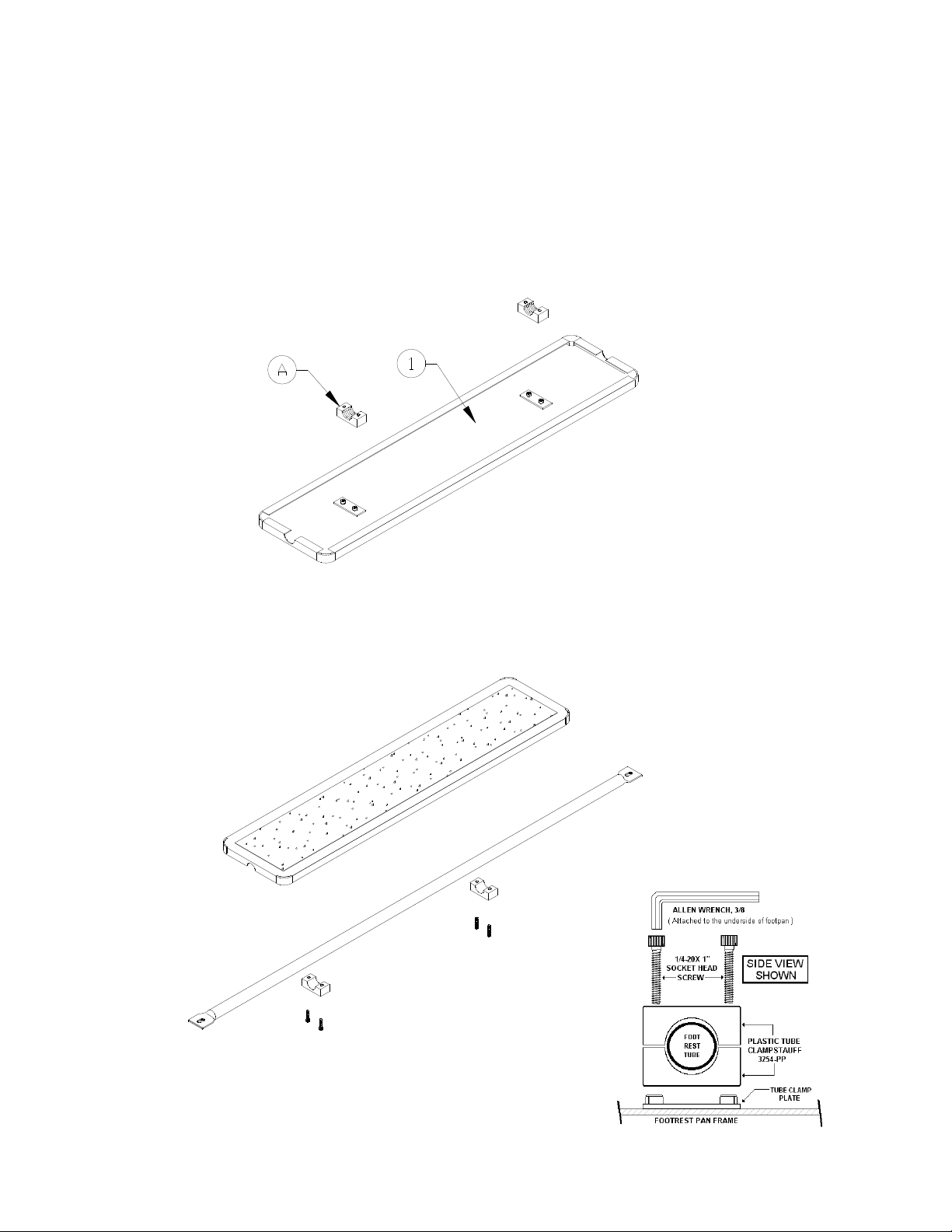

Workmaster Ergo Footpan
Item Description Qty
1 Footrest Pan 1
HARDWARE KIT HWR269
A Tube Clamp, 1.000 DIAMETER Black 2 sets
B Screw, 1/4-20 X 1.125 Socket Head Black 4
Step 1:
Install tube clamps item A over the nut plates on the underside of the footpan as shown.
Step 2:
Install footpan to footrest tube by placing the tube clamps over the tube and attaching it using the tube clamps
and 1/4-20 X 1.125 socket head screws as shown. Using the Allen wrench supplied tighten the tube clamps
until the footpan rotates on the footrest tube as desired.

19
Workmaster Footrest Tube One Cabinet
Item Description Qty
1 Footrest Tube One Cabinet 1
HARDWARE KIT HWR108
A Bolt, 1/4-20 X .75 HHW Black 2
B Washer, 1/4 Flat Black 3
C Knob Tri-Wheel 1/4-20 Insert Small 1
D Footrest Keeper Black Plastic 1
E Weld Stud 1/4-20 X .75 Right Angle 1
F Nut 1/4-20 Unistrut Long Spring 1
G Bolt, 1/4-20 X 1.00 HHD Black 1
H Screw, #14 X 1.00 PPH SMS Black 1
J Cabinet Footrest LMS Bracket 1
Step 1:
Install the weld stud item E from the inside into the cabinet footrest LMS bracket item J, and install the footrest
keeper item D and knob tri-wheel item C so that they are on the lower slot of the cabinet footrest LMS bracket
as shown. Hand tighten the knob so that the footrest keeper is snug against the bracket.
Step 2:
Attach the bracket assembly to the side of the cabinet using two phillips screws item H and two 1/4 flat
washers item B. Be sure the footrest keeper is positioned in the lower slot of the bracket. When the bench is
turned over onto it’s pedestals the keeper will be in the upper slot of the bracket. Tighten the phillips screws.
Step 3:

20
Install the unistrut nut item F into the pedestal leg assembly channel by first aligning the nut with the opening
of the channel then pushing it into the pedestal channel compressing the spring. Rotate the nut clockwise and
release the tension on the spring. The unistrut nut can be moved forward and backward to adjust the location
of the footrest in relationship to the front of the bench. The footrest keeper in the bracket attached to the
cabinet must be aligned with the location of the unistrut nut in the pedestal channel.
Step 4:
Install the footrest tube item 1 by inserting the round end into the footrest keeper item D then placing the flat
end across the pedestal channel. Attach the footrest tube to the pedestal using the 1/4-20 X 1.00 bolt item G
and one 1/4 flat washer item B. The location of the footrest can be adjusted forward and back to fit the
operators needs.
Workmaster Footrest Tube Two Cabinets
