IAdea PSP-102U User manual

2
IAdea PSP 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved

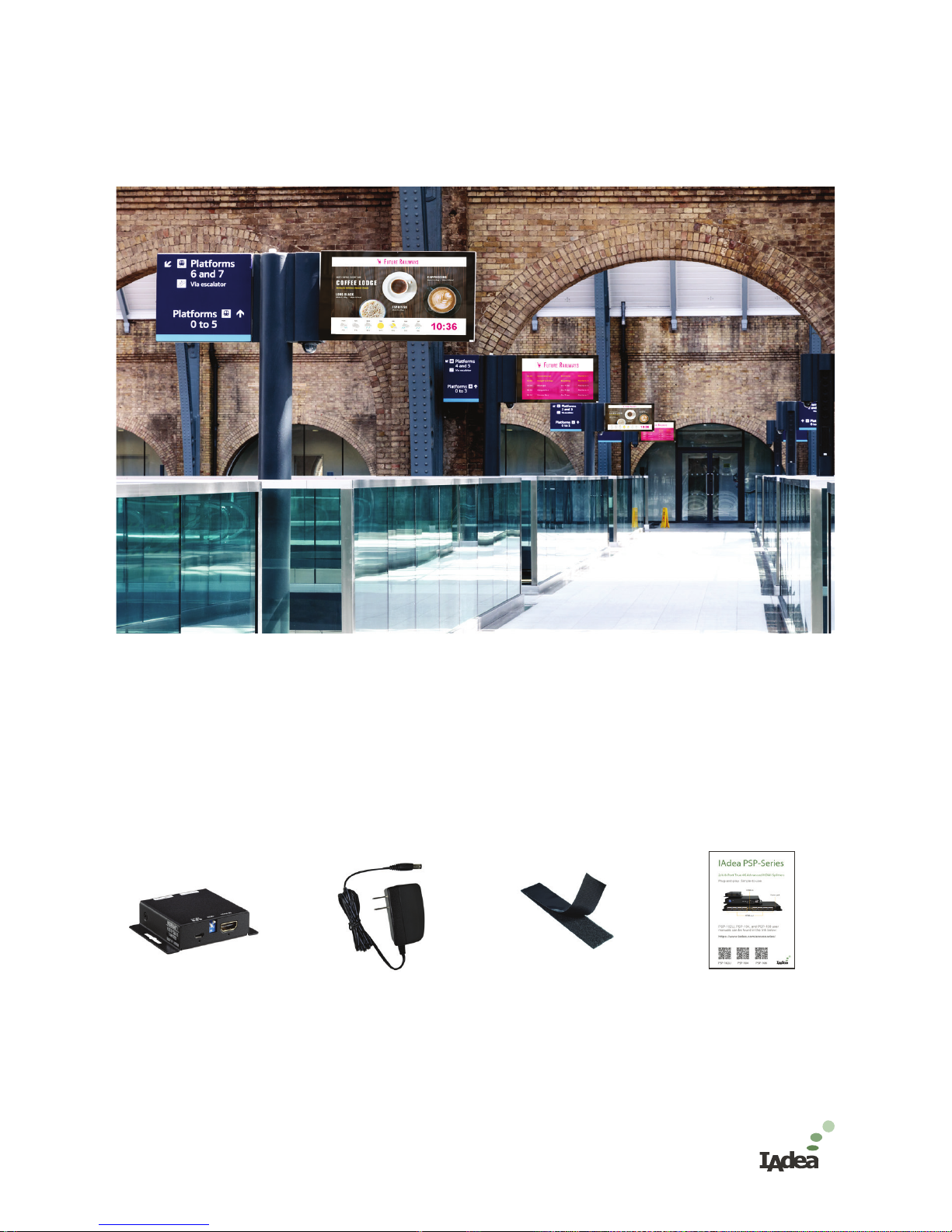

Package content:
Smart splitter Power adapter Velcro Instruction Sheet

3
IAdea 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved

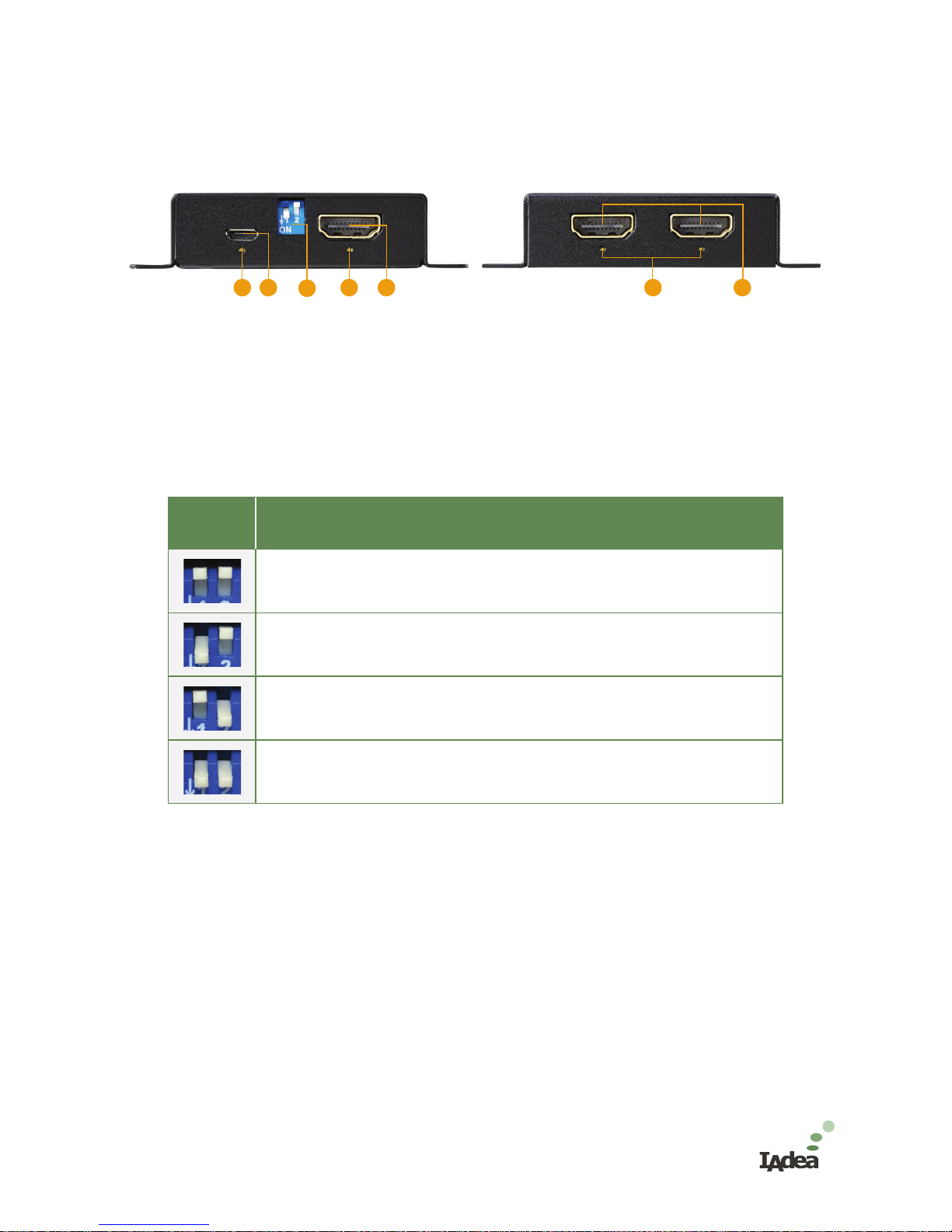

Physical views and features:

4
IAdea PSP 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved
1342 5 76
DIP
Switch Description
Ultra HD (4K2K @ 60) - 8 / 10 / 12 bit 3D HDR video & 7.1 CH audio
Ultra HD (4K2K @ 60) - 8 / 10 / 12 bit 3D HDR video & 2 CH audio
Full HD (1080p @ 60) - 12 bit 3D video & 7.1 CH audio
Learning EDID from output 1
Off [↑] On [↓]
1Power LED: Visible light indicates splitter is ready for use.
2Micro USB Port: Input to connect splitter to the 5 V DC power supply.
3EDID Mode: Choose splitter performance by adjusting DIP switch.
4Signal LED: Visible light indicates input is recognized by splitter.
5HDMI-In: Input to connect splitter to a HDMI source.
6Signal LED: Visible light indicates input is recognized by splitter.
7HDMI-Out 1-2: Outputs to HDMI-compatible displays.
(HDMI OUT1: EDID Learn Default)

5
IAdea 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved

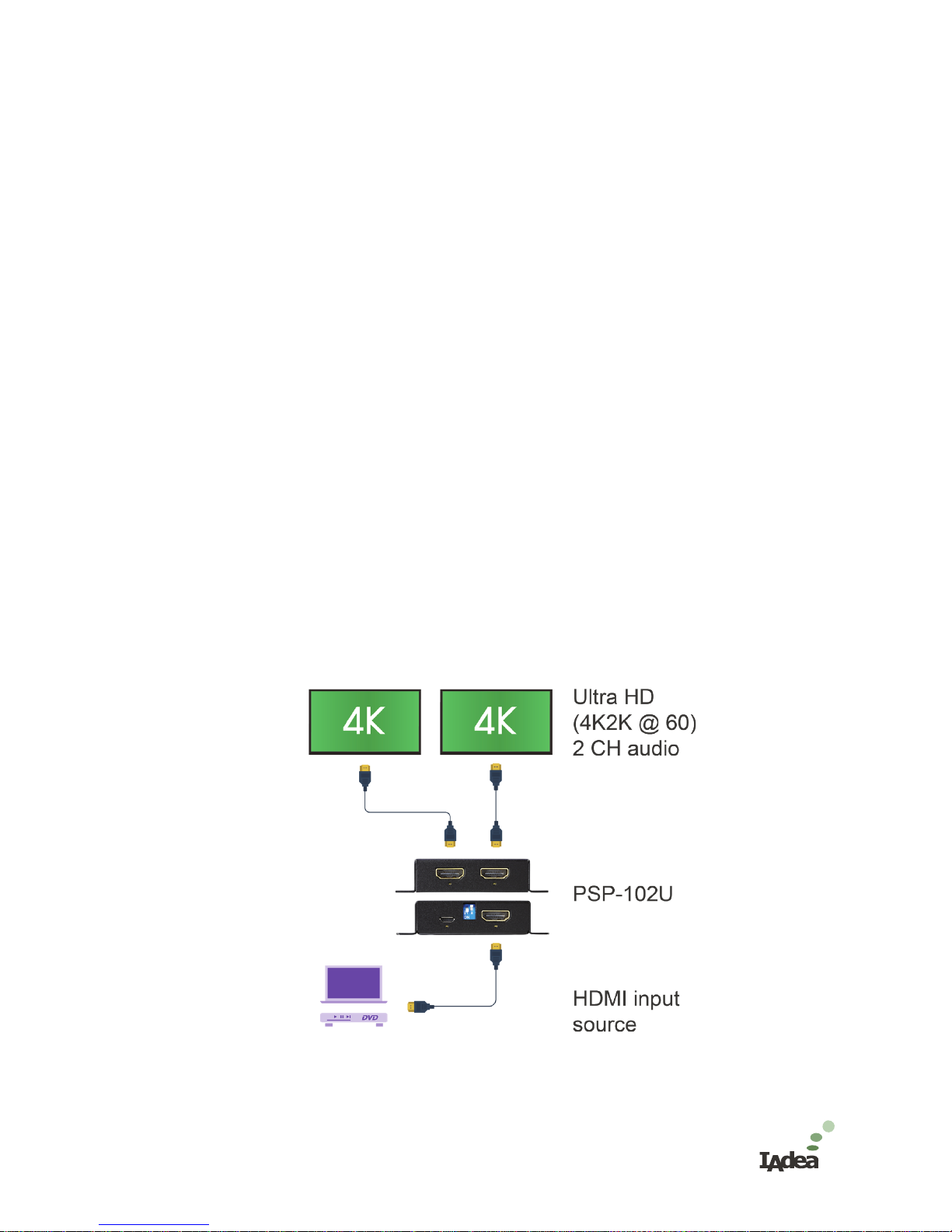

Installation:
How to broadcast one HDMI signal to two HDMI-compatible displays?
1Power down all devices intended for use, including the HDMI-compatible
displays which will be connected to HDMI-Out 1-2.
2Connect the HDMI-compatible displays to HDMI-Out 1-2.
3Connect the splitter to a HDMI source, such as a Blu-ray Disc player, to
the HDMI-In.
4Connect the splitter to the supplied 5 V DC power supply.
5Power on the connected HDMI-compatible displays.
6Power on the connected HDMI source.

6
IAdea PSP 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved
Troubleshooting:
To ensure proper video outputs from the splitter, the user needs to make sure
the following splitter implementation requirements are satised:
1
2
1
2
3
Set to Full HD (1080p @ 60) - 12 bit 3D video & 7.1 CH audio
Set the DIP switch to "[pin1, pin2] = [↑-↓]"
Restart the splitter.
Set to Learning EDID from output 1
Set the DIP switch to "[pin1, pin2] = [↓-↓]"
Restart the splitter.
Splitter will automatically learn EDID settings.
1
2
3
Connected HDMI-compatible displays support Full HD videos.
Connected HDMI-compatible display with the lowest resolution must be
connected to HDMI-Out 1.
Restart the splitter after every adjustment made to the EDID DIP switch.
If the splitter continues to project inaccurate video outputs, even when the
requirements above are satised, the users are recommended to go through
the steps below to troubleshoot this issue.

7
IAdea 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved
To update splitter rmware, follow the steps below (applicable in any mode):
1
2
3
Save the rmware le (.bin) and update software in a folder.
Connect the splitter to PC via Micro USB input.
Execute the update software and the splitter will automatically start
updating its rmware.
4
5
When the "Success" notication appears, rmware update is com-
plete and the update software will close automatically.
Restart the splitter and it will be ready for deployment.
Important Information:
1
2
3
HDR = High Dynamic Range
The video bandwidth of 4K2K @ 60 4:2:0 10 bits (HDR) is 384 MHz, and
the 4K2K @ 60 4:4:4 8 bits is 594 MHz.
PSP-102U does not support the following functions:
4PSP-102U can bypass 4K HDR data content but, CANNOT process it
and make HDR content completely t into 1080p.
1
2
3
Resolution downscaling from 4K2K @ 60 4:2:2 to 1080p.
4K2K @ 60 4:2:2 to 4K2K @ 60 4:2:0.
Frame rate conversion.

8
IAdea PSP 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved
Technical Specication:
PSP-102U Functions
HDMI compliance HDMI 2.0a
HDCP compliance HDCP 2.2 / 1.4
Input HDMI x 1
Output HDMI x 2
HDMI connector Type A (19-pin female)
Video bandwidth Single-link 600 MHz (18 Gbps)
Video support HDR 4K2K @ 60 (4:2:0 10 bits)
/ 4K2K @ 60 (4:4:4 8 bits)
Audio support DTS-HD Master Audio, Dolby TrueHD, Dolby Digital,
DTS, DVD-Audio, LPCM, SACD, MPCM
DIP switch EDID mode selection
ESD protection Human body level
(± 15 kV air-gap discharge & ± 8 kV contact discharge)
Firmware update Via Micro-USB port

9
IAdea 2-Port True 4K Advanced HDMI Splitter Solution
Copyright© 2019 IAdea all rights reserved
PSP-102U Mechanical
Dimension
System 82 mm x 62 mm x 18 mm
(3.2" x 2.4" x 0.7")
Package 198 mm x 137 mm x 74 mm
(7.8" x 5.4" x 2.9")
Weight
System 124 g (0.274 lb)
Package 169 g (0.373 lb)
Housing Metal enclosure
Power supply
Option 1 5 V / 1 A DC power supplied by power adapter
Option 2
Power supplied by externally connected device
via micro-USB (e.g.. Standard USB 2.0 port on
IAdea XMP-7300 True 4K media player)
Power connector Micro-USB
Power consumption 2.5 W (max)
Operation temperature 0 ~ 40° C (32 ~ 104° F)
Storage temperature -20 ~ 60° C (-4 ~ 140° F)
Humidity 20 ~ 90 % RH (no condensation)
Accessory Velcro, Instruction sheet
