USER GUIDE
WRP-1000 Series
IAdea 10.1” All-In-One Meeting Room Panel with NFC &
RFID, optional HID, and Touch
Version 1.0.0
America
114, 3F, No. 21
Ln. 168, Xingshan Rd.
Neihu Dist., Taipei, Taiwan
20 Fairbanks,
Ste, 170 Irvine, CA 92618
California, U.S.A
Taiwan

`
Copyright©2019 IAdea Corporation
1
WRP-1000 10.1” All-In-One Room Panel
User Guide
Room panel
Flush wall mount
bracket with
screw
Glass mount 3M
tape
Mount sheet
Cover sheet
Screws
M3 x 13
2 pcs &
1 spared
(For mounting at top
two corners of flush
mount)
Screws
M3 x 6
1 pc &
1 spared
(For mounting at the
top center of flush
mount)
NFC logo
sticker
Package content

`
Copyright©2019 IAdea Corporation
2
WRP-1000 10.1” All-In-One Room Panel
User Guide
Physical view and features

`
Copyright©2019 IAdea Corporation
3
WRP-1000 10.1” All-In-One Room Panel
User Guide
For Model WRP-1000-A, the best recommended NFC detection area as following:
For Model WRP-1000-H, the best recommended NFC detection area as following:
Significant temperature deviations and changes in elevation or environment can lead the glass panel
of the room panel to trap a slight amount of moisture. To avoid damaging the room panel, the
condensation will require at least 2 - 4 hours to evaporate prior to usage.
Users are recommended to keep the mount bracket in direct contact with the to-be-mounted
surface when operating the room panel to ensure the weight of the device is fully supported by the
flush wall mount.
Mounting and installation
NFC detection area

`
Copyright©2019 IAdea Corporation
4
WRP-1000 10.1” All-In-One Room Panel
User Guide
Mounting with VESA compatible mounting interface
This room panel accepts a MIS-D (75 mm x 75 mm) VESA-Compliant mounting interface and the
recommended screw is M4 x 10 mm excluding bracket thickness.
Easy mounting
Fixing the screws from two corners at bottom of flush mount and the screw at the center top is a
recommended procedure that is stable, easier, and faster when mounting the room panel.
Wall mounting with flush mount bracket and screw

`
Copyright©2019 IAdea Corporation
5
WRP-1000 10.1” All-In-One Room Panel
User Guide
Glass mounting with flush mount bracket and screw
Mounting close to window frame

`
Copyright©2019 IAdea Corporation
6
WRP-1000 10.1” All-In-One Room Panel
User Guide
1
Boot up
Plug in an Ethernet cable connecting from a PoE switch
at the back of the display, and it will power on
automatically. Once user exits boot up screen, users can
go through system configurations in both landscape and
portrait orientations.
2
Autoplay content
When boot up is complete, if the system detects
preloaded content, the loading circle will appear. Once
the loading circle completes, contents will be played. To
stop autoplay and enter “Basic settings,” users need to
select the pause button in the center of the loading
circle.
3
Basic settings
When boot up is complete, if the system detects
preloaded content, the loading circle will appear. Once
the loading circle completes, contents will be played. To
stop autoplay and enter “Basic settings,” users need to
select the pause button in the center of the loading
circle.
4
Make configurations
To change system language, select “(Current
Language) ....” For system configurations, select
“Advanced.”
Important recommended configurations:
1. Set correct time, date, and time zone for
properly scheduled playback.
2. Set password to prevent unauthorized access
during setup menu.
3. Set network for establishing network
connection.
System setup

`
Copyright©2019 IAdea Corporation
7
WRP-1000 10.1” All-In-One Room Panel
User Guide
5
Set content
Users can set content by clicking “Set Content” to enter
the URL or use the desired content management system
to upload the contents onto the room panel.
Please consult the software documentation for information specific to your content management
solution.
How to interrupt playback and enter setup menu?
Press at one corner of the screen and hold for 10 seconds to exit playback and enter setup menu.
How to provide a DEBUG log for a misbehaving room panel to the support team?
Please follow the instructions below to collect the room panel’s DEBUG log:
1. Prepare a blank USB stick in FAT-32 format.
2. Create a folder named "DEBUG" (case insensitive) in the root of USB stick.
3. Make sure room panel is operating (see welcome screen or playing content).
4. Insert the USB stick into display and wait for yellow dot on upper right corner to stop
blinking.
Content management
System troubleshooting

`
Copyright©2019 IAdea Corporation
8
WRP-1000 10.1” All-In-One Room Panel
User Guide
5. Within the "DEBUG" folder, is a folder with a string of number as its name. If the string of
numbers are all zeros, the debug log has not been collected properly. Repeat step 1-4 again
and make sure to wait until stop blinking.
6. Zip the "DEBUG" folder and send to IAdea Support Team.
Factory resetting the room panel will result in removal of all saved contents, passwords, and
configurations in settings. Please refer to the steps below to complete the room panel factory
resetting process:
1. Use a pen to press and hold the reset button –do not release until Step 4.
2. Insert the power cord.
3. Wait 30 seconds for the system reboot indicating your data is erased.
4. Release the reset button and your room panel will initialize in factory default state.
Reset system to factory default

`
Copyright©2019 IAdea Corporation
9
WRP-1000 10.1” All-In-One Room Panel
User Guide
This guide provides information of connecting WRP-1000 with extensive devices for expanding
applications. The firmware version should be 3.2.1-38 or newer.
Wiring guide for access control
To connect with your access control device, please choose the Wiegand reader option by
following below steps:
1
Enter settings and click on “Expansion port”.
2
Click on “Expansion port mode”
3
Choose “Wiegand reader”.
Expansion port guide

`
Copyright©2019 IAdea Corporation
10
WRP-1000 10.1” All-In-One Room Panel
User Guide
Expansion port connection for access control
Pin definition:
GPIO
Pin
Signal
Type
Function
1
+5V
Output
5VDC power output
2
GPIO2
Input, internal pull-up
Output, open-drain
General purpose input or
output
3
GPIO3
Input, internal pull-up
Output, open-drain
General purpose input or
output
4
GPIO4
Input, internal pull-up
Output, open-drain
General purpose input or
output
5
GND
Reference
Ground
6
GPIO6
Input, internal pull-up
Output, open-drain
General purpose input or
output
7
GPIO7
Input, internal pull-up
Output, open-drain
General purpose input or
output
Signal
Parameter
Minimum
Typical
Maximum
Unit
+5V
Output voltage
5
V
Output current
250
mA
GPIO2
GPIO3
GPIO4
GPIO6
GPIO7
Low level output
voltage
0
V
Low level output
current
12
mA
High level input
voltage
2.11
5
V
Low level input
voltage
-0.5
0.79
V

`
Copyright©2019 IAdea Corporation
11
WRP-1000 10.1” All-In-One Room Panel
User Guide

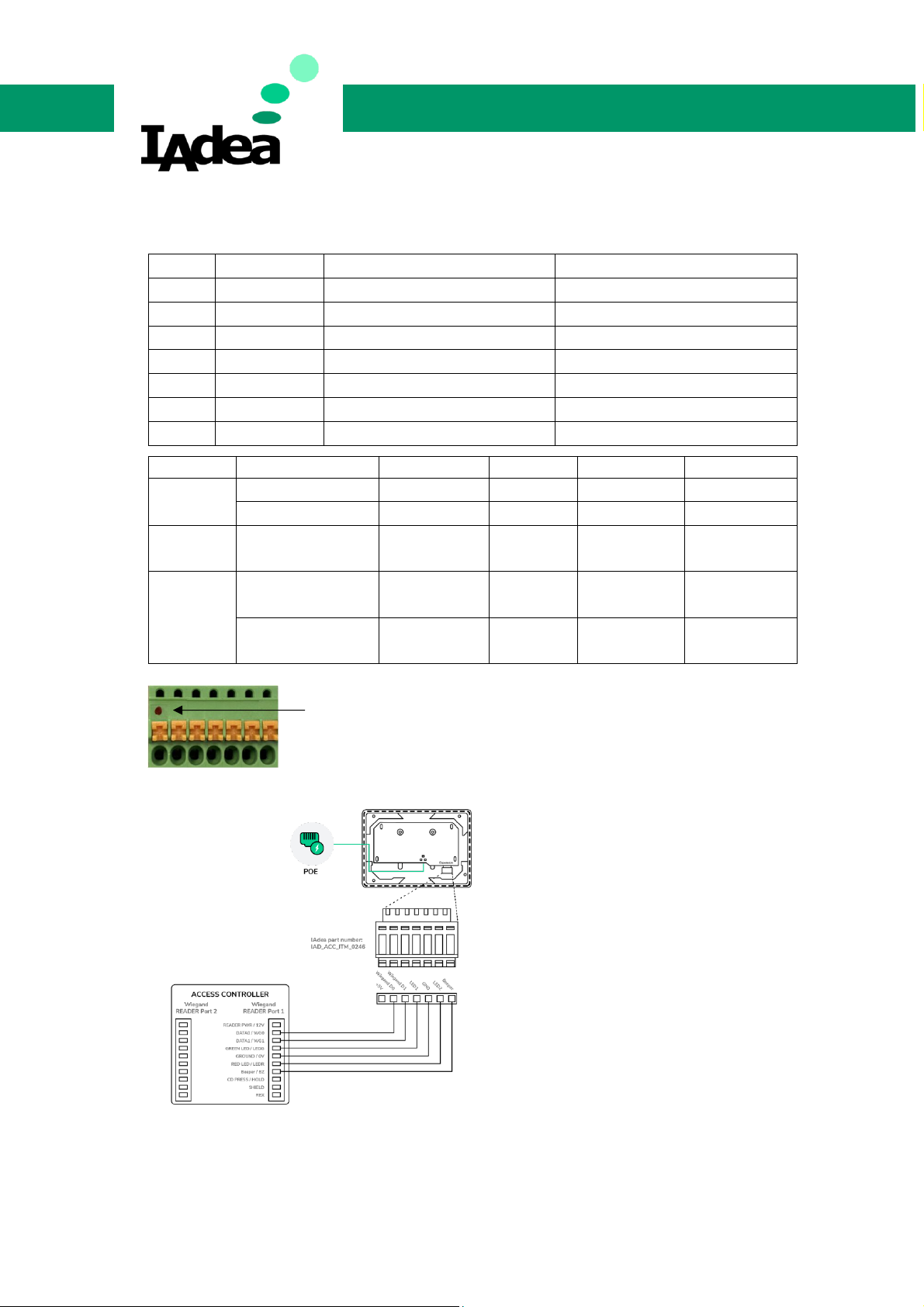

Wiegand reader
Pin
Signal
Type
Function
1
+5V
Output
5VDC power output
2
D0
Output, open-drain
Wiegand data 0
3
D1
Output, open-drain
Wiegand data 1
4
LED1
Input, internal pull-up
LED light indication 1
5
GND
Reference
Ground
6
LED2
Input, internal pull-up
LED light indication 2
7
BEEPER
Input, internal pull-up
Beeper indication
Illustration of pin connection:
Note: The Access Control reader PIN layout shown above is for reference only. Please refer to your Access Control reader
documentation for its exact PIN layout.
Warning: Wiring the WRP-1000 incorrectly may permanently damage the WRP-1000. Please ensure the wiring is correct before
powering on the devices.
Signal
Parameter
Minimum
Typical
Maximum
Unit
+5V
Output voltage
5
V
Output current
250
mA
D0
D1
Low level
output voltage
0
V
LED1
LED2
Beeper
High level input
voltage
2.11
5
V
Low level input
voltage
-0.5
0.79
Red dot indicates +5V

`
Copyright©2019 IAdea Corporation
12
WRP-1000 10.1” All-In-One Room Panel
User Guide
Display
10.1” LCD panel
10 points capacitive multi-touch
350 nits maximum brightness
1280 x 800 (Full HD) panel resolution
Viewing angle (H/V): 80/80
Surround LED
Internal player
Processor: Octa-core Cortex-A53
System memory: 2.0 GB
Flash memory: 16 GB eMMC built-in
Video format supported
H.264/AVC up to 1080p (1920 x 1080)
H.265/HEVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)
Image format supported
JPEG up to 1920 x 1080
PNG up to 1920 x 1080
Audio format supported
MP3 up to 320 Kbps
Open standards supported
W3C HTML5 (HTML, JavaScript, CSS)
W3C SMIL 3.0 instructions (sub-set)
Interactivity
GPIO
13.56 MHz NFC & 125 KHz RFID
Connectivity
SD card slot (expendable to 128 GB)
Micro USB for ADB (Android Debug Bridge)
3.5 mm audio out
USB 2.0 x 2
Ethernet port x 1
Power jack x 1
Embedded wireless antenna (2.4GHz & 5GHz)
Built-in stereo speaker 2 W x 1
Front camera: 8 MP Auto Focus
Supplied accessories
Flush mount bracket and screws
Glass mount 3M tape
Glass cover sheet
Mount sheet
Quick start guide
Optional accessories
IAdea PGM-002 glass mount
IAdea PTM-101 tilt mount
IAdea PVK-102 table stand
IAdea PWM-011 & PWM-041 window mount
Technical Specification

`
Copyright©2019 IAdea Corporation
13
WRP-1000 10.1” All-In-One Room Panel
User Guide
Power requirement
Input: AC 100 - 240 V, 50 - 60 Hz, 0.7 A max
Output: 12 V / 2 A
IEEE 802.3at Power-over-Ethernet (PoE+)
UL / CB certified power supplies
Power consumption
Max. 20.3 W
Environmental
Operating temperature: 0 –40 °C / 32 –104 °F
Humidity: 10 –85 % @ 40 °C / 104 °F non-condensing
System dimension
261.1x180.9x28.9 mm
(10.28" x 7.12" x 1.14")
System weight
915 g (2.3 lbs)
Certifications
CE / FCC / RoHS
Warranty
1-year limited parts & labor* (varies based on region, contact
sales for more details)
WRP-1000-A
IAdea standard with NFC & RFID embedded.
WRP-1000-H
IAdea standard with HID module embedded.
Available SKU
