IBASE Technology MI981 User manual

MI981
Intel® Q87 Based Mini-ITX board
Mini ITX Motherboard
USER’S MANUAL
Version 1.0

ii MI981 User’s Manual
Acknowledgments
AMI is a registered trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® 4th Generation Core DC/QC Processor are
registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Fintek is a registered trademark of Fintek Electronics Corporation.
All other product names or trademarks are properties of their
respective owners.

MI981 User’s Manual iii
Table of Contents
Introduction.......................................................1
Product Description.............................................................1
Checklist..............................................................................1
MI981 Specifications..........................................................2
Board Dimensions...............................................................4
Installations.......................................................5
Installing the Memory.........................................................6
Setting the Jumpers.............................................................7
Connectors on MI981........................................................12
BIOS Setup.......................................................25
Drivers Installation......................................51
Intel Chipset Software Installation Utility........................52
VGA Drivers Installation..................................................53
Realtek HD Audio Driver Installation ..............................54
LAN Drivers Installation...................................................55
Intel® Management Engine Interface...............................56
Intel® USB 3.0 Drivers.....................................................57
Appendix............................................................59
A. I/O Port Address Map ..................................................59
B. Interrupt Request Lines (IRQ)......................................60
C. Watchdog Timer Configuration ...................................61

iv MI981 User’s Manual
This page is intentionally left blank.

INTRODUCTION
MI981 User’s Manual 1
Introduction
Product Description
The MI981 Mini ITX motherboard is based on the latest Intel®Q87
chipset. The platform supports Intel®4th Generation Core™DT i7/i5/i3
processors. The latest Intel®processors provide advanced performance
in both computing and graphics quality. This meets the requirement of
customers in the gaming, POS, digital signage and server market
segment.
The platform supports two SO-DIMM sockets that can accommodate up
to 16GB of DDR3-1600 Non ECC memory. The Intel® 4th Gen. Core™
DT processor integrated HD graphics supports 3 independent displays,
Direct X 11.1, OpenGL 3.2, and Open CL 1.2. Display interfaces are for
HDMI, DisplayPort and VGACRT.
With two Gigabit Ethernets, the MI981 Mini ITX board utilizes the
dramatic increase in performance provided Intel’s latest cutting-edge
technology. Expansion is provided by PCIe(16x), one full sized
MiniPCIe and a half sized MiniPCIe. Onboard connectors support 4x
SATAIII, 4x or 6x USB 2.0 depending on the MI981 model and 6x COM
ports. The board measures 170mm x 170mm.
Checklist
Your MI981 package should include the items listed below.
The MI981 MINI ITX motherboard
This User’s Manual
1 CD containing chipset drivers and flash memory utility

INTRODUCTION
2 MI981 User’s Manual
MI981 Specifications
Model Name
MI981AF
Form Factor
Mini ITX
CPU Type
- Haswell Refresh 4th Generation Intel®CoreTM i7/i5/i3/Pentium DT
processor & FCLGA1150 package [37.5 mm x 37.5mm]
-TDP: 35W ~ 84W
CPU Speed
Up to 4.0GHz
Cache Size
Up to 8MB
CPU Socket
LGA1150 (Socket H3)
Chipset
Intel®Q87 PCH
Package =23 mm x 22 mm, 0.65 mm ball pitch
BIOS
AMI BIOS
Memory
Haswell Refresh 4th Generation Intel®CoreTM DT processors integrated
memory controller,
-DDR3-1600 M[email protected]
-SO-DIMM x 2, Max. 16GB (Non-ECC)
VGA
Haswell Refresh 4th Generation Intel®DT processor integrated HD Gfx,
supports 3 independent displays, Direct X 11.1, OpenGL 3.2, Open CL
1.2
-DVI-D x 1 (Thru port C, with level shifter ASM1442K)
-DisplayPort x 1 (Thru port D)
-LVDS (Thru port B, via NXP PTN3460)
-VGA x 1 (Thru PCH)
LAN
1. Intel® I217LM PHY GbE
2. Intel® I211AT PCIe GbE as 2nd LAN
USB
USB 2.0 host controller [Q87 Integrated], supports 8 ports
-6 ports via onboard pin header
-2 ports via MiniPCIe socket
USB 3.0 host controller [Q87 Integrated], supports 6 ports
-6 ports via the rear panel I/O
Serial ATA
Intel®Q87 PCH built-in SATA controller, supports 4x SATA 3.0 (6Gbps)
Storage
Device
mSATA x 1 thru Mini-PCIe slot [full-sized]
Audio
Intel®Q87PCH built-in High Definition Audio controller + Realtek ALC892
w/ 7.1 channels
LPC I/O
Fintek F81866AD-I (128-pin LQFP [14mm x 14 mm])
-COM #1 (RS232/422/485) support ring-in with power @500 mA
(selectable for 5V or 12V) [EXAR SP339EER1 232/422/485
transceiver x 1 for jumper-less]
-COM #2 (RS232 only), support ring-in with power @500 mA
(selectable for 5V or 12V)
-COM #3~COM #6 (RS232 only)
Hardware Monitor (2 thermal inputs,4 voltage monitor inputs & 2 Fan
headers)
-CPU FAN x 1(PWN Fan type, 4-pin connector)
SYS fan x 1(PWM Fan type, 4-pin connector)]
Digital IO
4 in & 4 out
IAMT 9.1
Intel®Active Management Technology ver. 9.1
TPM 1.2
Infineon SLB9655

INTRODUCTION
MI981 User’s Manual 3
Expansion
Slots
- PCI-Express (16x) x1 [Gen 3.0 PEG]
- Mini PCI-Express x 2 port [1 x Full-sized,1 x Half-sized] , both support
USB 2.0 signal / supports mSATA thru full-size mini PCIe slot
Edge
Connectors
Dual DB9 stack connector for COM #1 / #2
VGA + DVI-D stack connector x1
DisplayPort + dual USB (3.0) stack connector x1
RJ-45 + dual USB (3.0) stack connector x2
Triplet type Jack 3x1 for Audio port [Line-in / Line-out / Mic-in]
Onboard
Header/Conn
ector
4 ports x SATA III [Blue color]
DF-11 2x4 header x 3 for 6 ports USB 2.0
DF-11 2x5 box header x 4 for COM2/3/4 (RS232 only)
DF-20 20-pin connector x 2 for Dual channel LVDS
1x4 box header for LCD backlight control
2x5 header for Digital IO
2x5 header for front Audio
2x4 header for front panel I/O (2.54 pitch)
2x2 pin ATX power connector x1
1x ATX standard 24-pin type for power connector
Watchdog
Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
System
Voltage
ATX standard 24-pins type
4 pin type (+12V only)
Other
-LAN Wakeup
-iSMART 3.0
Environment
Operation Temperature: 0~60 degree C
Storage Temperature: -20~80 degree C
Relative humidity: 0~90%, non-condensing
Board Size
170mm x 170mm
Operation
System
Windows 7, Windows 8, Linux

INTRODUCTION
4 MI981 User’s Manual
[

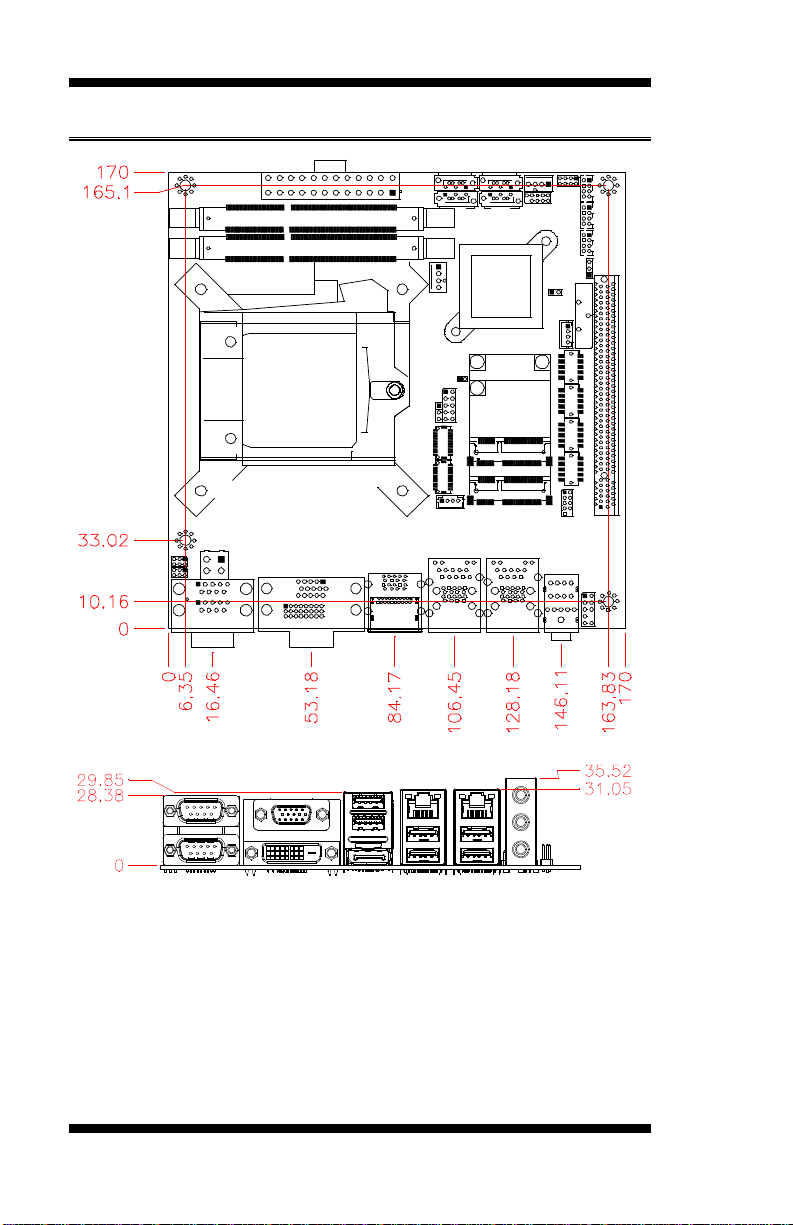

Board Dimensions

INSTALLATIONS
MI981 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the MI981 in order to set up a workable system. The topics
covered are:
Installing the Memory............................................................................ 6
Setting the Jumpers................................................................................ 7
Connectors on MI981.......................................................................... 12

INSTALLATIONS
6 MI981 User’s Manual
Installing the Memory
The MI981 board supports two DDR3 memory modules for a maximum
total of 16GB in DDR3 SODIMM memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:

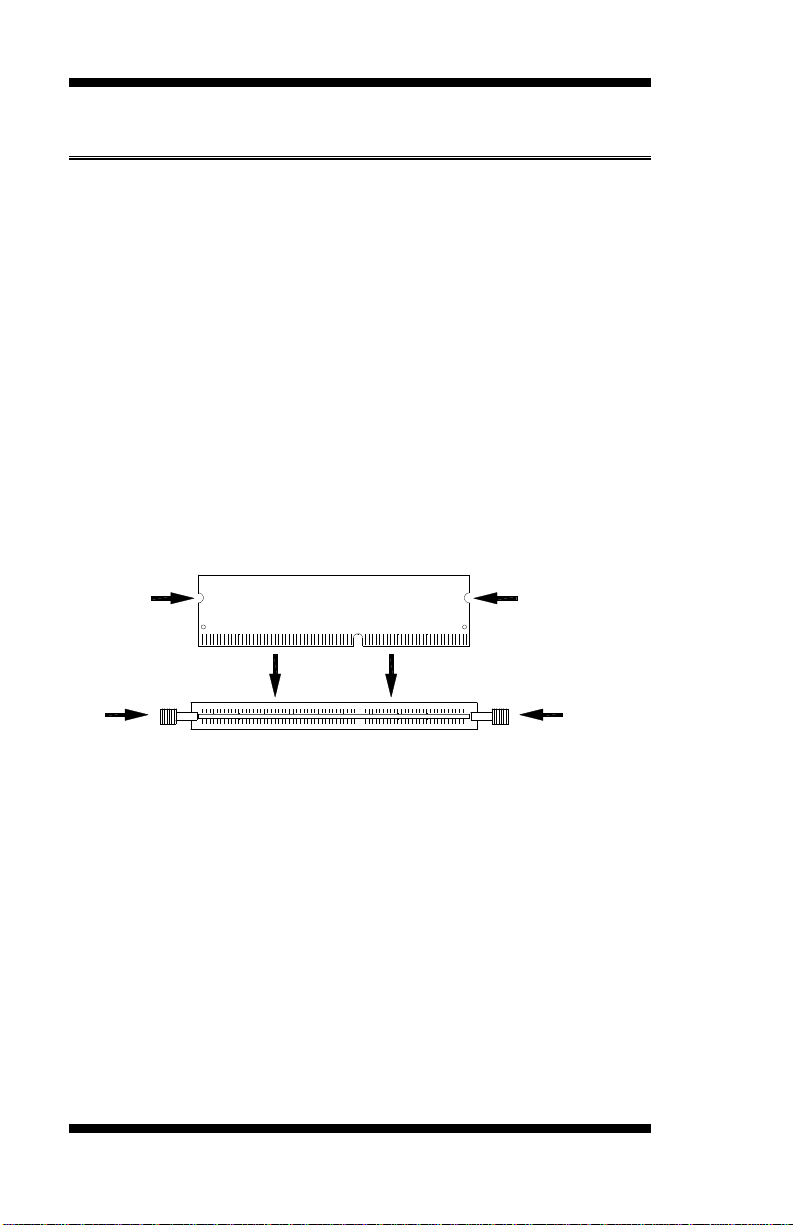

1. Hold the DDR3 module so that the key of the DDR3 module aligned
with that on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
DDR3 Module
Lock
Lock
Lock
Lock

INSTALLATIONS
MI981 User’s Manual 7
Setting the Jumpers
Jumpers are used on MI981 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MI981 and their respective functions.
Jumper Locations on MI981.................................................................. 8
JP1: COM2 RS232 RI/+5V/+12V Power Setting.................................. 9
JP2: COM1 RS232 RI/+5V/+12V Power Setting.................................. 9
JP3: LVDS Panel Power Selection...................................................... 10
JP4: Power Good Selection ................................................................. 10
JP5: Flash Descriptor Security Override (Factory use only)................ 11
JBAT1: Clear CMOS Contents............................................................ 11

INSTALLATIONS
8 MI981 User’s Manual
Jumper Locations on MI981
Jumpers on MI981 ........................................................................... Page
JP1: COM2 RS232 RI/+5V/+12V Power Setting..................................9
JP2: COM1 RS232 RI/+5V/+12V Power Setting..................................9
JP3: LVDS Panel Power Selection ......................................................10
JP4: Power Good Selection..................................................................10
JP5: Flash Descriptor Security Override (Factory use only)................11
JBAT1: Clear CMOS Contents............................................................11

INSTALLATIONS
MI981 User’s Manual 9

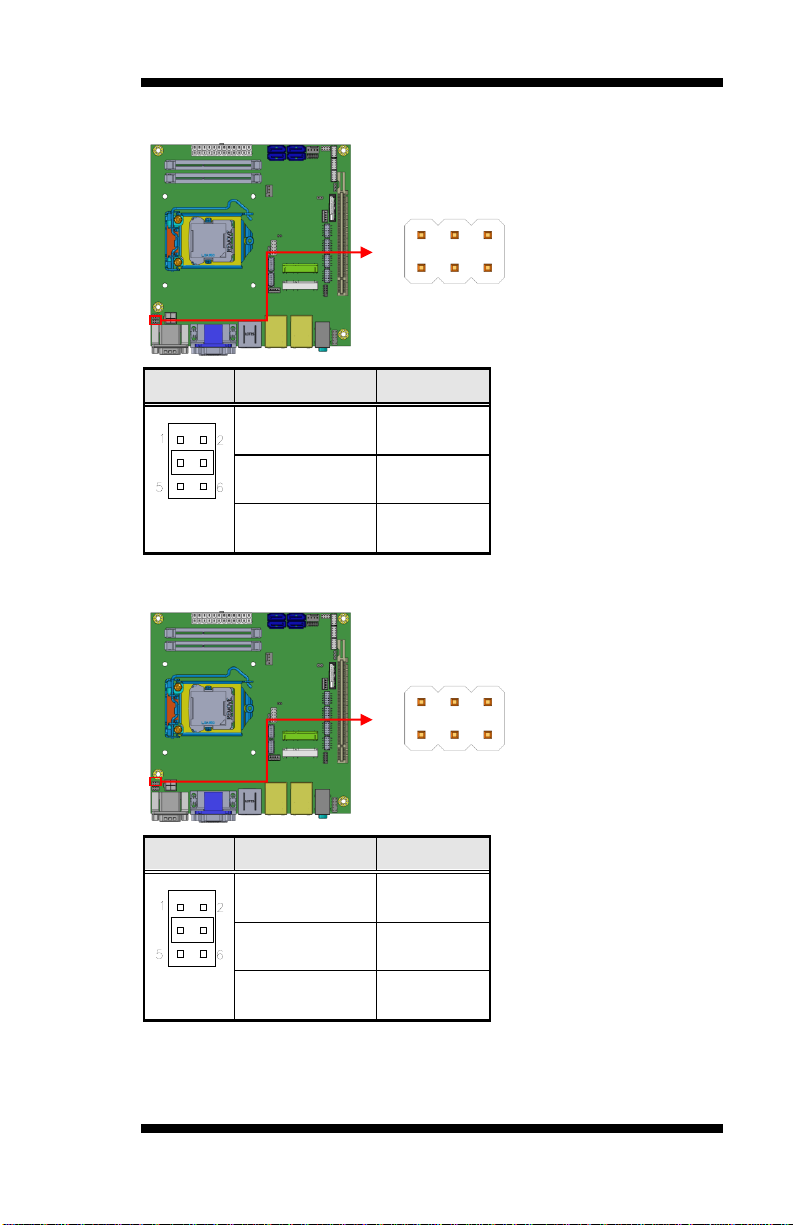

JP1: COM2 RS232 RI/+5V/+12V Power Setting
JP1
Setting
Function
Pin 1-3
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 3-5
Short/Closed
+5V
JP2: COM1 RS232 RI/+5V/+12V Power Setting
JP2
Setting
Function
Pin 1-3
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 3-5
Short/Closed
+5V
5 1
6 2
5 1
6 2

INSTALLATIONS
10 MI981 User’s Manual
JP3: LVDS Panel Power Selection
JP3
Setting
Panel Voltage
Pin 1-2
Short/Closed
3.3V (default)
Pin 2-3
Short/Closed
5V
JP4: Power Good Selection
JP4
Function
Short
Factory use only
Open
Normal
1 2
1
3

INSTALLATIONS
MI981 User’s Manual 11
JP5: Flash Descriptor Security Override (Factory use only)
JP5
Flash Descriptor Security Override
Open
Disabled (Default)
Close
Enabled
JBAT1: Clear CMOS Contents
JBAT1
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
1 2
3
1

INSTALLATIONS
12 MI981 User’s Manual
Connectors on MI981
Connector Locations on MI981 ...........................................................13
CN1: COM1 and COM2 Serial Ports...................................................14
CN2: VGA and DVI-D Connector.......................................................14
CN3: USB3.0 Connector .....................................................................15
CN4: DP Connector.............................................................................15
CN5: Gigabit LAN (Intel I217LM) / USB3.0......................................15
CN6, CN7, CN8, CN9: SATA Connectors..........................................15
CN10: Gigabit LAN (Intel I211AT) / USB3.0 ....................................15
CN11: HD Audio Connector................................................................15

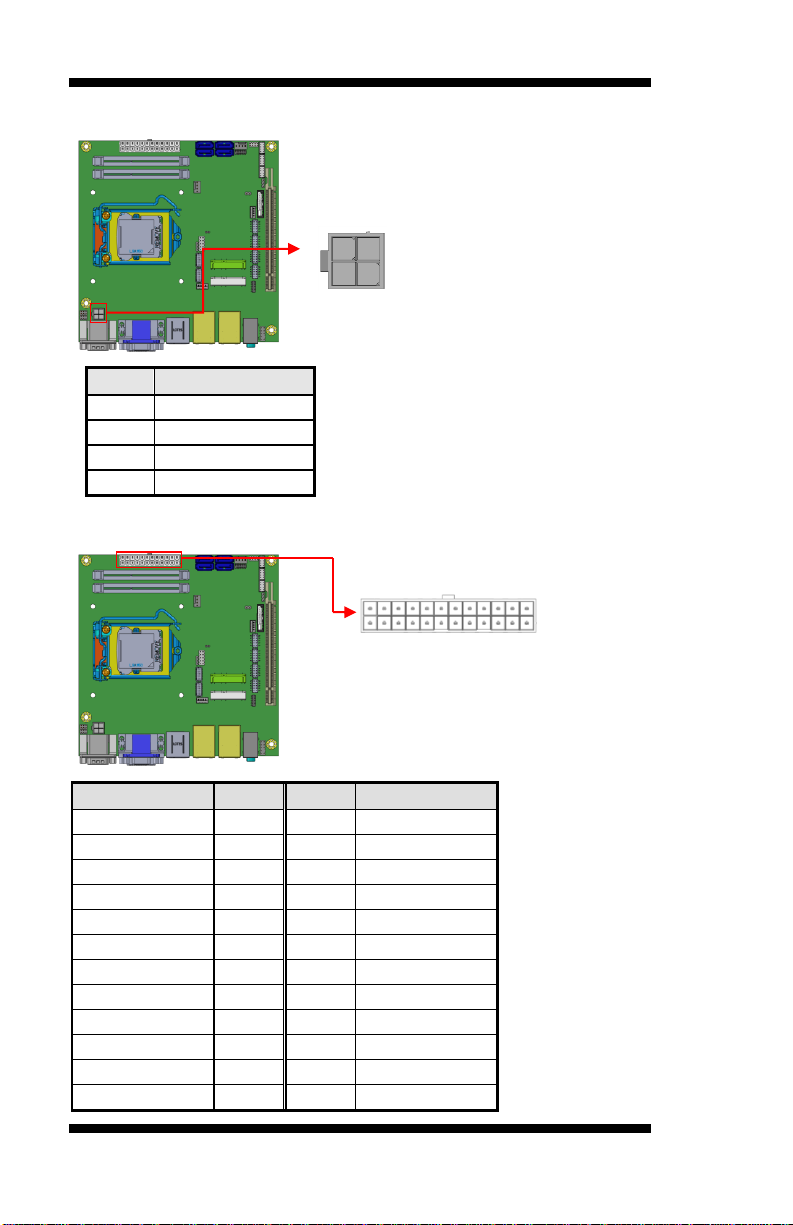

J1: ATX 12V Power Connector...........................................................16
J4: ATX Power Supply Connector.......................................................16
J5, J6: LVDS Connectors.....................................................................17
J7: Digital I/O ......................................................................................17
J8: LCD Backlight Connector..............................................................18
J9: Mini PCIE/mSATA Connector ......................................................18
J10: Mini PCIE Connector...................................................................18
J11: SPI Flash Connector (Factory use only).......................................19
J12: MCU Flash Connector (factory use only).....................................19
J13: Debug 80 Port Connector (factory use only)................................19
J14: Front Panel Function Connector...................................................20
J15, J16, J17, J18: COM3/COM4/COM5/COM6 Connector..............21
J19, J20, J21: USB Connectors............................................................21
J22: Audio Front Header......................................................................22
PCIE1: PCI-E X16 Slot .......................................................................22
CPU_FAN1: CPU Fan Power Connector ............................................23
SYS_FAN1: System Fan1 Power Connector.......................................23

INSTALLATIONS
MI981 User’s Manual 13

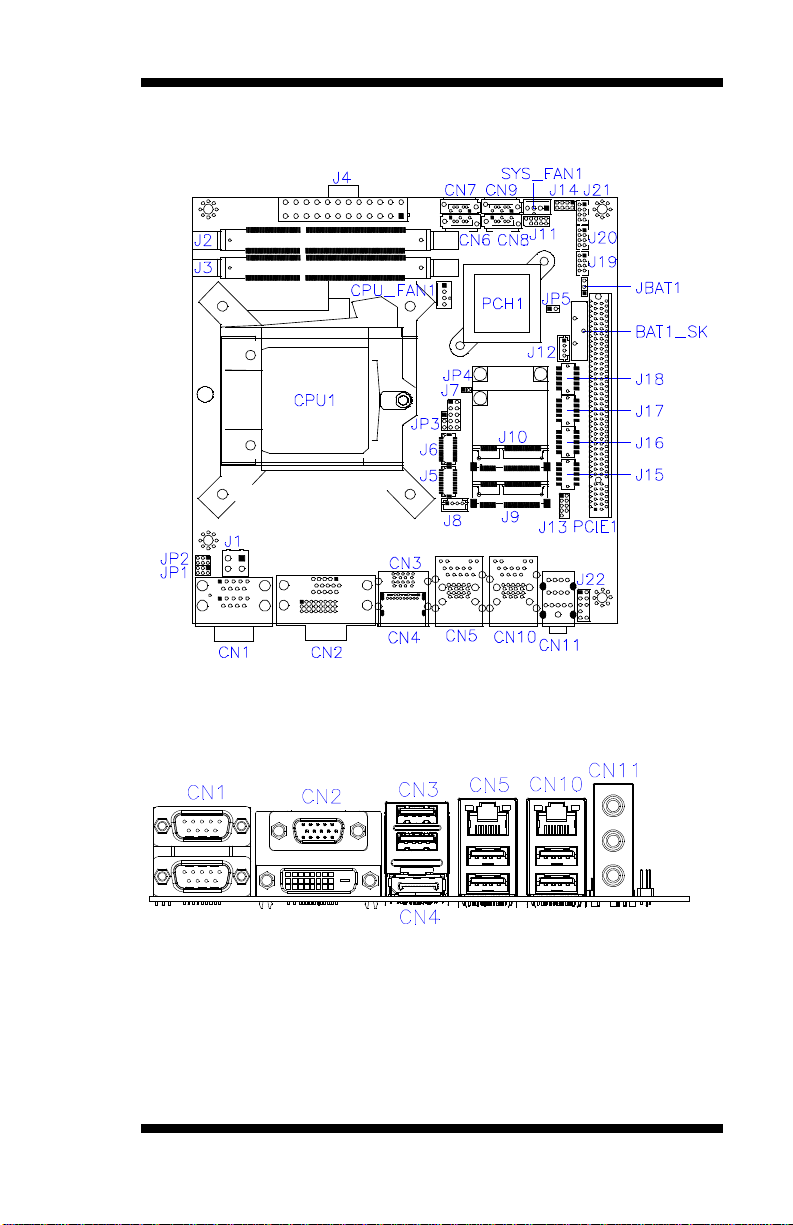

Connector Locations on MI981

INSTALLATIONS
14 MI981 User’s Manual
CN1: COM1 and COM2 Serial Ports
[
Pin #
Signal Name
RS-232
R2-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC
4
DTR
RX-
NC
5
Ground
Ground
Ground
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
10
NC
NC
NC
CN2: VGA and DVI-D Connector
VGA
Signal Name
Pin #
Pin #
Signal Name
Red
1
2
Green
Blue
3
4
N.C.
GND
5
6
GND
GND
7
8
GND
N.C.
9
10
GND
N.C.
11
12
DDCDATA
HSYNC
13
14
VSYNC
DDCCLK
15

INSTALLATIONS
MI981 User’s Manual 15
[
Signal Name
Pin #
Pin #
Signal Name
DATA 2-
1
16
HOT POWER
DATA 2+
2
17
DATA 0-
GROUND
3
18
DATA 0+
N.C.
4
19
GROUND
N.C.
5
20
N.C.
DDC CLOCK
6
21
N.C.
DDC DATA
7
22
GROUND
N.C
8
23
CLOCK +
DATA 1-
9
24
CLOCK -
DATA 1+
10
GROUND
11
N.C.
12
N.C.
13
DDC POWER
14
GROUND
15
CN3: USB3.0 Connector
CN4: DP Connector
CN5: Gigabit LAN (Intel I217LM) / USB3.0
CN6, CN7, CN8, CN9: SATA Connectors
CN10: Gigabit LAN (Intel I211AT) / USB3.0
CN11: HD Audio Connector

INSTALLATIONS
16 MI981 User’s Manual
J1: ATX 12V Power Connector
Pin #
Signal Name
1
Ground
2
Ground
3
+12V
4
+12V
J4: ATX Power Supply Connector
Signal Name
Pin #
Pin #
Signal Name
3.3V
13
1
3.3V
-12V
14
2
3.3V
Ground
15
3
Ground
PS-ON
16
4
+5V
Ground
17
5
Ground
Ground
18
6
+5V
Ground
19
7
Ground
-5V
20
8
Power good
+5V
21
9
5VSB
+5V
22
10
+12V
+5V
23
11
+12V
Ground
24
12
+3.3V
3
4
1
2
24 13
12 1
