IBASE Technology MI945PA User manual

MI945PA
Intel ®CoreTM 2 Duo/GM45
Mini-ITX Motherboard
USER’S MANUAL
Version 1.0

ii MI945PA User’s Manual
Acknowledgments
AMI is a registered trademark of American Megatrends, Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Core 2 Duo and Intel® Celeron processors are
registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

MI945PA User’s Manual iii
Table of Contents
Introduction.......................................................1
Product Description.............................................................1
Checklist..............................................................................2
MI945PA Specifications.....................................................3
Board Dimensions...............................................................4
Installations.......................................................5
Installing the CPU...............................................................6
Installing the Memory.........................................................7
Setting the Jumpers .............................................................8
Connectors on MI945PA...................................................12
BIOS Setup.......................................................23
Drivers Installation......................................45
Intel Chipset Software Installation Utility.........................46
VGA Drivers Installation ..................................................48
Realtek Audio Driver Installation .....................................50
LAN Drivers Installation...................................................51
Intel® Management Engine Interface...............................53
Intel® AMT SOL Driver Installation................................55
Appendix...........................................................57
A. I/O Port Address Map...................................................57
B. Interrupt Request Lines (IRQ)......................................58
C. Watchdog Timer Configuration....................................59

iv MI945PA User’s Manual
Remarks: The IDE connector on board does not support OS
installation in hard drive. A system hard drive connected to this IDE
cannot be booted up to OS.

INTRODUCTION
MI945PA User’s Manual 1
Introduction
Product Description
The MI945PA Mini ITX board incorporates the Mobile Intel® GM45 Express
Chipset for Embedded Computing, consisting of the Intel® GM45 Graphic
Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH9-M), an
optimized integrated graphics solution with a 1066MHz and 800MHz front-side
bus. Dimensions of the board are 170mm x 170mm.
The integrated powerful 3D graphics engine, based on Intel® Graphics Media
Accelerator X3500 (Intel® GMA X3500) architecture, operates at core speeds of
up to 533 MHz. It features a low-power design, is validated with the Intel® Core
2 Duo processors on 45nm process. With dual channel DDR2 800MHz two
SoDIMM sockets on board, the board supports up to 4GB of DDR2 system
memory.
Intel® Graphics supports a unique intelligent memory management scheme
called Dynamic Video Memory Technology (DVMT). DVMT handles diverse
applications by providing the maximum (384MB) availability of system
memory for general computer usage, while supplying additional graphics
memory when a 3D-intensive application requests it. The Intel GMA X3500
graphics architecture also takes advantage of the high-performance Intel
processor. Intel GMA X3500 graphics supports Dual Independent Display
technology.
The main features of the board are:
Supports Intel® CoreTM 2 Duo (Penryn 1066MHz)
Supports up to 2.53GHz, 1066MHz/800MHz FSB
Two DDR2 SoDIMM, Max. 4GB memory
Onboard Gigabit PHY and Intel PCI-Express Gigabit LAN
Intel® GM45 Express VGA for CRT / LVDS
4x SATA, 8x USB 2.0, 4x COM, Watchdog timer
1x PCI-E(x16) slot, 1x PCI slot

INTRODUCTION
2 MI945PA User’s Manual
Checklist
Your MI945PA package should include the items listed below.
•The MI945PA Mini-ITX motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION
MI945PA User’s Manual 3
MI945PA Specifications
Form Factor Mini ITX
CPU Type Intel® Mobile Core
TM
2 Duo/Core
TM
2 Quad Processor (Penryn)
Intel® Celeron 5x5 Series
CPU Speed Up to 2.93GHz
CPU FSB 667/800/1066MHz FSB
L2 Cache 3MB or 6MB (P8000-series or P9000-series, T9000-series)
Green /APM APM1.2
CPU Socket Socket 478 “Type P” (Socket P) or micro-FCBGA on board
Chipset Intel® GM45 (Cantiga) chipset
- GMCH: AC82GM45 1329-pin FCBGA
- ICH9M: AF82801IM 676-pin mBGA
BIOS AMI BIOS, support ACPI Function
Memory DDRII 667/800
- SoDIMM x2 Dual-Channel (w/o ECC), Max. 4GB
VGA & LVDS Intel® GM45 built-in Intel gen.5.0 Graphics Media Accelerator
(533MHz 1.05V), supports DirectX10 for CRT & LVDS
(single/dual channel 18-bit/ 24-bit)
SDVO (DUAL CH) None
Backlight control
(LVDS)
- GMCH built-in control by PWM
LAN 1. Intel® ICH9M 10/100/gigabit MAC + PHY:
•Intel 82567LM 10/100/1000
2. Intel 82574L PCI-e Gigabit LAN controller x1
USB ICH9M built-in USB 2.0 host controller, supports 8 ports
Serial ATA ICH9M built-in SATA controller, supports 4 ports
Parallel IDE JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel for IDE
Audio Intel® ICH9M built-in High Definition Audio controller ALC888
with 7.1 channels
LPC I/O Winbond® W83627DHG-P: COM1 (RS232), COM2
(RS232/422/485), LPT, Hardware monitor (3 thermal inputs, 4
voltage monitor inputs, VID0-4 & 2 fan headers)
- Fintek 81216AD for COM3/COM4 (RS232),
Digital IO 4 in & 4 out
KB/Mouse
Connector
Supports PS/2 Keyboard/Mouse
Expansion Slots PCIe(x16) x1 (Inner) and PCI x 1
Edge Connector - PS/2 KB/Mouse connector
- Gigabit LAN RJ45 + dual USB stack connector
- Gigabit LAN RJ45 + dual USB stack connector
- DB9 + DB15 stack connector x1 for COM 1 & VGA
-HD Audio (Phone jack 3 x 2)
Onboard
Header/Connector
- 40-pin box-header x1 for IDE1
- DF13 connector x2 for LVDS
- 10-pin headerx1 for Digital I/O
- 10-pin header x1 for COM2
- 20-pin header x1 for COM3/COM4
- 8-pin header x 2 for USB 5/6/7/8
- SATA connector x4 for 4 SATA ports
-26-pin header x1 for LPT
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)
Other LAN Wakeup
Board Size 170mm x 170mm

INTRODUCTION
[

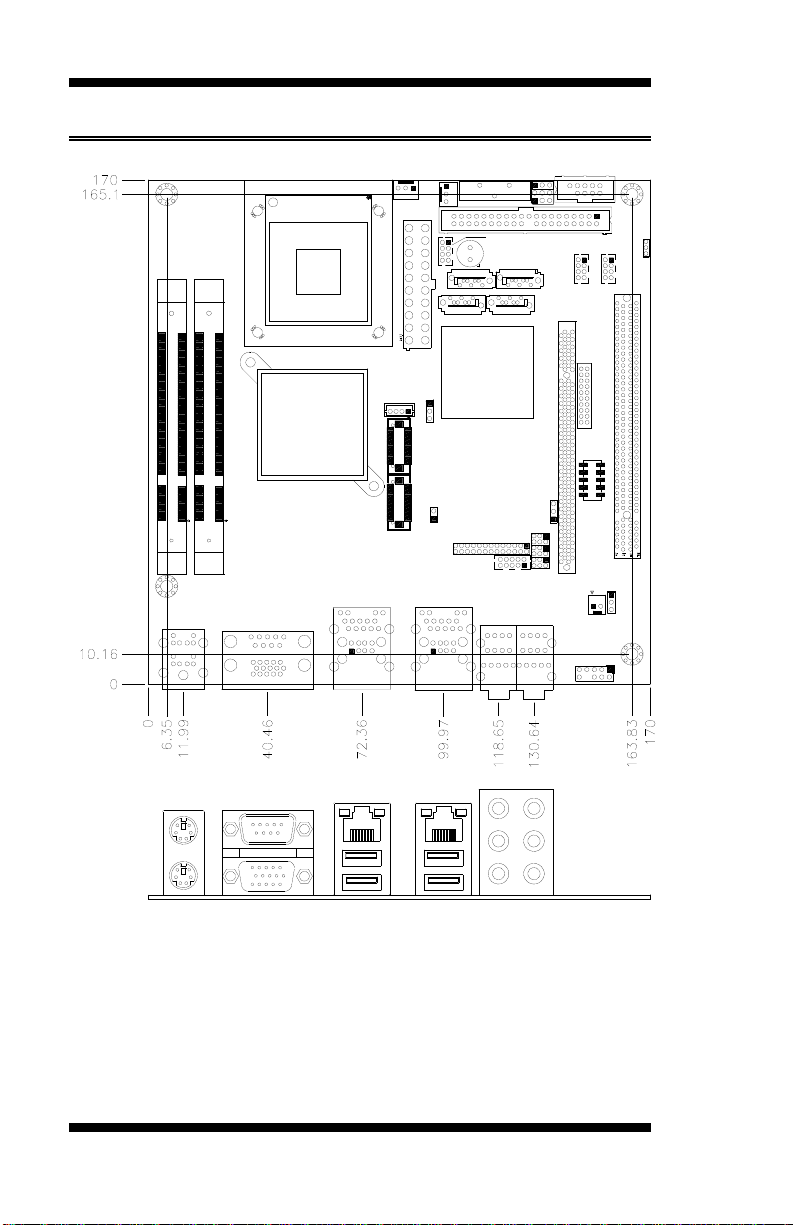

Board Dimensions
4 MI945PA User’s Manual

INSTALLATIONS
MI945PA User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the MI945PA in order to set up a workable system. The
topics covered are:
Installing the CPU ................................................................................. 6
Installing the Memory ........................................................................... 7
Setting the Jumpers................................................................................ 8
Connectors on MI945PA..................................................................... 12

INSTALLATIONS

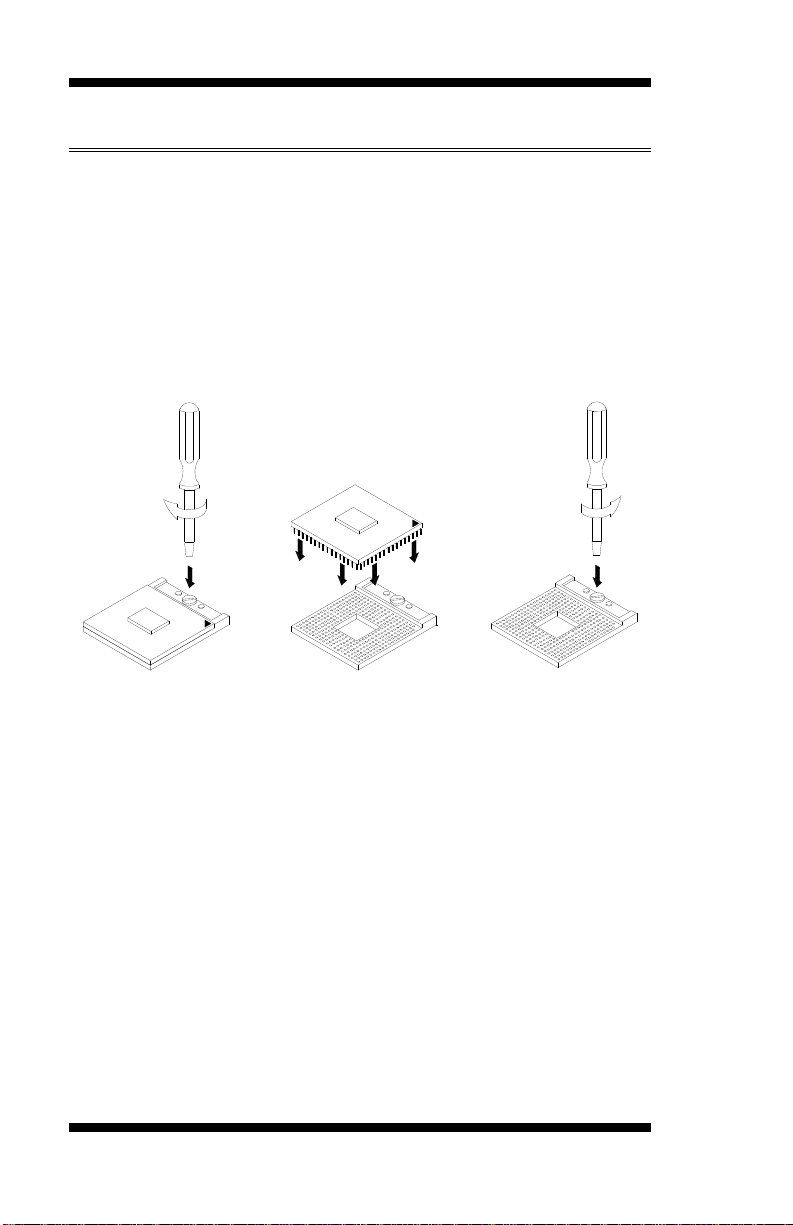

Installing the CPU
The MI945PA board supports a Socket P processor socket for Intel®
CoreTM 2 Duo, Intel® Celeron mobile processors.
The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, fasten the
screw. Refer to the figures below.
NOTE: Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
6 MI945PA User’s Manual

INSTALLATIONS
Installing the Memory
The MI945PA board supports two DDR2 memory socket for a
maximum total memory of 4GB in DDR2 memory type.
Installing and Removing Memory Modules
To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR2 module so that the key of the DDR2 module aligned
with that on the memory slot.
2. Gently push the DDR2 module in an upright position until the clips of
the slot close to hold the DDR2 module in place when the DDR2
module touches the bottom of the slot.
3. To remove the DDR2 module, press the clips with both hands.
DDR2 Module
Lock Lock
Lock Lock
MI945PA User’s Manual 7

INSTALLATIONS
8 MI945PA User’s Manual
Setting the Jumpers
Jumpers are used on MI945PA to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MI945PA and their respective functions.
Jumper Locations on MI945PA.............................................................9
JBAT1: Clear CMOS Setting...............................................................10
JP1: LCD Panel Power Selection.........................................................10
JP3, JP4, JP5: RS232/422/485 (COM2) Selection ..............................10
JP6: PCI Riser Card Selection .............................................................11

INSTALLATIONS
Jumper Locations on MI945PA
Jumpers on MI945PA.......................................................................Page
JBAT1: Clear CMOS Setting .............................................................. 10
JP1: LCD Panel Power Selection ........................................................ 10
JP3, JP4, JP5: RS232/422/485 (COM2) Selection.............................. 10
JP6: PCI Riser Card Selection............................................................. 11
MI945PA User’s Manual 9

INSTALLATIONS

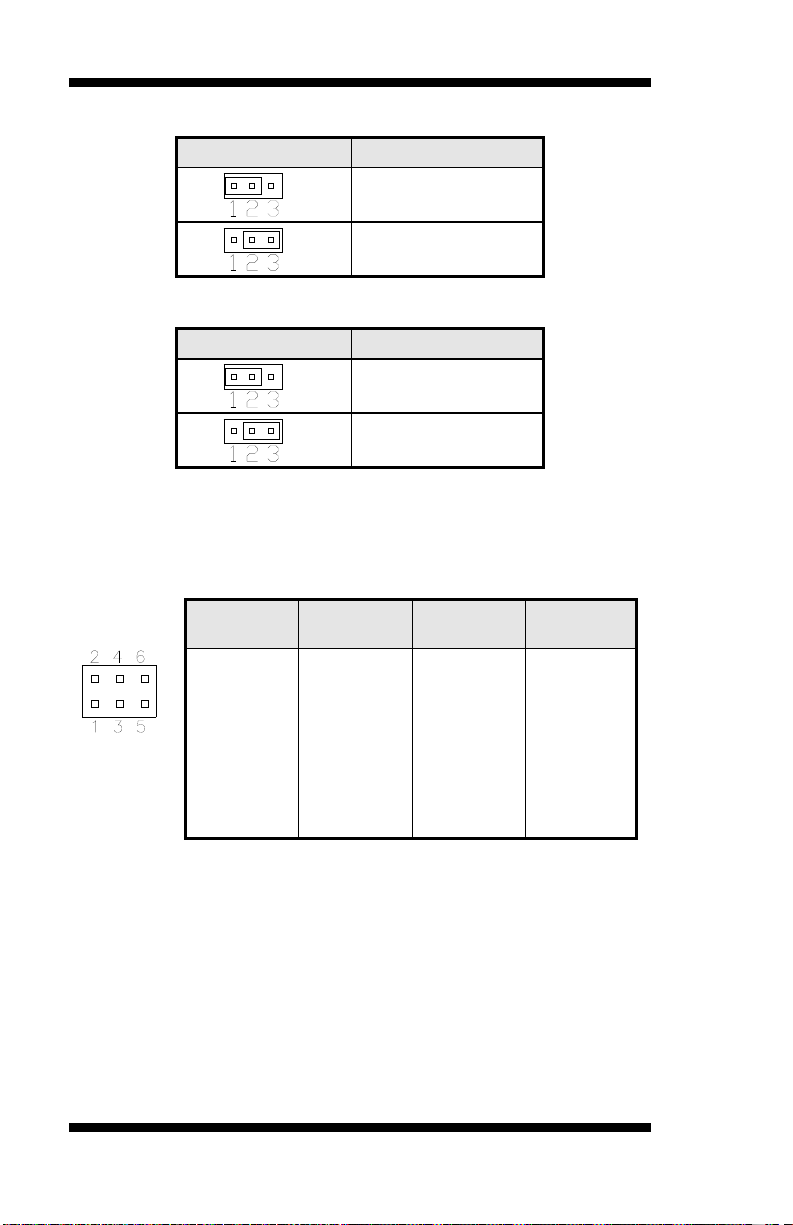

JBAT1: Clear CMOS Setting
JBAT1 Setting
Normal
Clear CMOS
JP1: LCD Panel Power Selection
JP1 LCD Panel Power
3.3V
5V
JP3, JP4, JP5: RS232/422/485 (COM2) Selection
COM1/COM3/COM4 are fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function RS-232 RS-422 RS-485
Jumper
Setting
(Pin closed)
JP5:
1-2
JP3:
3-5 & 4-6
JP4:
3-5 & 4-6
JP5:
3-4
JP3:
1-3 & 2-4
JP4:
1-3 & 2-4
JP5:
5-6
JP3:
1-3 & 2-4
JP4:
1-3 & 2-4
10 MI945PA User’s Manual

INSTALLATIONS
COM2 is jumper selectable for RS-232, RS-422 and RS-485.
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA-
2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC
10 NC NC NC
JP6: PCI Riser Card Selection
JP6 Riser Card
IP390 Riser Card
Install
IP151, IP240 Riser Card
Install
MI945PA User’s Manual 11

INSTALLATIONS
12 MI945PA User’s Manual
Connectors on MI945PA
Connector Locations on MI945PA......................................................13
CN1: PS/2 Keyboard and PS/2 Mouse Connectors.............................14
CN2, CN3: COM1 and VGA Connector.............................................14
USB_LAN1: Gigabit LAN RJ-45 and USB6/7 Ports..........................15
USB_LAN2: Gigabit LAN RJ-45 and USB0/1 Ports..........................15
CN4: Audio Connector........................................................................15
SYS_FAN1: System Fan Power Connector ........................................15
CPU_FAN1: CPU Fan Power Connector............................................15
IDE1: IDE Connector ..........................................................................16
COM3_COM4: COM3, COM4 Serial Port.........................................16
ATX1: ATX Power Supply Connector................................................17
COM2: COM2 Serial Port...................................................................17
LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel)........17
J1: LCD Backlight Connector..............................................................18
J2: TV-out Connector ..........................................................................18
J3: Parallel Port Connector..................................................................19
J4: System Function Connector...........................................................19
J5: USB2/USB3 Connector .................................................................19
J6: SPI Flash Connector (factory use only) .........................................19
J7: Digital I/O ......................................................................................20
J8: Front Audio Connector ..................................................................20
J9: SPDIF Out Connector....................................................................20
J10: USB4/USB5 Connector ...............................................................20
J11: Power LED Connector.................................................................20
SATA1, SATA2, SATA3, SATA4: SATA Connectors......................21
PCI1: PCI Slot (supports 2 Master).....................................................21
PCIE1: PCI-E(x16) Slot ......................................................................21

INSTALLATIONS
Connector Locations on MI945PA
MI945PA User’s Manual 13

INSTALLATIONS
CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN2, CN3: COM1 and VGA Connector
[
Signal Name Pin # Pin # Signal Name
DCD 1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS
DTR 4 9 RI
GND 5 10 Not Used
[[[[
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
14 MI945PA User’s Manual

INSTALLATIONS
USB_LAN1: Gigabit LAN RJ-45 and USB6/7 Ports
USB_LAN2: Gigabit LAN RJ-45 and USB0/1 Ports
CN4: Audio Connector
SYS_FAN1: System Fan Power Connector
This is a 3-pin header for system fans. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
CPU_FAN1: CPU Fan Power Connector
This is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
MI945PA User’s Manual 15

INSTALLATIONS
IDE1: IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect
p
in
DR
Q
0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IR
Q
14 31 32
N
o connec
t
Address 1 33 34
N
o connec
t
Address 0 35 36 Address 2
Chi
p
select 0 37 38 Chi
p
select 1
Activit
y
39 40 Ground
COM3_COM4: COM3, COM4 Serial Port
Signal Name Pin # Pin # Signal Name
DSR3 2 1 DCD3
RTS3 4 3 RXD3
CTS3 6 5 TXD3
RI3 8 7 DTR3
NA 10 9 Ground
DSR4 12 11 DCD4
RTS4 14 13 RXD4
CTS4 16 15 TXD4
RI4 18 17 DTR4
NA 20 19 Ground
16 MI945PA User’s Manual
