IBASE Technology AFW-3000 User manual

AFW-3000
Intel®Xeon?E7501
Server Motherboard
USER’S MANUAL
Version 1.0

ii AFW-3000 User’s Manual
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Xeon are registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

AFW-3000 User’s Manual iii
Table of Contents
Introduction....................................................... 1
Product Description.......................................................... 1
Checklist .......................................................................... 2
Specifications ................................................................... 3
Quick Guide..................................................................... 4
Board Dimensions............................................................. 5
Installations....................................................... 7
Installing the CPU ............................................................ 8
ATX Power Installation.................................................... 9
Installing the Memory....................................................... 9
Setting the Jumpers......................................................... 11
Connectors on AFW-3000 .............................................. 16
BIOS Setup...................................................... 24
Drivers Installation..................................... 44

iv AFW-3000 User’s Manual
This page is intentionally left blank.

INTRODUCTION
AFW-3000 User’s Manual 1
Introduction
Product Description
The AFW-3000 Intel®Xeon?Server Motherboard is based on the
Intel®ET7501 chipset. With two 184-pin DDR memory sockets, up to
4GB of memory is supported. A dual-channel DDR-200/266 memory
interface provides amaximum memory bandwidth of 3.2 GB/s through a
144-bit wide, 200/266 MHz Double Data Rate SDRAM memory
interface with densities up to 512 megabits is supported.
The Intel®Xeon™ Processor provides exceptional performance for
applications running on advanced operating systems and delivers
unparalleled computing power for powerful workstations, internet
infrastructure, and departmental server applications. The Intel®
NetBurst™ micro-architecture and Hyper-Threading Technology
deliver outstanding performance and headroom for peak internet server
workloads, resulting in faster response times, support for more users,
and improved scalability.
The on board Intel®E7501 Chipset Memory Controller Hub (MCH) is
the central hub for all data passing through core system elements such as
the dual Intel Xeon™ processors with 512 KB L2 cache via the system
bus interface, the memory via memory interface, and both the 64-bit
PCI/PCI-X and I/O controller hubs via Intel®Hub Interfaces.
AFW-3000 Features:
lSupports Intel®Pentium®4Xeon™ Processor
lIntel®E7501 Chipset with P64H2 Hub Link to PCI-X
l533MHz Front Side Bus
lTwo 184-pin DDR sockets, 4 GB Max Size
lTwo Intel®82546EB Dual 1-Gigabit port PCI-X 64Bit Single
Controllers
lSupports four (4) RJ45 connectors or four (4) fiber channels
lUSB 1.1, ATX P/S, PCI-X slot, MicroPCI connector, CF card
connector
This Server Motherboard represents the perfect choice for those who
want superior performance for rugged and demanding applications in
industrial automation, telecommunications and data-intensive
applications.

INTRODUCTION
2AFW-3000 User’s Manual
Checklist
Your AFW-3000 package should include the items listed below.
•The AFW-3000 Industrial Server Motherboard
•This User’s Manual
•1 CD containing the following:
•Chipset Drivers
•Flash Memory Utility
•Optional Cable Kit (IB23) that includes VGA cable, PS2 cable,
parallel port cable, serial port cable, FDD cable, IDE cable
•Optional IBD21 MicroPCI VGA card

INTRODUCTION
AFW-3000 User’s Manual 3
Specifications
Product Name AFW-3000
Architecture PCI/PCI-X
CPU Type Intel®Pentium®4 Xeon™ Processor
CPU L2 Cache 512KB
CPU Voltage 1.1V~1.85V(VRM 9.1 DC-DC Converter)
Front Side Bus 533MHz FSB (E7501)
System Speed 2.2GHz ~ 3.06GHz or higher
CPU External
Clock 133MHz (E7501)
DDR Clock Speed 266Mhz (E7501)
Green /APM APM1.2
Chipset
Intel®E7501 Chipset: Plumas : Memory Controller Hub
P64H2 : Hub Link to PCI-X
ICH3 :I/O Controller Hub
BIOS Award (4M FWH )
System Memory Two 184-pin DDR sockets
Supports DIMMs using 64/128/256/512MB/1GB/2GB DRAM
Modules
Supports only ECC registered DIMMs (in pairs)
4GB Max memory size, with DDR 266 support
LPC I/O Winbond 83627HF LPC I/O
Battery Lithium Battery
On Board Dual
Gigabit LAN Two Intel®82546EB Dual 1-Gigabit port PCI-X 64-bit controllers
Supports four (4) RJ45 or four (4) for Fiber channel
connectors
IDE Connector Primary IDE channel with 44-pin 2.0mm IDE connector
Secondary IDE Channel for Compact Flash Type-1 Socket
USB Two single ports on board, USB 1.1 compliant
H/W Monitoring Built in LPC/IO for monitoring voltages, temp., fan rotation
Power Connector 20-pin ATX power connector
PCI–X Slot 184-pin PCI-X (64-bit) slot, 3.3v
MicroPCI 32-bit MicroPCI connector
FDD Connector 1x26 pin header slim-type connector
Keyboard/Mouse 1x6 pin header connector
Parallel Port 2x13 pin header (2.54mm)
PCB Layer 8 layers
Form Factor Custom Size
Board Size 29.8cm x26.64cm

INTRODUCTION
4AFW-3000 User’s Manual
Quick Guide
Fiber optic SC_connector
VGA CONN
LPT
CMOS Clear
1 - 2 Normal
2 - 3 Clear
SW1: 5,6,7,8 FOR J2: PCI/PCI-X SLOT SW1: 1,2,3,4 FOR 82546EB Giga LAN-1 (CN1, CN2)
SW2: 1,2,3,4 FOR 82546EB Giga LAN-2 (CN11, CN12)
RJ45
KB/MS CONN. RJ45 RJ45
Micro PCI Socket
USB Connector
RJ45
COM1 COM2
Extra LAN_LED Define
DIMM Socket 1. DDR/ECC/Reg Only
2. Memory modules "in pairs" must be of the same type and size.
1,2 Reset
3,4 PW_SW
* SW2: 5,6,7,8 Reserved
1-2 : AT
2-3 : ATX
Compact Flash Socket
Type I
ATX_PWR Note:
ATX_PWR (12V)

INTRODUCTION
AFW-3000 User’s Manual 5
Board Dimensions

INTRODUCTION
6AFW-3000 User’s Manual
This page is intentionally left blank.

INSTALLATIONS
AFW-3000 User’s Manual 7
Installations
This section provides information on how to use the jumpers and
connectors on the AFW-3000 in order to set up a workable system. The
topics covered are:
Installing the CPU ............................................................ 8
ATX Power Installation.................................................... 9
Installing the Memory....................................................... 9
Setting the Jumpers......................................................... 11
Connectors on AFW-3000 .............................................. 16

INSTALLATIONS
8AFW-3000 User’s Manual
135°
135°
Installing the CPU
The AFW-3000 Server Motherboard supports a CPU socket for Intel®
Xeon?processors. This socket comes with a lever to secure the
processor. Raise this lever to about a 90°angle to allow the insertion of
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, return the
lever to the lock position. Refer to the figures below.
After you have installed the processor into the socket, check if the
jumpers for the CPU type and speed are correct.
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATIONS
AFW-3000 User’s Manual 9
ATX Power Installation
The system power is provided to the AFW-3000 Server Motherboard
with the CN7 and CN8 ATX power connectors. CN8 is a 4-pin power
connector. CN7 is a 20-pin ATX power connector.
Installing the Memory
The AFW-3000 Server Motherboard supports two DDR memory sockets
for a maximum total memoryof 4GB in DDR memory type.
Note: DIMM modules must be DDR/ECC/Reg Only.
Modules “in pairs”must be the same type and size.
The memory module capacities supported are 64MB, 128MB, 256MB,
512MB, 1GB and 2GB. The following table lists the supported DDR
DIMM configurations.
Supported DDR DIMM Configurations.
Density 64 Mbit 128Mbit 256Mbit 512Mbit
Device
Width X4X8X4X8X4X8X4X8
Single/
Double SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS SS/DS
184-pin
DDR 128/256MB
64/128MB 256/512MB
128/256MB
512MB
/1GB 256/512MB
1GB/2GB 512MB
/1GB
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the Server
Motherboard and perform the following steps:
1. Hold the DDR module so that the keysof the DDR module align with
those on the memory slot.
2. Gently push the DDR module in an upright position until the clips of
the slot close to hold the DDR module in place when the DDR module
touches the bottom of the slot.

INSTALLATIONS
10 AFW-3000 User’s Manual
3. To remove the DDR module, press the clips with both hands.

INSTALLATIONS
AFW-3000 User’s Manual 11
Setting the Jumpers
Jumpers are used on AFW-3000 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on AFW-3000 and their respective functions.
Jumper Locations on AFW-3000............................................... 12
SW1 (1-4): For 82546EB Gigabit LAN-1 (CN1, CN2).............. 13
SW1 (5-8): For J2: PCI/PCI-X Slot ........................................... 13
SW2 (1-4): For 82546EB Gigabit LAN-2 (CN3, CN4).............. 14
Configuring the CPU Frequency................................................ 14
JP6: Clear CMOS Contents....................................................... 14
JP8: Power Reset Switch ........................................................... 15
JP9: AT / ATX Power Supply Select ......................................... 15
JP1, JP2, JP3, JP5: Reserved Jumpers........................................ 15

INSTALLATIONS
12 AFW-3000 User’s Manual

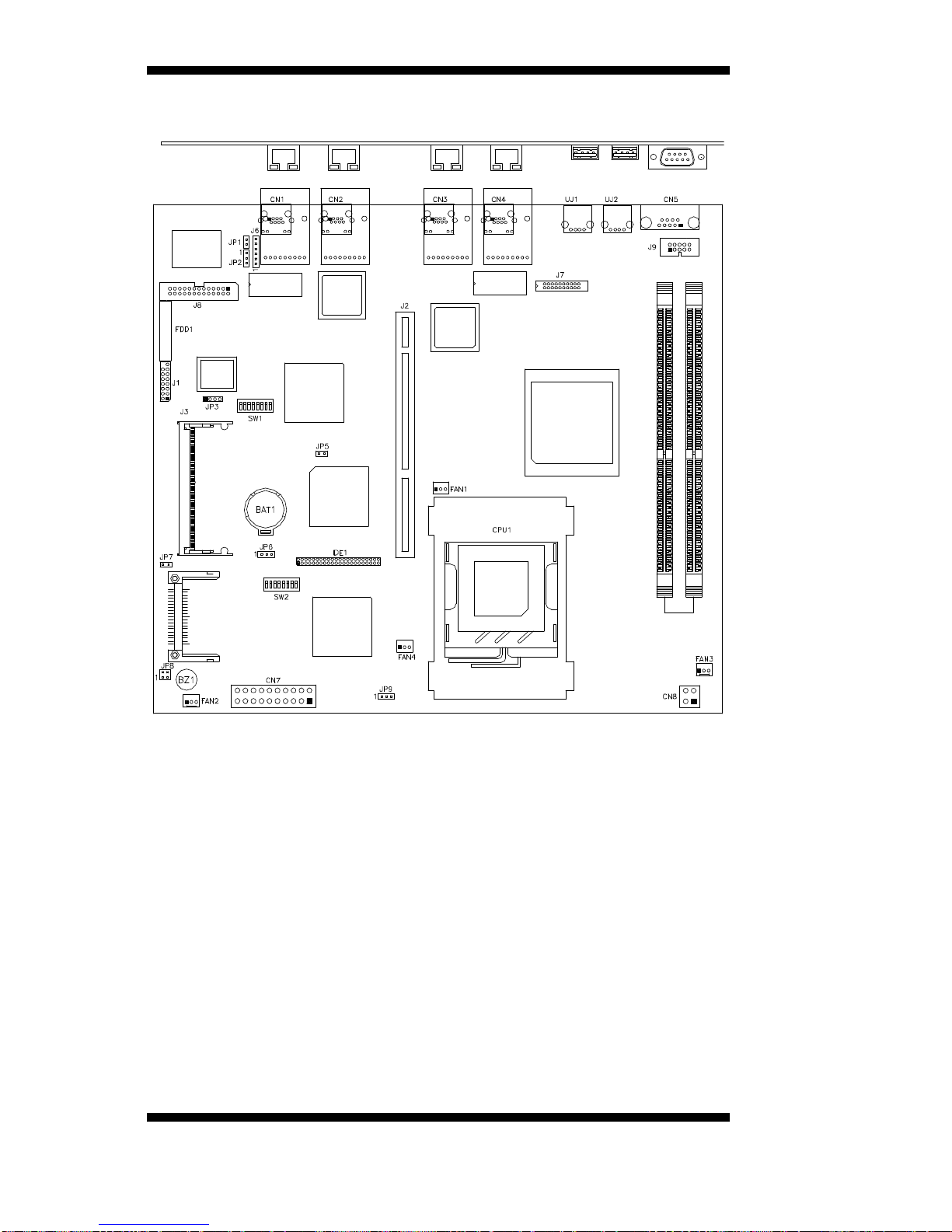

Jumper Locations on AFW-3000

INSTALLATIONS
AFW-3000 User’s Manual 13
SW1(1-4): For 82546EB Gigabit LAN-1 (CN1, CN2)
SW1(1-4)PCI Setting
off on off on xx xx xx xx PCI-33 (32-bit)
off on off off xx xx xx xx PCI-66 (32-bit)
off off on off xx xx xx xx PCI-X-66 (64-bit)
on off off off xx xx xx xx PCI-X-100 (64-bit)
off off off off xx xx xx xx PCI-X-133 (64-bit)
SW1(5-8): For J2: PCI/PCI-X Slot
SW1(5-8)PCI Setting
xx xx xx xx off on off on PCI-33 (32-bit)
xx xx xx xx off on off off PCI-66 (32-bit)
xx xx xx xx off off on off PCI-X-66 (64-bit)
xx xx xx xx on off off off PCI-X-100 (64-bit)
xx xx xx xx off off off off PCI-X-133 (64-bit)

INSTALLATIONS
14 AFW-3000 User’s Manual
SW2(1-4): For 82546EB Gigabit LAN-2 (CN11, CN12)
SW1(1-4)PCI Setting
off on off on PCI-33 (32-bit)
off on off off PCI-66 (32-bit)
off off on off PCI-X-66 (64-bit)
on off off off PCI-X-100 (64-bit)
off off off off PCI-X-133 (64-bit)
REMARKS: SW2: 5,6,7,8 are reserved.
Configuring the CPU Frequency
The AFW-3000 Server Motherboard does not provide DIP switches to
configure the processor speed (CPU frequency). By default, the board
automatically detects the CPU FSB clock.
JP6: Clear CMOS Contents
Use JP6, a 3-pin header, to clear the CMOS contents. Note that the
ATX-power connector should be disconnected from the Server
Motherboard before clearing CMOS.
JP6Setting Function
Pin 1-2
Short/Closed Normal
Pin 2-3
Short/Closed Clear CMOS

INSTALLATIONS
AFW-3000 User’s Manual 15
JP8: Power Reset Switch
JP8Setting Function
Pin 1-2
Short/Closed Reset
Pin 3-4
Short/Closed PW_SW
JP9: AT / ATX Power Supply Select
Use JP9, a 3-pin header, to switch between support for ATX power
supply or AT power supply.
JP9Setting Power Supply Type
Pin 1-2
Short/Closed AT Power (Emulation)
Pin 2-3
Short/Closed ATX Power
JP1, JP2, JP3, JP5: Reserved Jumpers

INSTALLATIONS
16 AFW-3000 User’s Manual
Connectors on AFW-3000
The connectors on AFW-3000 allows you to connect external devices
such as keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on AFW-3000 and their respective
functions.
Connector Locations on AFW-3000...........................................17
CN1, CN2, CN3, CN4: Gigabit LAN RJ45 Connectors..............18
CN5, J9: Serial Ports..................................................................18
CN6: CF Card Connector (Type 1).............................................18
CN7: ATX Power Supply Connector..........................................18
CN8: ATX 12V/+12V Power Connector ....................................19
UJ1, UJ2: USB Ports..................................................................19
J1: VGA CRT Connector ...........................................................19
J6: External Keyboard Connector...............................................19
J7: Extra LAN_LED Define.......................................................20
J8: Parallel Port Connector ........................................................21
IDE1: EIDE Connector..............................................................21
FDD1: Floppy Drive Connector .................................................23
FAN1, FAN2, FAN3, FAN4: CPU Fan Power Connectors.........23
