iBasso Audio OX220 MAX User manual

iBasso Audio
USER GUIDE
用户手册

Android Basic Features Introduction
WiFi Connection/Bluetooth Connection
Contents
Package Components
Main Features
Specifications
Names of Parts & Functions
9-10
7-8
2-6
11-15
18-30
iBasso Mango Music Player Application 31-63
18-20
Charge 16-17
Application (APP) Installation/App， to Uninstall/USB Connections
21-23
Power Off/Reboot/System Switching 30
Playback Screen (home screen) 31-33
System Settings 24-29
Music Screen 34-42
Settings Screen 43-63
System Switching 64
Mango OS 64-67
MQA 67
Mango OS User Interface 65
To Return to The Android System 66

2

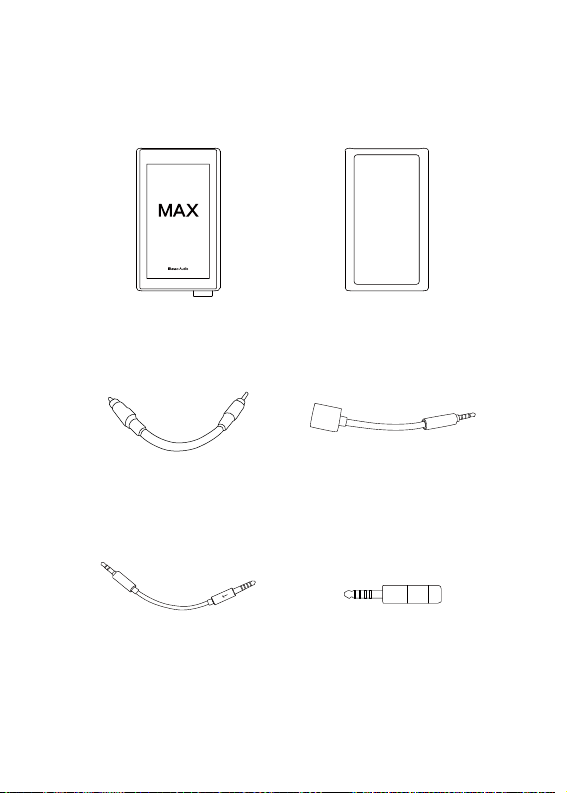

Package Components
DX220MAX player
4.4mm balanced to 3.5mm
single ended cable
CA02 2.5mm balanced to
4.4mm balanced adapter
Coaxial cable Balanced burn-in cable
Leather case

3

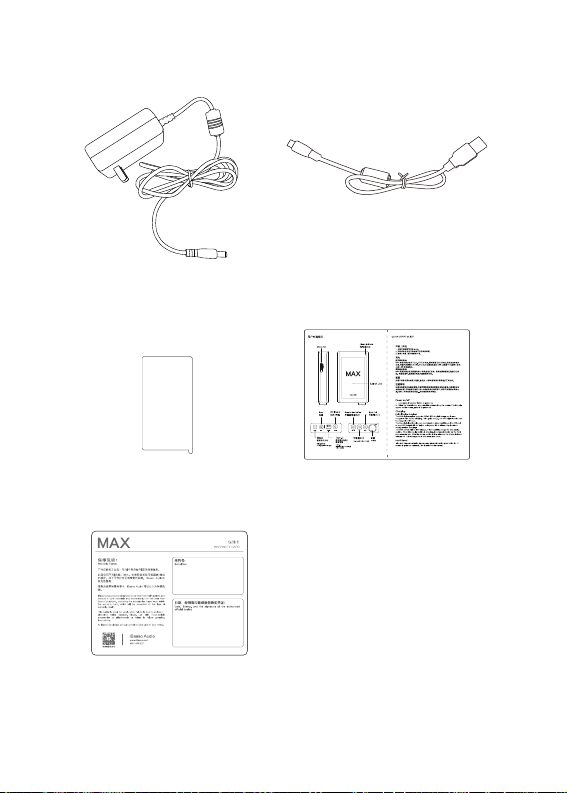

USB-C cable
Screen protector Quick start guide
Warranty card
AC adapter (18V)

4
USB-C cable：
Coaxial cable：
Connect the coaxial cable to an external DAC, to allow the
DX220Max working as a digital transport.
AC adapter (18V)：
Use this AC adapter to charge the battery of the analog
section.
4.4mm balanced to 3.5mm single ended cable:
CA02 2.5mm balanced to 4.4mm balanced adapter:
To output a 3.5mm single ended line from the 4.4mm
balanced line out port. Be aware of that this cable has
direction. It cannot be used for the output from a 3.5mm
port to a 4.4mm input.
Connect the Type-C cable to a computer for charging,
data transfer, and USB-DAC function.The USB-C cable
can also be used with a USB charger to charge the
battery of the digital section.
To convert a 2.5mm balanced plug to a 4.4mm balanced
plug. The furnished burn-in cable is 2.5mm. Therefore,
please use this CA02 with the 2.5mm balanced burn-in
cable when you want to burn-in the DX220Max.
Balanced burn-in cable：
Plug the burn-in cable with the CA02 into the BAL output
socket, and keep playing music to burn-in the DX220Max.
The burn-in process helps the DX220Max's sound reach its
full potential by forming the capacitors and stabilizing the
electronic components used.

5
Leather case：
Use the leather case to protect the DX220Max’s chassis
from scratches.
Screen protector：
Use the screen protector to protect the DX220Max’s
screen from scratches.
Warranty card：
The warranty will be requested at the time of warranty
repair. Please retain the warranty card.
Quick start guide:
This reviews the basic functions of the DX220Max.

6
Tips for burn-in
The use of the burn-in cable is very straightforward. The
burn-in cable is used to form the capacitors and to condition
the rest of the circuitry. The method for burn-in is to use
normal resolution music, as higher resolution causes more
heat due to the higher demand on the system. Also, use a
normal listening volume, as the higher volume will have a
higher power consumption therefore more heat will be
generated. While burning in the Max, both the balanced and
the single ended components are being affected and burned
in.
The burn-in time can be from 100 to 200 hours and the
burn-in doesn't have to be continual. You can power off the
player and continue the burn-in process after a few days. It
is also not mandatory to use the burn-in cable, we supply it
as a convenience for when you are not listening to the Max
and you would like to get your dap conditioned as soon as
possible. You can also just listen to the player and enjoy the
music as your player goes through this process while playing
through IEMs or headphones.

7
Main Features
-The digital and analog sections of the DX220MAX are
powered separately, with each having an independent
charging system. The digital and analog hardware and signal
communications, adopt optocouplers and I2C isolators to
completely isolate the digital to analog sections from any
interference.
-The AMP section is powered by a true +/- 8.4V battery
pack. No voltage boost is used, which ensures the highest
purity and current output.
-An optimized super class A discrete amp circuit, based on
the AMP8 module, which eliminates the switching distortion
of transistors, while providing the sound signature of a class
A amplifier, that also significantly reduces heat generation,
is used.
-The MAX has versatile outputs that incorporate a 4.4mm
balanced line out, 4.4mm balanced phone out, and a 3.5mm
single ended phone out. The voltage output of the 3.5mm
single ended is up to 4.4V RMS, and the balanced phone out
is up to 8.8V RMS.
-Kemet polymer tantalum, Toshin UTSJ, Panasonic, Nichicon
Audio Electronic, Amtrans PET film capacitors are used in
the MAX.
-A custom 4-wiper potentiometer that has less than +/-2dB
channel tolerance has been selected.
-Dual SABRE ES9028PRO DAC Chips are incorporated.
-Bit for Bit playback with support up to 32bit/384kHz.
-Support of Native DSD up to 512x.
-5.0" IPS full screen (1080*1920), with On Cell capacitive
touch panel.

8
-Corning glass on the tront screen and rear panel.
-Support of QC3.0, PD2.0, & MTK PE Plus quick charge for
digital section.
-XMOS USB receiver with Thesycon USB audio driver, making
this an easy to use USB DAC.
-A Total of 5pcs of Femtosecond league oscillators, with 2 of
them being Accusilicon ultra low phase noise Femtosecond
oscillators.
-8-core CPU.
-Mini optical output and mini coaxial output.
-4GB LPDDR3.
-128G internal memory.
-5G WiFi and Bluetooth 5.0.
-Support SDXC and SDHC Micro SD cards.
-Three settings of gain control.
-Audio Formats Supported: MQA, APE, FLAC, WAV, WMA, AAC,
ALAC, AIFF, OGG, MP3, DFF, DSF and DXD.
-Support for M3U playlists.
-4400mAh 3.8V Li-Polymer battery for the digital section, and
4pcs 900mAh Li-polymer battery form the +/-8.4V battery
pack for the analog section.

9
Specifications
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
8.8VRMS (-108dB, 0.0004% , no load）
8.7VRMS (-107dB, 0.00045% @300ohm)
10Hz--40KHZ(-0.2dB)
125dB
-125dB
-114dB (0.0002%) (3VRMS, DAC132, no load）
-113.5dB (0.00021%) (3VRMS, @300ohm)
-101.5dB (0.00084%) (3VRMS, @32ohm)
-119dB
4.4VRMS (-105.5dB, 0.00053%, no load）
4.35VRMS (-104dB, 0.00063% @300ohm)
10Hz--40KHZ(-0.2dB)
122dB
-122dB
-114dB (0.0002%) (2.5VRMS, no load, DAC140)
-112dB (0.00025%) (2.5VRMS, @300ohm)
-97dB (0.0014%) (2.5VRMS, @32ohm)
-118dB
4.4mm Headphone Out :
3.5mm Headphone Out:

10
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
4.4VRMS (-112dB, 0.00025%, no load)
10Hz--40KHZ(-0.2dB)
125dB
-125.8dB
-115.4dB (0.00017%) (2.6VRMS, DAC141)
-115dB
14 hours
(The play time varies with different
resolutions and headphone/IEM loads.)
4.4mm Line Out:
Average Play Time:
Charging time：
Digital Section Charging：2 hours
2.5 hours
Analog Section Charging：

11

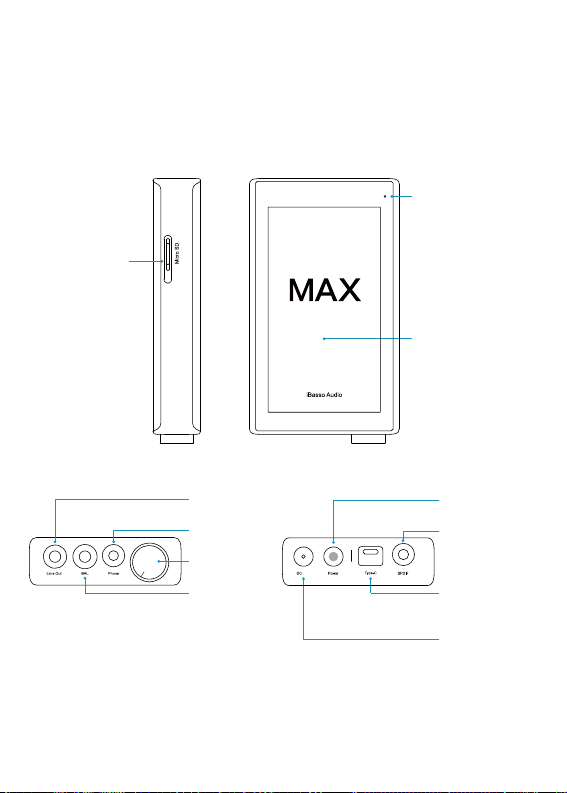

Names of Parts & Functions
Charge Indicator
Micro SD Card Slot
5.0inch LCD
Power/
System Switching
Mini Optical/
Coaxial Output Port
Digital Section Charging/
Data Transfer
USB-C Port
Analog Section Charging
Charge Port
4.4mm Line
Out Port
3.5mm Phone
Port
Volume Control
4.4mm Balanced
Phone Out Port
IN

12
Mini Optical/Coaxial Output Port:
Use a mini optical cable or the furnished coaxial cable to play
music stored in the MAX on an external device with a coaxialor
optical input port. Mini optical/coaxial output has the highest
output priority which would close the phone out or line out when
optical/coaxial cable plugged in. The output of his port is up to
24bit/192kHz or DoP DSD64.
Volume Control
Turn clockwise to increase the volume, turn counterclockwise to
decrease the volume.
USB-C Port
Connect the MAX to a computer or a USB charger to charge the
MAX’s digital section.
Connect the MAXto a computer to allow the MAX to work as a
card readeror an external storage.
Connect the MAX to an OTG storage device to play music files
stored in this OTG storage device.
Connect the MAX to a PC or a Mac computer to work as a USB
DAC.
4.4mm Line Out Port:
Use a 4.4 interconnect cable to play music stored in the MAX on
an external amplifier with a balanced line in port.
Use the furnished 4.4 to 3.5 interconnect cable to play music
stored in the MAX on an external amplifier with a 3.5mm single
ended line in port.
Power/System Switching
Short Press-Power the LCD screen on and off.
Long Press-To display the pop up window with three options that
are Power off, Reboot, and To Mango.

13
3.5mm Phone Out Port
Plug in the 3.5mm single-ended monitor and output sound
through the phone port.
4.4mm Balanced Phone Out Port:
Plug in the 4.4mm (2.5mm with adapter) balanced earphone and
output sound through the balanced phone port.
Micro SD Card Slot
Insert a Micro SD card into the DX220Max to access its stored
files.

14
Power on/off:
1. Press and hold the power button to power on.
2. After the DX220Max is powered on, a long press of the Power
button to display the pop up window, press Power Off button
to power off the DX220Max.
Power on/off the screen:
Single press the power button to power on/off the screen after
the DX220Max was powered on.
Reset:
When the DX220Max stop unexpectedly duringoperation and the
keys are no longer responsive, press and hold the power button
for 10 seconds to reset the DX220Max.
Charging:
DX220Max supports three quick charge protocols, QC3.0, PD2.0,
and MTK PE Plus. Charging can be done with a standard 5V
USB charger or with quick charger that is compliant the stated
3 protocols. A full charge takes about 2.5 hours with the afore
mentioned quick charge types.
Connecting to a computer to work as a
USB DAC:
Basic Operation:
The DX220Max can work as a USB DAC for Windows PC, Mac
computer, and Linux computer.
It is driver free on Mac computer and Linux computer. For
Windows PC, one can download the driver from iBasso. com and
install it following the steps, before using the USB DAC function.

15
The following is the instruction:
The DX220Max supports up to 32bit/384kHz PCM, and native
DSD up to 512x when be used as a USB-DAC.
1. Power on the DX220Max.
2. Press the DAC on button on Settings/DAC.
3. The“USB DAC”screen will be shown on the DX220Max.
4. Connect the DX220Max to a computer via the furnished
type-C Cable.
5. Select “iBasso Audio HiFi device” as the audio output device.
Then one can play music on the computer and listen it via the
DX220Max.

Charging the Analog Section:
Charge
16
With the furnished AC adapter (18V), the analog section can be
fully charged in about 2 hours. The battery indicator and status of
the analog section is displayed in the upper left corner, the first
from the left is the battery indicator, the second one is the battery
status. The indicator will display the lightning symbol when
charging, and it will show a red exclamation mark when the
battery is empty. When the battery of the analog section is empty,
the amp function cannot be used. At this time, the digital section
would not be affected. But there will be no sound when using the
3.5mm phone out, 4.4mm balanced phone out, or 4.4mm line out.

17
Charging the Digital Section:
The digital section of the Max can be charged via the USB-C
port. The USB charge supports PD2.0, QC3.0, MTK PE + quick
charging protocols, and the charging time is about 2.5 hours.

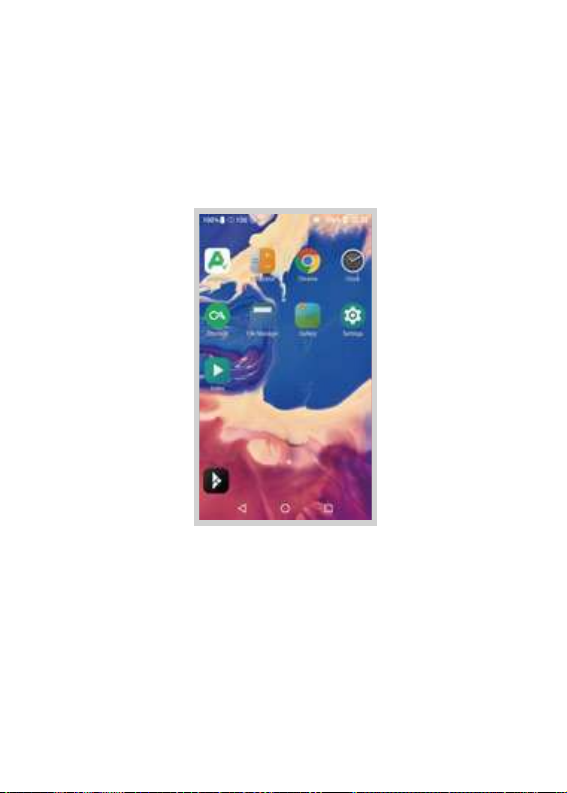

The status bar of the digital section is located at the upper right.
The third from the right is the battery indicator, and the second
from the right is the battery status. When charging, the battery
icon will display a lightning icon. When the battery is 0%, the
MAX will be powered off.

18

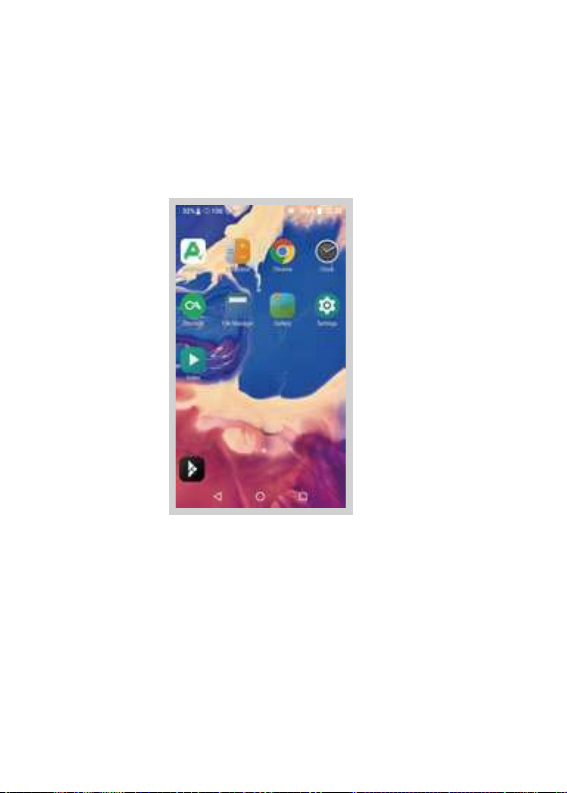

Battery indicator
for analog section
Battery indicator for
digital section
WIFI
Time
DAC Volume
Android Basic Features
Introduction

19
WiFi Connection:
① On the Android desktop, from the top, swipe down
the screen to display the notification bar.
② Press the Wireless local area network(WLAN) to turn
on the WiFi function. The first time you enter the WLAN,
you need to choose the hot spot you will be using and
enter the password. From this point forward your
password for this hotspot will be remembered and you
simply press the WLAN icon to connect to the WiFi
internet.
