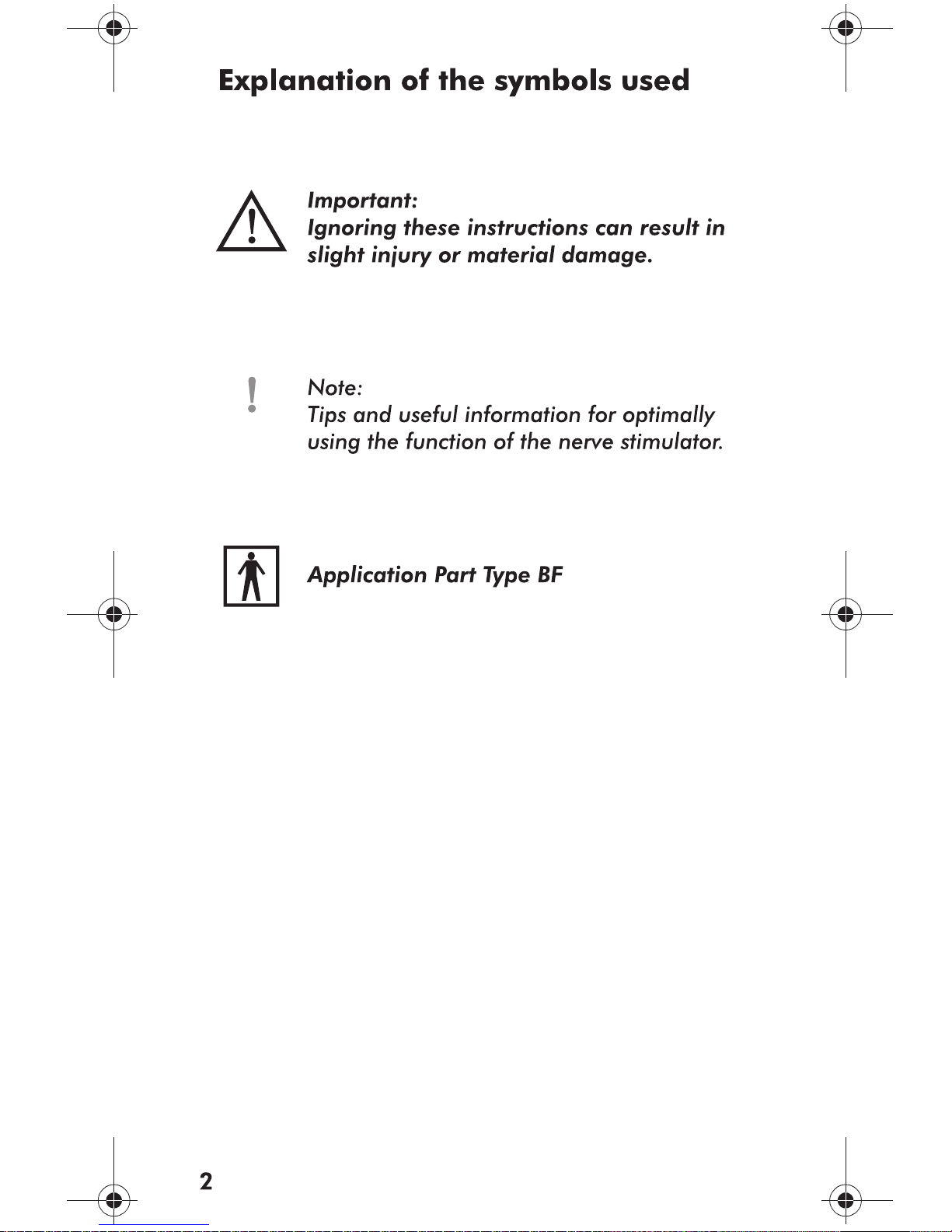

IBP ELECTRICAL NERVE STIMULATOR User manual

4
Product information
Today, electrical nerve stimulation has a secure place
as a recognised therapeutic method for relieving pain.
Without doubt, it represents a supplement and an al-
ternative to conventional pharmacological and neuro-
surgical pain therapy.
Successes in many areas of pain relief — both with
chronic and acute pain — is resulting in an increasing
number of doctors and therapists using this method.
This treatment method is gentle on the body and has
no side-effects. The pain is soothed by the transfer of
electrical pulses to the nerve fibres, which function as
conductors for pain. Muscle fibres can also be relie-
ved.
The electrical nerve stimulator acts via two different me-
chanisms:
• The electrical pulse acts on the nerve fibres and can
prevent pain signals from being sent on to the brain.
• The body's pain suppression system is stimulated to
produce its own pain-soothing substances (endor-
phins) and release them into the bloodstream.
This results in pain being relieved effectively, naturally
and without recourse to medicines. A successful thera-
py program, based on co-operation between the user
and the doctor, and effective treatment with the electri-
cal nerve stimulator.
Therapy with the electrical nerve stimulator has proven
particularly successful against muscular pain, joint
pain, neuralgia and amputation pain.
The unit can be used for the following indications (also
see the Appendix "Doctor's setting recommendations"):
• Neck, chest and lumbar vertebrae syndrome
• Intercostal neuralgia
Akupunktur_en.fm Seite 4 Dienstag, 7. Januar 2003 3:17 15

5
• Shoulder/arm syndrome
• Tennis elbow
• Knee and hip arthritis
• Phantom pain
• Tension headaches
• Stiffness of the joints after extended periods of non-
movement
• Muscular injuries and sprains
Do not perform any therapy without first having obtai-
ned a doctor's diagnosis. Since the sensitivity to the
current is different for every patient, no precise details
can be given here. The settings for the therapy must be
made under the doctor's supervision!
Contra-indications: (see ”Correct use” on Page 6)
Scope of delivery
• Electrical nerve stimulator
• Block battery (9 V)
• Operating instructions
• Case
Akupunktur_en.fm Seite 5 Dienstag, 7. Januar 2003 3:17 15

6
Correct use
The electrical acupuncture unit is used to directly stimu-
late the nerves by way of electrical pulses. The unit is
used for self-treatment of discomfort and pain, tension
and stress-related problems. Other areas of use and
possible acupuncture points will be outlined in these
operating instructions.
The unit may only be used as described in
the operating instructions. It must not be
misused or used for purposes other than
those for which it is intended.
The system is for external use only (appli-
cation via the dry skin).
Do not use the unit when bathing or ta-
king a shower, and protect it against moi-
sture. Damp or wet skin conducts
electricity better than dry skin, thereby
increasing the effect of the electrical pul-
ses.
Do not use the unit of the patient:
• has heart problems,
• particularly heart rhythm problems
• has a heart pacemaker or other implants
• is pregnant
• is a child
Not following these instructions can be
harmful to the patient's health.
Akupunktur_en.fm Seite 6 Dienstag, 7. Januar 2003 3:17 15

7
Do not use the unit on the eyelids or on
the front of the neck (only after consul-
ting a doctor) or so that electricity is con-
ducted via the heart (e.g. in the direct
proximity of the heart) or brain (e.g. on
the temples). Not following these instruc-
tions can be harmful to the patient's he-
alth.
Use the unit for at most 3-5 times per day
for a maximum of 3-5 minutes.
Terminate use and consult your doctor as
soon as the therapy becomes unpleasant
of ineffective.
Akupunktur_en.fm Seite 7 Dienstag, 7. Januar 2003 3:17 15

8
General safety and warning instructions
If the device becomes damaged, send it to our Service
Centre. See "Service and warranty" on page 36.
Read these operating instructions care-
fully before using the electrical nerve sti-
mulator! The operating instructions must
be followed and the unit must be used
correctly!
Keep the unit is a safe place away from
children.
Do not use the unit in the vicinity of
microwave appliances or short-wave
units. Electromagnetic interaction can im-
pair the function of these units and of the
electrical acupuncture unit.
Do not use the unit in the vicinity of high-
frequency surgical devices. Electro-ma-
gnetic interaction can produce high tem-
peratures that can cause burns.
Do not use the unit in aircraft. The electri-
cal pulses of the electrical acupuncture
unit can interfere with the aircraft's elec-
tronic systems and put at risk the safety of
the passengers and crew.
Akupunktur_en.fm Seite 8 Dienstag, 7. Januar 2003 3:17 15

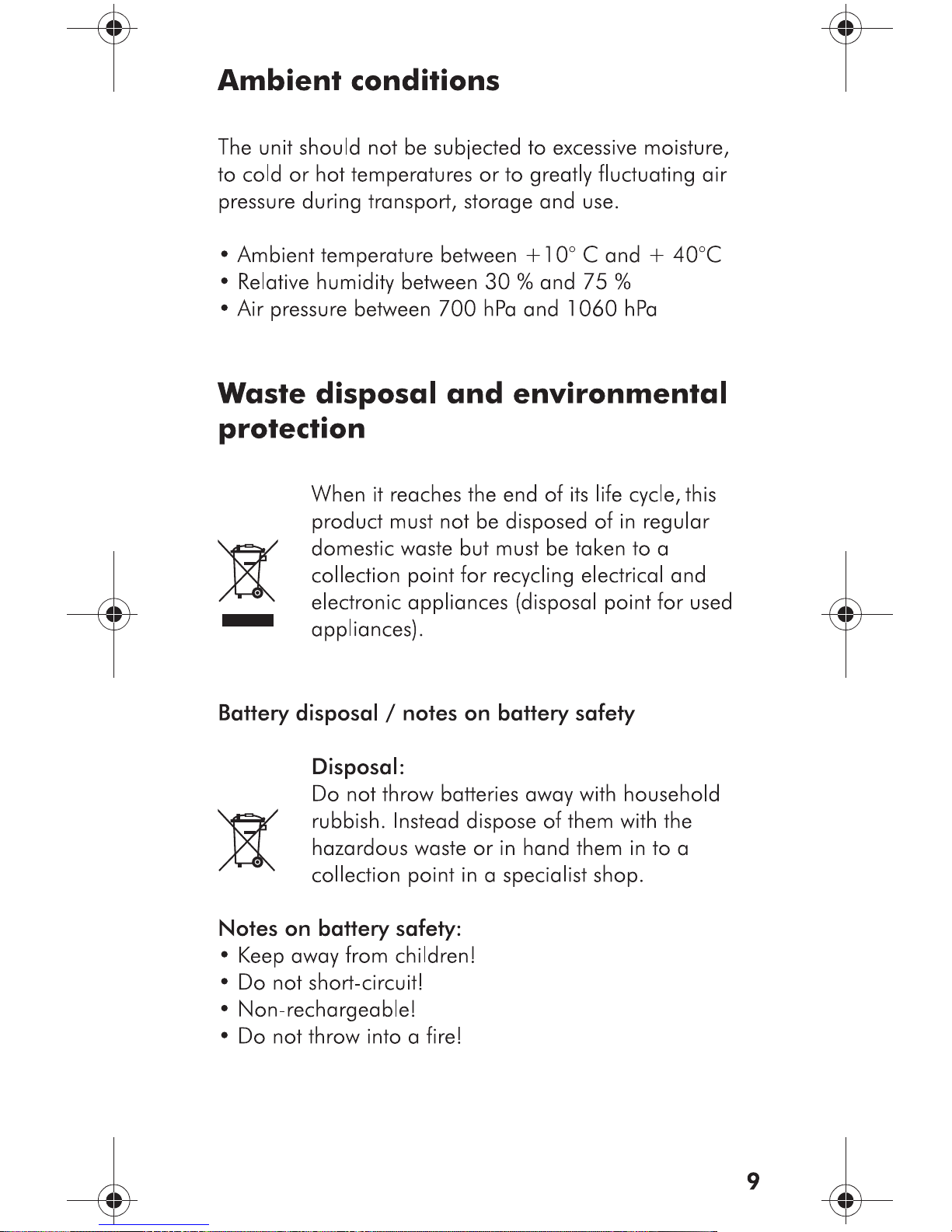

10

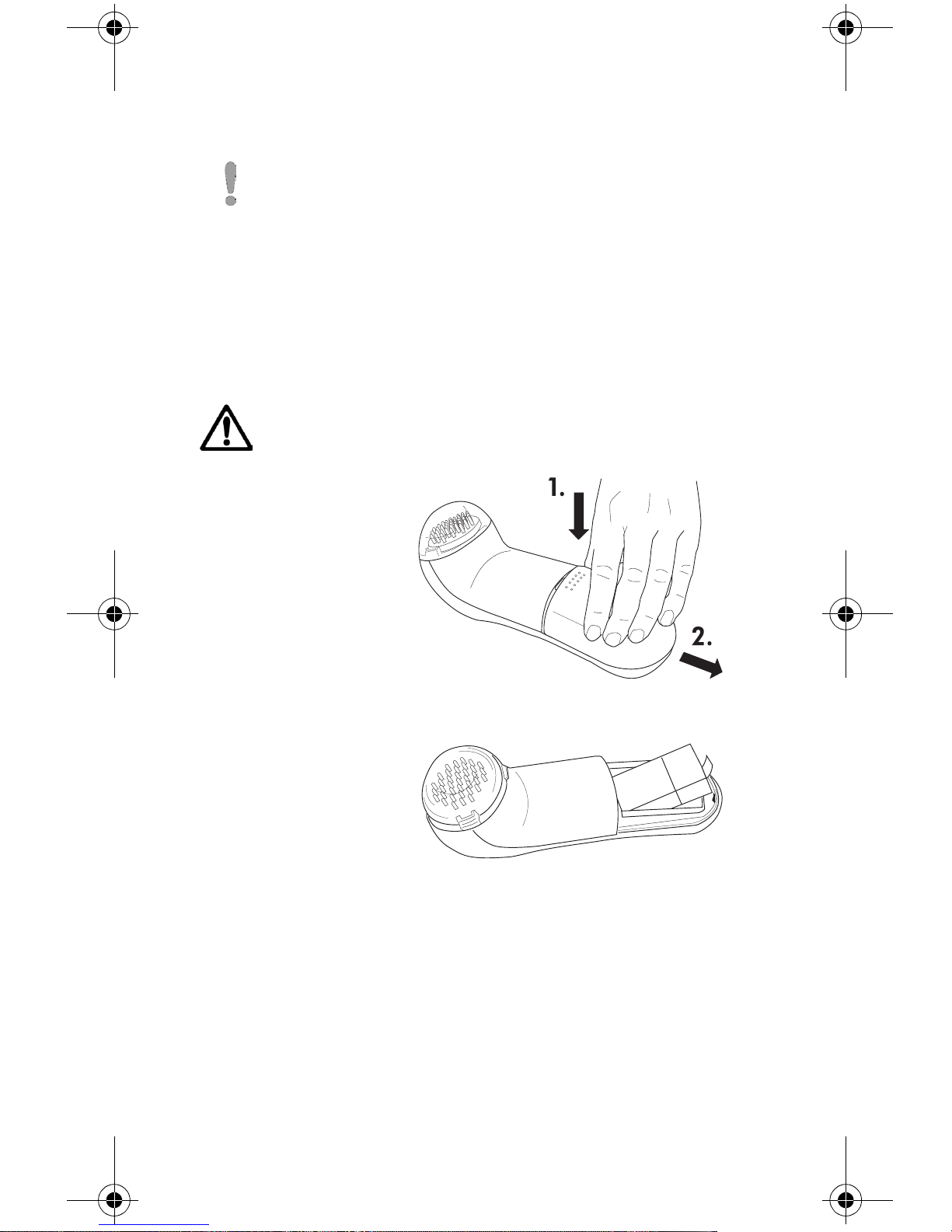

Putting into operation
Note:
A 9 V block battery is provided to operate the
unit. It is always possible to use a rechargeable
battery. However, in this case it must be noted
that the battery is charged up before use.
Also note that alkali batteries have a higher ca-
pacity and service life than rechargeable bat-
teries.
Damaged batteries and rechargeable
batteries may not be used!
>Open the battery
compartment by
pressing on the
napped surface
andpullingoffthe
cover at the same
time.
>Insert the battery
so that the polari-
ty corresponds to
thedrawinginthe
bottom of the bat-
tery compartment.
>Close the battery
compartment.
Akupunktur_en.fm Seite 10 Dienstag, 7. Januar 2003 3:17 15

11
Use
>Remove the transparent protec-
tive cap of the stimulation pins.
>Set the intensity regulator to the
level recommended by your
doctor.Thisswitchesontheunit
and the indicator on the unit li-
ghts up.
>Gently guide the stimulation
pins with circular movements
over the parts of the skin discus-
sed with your doctor (see ”Doc-
tor's setting recommendations”
on Page 17). If the battery is
discharged, the stimulation is
stoppedandtheindicatorlamp
goes out.
>After the end of treatment,
switch off the unit by turning the
intensity regulator to the circle
and point. You must be able to
clearly feel the regulator enga-
ging and the indicator on the
unit goes out.
>Replace the transparent protec-
tive cap in order to protect the
stimulation pins.
Akupunktur_en.fm Seite 11 Dienstag, 7. Januar 2003 3:17 15

12

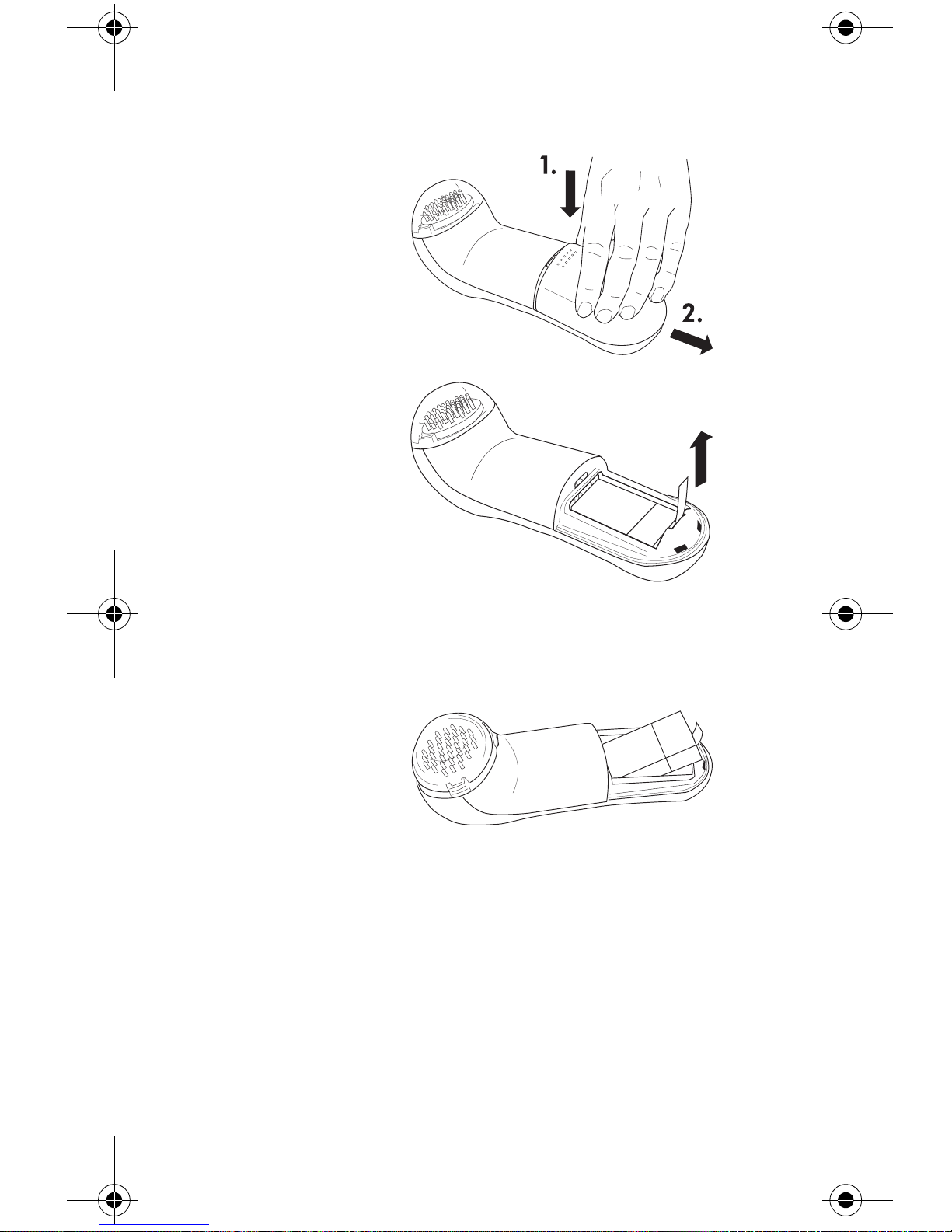

Changing the battery
>Openthebattery
compartment by
pressing on the
napped surface
and pulling off
the cover at the
same time.
>To remove the
battery, press it
down slightly at
the front and pull
it out of the hou-
sing with the aid
of the tape.
>Insert the new
battery so that
the polarity cor-
responds to the
drawing in the
bottom of the
battery compart-
ment.
>Closethebattery
compartment.
Akupunktur_en.fm Seite 12 Dienstag, 7. Januar 2003 3:17 15

13
Care
>Switch off the unit when it is not in use.
>Regularly check the state and charging capacity of
the battery, because the function and the storage
time are limited by the battery's service life.
>Remove the batteries from the unit if you are not
going to use it for a long time. Discharged batteries
can leak and damage the unit.
>Protect the unit from moisture, otherwise the electro-
nics can be damaged. Do not immerse the unit in
water or other liquids. Clean it only with a slightly
damp cloth.
>When using a rechargeable battery, this should
always be stored fully charged in order to obtain its
longest possible service life. The battery should not
be completely (exhausted), because this can dama-
ge it. For the charging time, refer to the instructions
for the charger and the battery manufacturer's
instructions.
Akupunktur_en.fm Seite 13 Dienstag, 7. Januar 2003 3:17 15

15

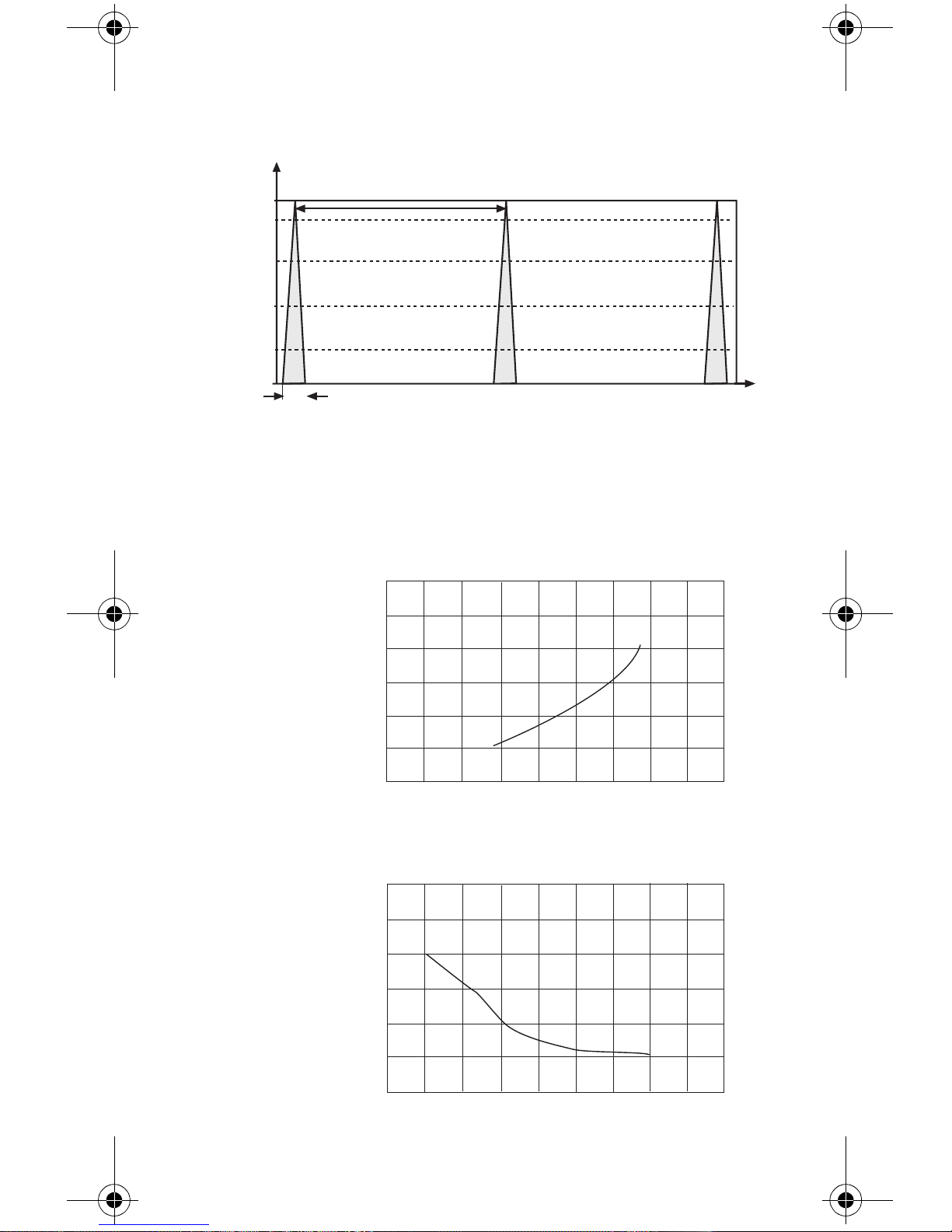

Output curves
Output curve shape
Load
impedance
Load
impedance
450
400
300
200
100
0
[V]
t 2 = 0.1 s
Prf = 10 Hz
t
1 = 0.001 s
[t]
[
k]
[V]
25
20
15
10
5
0100 200 300 400 500 600 700 800
[
k]
[mA]
25
20
15
10
5
04.1 4.125 4.15 4.175 4.2 4.225 4.25 4.275
Akupunktur_en.fm Seite 15 Dienstag, 7. Januar 2003 3:17 15

16
Effective
voltage
Effective
voltage
[V]
[V]
9
8
7
6
5
250 300 350 400 450 500 550 600
[V]
[mA]
9
8
7
6
5
2.0 2.5 3.0 4.5 4.0 4.5 5.0 5.5
Akupunktur_en.fm Seite 16 Dienstag, 7. Januar 2003 3:17 15

17
Doctor's setting recommendations
Discuss the course of treatment with your doctor.
He/she will advise you on the duration, frequency
and intensity of use.
Application period and frequency
Unless otherwise stated by the doctor, treatment is re-
commended 3 to 5 times daily, each time for a period
of 3-5 minutes.
Treatment of the selected areas should be conducted
by performing gentle circular movements stroking
across the skin.
Regulating the intensity
Intensity sensitivity can depend on your day-to-day
condition. Adjust the intensity as required.
The stimulation intensity can be set with the intensity re-
gulator. The rotary regulator is labelled with the num-
bers 1-5; the higher the set number, the greater the
intensity (pulse amplitude). During use, the patient
should feel the characteristic tingling sensation.
Akupunktur_en.fm Seite 17 Dienstag, 7. Januar 2003 3:17 15

18
Ask your doctor to note his recommendations here:
Therapie 1
Recommended treatment points:
Recommended intensity:
Recommended duration:
Recommended frequency:
Akupunktur_en.fm Seite 18 Dienstag, 7. Januar 2003 3:17 15

19
Therapie 2
Recommended treatment points:
Recommended intensity:
Recommended duration:
Recommended frequency:
The following is an overview of the possible uses for
electro-acupuncture:
Akupunktur_en.fm Seite 19 Dienstag, 7. Januar 2003 3:17 15

Test electro-acupuncture
20

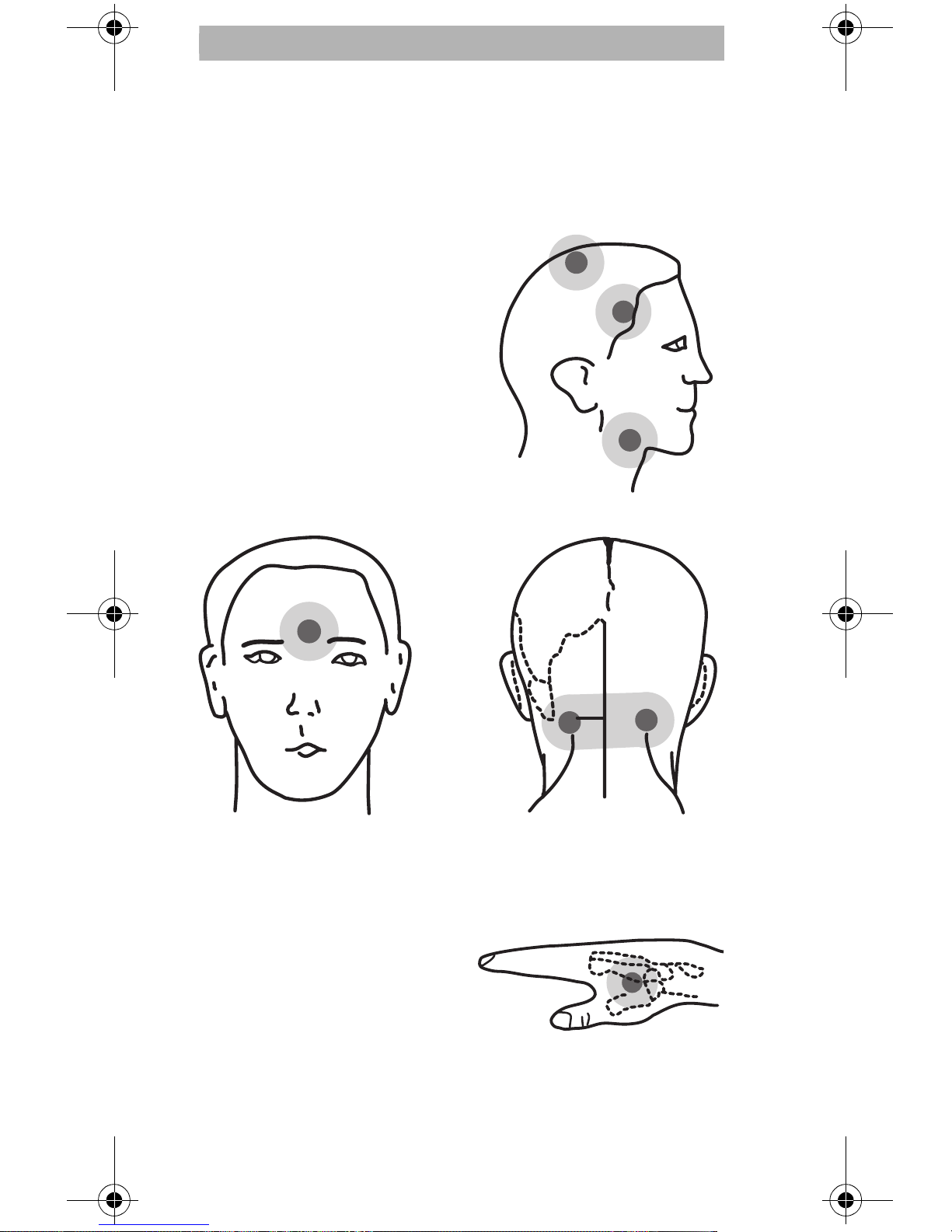

Headaches
Headaches have many causes, e.g. migraine, engor-
gement, problems with the sinuses or teeth, over-exer-
tion, fatigue, tension, pressure etc.
Try to reduce the discomfort
byexcitingthe points shown
in the drawings, either di-
rectly or by stroking over
them in circular movements.
Figure 1
Figure 2: Particularly effective
against deep headaches Figure 3: Particularly effective
against headaches caused by
engorgement
Figure 4: Outside, effective
against general headaches
