Iceking IK5050FF User manual

Installation and Operating Manual
IK5050FF
Frost Free Fridge Freezer
Iceking: Henry John House Northway Industrial Estate Northway Lane
Ashchurch Tewkesbury Gloucestershire GL20 8JH T: 01527 888133 E:
W: www.ice-king.co.uk

User Instruction
50/50 Frost Free
Fridge Freezer
IK5050FF
Content
1. Safety Information Page 1-9
2. Overview Page 10
3. Installation Page 11-15
4.User Control Panel Page 16~17
5. Daily Use Page 18~21
6. Guarantee Page 22-25

In the interest of your safety and to ensure the correct use,
before installing and first using the appliance, read this
user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important
to ensure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these
instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it
through its life will be properly informed on appliance use
and safety.
For the safety of life and property keep the precautions of
these user’s instructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
in struction concerning use of the appliance in a safe
way and understand the hazards involved.
•Children aged from 3 to 8 years are allowed to load and
unload this appliance.
•Children should be supervised to ensure that they do
not play with the appliance.
•Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above
and supervised.
•Keep all packaging well away from children. There is
risk of suffocation.
Safety information
1

•If you are discarding the appliance pull the plug out of
the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to prevent
playing children to suffer electric shock or to close
themselves into it.
•If this appliance featuring magnetic door seals it is to
replace an older appliance having a spring lock(latch),
make sure the spring lock is made unusable before
your discard the old appliance. This will prevent it from
becoming dangerous for children.
General safety
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating
appliance, unless they are approved for this purpose by
the manufacture.
WARNING! Do not touch the light bulb if it has been
on for a long period of time because it could be very
hot.1)
1) If there is a light in the compartment
Safety information
2

WARNING! When positioning the appliance, ensure
the supply cord is not trapped or damaged.
WARNING! Do not locate the multiple portable
socket-outlets or portable power suppliers at the rear of
the appliance.
•Do not store explosive substances such as aerosol
cans with flammable propellant in this appliance.
•The refrigerant isobutane (R-600a) is contained within
the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which is
nevertheless flammable.
•During transportation and installation of the appliance,
be certain that none of the components of the
refrigerant circuit become damaged.
-avoid open flames and sources of ignition
-thoroughly ventilate the room in which the appliance is
situated
•It is dangerous to alter the specifications or modify this
product in any way. Any damage to the cord may cause
a short circuit, fire and/or electric shock. This appliance
is intended to be used in household and similar
applications such as
-staff kitchen areas in shops, offices and other
working environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
Safety information
3

WARNING! Any electrical components (plug, power
cord, compressor and etc.) must be replaced by a
certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance
is a “special use lamp bulb” usable only with the
appliance supplied. This “special use lamp” is not
usable for domestic lighting.1)
•Power cord must not be lengthened.
•Make sure that the power plug is not squashed or
damaged by the back of the appliance. A squashed or
damaged power plug may overheat and cause a fire.
•Make sure that you can come to the mains plug of the
appliance.
•Do not pull the mains cable.
•If the power plug socket is loose, do not insert the
power plug. There is a risk of electric shock or fire.
•You must not operate the appliance without the lamp.
•This appliance is heavy. Care should be taken when
moving it.
•Do not remove or touch items from the freezer
compartment if your hands are damp/wet, as this could
cause skin abrasions or frost/freezer burns.
•Avoid prolonged exposure of the appliance to direct
sunlight.
Daily use
•Do not put hot on the plastic parts in the appliance.
•Do not place food products directly against the rear wall.
1) If there is a light in the compartment
•Frozen food must not be re-frozen once it has been
Safety information
thawed out.1)
4

•Store pre-packed frozen food in accordance with the
frozen food manufacturer’s instructions.1)
•Appliance’s manufacturer’s storage recommendations
should be strictly adhered to. Refer to relevant
instructions.
•Do not place carbonated of fizzy drinks in the freezer
compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to
the appliance.1)
•Ice lollies can cause frost burns if consumed straight
from the appliance.1)
•To avoid contamination of food, please respect the
following instructions.
•Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
•Clean regularly surfaces that can come in contact with
food and accessible drainage systems.
•Clean water tanks if they have not been used for 48h;
flush the water system connected to a water supply if
water has not been drawn for 5 days.
•Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
•Two-star frozen-food compartments (if they are
presented in the appliance) are suitable for storing pre-
frozen food, storing or making ice-cream and making
ice cubes.
•One-, two- and three -star compartments (if they are
Safety information
5

presented in the appliance) are not suitable for the
freezing of fresh food.
•If the appliance is left empty for long periods, switch off,
defrost, clean, dry and leave the door open to prevent
mount developing within the appliance.
Care and cleaning
•Before maintenance, switch off the appliance and
disconnect the mains plug from the mains socket.
•Do not clean the appliance with metal objects.
•Do not use sharp objects to remove frost from the
appliance. Use a plastic scraper.1)
•Regularly examine the drain in the refrigerator for
defrosted water. If necessary, clean the drain. If the
drain is blocked, water will collect in the bottom of the
appliance.2)
Installation
Important! For electrical connection carefully follow the
instructions given in specific paragraphs.
•Unpack the appliance and check if there are any
damages on it. Do not connect the appliance if it is
damaged. Report possible damage immediately to the
place you bought it. In that case retain packing.
•It is advisable to wait at least four hours before
connecting the appliance to allow the oil to flow back in
the compressor.
1) If there is a freezer compartment
2) If there is a fresh-food storage compartment
•Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
Safety information
6

ventilation, follow the instructions relevant to installation.
•Wherever possible the spacers of the product should be
against a wall to avoid touching or catching warm parts
(compressor, con-denser) to prevent possible burn.
•The appliance must not be located close to radiators or
cookers.
•Make sure that the mains plug is accessible after the
installation of the appliance
Service
•Any electrical work required to do the servicing of the
appliance should be carried out by a qualified
electrician or competent person.
•This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
Energy Saving
•Don't put hot food in the appliance;
•Don’t pack food close together as this prevents
air circulating;
•Make sure food don't touch the back of
the compartment(s);
•If electricity goes off, don't open the door(s);
•Don't open the door(s) frequently;
•Don't keep the door(s) open for too long time;
Safety information
7

•Don't set the thermostat on exceeding cold
temperatures;
•All accessories, such as drawers, shelves and
balconies, should be kept there for lower energy
consumption.
Environment Protection
This appliance does not contain gases which could
damage the ozone layer, in either its refrigerant circuit or
insulation materials. The appliance shall not be discarded
together with the urban refuse and rubbish. The insulation
foam contains flammable gases: the appliance shall be
disposed of according to the appliance regulations to
obtain from your local authorities. Avoid damaging the
cooling unit, especially the heat exchanger. The materials
used on this appliance marked by the symbol are
recyclable.
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead, it should be taken to the
appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. For more
detailed information about recycling of this product, please
contact your local council, your household waste disposal
service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable.
Safety information
8



Dispose the packaging in a suitable collection container to
recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
WARNING! During using, service and disposal
of the appliance, please pay attention to symbol
similar as left side, which is located on
rear of appliance (rear panel or compressor) and with
yellow or orange color.
It’s a risk of fire warning symbol. There are flammable
materials in refrigerant pipes and the compressor.
Please be far away from fire sources during using, service
and disposal.
Safety information
9

Note: This installation is only for hinting. For details, please check your appliance.
Overview
10

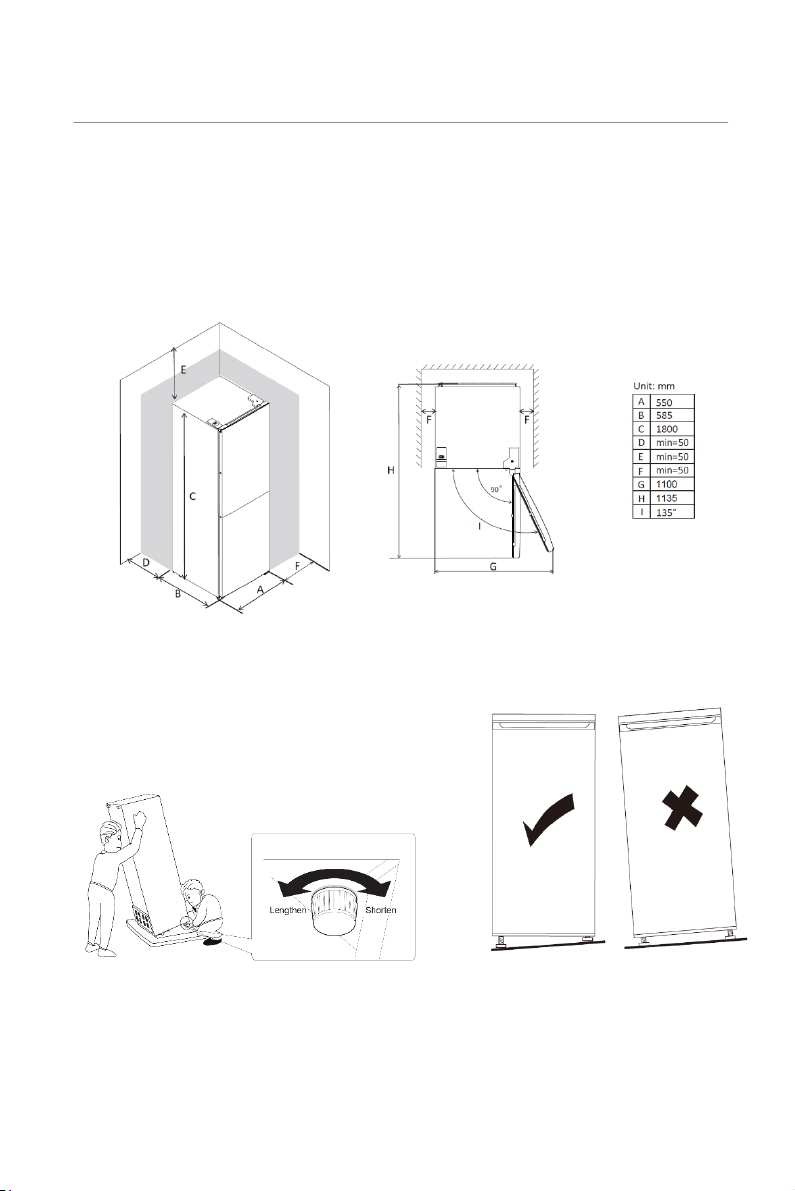

Space Requirement
·Select a location without direct exposure to sunlight;
·Select a location with enough space for the refrigerator doors to open easily;
·Select a location with level (or nearly level) flooring;
·Allow sufficient space to install the refrigerator on a flat surface;
·Allow clearance to the right, left, back and top when installing. This will help reduce power
consumption and keep your energy bills lower.
·Keep at least 50mm gap at two sides and back.
Levelling the unit
To do this, adjust the two levelling feet in the front
of the unit.
If the unit is not level, the door and magnetics seal
alignments will not be covered properly.
Installation
11

class indicated on the rating plate of appliance:
for refrigerating appliances with climate class:
•extended temperate: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 10℃ to 32 ℃; (SN)
•temperate: this refrigerating appliance is intended to be used at ambient temperatures.
ranging from 16℃ to 32 ℃; (N)
•subtropical: this refrigerating appliance is intended to be used at ambient.
temperatures ranging from 16℃ to 38 ℃; (ST)
•Tropical: this refrigerating appliance is intended to be used at ambient temperatures
ranging from 16℃ to 43 ℃; (T)
Location
The appliance should be installed well away from sources of heat such as radiators, boilers,
direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To
ensure best performance, if the appliance is positioned below an overhanging wall unit,
the minimum distance between the top of the cabinet and the wall unit must be at least
50mm. ideally, however, the appliance should not be positioned below overhanging wall
units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.
This refrigerating appliance is not intended to be used as a built-in appliance;
Warning! It must be possible to disconnect the appliance from the mains power supply; the
plug must therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to
your domestic power supply. The appliance must be earthed. The power supply cable plug is
provided with a contact for this purpose. If the domestic power supply socket is not earthed,
connect the appliance to a separate earth in compliance with current regulations, consulting a
qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not observed. This
appliance complies with the E.E.C. Directives.
Door reversibility

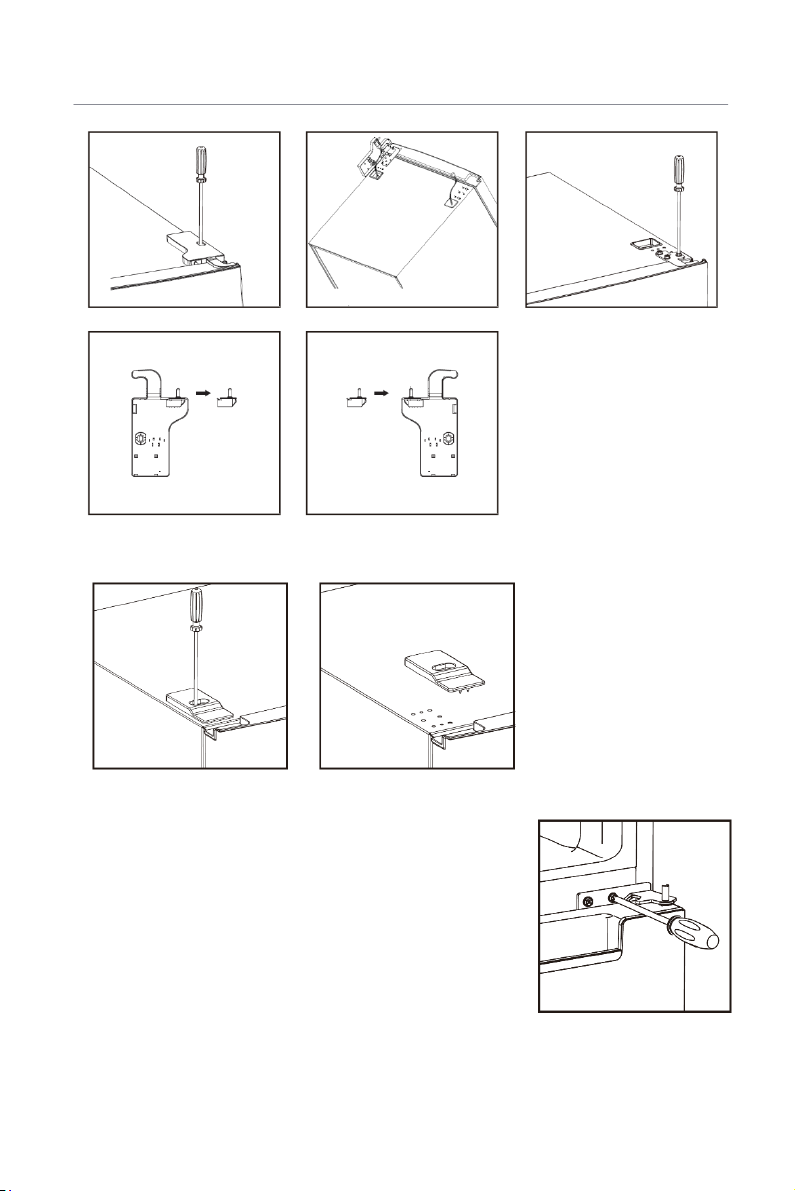

Before reversing the door, please prepare below tools and material: straight screwdriver, cross
screwdriver, spanner and the components included in the accessary bag:

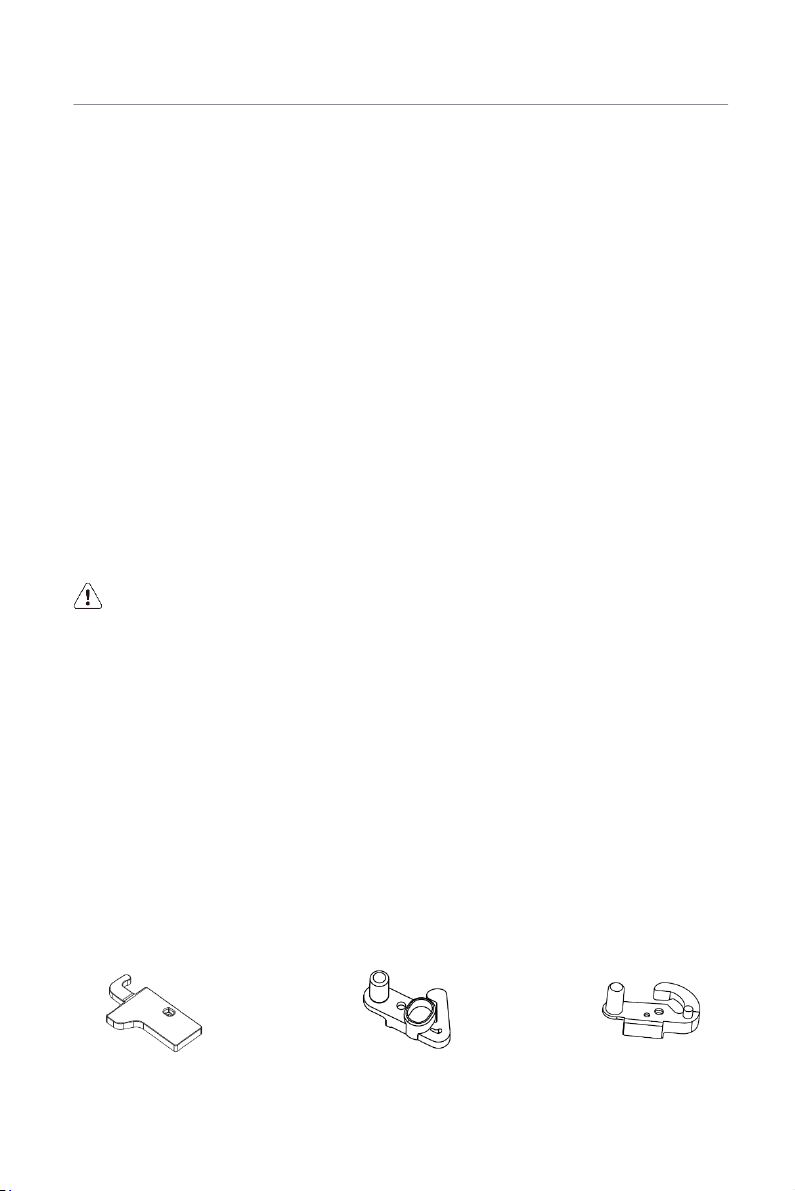

Left Door Hinge Cover x 1 Left Aid-Closer on Upper Door x 1 Left Aid-Closer on Lower Door x 1
1.Unscrew the top hinge cover and then unscrew the top hinge.
Then lift the upper door and place it on a soft pad to avoid scratch and damage.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the climate.
Installation
12

2. Remove the top left screw cover.
3. Take off the upper door, take out the screw from the middle hinge by cross screwdriver, then
take off the lower door.
Installation
13

5. Adjust the hinge core position of the lower hinge and upper hinge to opposite position.
6. Install the lower hinge under the refrigerator as below, screw in the adjustable feet and make
sure the position is in horizon.
7. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.
Installation
14
4. Laying down the refrigerator, take out the adjustable feet as below, then take off the
lower hinge by cross screwdriver.

9. Install the lower door, adjust and fix the middle hinge onto the cabinet.
10. Place the upper door back on, Ensure the door is aligned horizontally and vertically so that the
seals are closed on all sides before finally tightening the top hinge. Then insert the top hinge and
screw it to the top of the unit and then fix hinge cover (in accessary bag) by screw.
11. Fix the screw cover.
Installation
15
8. Remove the original aid-closers from upper and lower door, then install the aid-closers from
the internal bag (with instruction manuals) to the opposite side.

Temperature setting of the Fridge Compartment

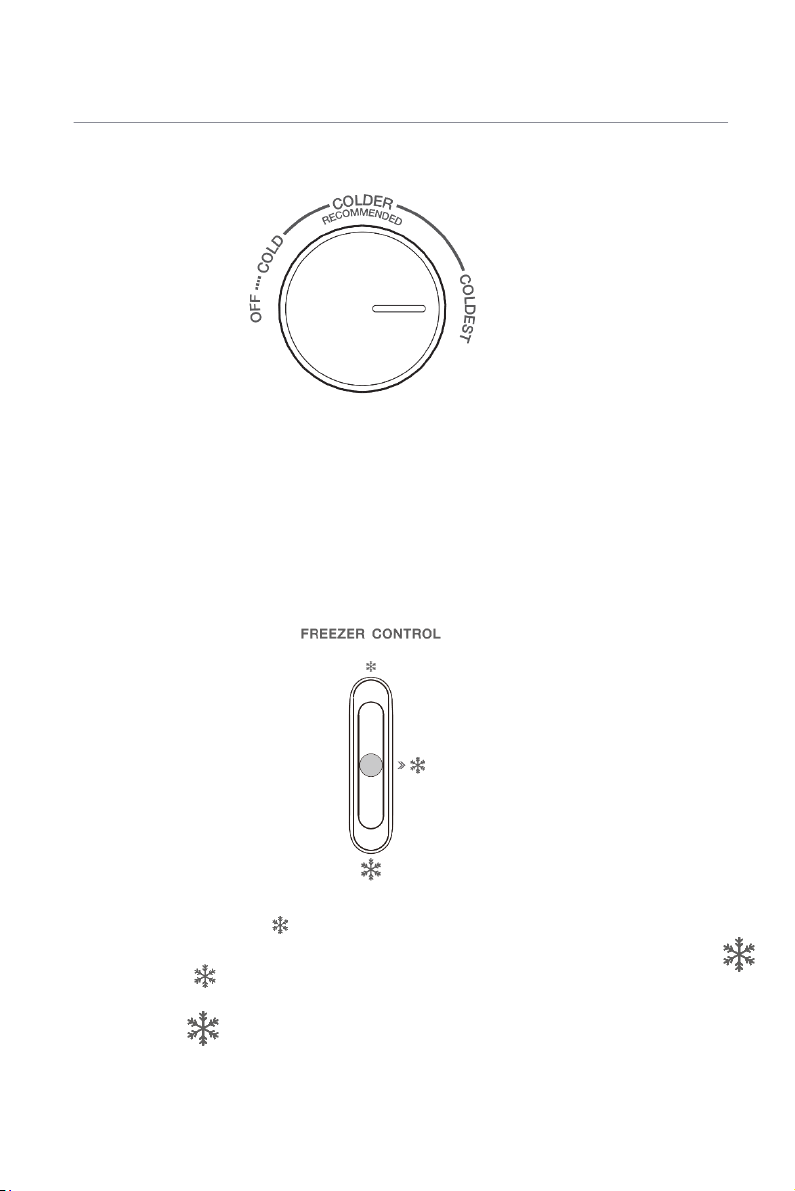

1. The knob in the fridge compartment is used to adjust temperature of fridge compartment.
2. The internal temperature is controlled by a sensor. There are 4 settings: OFF, COLD,
COLDER and COLDEST. COLD is the warmest setting and COLDEST is the coldest setting.
3. The appliance may not operate at the correct temperature if it is particularly hot or if you open
the door often.
4. Neither fridge, nor freezer compartment works when the setting is OFF.
Temperature setting of the Freezer Compartment
The freezer temperature setting slider.
1. This slider in fridge compartment is used to adjust temperature of freezer compartment.
2. Slider is positioned toward , the temperature in freezer compartment will be higher.
Contrarily,the temperature in freezer compartment will be lower if the slider is moved towards
3. Middle position of slider is advised position for normal using.
4. To get lowest temperature in freezer compartment, you can adjust setting knob at coldest and
position slider at
User Control Panel
16

17
Temperature setting recommendation

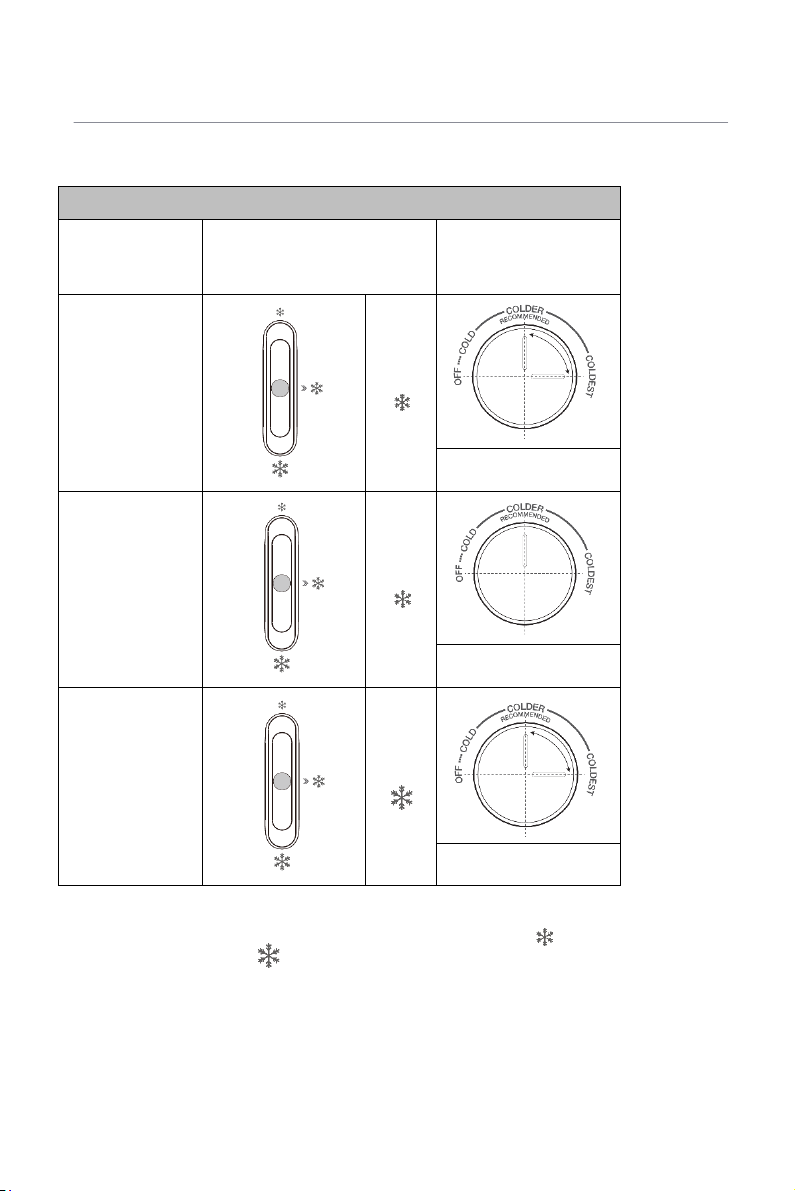

Temperature Setting Recommendation
Environment
Temperature
Freezer
Temperature
Fridge
Temperature
Summer
(Above 38℃)
Set on
Set on colder~coldest
Normal Set on
Set on colder
Winter
(Below 16℃)
Set on
Set on colder~coldest
1. Information above gives users recommendation of temperature setting.
2. In winter or temperature below 16℃, users should avoid set on and cold.
3. For energy saving ,the and coldest set only apply to special need (such as quick-
freezing or ice making), and it needs to be turned back after special need.
User Control Panel
17

First Use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with
lukewarm water and some neutral soap so as to remove the typical smell of a brand new
product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Daily Use

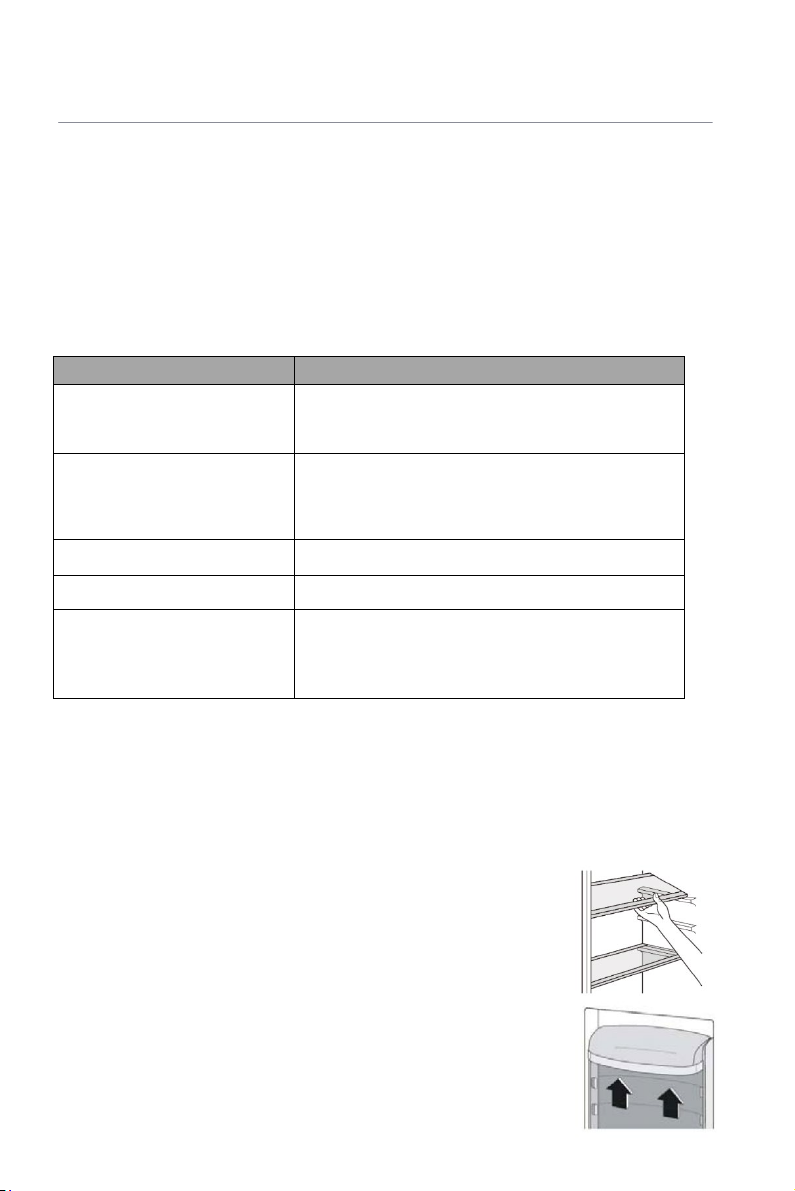

Position different food in different compartments according to be below table.
Refrigeration Compartment Type of food
Door or balconies of fridge
compartment
· Foods with natural preservations, such as jams,
juices, drinks, condiments
· Do not store perishable foods
Crisper drawer (salad drawer)
·
Fruits, herbs and vegetables should be placed
separately in the crisper bin
·Do not store bananas, onions, potatoes, garlic in the
refrigerator
Fridge shelf - middle ·Dairy products, eggs
Fridge shelf - top ·
Foods hat do not need cooking, such as read-to-eat
foods, deli meats, leftovers
Freezer drawer(s)/shelf
·
Foods for long-term storage
·Bottom drawer/shelf for raw meat, poultry, fish
·Middle drawer/shelf for frozen vegetables, chips
·Top drawer/shelf for ice cream, frozen fruit, frozen
baked goods
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at
room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will
take longer.
Ice-cube
This appliance may be equipped with one or more ice-cube trays to produce ice.
Accessories
Movable shelves
The walls of the refrigerator are equipped with a series of
Runners so that the shelves can be positioned as desired.
Positioning the door balconies
To permit storage of food packages of various sizes, the door
balconies can be placed at different heights. To make these
adjustments proceed as follows: gradually pull the balcony in
the direction of the arrow until it comes free, then reposition as
required.
Daily UseDaily Use
18
