icetro ICI-050V User manual

● The product has been designed for indoor use only.
So do not use it outdoors.
● Before use of the product, be sure to become famililar with this manual.
Keep the manual in a convenient place for quick and easy reference.
● This manual contains the product warranty card.
● The product exterior, design, color, and parts are subject to change
without prior notice.
ICI-050V/VF/VH/VHF
The Story of Cold ICE

2
Contens
Features of the Product 3
4~9
10~11
12
13~14
15
16
17
18~20
21~22
23
23
24
25
26
27~30
31
Inspection Items
Safety Warning
Before Calling Service
Safety Cautions
Specications
Part List
Product Warranty
Part name
Cautions for Installation
Installing the Product
Correct Operation
Cleaning Method
Cleaning and Disassembling
Sanitizing Procedure
Ice Making and Detachment Operations
Maintenance

3
3

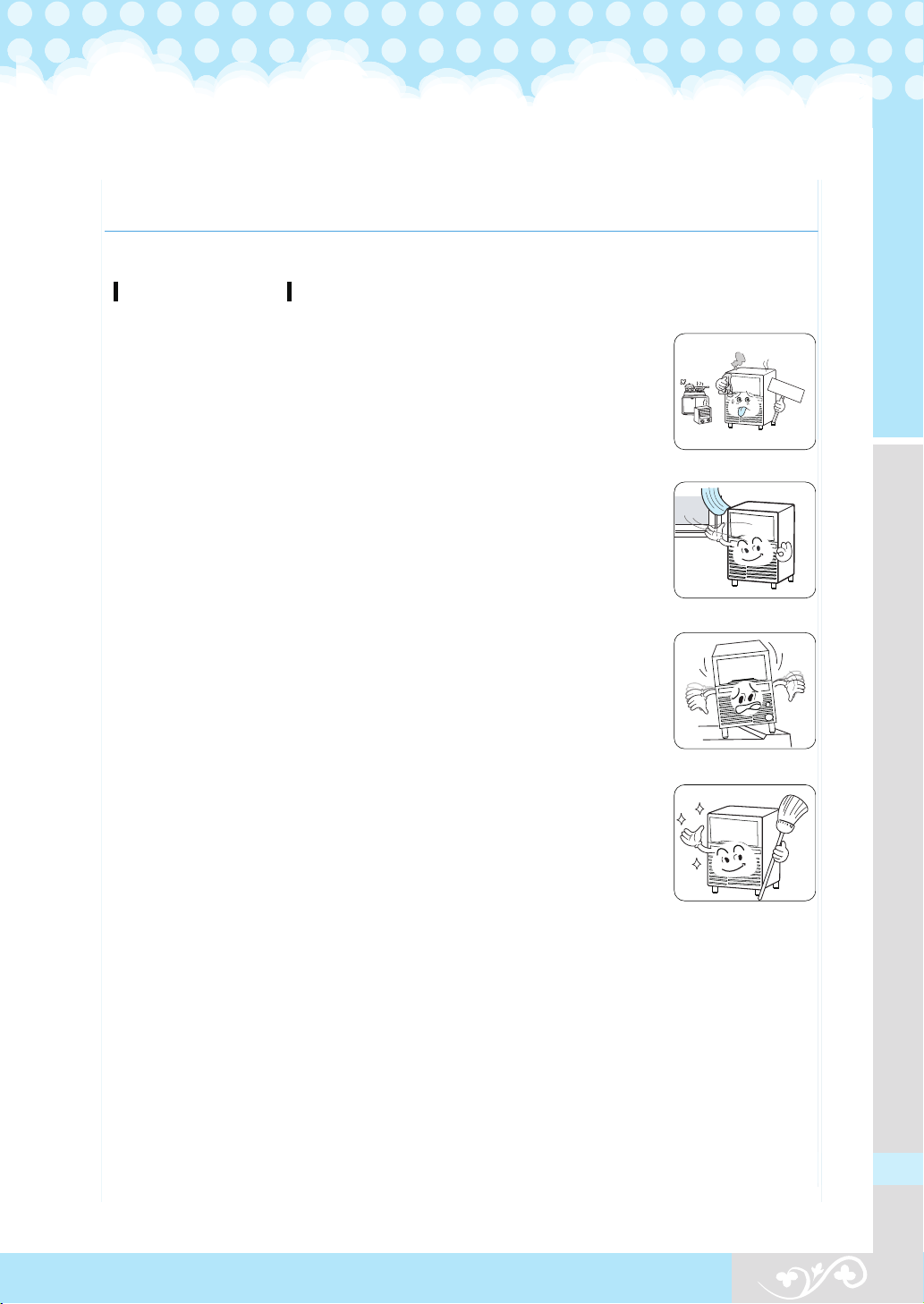

Features of the Product
New technology from
“Craftsmanship,”
quick freeze for all seasons,
and the best ice making capability in the same class!!!
1. MICOM controller
Provides the optimal ice making environment through the
automatic ice level control sensor.
2. Equipped with the ice level control sensor
The sensor provides the functions for automatic ice level
control when full, power saving, and water saving.
3. Pure ice crystals
Pure ice crystals are generated using the freezing point
depression method.
4. Low noise and silent operation
The highly efficient and low noise fan realizes the most
silent and comfortable operation in the same class.
5. Ergonomic design
Adoption of the sliding door with an ergonomic design
enables convenient use.
Thank you for purchasing this product.
Read through this manual carefully because it is intended to prevent any loss or accident
caused by careless use and let you use the product with convenience and ease.
The Story of Cold ICE
the lowest
The Story of Cold ICE
6. Convenient cleaning
The condenser filter minimizes dust accumulation.
7. Increased usability of open space
It can increase usability of open space during installation
of the front paths for inhale and exhale due to the built-in
design.
The Story of Cold ICE
Ice full sensor

4
4

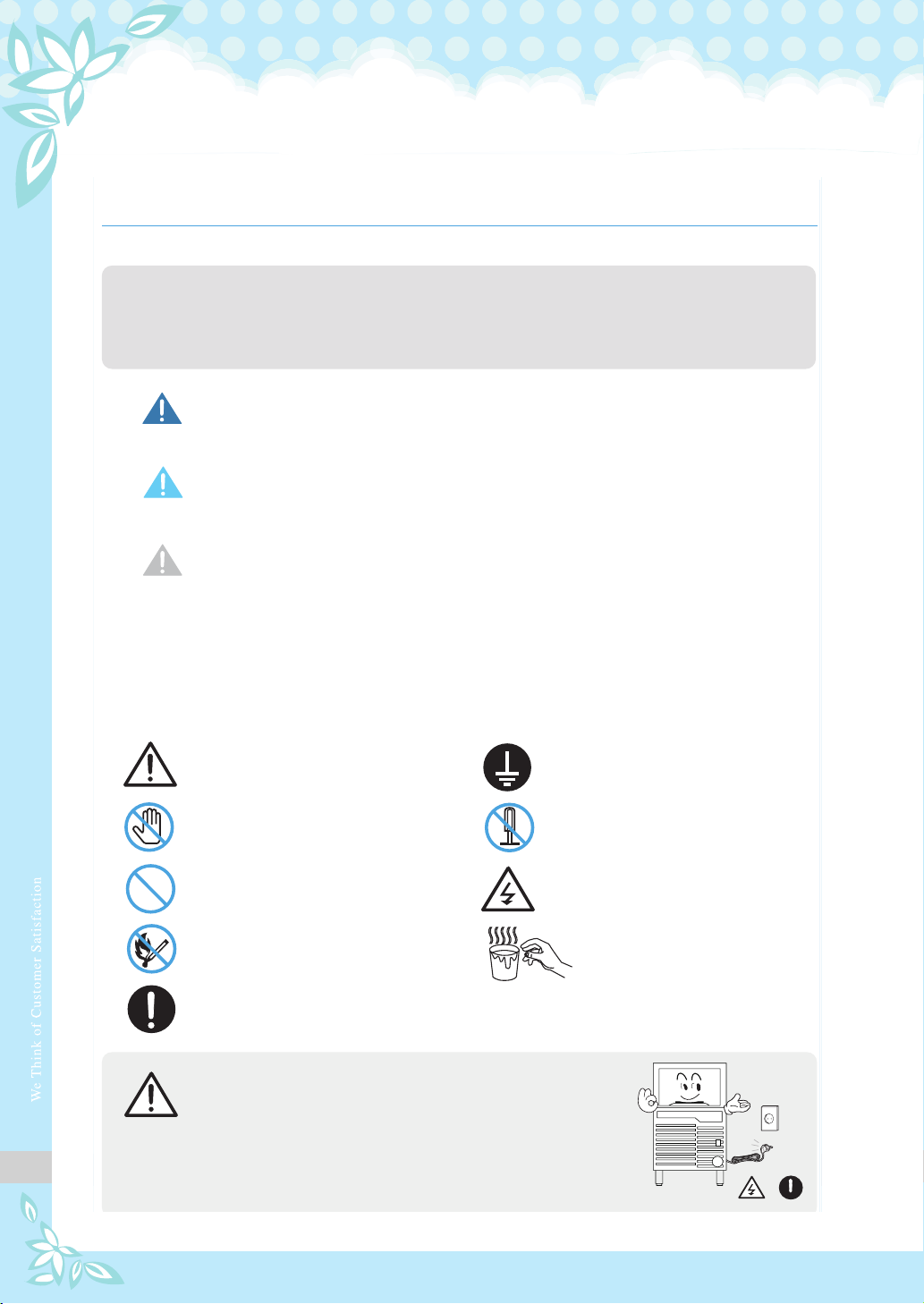

Safety Warning
In order to prevent accidents caused by wrong use and to conveniently use the product, be
cautious of the following: Be sure to understand the following symbols and their
descriptions first.
Danger
If you neglect this symbol and wrongly use the product, it may cause a fire, serious injury or
death.
Warning
If you neglect this symbol and wrongly use the product, it may cause a fire or injury.
Caution
If you neglect this symbol and wrongly use the product, it may cause a personal injury or a
property loss.
!Personal Injury: Minor cuts, burns (high or low temperature) or electric shocks that do
not need hospitalization or long-term hospital visiting.
!Property Loss: The loss on houses, household goods, livestock, bedding, and such.
Each symbol has the following meanings:
General danger, warning, and caution
No contact!
General thing forbidden
Keep from fire!
Thing to be followed
Must be grounded
Do not disassemble!
Risk of electric shock!
Risk of burn!
Warning
"Make sure that the power supply conforms
to the specifications.
-. Check whether the voltage of the power supply matches the value specified
on the name panel.
-. The product name panel is located at the right corner.
-. If the voltage of the power supply is not matched, it may cause a product
failure, electric shock or fire.
-. When the product is moved, be sured to check whether the supplied power
matches the one of the name panel.

5
5
Warning
■The Ice Machine must be earthed.
- Do not use an adapter or an extension cord.
- Do not remove the grounding prong.
- The unit must be installed in accordance with the state and local electrical
and plumbing codes.
■Use the outlet that is connected to the circuit breaker
(sensitivity current: 30 mA or below).
- When a general outlet is used, it may cause a failure or electric shock.
■When removing the power plug, do not hold the power cord.
- If you pulling out the power cord, it may cause damage to the cord,
electric shock or fire.
- Hold the body of the plug when removing the power plug.
■Do not insert or touch the power plug with wet hands.
- It may cause an electric shock.
■Check whether any foreign material is covered on the power plug
and insert it fully into the outlet.
- When the pin or contact on the power plug has dust or water or bad connection,
it may cause an electric shock or fire.
■To connect the power plug again after pulling it off, try after
3 minutes or more elapsed.
- If you connect it with no delay, it may cause a failure due to operation load.
(3 minutes or more)

6
6

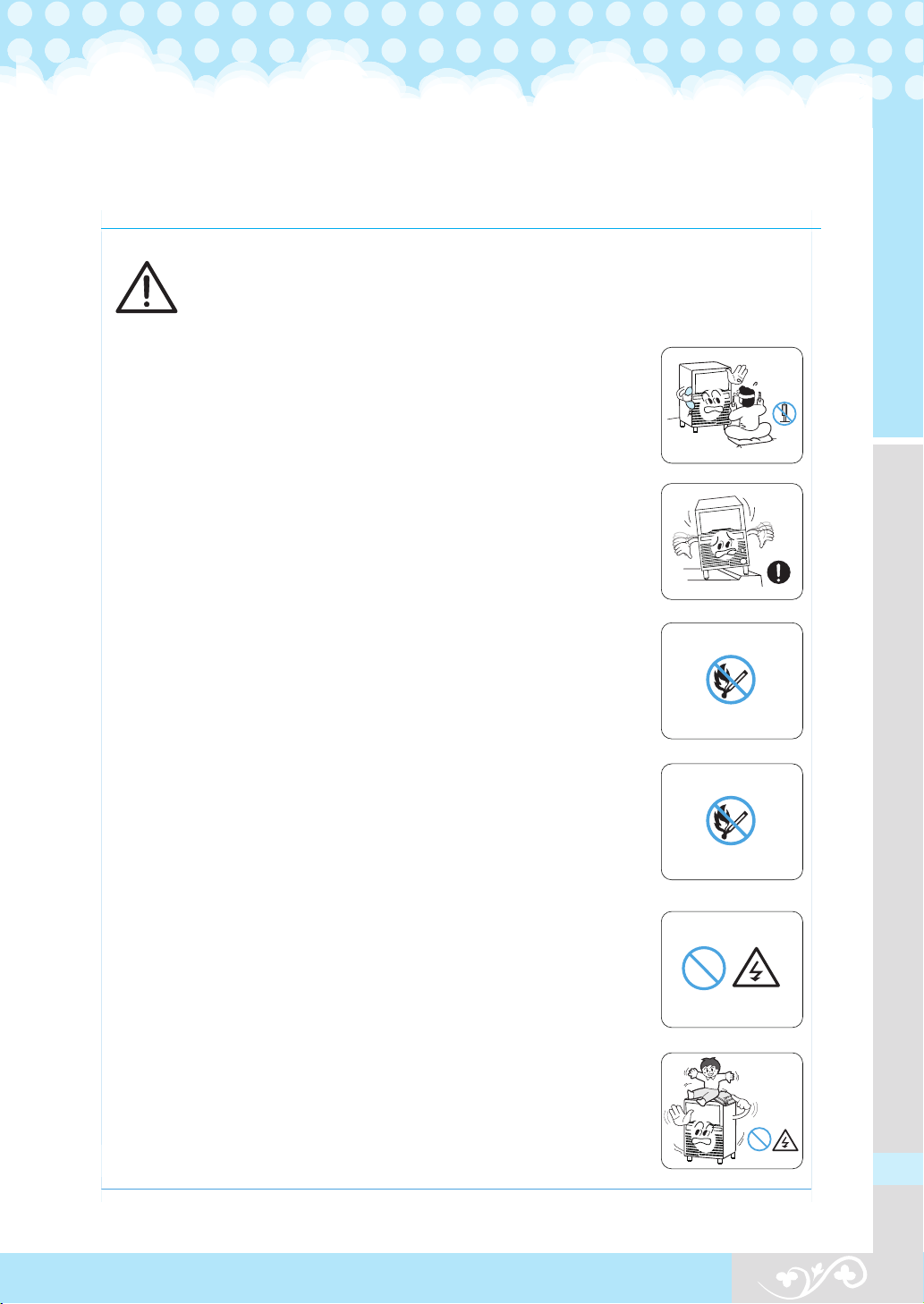

■Do not forcibly bend the power plug or place any heavy material
on it. It cause damage to the plug.
- It may cause an electric leak or electric shock.
■If the power cord is damaged or the metal part of the power plug is
loosely conntected, do not use the power cord.
- It may cause an electric shock or fire. So contact the service agency if required.
- When the power cord is damaged, do not arbitrarily replace it but contact
the service agency for it.
■Do not pull off the power plug nor move the product while
operation.
- It may cause a failure or fire.
- It may cause a leak of water.
■Handling for abnormal cases
- When earthquake or fire occurs, or strange sound or smell is detected,
stop operation right away and pull off the power plug from the outlet.
■Do not use the product in a humid or damp place.
- Do not move it to the bathtub or water bin.
- Do not use it in the bathtub, shower room or swimming pool.
- When water permeates through the internal part of the product,
it may cause a failure or electric shock.
Warning

7
7
■Do not let the person other than service personnel disassemble,
repair or modify the product.
- Arbitrary disassemble, repair or modification may affect the product safety.
- If any failure is detected, refer to this manual or contact the service agency.
■Install the product on an even and solid place.
- When you use the product in unstable status, it may cause a failure or deformation
of the product.
- When the product is used in the moving vehicles such as car and ship,
it may be turned over.
■Do not place flammable materials (sprays, butane gas cans,
LPG, etc.) near the product.
- It may cause an explosion or fire.
■Do not spray with an insecticide, flammable spray or perfume near
the product.
- It may cause a product failure or fire.
■Do not insert foreign materials such as pins, sticks, coins, and the
like inside the product.
- Strongly warn children about its danger.
- It may cause an electric shock or product damage.
■Do not apply excessive force or external load to the product.
- The resulted damage may cause an overheat or fire.
Warning

8
Warning
For cleaning and maintenance, pull off the power plug and close
Be sure to clean the condenser lter on the front panel one or
Install the product in the place where the temperature is within
Use the product while the supply pressure is within 1 to 5 kgf/㎠
When installing the product, be sure to connect to the cold water
■
■
■
■
■
the water supply valve. Perform the work after the operation stops.
more times in a month.
5 to 38℃(41 ~ 100.4℉).
(14.22 ~ 71.12 psig) and the water temperature is within
5 to 32℃(41~ 89.6℉).
pipeline.
- It may cause an electric shock or injury.
- When dust is accumulated in the condenser lter, ventilation is not made. So it may
cause low product performance, excess electric charge, and product failure.
- In case of 5℃(41℉) or below, it may cause winter snowing.
- In case of 38℃(100.4℉) or above, it may cause a product failure.
- It may cause an electric shock or injury.
-If you connect to the hot water pipeline, it may cause a product failure.

9
9
■Do not make the drain hose twisted or kinked.
- It may cause water leak, failure or no water supply.
■The outlet must be occupied by this ice maker only.
- When multiple plugs are connected through the power strip, it may cause a fire.
■Do not let children climb or hang on the ice maker.
- The ice maker’s fall may cause an injury.
■Do not use the product outdoors.
- This product is for indoor use (5 to 38℃(41 ~ 100.4℉)).
- When the product is used outdoors, it may cause a deformation,
discoloration or electric shock.
Warning
■Be sure to use the drinking water supply.
■When moving the product, do not go over 45 degrees
on the incline.
- It may cause a product failure.

10
10
Safety Cautions
■Use this product as described in the user manual.
- If you do not follow the instructions, it may cause an electric shock or property loss.
- When transferring the product to another person, transfer the user manual also.
■When the product is not used for a long time (e.g. long-term
outing), stop water supply, remove ices from the ice maker,
and pull off the power plug.
■Do not use the product near the fireplace.
- It may cause a fire.
■Install the product in a sanitary place.
- Because you can eat the ice, install the product in a sanitary and clean place.
Caution


11
11

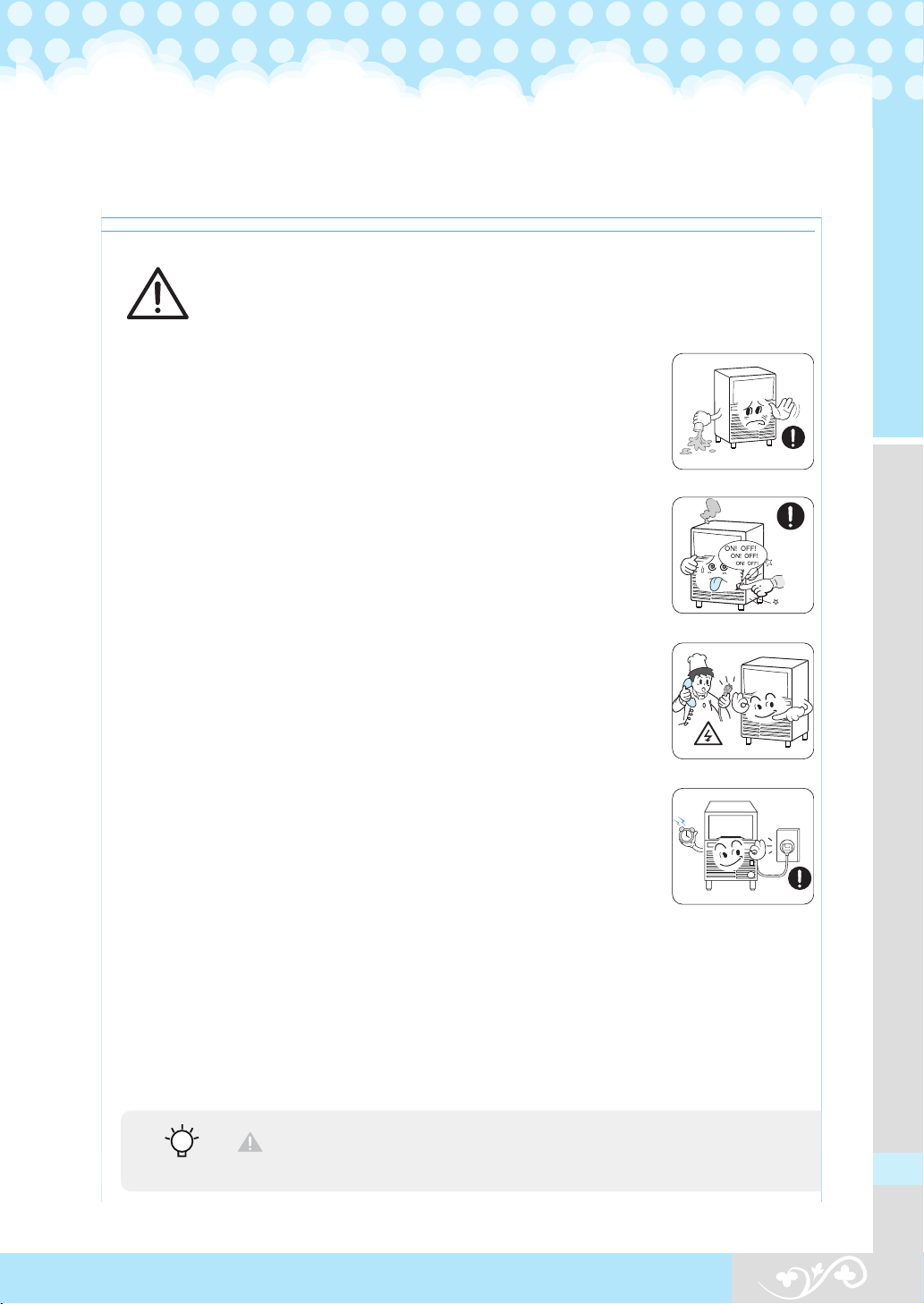

■When storing the ice made for a long time, move it to the
refrigerator.
- The ice box in the ice maker has no freezing function except for the coldness of ice.
- If the ice is stored in the ice box for a long time, the ice melts. So store the ice
in the refrigerator.
■Do not frequently press the operation switch.
- If you frequently pressed the operation switch, it may cause a product failure.
■When water leak happens, pull off the power plug, close the water
supply valve, and contact the purchased site or customer center.
- If you pull off the power plug with wet hands, it may cause an electric shock.
■Use the product in two or more hours after installation.
- It takes the time to stabilize the refrigerant in the ice maker.
Caution
Note
Please frequently clean the ice box in the ice maker for sanitation.

12
12
Part names ( ICETRO-60V/VH)
Front view
Detailed drawing
Rear view
Rear Cover
Connection for
Drainage
Power Cord
Water Supply
Connection
Door
Front Cover
Power Switch
Hole for Purification Filter
Leveling Foot
Ice Making Evaporator Ice Detection Sensor
Water Supply Hose
Water Supply Pump
Switches
(ICE/OFF/WASH)
Purification Filter
(Optional)
Magnetic Sensor
Condenser Filter
Leveling Foot

13
13
Cautions for Installation
Installation place
Install the product in the place with no heat generator........
- Install the product away from the heat generator such as heater and gas stove.
Do not install it in the place where the ambient temperature is within 5 to 38℃.
Install the product in a place that has good ventilation.......
- Bad ventilation causes a bad ice making performance.
Install the product in an even and flat place.......
- Unstable installation causes vibration, noise, ice non-forming,
and low performance. (Recommended incline: within 1 degree)
Install the product in a sanitary place........
- Because you can eat the ice, install the product in a sanitary and clean place.
- Be sure to use the drinking water supply.
Specifie
d temperature

14
14

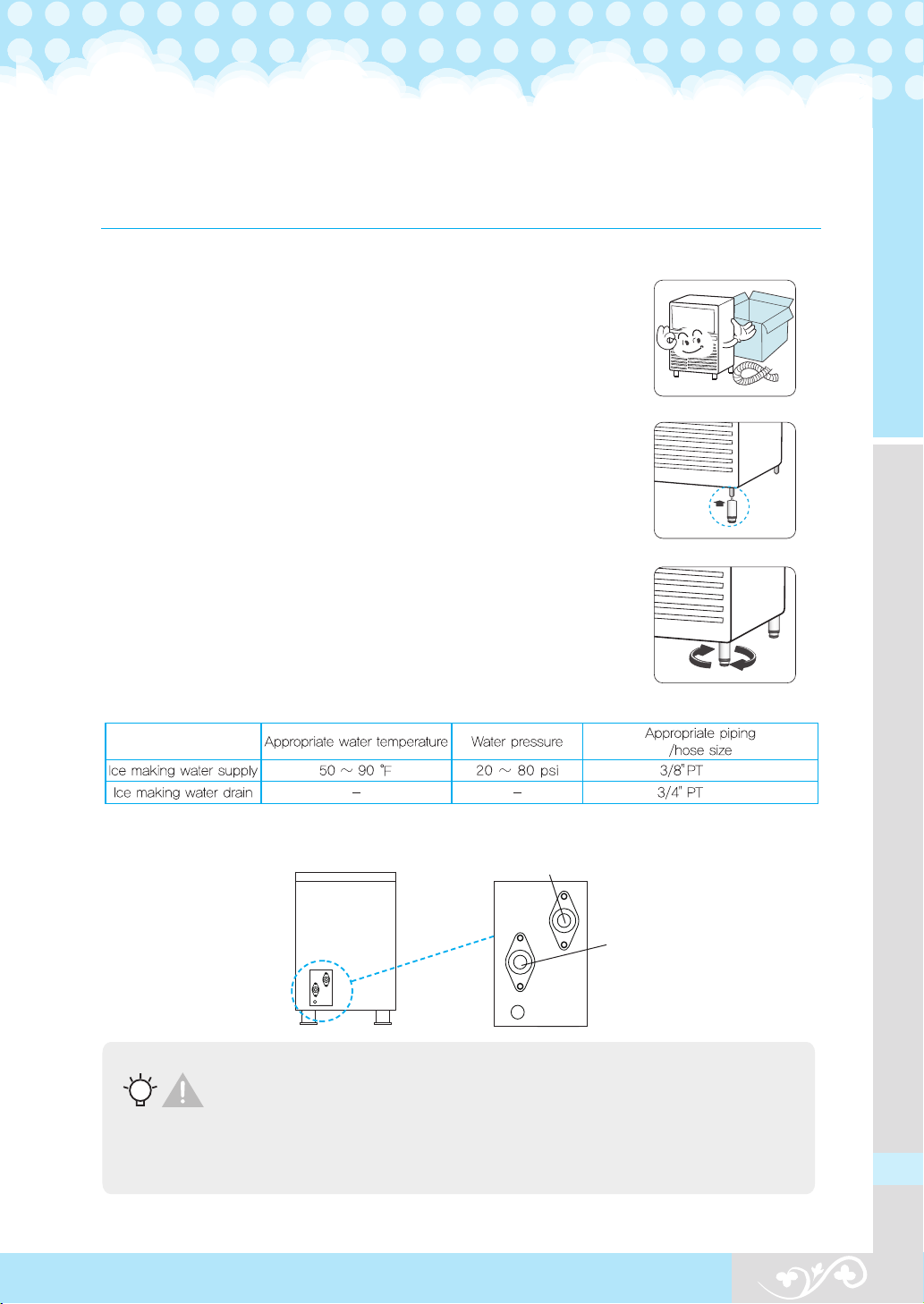

Installation place
Install the product inside a house........
- Do not place the product outdoors.
- Place the drain hose to slope downward for better drainage.
Install the product in the place where children cannot
access.......
- Be cautious for preventing children’s accidents. Especially,
keep children from playing with ice in the ice manufacturer.
the drain hose
must be sloppy
Provided parts
Drain Hose (1 EA) Ice Scoop (1 EA)
Leveling Foot
(4 EA)
Water Supply
Connection Fitting
User Manual
(1 EA)
Clamp Drain Hose
(1 EA)
◆The provided parts are in the box of the ice maker.
(Check the amount of spare parts.)
※The water supply hose (PE hose Ø9.52) must be purchased separately.

15
1. Removing the packing box
2. Attaching the Feet
3. Adjusting the horizontal level
Warning
-After removing the packing box of the ice maker, take out the provided
parts from the ice maker.
- Attach four height control stoppers among the provided parts to the bottom
of the product.
- By rotating the height control stoppers, adjust the horizontal level. (Use
the front stoppers)
1. Be sure to use the drinking water supply.
2. Use the product while the supply pressure is within 1 to 5 kgf/cm2(14.22 ~ 71.12 psig) and the water
temperature is within 5 to 32℃(41 ~ 89.6℉)
3. Dews can form and ow down on the product door and drain hose so pay attention to that.
4. Tightly fasten the water supply hose and drain hose not to be pulled out.
5. The equipment is to be installed with adequate backflow protection to comply with
applicable federal, state, and local codes.
Installing the Product
4. Connecting water piping
- Too high temperature of the ice-making water will decrease the amount of ice produced;
too low pressure will prevent ice from being made at all. Install an auxiliary pressure pump in this case.
Ice making water drain
(3/4" PT)
Ice making water
supply inlet (3/8" PT)

16
16
Correct Operation
Protection of the water supply hose
- Do not place any heavy material on the water supply hose or nor
walk on it.
Adequate water pressure, water temperature, and
ambient temperature
- Use the product while the supply pressure is within 1 to 5 kgf/㎠
(14.22psig~71.12psig), the water temperature is within 5 to 32℃,
and ambient temperature is within 5 to 38℃(41~89.6℉).
1. Connecting power
- This ice maker is designed power supply and using
an exclusive receptacle.
2. Supplying water
- Open the faucet to supply water.
3. Starting operation
- Turn off the power switch ‘ICE’ on the front panel.
The Story of Cold ICE
4. Ending the operation
- According to the ambient temperature and water temperature,
it may differ but a round of ice making ends in 20 to 30 minutes after
the operation starts.
- In case of initial use or use after cleaning, remove the first made ice and
use the ice made from the second time.
Power switch
Operation procedure
ICE
OFF
WASH

17
17
Cleaning and Disassembling
Read the following carefully for proper handling.!
It may cause an electric shock or fire.
- Do not directly spray water on the ice maker. It may cause a product
failure, electric leak or electric shock.
It may cause erosion or damage to the product.
- Do not use the soap powder, benzene, thinner, muriatic acid, petroleum, boiling
water, and touch brush because they can cause erosion or damage to the product.
When using the detergent
- Wipe the product after soaking the soft cloth with lukewarm water or neutral
detergent.
- When using the neutral detergent, be sure to wipe the product with a clean
wet towel again
Danger !
Warning : Pull off the power plug before cleaning the product or replacing the parts of it.

18
【 C l e a n i n g t h e i c e b o x a n d w a t e r t a n k 】
1. Set the position of the power switch (ICE/OFF/WASH) to OFF.
2. Remove the power cord from the outlet.
3. Block the water supply.
4. Open the door of the ice maker.
7. Dilute 10g (0.35oz) of neutral detergent(baking soda, neutral
detergent for dishwasing or as equals to) in 3 liters (0.79gal) of
warm water (35 to 45℃ (95~113℉)), soak the clean cloth with
the cleaning liquid, and wipe the ice tank and water tank.
8. After cleaning, connect the drain plug and drain hose again and
tighten three bolts.
The surface temperature of the pump motor is very hot. So when any partof your
body contacts with it, it may cause a burn. When the machine is cooled down
enough after turning off the power, start cleaning
6. Rotate three bolts on the bottom counter clockwise
clockwise to release them, pull out the drain hose
from the drain hole, and remove
the water tank.
- Remove the ice sensor from the
distributor.
- Remove scale from the nozzle hole of the distributor.
- Connect the ice sensor again.
- Remove two screws on the left and
the right of the distributor.
※Clean them one or more times every month.
Cleaning Method
Caution
Caution
Drain hose
packing down
distributor. ice sensor
drain plug
Door
Water tank
15
Be careful not to bump your head into the edge of
the door while it is open.
5. Remove the drain plug down from the water tank.

19
19
Condenser filter
front panel
1. After pulling up the condenser filter that is inserted in the
front panel, use a vacuum cleaner for removing dust.
Wipe the filter with lukewarm water (approx. 25℃(77℉))
and neutral detergent, dry it, and insert it into the front
panel.
※Clean them one or more times every month.
The Story of Cold ICE
The Story of Cold ICE
※Clean the condenser one time every three months.
Caution
Be careful while cleaning because the pins are very sharp.
Cleaning the condenser
Cleaning the condenser filter
1. Release screws (2 EA) at the bottom on the front panel.
2. Separate the front panel by pulling it down.
3. Use a vacuum cleaner or hand cleaner to remove dust
from the condenser.
4. After completion, insert the front cover into the upper holes
and push it up.
5. Tighten two screws of the panel.

20
【Using the WASH mode】
1. Set the position of the switch located at the lower right to OFF.
2. After removing ice, dispose it or store it in the ice box or refrigerator.
3. Diute 30g(1.058 oz) of neutral detergent in 8 liters(2.11gal) of warm
water (35 to 45
℃
(95 ~ 113
℉
)) and pour it into the water tank.
5. If necessary, perform the above mentioned procedure 2 to 3 times and add more
detergent into the water tank, if required.
9. For cleaning, use the dishwash detergent or any material that easily melts in water or
vinegar. For removing residual things on the surface of the ice maker, use a soft cloth or
sponge and rinse it enough with drinking water.
11. For perfect cleaning, use a proper detergent as mentioned above and repeat
the procedure.
12. After completion, rinse them with drinking water, dispose the rst made ice,and use
ice made from the second time.
13. For container sterilization, be sure to perform it one or more times every month .
6. After diluting the cleaner in water, clean the ice box, connection hose, ice dipper,
Water pump, Wire and water tank with the mixed solution.
7. After completion, insert the removed ice into the box.
8. Clean the ice making part before operation.
10. Never use the detergent or powder that can cause damage to the product.
4. Press the switch for WASH. Then the pump motor operates for about
one and half minutes and stops for 30 seconds.
This operation repeats ve times.
• Periodically clean the ice dipper. Do not clean it with other food containers together.
• When it comes into contact with the skin, wash it with water.
• The handle of the ice dipper is easily contaminated by germs when exposed to hands.
• For storing detergent, keep out of children's reach.
Caution
Waring
ICE
OFF
WASH
