ICG VI-CON-SYS-01 User manual

MANUFACTURED BY:
Cy-Tech GmbH
Happurger Str. 86
90482 NUERNBERG | Germany
[email protected]om
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM
Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
ENG

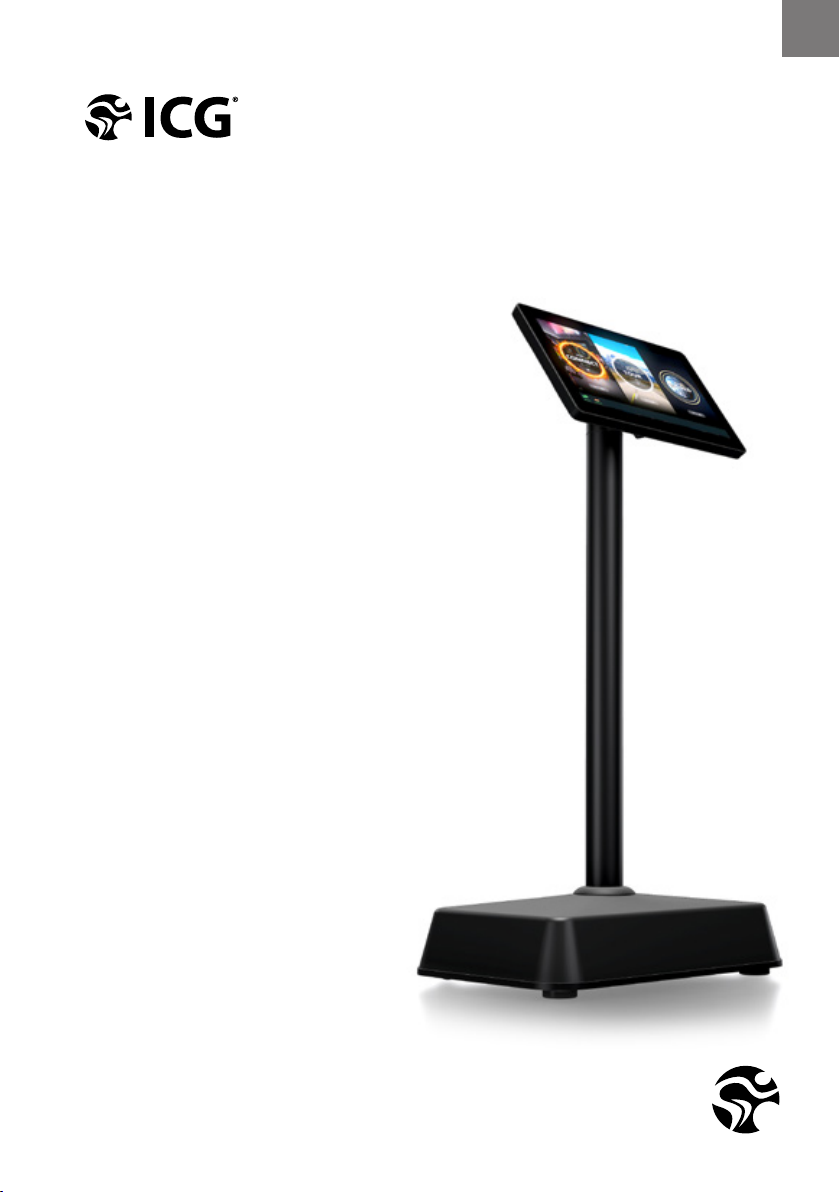

ICG®CONNECT
SYSTEM USER
MANUAL
MODEL NO:VI-CON-SYS-01

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS P.3
SYSTEM SPECIFICATIONS P.4
PACKAGE CONTENTS P.4
CONTROL PANEL TILT AND PIVOT P.5
INSTALLATION REQUIREMENTS P.6
POWER OUTLETS P.6
WASP INSTALLATION P.6
EXAMPLE INDOOR CYCLING AREA LAYOUT P.7
DRILLING TEMPLATE P.8
NOT INCLUDED WITH THE ICG CONNECT SYSTEM P.8
INDOOR CYCLES P.8
EXTERNAL VIDEO DEVICE P.8
EXTERNAL VIDEO DEVICE CABLE P.8
WASP NETWORK CABLES P.8
NETWORK CABLE/CONNECTION TO INTERNET FOR UPDATING P.8
UNBOXING P.9
ASSEMBLY & CONNECTION P.10
CONNECTION SCHEMATIC P.13
TURNING ON THE ICG CONNECT SYSTEM P.14
SETTINGS MENU P.15
ENTERING THE SETTINGS MENU P.15
SETTINGS P.16
TIME AND DATE SETUP P.16
LANGUAGE P.16
METRIC P.16
HDMI AUDIO P.16
DEMO MODE P.16
SYSTEM INFORMATION P.16
CLEANING THE ICG CONNECT SYSTEM P.17
WARRANTY P.17

3
ENG
IMPORTANT
PRECAUTIONS
1. It is the sole responsibility of the owner/operator and his/her staff to ensure that all
users are informed of all warnings and precautions prior to using the ICG Connect
System.
2. Position the ICG Connect System next to the Indoor Cycle on a level surface
as recommended in the installation guide. Be sure there is enough space around
the ICG Connect System to mount, dismount and operate the equipment safely.
3. ICG Connect System is intended for indoor use only. Keep the equipment away
from moisture and dust. Do not place the training equipment in a garage, covered
patio, near water or pools. Operating temperature of the equipment must be
between 15°C~ 40°C Celsius (59°~104°F) at max. humidity of 65%.
4. Regularly inspect all parts of the ICG Connect System. Please replace defective
parts immediately and do not use the equipment until repairs are carried out. Only
use original parts from the manufacturer.
5. Keep unattended children away from the ICG Connect System.
6. WARNING: The training equipment can be used by children aged from 14 years
and above and persons with a lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Persons with reduced physical, sensory,
or mental capabilities are prohibited from using the training equipment. Children
shall not play with the training equipment. Cleaning and user maintenance shall
not be made by children without supervision.
7. To ensure the level of safety of the ICG Connect System a regular maintenance is
mandatory.
MEDICAL DISCLAIMER!
Not all exercise programs are suitable for everyone. Please consult your physician before beginning this
or any other exercise program. ICG Connect programs are designed for t, healthy, able-bodied users. Any
action in response to the instructions provided in this program is at user discretion. You should always
warm up for a few minutes before beginning any workout, and you should never exercise beyond the level
at which you feel comfortable. The usage of a heart rate monitor is highly recommended! If at any time
you feel you are exercising beyond your current tness abilities, or you feel discomfort, you must stop your
workout immediately! The user assumes all risk of injury in the use of this program.
WARNING: To prevent damage, do not move the unit while the Power, HDMI or Ethernet Cables are
connected to the System.
WARNING: To prevent risk of electric shock or re, do not allow this system to become wet.
Do not expose the ICG Connect System to moist environments, and do not place liquid lled containers
on or near the unit.
ATTENTION: To prevent a risk of electric shock, be sure the power plug is fully and correctly inserted into
the wall socket.
CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN!
High voltage is present within the enclosure. Do not open the housing.
Only trained and qualied ICG/Life Fitness service technicians may
service the ICG Connect System.

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com

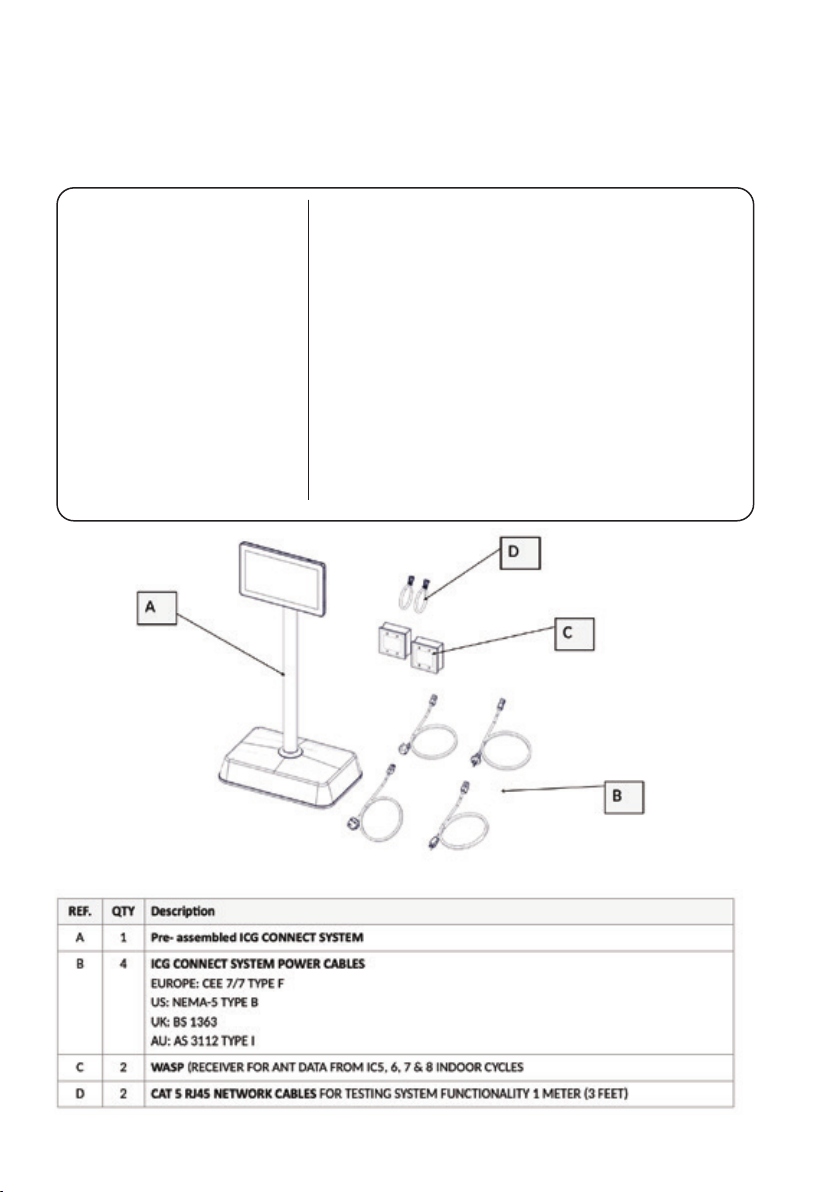

SYSTEM SPECIFICATIONS
AND PACKAGE CONTENTS
ASSEMBLED DIMENSIONS: 53.5 X 36 X 116CM / 22 X 14 X 46IN
ASSEMBLED WEIGHT: 23KG / 51LBS
OPERATING SYSTEM (OS): ICG CUSTOMIZED LINUX OS
COMPUTER: AMD RYZEN R1505 APU
ASPECT RATIO: 16:9 (EXTERNAL SCREEN)
SCREEN VIEWING POSITION: ADJUSTABLE - TILT & PIVOT (ROTATION)
VIDEO RESOLUTION: FULL HD 1080P
SOFTWARE UPDATE: INTERNET VIA ETHERNET CABLE / USB FLASHDRIVE
USB: 1 X 2.0
HDMI: 1 X 1.3
AUDIO PORT: 1 X 3.5MM INPUT
ETHERNET PORT: RJ45
DISPLAY TYPE: 39CM / 15.6IN IPS PANEL WITH CAPACITIVE TOUCH
POWER REQUIREMENTS: 110-220V AC INPUT
LEVELLING FEET: 2
TRANSPORT WHEELS: 2
WARRANTY (PARTS) 1 YEAR MECHANICAL AND ELECTRONIC COMPONENTS

5
ENG
The control panel can be tilted
from vertical to max. 65°.
If the resistance when tilting the tablet
should become too loose, tighten the bolt
inside the bracket to max. 10 Nm with
a 5mm Allen key to increase the tilting
resistance.
The control panel can be
swiveled horizontally to a
maximum of 260° from limit
stop to limit stop.
65°
0°
MAX
MAX
260°
CONTROL PANEL
TILT AND PIVOT

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
The following requirements must be met for installation and use of the ICG Connect System.
POWER OUTLETS
The ICG Connect System requires one power outlet with 110/220V AC output.
WASP INSTALLATION
The ICG Connect System requires installation of the Cat 5 or better network cables for optimal
positioning of the supplied WASPS. The layout of the indoor cycling area may vary from facility
to facility and therefore the sourcing of the network cables and installation is the responsibility
of the customer.
Network cable requirements (WASPS)
Cat 5 or better network cables / Max. cable length: 50m (164 feet) not included in scope of
delivery.
The Wasps should be positioned for optimal coverage of the indoor cycling area with no
greater distance than approx. 5m in direct line of sight to the furthest bike for best results.
INSTALLATION
REQUIREMENTS

7
ENG

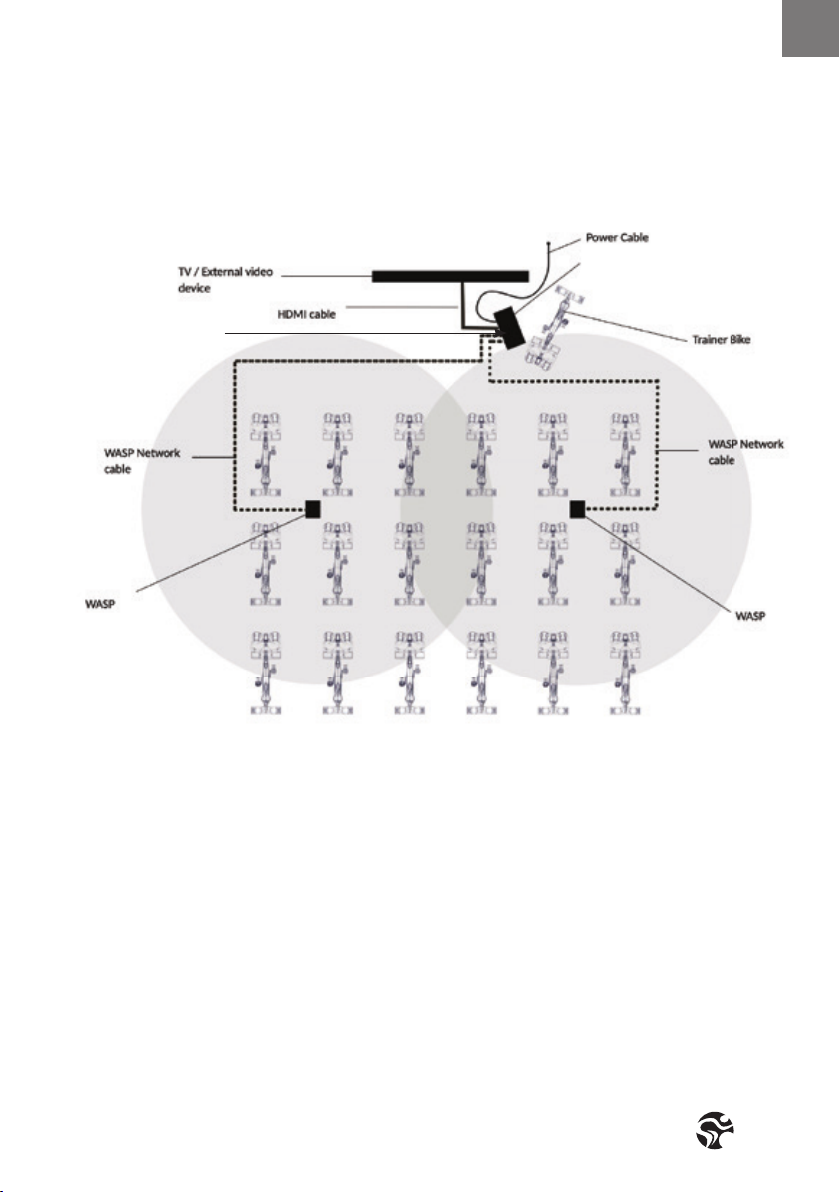

EXAMPLE INDOOR
CYCLING AREA LAYOUT
ICG Connect System
Optional Internet cable

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
NOT INCLUDED WITH THE ICG CONNECT SYSTEM
Indoor Cycles
The ICG Connect System only works with IC5, IC6, IC7 & IC8 series bikes.
External video device:
TV or Projector
Resolution: 1080P
Input: HDMI 1.3
External video device cable:
High Speed HDMI Cable
Max. length 10m (32 feet)
Wasp Network cables
Cat 5 or better network cables / Max. cable length: 50m (164 feet) not included in scope of
delivery.
Network Cable / Connection to Internet for updating
The ICG Connect System does not require an internet connection for operation. A connection
is optional for software updates. Software updates can also be installed by downloading the
required le to a USB Flashdrive.

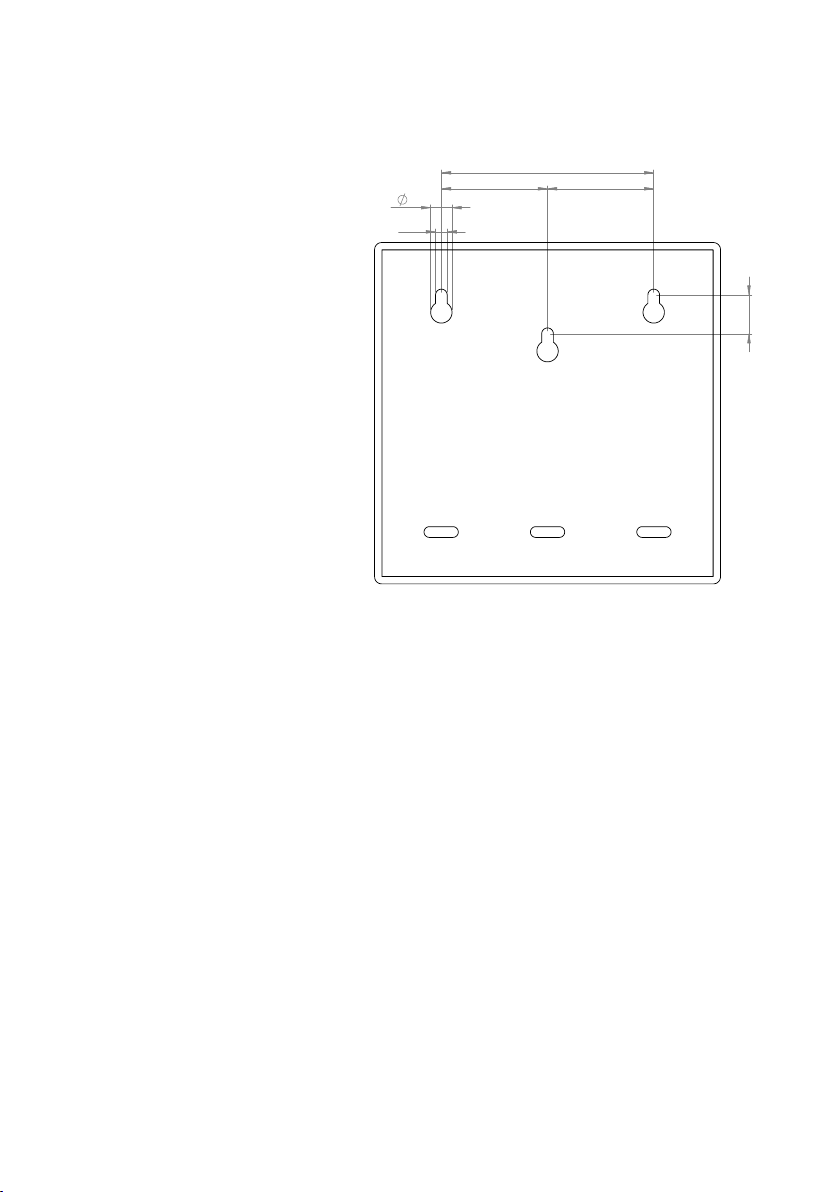

The Wasps can be mounted according
to the Drilling template (hardware not
included).
74,50
37,25 37,25
13,60
4,10
7,50
DRILLING TEMPLATE

9
ENG
UNBOXING
1. Position the box on side and open it as shown below. Lift the ICG Connect System
from the box. Take note to remove any hardware taped to the Styrofoam inside the
packaging.

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
1. Remove the 3mm Hex screw
from the rear of the base.
2. The panel is hinged on the
left side. Pull the panel from
the right side to remove.
3. Slide the power cable for
your region, HDMI cable, both
network cables for the WASPs
and the optional network
cable for updates through the
slot of the removable cover.
ASSEMBLY &
CONNECTION

11
ENG
4. Plug the power cable into the power socket (A).
5. Connect the HDMI cable (D) of your TV or external video device into the connector panel
labelled HDMI.
6. Plug in the network cables (B) for the WASPs into the RJ45 sockets marked“OUT”. The system
can support up to 3 WASPs but only 2 are required for most facilities. Additional WASPs sold
separately.
7. If you would like to connect the system via your network to the internet, you can do so using
a network cable plugged into the RJ45 socket marked„IN“.
A B C D

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
8. Remove the lid from theWASP (g. 1) with a small at head screwdriver and plug in the other
end of the network cables from the ICG Connect System to the WASPs (g. 2). Cut the plastic
of the WASP at the predetermined areas for routing the cable best suited for your installation.
WARNING! Installed WASPs and Cat 5 or better network cables from an older MYRIDE CONNECT
can be used for the ICG Connect System but the old POEs must be removed before use.

13
ENG
CONNECTION
SCHEMATIC

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
1. Make sure the system is connected properly (The ICG Connect System must be connected
to an external video device with 1080P via high speed HDMI cable).
2. Turn on your external video device.
3. Turn on the unit by ipping the power switch on the back of the base of the unit (g. 1).
Pushing the restart button (g 2.) will turn off the Mini Pc only but to turn off the complete
system, the main power switch must be used.
4. The system takes approx. 90 seconds to fully boot. The ICG logo will appear on the external
video device and the tablet will show the home screen.
TURNING ON THE ICG
CONNECT SYSTEM

15
ENG
SETTINGS MENU
You will need to enter the setup menu to set up the time, activate demo mode and install
updates on your ICG Connect System. Do not make any adjustments to the system not outlined
in this manual.
ENTERING THE SETTINGS MENU
1. Press the“MENU”button on the lower right-hand corner of the screen.
2. Conrm the prompt“FOR STAFF USE ONLY”.
3. Enter the password: 4,3,2,1 and conrm

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
SETTINGS
TIME AND DATE SETUP
In the SETTINGS menu touch the Time button and make your local adjustments and exit the
menu with the back button.
LANGUAGE
Touch the button to change your language preferences.
METRIC
The ICG Connect System can be used with either Metric or Imperial units. When the button
next to the Metric is green, Metric units are used. When the button is grey, Imperial units are
used. To change your preferred unit, touch the button.
HDMI AUDIO
Some videos (ambient sound) or introductions to World Tour Videos have sound, but no music.
When HDMI Audio is selected, the external video device will play the sound provided the
device has a speaker. If not activated, sound output is through the audio jack on the base of
the system but is generally not required as the trainer will play their music during the workout.
DEMO MODE
When activated and the button green, the demo mode will simulate user data from 20 bikes
and display the information on the tablet and external video device. Live user data from the
bikes will not be displayed.
SYSTEM INFORMATION
The system information tab has software version details for the tablet and the internal mini pc.
When requesting support, always provide the App Version and the Server_Version.

17
ENG
CLEANING THE ICG CONNECT SYSTEM
Lightly dampen a section of a microber cloth with water and gentlywipethescreen, then go
over it again with a dry section of the cloth towipeaway any moisture. Avoid getting moisture
in any openings like the speaker or mic. If the stain remains, you can also try using a mild soap-
and-water solution.
WARRANTY
Cytech GmbH warrants that all new equipment will be free of manufacturing defects in
workmanship and materials, becoming eff ective on the date of delivery. Parts and components
repaired or replaced under the terms of warranty will be warranted for the remainder of
the original warranty period only. Warranty may vary by region or country. Please note that
warranty does not cover for damages caused by inappropriate use of the Myride Connect
System or any negligent act by the consumer. The manufacturer states that the product was
thoroughly tested and found free of failure prior to shipping.
LIMITED WARRANTY ON MYRIDE CONNECT SYSTEM
1 year Warranty Electronic and Mechanical components
All contents, movies, photos, texts and graphic arts are protected by copyright. They may not be changed without
previous written approval neither completely nor in extracts copied, be multiplicated or be published. The playback of
the content is exclusively permitted using the supplied device.The usage of an external reproducer is only permitted once
the relevant program is licensed by the creator. © CYTECH GMBH

Version 1.0 2021 VI-CON-SYS-01 Copyright by Cy-Tech GmbH 2021 I www.Indoorcycling.com
CORPORATE HEADQUARTERS
Columbia Centre III, 9525 West Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A.
847.288.3300 • FAX: [phone]
Service phone number: 800.351.3737 (toll-free within U.S.A., Canada)
Global Website: www.lifetness.com
INTERNATIONAL OFFICES
AMERICAS
NORTH AMERICA
LIFE FITNESS, INC.
Columbia Centre III
9525 West Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A
Telephone: [phone]
Fax: [phone]
Service Email:
customersupport@lifetness.com
Service Website:
www.lifetness.com/parts
Sales/Marketing Email:
commercialsales@lifetness.com
Operating Hours: 7:00 am-6:00 pm (CST)
BRAZIL
LIFE FITNESS BRASIL
Av. Rebouças, 2315
Pinheiros
São Paulo, SP 05401-300
BRAZIL
SAC: 0800 773 8282 option 2
Telephone: [phone] option 2
Service Email: suportebr@lifetness.com
Sales/Marketing Email:
vendasbr@lifetness.com
Service Operating Hours:
8:30 - 17:30 (BRT) (Monday-Friday)
Store Operating Hours:
9:00 -18:30 (BRT) (Monday-Friday)
10:00 - 14:00 (BRT) (Saturday)
LATIN AMERICA & CARIBBEAN*
LIFE FITNESS INC.
Columbia Centre III
9525 West Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A
Telephone: [phone]
Fax: [phone]
Service Email:
customersupport@lifetness.com
Sales/Marketing Email:
commercialsales@lifetness.com
Operating Hours: 7:00am-6:00pm (CST)
EUROPE, MIDDLE EAST,
& AFRICA (EMEA)
NETHERLANDS & LUXEMBURG
LIFE FITNESS ATLANTIC BV
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Service Email:
service.benelux@lifetness.com
Sales/Marketing Email:
marketing.benelux@lifetness.com
Operating Hours: 9:00h-17:00h (CET)
UNITED KINGDOM
LIFE FITNESS UK LTD
Queen Adelaide
Ely, Cambs, CB7 4UB
Telephone:
General Oce (+44) 1353.666017
Customer Support (+44) 1353.665507
Fax: [phone]
Service Email: uk.support@lifetness.com
Sales/Marketing Email:
life@lifetness.com
Operating Hours:
General Oce: 9.00am - 5.00pm (GMT)
Customer Support: 8.30am - 5.00pm (GMT)
GERMANY
INDOOR CYCLING GROUP
Happurger Strasse 84-88
90482 Nuernberg
GERMANY
Telephone: +49 (0) 911 / 544450
Service Email: ser[email protected]
Sales/Marketing Email:
[email protected]
Operating Hours: 08.30 -16.30h (CET)
AUSTRIA & SWITZERLAND
LIFE FITNESS EUROPE GMBH
Neuhofweg 9
85716 Unterschleißheim
GERMANY
Telephone:
+49 (0) 89 / 31775166 Germany
+43 (0) 1 / 6157198 Austria
+41 (0) 848 / 000901 Switzerland
Service Email:
kundendienst@lifetness.com
Sales/Marketing Email:
vertrieb@lifetness.com
Operating Hours: 08.30 -16.30h (CET)
SPAIN
LIFE FITNESS IBERIA
C/Frederic Mompou 5,1º1ª
08960 Sant Just Desvern Barcelona
SPAIN
Telephone: [phone]
Fax: [phone]
Service Email:
servicio.tecnico@lifetness.com
Sales/Marketing Email:
info.iberia@lifetness.com
Operating Hours:
9.00h-18.00h (Monday-Thursday)
8.30h-15.00h (Friday)
BELGIUM
LIFE FITNESS BENELUX NV
Parc Industrial de Petit-Rechain
4800 Verviers
BELGIUM
Telephone: [phone]
Service Email:
service.benelux@lifetness.com
Sales/Marketing Email:
marketing.benelux@lifetness.com
Operating Hours: 9.00h -17.00h (CET)
ALL OTHER EMEA COUNTRIES &
DISTRIBUTOR BUSINESS EMEA*
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Service Email:
EMEAServiceSupport@lifetness.com
ASIA PACIFIC (AP)
JAPAN
LIFE FITNESS JAPAN, LTD
4-17-33 Minami Aoyama 1F/B1F
Minato-ku - Tokyo 107-0062
Japan
Telephone: [phone]
Fax: [phone]
Service Email: service.l@lifetness.com
Sales/Marketing Email:
sales@lifetnessjapan.com
Operating Hours: 9.00h-18.00h (JAPAN)
HONG KONG
LIFE FITNESS ASIA PACIFIC LTD
32/F, Global Trade Square
21 Wong Chuk Hang Road
Hong Kong
Telephone: [phone]
Fax: [phone]
Service Email: Service.HK@lifetness.com
Sales/Marketing Email: hongkong.sales@
lifetness.com
Operating Hours: 9.00h-17.00h
ALL OTHER ASIA PACIFIC COUNTRIES
& DISTRIBUTOR BUSINESS
ASIA PACIFIC*
32/F, Global Trade Square
21 Wong Chuk Hang Road
Hong Kong
Telephone: [phone]
Fax: [phone]
Service Email: Service.AP@lifetness.com
Sales/Marketing Email:
Marketing.HK.Asia@lifetness.com
Operating Hours: 9.00h-17.00h
* Also check www.lifetness.com for local representation or distributor/dealer

19
DEU
CAUTION.
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL
BEFORE YOU BEGIN USING THIS EQUIPMENT. PLEASE KEEP
THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY,
SET UP, USE OR MAINTENANCE MAY VOID THE WARRANTY.
Manufactured by: Cy-Tech GmbH
Happurger Str. 86 90482 Nuremberg Germany
EMAIL: [e-mail]
WEBSITE:WWW.INDOORCYCLING.COM
© 2021 Cy-Tech GmbH
