Keep your eyes on the road
The BT Mirror Kit is a Bluetooth Hands-Free adapter for cars.
It clips on any vehicles rear-view mirror and gives unrivalled
freedom on the move. The carkit has optimised DSP sound
technology for improved call quality and supports voice
dialing (if supported by your handset).
and
your hands on the wheel.

BT Mirror Kit Overview................................................................
Getting Started..............................................................................
Charging the device.....................................................................
Installation.......................................................................................
Turning your BT Mirror Kit ON and OFF.................................
Pairing your BT Mirror Kit...........................................................
Using your BT Mirror Kit.............................................................
Table of Content:
Answering and Ending a Call...........................................................
Rejecting a Call......................................................................................
Voice Dialling from your BT Mirror Kit..........................................
Call Waiting from your from your BT Mirror Kit.........................
Last number Redialing from your BT Mirror Kit........................
Selecting between your BT Mirror Kit Speaker or Car
Speakers..................................................................................................
Earpiece conversation........................................................................
Adjusting the Volume of your BT Mirror Kit Speaker
and Earpiece..........................................................................................
Dialling from your Mobile Phone...................................................
Switching Phone Calls between your BT Mirror Kit
and the Mobile Phone handset.......................................................
Voice Recording and Playback Functions....................................
1
5
4
6
6
8
8
9
9
9
10
11
10
12
12
12
13
2

18
Care and Maintenance................................................................
Safety Information........................................................................
Troubleshooting............................................................................
Features............................................................................................
Quick Guide.....................................................................................
Product Specifications................................................................
Table of Content:
14
15
Under no circumstances shall the manufacturer be responsible for any loss of data or income
or any special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind,either express or implied,including,but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document.
The manufacturer reserves the right to revise this document or withdraw it at any time
without prior notice.
The availability of particular products may vary by region. Please check with the
dealer nearest to you.
    All rights reserved.
16
19
21

USB PORT
(for firmware upgrade only)
PLAYBACK
FUNCTION KEY
1
CALLER ID DISPLAY
STATUS LED
CHARGER
CONNECTOR
RECORDING
FUNCTION KEY
VOLUME
CONTROL
MULTI FUNCTION KEY
MICROPHONE
FM FREQUENCY SELECTION KEY ON / OFF POWER SWITCH EARPIECE
EARPIECE
ON / OFF
SWITCH

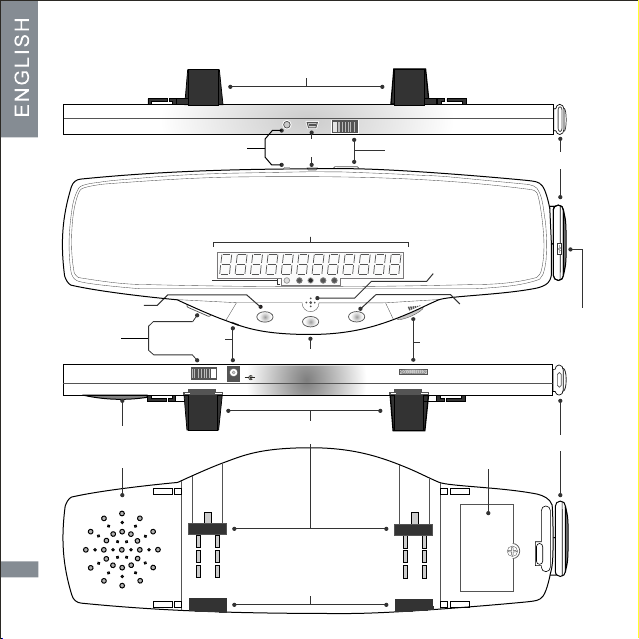

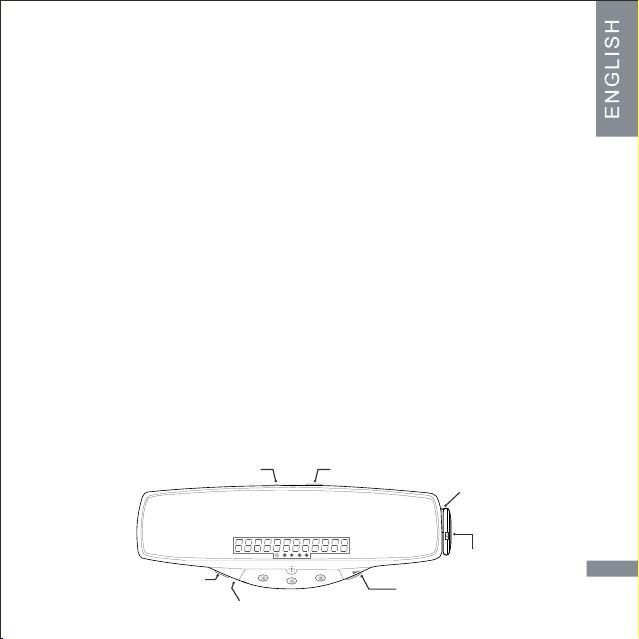

BT Mirror Kit Overview
(fig. 1)
VOL.
PLAY
WAITING
TALK
REDIAL
REC
MODE
SPEAKER
MODE SWITCH
EARPIECE
BATTERY COVER
DEVICE
INTERNAL
SPEAKER
HOOKING CLIPS
(BOTTOM PAIR)
HOOKING CLIPS
(TOP PAIR)
HOOKING CLIPS
(TOP PAIR)
Top
View
Bottom
View
Back
View
FM CH.FM CH. USBUSB ON OFFON OFF
INT.SPK.
CAR SPK.
DC IN
-+
Front
View
INT.SPK.
CAR SPK.
DC IN
-+

- VOLUME CONTROL: it controls the volume of both the
Internal Speaker and the Earpiece (only when in use). 2
Getting Started
Your BT Mirror Kit (The device) has the following keys and
functionalities as shown in fig. 1:
- POWER SWITCH: turn ON / OFF the device to save battery
power when not used for a prolonged time.
- MULTI FUNCTION KEY: press this key to (i) Answer a Call,
(ii) End a Call, (iii) Voice Dial, (iv) Redial Last Number,
(v) Reject a Call, (vi) Call Waiting, (vii) Bluetooth reconnect.
- SPEAKER MODE SWITCH: switch the sound mode from
(a) Device Internal Speaker, (b) Car Speakers (FM Tuner).
- RECORDING FUNCTION KEY: press this key to start and stop
recording a VOICE message.
- PLAYBACK FUNCTION KEY: press this key to listen the
recorded messages.

3
Getting Started... (continue):
- EARPIECE: to ensure privacy during a call. Once in use
the Internal Speaker and Car Speaker will mute.
- EARPIECE ON /OFF SWITCH: switch the earpiece ON to be
used for private conversation and OFF for power saving.
- MICROPHONE: internal Full duplex system Microphone.
DSP Technology, Noise and Echo suppression system.
- FM FREQUENCY SELECTION KEY: select between 4 preset
FM Frequencies (FM88.1 - FM88.5 - FM88.7 - FM89.4) to
tune in your Car Stereo and listen to your call.
- CALLER ID DISPLAY: support up to 12 digits. Display both
incoming calls and Device Status Messages.
- STATUS LEDS: indicate the Device's status on calls,
Recorded messages, Battery and Charging status.
- USB PORT: for firmware upgrade only!

4
CHARGING THE DEVICE:
Your VT-88 Bluetooth Mirror Kit is powered with a
fully re-chargeable and replaceable Li-Ion battery.
Note that a new battery's full performance is
achieved only after two or three complete charge
and discharge cycles.
1. Connect the provided charger into the cigarette
lighter port on the dashboard of your car.
2. Connect the lead from the charger to the socket on
the bottom of your device.
- Red LED will indicate that the device is charging.
- Yellow LED will indicate that battery is full.
- "LO" appears on the Caller ID Display when battery
need to be recharged.
The battery can be charged and discharged a hundreds
of times but it will eventually wear out.
When the operating time (talk time and standby time)
is noticeably shorter than normal, it is time to buy
a new battery.

Your BT Mirror Kit simply clip securely onto
your existing rear-view mirror.
5
INSTALLATION:
Just follow these simple steps:
1. Identify two pairs of clips on the back
of the device.
2. Place the bottom pair of clips on the
underside of the car’s original rear view
mirror and lift.
3. Extend the bottom clips and fix the top
one in position on top of the car’s
original rear view mirror, and held
securely until the unit is in place.
Adjust now the fitted unit for a clear rear-view vision.
1
2
LIFT
CLIPS
3
FIXED

6
TURNING YOUR BT MIRROR KIT ON AND OFF:
Switch-on the Power Switch.
The device will light up all digits of the
ID Caller Display. A start-up tone will
confirm the operation.
A blue LED will light-up.
To turn OFF the device, simply
switch-off the Power Switch.
PAIRING YOUR BT MIRROR KIT:
Prior to use your Device for the first time you must pair it
with a Bluetooth-enabled mobile phone.
The information on the next page describes pairing
instructions for a typical Bluetooth-enabled mobile phone.
BT Mirror Kit pairing procedure is subject to different
models of mobile phones. Please refer to the user manual
of your mobile phone for specific details on Bluetooth
connectivity.
ON OFF
USB
FMCH.
ONOFF
USB
FMCH.
VOL.
PLAY
WAITING WAITING
TALK TALK
REDIAL
REC
MODE

7
1.Turn ON the device and make
sure it's on "Stand-By Mode".
PAIRING YOUR BT MIRROR KIT STEP BY STEP:
Blue LED blinking
every 5 seconds.
2. Activate your mobile phone
Bluetooth function.
3. Set the mobile phone to search
for Bluetooth devices.
4. Select "Vitebo" from the list on
the mobile phone.
5. Enter the Passcode "0000" to
confirm the pairing process.
6. Pairing is now complete.
A list of enabled
devices in range
will show.
Refer to the mobile
phone's User Guide
for details.
Pair the device.
Caller ID Display
shows [PAIRED]
Blue LED light up.
Connection tips:
If your device or cell phone battery charge is low, the wireless connection
may occasionally be lost. To maintain good connectivity ensure that both
your device and phone battery have sufficient autonomy of charge.

8
USING YOUR BT MIRROR KIT:
When there is an Incoming Call you will hear your mobile
phone Ring Tone through the VT-88 Speaker.
The ID Caller display shows either the number of the
calling person or [CALL].
To ANSWER a call just press once the Multi Function Key
without holding it or accept the call via your mobile
phone in the normal way.
Once paired the device with your mobile phone, you are
ready to receive or make calls. The Blue LED is ON and
the ID Caller displays [CAR] every 1 minute.
Answering a call:
Ending a call:
To END a call just press once the Multi Function Key
without holding it or END the call via your mobile
phone in the normal way.
NOTE:
even after pairing with the device,some mobile phones do not connect until a
call is made or received. In this case, although you can still use the device,the
Blue LED will blink and ID Caller Display may not show the calling number.

9
To reject an incoming call press twice the Multi Function Key.
The Blue LED is ON or blinking and the ID Caller Display will
show [REJECT].
Rejecting a call:
Voice Dialing from your BT Mirror Kit:
(ONLY APPLICABLE TO MOBILE PHONE EQUIPPED WITH VOICE DIAL FUNCTION)
To make a call using Voice Dialing function shortly press the
Multi Function Key.The ID Caller Display shows [VOICEDIAL].
Say the Voice Tag clearly and the call will be made.
Call Waiting from your BT Mirror Kit:
When a call is active and a second call comes through, a call
alert can be heard (usually just few beeps).
Press and Hold the Multi Function Key for few seconds.
The ID Caller Display shows the second caller ID.The first call
is on hold and you can talk to the second caller.
To switch between the 2 calls Press and Hold the Multi
Function Key for few seconds again.
To terminate one of the two calls, select the caller and Press
the Multi Function Key once only.
USING YOUR BT MIRROR KIT:

10
Last Number Redialing from your BT Mirror Kit:
To Redial the last dialed number press twice quickly the
Multi Function Key. The ID Caller Display shows [REDIAL].
Selecting between your BT Mirror Kit Internal Speaker
or Car Speaker:
In addition to the internal Sound Speaker, your BT Mirror
Kit can let you benefit from your Car Stereo Radio Receiver
and Car Speaker System to listen to your Phone Calls. (fig. 2)
Use the Speaker Mode Switch to select between the
Internal Speaker (left position) or the Car Speaker mode.
Car Speaker mode can tune into 4 preset FM frequencies,
FM88.1, FM88.5, FM88.7, FM 89.4.
For best performance, select one of the preset channels
that is not occupied by a strong local FM radio station.
CAR SPEAKER MODE
VOLUME CONTROL
FM FREQUENCY SELECTION KEY
EARPIECE
EARPIECE
ON / OFF SWITCH
SWITCH
INTERNAL SPEAKER MODE
(fig. 2)
USING YOUR BT MIRROR KIT:
VOL.
PLAY
WAITING
TALK
REDIAL
REC
MODE
ON / OFF POWER SWITCH

11
USING YOUR BT MIRROR KIT:
To begin a conversation with the Earpiece, simply take it
from the unit, turn it ON and wear it.
The ID Caller Display shows [EAR].
To switch conversation between
Earpiece to Car Speaker or Internal
Speaker Mode just repose the
Earpiece into the unit.
The ID Caller Display shows [CAR].
Turn the Earpiece OFF to save battery power.
Earpiece Conversation:
Note:
The earpiece transmittance frequency is FM110.25MHz, outside the FM Radio
range so to avoid any interference with local radio station broadcasts.
EARPIECE
ON / OFF SWITCH

12
USING YOUR BT MIRROR KIT:
Adjusting the Volume of your BT Mirror Kit:
Use the Volume Control knob to adjust the desired
Volume for both the Internal Speaker and the Earpiece.
It is NOT recommended to set maximum Volume when
using the Earpiece.
Dialing from your Mobile Phone Handset:
While using your BT Mirror Kit, you can make and receive
calls directly from your handset while communications
will be through the device.
Switching Calls between your BT Mirror Kit and the
Mobile Phone Handset:
To switch a phone call between your Device and the hand
set, press and hold for 3 seconds the Multi Function Key.
The ID Caller Display shows [TRANSFER] and the Blue LED
blinks.
To reconnect the handset to your Device, press once the
Multi Function Key.
The ID Caller Display shows [CONNECTED] and the Blue
LED light up.

13
USING YOUR BT MIRROR KIT:
To easy the procedures of taking notes
with your hands on the wheels,
your BT Mirror Kit has embedded
a Voice Recording Function.
Voice Recording and Playback functions:
Note:
After making or answering a call, allow 3 seconds before starting the recording
session.
PLAY
WAITING
TALK
REDIAL
REC
To START recording press the
Recording Function Key once .
Both Green LEDs will blink
alternatively.
To STOP recording press once again the
Recording Function Key.The Green LED will be OFF.
To PLAY the recorded message, press the Playback Function
Key once. One Green LED will blink.
Recording time is about 20 seconds. Should you not stop the
recording session before recording time is over, one Green
LED is OFF while the other light up.

14
CARE AND MAINTENANCE:
Consider turning your BT Mirror Kit OFF for power
saving purpose.
Do not expose your device to liquid, moisture or humidity
as it is not waterproof.
Do not use abrasive cleaning solvents to clean the device.
Do not expose the device to extremely high or low
temperatures.
Do not dispose the device, nor its battery pack in a fire as
it will result in a explosion.
Do not bring the device into contact with sharp objects
as this will cause scratches and damage.
Do not attempt to disassemble the device as it does not
contain serviceable components.
If you do not use the BT Mirror Kit for long periods, be sure
to store it in a dry place, free from extreme temperatures
and dust.

15
SAFETY INFORMATION:
Check local laws regarding use of a mobile phone and
Bluetooth car kit while driving.
If you use the BT Mirror Kit while driving, ensure your
attention and focus remain on the road and you drive
in a responsible and safe manner.
Never allow children to play with the BT Mirror Kit.
Small parts may be a chocking hazard.
Observe all signs that require an electrical device or RF
Radio product to be switched OFF in designated areas.
These could include hospitals, blasting areas and
potentially explosive atmospheres.
Never mount or store your BT Mirror Kit over any airbag
deployment area as serious injury may result when an
airbag deploys.
Do not open or mutilate the BT Mirror Kit.
