icoms TMS-SA User manual

TMS-SA: above ground and portable traffic counter
User guide Version 2.7
TMS-SA –USER GUIDE

2
1 TABLE OF CONTENTS
1.1 TABLE OF CONTENTS
1 TABLE OF CONTENTS................................................................................................................... 2
1.1 Table of contents................................................................................................................. 2
1.2 List of figures ....................................................................................................................... 4
2 PRECAUTIONS FOR USE............................................................................................................... 7
2.1 Use of the TMS-SA............................................................................................................... 7
2.2 Identification of the equipment.......................................................................................... 7
2.3 Safety instructions............................................................................................................... 7
2.4 Packaging............................................................................................................................. 8
2.5 Safety precautions during use............................................................................................. 8
2.6 Warranty.............................................................................................................................. 8
3 INTRODUCTION ........................................................................................................................... 9
3.1 Concept ............................................................................................................................... 9
3.2 Functions ............................................................................................................................. 9
3.3 Technology .......................................................................................................................... 9
4 PREFACE .................................................................................................................................... 10
4.1 Minimum required configuration...................................................................................... 10
4.2 Installation of the IcomSoft TMS-SA ................................................................................. 10
4.3 Connect to radar or read an existing file........................................................................... 10
4.4 Bluetooth connection with the PC .................................................................................... 12
5 INSTALLATION AND CONFIGURATION ...................................................................................... 13
5.1 Physical installation of the radar....................................................................................... 14
5.1.1 Choose the direction according to the detection direction...................................... 14
5.1.2 Positioning the mounting bracket............................................................................. 14
5.1.2.1 Change the radar mounting bracket ..................................................................... 14
5.1.2.2 Installing the pole support –Standard 45° mounting bracket.............................. 15
5.1.2.3 Installing the pole support –Optional steerable bracket...................................... 16
5.1.3 The angles.................................................................................................................. 19
5.2 Configuring the radar ........................................................................................................ 20
5.2.1 Step 0/5: basic parameters ....................................................................................... 20
5.2.2 Step 1/5: radar location............................................................................................. 21
5.2.3 Step 2/5: installation mode....................................................................................... 21
5.2.4 Step 3/5: slope........................................................................................................... 22
5.2.5 Step 4/5: radar installation parameters.................................................................... 23

3
5.2.6 Step 5/5: summary .................................................................................................... 24
5.3 Measurement.................................................................................................................... 25
6 DOWNLOADING DATA............................................................................................................... 26
7 ANALYSING THE DATA............................................................................................................... 29
7.1 Rain and/or parasitic measures filter................................................................................ 29
7.2 Data display ....................................................................................................................... 29
7.3 Data filters......................................................................................................................... 29
7.4 Graphs ............................................................................................................................... 30
7.4.1 Speed Categories....................................................................................................... 30
7.4.2 Length Categories...................................................................................................... 30
7.4.3 Global chart............................................................................................................... 31
7.4.4 Hourly flow................................................................................................................ 31
7.5 Speed Categories............................................................................................................... 32
7.6 Length categories .............................................................................................................. 32
7.7 Statistics............................................................................................................................. 33
7.8 Export ................................................................................................................................ 33
7.8.1 Formats...................................................................................................................... 33
7.8.2 Excel report ............................................................................................................... 34
7.8.2.1 Preliminary ............................................................................................................ 34
7.8.2.2 Vehicle categories based on vehicle lengths......................................................... 34
7.8.2.3 How to change the time interval aggregation in the Excel report........................ 35
7.8.2.4 How to change the vehicle length categories in the Excel report......................... 36
7.8.2.5 How to load a customized report template in the IcomSoft................................. 38
7.9 General settings................................................................................................................. 39
8 RADAR CHARACTERISTICS ......................................................................................................... 40
8.1 Physical description........................................................................................................... 40
8.2 Technical characteristics ................................................................................................... 40
8.2.1 Power supply............................................................................................................. 40
8.2.2 Operating temperature............................................................................................. 41
8.2.3 Sealing ....................................................................................................................... 41
8.2.4 Detection direction.................................................................................................... 42
8.2.5 Accuracy of the measurements................................................................................. 42
9 ADDITIONAL INFORMATION...................................................................................................... 42
9.1 Legal declaration ............................................................................................................... 42
9.1.1 ........................................................................................................................ 42
9.1.2 Industry Canada......................................................................................................... 42

4
9.1.3 FCC............................................................................................................................. 42
9.1.3.1 FCC 15.21 Information to user .............................................................................. 42
9.1.3.2 FCC 15.19(a)(3) Labelling requirements................................................................ 43
9.1.3.3 FCC 15.105 Information to user ............................................................................ 43
9.2 Contact details................................................................................................................... 43
9.2.1 Manufacturer: ........................................................................................................... 43
9.2.2 Your distributor ......................................................................................................... 43
10 ANNEX 1: ERROR ACCORDING TO INSTALLATION ANGLES....................................................... 44
11 ANNEX 2: ANDROID APP............................................................................................................ 45
11.1 Introduction....................................................................................................................... 45
11.1.1 Concept ..................................................................................................................... 45
11.1.2 Download the app..................................................................................................... 45
11.1.3 Hardware requirements............................................................................................ 45
11.2 Installation......................................................................................................................... 45
11.3 Bluetooth connection........................................................................................................ 46
11.3.1 Pairing a new unit...................................................................................................... 46
11.3.2 Connecting an already paired radar.......................................................................... 48
11.4 Radar configuration........................................................................................................... 49
11.5 Measure mode .................................................................................................................. 50
11.6 Download the data............................................................................................................ 51
11.7 Share the files.................................................................................................................... 52
11.8 Erase the measurements................................................................................................... 53
11.8.1 Erase the data from the radar................................................................................... 53
11.8.2 Erase the files from the device.................................................................................. 53
12 ANNEX 3: 3G MODEM COMMUNICATION................................................................................ 54
1.2 LIST OF FIGURES
Screenshot 1: welcome ......................................................................................................................... 11
Screenshot 2: connection...................................................................................................................... 11

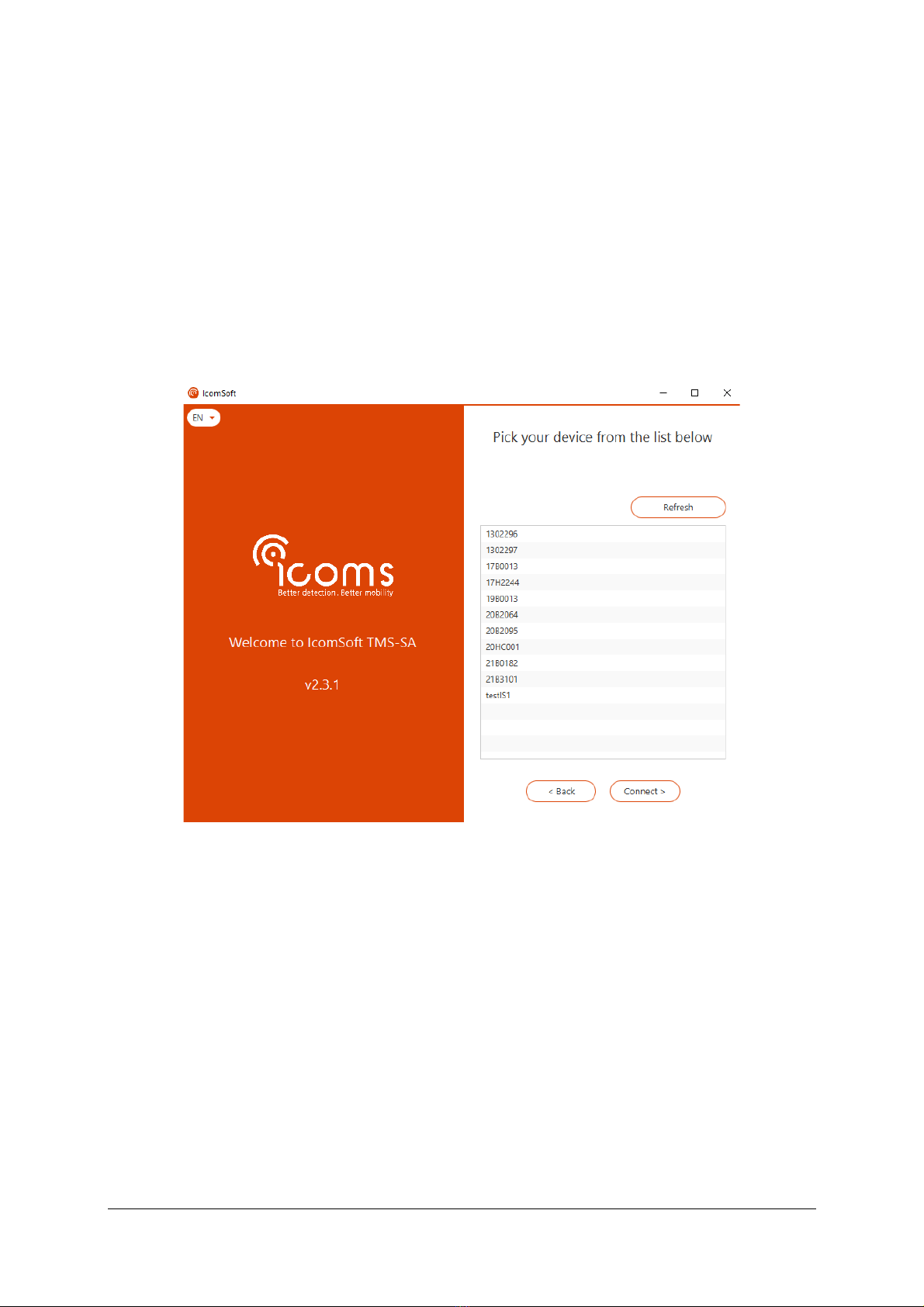

Screenshot 3: connecting to a Bluetooth device .................................................................................. 12
Graph 1: one direction .......................................................................................................................... 13
Graph 2: both directions ....................................................................................................................... 13
Figure 2: distance to the axis, unidirectional - bidirectional................................................................. 14
Figure 3: 45° oriented conical bracket .................................................................................................. 15
Figure 4: TMS-SA without bracket......................................................................................................... 15
Figure 5: steerable bracket.................................................................................................................... 15

5
Figure 6: alignment tool ........................................................................................................................ 16
Figure 7: mounting bracket................................................................................................................... 16
Figure 8: pole bracket + rear bracket.................................................................................................... 16
Figure 9: radar installed on the pole bracket........................................................................................ 16
Figure 10: support & clamps, side view ................................................................................................ 17
Figure 11: support & clamps, front view............................................................................................... 17
Figure 12: TMS-SA with bracket............................................................................................................ 17
Figure 13: 45° mark ............................................................................................................................... 17
Figure 14: orientation screw ................................................................................................................. 17
Figure 15: 45° orientation ..................................................................................................................... 17
Figure 16: clamping screw..................................................................................................................... 18
Figure 17: orientation at 45° with clamping screw and optional padlock ............................................ 18
Figure 18: clamping screw..................................................................................................................... 18
Figure 19: -45° mark.............................................................................................................................. 18
Figure 20: -45° orientation screw.......................................................................................................... 18
Figure 21: orientation at -45° with clamping screw and optional padlock........................................... 18
Figure 22: clamping screw with TMS-SA at a different angle ............................................................... 19
Figure 23: insertion space for anti-theft padlock.................................................................................. 19
Screenshot 4: invitation to clear the memory ...................................................................................... 20
Screenshot 5: radar parameters/basic parameters .............................................................................. 20
Screenshot 6: radar location ................................................................................................................. 21
Screenshot 7: installation mode............................................................................................................ 21
Screenshot 8: slope ............................................................................................................................... 22
Screenshot 9: installation parameters .................................................................................................. 23
Screenshot 10: setup summary............................................................................................................. 24
Screenshot 11: "live" speed display (measurement mode).................................................................. 25
Screenshot 12: confirm to download the data ..................................................................................... 26
Screenshot 13: downloading the data .................................................................................................. 26
Screenshot 14: saving the downloaded data........................................................................................ 27
Screenshot 15: rain filter option ........................................................................................................... 27
Screenshot 17: data display .................................................................................................................. 29
Screenshot 18: graphs tab..................................................................................................................... 30
Screenshot 19: speed categories graph ................................................................................................ 30
Screenshot 20: length categories graph................................................................................................ 31
Screenshot 21: global chart................................................................................................................... 31
Screenshot 22: hourly flow ................................................................................................................... 31

6
Screenshot 23: speed categories........................................................................................................... 32
Screenshot 24: length categories.......................................................................................................... 32
Screenshot 25: statistics tab.................................................................................................................. 33
Screenshot 26: vehicle categories based on vehicle length in IcomSoft .............................................. 34
Screenshot 27: vehicle length categories in the Excel Report .............................................................. 35
Screenshot 28: Time interval aggregation in the Excel Report............................................................. 35
Screenshot 29: Choosing the interval(s) ............................................................................................... 36
Screenshot 30: group the data based on vehicle lengths ..................................................................... 36
Screenshot 31: new values for the length categories........................................................................... 37
Screenshot 32: excel alert to refresh the pivot table data and graphs................................................. 37
Screenshot 33: new vehicle length categories...................................................................................... 37
Screenshot 34: changing the category title........................................................................................... 38
Screenshot 35: example of new vehicle length categories and values................................................. 38
Screenshot 36: export screen................................................................................................................ 38
Screenshot 37: report settings.............................................................................................................. 39
Screenshot 38: settings screen.............................................................................................................. 39
Graphic 3: % error on speed as a function of a change in inclination angle......................................... 44
Graphic 4: % error in speed as a function of a change in transmission angle....................................... 44

7
2 PRECAUTIONS FOR USE
This document is intended to help you to install and use the TMS-SA radar in an appropriate and safe
manner. It is therefore essential that you read it carefully before using the equipment. This manual
contains important instructions that will help you to avoid dangers and extend the life of your
equipment and its accessories.
Closely follow the instructions in this manual to avoid danger to yourself and third parties as well as
damage to the equipment.
Please contact your dealer for any questions that this manual does not answer.
2.1 USE OF THE TMS-SA
The TMS-SA is intended solely for the collection of traffic data (detection of vehicles for counting,
classification and speed measurement). Do not use the TMS-SA for any other purpose or in an
inappropriate manner.
2.2 IDENTIFICATION OF THE EQUIPMENT
The ultra-high frequency TMS-SA radar is equipped with a label bearing the serial number. Do not
remove this label. You will be asked for this number for any after-sales or support activity. Please be
prepared to quote this number when communicating with after-sales service.
2.3 SAFETY INSTRUCTIONS
•Before installation and first operation, please observe the instructions in this manual. The
manual must be available at all times.
•Ensure that no liquid enters the equipment.
•If you notice any deterioration of any kind (damaged or stripped cable, damaged connector
...), disconnect the equipment and contact your supplier.
•Any malfunction of the equipment that reduces the safety of the users or third parties must
be rectified immediately. Ensure that the identification labels and/or safety labels are
complete and legible.
•The guarantee does not cover damage resulting from improper use. The manufacturer cannot
be held responsible for damage caused by improper use of the equipment.
•The equipment cannot be used as a safety component in the sense of European Directive
98/37/EC ("Machinery Directive”).
•The user of the equipment must ensure that the operating mode chosen does not cause any
damage to material or third parties and that all safety measures and equipment are in place
and functioning.
•No modification, whether mechanical or electrical, can be made without the permission of the
manufacturer. Use only original parts and accessories, failure to do so can void the guarantee.
•During installation, be careful when using a ladder for securing the support on the post or the
radar on its support. Check the stability of the ground before using any means for reaching the
desired height of the installation.
•We recommend the use of a padlock for securing the radar on its support.

8
2.4 PACKAGING
The radar packaging has been designed and developed specifically for the TMS-SA in order to give it
the best possible protection during transportation.
Please retain the packaging box for any return to the manufacturer. The guarantee only applies for
radars sent in their original box.
A replacement box can be obtained from the manufacturer for a price of 20 EUR, plus shipping charges.
2.5 SAFETY PRECAUTIONS DURING USE
This equipment contains electronic components that require precautions to be taken for
transportation and installation. Observe the following recommendations during use and storage:
•Do not apply any stickers to the front of the equipment (cover). This could interfere with the
operation of the radar.
•Avoid shocks during transportation and handling.
•Never use cables, power supplies, chargers or other accessories other than those supplied with
the equipment, failure to do so can void the guarantee.
•During storage, do not place any other materials on top of the equipment.
•In order to preserve the battery, do not store the equipment at a temperature lower than –
10° C. If the temperature falls below this limit, leave the radar on permanent charge.
•To ensure the life of your batteries, make sure that they are not left longer than 60 days
without charging. Do not store the TMS-SA with discharged batteries.
•A defective battery may emit gas that is potentially explosive.
oCharge you battery in an open environment:
•If your radar has an external connector on the housing: remove the
safety screws and open the top while charging the batteries;
•If your radar hasn’t any external connector on the housing: remove
the safety screws. You can then open the top and connect the charger
to the battery pack. Leave the top open while charging the batteries;
•In both cases, do not touch the antenna: it is an Electrostatic-Sensitive
Device;
oOnce your batteries are charged, close the top carefully:
•do not touch the wiring;
•fasten the safety screws without force.
Check regularly your batteries: inflated battery, white deposit on the connector plates, acid or gel
leak, warm battery during the charging process, … are signs which must alert the user on a potential
default of the battery. If one of these phenomena occurs, replace your batteries.
oReplace your batteries every 3 years.
2.6 WARRANTY
The warranty, with a duration of 2 (two) years from the date of delivery, covers manufacturing defects
and defective components, within the context of normal usage of the equipment. It does not cover the
battery (6 months guarantee), vandalism, scratches or other damage resulting from normal use of the
equipment. In order to maintain your rights under this guarantee, please follow scrupulously the
instructions given in this manual.

9
3 INTRODUCTION
3.1 CONCEPT
The TMS-SA is a compact, self-contained and portable traffic counter.
The battery, memory and sensor are contained in a single housing.
•It is installed alongside the road;
•It is discrete;
•It is not in direct contact with passing vehicles;
•It is silent
•The technology used makes the equipment impermeable to cold, heat, mist, surrounding
pollution, variations in light, humidity, etc. Note however very heavy rainfall (sudden shower
or flurry, combined with gusts of wind during a storm for example) can create false detections
(parasitic measurements) in the receding direction (measurement of vehicles moving away).
The Icoms Software automatically detects the false detections due to rain. It is then up to the
user to decide to filter out the data to erase the undesirable measures. The function of this
filter is explained further in this document, p. 29
3.2 FUNCTIONS
The equipment enables the counting of vehicles, speed measurement and classification of vehicles
according to length, with a record of the date and time of passingof each vehicle. It saves the measured
data for each vehicle.
The software supplied with the equipment enables a precise and complete analysis of the data.
3.3 TECHNOLOGY
This is a Doppler effect radar, using the same technology as enforcement radars.

10
4 PREFACE
The TMS-SA communicates with a PC via a Bluetooth® link. Before configuring your TMS-SA, it is
necessary to install the Icoms Detections software (IcomSoft TMS-SA) and, if not already installed on
your PC, the driver for the Bluetooth transmitter/receiver (dongle).
PLEASE UNINSTALL ANY BLUESOLEIL DRIVER PREVIOUSLY INSTALLED ON YOUR
COMPUTER. IT IS NOT COMPATIBLE WITH THE ICOMSOFT TMS-SA.
4.1 MINIMUM REQUIRED CONFIGURATION
▪Operating system (OS): Windows 7 or later
▪Configuration:
oDisk space: 1 GB minimum
oRAM memory: 1 GB
oProcessor min 1.5 GHz
oBluetooth 2.0 class 1 (100 m)
The use of Bluetooth equipment of a level earlier than 2.0 is strongly advised against, it may not
provide the required data throughput needed for good communication with the radar. Furthermore,
if there are nearby devices operating in the same frequency range such as internet routers, or other
Wi-Fi devices or GSM, Bluetooth version 1.1 manages the frequency plans very badly. Class 2 is equally
strongly advised against (various pre-installed internal Bluetooth) in areas with interference (see also
below, Bluetooth connection with the PC, Notes).
4.2 INSTALLATION OF THE ICOMSOFT TMS-SA
1. Close any running applications.
2. Place the USB key in the USB slot, navigate to 6_IcomSoft\TMS-SA\Windows\ and execute
IcomSoft-TMS-SA-setup-x.y.z.exe (x.y.z refers to the version of the IcomSoft TMS-SA supplied by
your distributor).
3. If you have downloaded the software via a website, double-click the ".exe" file to start the
installation process.
4. Follow the instructions.
5. Your reseller will provide you with the password for installation of the software.
6. Accept the licence terms.
7. Start the program by clicking on the desktop icon.
4.3 CONNECT TO RADAR OR READ AN EXISTING FILE
Once the software is launched, the user will have two options. Select the option that applies and the
following steps.

11
Screenshot 1: welcome
•Connect to a radar (to set it up or to download the data) by clicking “Connect”.
Screenshot 2: connection
oChoose “Connect to a device” to connect to the device and configure it using RS-232
or Bluetooth and follow the steps on the screen. For Bluetooth connection details,
please refer to section 4.4.
oChoose “Visualize data” to download the data from the device and visualize the
statistics

12
•Read a data file by clicking “Read file” and choose the file to be read for data analysis.
4.4 BLUETOOTH CONNECTION WITH THE PC
1. If your PC does not have an embedded Bluetooth device, insert a USB Bluetooth device or
“dongle” and follow the installation instructions.
2. Launch IcomSoft TMS-SA and choose “Connect” followed by “Connect to a device” and then
“Connect via Bluetooth”. The software will search for Bluetooth devices and display the
available Bluetooth devices on the screen. Choose the device to connect to and click “Connect”
as shown in Screenshot 3.
3. If a pairing password is requested, please get the pairing password from your distributor
4. Follow the instructions.
Screenshot 3: connecting to a Bluetooth device

13
5 INSTALLATION AND CONFIGURATION
The radar installation sequence is as follows:
1. Choose the installation site;
2. Mount the support;
3. Place the radar on its support;
4. Connect the PC to the radar;
5. Send the configuration parameters;
6. Check the accuracy of the data.
An incorrect installation can change the precision on the data. See p. 44 for more information about
the influence of the installation of the accuracy of the data.
The best results are obtained with the following conditions:
•measure on a single traffic lane in only one direction. Please remember that very heavy rainfall
(sudden shower or flurry, combined with gusts of wind during a storm for example) can create
false detections (parasitic measurements) in the receding direction (measurement of vehicles
moving away).
•mounting pole perpendicular to the road (a deviation in the post of 6 degrees can create a
speed measurement error of 5 %. The software allows the road gradient or slope to be
corrected for, see p. 21),
•measure outside braking, acceleration and congestion zones.
The green areas in the following diagrams indicate the best installation height and road distance
combinations. It is possible to operate outside the zones concerned, but the measurements will be less
accurate. This colour code also appears in the software during the selection of the installation
parameters
Graph 1: one direction
Graph 2: both directions
Example:
•For measurements in one direction, if the distance between the pole and the centre of the
lane is 4 m, the recommended height is between 1.5 and 4.5 m.

14
•For measurements in both directions, if the distance between the pole and the centre of the
road is 5 m, the recommended height is between 1.5 and 4 m.
5.1 PHYSICAL INSTALLATION OF THE RADAR
5.1.1 CHOOSE THE DIRECTION ACCORDING TO THE DETECTION DIRECTION
The equipment can measure vehicles that are moving towards or away from the radar. It is therefore
possible to install the equipment behind a road sign (more discrete). The various possibilities are
depicted in Figure 1as shown in the IcomSoft:
Figure 1: position of the radar and detection direction
Two important elements must be considered when choosing the installation site: the distance
between the post and the centre of the traffic lane (or the separation between the lanes for
bidirectional measurements, see Figure 2) and the height of the radar installation.
In general, the distance cannot be changed, it depends on the post or mast, which are often fixed.
Figure 2: distance to the axis, unidirectional - bidirectional
The height is measured between the roadway and the base of the radar (bottom edge of the housing).
It is chosen as a function of the distance, as indicated on page 13.
5.1.2 POSITIONING THE MOUNTING BRACKET
The mounting bracket is made from two parts: one part is mounted at the back of the radar, the
another part is mounted on a signpost or other vertical support. Two types of mounting systems are
available, in order to make the mounting easier on places where it is difficult to place the standard
support parallel to the road.
5.1.2.1 Change the radar mounting bracket
The TMS-SA is equipped by default with the 45° oriented bracket, as shown on Figure 3.
D
H
D
H

15
Figure 3: 45° oriented conical bracket
To install the optional bracket, remove the 4 nuts and take out the conical part.
Figure 4: TMS-SA without bracket
Replace the conical part by the steerable bracket as shown on
Figure 5. Please make sure the marks coincide.
Figure 5: steerable bracket
The nuts tightening torque must be 22 Nm.
5.1.2.2 Installing the pole support –Standard 45° mounting bracket
Ensure that the support plate is well parallel to the road thanks to the alignment tool integrated in the
equipment (for easily aligning the bracket). The spirit level enables you to check that post is
vertical/parallel to the ground.

16
Figure 6: alignment tool
Measure the distance between the post and the road. Record the same distance 15 m further away
and place an object (a traffic cone with a marker, for example) that allows you to sight parallel to the
road. Once the object is aligned in the viewfinder, firmly secure the bracket to the post and check the
alignment again to make sure the bracket has not moved while it was being secured.
Figure 7: mounting bracket
Once the movable bracket has been mounted, the radar can be installed as shown in Figure 8 and
Figure 9:
Figure 8: pole bracket + rear bracket
Figure 9: radar installed on the pole bracket
5.1.2.3 Installing the pole support –Optional steerable bracket
An optional support has been developed for the TMS-SA in order to offer a wider range of positioning
angles, instead of the fixed angle of +/-45 degrees. On some poles, it is indeed difficult to find the
parallel with the road and to properly install the standard 45° bracket.

17
Attach the TMS-SA bracket to the post using the clamps, as shown in Figure 10 & Figure 11.
Figure 10: support & clamps, side view
Figure 11: support & clamps, front view
5.1.2.3.1 Positioning TMS-SA at 45°
Place the TMS-SA on the bracket as shown in Figure 12 and Figure 13.
FIGURE 13 also shows the alignment of the two holes on the right using the orange arrow. When the
two holes are aligned, the TMS-SA is aligned at 45 ° to the bracket on the pole. If the road is parallel to
the support, the TMS-SA is aligned for use.
Figure 12: TMS-SA with bracket
Figure 13: 45° mark
Slide a screw through the two aligned holes to secure the TMS-SA orientation as shown in Figure 13.
Then use the clamping screw and tighten the screw securely to ensure the correct fixing of the TMS-
SA.
Figure 14: orientation screw
Figure 15: 45° orientation

18
Figure 16: clamping screw
Figure 17: orientation at 45° with clamping screw and
optional padlock
5.1.2.3.2 Positioning TMS-SA at -45°
If the TMS-SA has to detect in the opposite direction, the steerable bracket allows to change the
orientation of the detector as shown in Figure 19. The orange arrow in Figure 19 shows the indication
of-45 ° when the two holes are aligned. If the road is parallel to the support, the TMS-SA is aligned for
use and you can proceed with the orientation screw and the clamping screw as shown in Figure 20 and
Figure 21.
Figure 18: clamping screw
Figure 19: -45° mark
Figure 20: -45° orientation screw
Figure 21: orientation at -45° with clamping screw and
optional padlock
5.1.2.3.3 Random angle mounting
When the pole is not parallel to the road and the TMS-SA must be aligned at another angle, the
steerable bracket can change the angle. Figure 22 shows the TMS-SA mounted at a different angle. In
this case, there is no orientation screw because the orientation holes are not aligned and therefore do

19
not allow the orientation screw to be set to +/-45 ° relative to the post. To align the TMS-SA, the upper
edge of the steerable bracket serves as a viewfinder. Align the upper edge by putting it parallel to the
edge of the road to put the TMS-SA at the right angle, as shown in Figure 22. Then use the clamping
screw to secure the desired direction of detection of the TMS-SA.
Figure 22: clamping screw with TMS-SA at a different angle
5.1.2.3.4 Anti-theft padlock
The upper part of the TMS-SA support includes a slotted hole which gives access to a second hole to
be able to pass an anti-theft padlock, as indicated by the orange arrow in Figure 23.
Figure 23: insertion space for anti-theft padlock
5.1.3 THE ANGLES
2 angles determine the installation and accuracy of the measurements:
Horizontal (, with reference to the vehicle movement axis): ALWAYS 45°, where the base of the radar
is aligned with a point situated halfway between the parallel and perpendicular axis of the road.
Position the mounting foot in parallel with the vehicle movement, as indicated above. When you
position the radar on the bracket, it will be automatically positioned at 45° (see Figure 8 and Figure 9).
Vertical (): determined by the software according to the height of the installation and the distance to
the vehicle movement axis. This angle will be adjusted automatically after you have sent the
installation parameters to the radar and it has switched to "measurement" mode. The software makes
it possible to fine tune this angle according to the slope of the road and/or the inclination of the post.
Align the upper edge parallel to
the edge of the road, this serves as
a viewfinder.

20
5.2 CONFIGURING THE RADAR
Launch the IcomSoft TMS-SA software. See chapter 4.3, p. 10 for the connection with the radar. You
can also set up the radar with an Android app. See chapter 11, p. 45 for further information about it.
5.2.1 STEP 0/5: BASIC PARAMETERS
If data are already written in the memory of the radar, the software will suggest erasing it. Before
confirming, please check the data are saved.
Screenshot 4: invitation to clear the memory
These indications appear in the upper part of screen:
Screenshot 5: radar parameters/basic parameters
: Radar date and time
: Serial number
: battery charge level (measurements are impossible below 5.5 V, also see page 40)
: percentage memory occupied by measurement data (100 % = 1 000 000 vehicles)
1
4
3
2
