iCOquit Smokerlyzer User manual

User Manual
iCOquit®®Smokerlyzer®
For use with the iCOquit® Mums to Be app

1
Important Information/Reminders
WARNING: The iCOquit® Smokerlyzer® device is for individual use. Do not share your device with
anyone to lower the risk of cross-contamination.
CAUTION: Never use alcohol or cleaning agents containing alcohol or other organic solvents as these
vapours will damage the carbon monoxide sensor inside the iCOquit®.
CAUTION: Do not use hand-sanitising products containing alcohol when using the device as this may
damage the sensors.
CAUTION: Use of accessories not approved by the manufacturer will invalidate the warranty and
may compromise the functionality of the device.
NOTE: Once the iCOquit’s battery has become flat, the iCOquit® will need to be disposed of, please
see disposal guidance in Disposal section.

2
Contents
Important Information/Reminders ................................................................................................ 1
About this Manual ......................................................................................................................... 3
Definitions..................................................................................................................................... 3
Compliance ................................................................................................................................... 3
Warnings....................................................................................................................................... 3
Cautions ........................................................................................................................................ 3
Contraindications .......................................................................................................................... 4
Intended Use/Indications .............................................................................................................. 4
Instrument Layout ......................................................................................................................... 4
Installation and Set-up................................................................................................................... 5
User Interface................................................................................................................................ 5
Breath test .................................................................................................................................... 8
Using the iCOquit®......................................................................................................................... 8
Connecting to an iCOquit® device ................................................................................................ 13
Completing a breath test ............................................................................................................. 15
Interpreting the breath test result ............................................................................................... 17
Due date options ......................................................................................................................... 18
Navigation drawer menu options................................................................................................. 20
Troubleshooting .......................................................................................................................... 25
Cleaning ...................................................................................................................................... 25
Technical Specification ................................................................................................................ 26
Safety Information and Device Symbols....................................................................................... 27
Warranty ..................................................................................................................................... 30
Disposal of Device ....................................................................................................................... 30
References .................................................................................................................................. 30
Responsible Manufacturer and Contacts...................................................................................... 30

3
About this Manual
The User Manual provides instructions on how to operate iCOquit® Smokerlyzer® monitor and the
iCOquit® Mums to Be app. It contains relevant information about the monitor, its uses and its care,
including step-by-step instructions with screens and illustrations.
Definitions
WARNING: indicates a potentially hazardous situation, which, if not avoided, may result minor or
moderate injury.
CAUTION: indicates a potentially hazardous situation, which, if not avoided, may result in damage to
the device.
NOTE: used to call attention to notable information that should be followed during use.
Compliance
iCOquit® Smokerlyzer® is CE marked according to the Medical Device Directive 93/42/EEC.
Please refer to the ‘Safety Information’ section of this manual for more information on the
compliance of the iCOquit® Smokerlyzer®.
Warnings
1. Hands should be washed regularly in accordance with infection control practice.
2. Please do not attempt to modify the equipment in any way or use accessories not specified
by the manufacturer. Any attempt to do so will invalidate the warranty and may
compromise the safety of the device.
Cautions
1. Never use alcohol or cleaning agents containing alcohol or other organic solvents as these
vapours will damage the carbon monoxide sensor inside the iCOquit®.
2. Do not use hand-sanitising products containing alcohol when using the device as this may
damage the sensors.
3. Use of accessories not approved by the manufacturer will invalidate the warranty and may
compromise the functionality of the device.

4
Contraindications
There are no contraindications.
Intended Use/Indications
The iCOquit® Smokerlyzer® is a breath test carbon monoxide monitor intended for use by individuals
trying to live a healthier lifestyle and improve their general wellness. Monitoring an individual’s
breath CO levels can act as a marker of recent smoking activity.
Tracking the CO levels can be used to encourage the individual to make lifestyle choices to reduce
their smoking intake, which, as part of a healthy lifestyle, may help reduce the risk of smoking
related chronic diseases or conditions.
Using the power of smartphone or tablet applications, the iCOquit® Smokerlyzer® device will have an
intelligent live display via the iCOquit App or the iCOquit Mums to be App, guiding the user through
the process of providing a breath sample for measurement. After the breath test, access is given to
the results recording and reporting platform that can be accessed by the individual.
Instrument Layout
1. Breath sample port
2. On/pairing button
3. LED light ring/pairing light
4. Information label including serial
number
5. Breath exhaust
1 2 3
4
4
5

5
Installation and Set-up
Downloading the iCOquit® app
The iCOquit® Mums to Be app can be downloaded from the App Store or Google Play.
Connecting the iCOquit® device
To connect the device to the app, push the pairing button when instructed to. A blue light will flash
once to show pairing is complete.
WARNING: The iCOquit® Smokerlyzer® device is for individual use. Do not share your device with
anyone to lower the risk of cross-contamination.
NOTE: This can take up to 5 seconds and will only pair once initiated from within the iCOquit®
maternity app.
The device automatically disconnects after 10 seconds of inactivity or when a breath test is
complete.
User Interface
Splash Screen
The splash screen shall display upon starting the
app. The splash screen shall disappear once the
app has successfully loaded.

6
Sign in Screen
1. Email Address field.
2. Password field.
3. Forgotten Password button, starts a new
forgotten password process.
4. Sign In Button, starts the authentication
process.
5. Register button, starts the user
registration process.
1
2
3
4
5

7
Dashboard/Home Screen
1. Hamburger menu button, this will open
the menu.
2. The first dashboard shows the users latest
CO PPM reading.
a. Information overlay appears on a
tap gesture which provides result
description.
3. The second dashboard shows days until
quit date or if quit date has been reached,
it will show number of days smoke-free.
4. The last dashboard shows days until due
date.
5. Results tab will navigate user to results
graph.
6. Dashboard tab will navigate user to
dashboard.
7. Breath Test Tab will navigate the user to
the first breath test page if it is not the
active tab.
1
2
2a
3
4
5 6 7

8
Breath test
Using the iCOquit®
1. Press the breath test icon
2. Follow the steps on the iCOquit® Mums
to Be app.
User Authentication and Registration
Authentication Screen Options
a. If the user already has an account
they will need to complete the
authentication fields and tap the
‘Sign In’ Button.
b. If the user is already a user, but has
forgotten their authentication
credentials, the user will need to tap
the ‘Forgotten Password’ Button.
c. If the user is not currently a
registered user they will need to tap
the ‘Register’ Button.
1c
1a
1b

9

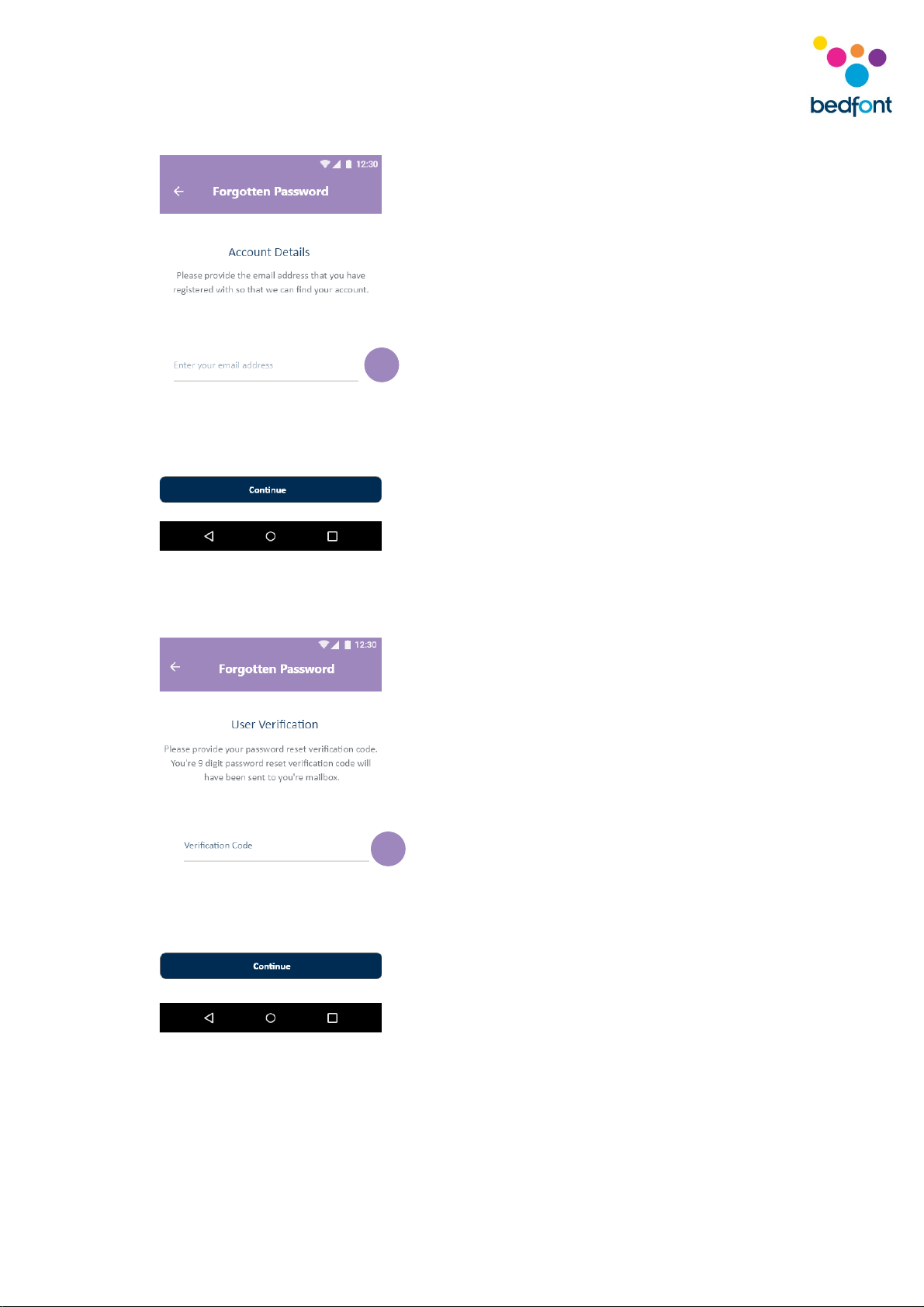

Completing the Forgotten Password Process
1. The user will to provide the email
address they completed registration
with and then tap the ‘Continue’ button.
2. A verification code will be sent to the
user’s mailbox in order to reset
password. The user will then need to tap
the ‘Continue’ button.
1
2
1

10
3. The last step is to provide a new
password and rewrite that password
and then tap the ‘submit’ button.
After the new password has been submitted,
the app will return to the sign-in page.
Completing the Registration Process
1. The user will need to complete the user
profile section of the registration
process. This will involve:
a. Providing a name.
b. Providing their age.
c. Providing their due date.
d. Providing their planned quit
date
e. Providing their planned quit
time
Once this has been completed the user will need
to tap the ‘Continue’ Button.
3
1a
1b
1c
1d
1e

11

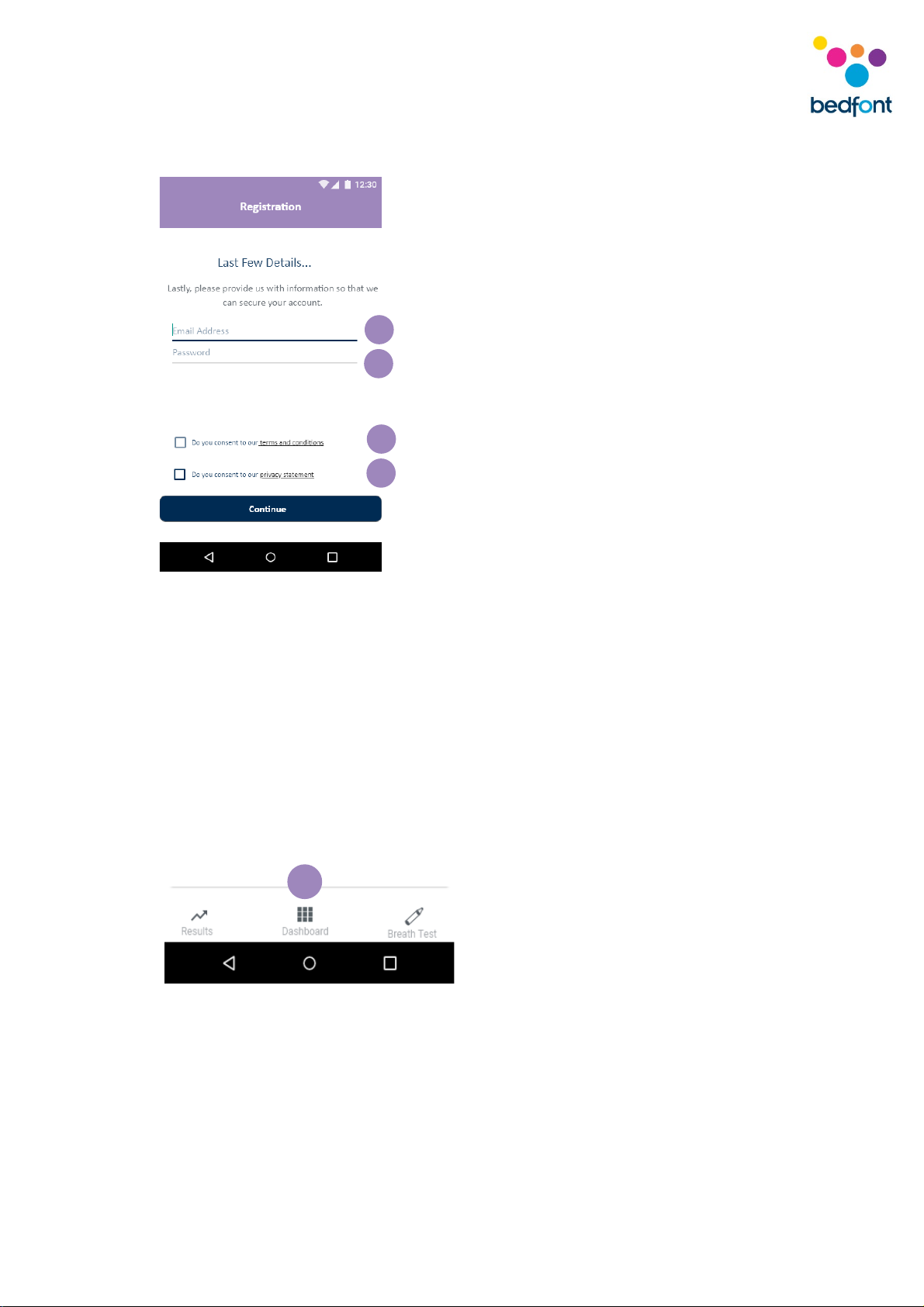

2. The final section of the registration
process is providing details for
authentication and consents. This will
involve:
a. Providing a valid email address.
b. Providing a password for
authentication.
c. Agreeing to terms and
conditions.
d. Agreeing to the privacy
statement.
Once the user has provided the required
information they will need to tap the ‘Continue’
button.
NOTE: The password requires an uppercase
character, a lowercase character, a number and
a special character to be accepted.
4. The user will then be navigated back to the sign in screen. The user must wait for their confirmation email
before attempting authentication. The user must tap the link in the email to confirm their email address. After
this the user will be authenticated and can return to the app and sign in using the details registered.
Tabbed Navigation Pages
1. The tabbed navigation allows
navigation between three
pages; Dashboard, Breath
Test and Results the selected
item will be highlighted as
dark blue while the
unselected/non-active items
will be grey.
1
3a
3b
3c
3d

12
a. To navigate to the
Dashboard tap
‘Dashboard’. The
dashboard provides an
overview of the users
smoking cessation
progress.
b. To start a new breath
test, tap the ‘Breath
test’ Button. The breath
test tab will display the
hygiene warning and
allow the user to start a
new breath test, by
tapping the ‘Continue’
button.
1a
1b

13
Connecting to an iCOquit® device
1. The Bluetooth® scanning phase will
show a spinner while searching for
a device.
c. To view historic breath
test results, the user will
need to tap the ‘Results’
button. The results are
ordered with the oldest
reading displayed to the
left and the latest
reading displayed from
furthest from the right.
1c
1

14
2. If an iCOquit® device has been
found and successfully connected
to, a tick shall be shown to indicate
a successful connection between
the smart device and iCOquit®.
3. If an iCOquit® device has not been
found or was unable to successfully
connect, a retry icon shall appear
indicating connection has failed,
but tap the icon to try again.
2
3

15
Completing a breath test
Breath Test Initialisation
1. The first screen prompts the user to
initiate the breath test. To do this
the user will need to tap the ‘New
Breath Test’ Button.
Inhale Instructions
2. As prompted onscreen, take a deep
breath.
1
2

16
Hold Instructions
3. As prompted onscreen, hold your
breath until the countdown timer
has finished.
4. If the 15 second inhalation
countdown is unattainable, begin
exhaling when ready and the device
will begin measuring breath
sample.
Exhale Instructions
5. Do not cover vent hole of device
when performing a breath test.
6. As prompted on screen, exhale.
3
5
4
6

17
Interpreting the breath test result
1. Breath test result
interpretation chart
a. Green = Low CO ppm
reading
b. Yellow = Moderate
CO ppm reading
c. Red = High CO ppm
reading
Once a breath test has been
completed the user will be navigated
to this screen where they will see
their CO ppm result.
1. The user can share their
results by pressing the share
icon in the top right of the
screen.
Pressing the share icon will allow the
user to share their results through
another application.
1
2

18
Due date options
Once the entered due date has been
reached, a pop-up will appear to ask if
the baby has arrived.
If the user answers no, the
pop-up will appear every day until she
answers yes.
If the user answers yes, they will then be
asked if they wish to continue their stop
smoking journey.
If they choose no, nothing will happen.

19
If they choose yes, the app will
automatically update the CO thresholds
to that of a non-maternity CO test and
the due date in the woman’s account
will appear blank. A pop-up will appear
to notify them of the change.
The breath test results screen will now
look like this.
