ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---1
ZB-2550/ZB-2551 Series
User Manual
Warranty
All produc s manufac ured by ICP DAS are under warran y
regarding defec ive ma erials for a period of one year, beginning
from he da e of delivery o he original purchaser.
Warning!
ICP DAS assumes no liabili y for any damage resul ing from
he use of his produc . ICP DAS reserves he righ o change his
manual a any ime wi hou no ice. The informa ion furnished by
ICP DAS is believed o be accura e and reliable. However, no
responsibili y is assumed by ICP DAS for i s use, no for any
infringemen s of pa en s or o her righ s of hird par ies resul ing
from i s use.
Copyright
Copyrigh @ 2007 by ICP DAS Co., L d. All righ s are
reserved.
Trademark
The names used for iden ifica ion only may be regis ered
rademarks of heir respec ive companies.

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---2
Table of Con en s
1. Introduction ....................................... 3
1.1 More Informa ion ........................................................................................4
1.2 Pin Assignmen ..............................................................................................6
1.3 Specifica ions..................................................................................................7
1.4 Block Diagram ................................................................................................8
1.5 Wire Connec ion ...........................................................................................9
1.6 Quick S ar ...................................................................................................11
1.7 Defaul Se ings ........................................................................................... 15
2. Applications ......................................1
2.1 Opera ing Modes................................................................................................ 16
2.2 Applica ion Example......................................................................................... 20
Opera ing Mode 1 : Transparen Mode .......................................................... 20
Opera ing Mode 2 : Modbus Mode ................................................................... 21
Opera ing Mode 3 : Addressable Mode ......................................................... 22
Opera ing Mode 4 : ZBIO Mode ...................................................................... 23
2.3 ZigBee Ne work Groups.................................................................................. 24
3. Appendix .........................................2
3.1 Zigbee Version Comparison ......................................................................... 26

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---3
1.Introduction
The ZB-2550/ZB-2550P/ZB-2550-T/ZB-2550-PA is hereinaf er
referred o as "ZB-2550 series" and he
ZB-2551/ZB-2551P/ZB-2551-T/ZB-2551-PA is hereinaf er
referred o as "ZB-2551 series".
ZigBee is a specifica ion based on he IEEE 802.15.4 s andard
for wireless personal area ne works (WPANs). ZigBee opera es in
he ISM radio bands and i s focus is o define a general-purpose,
inexpensive, self-organizing, mesh ne work ha can be used for
indus rial con rol, embedded sensing, medical da a collec ion,
smoke and in ruder warning, building au oma ion, home au oma ion,
and domo ics, e c.
A presen , he ICP DAS ZigBee conver er ZB-2550 series
and ZB-2550 series, suppor s he RS-232 and RS-485 in erfaces.
The main design goal is limi ed da a communica ion using wireless
ransmission, so may provide a be er solu ion for environmen s
where wiring is difficul .

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---4
1.1 More Information
The ZB-2550 series and he ZB-2551 series are small-sized
wireless ZigBee conver ers based on he IEEE 802.15.4 s andard.
They allow RS-485/RS-232 in erfaces o be conver ed o a
ZigBee wireless ne work. Only one ZB-2550 series (Hos ) is
allowed in a ZigBee ne work and is used o ini ialize and manage
he da a ransmission rou es. The ZB-2551 series (Slave) ZigBee
rou er is responsible for ransmi ing/receiving da a from i s
child/paren rou er or he hos . ICP DAS ZigBee produc s are
designed for low da a ra es. The main benefi of ICP DAS ZigBee
produc s is ha hey can be used o define a general-purpose,
self-organizing mesh ne work, which can be highly advan ageous
for indus rial con rol.
The ypical ransmission range of he ICP DAS Zigbee normal
version and T-version series conver er is 100m, and he P-version
and PA-version is 700m.
The ransmission frequency range of he ZigBee conver er is
be ween 2.405 GHz and 2.48 GHz, separa ed in o 5 MHz sec ors,

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---5
and provides 16 channels, and 65536 PAN IDs (65535 ne work
groups can be se ).
The ZigBee conver er includes a repea er module ha can be
used o increase communica ion range or preven da a loss if he
connec ion is in errup ed or becomes uns able. Please refer o
ZigBee conver er o her documen for more informa ion as
following links:
h p://f p.icpdas.com/pub/cd/usbcd/napdos/zigbee/zigbee_conv
er er/

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---6

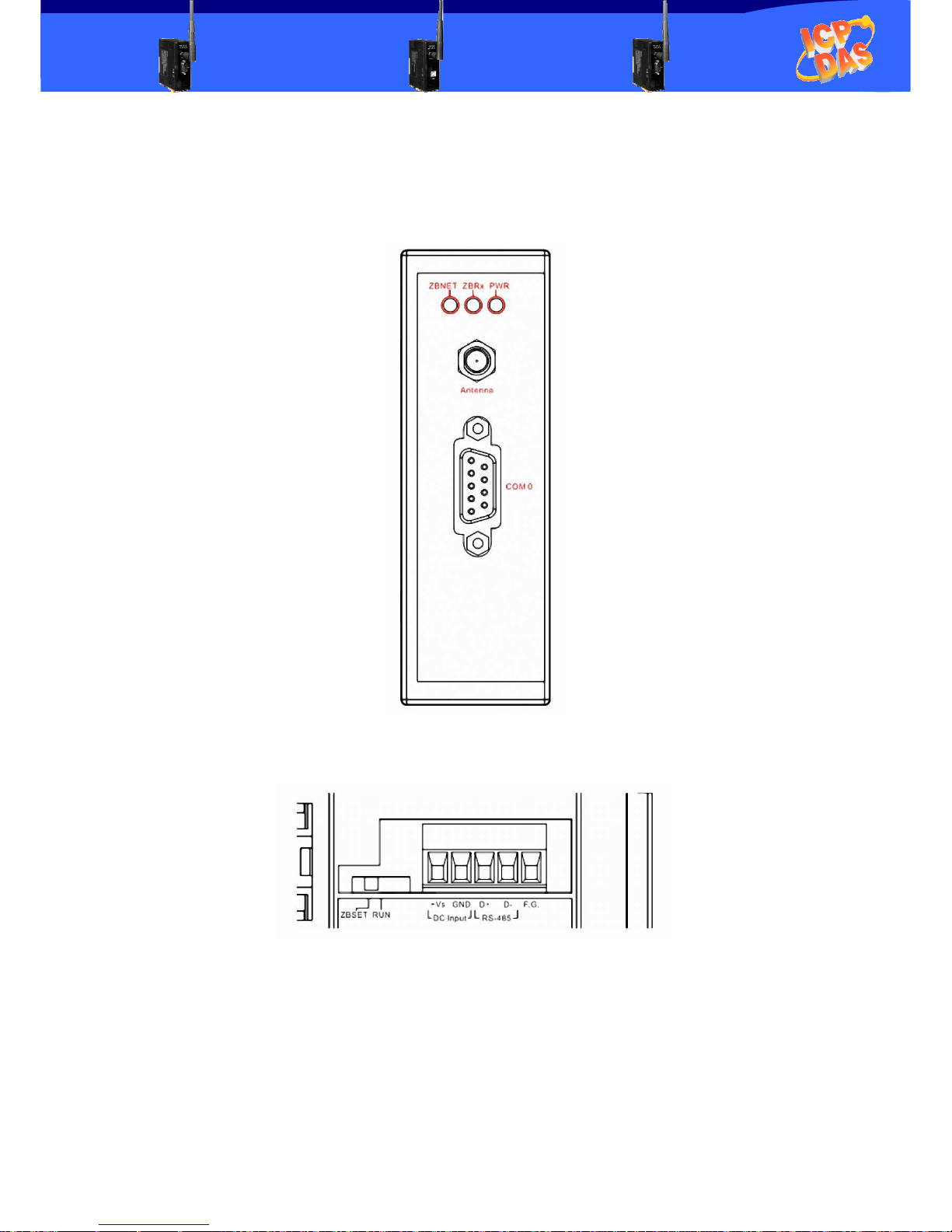

1.2 Pin Assignment
ZB-2550/ZB-2551 Series

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---7
1.3 Specifications
Models ZB-2550/
ZB-2551
ZB-2550P/
ZB-2551P
ZB-2550-T/
ZB-2551-T
ZB-2550-PA/
ZB-2551-PA
Wireless
RF channels 16
Receive sensitivity
-102 dB
Trans it power 9 dB 22 dB 4 dB 22 dB
Network Topology
support Star, Mesh and Cluster tree
Antenna 2.4GHz - 3dBi O ni-Directional antenna
Trans ission Range
100 700 100 700
Notes: ZB-255x series, when he x equal 0 means hos and 1 is slave.
Models ZB-2550/
ZB-2551
ZB-2550P/
ZB-2551P
ZB-2550-T/
ZB-2551-T
ZB-2550-PA/
ZB-2551-PA
General
CPU 8-bi microcon roller
Module Type Hos /Slave Hos /Slave Hos /Slave Hos /Slave
Communica ion In erface
Hos RS-232 (TxD, RxD and GND);
D-SUB 9 Female, Non-isola ed
Slave RS-232 (TxD, RxD and GND);
D-SUB 9 Male, Non-isola ed
COM 0
RS-485 (DATA+, DATA-; in ernal ASIC self- uner); Non-isola ed
COM 0 Se ings
Da a Bi 8
Pari y Even, Odd, None
S op Bi 1, 2
LED Indica ors
ZigBee Ne S a e
Green
ZigBee RxD Yellow
Power Red
Power
Pro ec ion Power reverse polari y pro ec ion
EMS Pro ec ion ESD, Surge, EFT
Required Supply
Vol age +10 VDC ~ +30 VDC
Power Consump ion
0.5 W 2 W (max) 0.5 W 2 W (max)
Connec ion 5-Pin 5.08 mm Removable Terminal Block

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---8
Models ZB-2550/
ZB-2551
ZB-2550P/
ZB-2551P
ZB-2550-T/
ZB-2551-T
ZB-2550-PA/
ZB-2551-PA
Mechanical
Casing Plas ic
Flammabili y UL 94V-0 ma erials
Dimensions 33 mm x 78 mm x 107 mm (W x L x H)
Ins alla ion DIN-Rail
Wireless
Opera ing
Tempera ure -25 °C ~ +75 °C
S orage
Tempera ure -40 °C ~ +80 °C
Rela ive Humidi y
5 ~ 95% RH, non-condensing
1.4 Block Diagram
The Normal and T-version of ZB-2550/ZB-2551 Series:
The P-version and PA-version of ZB-2550/ZB-2551 series.

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---9
1.5 Wire Connection
Serial Por - RS-232
RS-232 (Female)
CA-0915
Controller
ZB-2550 Series
CA-0910N
Remote I/O
RS-232 (Male)
ZB-2551 Series

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---10
Serial Por - RS-485
+10~+30 VDC GND
Controller
RS-485 (DATA+, DATA-)
DATA-
DATA+
ZB-2550 Series
GND
RS-485 (DATA+, DATA-)
Remote I/O
+10~+30 VDC
DATA-
DATA+
ZB-2551 Series

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---11
1. Quick Start
1. Before configuring he ZigBee conver er, adjus he swi ch o
he ZBSET posi ion hen re-boo (power off/on) he module.
Af er configura ion is comple e, adjus he swi ch o he RUN
posi ion hen re-boo (power off/on) he module.
2. When he following screen is displayed, click on he Module
bu on. Please scroll he bar o swi ch he COM por number.
1
2

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---12
3. Click he ZB-255x series bu ons o read he configura ion.
4. Please selec he Configura ion i em on he u ili y.
4
3

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---13
5. When he new configura ion has selec ed, please click on he
Configure bu on for se he new ZigBee se ing.
6. Af er ZigBee module configura ion has been successfully
es ablished. Now, adjus he swi ch o he RUN posi ion hen
re-boo (power off/on) he module. Leverage he power of
your da a. Make i work for you.
6
5
5

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---14
Zigbee Addressing and Identifiers
Node ID (0x0000~0xFFFF)
A 16-bi address ha describes a Zigbee node
Randomly assigned during ne work join
ZB-2570/ZB-2550 series always uses 0x0000
ZB-2571/ZB-2551 series ranges 0x0001~0xFFFF
ZB-DIO/ZB-AIO ranges 0x0001~0x001F
Resolve by s ack in case of collision
Included in all message o iden ify node
PAN ID (0x0000~0xFFFF)
A 16-bi ID o iden ify he ne work
Included in every packe
A “logical” way o separa e Zigbee ne works running on same RF
channel
Defined during ne work forma ion by ZB-2570/ZB-2550 series
ZB-DIOs/ZB-AIOs always uses 0xFF00 or 0xFF01
RF Channel
1 of 16 RF channels. Defined during ne work forma ion by
ZB-2570/ZB-2550 series
Note : A Work Zigbee Ne work - Running on he same PAN ID
and RF Channel
Network Survival Detecting Time
ZB-2551 series will connec wi h Paren (ZB-2550 series)
periodically o confirm he survival of ne work. If i de ec s
unsuccessfully, and i process ini ialize ne work again o find a
new paren .

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---15
1.7 Default Settings
Default settings for the ZB-2550 series are as follows：
：：
：
ZB Node ID： 0x0000
ZB PAN ID： 0xFF00
ZB Channel (RF Channel)： 0x00
ZBSET Da a Forma ： 115200,n,8,1
Opera ing Mode： Transparen
Default settings for the ZB-2551 series are as follows：
：：
：
ZB Node ID： 0x0020
 ZB PAN ID： 0xFF00
 ZB Channel (RF Channel)： 0x00
ZBSET Da a Forma ： 115200,n,8,1
Opera ing Mode： Transparen
Ne work Survival De ec ing Time： 20 seconds (0x14)

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---16
2. Applications
2.1 Operating Modes
Interface Operating Modes
Operating Mode 1 Transparent
Operating Mode 2 Modbus
Operating Mode 3 Addressable
Serial Port
(RS-232/RS-485)
Operating Mode 4 ZBIO(DCON,Modbus data)
Operating Mode

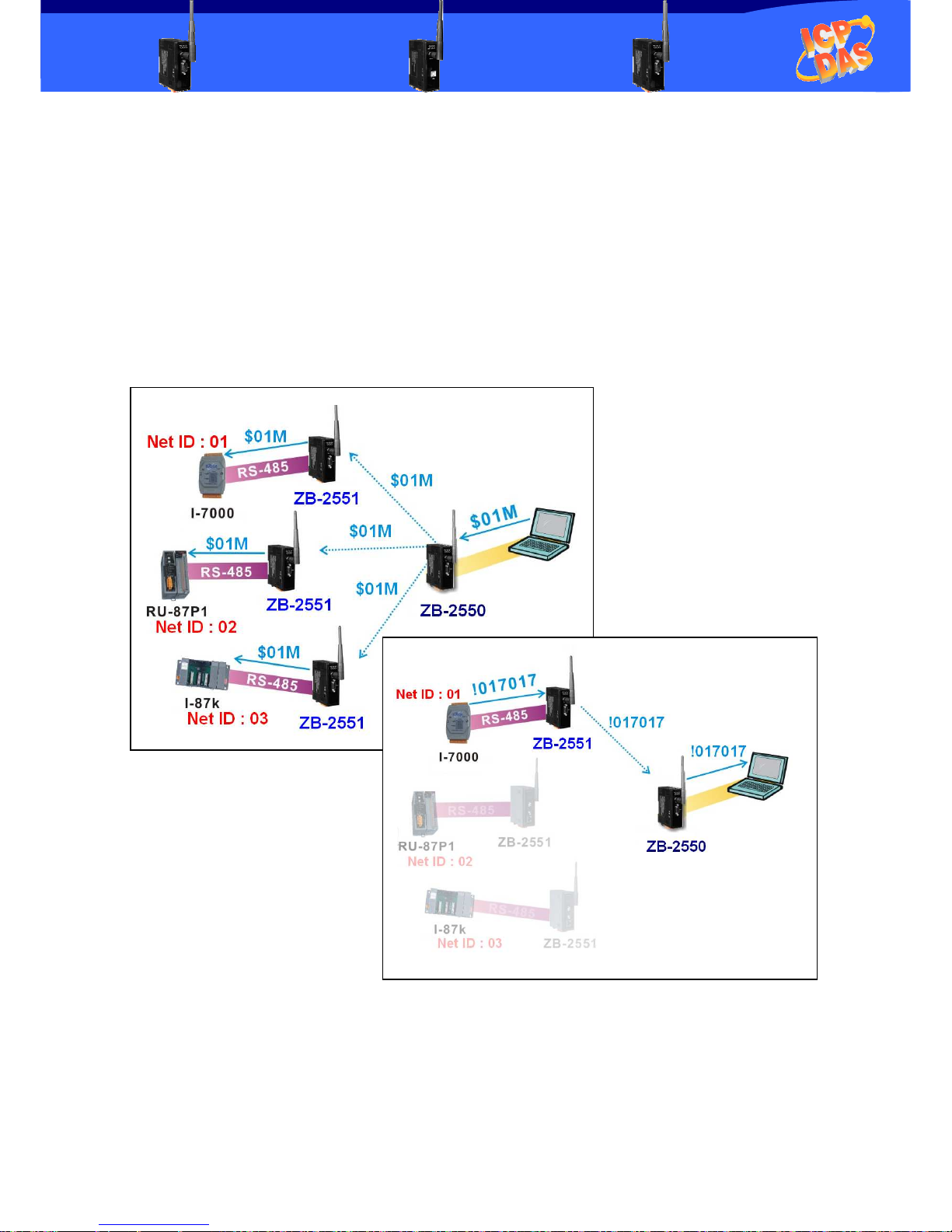

Transparent Mode
(Original data will be broken down into many small data, each small
data is 50 Byte)
Transparen mode le s you use he ZB-2550/ZB-2551 series module
like a rou er. (Maximum original da a size is 200 by es. Original da a
mus no more han 200 by es, e.g. “$01M” = 4 By es)

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---17

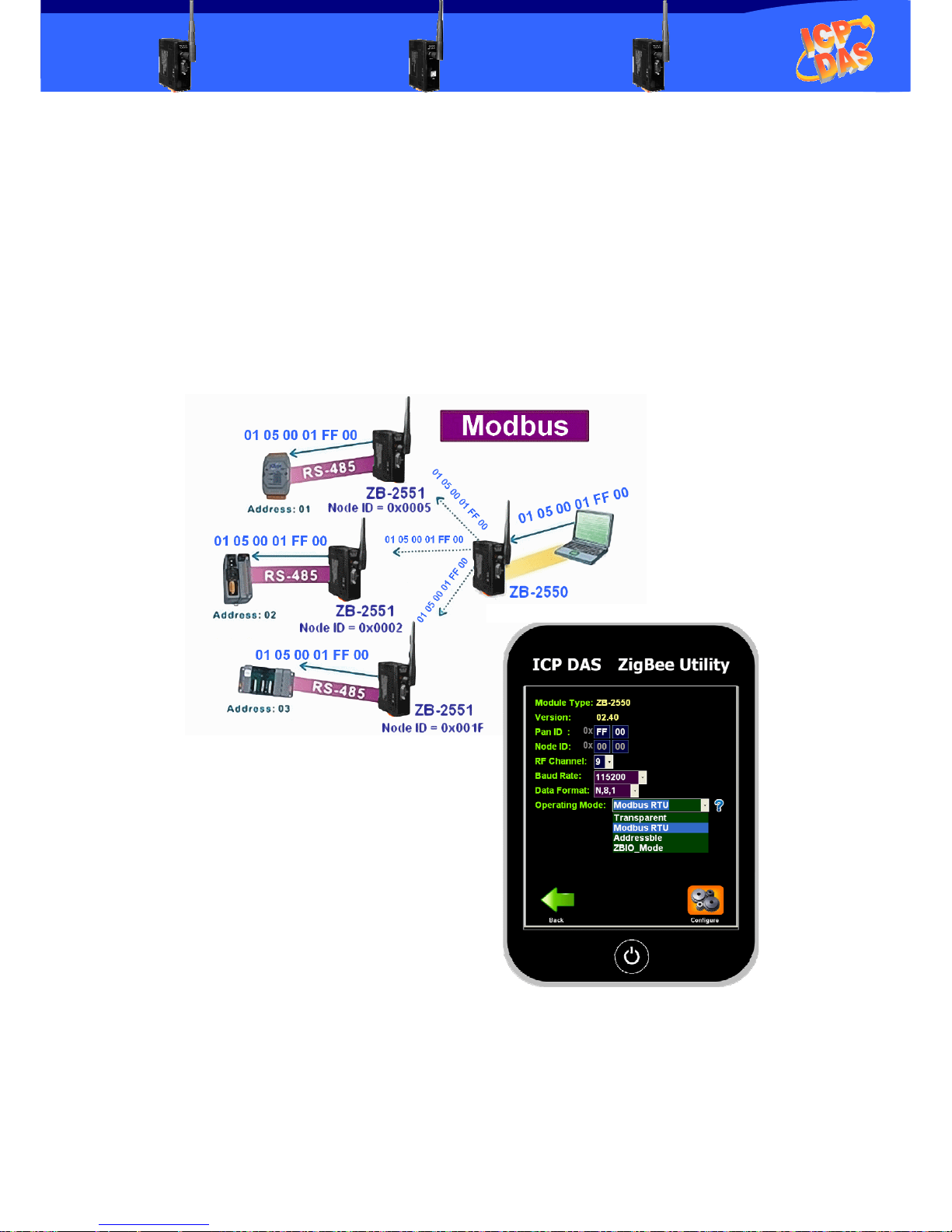

Modbus Mode
(Original data won't be broken down into small data)
I is like Transparen mode. If original da a size is grea er han 50
by es mos of he ime, Opera ing Mode Modbus is he mos sui able.
(Maximum original da a size is 200 by e. Original da a mus no more
han 200 by es, e.g. “$01M” = 4 By es)

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---18

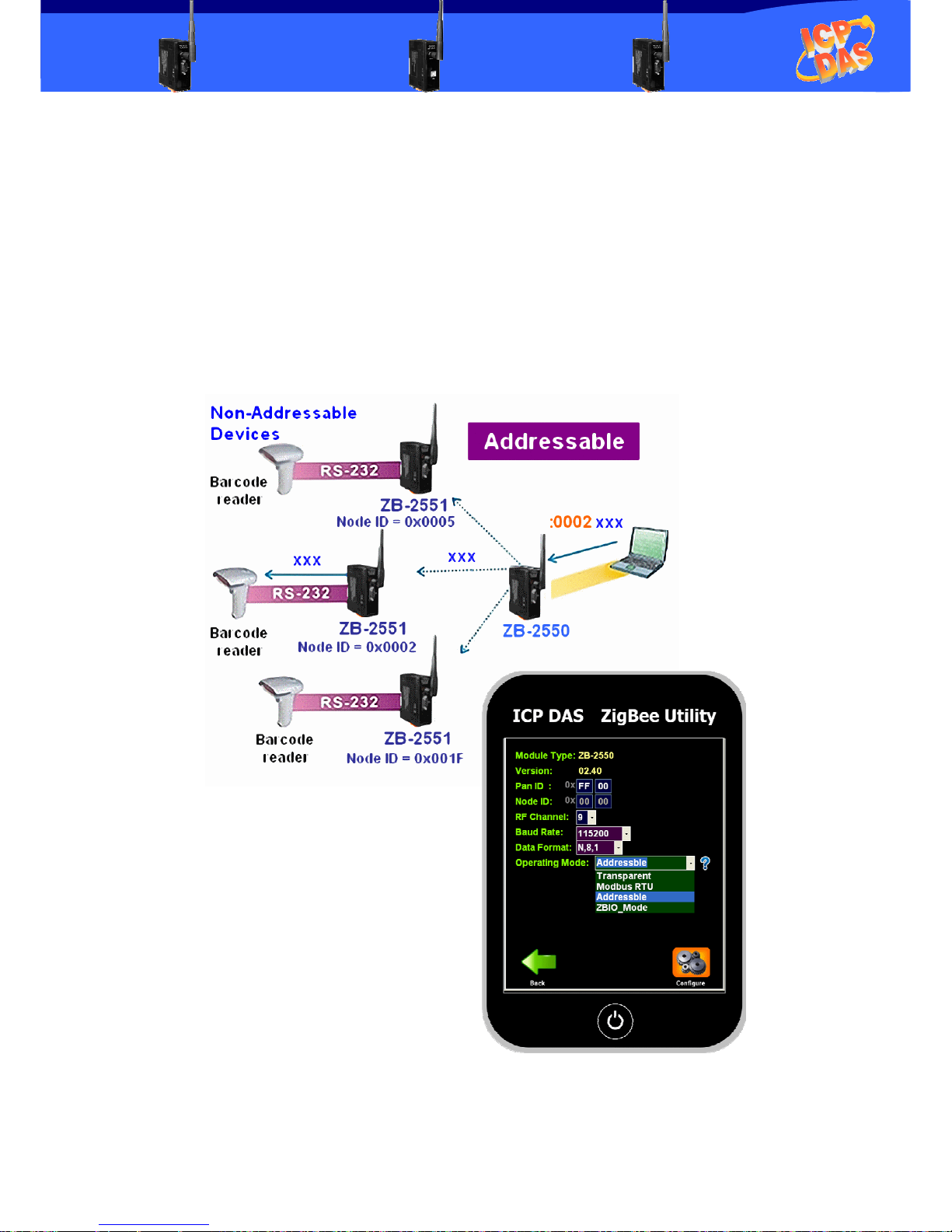

Addressable Mode
(Original data won't be broken down into small data)
For Non-Addressable Device, such as barcode reader.
Syn ax, :ADDRxxx , he ADDR is your ZB-2551 series Node ID.
(Maximum original da a size is 200 by e. Original da a mus no more
han 200 by e, e.g. “xxx” = 3 By e)

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---19
ZBIO Mode (For DCON or Modbus data in multi-layers)
(Original data will be broken down into small data)
For DCON or Modbus RTU devices, such as ZB-DIO, ZB-AIO,
ZB-Slave wi h 7000 modules. When he Zigbee ne work is
mul i-layers framework, he opera ing Mode ZBIO is he mos
sui able. (Maximum original da a size is 200 by e. Original da a mus
no more han 200 by e, e.g. “$01M” = 4 By e)
RS-485
RS-232
ZB-20 0
Node ID:0003
ZB-2550
ZB-2510
Node ID:FF01
ZB-2510
Node ID:FF02
ZB-20 0
Node ID:0001
ZB-2551
Node ID:0002
I-7000/M-7000
Node ID:0002
$02M
$02M
$02M
$02M

ZB-2550/ZB-2551 Series User Manual Ver1.3, Feb /2011 ---20
2.2 Application Example
Operating Mode 1 : Transparent Mode
If you wan he addressable RS-232/RS-485 in erface device conver o
ZigBee Wireless Ne works, such as he ICPDAS I-7000/M-7000/I-87k
remo e I/O modules, you can use he ZB-2551 series (slave) o connec o
hese I/O modules and use he ZB-2550 series (hos ) o connec o your
con roller or PC. If original da a size is less than 50 Byte most of the time,
his Mode is he mos sui able.
In some applica ions where he hos con roller needs o broadcas da a
o all RS-232/RS-485 devices and hese devices receive da a only (no
response), you can also use his mode.
