iKAN-116-IP65/iKAN-124-IP65 Quick Start
v2.0, March 2022
Packing List
In addition to this guide, the package includes the following items:
iKAN-116-IP65/
iKAN-124-IP65 LED Display
Wall Mounting
Kit x 2
M4x6L
Screw x 8
RJ-45 Connector x 2
Waterproof Assembly
CA-M12-02
Power Cable
CA-039
I/O Cable
Screw
Driver
Technical Support
[email protected]om
www.icpdas.com
Installation Guide
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
For Desktop Web
Model
Name
Model
Name

P2
Overview
Installing the Waterproof Assembly
The waterproof Assembly can effectively protect the connection points
from weather and climate. The iKAN-116-IP65/iKAN-124-IP65 LED display
is equipped with two RJ-45 waterproof connectors that are optional for
use with E1 and E2 port.
For more information on how to install the RJ-45 waterproof assembly,
refer to the RJ-45 Waterproof Installation Guide on page 8.
Sealing
Nut
Seal
Screw
Nut
Clamping
Ring
Gaske
t
Power Connector
I/O Connector
Ethernet Port (E1)
Ethernet Port (E2)
Reset Button

P3

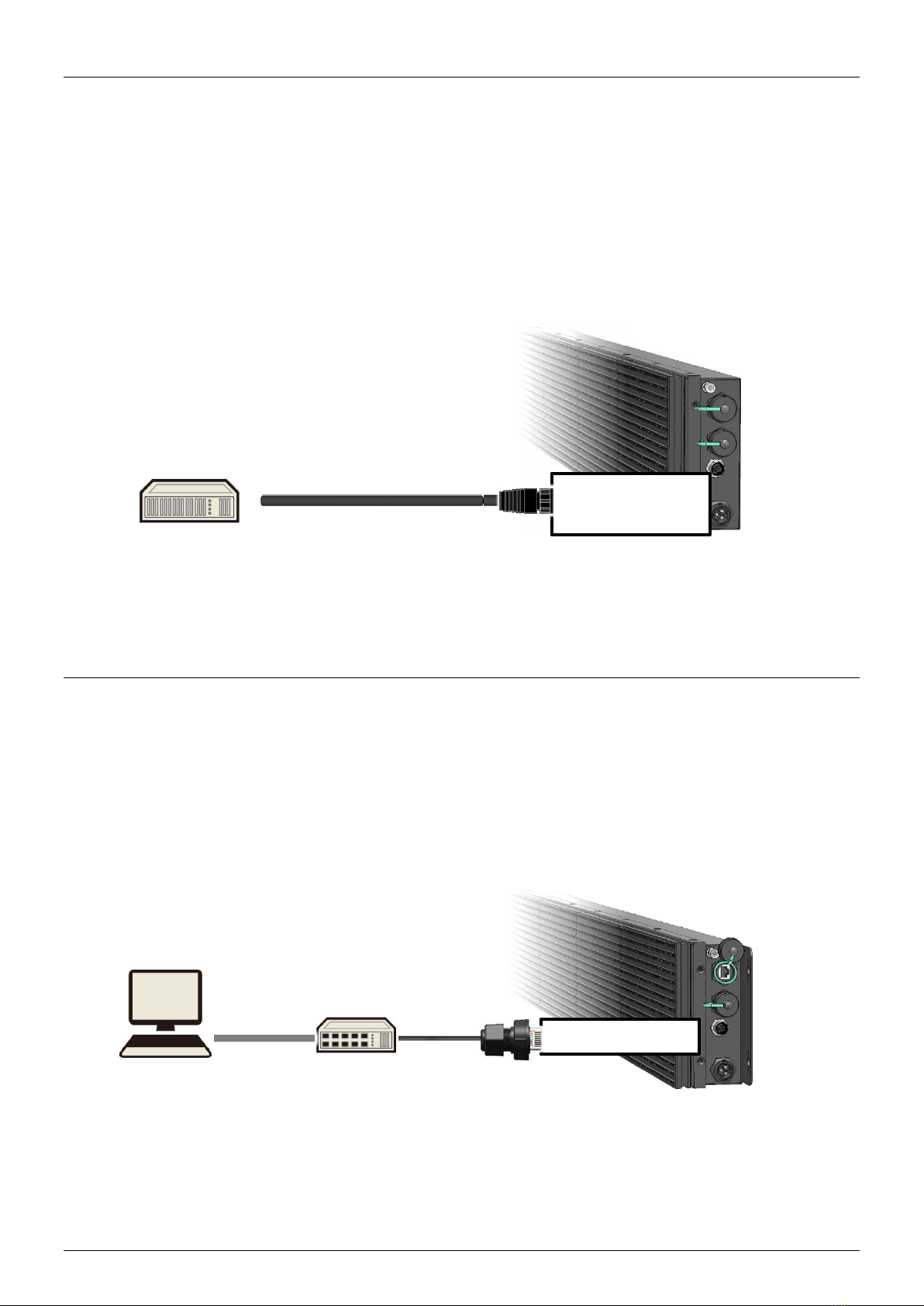

Connecting the Power Connector
The iKAN-116-IP65/iKAN-124-IP65 LED display is equipped with a power
cable, to insert the power cable into the receptacle.
Connecting the RJ-45 Connector
After installing the RJ-45 Ethernet waterproof connector, insert the
Ethernet cable and screw the RJ-45 waterproof into the receptacle.
Ethernet Port
Hub/Switch
Power
Connector
Power Supply
(100 ~240 VAC)

P4
Installing, Wiring and Connecting the I/O Connector
The iKAN-116-IP65/iKAN-124-IP65 LED display is equipped with an I/O
cable that provides access to RS-232, RS-485 and digital I/O signals.
Wiring and Insert the I/O cable
into the receptacle
I/O Connector
RS-232 x 1
RS-485 x2
Digital Input x 2
Digital Output x 2

P5
RJ-45 Ethernet Waterproof Installation Guide
v1.1, March 2022
1. Remove the RJ-45 connector from the RJ-45 cable
2. Feed the end of the RJ-45 cable through the Sealing Nut, Seal, Screw
Nut, Clamping Ring and Gasket
3. Wrap the Gasket around the Clamping Ring
Sealing
Nut
Seal
Screw
Nut
Clamping
Ring
Gaske
t

P6
4. Wrap the Screw Nut around the Clamping Ring
5. Insert the Seal into the Clamping Ring
6. Push the Sealing Nut forward and Hand-tighten it to seal the assembly
7. Insert the RJ-45 cable into the RJ-45 connector
