ICP DAS USA iKAN Series User manual

iKAN Series Display
User Manual
V1.0.1, September 2019
Technical Support: [email protected]
Author: Tony Lee
Editor: Anna Huang
iKAN-116/iKAN-116S/iKAN-124/iKAN-124S
iKAN-208/iKAN-216/iKAN-224

iKAN Series Display User Manual v 1.0.1 Page: 2
Warranty
All products manufactured by ICP DAS are under warranty regarding defective
materials for a period of one year, beginning from the date of delivery to the original
purchaser.
Warning
ICP DAS assumes no liability for any damage resulting from the use of this product.
ICP DAS reserves the right to change this manual at any time without notice. The
information furnished by ICP DAS is believed to be accurate and reliable. However, no
responsibility is assumed by ICP DAS for its use, nor for any infringements of patents
or other rights of third parties resulting from its use.
Copyright
Copyright @ 2019 by ICP DAS Co., Ltd. All rights are reserved.
Trademark
Names are used for identification only and may be registered trademarks of their
respective companies.
Contact US
If you have any problem, please feel free to contact us by email at: ser[email protected]om
You can count on us for quick response.
Email: [email protected]om

iKAN Series Display User Manual v 1.0.1 Page: 3
Contents
Contents ......................................................................................................................... 3
1. Introduction.......................................................................................................... 6
1.1. Features..........................................................................................................................7
1.2. Specification ...................................................................................................................9
1.3. Overview ......................................................................................................................12
1.4. Wire Connection ...........................................................................................................15

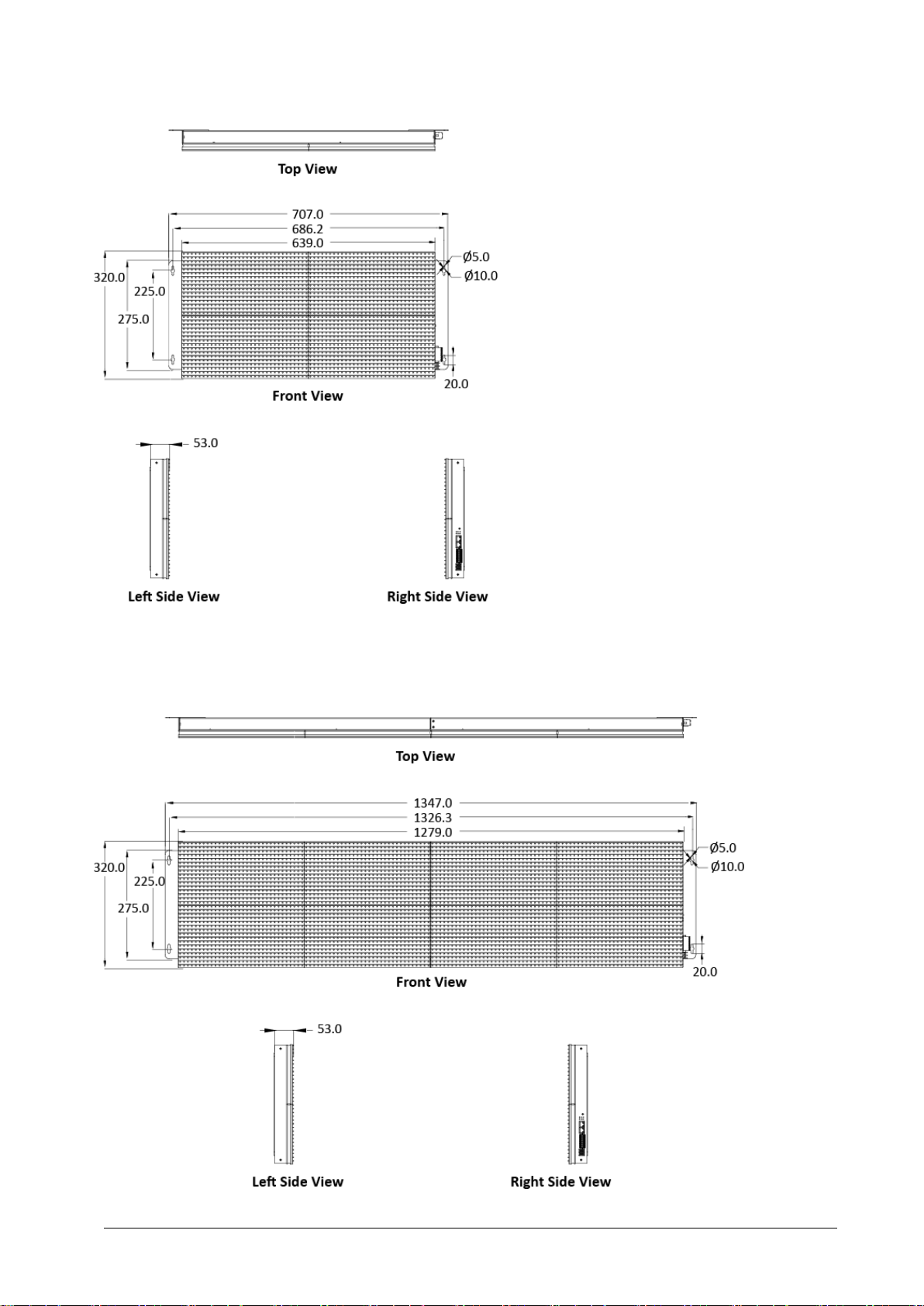

1.5. Dimension ....................................................................................................................17
2. Getting Started ................................................................................................... 21
2.1. Checking the Package....................................................................................................21
2.2. Assembling the iKAN.....................................................................................................24
2.2.1. Installing a Single-Panel iKAN Display ........................................................................24
2.2.2. Installing a Two-Panel iKAN Display ...........................................................................25
2.2.3. Installing Three-Panel iKAN Display ...........................................................................27
2.3. Connecting to the Power and PC....................................................................................30
2.4. Connecting the iKAN to a Network ................................................................................31
2.5. Editing Your First iKAN Message ....................................................................................33
3. Configuration...................................................................................................... 35
3.1. Web Interface ...............................................................................................................36
3.1.1. Editing and Managing Messages................................................................................37
3.1.2. Applying the Variable Maps .......................................................................................38
3.1.2.1. Mapping Physical Values to Integer-Type Variables..................................................40
3.1.2.2. Increasing the Number of Decimal Places for the Value of a Float-type Variable....41
3.1.2.3. Assigning Strings to Coil Variables ............................................................................42
3.1.3. Importing/Exporting pre-configured messages.........................................................43

iKAN Series Display User Manual v 1.0.1 Page: 4
3.1.3.1. Importing a configuration file ...................................................................................44
3.1.3.2. Exporting a configuration file....................................................................................45
3.1.4. Changing the IP Address ............................................................................................46
3.1.5. Setting the Serial Port ................................................................................................47
3.1.6. Setting the Modbus ID ...............................................................................................48
3.1.7. Adjusting the LED Brightness .....................................................................................49
3.1.8. Adjusting the Message Motion Speed.......................................................................50
3.1.9. Restoring the Default Settings ...................................................................................51
3.1.10. Updating Date and Time ............................................................................................52
3.1.11. Resetting the Display..................................................................................................53
3.1.12. Checking the Firmware Information ..........................................................................54
3.2. eSearch Utility...............................................................................................................55
3.2.1. Configuring the IP Address.........................................................................................56
3.2.2. Sending the Modbus Command to iKAN ...................................................................58
3.2.2.1. Using Modbus RTU Command to Configure the iKAN display..................................59
3.2.2.2. Using a Modbus TCP Command to configure the iKAN display................................61
3.2.2.3. Using Modbus TCP Command to configure the iKAN display...................................62
4. Messages............................................................................................................ 64
4.1. Editing and Managing Messages....................................................................................64
4.2. Displaying Messages with Variables...............................................................................67
4.2.1. Inserting System Variables into a Message................................................................72
4.2.1.1. Displaying the IP Address..........................................................................................72
4.2.1.2. Displaying the Current Date and Time......................................................................75
4.2.2. Inserting Integer-type Variables into a Message .......................................................78
4.2.3. Inserting float-type Variables into a Message............................................................81
4.2.4. Inserting Coil –type Variables into a Message ...........................................................84

iKAN Series Display User Manual v 1.0.1 Page: 5
4.2.5. Inserting ASCII Strings into a Message.......................................................................87
4.3. Displaying a Value Applied using a Variable Map ...........................................................90
4.3.1. Displaying Mapping Data for Integer-type Variables .................................................91
4.3.2. Displaying a Value with an Increased Number of Decimal Places for Float-type
Variables 94
4.3.3. Displaying the Value of a Coil Variable using Replacement Text................................96
5. iKAN Updates ..................................................................................................... 99
Appendix A. How to –.................................................................................................. 102
A.1. How to set the iKAN Display to Modbus Configuration Mode .......................................102
Appendix B. Variable Types and Modbus Register Map................................................ 103
B.1. Variable Types .............................................................................................................103
B.2. Modbus Register Map..................................................................................................104
Appendix B. Revision History....................................................................................... 109

iKAN Series Display User Manual v 1.0.1 Page: 6
1. Introduction
The iKAN series is a family of industrial Modbus LED display devices that deliver industrial-grade
anti-noise capabilities, as well as reliability and stability. The device is highly suitable for presenting
formatted messages in indoor areas using either Unicode characters, which can be used to display
multiple languages, or ASCII characters. Support for the popular Modbus industrial protocol is
provided meaning that the iKAN display device can be easily integrated into existing PLC and
SCADA environments.
168 variables are provided to allow data written from a PC or a PLC to be displayed in a formatted
message in real-time. Seven colors are available for the text, which can be used to indicate
different degrees of importance of the message, as well as significantly increasing the readability
of the message in an industrial arena.
Messages can be edited using a standard web browser, such as Google Chrome, Firefox, or IE, etc.,
on a PC, mobile device, or smartphone without any limitations related to specific control tools or
programs. The display of individual messages can also be remotely enabled or disabled as
necessary using the same standard web browser. Each model in the iKAN series provides storage
space for up to 128 messages with user-defined priority, each containing a maximum of 20
Unicode characters or 100 ASCII characters. With an open user interface and the ability to display
real-time data, the iKAN series display can be installed in a variety of indoor spaces, including
shopping malls, railway stations, and industrial areas.

iKAN Series Display User Manual v 1.0.1 Page: 7
1.1. Features
The following is a brief summary of the features and capabilities of iKAN displays.
PLC HMI
The iKAN series can be employed as a large HMI with a memory storage of up to 128 messages
with user-defined priority, each of which can be used to display information generated by a PLC.
Message text can be displayed in a range of seven colors, including red, blue, yellow, green, light
blue, purple, and white, which can be used to indicate warnings or alarms, as well as increasing the
readability of a message.
Support for Multiple Languages
The iKAN series of display device supports Unicode input, meaning that messages can be
configured to be displayed in multiple languages.
Message Editing
A maximum of 128 messages with user-defined priority can be preconfigured from the first
moment that the iKAN series display is switched on. When the display is in operation, the focus
needs only be on message management rather than the need to frequently update the messages.
o l t a g e : 2 . 3 5 V
O2: 7 2 5 P P M

iKAN Series Display User Manual v 1.0.1 Page: 8
Message Priority
Instant messages have a higher priority than common messages. Once an instant message is
enabled, the common message currently being displayed will be suspended until the instant
message is disabled. This feature allows the most important information to be displayed in an
emergency situation.
Integer-type variables enable data mapping
The iKAN series of display devices provide the ability to perform data mapping to translate a
computer integer value to a readable physical value, such as the voltage, temperature, or relative
humidity, etc. In the industrial field, this is a commonly performed task between the host
computer and the data-acquisition device via the Modbus protocol, enabling a reduction in the
resources and programming required for the host computer
Import/Export the message configuration
The iKAN series allows a message and the parameters of the variables to be saved as a
configuration file, which can then be loaded onto another iKAN series device to avoid the need to
repeat the configuration.
Smartphone Application
Users can manage messages via a regular smartphone without requiring a specific connection
device, meaning that emergency information can be quickly sent to the display using the
smartphone.

iKAN Series Display User Manual v 1.0.1 Page: 9
1.2. Specification
The table below summarizes the specifications of the iKAN series of displays.
iKAN-116/iKAN-116S/iKAN-124/iKAN-124S
Model
iKAN-116
iKAN-116S
iKAN-124
iKAN-124S
Display
Color
Red, Blue, Yellow, Green, Light Blue, Purple or White
Character Set
16-bit Unicode or 7-bit ASCII
Display Size
ASCII
16 characters
24 characters
Unicode
8 characters
12 characters
Message Pool
128 messages with user-defined priority
Up to 20 Unicode characters or 100 ASCII characters each
Data Pool
40 Coil values, 64 Float values, and 64 Integer values
RTC (Real-time Clock)
Date and time, 24 hour format, including hours, minutes, seconds,
day of the week, date, month, year
Ethernet
Port
2 x RJ-45, 10/100 Base-TX
Protocol
Modbus TCP Slave, Max. 8 Connections
Configuration
Web-based User Interface
COM Port
Interface
1 x RS-232 and 2 x RS-485
Baud rate (bps)
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format
N81, E81, O81
Protocol
Modbus RTU Slave
Mechanical
Dimensions (W x H x D,
unit: mm)
1346 x 160 x
49
835 x 115 x
37.5
1986 x 160 x
49
1218 x 115 x
37.5
Weight
4.0 Kg
2.0 Kg
4.6 Kg
2.5 Kg
Installation
Wall mounting
Housing Material
Aluminum

iKAN Series Display User Manual v 1.0.1 Page: 10
Model
iKAN-116
iKAN-116S
iKAN-124
iKAN-124S
Power
Input Range
100 to 240 VAC
Consumption
0.3A @ AC 120 V
0.35 A @ AC 120 V
Environment
Operating Temperature
0 to 60°C
Storage Temperature
-10 to 75°C
Humidity
10 to 90% RH, Non-condensing

iKAN Series Display User Manual v 1.0.1 Page: 11
iKAN-208/iKAN-216/iKAN-224
Model
iKAN-208
iKAN-216
iKAN-224
Display
Color
Red, Blue, Yellow, Green, Light Blue, Purple or White
Character Set
16-bit Unicode or 7-bit ASCII
Display Size
ASCII
16 characters
32 characters
48 characters
Unicode
8 characters
16 characters
24 characters
Message Pool
128 messages with user-defined priority
Up to 20 Unicode characters or 100 ASCII characters each
Data Pool
40 Coil values, 64 Float values, and 64 Integer values
RTC (Real-time Clock)
Date and time, 24 hour format, including hours, minutes, seconds,
day of the week, date, month, year
Ethernet
Port
2 x RJ-45, 10/100 Base-TX
Protocol
Modbus TCP Slave, Max. 8 Connections
Configuration
Web-based User Interface
COM Port
Interface
1 x RS-232 and 2 x RS-485
Baud rate (bps)
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format
N81, E81, O81
Protocol
Modbus RTU Slave
Mechanical
Dimensions (W x H x D,
unit: mm)
707 x 320 x 50
1346 x 160 x 49
1986 x 160 x 49
Weight
4 Kg
8 Kg
12 Kg
Installation
Wall mounting
Housing Material
Aluminum
Power
Input Range
100 to 240 VAC
Consumption
0.3 A @ AC 120 V
0.4 A @ AC 120 V
0.5 A @ AC 120 V
Environment
Operating Temperature
0 to 60°C
Storage Temperature
-10 to 75°C
Humidity
10 to 90% RH, Non-condensing

iKAN Series Display User Manual v 1.0.1 Page: 12
1.3. Overview
The iKAN series display is equipped with a number of interfaces and peripherals that can be
integrated with external systems. Here is an overview of the components and a description of
each.
The details of these items are as follows:
●Reset Button
The reset button is used to check the IP address and restore all settings to the factory default.
By pressing the Reset button for 5 seconds, the IP address for the iKAN series device will be
shown on the display. This is very useful, especially when you have forgotten the IP address
needed to access the iKAN series display.
By pressing the Reset button for 8 seconds, all messages and variable configuration settings will
be reset to the factory defaults.
Reset Button
LED Indicator
Ethernet Port
(E1 and E2)
Power Input
Terminal Block

iKAN Series Display User Manual v 1.0.1 Page: 13
●LED Indicator
The iKAN series display contains six LED indiators that display the status of the iKAN series
display. The details are:
LED Indicator/Label
State
Meaning
PWR
Red
The power is on.
Red-Blinking
The OS is functioning.
Reset
Red
The Reset button is activated.
DI1, DO1
Orange
These LED indicators are used to indicate the status
of the Digital I/O.
DI0, DO0
Green
These LED indicators are used to indicate the status
of the Digital I/O.
●Ethernet Port (E1 and E2)
The iKAN series display contains two Ethernet ports that can be used
to connect a router to the Internet, or to other devices.
Each Ethernet port provides two LED indicators that display the
status of the iKAN series display. The details are:
LED Indicator/Label
Label
State
Meaning
E1、E2
10/100M
Orange
Network Speed: 100 M
-
Network Speed: 10 M
Link/Act
Green
The Link is active.
-
The Link is inactive.
Green-Blinking
Network activity.

iKAN Series Display User Manual v 1.0.1 Page: 14
●Terminal Block
The iKAN series display contains a terminal block with 20 poles, as illustrated below. For more
information related to the identification of the wiring connections, refer to Section “1.4. Wire
Connections”.
TxD
GND
RxD
GND
DI.GND
DI.GND
D1+
DI0
D1-
DI1
DO.GND
DO.GND
DO.PWR
DO.PWR
N/A
DO0
D2+
DO1
D2-
N/A
COM Ports
COM1: RS-485
D1+ and D1-
COM2: RS-232
TxD, RxD and GND
COM3: RS-485
D2+ and D2-
Digital Input/Digital Output
Digital Input 1
DI0 and DI.GND
Digital Input 2
DI1 and DI. GND
Digital Output 1
DO.PWR, DO0 and DO.GND
Digital Output 2
DO.PWR, DO1 and DO.GND

iKAN Series Display User Manual v 1.0.1 Page: 15
1.4. Wire Connection
The iKAN series display contains a terminal block which provides access to a number of
communication formats. The following illustrates the wiring information for the terminal block.
RS-232 Wiring
RS- 485 Wiring

iKAN Series Display User Manual v 1.0.1 Page: 16
DI Wiring
Input Type
On State as 0
OFF State as 1
Dry Contact
Close to GND
Open
DO Wiring
Input Type
On State
Readback as 1
OFF State
Readback as 0
DO
(Sink, NPN)
+5 to +24 VDC
Open

iKAN Series Display User Manual v 1.0.1 Page: 17
1.5. Dimension
The diagrams below provide details of the dimensions for the iKAN series of displays that can be
used when defining the specifications for any enclosures to be installed. All dimensions are in
millimeters.
iKAN-116S
iKAN-124S

iKAN Series Display User Manual v 1.0.1 Page: 18
iKAN-116
iKAN-124

iKAN Series Display User Manual v 1.0.1 Page: 19
iKAN-208
iKAN-216

iKAN Series Display User Manual v 1.0.1 Page: 20
iKAN-224
