ICP HMC009KD User manual

DELUXE HIGH WALL MINI SPLIT
SERVICE MANUAL
MODEL : HMC009KD
HMH012KD / HMC012KD
HMH018KD / HMC018KD
HMH024KD / HMC024KD
CAUTION
-BEFORE SERVICING THE UNIT, READ THE "SAFETY
PRECAUTIONS" IN THIS MANUAL.
-ONLY FOR AUTHORIZED SERVICE PERSONNEL.
International Comfort Products

Functions...................................................................................................................................... 3
Product Specifications................................................................................................................ 5
Dimensions................................................................................................................................... 7
Refrigeration Cycle Diagram....................................................................................................... 9
Wiring Diagram .......................................................................................................................... 11
Operation Details ....................................................................................................................... 14
Test Mode ................................................................................................................................... 22
Display Function........................................................................................................................ 23
Self-diagnosis Function ............................................................................................................ 23
Installation.................................................................................................................................. 24
Operation.................................................................................................................................... 41
Disassembly of the Parts(Indoor Unit)..................................................................................... 43
Cycle Troubleshooting Guide ................................................................................................... 49
Electronic Control Device ......................................................................................................... 59
Schematic Diagram.................................................................................................................... 62
Exploded View & Replacement Parts List ............................................................................... 64
- 2 -
Contents

- 3 -
Functions
Indoor Unit
Operation ON/OFF by Remote controller
Sensing the Room Temperature
Room temperature control
Starting Current Control
Time Delay Safety Control
Indoor Fan Speed Control
Operation indication Lamps (LED)
Soft Dry Operation Mode
Sleep Mode Auto Control
Auto Air Control by the unit electronic control
Airflow Direction Control
AUTO Wind
Defrost control(Heating)
Hot-start Control (Heating)
• Room temperature sensor (THERMISTOR)
• Maintains the room temperature in accordance with the Setting Temp.
• Indoor fan is delayed for 5 seconds at the starting.
• Restarting is inhibited for approx. 3 minutes.
• High, Med, Low and Auto
• Intermittent operation of fan at low speed
• Both the indoor and outdoor fan stops
during defrosting.
• Hot start will be operated after
defrosting ends.
• The indoor fan stops until the
indoor pipe temperature will be
reached at 28°C(82°F).
• The fan is switched to low(Cooling), med(Heating) speed.
• The unit will be stopped after 1, 2, 3, 4, 5, 6, 7 hours.
• The fan is switched to intermittent or irregular operation.
• The fan speed is automatically switched from high to low speed.
•The louver can be set at the desired position or swing up
and down automatically.
• The fan speed is automatically switched from high to low speed.
--- Lights up in operation
--- Lights up in Sleep Mode
--- Lights up in Timer Mode
--- Lights up in Defrost Mode or Hot Start Mode (only Heating Model)
--- Lights up during compressor running (only Cooling Model)
OUT
DOOR

- 4 -
TEMPERATURETEMPERATURE LOWLOW HIGHHIGH
Remote Controller
Operation ON/OFF
(Cooling
model only) (Heating
model only)
Cooling Operation Mode. ( )
Soft Dry Operation Mode. ( )
(Low) (Med)
(High)
(AUTO WIND)
: (High: 98°F LOW : 54°F)
Down to 64°F
Up to 86°F
Cooling
: OFF, ON, OFF ON
: Cancel Sleep Mode, Timer ON or Timer OFF
: 1, 2, 3, 4, 5, 6, 7, Off Timer
: Fan Operates without cooling or heating.
Auto Operation Mode. ( )
Heating Operation Mode. ( )
Operation Mode Selection
Fan Speed Selection
Room Temperature Display
Temperature Setting
Setting the Time or Timer
Timer Selection
Timer Setting
Timer Cancel
Sleep Operation
Airflow Direction Control
Fan Operation Mode
Reset
Down to 60°F
Up to 86°F
Heating

- 5 -
Product Specifications(Cooling Only)
Items Unit HMC009KD HMC012KD HMC018KD HMC024KD
Power Supply ø, V, Hz 1,115V, 60 1,230/208,60 1,230/208,60 1,230/208,60
Cooling Capacity BTU/h 9,000 12,000/11,800 18,000/17,800 23,000/22,600
Input W 940 1,260/1,240 1,900/1,870 2,550/2,500
Running Current A 8.5 5.7/6.2 8.5/9.0 11.5/12.0
COMP. Locked Rotor AMP. A 27 49.5 68
E.E.R BTU/hW 9.57 9.5/9.5 9.5/9.5 9.0/9.0
Air Circulation Indoor(Dry) m3/min(cfm) 8.3(290) 10(350) 13(460) 15(530)
Outdoor(Dry) m3/min(cfm) 25(875) 25(882) 46(1,610) 46(1,610)
Moisture Removal l/h(pts/hr) 1.5(3.2) 1.7(3.63) 2.5(5.3) 3.1(6.6)
Noise Level Indoor, High dB(A) 36 41 47 49
(Sound Med dB(A) 34 39 43 45
Pressure, 1m) Low dB(A) 32 37 40 42
Outdoor, Max dB(A) 49 53 57 58
Features Temperature Control Thermistor Thermistor Thermistor Thermistor
AUTO Wind Yes Yes Yes Yes
Air Deflection 4-way 4-way 4-way 4-way
Steps, Fan/Cool 3/3 3/3 3/3 3/3
Airflow Direction Control(up&down) Auto Auto Auto Auto
Airflow Direction Control(left&right) Manual Manual Manual Manual
Remocon Type Wireless LCD Wireless LCD Wireless LCD Wireless LCD
Setting Temperature Range, Cooling Mode 64~86°F 64~86°F 64~86°F 64~86°F
Temperature Increment 2°F 2°F 2°F 2°F
Auto Operation(electronic control) Yes Yes Yes Yes
Self Diagnosis Yes Yes Yes Yes
Timer 24hr, On/Off 24hr, On/Off 24hr, On/Off 24hr, On/Off
Sleep Operation Yes Yes Yes Yes
Soft Dry Operation Yes Yes Yes Yes
Restart Delay minutes 3 3 3 3
Refrigerant(R-22) Charge g(oz) 610(21.5) 1,200(42.3) 1,530(54.0) 1,710(60.3)
Power cord AWG #: P*mm216:3*1.0 14:3*2.1 14:3*2.1 14:3*2.1
Fuse or breaker Capacity A 12A 15A 15A 20A
Connecting Cable AWG #: P*mm216:4*0.82 18:4*0.82 18:4*0.82 18:4*0.82
Connecting Tube Liquid Side mm(in) 6.35(1/4) 6.35(1/4) 9.52(3/8) 9.52(3/8)
(ø. Socket Flare) Gas Side mm(in) 9.52(3/8) 12.7(1/2) 15.88(5/8) 15.88(5/8)
Length, std m(ft) 7.62(25) 7.62(25) 7.62(25) 7.62(25)
Additional Drain Hose(Inner Dia.) mm(in) 16(5/8) 16(5/8) 16(5/8) 16(5/8)
Dimensions Indoor mm 900*290*183 900*290*183 1080*290*183 1080*290*183
(WxHxD) in 35.4*11.4*7.2 35.4*11.4*7.2 42.5*11.4*7.2 42.5*11.4*7.2
Outdoor mm 801*555*262 801*555*262 870*655*320 870*655*320
in 31.5*21.8*10.3 31.5*21.8*10.3 34.3*25.8*12.6 34.3*25.8*12.6
Net Weight Indoor kg(lbs) 10(22) 10(22) 12(26.5) 12(26.5)
Outdoor kg(lbs) 34(75) 34(75) 54(119) 64(141)
* Design and Specifications subject to change without prior notice for product improvement.

- 6 -
Product Specifications(Cooling & Heating)
Items Unit HMH012KD HMH018KD HMH024KD
Power Supply ø, V, Hz 1,230/208,60 1,230/208,60 1,230/208,60
Cooling Capacity BTU/h 12,000/11,800 18,000/17,800 23,000/22,600
Heating Capacity BTU/h 12,000/11,800 19,000/18,700 23,000/22,600
Input Cooling W 1,260/1,240 1,900/1,870 2,550/2,500
Heating W 1,260/1,240 1,900/1,870 2,550/2,500
Running Current Cooling A 5.7/6.2 8.5/9.0 11.5/12.0
Heating A 5.7/6.2 8.5/9.0 11.5/12.0
COMP. Locked Cooling A 27 49.5 68
Rotor AMP. Heating A 27 49.5 68
E.E.R BTU/hW 9.5/9.5 9.5/9.5 9.0/9.0
C.O.P 2.78/2.78 2.9/2.9 2.6/2.6
Air Circulation Indoor(Dry) m3/min(cfm) 10(350) 13(460) 15(530)
Outdoor(Dry) m3/min(cfm) 25(882) 46(1,610) 46(1,610)
Moisture Removal l/h(pts/hr) 1.7(3.63) 2.5(5.3) 3.1(6.6)
Noise Level Indoor, High dB(A) 41 47 49
(Sound Med dB(A) 39 43 45
Pressure, 1m) Low dB(A) 37 40 42
Outdoor, Max dB(A) 53 57 58
Features Temperature Control Thermistor Thermistor Thermistor
AUTO Wind Yes Yes Yes
Air Deflection 4-way 4-way 4-way
Steps, Fan/Cool/Heat 3/3/3 3/3/3 3/3/3
Airflow Direction Control(up&down) Auto Auto Auto
Airflow Direction Control(left&right) Manual Manual Manual
Remocon Type Wireless LCD Wireless LCD Wireless LCD
Setting Temperature Range, Cooling Mode 64~86°F 64~86°F 64~86°F
Heating Mode 60~86°F 60~86°F 60~86°F
Temperature Increment 2°F 2°F 2°F
Auto Operation(electronic control) Yes Yes Yes
Self Diagnosis Yes Yes Yes
Timer 24hr, On/Off 24hr, On/Off 24hr, On/Off
Sleep Operation Yes Yes Yes
Soft Dry Operation Yes Yes Yes
Restart Delay minutes 3 3 3
Defrost Control Yes Yes Yes
Hot Start Yes Yes Yes
Refrigerant(R-22) Charge g(oz) 1,250(44.1) 1,500(52.9) 1,600(56.4)
Power cord AWG #: P*mm214:3*2.1 14:3*2.1 14:3*2.1
Fuse or breaker Capacity A 15A 15A 20A
Connecting Cable AWG #: P*mm218:4*0.82 18:4*0.82 18:4*0.82
Connecting Tube Liquid Side mm(in) 6.35(1/4) 9.52(3/8) 9.52(3/8)
(ø. Socket Flare) Gas Side mm(in) 12.7(1/2) 15.88(5/8) 15.88(5/8)
Length, std m(ft) 7.62(25) 7.62(25) 7.62(25)
Additional Drain Hose(Inner Dia.) mm(in) 16(5/8) 16(5/8) 16(5/8)
Dimensions Indoor mm 900*290*183 1080*290*183 1080*290*183
(WxHxD) in 35.4*11.4*7.2 42.5*11.4*7.2 42.5*11.4*7.2
Outdoor mm 801*555*262 870*655*320 870*655*320
in 31.5*21.8*10.3 34.3*25.8*12.6 34.3*25.8*12.6
Net Weight Indoor kg(lbs) 10(22) 12(26.5) 12(26.5)
Outdoor kg(lbs) 35(77) 55(121) 65(143)
* Design and Specifications subject to change without prior notice for product improvement.

(1) Indoor Unit
- 7 -
Dimensions
DW
H
Tubing hole cover
Tubing hole cover
Installation plate
MODEL 9K, 12K 18K, 24K
DIM
W mm(inch) 900(35.4") 1,080(42.5")
H mm(inch) 290(11.4") 290(11.4")
D mm(inch) 183(7.2") 183(7.2")

- 8 -
W
L6 L5 L7 L8
D L1
L2
L9L10
L3L4
H
Gas side
3-way valve
Gas side
3-way valve
Liquid side
3-way valve
(18K, 24K)
(12K)
Liquid side
2-way valve
(2) Oudoor Unit
MODEL 9K, 12K 18K, 24K
DIM
W mm(inch) 801(31.5) 870(34.3)
H mm(inch) 555(21.8) 655(25.8)
D mm(inch) 262(10.3) 320(12.6)
L1 mm(inch) 339(13.3) 370(14.6)
L2 mm(inch) 37(1.5) 25(1.0)
L3 mm(inch) 543.6(21.4) 630(24.8)
L4 mm(inch) 11.4(0.45) 25(1.0)
L5 mm(inch) 591(23.3) 546(21.5)
L6 mm(inch) 105(4.13) 162(6.4)
L7 mm(inch) 105(4.13) 162(6.4)
L8 mm(inch) 72.5(2.85) 54(2.1)
L9 mm(inch) 77(3.03) 74.5(2.9)
L10 mm(inch) 86.4(3.4) 79(3.1)

- 9 -
For installation over rated, *a proper quantity of refrigerant should be added for each meter.
Ex) 18K: When installed at a distance of 15m, 295g of
refrigerant should be added.
(15-7.62) x 40g = 295g
INDOOR UNIT
HEAT
EXCHANGER
(EVAPORATOR) HEAT
EXCHANGER
(CONDENSER)
COMPRESSOR
GAS SIDE
CAPILLARY TUBE
LIQUID SIDE
OUTDOOR UNIT
• Cooling Only Models
MODEL
9K, 12K
(Cooling Only)
18K, 24K
(Cooling Only)
Pipe size(Diameter:ø) Piping length Elevation
Gas Liquid Rated Max Rated Max
1/2" 1/4" 7.62m(25ft) 15m(50ft) 5m(16ft) 8m(26ft)
5/8" 3/8" 7.62m(25ft) 15m(50ft) 5m(16ft) 8m(26ft)
Refrigeration Cycle Diagram
a proper quantity of refrigerant
9K, 12K 20g
18K, 24K 40g

- 10 -
INDOOR UNIT
HEAT
EXCHANGER
(EVAPORATOR) HEAT
EXCHANGER
(CONDENSER)
REVERSING
VALVE
COMPRESSOR COOLING
HEATING
GAS SIDE
CAPILLARY TUBE CHECK VALVE
LIQUID SIDE
OUTDOOR UNIT
• Cooling & Heating Models
MODEL
9K, 12K
(Cooling & Heating)
18K, 24K
(Cooling & Heating)
Pipe size(Diameter:ø) Piping length Elevation
Gas Liquid Rated Max Rated Max
1/2" 1/4" 7.62m(25ft) 15m(50ft) 5m(16ft) 8m(26ft)
5/8" 3/8" 7.62m(25ft) 15m(50ft) 5m(16ft) 8m(26ft)
For installation over rated, *a proper quantity of refrigerant should be added for each meter.
Ex) 18K: When installed at a distance of 15m, 295g of
refrigerant should be added.
(15-7.62) x 40g = 295g
a proper quantity of refrigerant
9K, 12K 20g
18K, 24K 40g

- 11 -

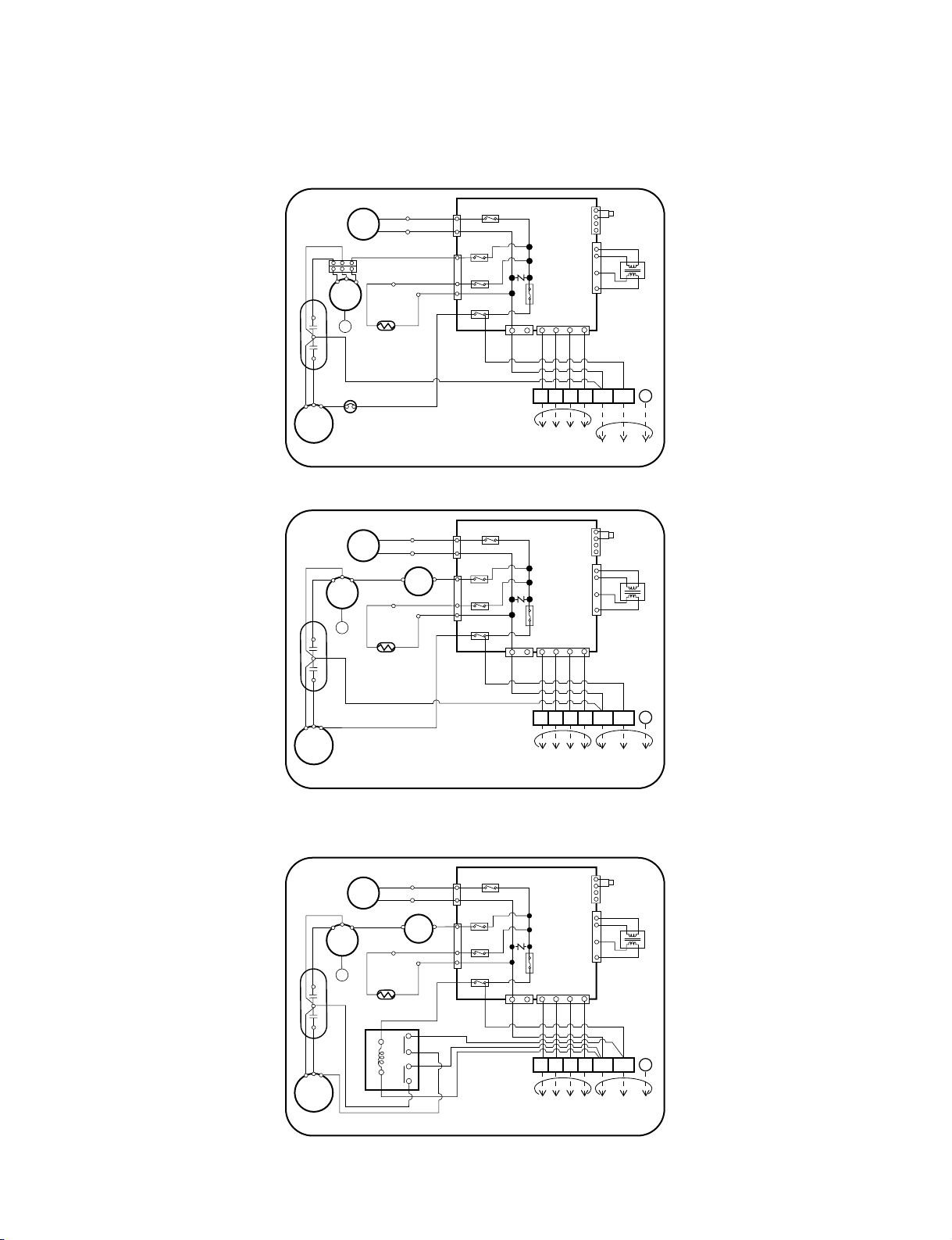

Wiring Diagram
(1) Indoor Unit
1. 9K, 12K, 18K, 24K(Cooling Only Models, Cooling & Heating Models)
4
3
2
1
BLDC
MOTOR
STEP
MOTOR
MAIN P.C.B
INDOOR WIRING DIAGRAM
TO OUTDOOR UNIT
DISPLAY P.C.B
(ROOM)
(PIPE)
THERMISTOR
CN-UP/DOWN
3854AR7074A
CN-MOTOR
PILLAR
TERMINAL
CN-DC/DC
CN-DISP CN-TH
BL
BK
BR
RD

- 12 -
(2) Outdoor Unit
• Cooling Only Models
1. 9K, 12K
3. 24K
2. 18K
MAIN P.C.B
MOTOR
TERMINAL
BLOCK
POWER
INPUT
TRANSFORMER
CAPACITOR
COMP.
G
OUTDOOR WIRING DIAGRAM
TO INDOOR UNIT
3854AR7077C
OR(BR)
BR YL
4
3
BL
BL
BK
BK
CN-TRANS
CN - FAN
RY-FAN
RY-COMP
CN- POWER
ZNR
CN-DC/DC
FUSE
3.15A
BK TB/1 BK
YL
GN/YL
BR
RD BR BK BL
BL BR
S
RC
HCF
G
RD
1234
5(L1) 6(L2)
T/B 1
MAIN P.C.B
MOTOR
TERMINAL
BLOCK
POWER
INPUT
TRANSFORMER
CAPACITOR
G
OUTDOOR WIRING DIAGRAM
TO INDOOR UNIT
3854AR2262X
BL
4
3
BL
BL
BK
BK
CN-TRANS
RY-COMP
CN- POWER
ZNR
CN-DC/DC
FUSE
3.15A
YL
YL
RD
GN/YL
BR
BR BR
BR
RD
RD BR BK BL
BL BR
SRC
HCF
G
1234
5(L1) 6(L2)
COMP. O.L.P
MAIN P.C.B
MOTOR
TERMINAL
BLOCK
POWER
INPUT
TRANSFORMER
CAPACITOR
COMP.
G
OUTDOOR WIRING DIAGRAM
TO INDOOR UNIT
3854AR7077D
OR(BR)
BR YL
4
3
BL
BL
BK
BK
CN-TRANS
CN - FAN
RY-FAN
RY-COMP
CN- POWER
ZNR
CN-DC/DC
FUSE
3.15A
BK TB/1 BK
YL
GN/YL
BR BR RD BR BK BL
BL BR
S
RC
H F
G
1
02
4
6
8
BR
RD
BR
BL
1234
5(L1) 6(L2)
C

- 13 -
• Cooling & Heating Models
1. 9K, 12K
3. 24K
2. 18K
4WAY-
VALVE
T/B 1
T/B 2
T/B 3 T/B 4
MAIN P.C.B
H.P
SWITCH
MOTOR
CRANK
CASE
HEATER
TERMINAL
BLOCK
POWER
INPUT
TRANSFORMER
THERMISTOR
(COIL)
CAPACITOR
COMP.
G
OUTDOOR WIRING DIAGRAM
TO INDOOR UNIT
3854AR7077A
OR(BR)
BR YL
4
3
BK BK
BK
BL
BL
BK
BK
RY-4WAY
CN-TH
CN-TRANS
CN - 4WAY
CN - FAN
RY-FAN
RY-HEATER
RY-COMP
CN- POWER
ZNR
CN-DC/DC
FUSE
3.15A
WH WH
WH
WH
RD
BK
BK BK
RD
YL
GN/YL
BR
BR
RD
RD BR BK BL
BL BR
1234
5(L1) 6(L2)
S
RC
H
C
F
G
4WAY-
VALVE
T/B 1 T/B 2
T/B 4
T/B 3
MAIN P.C.B
MOTOR
CRANK
CASE
HEATER
TERMINAL
BLOCK
POWER
INPUT
TRANSFORMER
THERMISTOR
(COIL)
CAPACITOR
COMP.
G
OUTDOOR WIRING DIAGRAM
TO INDOOR UNIT
3854AR2262Y
BL
BR
BR
YL
4
3
BK BK
BK
BL
BL
BK
BK
RY-4WAY
CN-TH
CN-TRANS
CN - 4WAY
CN - FAN
RY-FAN
RY-HEATER
RY-COMP
CN- POWER
ZNR
CN-DC/DC
FUSE
3.15A
WH WH
WH
WH
RD
BK
YL
RD
RD
GN/YL
BR
BR
RD
RD BR BK BL
BL BR
1234
5(L1) 6(L2)
S
RC
HCF
G
O.L.P
4WAY-
VALVE
T/B 1
T/B 2
T/B 3 T/B 4
MAIN P.C.B
H.P
SWITCH
MOTOR
CRANK CASE
HEATER
TERMINAL
BLOCK
POWER
INPUT
TRANSFORMER
THERMISTOR
(COIL)
CAPACITOR
COMP.
G
OUTDOOR WIRING DIAGRAM
TO INDOOR UNIT
3854AR7077B
OR(BR)
BR YL
4
3
BK BK
BK
BL
BL
BK
BK
RY-4WAY
CN-TH
CN-TRANS
CN - 4WAY
CN - FAN
RY-FAN
RY-HEATER
RY-COMP
CN- POWER
ZNR
CN-DC/DC
FUSE
3.15A
WH WH
WH
WH
RD
BK
BK BK
RD
YL
GN/YL
BR BR RD BR BK BL
BL BR
S
RC
H
C
F
G
1
02
4
6
8
BR
RD
BR
BL
1234
5(L1) 6(L2)

(1) The function of main control
1. Time delay Safety Control
• 3min.; The compressor operation is delayed for 3 minutes to balance the pressure of cycle.
(Protection of compressor)
• 5sec.; The indoor fan is delayed for 5 seconds, when operating initially, to prevent noises occurred by the vertical
louver and wind.
• 2min.; The reversing valve is delayed for 2 minutes to prevent the refrigerant-gas for abnormal noise when the
heating operation is OFF or switched to the other operation mode while compressor is off.
While compressor is running, it takes 3~5 seconds to switch.
2. Airflow Direction Control
• This function is to swing the vertical louver up and down automatically and to set it at a fixed position.
• The procedure is as the following.
1st ; Press the ON/OFF Button to operate the unit.
2nd ; Press the Airflow Direction Control Button to swing the vertical louver up and down automatically.
3nd ; Repress the Airflow Direction Control Button to set the vertical louver at a fixed position.
3. Cooling Operation Mode
• When selecting the Cooling( ) Mode Operation, the unit will operate according to the setting by the
remote controller and the operation diagram is shown below.
- 14 -
Operation Details
0
1
2
3
45
115
Cooling
Cooling
Horizontal
Setting point
Heating
Heating
(Close)
67
7
9
0
1
2
3
45
145
Cooling
Cooling
Horizontal
Setting point
Heating
Heating
(Close)
67
8
9
INTAKE AIR TEMP.
SETTING TEMP. +1 ° F
(Compressor ON)
SETTING TEMP. -1 ° F
(Compressor OFF)
Selecting
fan speed Selecting
fan speed
More than
3 minutes More than
3 minutes
Selecting
fan speed
COMPRESSOR ON OFF ON OFF ON
INDOOR FAN SPEED Low Low
<18K, 24K>
<9K, 12K>
■Protection of the indoor heat exchanger from frosting
• Compressor and outdoor fan stop when indoor pipe temperature is below 32°F and restart at the pipe tempera-
ture is above 45°F.

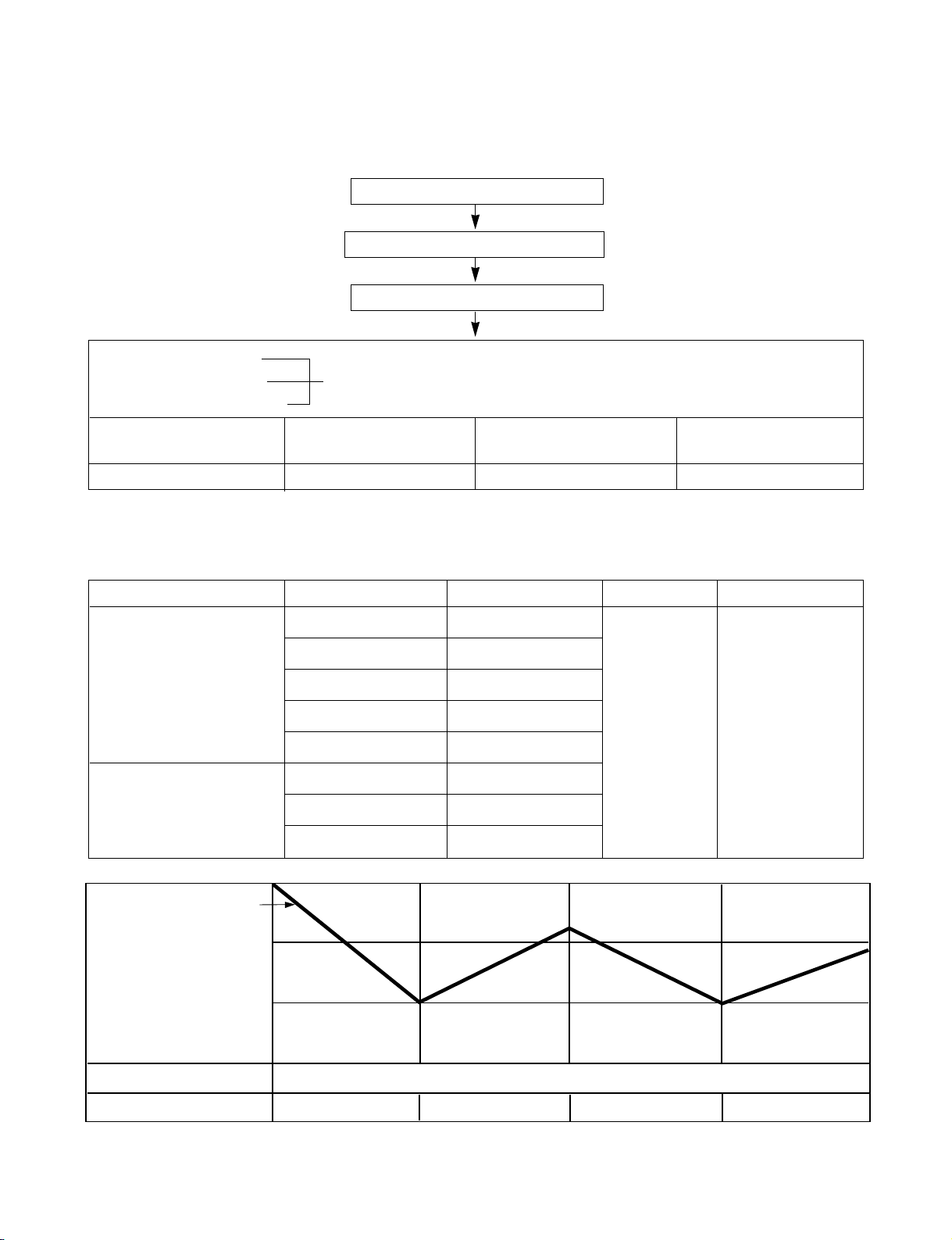

4. Auto Operation (Electronic control mode)
• The operation procedure is shown below. (Cooling & Heating Model)
❋ If initial mode is decided, that mode is continued without the room temperature changing.
■Auto Operation for Cooling
- 15 -
Press Start/Stop Button
Select Auto Operation Mode
Check the Room temperature
Operation mode
Indoor fan speed are decided automatically by the unit electronic control.
Setting temperature
Intake-air
temperature
Operation Mode
Over below
70 ° F 76 ° F
Soft Dry
below 70 ° F
Heating
Over 76 ° F
Cooling
~
INTAKE AIR TEMP.
SETTING TEMP. +1°F
(Compressor OFF)
SETTING TEMP. -1°F
(Compressor ON)
COMPRESSOR ON OFF ON OFF
INDOOR FAN SPEED The electronic control operation
Intake-air Temperature Setting Temperature
Over 78°F 77°F
Over 76°F~below 78°F Intake air -1°C
Over 72°F~below 76°F Intake air -0.5°C
Over 68°F~below 72°F Intake air temperature
below 64°F 64°F
Over 64°F~below 86°F Electronic control
below 64°F 64°F
over 86°F 86°F
Operation Condition
When Auto Operation
initial start Controlled by
the electronic
control
In this mode,
when pressing
the vertical air
direction control
button, vertical
louver swings up
and down
automatically.
Fan Speed Air Direction Control
When pressing room
temperature setting
button during Auto
Operation

■ Auto Operation for Soft Dry(only Heating Model)
• The Setting temperature will be same that of the auto operation for cooling.
- Compressor ON temperature; Setting temperature +2°F
- Compressor OFF temperature; Setting temperture -1°F
■ Auto Operation for Heating(only Heating Model)
- Compressor ON temperature; Setting temperature
- Compressor OFF temperature; Setting temperature +6°F
- 16 -
Intake-air temp. below 68°F Over 68°F~below 70°F over 86°F
Setting temp. 68°F Intake air temperature +1°F 86°F
■ Vertical louver auto operation : In Auto operation mode, when pressing the vertical airflow direction control
button, vertical louver moves as shown below.
MODE0
MODE1
MODE2
MODE3
End
Start
MODE9
(CLOSED)
MODE4
MODE5
MODE6

5. Soft Dry Operation Mode
• During Soft Dry Operation, the compressor ON temperature is the setting temperature plus 2°F, the compres-
sor OFF temperature is the setting temperature minus 1°F.
• When the room temperature rises over the compressor ON temperature, the operation mode is switched to the
Cooling operation.
• When the room temperature falls between the compressor ON temperature and OFF temperature, the opera-
tion mode is switched to the Soft Dry Operation.
• The operation diagram is shown below.
- 17 -
INTAKE AIR TEMP.
SETTING TEMP. +2 ° F
(Compressor ON)
SETTING TEMP. -1 ° F
(Compressor OFF)
Selecting
fan speed Selecting fan speed
Cooling
Operation Soft Dry Operation
maximum
4 minutes
maximum
10 minutes
3 minutes
10 minutes maximum
7 minutes
3 minutes
Cooling
Operation
COMPRESSOR ON OFF ON OFF ON OFF ON
INDOOR FAN SPEED Low Low Low Low Low

- 18 -
6. Heating Operation Mode(only Heating Model)
The unit will operate according to the setting conditions by the remote controller.
The operation diagram is shown below.
INTAKE AIR TEMP.
SETTING TEMP. +6 ° F
(Compressor OFF)
SETTING TEMP.
(Compressor ON)
Selecting
fan speed Selecting
fan speed
ABA
minimum
10sec.
minimum
1 min.
minimum
10sec.
COMPRESSOR ON OFF ON OFF
• A point; While the indoor pipe temperature is higher than 95°F, indoor fan operates at low speed. When the
indoor pipe temperature becomes lower than 95°F, indoor fan stops.
• B point; When the indoor pipe temperature is higher than 82°F, fan operates at selected fan speed.
INDOOR FAN SPEED Low OFF Low Low OFF
OFF OFFLOW
ON
Selecting
fan speed
INDOOR PIPE
TEMP. 82°F
78°F
1min
INDOOR FAN SPEED
COMPRESSOR
■ Hot-Start Control
• The indoor fan stops until the indoor pipe temperature will be reached at 82°F.
• During heating operation, if indoor pipe temperature falls below 78°F fan stops.
• The operation diagram is shown below.

- 19 -

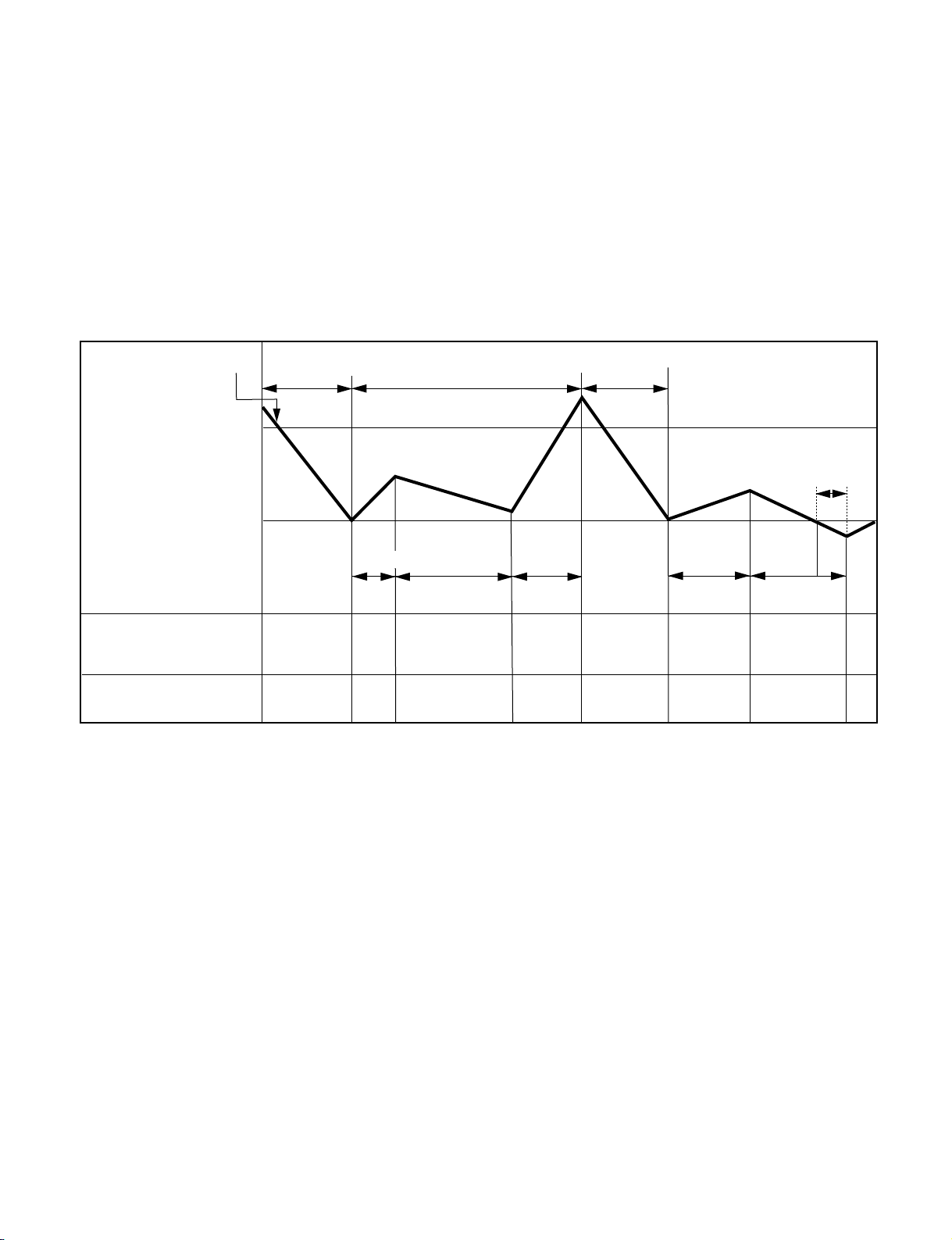

■ Defrost Control
• Defrost operation is controlled by timer and sensing temperature of outdoor pipe.
• The first defrost starts only when the outdoor pipe temperature falls below 21°F after 60 minutes passed from
starting of heating operation and more than 10 minutes operation of compressor.
• Defrost ends after 12 minutes passed from starting of defrost operation or when the outdoor fan operates within 4
minutes after the outdoor pipe temperature rises over 54°F even if before 12 minutes.
• The second defrost starts only when the outdoor pipe temperature falls below 21°F after 60 minutes passed from
ending of the first defrost and more than 10 minutes operation of compressor.
OUTDOOR
PIPE TEMP.
More than 60 minutes of
heating operation
More than 10 min.
running of compressor
More than 60 minutes of
heating operation
More than 10 min.
running of compressor
Within
12minutes
Defrost
Defrost
HOT-
START
Within
4 minutes
54°F
(DEFROST OFF)
21°F
(DEFROST ON)
INDOOR FAN SPEED ON OFF ON OFF
COMPRESSOR ON ON ON ON
4-WAY VALVE ON OFF ON OFF
OUTDOOR FAN ON OFF ON OFF

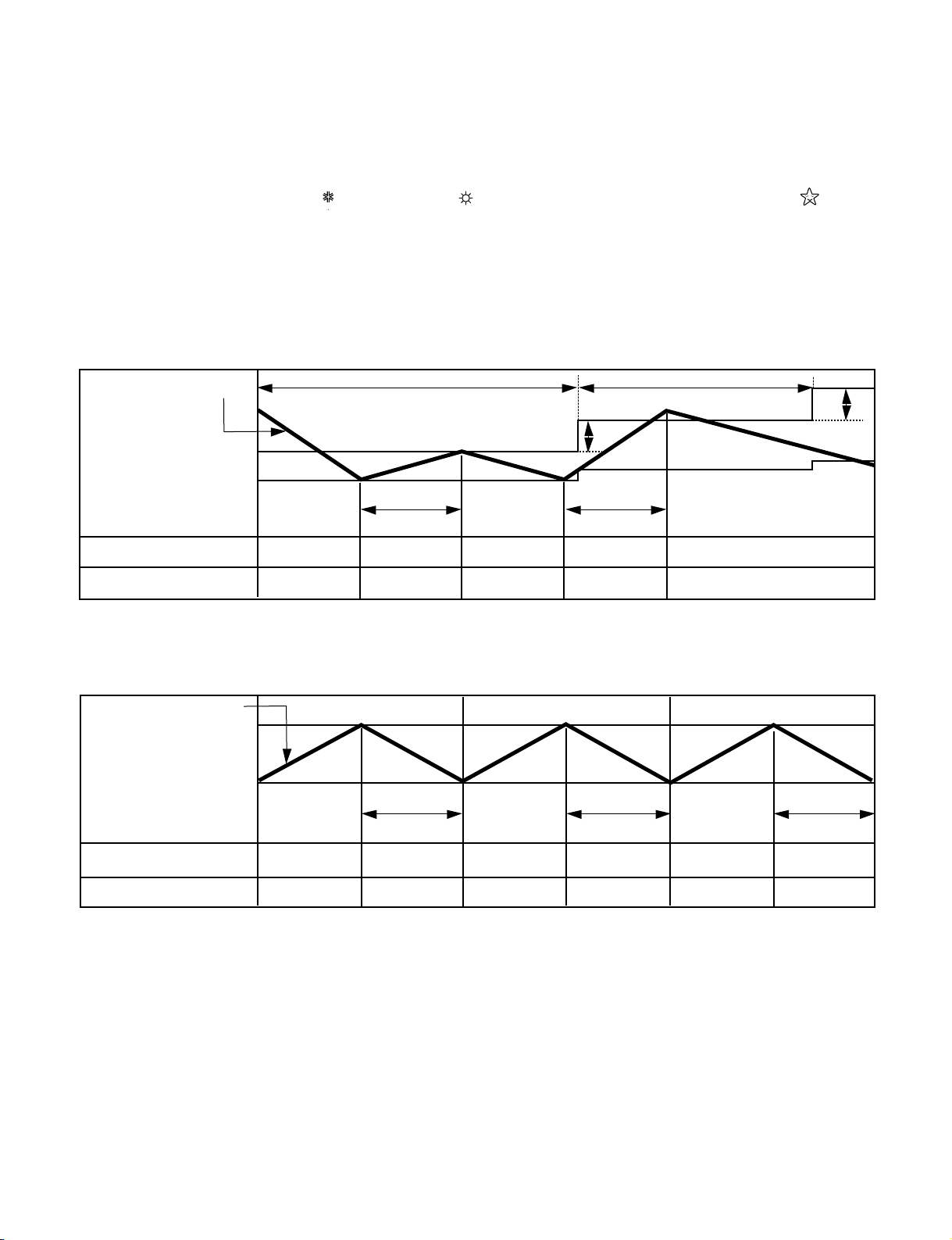

7. Cooling or Heating Mode with Sleep Mode Auto Control
• When selecting the Cooling( ) or the Heating( ) combined with the Sleep Mode Auto Control( ), the
operation diagram is as following.
■ Cooling Mode with the Sleep Mode
• The setting temperature will be automatically raised by 2°F 30 minutes later and by 4 ° F 1 hour later.
• The operation will be stopped after 1, 2, 3, 4, 5, 6, 7 hours.
■ Heating Mode with the Sleep Mode(only Heating Model)
• The operation will be stopped after 1, 2, 3, 4, 5, 6, 7 hours.
- 20 -
INTAKE AIR TEMP.
SETTING TEMP. +1 ° F
(Compressor ON)
SETTING TEMP. -1 ° F
(Compressor OFF)
30 minutes 30 minutes
More than
3 minutes
2°F
2°F
More than
3 minutes
COMPRESSOR ON OFF ON OFF ON
INDOOR FAN SPEED Low Low Low Low Low
SETTING TEMP. +6 ° F
(Compressor OFF)
SETTING TEMP.
(Compressor ON)
COMPRESSOR ON OFF ON OFF ON OFF
INDOOR FAN SPEED Med Low or OFF Med Low or OFF Med Low or OFF
INTAKE AIR TEMP.
More than
3 minutes More than 3 minutes More than 3 minutes
