iCR iCR 3600 User manual

iCR3600+
USER MANUAL

iCR 3600 +TM – User Manual
Foreword
Proprietary Notice and Disclaimer
The information herein disclosed is the property of i CRco., Inc. Information in this docu-
ment is subject to change without notice and does not represent a commitment by i CRco to
incorporate changes or improvements in units previously sold or shipped.
No part of this document may be reproduced or transmitted in any form, electronic
or mechanical, including photocopying and recording, for any purpose other than the
purchaser’s own use without the express written permission of iCRco.
Copyright
Copyright c iCRco Inc. 2003 - 2010
All rights reserved.
Trademarks
i CR 2600
R
 , i CR 1000
R
 , i CR 1000 Dual
R
 , i CR 2600
R
 , i CR 2600 Dual
R
 , i CR 2600SF
R
 , i CR
Vet
R
 , i CR CR Vet Dual
R
 , i CR Mobile
R
 , i CR 1-D
R
 , i CR Chiro
R
 , i CR Chiro Dual
R
 , i CR
3600
R
 , i CR 3600SF
R
 , i CR VERTX
R
 , i DR
R
 ,www.icrcompany.com and QPC XSCAN32 are
the trademarks of i CRco. All other trademarks are the property of their respective owners,
and are hereby acknowledged.
Terms
Any one of the following i CR products will be referred to as the “CR unit” throughout
this document: i CR 1000
R
 , i CR 1000 Dual
R
 , i CR 2600
R
 , i CR 2600 Dual
R
 , i CR 2600SF
R
 ,
i CR 3600
R
 , i CR Vet
R
 , i CR Vet Dual
R
 , i CR Mobile
R
 , i CR 1-D
R
 , i CR Chiro
R
 , i CR Chiro
Dual
R
i CR VERTX
R
 Any one of the following i CR products will be referred to as “ i CR
dual unit” throughout this document: i CR 1000 Dual
R
 , i CR 2600 Dual
R
 , i CR Vet Dual
R
 ,
i CR Chiro Dual
R
 Any one of the following i CR products will be referred to as “ i CR desktop
unit” throughout this document: i CR VERTX
R
 . The i DR
R
 will be referred to as the “DR
unit” throughout this document.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
i of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Contact Information
iCRco., Inc. USA
Address: 2580 West 237th Street, Torrance, CA, 90505
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web: http://www.icrcompany.com
iCRco., Inc. Europe
Address: 31a Ridlerstrasse, 80339 Munich, Germany
Phone: [phone]
Email: [e-mail]
Web: http://www.icrcompany.com
iCR 3600+ Information
Please Enter the details of the iCR 3600+ system here:
Serial Number:
Date Purchased:
Interface Type: USB 2.0
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
ii of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Safety Information
Be sure to read and understand the installation and operating instructions before applying
power to the CR unit.
CAUTION
CAUTION
DANGER
CAUTION: FOR CONTINUED
PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE AND
RATING OF FUSE.
CAUTION: TO REDUCE THE RISK OF
ELECTRONIC SHOCK, DO NOT REMOVE
COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Invisible laser
radiation when open.
AVOID EXPOSURE
TO BEAM.
Class 3b laser product.
(IEC 825-1)
3A SLOW BLOW, 250VFUSE
INPUT: 100-240VAC 3A 50-60Hz
Conventions
!
DANGER A DANGER indicates that personal injury may occur if the Service person
does not perform the procedure correctly.
!
WARNING A WARNING indicates that a user must be constantly aware of something
that may prove hazardous.
!
CAUTION A CAUTION indicates that damage to the product or user may occur if the
user does not perform the procedure correctly.
Note A NOTE indicates important information that helps you make better use of your CR
and Software.
Notice A NOTICE indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
Laser Safety
!
CAUTION This equipment employs a laser. Laser radiation may be present if the CR
system is operated without the covers. Avoid the laser beam. Direct exposure to laser light
must be avoided.
The CR unit incorporates a Red ≥ 80mw high-power solid-state laser diode. The CR covers
protect the service person from direct exposure to laser light. These covers will protect
a user/service person only if they are properly installed. Covers must be removed and
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
iii of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
replaced by properly trained service personnel. Contact i CRco if there are any issues with
the covers being damaged or replacement covers are needed.
Electrical Hazards
!
WARNING This equipment is operated with hazardous voltages which can shock, burn,
or cause death.
Notice The CR unit must be connected to a uninterruptible power supply (UPS). Failure
to use a (UPS) will void the warranty.
The equipment must be serviced by properly trained technicians certified by i CRco, Inc.
Do not connect the CR unit with a damaged or sub-standard power cable. Do not use an
extension cord with this device. The CR unit should be properly grounded and power con-
nections inspected to ensure safe operation. Use at least a 1300VA (780W) uninterruptible
power supply (UPS) with this device, as it is sensitive to variations in power.
FCC Notification
This equipment generates, uses, and can radiate radio frequency energy, and if not installed
properly, can cause interference with radio communications.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
iv of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Guidance and Manufacture’s declaration – Electromagnetic Emis-
sions & Immunity
Table 1: Electromagnetic Emissions
Guidance and manufactures’ declaration – electromagnetic emissions
The i CR 3600+ is intended for use in the electromagnetic environment specified
below. The customer or the user of the i CR 3600+ should assure that it is used in
such an environment.
Emissions test Compliance Electromagnetic environment – guidance
RF emissions
CISPR 11
Group 1 The iCR 3600+ uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any
interference in nearby electronic equipment.
RF emissions
CISPR 11
Class B The iCR 3600+ is suitable for use in all
establishments, including domestic and those
directly to the public low voltage pwoer supply
network that supplies buildings used for
domestic purposes.
Harmonic
emissions IEC
61000-3-2
Class B
Voltage fluctu-
ations/flicker
emissions IEC
61000-3-3
Complies
Table 2: Electromagnetic Immunity
Immunity
Test
IEC 60601 Test
Level
Compliance
Level
Electromagnetic Environment –
Guidance
Electrostatic
discharge
(ESD) IEC
61000-4-2
±(2, 4, 6) kV
Contact
±(2, 4, 8) kV
air
±(2, 4, 6) kV
Contact
±(2, 4, 8) kV
air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be at
least 30%.
Electrical
fast tran-
sient/burst
IEC
61000-4-4
±2 kV for
power supply
lines
±1kV for
input/output
lines
±2 kV for
power supply
lines
±1kV for
input/output
lines
Mains power quality should be
that of a typical commercial or
hospital environment.
continued on next page. . .
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
v of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Table 2 continued. . .
Immunity
Test
IEC 60601 Test
Level
Compliance
Level
Electromagnetic Environment –
Guidance
Surge IEC
61000-4-5 ±1 kV differential
mode
±2 kV
common mode
±1 kV
differential
mode
±2 kV
common mode
Mains power quality should be
that of a typical commercial or
hospital environment.
Voltage
dips, short
interrup-
tions and
voltage
variations
on power
supply
input lines
IEC
61000-4-11
<5% UT
(>95% dip in
UT) for 0.5
cycle.
40% UT(60%
dip in UT) for
5 cycles.
70% UT(30%
dip in UT) for
25 cycles.
<5% UT
(>95% dip in
UT) for 5 sec.
<5% UT
(>95% dip in
UT) for 0.5
cycle.
40% UT(60%
dip in UT) for
5 cycles.
70% UT(30%
dip in UT) for
25 cycles.
<5% UT
(>95% dip in
UT) for 5 sec.
Mains power quality should be
that of a typical commercial or
hospital environment. If the user
of the iCR 3600+ requires
continued operation during
power mains interruptions, it is
recommended that the iCR 3600+
be powered from an
uninterruptible pwoer supply or a
battery.
Power
frequency
(50/60Hz)
magnetic
field IEC
61000-4-8
3A/m 3A/m Power frequency magnetic fields
should be at levels characteristic
of a typical location in a typical
commercial or hospital
environment.
NOTE: UTis the a.c. mains voltage prior to application of the test level.
continued on next page. . .
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
vi of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Table 2 continued. . .
Immunity
Test
IEC 60601 Test
Level
Compliance
Level
Electromagnetic Environment –
Guidance
Conducted
RF IEC
61000-4-6
Radiated
RF IEC
61000-4-3
3Vrms 150 kHz
to 80 MHz
3 V/m 80 MHz
to 2.5 GHz
3Vrms
3 V/m
Portable and mobile RF
communications equipment
should be used no closer to any
part of the iCR 3600+, including
cables, than the recommended
separation distance calculated
from the equation applicable to
the frequency of the transmitter.
Recommended separations
distance
d= 1.2√P
d= 1.2√P80 MHz to 800 MHz
d= 2.3√P800 MHz to 2.5 GHz
where P is the maximum output
power rating of the transmitter in
watts (W) according to the
transmitter manufacturer and d is
the recommended separation
distance in meters (m).
Field strengths from fixed RF
transmitters as determined by an
electromagnetic site surveya,
should be less than the
compliance level in each
frequency rangeb.
Interference may occur in the
vicinity of equipment marked
with the following symbol:
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflections from structures, objects
and people.
continued on next page. . .
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
vii of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Table 2 continued. . .
Immunity
Test
IEC 60601 Test
Level
Compliance
Level
Electromagnetic Environment –
Guidance
a
Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM
and FM radio broadcast and TV broadcast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed
RF transmitters, an electromagnetic site survey should be considered. If
the measured field strength in the location where the i CR 3600+ is used
exceeds the applicable RF compliance levels above, the i CR 3600+ should be
observed to verify normal operation. If abnormal performance is observed,
additional measures may be necessary, such as reorienting or relocating the
iCR 3600+.
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be
less than 3 V/m.
iCRco Warranty
i CRco, Inc. (“ i CRco”) values your business and always strives to provide high quality
products and services. All i CRco products are provided with an initial warranty so the
hardware and software are covered from the date of purchase. This limited warranty
solely applies to new products manufactured by or for i CRco and originally purchased
from i CRco or an authorized dealer of i CRco products for your own use. In addition, an
extended warranty is available for most new and recently purchased i CRco products for an
additional charge.
Hardware Limited Warranty
i CRco warrants its hardware products to be free of defects in materials and workmanship
for a period of one (1) year from the date of original shipment from i CRco subject to the
limitations set forth herein. If a product proves to be defective in material or workmanship
during the warranty period, i CRco will, at its sole option, repair or replace the product
with a similar product. Repaired and replacement products may be or include refurbished
or remanufactured parts. Any replacement item assumes the remaining warranty period of
the original product. i CRco provides no warranty for any third party hardware or software
included with any product or later acquired.
Software Limited Warranty/Support
iCRco warrants that its QPC XSCAN32, Captera, and/or ClarityPACS software originally
provided with any product will substantially conform to i CRco’s specifications and that
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
viii of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
the media, not including hard drives, on which the software is furnished will be free from
defects in materials and workmanship under normal use for a period of one (1) year from
the date of original shipment from i CRco. i CRco’s sole obligation under this warranty is
limited to making reasonable efforts to ensure such conformity and to supply the consumer
with a corrected version of the software as soon as it is practical after the consumer has
notified i CRco of any non conformity. i CRco does not warrant that the operation of any
software will be uninterrupted, glitch or error free or that functions contained in the
software will operate in the combinations which may be selected for use by the user or
meet the user’s requirements. This limited software warranty will be void if the software is
modified without the written approval of i CRco or is used outside of the recommended
parameters or equipment. i CRco does not provide any warranty or support for any other
software.
i CRco agrees to provide one (1) year of telephonic and/or e-mail based support for QPC
XSCAN32, Captera, and/or ClarityPACS software originally provided with any new i CRco
product from the date of original shipment from i CRco. All software support shall be
limited to making reasonable efforts to resolve i CRco software issues and shall be limited
to i CRco’s regular business hours. In addition, i CRco will provide revisions and upgrades
to its software upon request (when available) during the first year after the software was
originally shipped from the i CRco factory. The initial support period will include support
via remote login software (GoToMeeting), only if the customer has access to the Internet
from that PC and only if the customer agrees i CRco shall have no liability in connection
with its support efforts. Remote login software allows i CRco technical support to remotely
access the customer’s PC via the Internet for the purposes of rendering technical support.
Please note that this warranty, including software support, does not include computer
hardware, third party software or operating system or network issues, which are outside
the control of iCRco.
Warranty Product Technical Requirements
i CRco requires that all DR, CR, Scanner and/or products requiring PCs be fitted and
installed with a 1500VA (1500W) uninterruptible power supply (“UPS”). i CRco recommends
the APC 1000 specification UPS or equivalent. For warranty evaluation and service, i CRco
requires the customer to provide an Internet connection (DSL or Dial-up) or the minimum
of a phone line accessible by an extension cord to the product enabling i CRco technicians to
perform remote diagnostics on installed equipment. In addition, each i CRco product must
be installed, maintained and operated in accordance with the respective product manual.
Failure to comply with these requirements will result in a voided warranty claim.
Requesting Warranty Service
For information on obtaining warranty service, call iCRco’s customer support at (310)921-
9559. In order to evaluate a warranty service request, i CRco requires the following infor-
mation: the i CRco serial number of the product, a detailed description of the problem,
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
ix of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
customer name and contact information; product location and operating conditions; a copy
of the purchase documents, and sufficient information and authorization, including a liabil-
ity release as to any loss of data (that should always be backed up), software or network
injury, or downtime, allowing i CRco technicians remote access to the product. Product may
not be returned to i CRco without first obtaining a Return Material Authorization (“RMA”)
number from i CRco. Prior to providing an RMA, i CRco may require remote access to the
product. If i CRco determines that the product may be defective, is under warranty and
necessitates a return to i CRco for service, an RMA number and instructions for return of
the product will be given. i CRco is not responsible for any unauthorized returned product,
i.e. one for which an RMA number has not been issued by iCRco.
Warranty service requires all authorized returns be shipped to the i CRco factory prepaid
and insured. All such authorized returns are the customer’s responsibility. For products
sold and located within the United States, iCRco will pay for return shipping.
Products being returned are only to be shipped in i CRco approved shipping containers.
The original box and packaging materials are approved and should be kept for moving
and/or shipping the product. Approved packaging my also be purchased from iCRco for
an additional charge. i CRco shall have no liability nor responsibility for warranty service
to any product that is not shipped in an i CRco approved shipping container or that is
damaged from incorrect packaging or damaged during shipping.
Additional Warranty Limitations and Extent of Warranty
This warranty does not apply if the product has been damaged by accident, misuse or
abuse. In addition, warranty service does not include the repair of failures or defects caused
by: unauthorized attachments to any i CRco product, unsuitable physical or operating
environment, maintenance or repair by anyone other than i CRco or the i CRco authorized
dealer that sold the product, operation of a product beyond its duty cycle, use of the
product outside of its specifications, the use of supplies, parts, materials, software, or
interfaces not furnished, authorized or recommended by i CRco. If the product, including
any software has been opened, tampered with, modified or altered in any way without
written authorization by iCRco, the warranty will no longer apply.
This warranty applies only to products manufactured by, or for, i CRco, and that can be
identified by an “ i CRco” serial number as originally affixed to the product. Any modifica-
tion to the i CRco serial number tag or its attachment to the product shall immediately void
the warranty.
This warranty is non-transferable and subsequent owners must contact i CRco to establish
if the equipment is eligible for an extended warranty.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO ANY i CRco
PRODUCT OTHER THAN AS SPECIFICALLY SET FORTH HEREIN, AND i CRco SPECIF-
ICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANT
ABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY.
ANY WARRANTIES THAT MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
x of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
ARE LIMITED IN DURATION TO THE INITIAL WARRANTY PERIOD AND NO WAR-
RANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. ALL INFORMA-
TION, SPECIFICATIONS, PRICES, AND SERVICES ARE SUBJECT TO CHANGE AT ANY
TIME WITHOUT NOTICE.
Limitation of Remedies and Liability/Exclusion of Damages
The exclusive remedy for any defective product is limited to the repair or replacement of
the defective product. i CRco shall have a reasonable time after determining that a defective
product exists to repair or replace a defective product. i CRco’s entire liability for any
product is limited to the actual purchase price for the product. This limitation applies even
if iCRco cannot or does not repair or replace any defective product.
IN NO EVENT WILL i CRco BE LIABLE FOR ANY GENERAL, SPECIAL, CONSEQUEN-
TIAL OR INCIDENTAL DAMAGES, including but not limited to, damages related to
the loss of use, loss of recorded product, the installation of replacement product, or any
inspection, testing, or redesign caused by any defect or by the repair or replacement of
any product arising from a defect in any product. This exclusion of damages applies even
if the customer advises i CRco or an i CRco dealer of the possiblity of such damages. This
limitation of remedies also applies to claims against any suppliers or dealers of i CRco. i CRco and its
suppliers’ and dealers’ limitations of remedies are not cumulative. Such suppliers and dealers are
intended beneficiaries of this limitation. i CRco is not liable for any claim by or against the customer
arising from a third party claim.
Revision History
Revision Author Date Notes
A MS 2008-06-26 Initial Release
B MS 2010-01-27 Revised for new computer bracket
C MS 2010-03-22 Updated safety information
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
xi of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Contents
Foreword i
ContactInformation ................................... ii
SafetyInformation .................................... iii
iCRcoWarranty ...................................... viii
1 Introduction 1
1.1 Overview....................................... 1
2 Pre-Installation 2
2.1 VoltageRequirements ............................... 2
2.2 Environmental.................................... 2
2.3 Connectivity and Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.4 PowerSwitchLocation............................... 3
2.5 PowerandScanLights............................... 3
2.6 PhysicalRequirements ............................... 3
2.7 SystemSpecifications................................ 3
3 Hardware Installation 5
3.1 UnpackingInstructions............................... 5
3.2 InstallingPowerCable ............................... 5
3.2.1 International Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 USB 2.0 Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.4 Computer Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.5 WallMountingPlates................................ 8
4 Software Installation 10
4.1 USBDriverInstallation............................... 10
4.2 Installing QPC XSCAN32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 System Operation 13
5.1 Power-Up ...................................... 13
5.2 CassetteHandling.................................. 13
5.2.1 Overview .................................. 13
5.2.2 Weight/Force Applied to Cassette . . . . . . . . . . . . . . . . . . . . 13
5.2.3 CassetteStorage............................... 13
5.2.4 Cassette Contamination . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3 CassetteLoading .................................. 14
5.4 AcquiringanImage................................. 15
5.5 Schedule of Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.6 PeriodicCleaning.................................. 20
5.6.1 Cleaning the Outside of the iCR3600+.................. 20
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
xii of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
5.6.2 CassetteCleaning.............................. 21
6 QPC XSCAN32 Software Functions 23
6.1 Creating/Editing Patients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2 ScanInterface .................................... 23
6.3 Mammography Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.4 Default Mouse Functions for Image Manipulation . . . . . . . . . . . . . . . 27
6.5 Image Processing Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.6 Annotations ..................................... 33
6.7 Patient CD/DVD Creator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.8 Associating a Barcode with a Study . . . . . . . . . . . . . . . . . . . . . . . . 43
6.9 Finding Barcodes and Scanning Images . . . . . . . . . . . . . . . . . . . . . 44
6.10 Archiving QPC XSCAN32 Database . . . . . . . . . . . . . . . . . . . . . . . 45
6.11 Restoring Archived Database . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.12 Searching QPC XSCAN32 Archive . . . . . . . . . . . . . . . . . . . . . . . . 46
6.13 Modality Work List Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.13.1 Setting-up Modality Work List Query . . . . . . . . . . . . . . . . . . 48
6.13.2 Using Modality Work List Query . . . . . . . . . . . . . . . . . . . . . 49
6.14ReportWriter .................................... 50
6.15 Long Bone & Scoli Stitching Software . . . . . . . . . . . . . . . . . . . . . . 51
6.16SettingUpDICOMSend.............................. 53
6.17DICOMSend .................................... 54
6.18DICOMRetrieve .................................. 55
6.19DICOMAuto-Send ................................. 56
6.19.1 Setting-up DICOM Auto-Send . . . . . . . . . . . . . . . . . . . . . . 56
6.19.2 Using DICOM Auto-Send . . . . . . . . . . . . . . . . . . . . . . . . . 57
6.20 DICOM Store and Forward Utility . . . . . . . . . . . . . . . . . . . . . . . . 58
6.21HL7Configuration ................................. 59
6.22 Advanced DICOM Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
6.23 Printing to a Windows Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6.23.1 Troubleshooting Windows to DICOM Print . . . . . . . . . . . . . . . 67
6.24 QPC XSCAN32 Keyboard Shortcuts . . . . . . . . . . . . . . . . . . . . . . . 68
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
xiii of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
s
1. Introduction
1.1 Overview
The CR unit is an ultra high resolution Computed Radiography device. It is designed to
scan cassettes containing phosphor screens (CR plates) using patented technology. CR
plates are transported past a scanning head without bending or using rollers. This flat scan
path results in ultra high resolution images with high fidelity across the entire image. High
resolution is achieved from the CR plates by coupling the flat scan path with a high energy
laser.
The CR unit collects 16 Bit data that is converted to a DICOM 3.0 image and can be
stored, viewed, manipulated, and sent to any other storage device, printer, or viewing
station through DICOM. This document contains a basic technical overview of the CR unit
including the optical systems, electronic components, and driving software subsystems.
A general description of the systems functionality and user interfaces will be described.
Unpacking of the hardware is covered, as is software installation, and troubleshooting
are also included. This document is intended for users or service people who need to
understand the basic underlying principles of operation for the CR unit.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
1 of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
s
2. Pre-Installation
2.1 Voltage Requirements
The i CR 3600+incorporates an international switching power supply. i CRco employs CE
certified medical grade universal power supplies to allow the unit to work between 90 to
253V AC 50/60Hz. In order to run the i CR 3600+with different power types, apply voltage
to the power input module at the end of the i CR 3600+. For international units, a local
power cord must be used that can handle the power requirements of the unit. A 13A/125V
power cord is sufficient.
2.2 Environmental
The i CR 3600+ should not be placed in a room with a film processor present. This will void
the warranty. The humidity and temperature limits are 20 to 80% non-condensing, and 50
to 95◦F (10 to 35◦C) operating, respectively.
Installation of the i CR 3600+ near high magnetic fields may cause the i CR 3600+ to mal-
function. The i CR 3600+ should not be placed in a room with an MRI, CT, or any other
equipment that produces high magnetic fields.
The room should have good ventilation. Another factor to consider prior to installing the
i CR 3600+ is dust and particulates in the environment. The i CR 3600+ is designed to be
resistant to dust and particulates that may be present at the installation site.
2.3 Connectivity and Power Supply
The room needs to have wall power and should not be used with an extension cord . Use
at least a 1300VA (780W) UPS between the wall power and the i CR 3600+. It is also required
to have a network connection for fast technical support. Alternatively, the user must have a
phone/fax line that can be connected to the PC in order to comply with i CRco warranty
terms.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
2 of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
2.4 Power Switch Location
The power switch for the CR unit is located on the left hand side of the unit, directly to the
right the fan.
2.5 Power and Scan Lights
The power and scan lights are located on the lower left-hand side
of the CR unit. When the unit is powered on, the green light is
illuminated. While the unit is scanning the yellow light will blink.
2.6 Physical Requirements
The i CR 3600+requires a stable operating environment. It is important the system is placed
on a table, stand or wall mount that provides adequate support.
2.7 System Specifications
Power Requirements
Domestic 100 to 120V, 50/60Hz, 3.5A
International 220 to 240V, 50/60Hz, 1.75A
Temperature Conditions
32 to 105◦F (0 to 40◦C) - operating
0 to 150◦F (-18 to 65◦C) - non-operating
Humidity
15 to 95% non-condensing
Pixels per Line Resolution
3500 (High Resolution) over 356mm (14
inches) 2048 (Normal Resolution) over
356mm (14 inches).
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
3 of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
Scan Rate
Scan Rate 60 lines/second
Grey Scale Resolution
16 bits (65,535 shades of gray)
Interface
USB 2.0
Dimensions
iCR 3600+ 10W x 22H x 44L inches
Vibration/Acceleration
3-4G Max (in shipping)
Altitude
0 to 9,500 ft. - operating
Weight
iCR 3600+ 78 lbs
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
4 of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
s
3. Hardware Installation

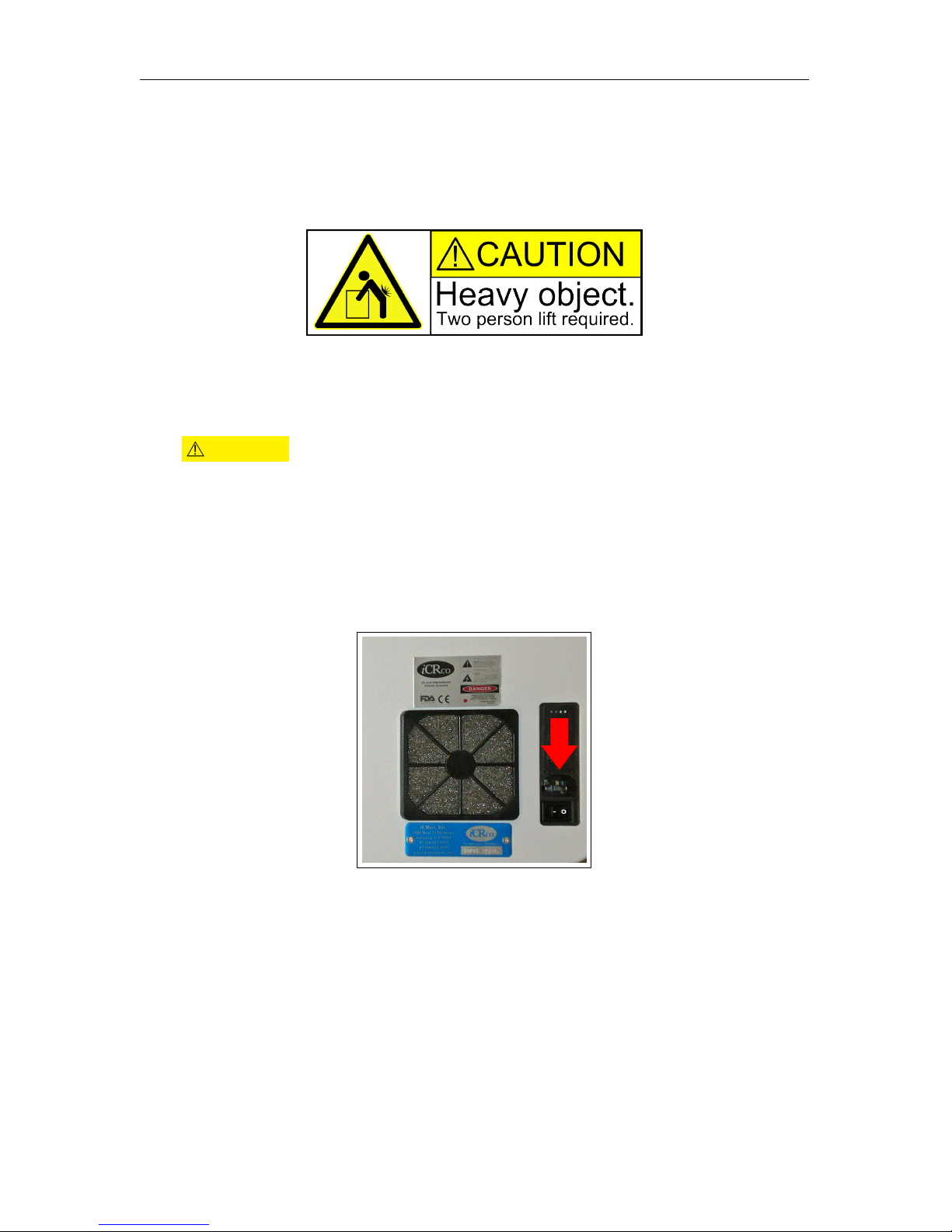

3.1 Unpacking Instructions
1. Open the box from the top.
2. Remove any small accessories loaded into the top of the box.
3. With at least two (2) people, lift the iCR 3600+ out of the box.
!
CAUTION Always practice proper heavy lifting procedures. Failure to practice
proper lifting procedures may result in injury or damage to the unit.
4. Store the box and any foam inserts somewhere safe & dry, so that if the i CR 3600+
needs to be shipped again, there are packing materials available.
3.2 Installing Power Cable
1. Plug the power cable for the iCR 3600+into the power switch unit.
2. Plug the other end of the power switch cord into the UPS.
3. Make sure the UPS is not in bypass mode.
4. Plug the UPS into a standard wall outlet.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
5 of 69 Document # 3600+-01A Rev C
March 22, 2010

iCR 3600 +TM – User Manual
3.2.1 International Power Cable
The i CR 3600+utilizes an international IEC grade connector for the power cable. Systems
are shipped with a standard NEMA 5-15 hospital grade cable. The cable needs to be
changed depending on the male end, which varies from country to country.
3.3 USB 2.0 Cable Installation
1. Visually inspect the cable to ensure that it is not cut, frayed, or otherwise damaged.
2. Plug the USB B end of the cable end to the CR unit’s USB 2.0 port.
3. Plug the USB A end of the cable end into a free USB 2.0 port on the computer

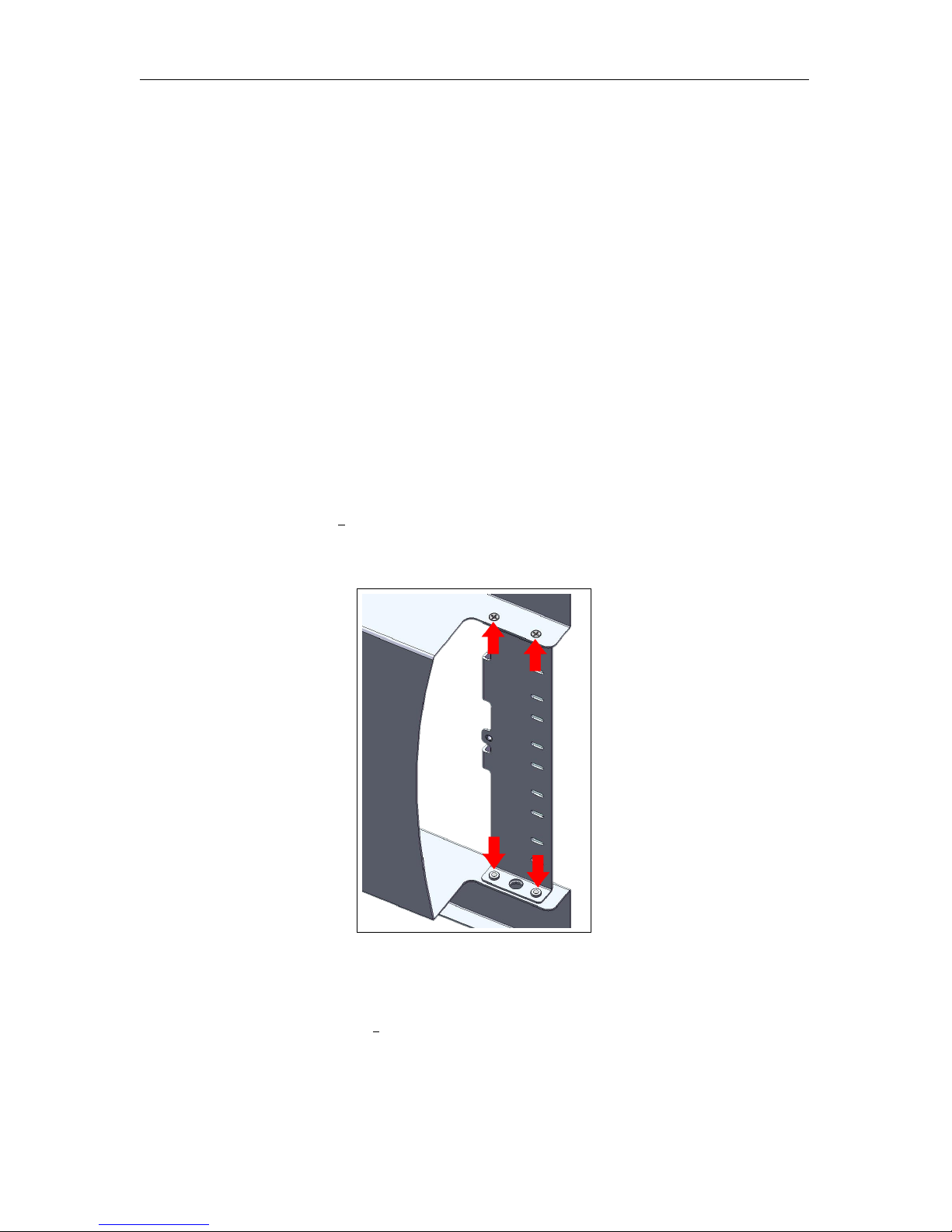

3.4 Computer Mounting Bracket
1. Attach the Back Computer Mounting bracket to the Computer Mounting Bracket
using four (4) 6-32 x 1
4” flathead screws (Figure 3.1).
Figure 3.1:
2. Align the computer mounting bracket on the back of the cassette tray.
3. Once the screw holes are aligned, fasten the computer mounting bracket to the CR
unit using four (4) 6-32 x 3
8” truss head screws (Figure 3.2).
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
6 of 69 Document # 3600+-01A Rev C
March 22, 2010
