ICS SB686P Series User manual

Product Manual
SB686P(V) Series
MANUAL NUMBER : 40110-005-2B
6260 SEQUENCE DRIVE, SAN DIEGO, CA 92121-4371 [phone] (FAX) 619-677-0895
INDUSTRIAL COMPUTER SOURCE EUROPE TEL [phone] FAX [phone] • INDUSTRIAL COMPUTER SOURCE (UK) LTD TEL [phone] FAX [phone]
SB686PV5200
SB686P5200
SB686PV200
SB686P200
http://www.indcompsrc.com

Page - ii

Page - iii
FOREWARD
This product manual provides information to install, operate and or program the referenced product(s)
manufactured or distributed by Industrial Computer Source. The following pages contain information
regarding the warranty and repair policies.
Technical assistance is available at: 1-800-480-0044.
Manual Errors, Omissions and Bugs: A "Bug Sheet" is included as the last page of this manual. Please
use the "Bug Sheet" if you experience any problems with the manual that requires correction.
The information in this document is provided for reference only. Industrial Computer Source does not
assume any liability arising from the application or use of the information or products described herein.
This document may contain or reference information and products protected by copyrights or patents and
does not convey any license under the patent rights of Industrial Computer Source, nor the rights of others.
Copyright © 1997 by Industrial Computer Source, a California Corporation, 6260 Sequence Drive, San
Diego, CA 92121. Industrial Computer Source is a Registered Trademark of Industrial Computer Source.
All trademarks and registered trademarks are the property of their respective owners. All rights reserved.
Printed in the United States of America. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording , or
otherwise, without the prior written permission of the publisher.

Page - iv
Guarantee
A thirty day money-back guarantee is provided on allstandard products sold. Special order products are
covered by our Limited Warranty, however they may not be returned for refund or credit. EPROMs, RAM,
Flash EPROMs or other forms of solid electronic media are not returnable for credit - but for replacement
only. Extended Warranty available. Consult factory.
Refunds
In order to receive refund on a product purchase price, the product must not have been damaged by
the customer or by the common carrier chosen by the customer to return the goods, and the product
must be returned complete (meaning all manuals, software, cables, etc.) within 30 days of receipt
and in as-new and resalable condition. The Return Procedure must be followed to assure prompt
refund.
Restocking Charges
Product returned after 30 days, and before 90 days, of the purchase will be subject to a minimum
20% restocking charge and any charges for damaged or missing parts.
Products not returned within 90 days of purchase, or products which are not in as-new and re-
saleable condition, are not eligible for credit return and will be returned to the customer.
Limited Warranty
One-year limited warranty on all products sold with the exception of the “Performance Series” I/O prod-
ucts, which are warranted to the original purchaser for as long as they own the product, subject to all other
conditions below, including those regarding neglect, misuse and acts of God. Within one year of purchase,
Industrial Computer Source will repair or replace, at our option, any defective product. At any time after
one year, we will repair or replace, at our option, any defective “Performance Series” I/O product sold.
This does not include products damaged in shipment, or damaged through customer neglect or misuse.
Industrial Computer Source will service the warranty for all standard catalog products for the first year
from the date of shipment. After the first year, for products not manufactured by Industrial Computer
Source, the remainder of the manufacturer's warranty, if any, will be serviced by the manufacturer directly.
The Return Procedure must be followed to assure repair or replacement. Industrial Computer
Source will normally return your replacement or repaired item via UPS Blue. Overnight delivery or
delivery via other carriers is available at additional charge.
The limited warranty is void if the product has been subjected to alteration, neglect, misuse, or
abuse; if any repairs have been attempted by anyone other than Industrial Computer Source or its
authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the
control of Industrial Computer Source or the manufacturer. Neglect, misuse, and abuse shall include
any installation, operation, or maintenance of the product other than in accordance with the owners’
manual.
No agent, dealer, distributor, service company, or other party is authorized to change, modify, or
extend the terms of this Limited Warranty in any manner whatsoever. Industrial Computer Source
reserves the right to make changes or improvements in any product without incurring any obligation
to similarly alter products previously purchased.
ShipmentsnotincompliancewiththisGuaranteeand
Limited Warranty Return Policy will not be accepted
by Industrial Computer Source.
®

Page - v
Return Procedure
For any Limited Warranty or Guarantee return, please contact Industrial Computer Source's Customer
Service at 1-800-480-0044 and obtain a Return Material Authorization (RMA) Number. All product(s)
returned to Industrial Computer Source for service or credit must be accompanied by a Return Material
Authorization (RMA) Number. Freight on all returned items must be prepaid by the customer who is
responsible for any loss or damage caused by common carrier in transit. Returns for Warranty must in-
clude a Failure Report for each unit, by serial number(s), as well as a copy of the original invoice showing
date of purchase.
To reduce risk of damage, returns of product must be in an Industrial Computer Source shipping
container. If the original container has been lost or damaged, new shipping containers may be
obtained from Industrial Computer Source Customer Service at a nominal cost.
Limitation of Liability
In no event shall Industrial Computer Source be liable for any defect in hardware or software or loss or
inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connec-
tion with or arising out of the performance or use of any product furnished hereunder. Industrial Computer
Source liability shall in no event exceed the purchase price of the product purchased hereunder. The
foregoing limitation of liability shall be equally applicable to any service provided by Industrial Computer
Source or its authorized agent.
SomeSales Items andCustomized Systems arenotsubject to the guarantee and limited warranty. However,
in these instances any deviations will be disclosed prior to sales and noted in the original invoice. Indus-
trial Computer Source reserves the right to refuse returns or credits on software or special order items.

Page - vi
Advisories
Three types of advisories are used throughout the manual to stress important points or warn of potential
hazards to the user or the system. They are the Note, the Caution, and the Warning. Following is an
example of each type of advisory:
Note: The note is used to present special instruction, or to provide extra information which may
help to simplify the use of the product.
CAUTION!
A Caution is used to alert you to a situation which if ignored may cause injury or
damage equipment.
WARNING!
A Warning is used to alert you of a situation which if ignored will cause serious
injury.
Cautions and Warnings are accented with triangular symbols. The exclamation symbol is used in all cau-
tions and warnings to help alert you to the important instructions. The lightning flash symbol is used on the
left hand side of a caution or a warning if the advisory relates to the presence of voltage which may be of
sufficient magnitude to cause electrical shock.
Use caution when servicing any electrical component. We have tried to identify the areas which may pose
a Caution or Warning condition in this manual; however, Industrial Computer Source does not claim to
have covered all situations which might require the use of a Caution or Warning.
You must refer to the documentation for any component you install into a computer system to insure proper
precautions and procedures are followed.

Page - vii
Handling Precautions
This product has components which may be damaged by electrostatic discharge. To protect your
processor board from electrostatic damage, be sure to observe the following precautions when
handling or storing the board:
• Keep the processor board in its static-shielded bag until you are ready to perform your
installation.
• Handle the processor board by its edges.
• Do not touch the I/O connector pins.
• Do not apply pressure or attach labels to the processor board.
• Use a grounded wrist strap at your workstation or ground yourself frequently by touching the
metal chassis of the system before handling any components. The system must be plugged into
an outlet that is connected to an earth ground. Use antistatic padding on all work surfaces.
• Avoid static-inducing carpeted areas.
Solder-Side Components
This processor board has components on both sides of the PCB. It is important for you to observe
the following precautions when handling or storing the board to prevent solder-side components
from being damaged or broken off:
• Handle the board only by its edges.
• Store the board in padded shipping material or in an anti-static board rack.
• Do not place an unprotected board on a flat surface.

Page - viii
Table of Contents
FOREWARD .............................................................................................. iii
Guarantee ................................................................................................. iv
Limited Warranty ...................................................................................... iv
Return Procedure...................................................................................... v
Limitation of Liability ................................................................................ v
Advisories ................................................................................................. vi
Table of Contents .................................................................................... vii
Chapter 1: Introduction................................................................................................ 1
Models........................................................................................................................................... 1
Features ........................................................................................................................................ 1
How to remain CE Compliant ............................................................................................................... 2
FCC Compliance Statement for FCC Class B Devices ........................................................................ 2
Chapter 2: Configuration & Setup............................................................................... 9
Configuration Jumpers .................................................................................................................. 9
Connectors..........................................................................................................................................11
ISA Bus Pin Numbering............................................................................................................... 17
ISA Bus Pin Assignments............................................................................................................ 18
ISA Bus Pin Assignments (continued)......................................................................................... 19
ISA Bus Signal Descriptions........................................................................................................ 20
I/O Address Map ......................................................................................................................... 24
Interrupt Assignments * ............................................................................................................... 25
PCI Local Bus .................................................................................................................................... 26
PCI Overview .............................................................................................................................. 26
PCI Local Bus Signal Definition................................................................................................... 26
PCI Local Bus Pin Numbering ........................................................................................ 27
PCI Local Bus Pin Assignments.................................................................................................. 28
PCI Local Bus Pin Assignments (continued) .................................................................. 29
PCI Local Bus Pin Assignments (continued) .................................................................. 30
PCI Local Bus Signal Descriptions ..................................................................................................... 30
Chapter 3: BIOS Operation........................................................................................35
BIOS Errors .................................................................................................................... 37
Running AMBIOS Setup.............................................................................................................. 38
System BIOS Setup Utilities ........................................................................................................ 38
AMIBIOS Setup Main Menu ............................................................................................................... 39
AMIBIOS Setup Main Menu............................................................................................ 39
Auto-Detect Hard Disks............................................................................................................... 41
Change Password ....................................................................................................................... 42
Change Supervisor Password ........................................................................................ 42
Auto Configuration Options ................................................................................................................ 43
Save Settings and Exit ................................................................................................................ 44

Page - ix
Exit Without Saving ..................................................................................................................... 45
KeyConventions ................................................................................................................................ 45
Chapter 4: Standard CMOS Setup ............................................................................ 47
The Standard CMOS Setup Screen.......................................................................................................... 47
Standard CMOS Options ................................................................................................................... 48
Primary and Secondary Hard Disk Drives ...................................................................... 49
Boot Sector Virus Protection .......................................................................................... 53
Saving and Exiting .......................................................................................................... 53
Using a Worksheet for Setup ............................................................................................................. 54
Hard Disk Drive Types.................................................................................................... 54
Chapter 5: Advanced CMOS Setup...........................................................................56
The Advanced CMOS Setup Screen ........................................................................................................ 56
Advanced CMOS Setup Options........................................................................................................ 57
Quick Boot...................................................................................................................... 57
BootUp Sequence .......................................................................................................... 57
BootUp Num-Lock .......................................................................................................... 58
Floppy Drive Swap.......................................................................................................... 58
Floppy Drive Seek .......................................................................................................... 58
Mouse Support ............................................................................................................... 59
SystemKeyboard ........................................................................................................... 59
Primary Display .............................................................................................................. 59
Password Check ............................................................................................................ 60
Parity Check ................................................................................................................... 60
OS/2 Compatible Mode .................................................................................................. 60
Wait For ‘F1’ If Error ....................................................................................................... 61
Hit ‘DEL’ Message Display.............................................................................................. 61
Internal Cache ................................................................................................................ 61
System BIOS Cacheable................................................................................................ 62
Video or Adapter ROM Shadow ..................................................................................... 62
Saving and Exiting .......................................................................................................... 63
Advanced Chipset Setup.................................................................................................................... 63
The Advanced Chipset Setup Screen....................................................................................................... 63
Advanced Chipset Setup Options....................................................................................................... 64
DRAM Speed (ns) .......................................................................................................... 64
DRAM Integrity Mode (ECC) .......................................................................................... 64
Chapter 6: PCI/Plug and Play Setup .........................................................................71
The PCI / Plug and Play Setup Screen ..................................................................................................... 71
PCI/Plug and Play Setup Options....................................................................................................... 72
Plug and Play Aware O/S ............................................................................................... 72
PCI Latency Timer (PCI Clocks)..................................................................................... 72
PCI IDE BusMaster ........................................................................................................ 73
OffBoard PCI IDE Card .................................................................................................. 73

Page - x
IRQ5/IRQ9/IRQ10/IRQ11/IRQ15 .................................................................................... 74
Chapter 7: Peripheral Setup ...................................................................................... 77
The Peripheral Setup Screen ................................................................................................................... 77
Peripheral Setup Options ................................................................................................................... 77
Appendix A: BIOS Messages ....................................................................................81
BIOS Beep Codes ....................................................................................................................... 81
BIOS Error Messages ................................................................................................................. 82
ISA BIOS NMI Handler Messages............................................................................................... 86
Port 80 Codes ............................................................................................................................. 86
Additional BUS Checkpoints........................................................................................................ 91
HighByte ........................................................................................................................................... 91
Appendix B: Cirrus Logic 5446 VGA Display Drivers & Utilities ............................93
Introduction ........................................................................................................................................ 93
UtilitySoftware............................................................................................................................. 94
CLMODE ........................................................................................................................ 94
WINMODE...................................................................................................................... 97
Microsoft Windows 3.X .................................................................................................................... 100
Windows NT 3.1 .............................................................................................................................. 104
Windows NT 3.5 .............................................................................................................................. 104
Power Management Screen Saver................................................................................................... 105
Windows 95 ..................................................................................................................................... 107
OS/2 2.1, 2.11, 3.0 ........................................................................................................................... 109
CE Declaration of Conformity
Current Revision 2B
September 1997

Manual Number: 40110-005-2 Page 1
Chapter 1: Introduction
The SB686P full-featured ISA/PCI processors are single board computers which feature Pentium
(Pro CPU, Intel 440FX (Natoma) chipset, optional Cirrus Logic video interface, DRAM, PCI Lo-
cal Bus, cache, floppy controller, dual EIDE interface, PCI Ultra SCSI controller, two serial ports,
parallel port, mouse port, speaker port and keyboard port on a single ISA card.
Models
Model Name CPU Speed
SB686PV5200 PentiumProCPUat200MHzwith512K cacheandvideointerface
SB686P5200 Pentium Pro CPU at 200MHz with 512K cache
SB686PV200 PentiumProCPUat200MHzwith256K cacheandvideointerface
SB686P200 Pentium Pro CPU at 200MHz with 256K cache
Features
• Pentium Pro microprocessor at 200MHz
• Intel Pentium Pro 440FX (Natoma) chipset with PCI bandwidth greater than 100MB/second
• Optional Super VGA on-board video interface with support up to 1280 x 1024 and full-motion
video modes
• DRAM error checking and correction (ECC) support
• 256K or 512K secondary write-back cache memory
• PCI Local Bus supports off-board PCI option cards, on-board PCI Ultra SCSI controller -
Adaptec 7880 and optional Cirrus GD5446 SVGA controller
• Compatible with PCI Industrial Computer Manufacturers Group (PICMG) 2.0 Specification
• Supports up to 256MB of DRAM on-board — EDO or fast page mode
• Floppy drive and dual PCI EIDE drive interface
• Two serial ports and one parallel port
• Automatic or manual peripheral configuration
• Watchdog timer
• Supports 1Mx36, 2Mx36, 4Mx36, 8Mx36 and 16Mx36 SIMMs
• Shadow RAM for System BIOS and peripherals increases system speed and performance
• Full PC compatibility

Manual Number: 40110-005-2Page 2
How to remain CE Compliant
In order for computer systems to remain CE compliant, only CE compliant parts may be used. To
keep a chassis compliant it must contain only compliant cards, and for cards to remain compliant
they must be used in compliant chassis. Any modifications made to the equipment may affect the
CE compliance standards and should not be done unless approved in writing by Industrial Com-
puter Source.
The SB686P (V) is designed to be CE Compliant when used in an CE compliant chassis. Maintain-
ing CE Compliance also requires proper cabling techniques. The user is advised to follow proper
cabling techniques from external devices to the interface to ensure a complete CE Compliant sys-
tem. Industrial Computer Source does not offer engineering services for designing cabling sys-
tems. Although Industrial Computer Source offers accessories, it is the user's responsibility to
ensure they are installed with proper shielding to maintain CE Compliance.
FCC Compliance Statement for FCC Class B Devices
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful inter-
ference to a radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Note: The assembler of a personal computer system may be required to test the system and/or
make necessary modifications if a system is found to cause harmful interference or to be
non-compliant with the appropriate standards for its intended use.

Manual Number: 40110-005-2 Page 3

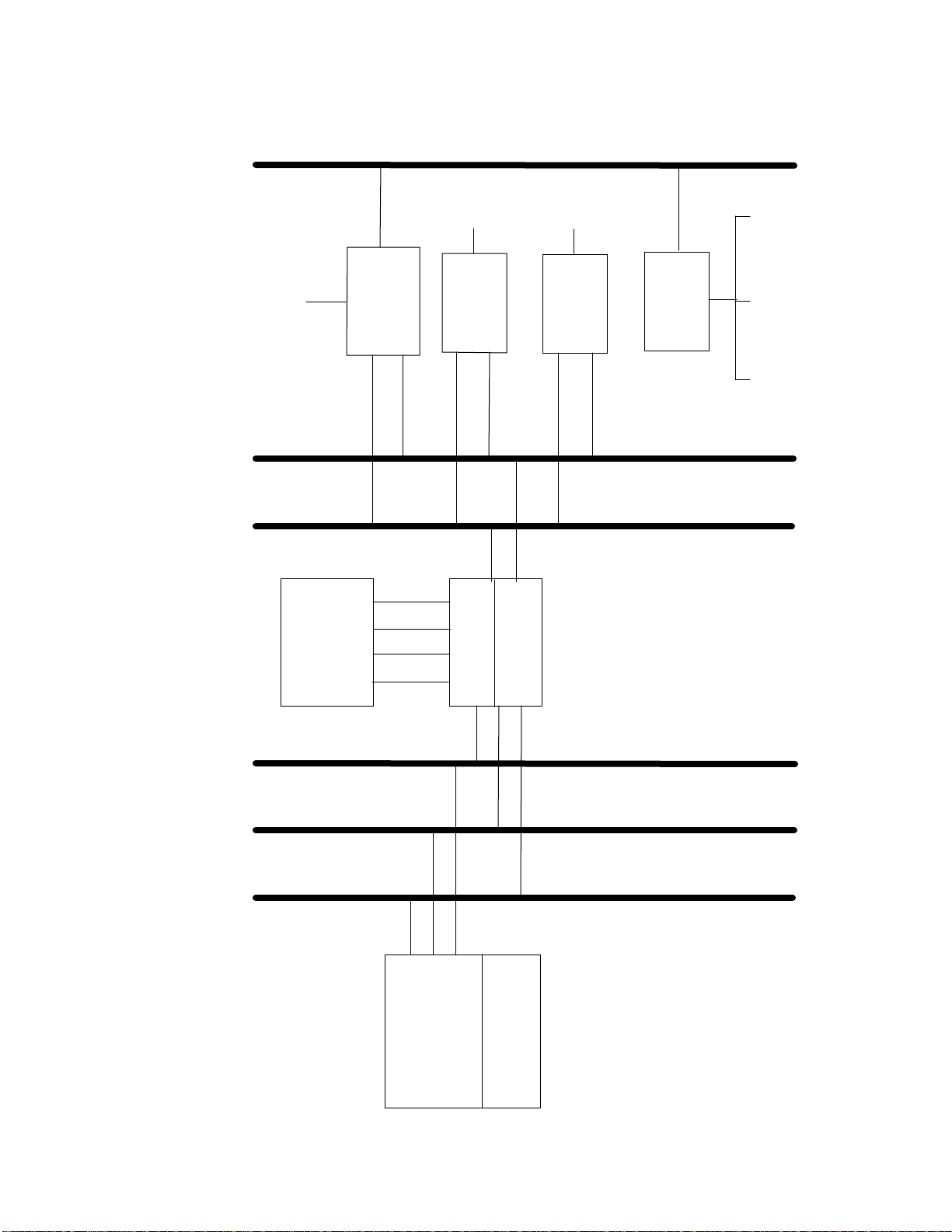

ISA BUS
ADDR/DATA
CNTL
PCI BUS
82091
PIIX3
DATA
Floppy Serial (2) Parallel
IDE (2)
CNTL ADDR
Main Memory
(DRAM)
DBX
HOST BUS
ADDR DATA ECC CNTL
SCSI
Adaptec
7880
VGA
5446/
1-2MB RAM
PMC
PENTIUM PRO
PROCESSOR
Secondary
Cache

Manual Number: 40110-005-2Page 4

Manual Number: 40110-005-2 Page 5
CPU
Intel Pentium Pro at 200MHz using Socket 8
Bus Interfaces
ISA and PCI Local Bus compatible. External 24 mAmp drivers for supporting up to 20-slot
backplanes.
Data Path
DRAM/Memory - 64-bit
ISA Bus - 16-bit
PCI Bus - 32-bit
Video - 64-bit
Bus Speed - ISA
8.25MHz
Bus Speed - PCI
33MHz
DMA Channels
The board is fully PC compatible with seven DMA channels, each supporting type F transfers.
Interrupts
The processor board is fully PC compatible with interrupt steering for PCI plug and play
compatibility.
BIOS (FLASH)
The BIOS is an American Megatrends Hi-Flex AMIBIOS with built-in advanced CMOS setup
for system parameters, peripheral management for configuring on-board peripherals, PCI-to-
PCI bridge support and PCI interrupt steering. The BIOS chip is a boot block Flash device -
28F001BX-T120. The BIOS may be upgraded from floppy disk by pressing <Ctrl> + <Home>
immediately after reset or power-up with the floppy disk in drive A:.
Cache Memory
Thededicatedinternal64-bitwidenon-blockingsecondlevel(L2)cachesupports256Kor512K
running at full CPU core speed.

Manual Number: 40110-005-2Page 6
DRAM Memory
TheDRAMinterfaceisa64-bitpaththatsupportsupto256MBofeitherFastPageMode(FPM)
or Extended Data Out (EDO/Hyper Page Mode) memory. All 256MB is cacheable. The
processor board supports 60ns (optimal) or 70ns industry standard 36-bit wide SIMM DRAM
infour72-pinSIMMsockets. TheDRAMspeedisselectableviaAdvancedChipsetSetupwhich
is described in the Advanced Setup section of this manual.
The SIMM sockets are arranged in two banks. Bank 0 consists of sockets 1 and 2 (U52 & U53);
bank 1 consists of sockets 3 and 4 (U62 & U63).
Note: Two SIMMs of the same memory capacity must be used to fill a memory bank. All SIMMs
must have contacts.
The following SIMMs are supported:
1M x 36, 2M x 36, 4M x 36, 8M x 36, 16M x 36
Memory Hole
The processor board supports a 1MB memory hole option at 512KB-640KB or 15MB-16MB.
Error Checking and Correction/Parity
The memory interface includes parity checking and supports ECC mode (via BIOS setting) for
single-error correction, double-error detection and detection of all errors confined to a single
nibble.
Note: ECC is implemented using the eight parity bits available on the two SIMM modules in a
bank. FPM or EDO parity SIMMs must be used for ECC to operate properly.
PCI Local Bus Interface
TheprocessorboardisfullycompliantwiththePCILocalBus2.1Specification. Ithasoptimized
the PCI interface to allow the CPU to sustain the highest possible bandwidth (greater than
100MB/sec sustained) and low latency of the PCI Bus. It supports four PCI masters, pipelined
snoop ahead feature and improved PCI to DRAM write-back policy. The PCI Local Bus
interfaces to the on-board PCI Ultra SCSI controller, the optional Cirrus SVGA controller and
to standard PCI option cards in the backplane. The PCI Local Bus interface to the backplane is
compliant with the PCI Industrial Computer Manufacturers Group (PICMG) 2.0 Specification.
PCI Super VGA Interface (Optional)
The Cirrus Logic GD5446 video interface is a PCI Local Bus device which supports pixel
resolutions up to 1280 x 1024 non-interlaced and 16.8 million colors at resolutions up to 1024
x 768. The processor board provides up to 2MB of on-board EDO display memory with a 64-
bit wide data path and 80MHz memory clock. It displays in full-screen, full-motion up to 30
frames per second, true color at 1024 x 768. Independent graphics and video streams can be
displayed on-screen with true-color video and 256-color graphics. Software drivers for
enhanced performance and resolution are available for the most popular operating systems.

Manual Number: 40110-005-2 Page 7
PCI Ultra SCSI Interface
The SCSI interface is a PCI Bus Master device which supports Ultra SCSI 16-bit data transfer
up to 40MB per second and bursts data to the host at full PCI speeds. Active termination is
provided with terminator voltage protected by self-resetting fuses. The SCSI controller is an
Adaptec 7880.
PCI Enhanced IDE Interface (DUAL)
AhighperformancePCIBusMasterEIDEinterfaceiscapableofsupportinguptofourIDEType
4 disk drives in a master/slave configuration. With LBA settings in the BIOS parameters, disk
drives greater than 528MB are supported. The interface supports transfer rates to 16.7MB per
second.
Floppy Drive Interface
The processor board supports two floppy disk drives. Drives can be 360K to 2.88MB, in any
combination.
Serial Interface
Two high-speed FIFO (16C550) serial ports with independently programmable baud rates are
supported. Each port has BIOS selectable addressing. A filtered connector is provided to
minimize FCC interference.
Enhanced Parallel Interface
The processor board provides a PC/AT compatible bidirectional parallel port and supports
enhancedparallelport(EPP)modeand extended capabilitiesport(ECP)mode. The ECPmode
is IEEE 1284 compliant. The parallel port has BIOS selectable addressing.
PS/2 Mouse Interface
Theprocessorboard providescompatibilitywithaPS/2-typemouse.Themouseconnectioncan
be made by using either the PS/2 mouse header or the bracket mounted PS/2 mouse mini DIN
connector.
Watchdog Timer
The watchdog timer is a hardware timer which resets the processor board if the timer is not
refreshed by software periodically. The timer is typically used to restart a system in which an
application becomes hung on an external event. When the application is hung, it no longer
refreshes the timer. The watchdog timer then times out and resets the processor board.
The watchdog timer has two levels of enable. First, the watchdog timer jumper must be moved
to the “enabled” position, which puts the watchdog timer under software control.
The second level is done in two phases. First, access to the watchdog timer gate, ADRx, via a
user-definedI/Oportmustbeenabledandconfiguredinregisters3,8and9oftheFDC37C665GT
configurationregisters. Bits7 and 2of register 3setADRx mode, whileregisters8 and 9define
the I/O port address used to write a 0 or 1 to the ADRx bit. The ADRx bit is physically wired
to the gate that is enabled by the jumper.

Manual Number: 40110-005-2Page 8
Second,theADRxmodebitmustbesetto0,whichblockstheclocktothewatchdogtimercircuit,
thus scheduling a hardware reset in about 1.5 seconds.
RefreshingthewatchdogtimerconsistsofthesoftwareintheapplicationfirsttogglingtheADRx
bitto1,thusclearingthewatchdogtimerdelay,andthensettingitto0,whichschedulesasystem
reset in 1.5 seconds.
A set of watchdog timer software code and sample programs are available from Technical
Support.
Power Fail Detection
A hardware reset is issued when on-board voltage drops below 4.75 volts.
Keyboard Interface
The processor board is compatible with an AT type keyboard. The keyboard connection can be
made by using the P5A Combo I/O connector. Keyboard voltage is protected by a self-resetting
fuse.
Battery
A built-in lithium battery is provided, for ten years of data retention for CMOS memory.
Power Requirements
+3.3V @ 700 mAmps typical
+5V @ 6.2 Amps typical
+12V @ < 100 mAmps typical
-12V @ < 100 mAmps typical
Temperature/Environment
Operating Temperature: 0º C. to 60º C.
Storage Temperature: - 40º C. to 70º C.
Humidity Maximum: 90% non-condensing
Mean Time Between Failures (MTBF)
> 75,000 POH (Power-On Hours)
System Performance (Norton SI 32)
200MHz/512K cache - 2.35
200MHz/256K cache - 2.35
Agency Approvals
FCC Conformity with:
47CFR Part 15, Subpart B
CE Conformity with:
EU EMC Directive 89/336/EEC
EU Low Voltage Directive 72/23/EEC

Manual Number: 40110-005-2 Page 9
Chapter 2: Configuration & Setup

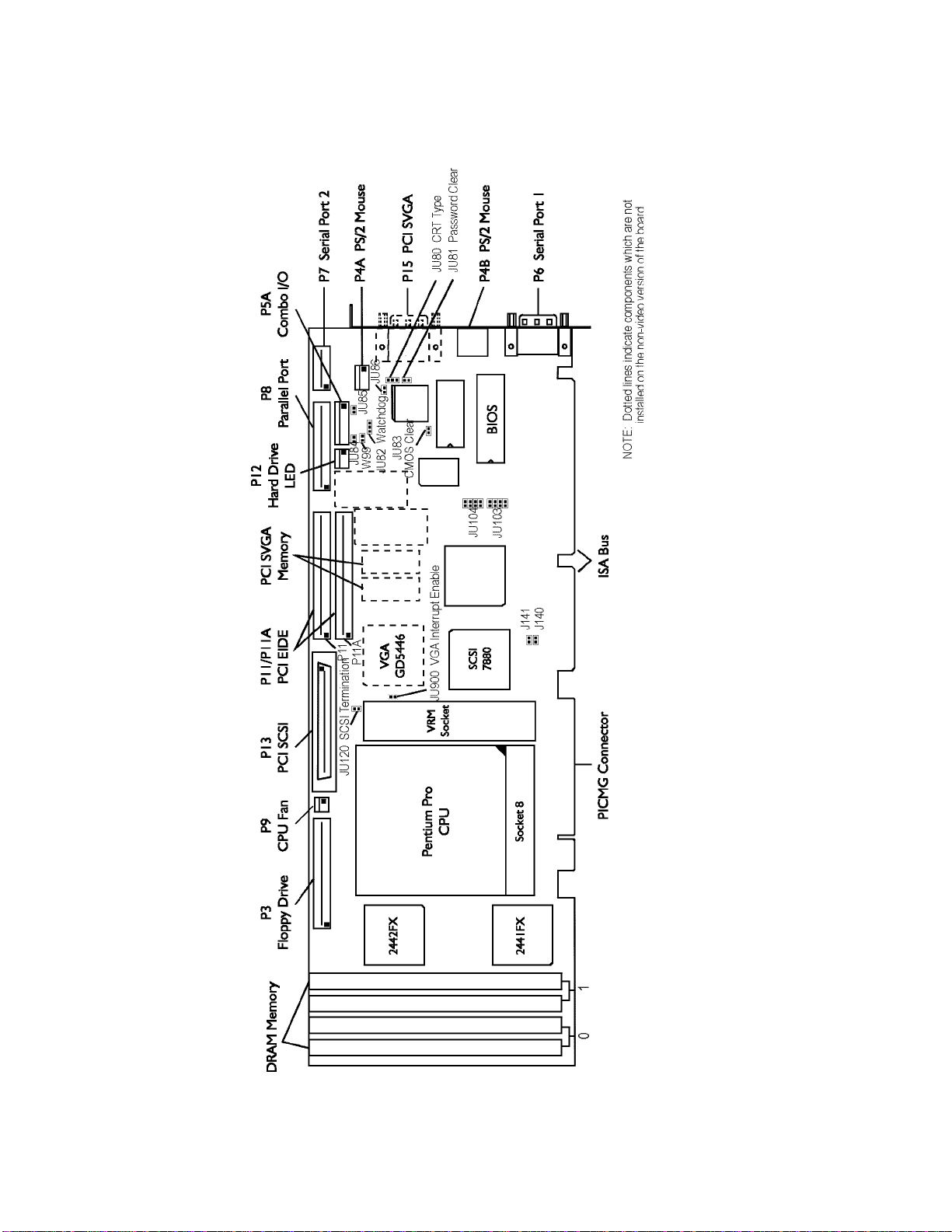

Configuration Jumpers
The setup of the configuration jumpers on the processor is described below. * indicates the default
value of each jumper.
Note: For two-position jumpers (3-post), “RIGHT” is toward the bracket end of the board; “LEFT”
is toward the memory sockets.
Jumper Description
JU80 CRT Type Select
Install on the TOP for a color CRT. *
Install on the BOTTOM for a monochrome CRT.
JU81 Password Clear
Install for one power-up cycle to reset the password to the default (null
password).
Remove for normal operation. *
JU82 Watchdog Timer
Install on the LEFT for normal reset operation. *
Install on the RIGHT to enable watchdog timer operation.
JU83 CMOS Clear
Install to clear.
Remove to operate. *
JU84 P5A Speaker Connect
Install to connect speaker data signal to pin 8 of the Combo I/O connector
(P5A). *
Remove to disconnect.
JU85 P5A Reset Connect
Install to connect reset data signal to pin 1 of the Combo I/O connector
(P5A). *
Remove to disconnect.
JU86 Interrupt 12 (IRQ12) Select
Install to dedicate IRQ12 to the PS/2 mouse. *
Remove to make IRQ12 available for system use.

Manual Number: 40110-005-2Page 10
Jumper Description
JU103 Parallel Port DACK
Pins
DACK #7 1-2
DACK #6 3-4
DACK #5 5-6
DACK #3 7-8
JU104 Parallel Port DREQ
Pins
DREQ #7 1-2
DREQ #6 3-4
DREQ #5 5-6
DREQ #3 7-8
JU120 SCSI Termination
Install to disable on-board active termination for the SCSI interface.
Remove to enable active termination. *
JU900 VGA Interrupt Enable (Optional)
Install to enable the VGA interrupt.
Remove to disable the interrupt. *
CPU Speed Jumpers
There are three jumpers (J140, J141 and W99) which must be set correctly to allow the processor
board to take full advantage of the speed of the Pentium CPU. These jumpers must be set as
specified below.
CPU Synthesizer Jumpers Bus Clock
Speed Frequency J140 J141 W99
200MHz 66MHz Out In In
