Idatalink Maestro rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁed technician. Logos and trademarks used here in

are the properties of their respective owners.

WARNING

Pressing the printer icon or “quick printing” this document will print

all of the guides in this compilation.

Open the Bookmarks menu and find your vehicle OR scroll

down until you find the install guide for your vehicle.

Print only the pages for your vehicle using the advanced

options in the Print menu.

Install your Maestro RR according to the guide for your vehicle.

HOW TO USE THIS INSTALL GUIDE

SELECT VEHICLE

PRINT PAGES NEEDED

2014-2020

Harley-DaviDson electra GliDe

INSTALL GUIDE

RETAINS HANDLE BAR CONTROLS

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁed technician. Logos and trademarks used here

in are the properties of their respective owners.

PRODUCTS REQUIRED

iDatalink Maestro RR or RR2 Radio Replacement Interface

iDatalink Maestro HD2 Installation Harness

Non-iDatalink Compatible Radio

PROGRAMMED FIRMWARE

ADS-RR(SR)-HD02-AS

ADDITIONAL RESOURCES

Maestro RR2 Programmable Outputs Guide

OPTIONAL ACCESSORIES

ACC-RR-WPB

ACC-ABP-HD2

ACC-USB-HD2

Harley-DaviDson electra GliDe 2014-2020

NEED HELP?

TABLE OF CONTENTS

Installation Instructions 3

Wiring Diagram 4

Troubleshooting Table 5

WELCOME

Congratulations on the purchase

of your iDatalink Maestro RR Radio

replacement solution. You are

now a few simple steps away from

enjoying your new car radio with

enhanced features.

Before starting your installation,

please ensure that your iDatalink

Maestro module is programmed

with the correct ﬁrmware for your

vehicle and that you carefully review

the install guide.

Please note that Maestro RR will

only retain functionalities that

were originally available in the

vehicle.

1 866 427-2999

maestro.idatalink.com/support

www.12voltdata.com/forum

[email protected]

Harley-DaviDson electra GliDe 2014-2020

INSTALLATION INSTRUCTIONS

STEP 1

• Unbox the aftermarket radio and locate its main harness.

• Remove the factory radio.

• Cut and remove the RCA junction connectors. Connect

every wire from the aftermarket radio main harness to the

HD2 T-harness and match the wire functions.

STEP 2

• Connect the HD2 T-harness to the vehicle.

STEP 3

• Plug the aftermarket radio harnesses into the aftermarket

radio.

• Connect the steering wheel control cable to the

aftermarket radio.

STEP 4

• Connect all the harnesses to the Maestro RR module then

test your installation.

NOTE: Because the vehicle is not equipped with

illumination or reverse gear signals, these outputs can be

triggered manually by conﬁguring them as steering wheel

control commands during the ﬂashing process in Weblink.

Harley-DaviDson electra GliDe 2014-2020

MAIN

HARNESS

HD2 T-HARNESS

STEP 3

STEP 4

MAESTRO RR MODULE

WIRING DIAGRAM

WIRES FROM

VEHICLE

FACTORY RADIO HARNESS

STEP 2

AUDIO

CABLE

NOT REQUIRED

DATA

CABLE

CONNECT TO

AFTERMARKET RADIO

STEERING WHEEL

CONTROL CABLE

CUT AND REMOVE

THE RCA JACKS

STEP 1

WHITE - LF SPEAKER (+)

WHITE/BLACK - LF SPEAKER (-)

GRAY - RF SPEAKER (+)

GRAY/BLACK - RF SPEAKER (-)

GREEN - LR SPEAKER (+)

GREEN/BLACK - LR SPEAKER (-)

PURPLE/BLACK - RR SPEAKER (-)

YELLOW - 12V (+)

BLACK - GROUND

RED - ACCESSORY (+)

BLUE/WHITE - AMP. TURN ON (+)

PURPLE - RR SPEAKER (+)

ORANGE - PARKING LIGHT (+)

PURPLE/WHITE - REVERSE LIGHT (+)

LTGREEN - E-BRAKE (-)

PINK - VEHICLE SPEED

SEE AFTERMARKET

RADIO GUIDE

FOR WIRE

COLORS

Harley-DaviDson electra GliDe 2014-2020

TROUBLESHOOTING TABLE

PROBLEM SOLUTION

Sound is very quiet. Cut and remove the RCA connectors and connect the wires to the speaker

outputs of the radio.

When a button on the handle bar is pressed, the light on the Maestro module

blinks but the radio does not respond.

Ensure the blue 4-pin steering wheel control cable is connected between the

maestro and the radio (the radio will use either the 3.5mm jack or the Blue/

Yellow wire, not both).

Refer to radio’s owners manual to veriﬁe if the radio has this function:

Steering Wheel Control (ON/OFF) : choose ON.

Steering Wheel Control (Custom/Preset): choose Preset

The light on the Maestro is ﬂashing RED ONCE. There is no ﬁrmware on the module; ﬂash the RR module.

MAESTRO RR RESET PROCEDURE:

Turn the key to the OFF position, then disconnect all connectors from the module.

Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will ﬂash RED rapidly (this may

take up to 10 seconds).

Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.

TECHNICAL ASSISTANCE

Phone: 1-866-427-2999

Email: maestr[email protected]

Web: maestro.idatalink.com/support add www.12voltdata.com/forum/

IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest ﬁrmware from the manufacturer. Please visit the radio

manufacturer’s website and look for any updates pertaining to your radio.

~maestro-

5fUHD

QUICK

START

GUIDE

THE

WEB

PROGRAMMING

STEPS

INSIDE

PRIOR

INSTALLATION.

-0

: -

H·IS

AUTQMDTIVC

DATA

■

0'--UT1DN

■

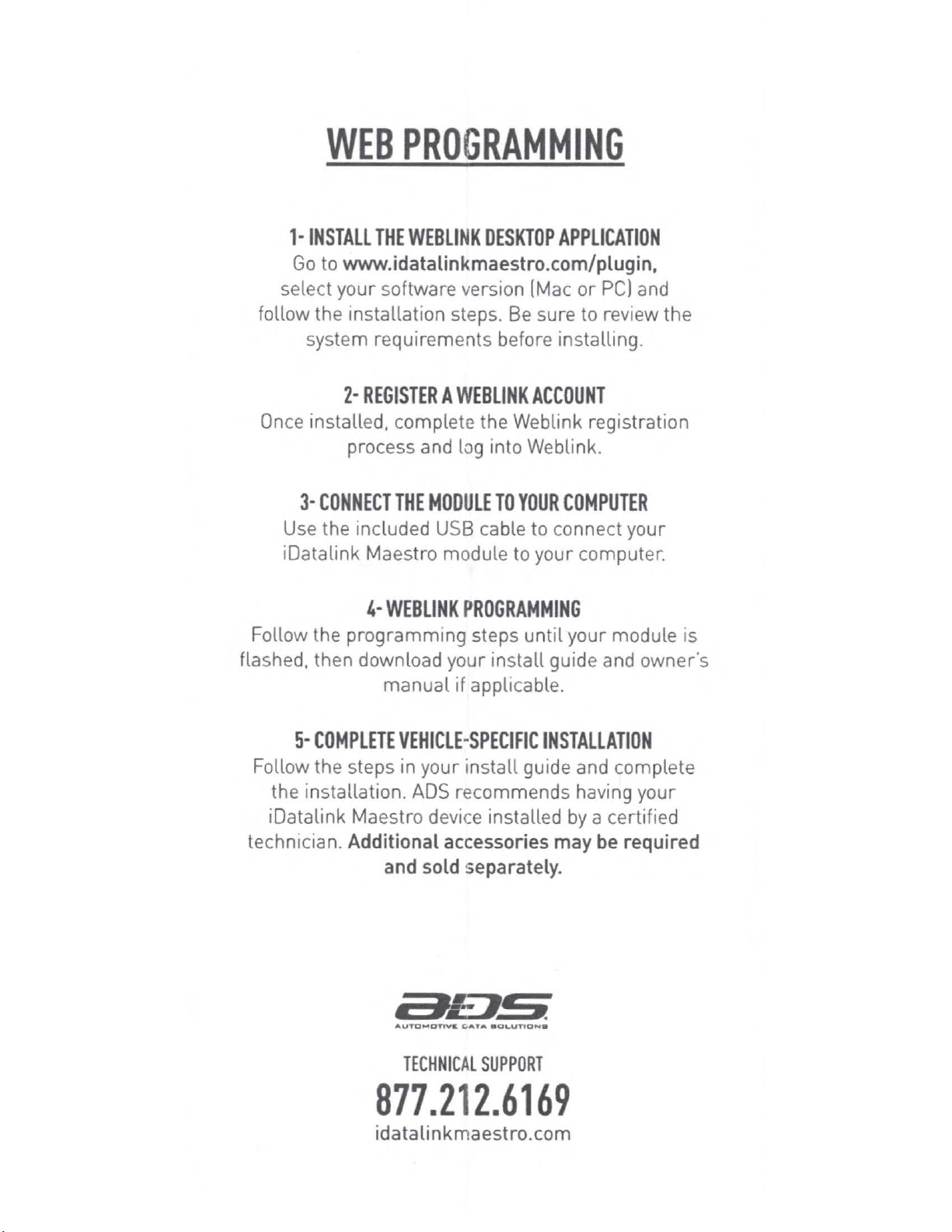

WEB

PROGRAMMING

INSTALL

THE

WEBLINK

DESKTOP

APPLICATION

to www.idatalinkmaestro.com/plugin,

select your software version (Mac

PC)

and

follow the installation steps.

sure to review the

system requirements before installing.

WEBLINK

ACCOUNT

Once

installed, complete the Weblink registration

process and lag into Weblink.

CONNECT

THE

MODULE

YOUR

COMPUTER

Use the included

USB

cable to connect your

iDatalink Maestro module to your computer.

WEBLINK

PROGRAMMING

Follow the programming steps untilyour module is

flashed, then download your install guide and owner's

manual

applicable.

COMPLETE

VEHICLE"SPECIFIC

INSTALLATION

Follow the steps in your install guide and complete

the installation.

ADS

recommends having your

iOatalink Maestro device installed

a certified

technician.

Additional

accessories

may

required

and

sold

separately.

IE>S

AUTCIMOTtVC

~A.TA

■

OL.UTIOM

■

TECHNICAL

SUPPORT

877.212.6169

idatalinkmaestro.com

LIMITED

1-YEAR

WARRANTY

Automotive Data Solutions Inc. r·ADS

Iwarrants

the

original purchaserof the product that the following com-

ponents product shall be free of defects in material and

workmanship under

normal

use and circumstances for the

period of one

111

year from the date of original installation.

Authorized Dealer"· is defined

ADS

as a company who

qualifies to purchase products directlyfrom

ADS,

one

of its approved distributors. Thus, products not sold nor

installed

Authorized Dealer are not covered

this

warranty. This includes, but is not limited to,

ADS

products

sold

Amazon.com, eBay.com, Walmart.com and Newe-

gg.com.

find an authorized retailer near

you,

visit

http://

maestro.idatalink.com/find-product.

In the event of any product malfunction during the Warranty

period, the original purchaser

must

return to the Autho-

rized Dealerwhere it was originally purchased with the

original proof of purchase. If a malfunction is detected, the

Authorized Dealer

will

elect

repair

repla

the product

at its discretion. Labor costs may be applicable and are at

the discretion of the Authorized Dealer.

ADS

is not responsible

for

any damages whatsoever,

including but not limited to any consequential damages.

incidental damages, damages for loss of time, loss of

earnings, commercial loss, loss of economic opportunity

and the like that may

may not have resulted

from

the

installation

operation of an iDatalink Maestro product.

11-IS

AUTDMDTtVS

DATA

■

OLUTION

■

CHNI

CAL

SUP

POR

877.212.6169

idatal

kmaestro.com

2014-2020

Harley-DaviDson roaD GliDe

INSTALL GUIDE

RETAINS HANDLE BAR CONTROLS

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁed technician. Logos and trademarks used here

in are the properties of their respective owners.

PRODUCTS REQUIRED

iDatalink Maestro RR or RR2 Radio Replacement Interface

iDatalink Maestro HD2 Installation Harness

Non-iDatalink Compatible Radio

PROGRAMMED FIRMWARE

ADS-RR(SR)-HD02-AS

ADDITIONAL RESOURCES

Maestro RR2 Programmable Outputs Guide

OPTIONAL ACCESSORIES

ACC-RR-WPB

ACC-ABP-HD2

ACC-USB-HD2

Harley-DaviDson roaD GliDe 2014-2020

NEED HELP?

TABLE OF CONTENTS

Installation Instructions 3

Wiring Diagram 4

Troubleshooting Table 5

WELCOME

Congratulations on the purchase

of your iDatalink Maestro RR Radio

replacement solution. You are

now a few simple steps away from

enjoying your new car radio with

enhanced features.

Before starting your installation,

please ensure that your iDatalink

Maestro module is programmed

with the correct ﬁrmware for your

vehicle and that you carefully review

the install guide.

Please note that Maestro RR will

only retain functionalities that

were originally available in the

vehicle.

1 866 427-2999

maestro.idatalink.com/support

www.12voltdata.com/forum

[email protected]

Harley-DaviDson roaD GliDe 2014-2020

INSTALLATION INSTRUCTIONS

STEP 1

• Unbox the aftermarket radio and locate its main harness.

• Remove the factory radio.

• Cut and remove the RCA junction connectors. Connect

every wire from the aftermarket radio main harness to the

HD2 T-harness and match the wire functions.

STEP 2

• Connect the HD2 T-harness to the vehicle.

STEP 3

• Plug the aftermarket radio harnesses into the aftermarket

radio.

• Connect the steering wheel control cable to the

aftermarket radio.

STEP 4

• Connect all the harnesses to the Maestro RR module then

test your installation.

NOTE: Because the vehicle is not equipped with

illumination or reverse gear signals, these outputs can be

triggered manually by conﬁguring them as steering wheel

control commands during the ﬂashing process in Weblink.

Harley-DaviDson roaD GliDe 2014-2020

MAIN

HARNESS

HD2 T-HARNESS

STEP 3

STEP 4

MAESTRO RR MODULE

WIRING DIAGRAM

WIRES FROM

VEHICLE

FACTORY RADIO HARNESS

STEP 2

AUDIO

CABLE

NOT REQUIRED

DATA

CABLE

CONNECT TO

AFTERMARKET RADIO

STEERING WHEEL

CONTROL CABLE

CUT AND REMOVE

THE RCA JACKS

STEP 1

WHITE - LF SPEAKER (+)

WHITE/BLACK - LF SPEAKER (-)

GRAY - RF SPEAKER (+)

GRAY/BLACK - RF SPEAKER (-)

GREEN - LR SPEAKER (+)

GREEN/BLACK - LR SPEAKER (-)

PURPLE/BLACK - RR SPEAKER (-)

YELLOW - 12V (+)

BLACK - GROUND

RED - ACCESSORY (+)

BLUE/WHITE - AMP. TURN ON (+)

PURPLE - RR SPEAKER (+)

ORANGE - PARKING LIGHT (+)

PURPLE/WHITE - REVERSE LIGHT (+)

LTGREEN - E-BRAKE (-)

PINK - VEHICLE SPEED

SEE AFTERMARKET

RADIO GUIDE

FOR WIRE

COLORS

Harley-DaviDson roaD GliDe 2014-2020

TROUBLESHOOTING TABLE

PROBLEM SOLUTION

Sound is very quiet. Cut and remove the RCA connectors and connect the wires to the speaker

outputs of the radio.

When a button on the handle bar is pressed, the light on the Maestro module

blinks but the radio does not respond.

Ensure the blue 4-pin steering wheel control cable is connected between the

maestro and the radio (the radio will use either the 3.5mm jack or the Blue/

Yellow wire, not both).

Refer to radio’s owners manual to veriﬁe if the radio has this function:

Steering Wheel Control (ON/OFF) : choose ON.

Steering Wheel Control (Custom/Preset): choose Preset

The light on the Maestro is ﬂashing RED ONCE. There is no ﬁrmware on the module; ﬂash the RR module.

MAESTRO RR RESET PROCEDURE:

Turn the key to the OFF position, then disconnect all connectors from the module.

Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will ﬂash RED rapidly (this may

take up to 10 seconds).

Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.

TECHNICAL ASSISTANCE

Phone: 1-866-427-2999

Email: maestr[email protected]

Web: maestro.idatalink.com/support add www.12voltdata.com/forum/

IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest ﬁrmware from the manufacturer. Please visit the radio

manufacturer’s website and look for any updates pertaining to your radio.

2014-2020

Harley-DaviDson street GliDe

INSTALL GUIDE

RETAINS HANDLE BAR CONTROLS

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁed technician. Logos and trademarks used here

in are the properties of their respective owners.

PRODUCTS REQUIRED

iDatalink Maestro RR or RR2 Radio Replacement Interface

iDatalink Maestro HD2 Installation Harness

Non-iDatalink Compatible Radio

PROGRAMMED FIRMWARE

ADS-RR(SR)-HD02-AS

ADDITIONAL RESOURCES

Maestro RR2 Programmable Outputs Guide

OPTIONAL ACCESSORIES

ACC-RR-WPB

ACC-ABP-HD2

ACC-USB-HD2

Harley-DaviDson street GliDe 2014-2020

NEED HELP?

TABLE OF CONTENTS

Installation Instructions 3

Wiring Diagram 4

Troubleshooting Table 5

WELCOME

Congratulations on the purchase

of your iDatalink Maestro RR Radio

replacement solution. You are

now a few simple steps away from

enjoying your new car radio with

enhanced features.

Before starting your installation,

please ensure that your iDatalink

Maestro module is programmed

with the correct ﬁrmware for your

vehicle and that you carefully review

the install guide.

Please note that Maestro RR will

only retain functionalities that

were originally available in the

vehicle.

1 866 427-2999

maestro.idatalink.com/support

www.12voltdata.com/forum

[email protected]

Harley-DaviDson street GliDe 2014-2020

INSTALLATION INSTRUCTIONS

STEP 1

• Unbox the aftermarket radio and locate its main harness.

• Remove the factory radio.

• Cut and remove the RCA junction connectors. Connect

every wire from the aftermarket radio main harness to the

HD2 T-harness and match the wire functions.

STEP 2

• Connect the HD2 T-harness to the vehicle.

STEP 3

• Plug the aftermarket radio harnesses into the aftermarket

radio.

• Connect the steering wheel control cable to the

aftermarket radio.

STEP 4

• Connect all the harnesses to the Maestro RR module then

test your installation.

NOTE: Because the vehicle is not equipped with

illumination or reverse gear signals, these outputs can be

triggered manually by conﬁguring them as steering wheel

control commands during the ﬂashing process in Weblink.

Harley-DaviDson street GliDe 2014-2020

MAIN

HARNESS

HD2 T-HARNESS

STEP 3

STEP 4

MAESTRO RR MODULE

WIRING DIAGRAM

WIRES FROM

VEHICLE

FACTORY RADIO HARNESS

STEP 2

AUDIO

CABLE

NOT REQUIRED

DATA

CABLE

CONNECT TO

AFTERMARKET RADIO

STEERING WHEEL

CONTROL CABLE

CUT AND REMOVE

THE RCA JACKS

STEP 1

WHITE - LF SPEAKER (+)

WHITE/BLACK - LF SPEAKER (-)

GRAY - RF SPEAKER (+)

GRAY/BLACK - RF SPEAKER (-)

GREEN - LR SPEAKER (+)

GREEN/BLACK - LR SPEAKER (-)

PURPLE/BLACK - RR SPEAKER (-)

YELLOW - 12V (+)

BLACK - GROUND

RED - ACCESSORY (+)

BLUE/WHITE - AMP. TURN ON (+)

PURPLE - RR SPEAKER (+)

ORANGE - PARKING LIGHT (+)

PURPLE/WHITE - REVERSE LIGHT (+)

LTGREEN - E-BRAKE (-)

PINK - VEHICLE SPEED

SEE AFTERMARKET

RADIO GUIDE

FOR WIRE

COLORS

Harley-DaviDson street GliDe 2014-2020

TROUBLESHOOTING TABLE

PROBLEM SOLUTION

Sound is very quiet. Cut and remove the RCA connectors and connect the wires to the speaker

outputs of the radio.

When a button on the handle bar is pressed, the light on the Maestro module

blinks but the radio does not respond.

Ensure the blue 4-pin steering wheel control cable is connected between the

maestro and the radio (the radio will use either the 3.5mm jack or the Blue/

Yellow wire, not both).

Refer to radio’s owners manual to veriﬁe if the radio has this function:

Steering Wheel Control (ON/OFF) : choose ON.

Steering Wheel Control (Custom/Preset): choose Preset

The light on the Maestro is ﬂashing RED ONCE. There is no ﬁrmware on the module; ﬂash the RR module.

MAESTRO RR RESET PROCEDURE:

Turn the key to the OFF position, then disconnect all connectors from the module.

Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will ﬂash RED rapidly (this may

take up to 10 seconds).
