Ideal Air Dehumidifiers User manual

OWNER’S MANUAL
Dehumidifiers
IMPORTANT!
Before operating this product, please read the
instructions carefully and save this manual for future use.
Warranty
All Ideal Air products come with a 1 year warranty. At our option, we will
either repair or replace any Ideal Air unit that fails with in the first 12 months
from purchase due to a manufacturer’s defect.
5408 NE 88th St., Bldg. A
Vancouver, WA 98665
www.ideal-air.com
A division of Sunlight Supply
All design and specifications are subject to change without notice for
product improvement. Consult with the sales agency or manufacturer for
details, updates and other information.
For warranty claims contact
the Customer Care Center
1-866-646-4332
For questions about using your
product call Ideal Air Support
1-877-9-IDEAL-1

1
DO NOT dispose of this product
in the trash, on the landscape or
into any unsorted waste stream!
It may contain hazardous substances
that can leach into groundwater and
find their way into the food chain.
This unit contains VALUABLE RESOURCES
that are easy to turn in for recycling and
re-use. Services available may include:
Table of Contents
PLEASE BE RESPONSIBLE
A. Municipal Collection Systems: Most cities and towns
have established programs where electronic waste can
be turned in for recycling free of charge.
B. Retailer Return: When buying a new product, many
retailers will take back an old product free of charge.
C. Manufacturer Return: Many manufacturers accept
old products for recycling free of charge.
D. Scrap Dealers: Many scrap dealers will buy old
electronics or take them free of charge.
SAFETY INFORMATION
Warning ............................................................2
Caution .............................................................2
Electrical Information........................................3
CONTROL PANEL
Control Panel Keys and Functions ...................4
Other Features .................................................5
PARTS, PLACEMENT & OPERATION
Parts Identification............................................6
Placement and Operation.................................7
REMOVING COLLECTED WATER
When Bucket is Full.......................................... 8
Continuous Drain..............................................8
CARE & MAINTENANCE
Cleaning and Storing........................................9
TROUBLESHOOTING TIPS
Troubleshooting Tips ......................................10

23
Safety Precautions
Safety Precautions
Do not exceed the rating
of the power outlet or
connection device.
Do not modify power cord
length or share the outlet
with other appliances
Disconnect the power if
strange sounds, smells, or
smoke comes from the unit.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
It may cause fire and electric
shock.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It contains contaminants and
could make you sick.
It may cause electric shock or fire.
Plastic parts may melt and cause
a fire.
It may cause electrical shock or
injury.
It may cause an explosion or fire.
Do not operate or stop the
unit by switching on or o
the power.
Do not insert or pull out
plug with wet hands.
You should never try to take
apart or repair the unit by
yourself.
Do not drink or use the
water drained from the unit.
Do not damage or use an
unspecied power cord.
Do not place the unit near
a heat source.
Before cleaning, turn o
the power and unplug the
unit.
Do not use the machine near
ammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
! !
CAUTION
Do not use the unit in small
spaces.
Lack of ventilation can cause
overheating and fire.
Do not put in places where
water may splash onto the
unit.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock or fire.
Place the unit on a
level, sturdy section
of the floor.
If the unit falls over, it may
cause water to spill and
damage belongings, or
cause electrical shock or
fire.
!
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
Always do this.
Never do this.
CAUTION This symbol indicates the possibility of injury or damage to property.
WARNING
WARNING
It may cause a “tank full” protect of
the unit and cause electric shock.
Do not take the water tank
out during operation.
Do not cover the intake or
exhaust openings with
cloths or towels.
A lack of air flow can lead
to overheating and fire.
Never insert your finger or
other foreign objects into grilles
or openings. Take special care
to warn children of these
dangers.
Do not use in areas
where chemicals are
handled.
This will cause the unit
deterioration due to
chemicals and solvents
dissolved in the air.
Care should be taken when
using the unit in a room with
the following persons:
Infants, children, elderly people,
and people not senstive to
humidity.
You may be injured if you
fall or if the unit falls over.
Water may spill inside the
unit, causing insulation
failure and electrical
shock or fire.
!
!
It may cause failure of
appliance or accident.
There is danger of fire or
electric shock.
Do not place heavy objects on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
CAUTION
Do not climb up on
or sit on the unit.
If water enters the unit, turn
the unit off and disconnect the
power , contact a qualified
service technician.
!
Do not place flower
vases or other water
container on top of
the unit.
The manufacturer’s nameplate is located on the rear panel of the unit and contains electrical and other
technical data specific to this unit.
Be sure the unit is properly grounded. To minimize shock and fire hazards, proper grounding is important.
The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is
not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician
install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not use extension cords or adapter plugs with this unit. However, if it is necessary to use an extension
cord, use an approved “Dehumidifier” extension cord only (available at most local hardware stores).
To avoid the possibility of personal injury, always disconnect the power supply to the unit, before installing
and/or servicing.
ELECTRICAL INFORMATION
It may cause electric shock
or failure of appliance.

45
NOTE: The Control Panel on the unit you purchased may be slightly different than shown.
• Tank Full Light: Glows when tank is full,
removed or positioned incorrectly.
• Auto Shut Off: Dehumidifier shuts off after
30 seconds when the water tank is full,
missing or positioned incorrectly. Also, the
unit will shut off automatically when desired
humidity setting is reached (on some models
the fan motor may continue running).
• 3 Minute Delay: After the unit is stopped,
it will not resume operation until 3 minutes
have passed to protect internal components.
OTHER FEATURES
SETTING THE TIMER (NOTE: Timer can be set with unit Power ON or OFF)
ERROR/PROTECTION CODES
Control Panel
Control Panel
6
Filter
Cont.
Fan
Timer
Filter
Full
Cont. On Off
Turbo
Normal
Auto defrost
1
17
6
8
4
2
3
2
4
5
6
7
8
Clean Filter indicator light High Fan indicator light
Auto defrost ON
indicator light
Bucket
Full
indicator
light
Timer ON/OFF
indicator light
Continuous operation
ON indicator light
Continuous Operation
Press to activate for continuous
dehumidifer operation.
Filter
The clean filter indicator light will
come on after 250 hours of operation.
After cleaning and replacing the filter,
push “Filter” to reset and the light will
go off.
Fan
Press to select either High or Normal
fan speed. Set to High for maximum
moisture removal. When humidity has
been reduced (or quieter operation is
preferred) set to Normal.
Power ON/OFF
Adjustment Keys
• SET HUMIDITY: From 35% to 85% RH
(Relative Humity) in 5% increments.
For drier air, press “ – ” to set a lower
percent value. For damper air press
“ + ” to set a higher percent value.
• SET TIMER: Set Auto Start and Auto
Stop values from 0.0 to 24.
Timer
Press to initiate the Auto Start and
Auto Stop feature. Use the “ – ” and
“ + ” keys to set values.
Digital Display
Shows humidity levels (35-80%) or
timer settings (00-24) while setting.
Also displays actual room humidity
levels (30-90% Relative Humidity)
during operation (±5% accuracy).
Normal Fan
indicator light
5
• Check Filter Light: The system begins
counting the time when the fan motor
switches on. At 250+ hours of operation,
the “Filter” light flashes once per second
to indicate air filter clearning is necessary.
After cleaning and replacing the filter, press
the “Filter” key and the light will go off.
• Auto Restart: If the unit stops due to a
power outage, it will automatically resume
operation at current settings when power
is restored.
1. If power is ON, press the “Timer” key and the “Timer Off” indicator light illuminates. This
indicates that the Auto Stop program is initiated. Press the “Timer” key again to initiate
the Auto Start program. If power is OFF, press the “Timer” key and the “Timer On” indicator
light illuminates. This indicates that the Auto Start program is initiated. Press the “Timer” key
again to intiate the Auto Stop program.
2. Press the or keys to adjust times up or down in increments of 0.5 hour up to
10 hours, then at 1 hour increments up to 24 hours. The control will count down the time
remaining until start. The selected time will register for 5 seconds and the system will
automatically revert back to displaying the previous humidity setting.
3. When the Auto Start and Auto Stop times are set within the same program sequence, the
“timer on” and “timer off” indicator lights illuminate to identify that both ON and OFF times
are now programmed.
4. Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel
the Auto Start and Auto Stop functions. When display window shows “P2” these functions
will also be cancelled.
3
AS – Humidity sensor error. Unplug unit and plug back in. If error repeats, call for service.
ES – Temperature sensor error. Unplug unit and plug back in. If error repeats, call for service.
P2 – Water tank is full or in wrong position. Empty tank and replace correctly.
EC – Unit malfunction. Check to make sure working environment is between 41ºF/5ºC and
95ºF/35ºC. If so, and error repeats, call for service.

67

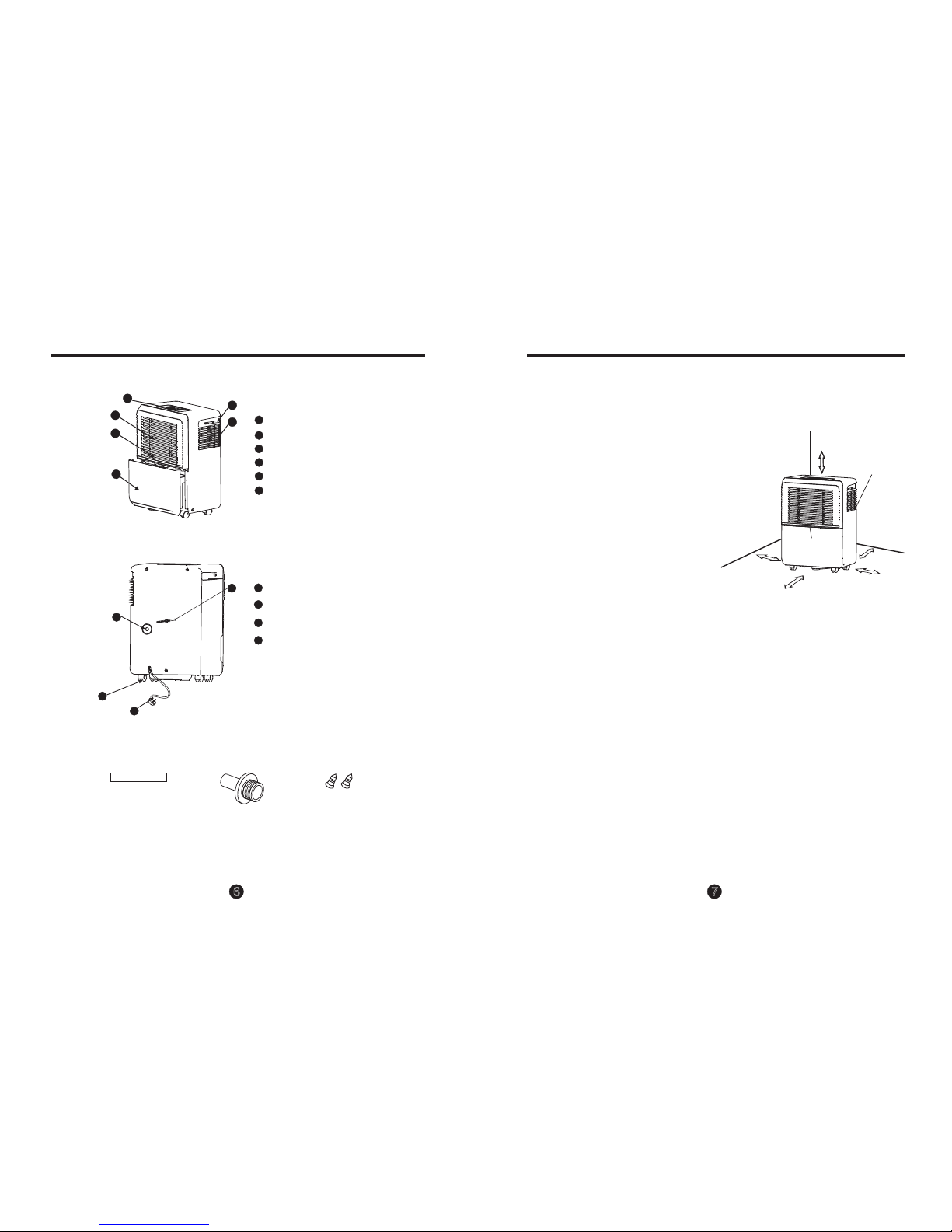

Power Cord and Plug
Drain Hose Outlet
Band (used only when
storing the unit)
Air Outlet Grille
Wheel Caster
Fig. 1
NOTE: Make sure wheel casters
can move freely. Do not force the
unit over carpet or move it with
water in the bucket or it may tip
over and/or spill water.
Air Filter (behind the grille)
Control Panel
Air Intake Grille
Water Tank
1
2
3
4
5
1
2
3
4
NOTE: All illustrations in this manual are for explanation purposes only. The appearance of the
unit you purchased may be slightly different, but the operation and functions are the same.
5
• Plug the unit into a grounded electrical socket only.
• Do not connect the dehumidifier to an outlet being used for other electrical appliances.
• When first using the dehumidifier, operate it continuously for 24 hours.
• This unit is designed to operate in a working environment between 41ºF/5ºC and 95ºF/35ºC.
• If the unit is switched off and then switched on again quickly, allow approximately 3 minutes for
previous operation to resume.
• Make sure the water tank is correctly fitted, otherwise the unit will not operate properly.
NOTE: Empty the water tank before moving the unit, otherwise it may tip over and spill water.
This unit must be operated in an enclosed area to be most effective. Make sure to close
doors, windows and other outside openings to the room. Do not place the unit near a clothes
dryer, heater or radiator.
NOTE: Operating the unit in a basement will have little or
no effect in drying an adjacent enclosed area (such as a
closet) unless there is adequate air circulation in
and out of the adjacent area.
• Do not use outdoors.
• This dehumidifier is intended for indoor
residential use only. It should not be used
for commercial or industrial applications.
• Place the dehumidifier on a smooth, level
surface strong enough to support the unit
with a full tank of water.
• Allow at least 8" (20cm) of air space on all
sides and 16" (40cm) above for adequate
air circulation. (Fig. 1)
• Place the unit in an area where the temperature
will not fall below 41ºF/5ºC. The coils can become
covered with frost below 41ºF/5ºC, which
may reduce performance.
Air outlet
grille
Air intake
grille
.
1
23
4
Nipple (1) Hose Adapter (1) Screws (2)
6
6Top Carrying Handle (both sides)
1
2
3
4
FRONT PLACEMENT
OPERATION
REAR
ACCESSORIES
Placement and Operation
A = At least 8" (20cm)
At least
16" (40cm)
WALL
WALL
AA
A
A
Parts Identification

89
UNIT POWER OFF: 8 beeps, “FULL” indicator light flashes and “P2” displayed.
UNIT POWER ON: Compressor stops, fan turns off after 30 seconds, 8 beeps, “FULL”
indicator light flashes and “P2” displayed.
To remove tank for emptying:
1. Grip both handles firmly, slowly pull the tank straight out of
the unit so water doesn’t spill. Do not place tank on floor
because the bottom is uneven and it may tip over.
2. Dispose of water immediately, dry out any residual
moisture in the tank and replace it back into the unit.
Tank MUST be seated securely for operation (unit will
restart when tank is correctly positioned).
NOTE: Do not touch any parts inside the unit as it may cause damage. Use firm, gentle
force when removing and replacing the tank. Banging the tank or seating it incorrectly may
cause the unit to not operate.
Water can be automatically emptied into a floor
drain by attaching a standard 5/16” ID water
hose with female threaded end (not included).
Install Drain Hose Assembly
1. Push Nipple securely into Hose Adapter (Fig. 2)
2. Remove water tank. Remove Drain Hose Outlet
Cap from Drain Hose Outlet on back of unit.
3. Insert Drain Hose Assembly all the way into
Drain Hose Outlet on back of unit (Fig. 3).
4. Secure Drain Hose Assembly inside the unit
by using the 2 screws provided. (Fig. 4)
Replace tank.
Attach Drain Hose:
1. Install the female threaded end of water hose
onto Hose Adapter on back of unit (Fig. 5).
2. Route hose to a secure drainage location,
making sure there are no kinks and the hose
is draining flat or downhill from the unit.
3. Start humidifier.
NOTE: When continuous drain feature is not
being used, remove water hose from Adapter.
WHEN THE INTERNAL TANK IS FULL
1. Clean the grille and case
• Use water and a mild detergent. Do not
use bleach or abrasives.
• Do not splash water directly onto the main
unit. Doing so may cause electrical shock,
rust or deterioration of the insulation.
• The air intake and outlet grilles get soiled easily.
Use a vacuum attachment or brush to clean.
2. Clean the water tank
Every few weeks, clean the water tank to prevent
the growth of mold, mildew and bacteria. Partially
fill the tank with clean water and add a little mild
detergent. Swish it around in the tank, empty
and rinse.
NOTE: Do not use a dishwasher to clean the tank.
After cleaning, tank must be correctly placed and
securely seated for the dehumidifier to operate.
3. Clean the air filter
• Remove and clean air filter every two weeks
based on normal operating conditions.
• Remove the filter from the top of the unit
(Fig.6 ), or the bottom after removing
tank (Fig. 7).
• Wash the filter with clean water, then dry.
Re-install the filter and replace tank.
CAUTION: DO NOT operate the dehumidifier
without a filter because dirt and lint will clog
it and reduce performance.
Turn the dehumidifier off and remove the plug from the wall outlet before cleaning.
CONTINUOUS DRAINING
Care and Maintenance
Removing Collected Water
Nipple
Drain Hose Outlet
Drain Hose Assembly
Fig. 2
Fig. 3
Fig. 4
Fig. 8
Fig. 5
Fig. 6
Fig. 7
Hose Adapter
Hose Adapter
Drain Hose
Connector
Drain Hose Outlet Cap
or
UNIT
BACK
BACK
Water Hose
4. Storing the dehumidifier
• After turning off the unit, wait one day
before emptying the tank to allow all
residual water to drain.
• Clean the main unit, tank and air filter.
• Wrap the cord and bundle it with the band (Fig.8)
• Cover the unit with a plastic bag and store
upright in a dry, well-ventilated place.

10
Troubleshooting Tips
Before calling service, review the chart below.
You may be able to quickly resolve the problem yourself.
Problem What to check
Unit does not start
Make sure the dehumidifier’s plug is pushed completely into the
outlet.
Check the house fuse/circuit breaker box.
Dehumidifier has reached its preset level or bucket is full.
Water bucket is not in the proper position.
Dehumidier does not
dry the air as it should
Did not allow enough time to remove the moisture.
Make sure there are no curtains, blinds or furniture blocking the
front or back of the dehumidifier.
The humidity control may not be set low enough.
Check that all doors, windows and other openings are securely
closed.
Room temperature is too low, below 41˚F (5˚C).
There is a kerosene heater or something giving off water vapor
in the room.
,
The unit makes a loud
noise when operating
The air filter is clogged.
The unit is tilted instead of upright as it should be.
The floor surface is not level.
Frost appears on the
coils
This is normal. The dehumidifier has Auto defrost feature.
Water on oor
Hose to connector or hose connection may be loose.
Intend to use the bucket to collect water, but the back
drain plug is removed.
ES, AS, P2 and EC
appear in the display
These are error or protection codes. See the bottom of Pg. 5
in “Control Panel” section.
