DA-JB4100 INSTALLATION MANUAL
This manual is intended for users of the DA-JB4100 junction box. It
includes instructions for mounting the DA-JB4100 junction box to a wall.
• This junction box is intended to be used with some models of
cameras. Do not use it with other models of cameras.
• This installation should be performed by a qualied service
personnel in conformance to all local codes.
• You may need to reinforce the wall. If the wall is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.

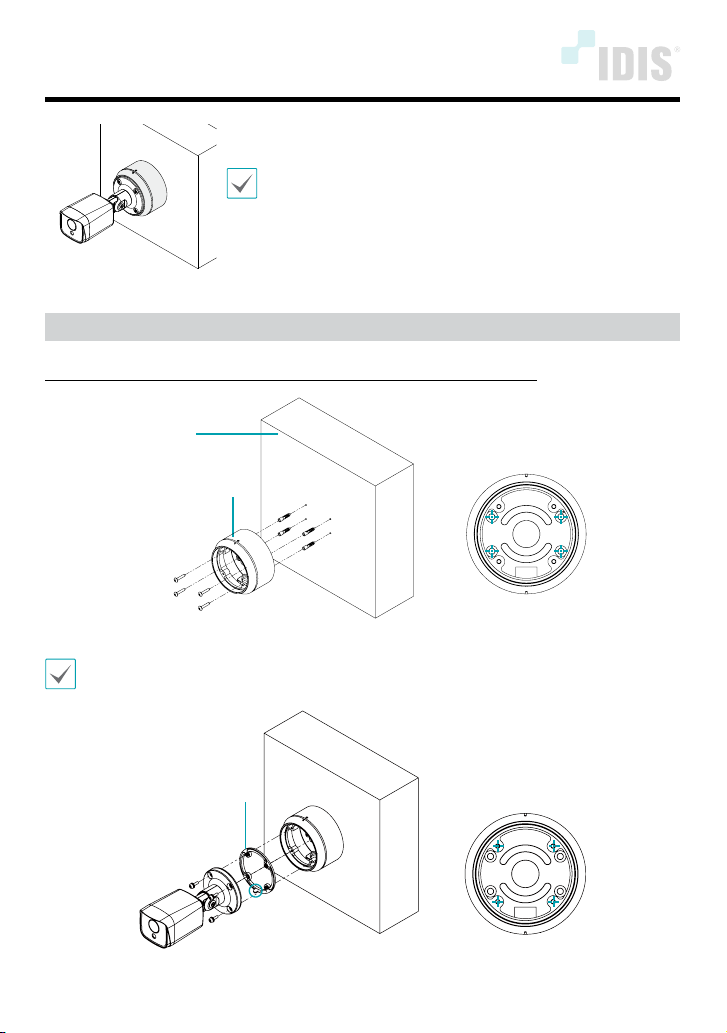

Mounting
Mount the junction box to the wall and connect your camera as follows:
Junction Box
Wall
1 Mount the junction box to the wall by using the screws and the anchors.
Use the provided guide pattern to check the distance between the screw holes if necessary.
Bushing

IDIS Co., Ltd.
For more information, please visit www.idisglobal.com
2 Insert the bushing to the junction box. Match the cable hole of the product, the projection of the
silicon bushing, and the PT 3/4" cap.
3 Insert cables from external devices, network and power adapter to the junction box like a round
wound.
4 Screw the camera to the bushing.
Before xing the product, make sure to seal the inside of the bracket and the hole to the wall with
silicone seal.
Dimensions
Unit: mm (inch)
PT 3/4"
4-
2-
4-R3
110.8 (4.36)
4-M4TAP
110.8 (4.36)
61.5 (2.42)
64 (2.51)
46.75 (1.84)
32 (1.25)
72 (2.83)
72 (2.83)
5.5 (0.21)
25 (0.98)
