IDK VAC-4000UHD User manual

4K@60 and HDCP 2.2 supported HDMI Distribution Amplifier
(with Audio De-embedder)
VAC-2000UHD / 4000UHD
<User’s Guide>
Ver.1.3.0
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-2000UHD
DISTRIBUTION AMPLIFIERfor HDMI
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
●Thank you for choosing this IDK product.
●To ensure the best performance of this product, please read this User’s Guide fully and carefully before
using it and keep this manual beside this product.
IDK Corporation

VAC-2000UHD / 4000UHD User’s Guide
2
Trademarks
Blu-ray Disc and Blu-ray is a trademarks of Blu-ray Disc Association.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The terms Anti-snow and Connection Reset are registered trademarks of IDK Corporation in Japan.
All other company and product names mentioned in this manual are either registered trademarks or
trademarks of their respective owners. In this manual, the “®” or “™” marks may not be specified.

VAC-2000UHD / 4000UHD User’s Guide
3
Before reading this manual
●All rights reserved.
●Some of the contents in this User’s Guide such as appearance diagrams, menu operations,
communication commands, and so on may differ depending on the version.
●This User’s Guide is subject to change without notice. You can download the latest version from IDK’s
website at: http://www.idk.co.jp/en/index.html
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference and the user will be required to correct that interference at their
own expense.
CE MARKING
This equipment complies with the essential requirements of the relevant European health, safety and
environmental protection legislation.
WEEE MARKING
Waste Electrical and Electronic Equipment (WEEE), Directive 2011/65/EU
(This directive is only valid in the EU.)
This equipment complies with the WEEE Directive (2011/65/EU) marking requirement.
The left marking indicates that you must not discard this electrical/electronic equipment in
domestic household waste.

VAC-2000UHD / 4000UHD User’s Guide
4
Safety instructions
Read and understand all safety and operating instructions before using this product. Follow all instructions
and cautions as detailed in this document.
Enforcement Symbol
Description
Indicates the presence of a hazard that may result in death or serious
personal injury if the warning is ignored or the equipment is handled
incorrectly.
Indicates the presence of a hazard that may cause minor personal
injury or property damage if the caution is ignored or the equipment is
handled incorrectly.
Symbol
Description
Example
Caution
This symbol is indicated to alert the user. (Warning and caution)
Electrical
Hazard
Prohibition
This symbol is intended to prohibit the user from actions.
Do not
disassemble
Instruction
This symbol is intended to instruct the user.
Unplug
Caution
Warning

VAC-2000UHD / 4000UHD User’s Guide
5
Prohibition
Do not place the product in any unstable place.
Install the product to a horizontal and stable place. Otherwise, it may fall/turn over and lead to injury.
Do not place the product in any environment with vibration.
Otherwise, it may move/fall and lead to injury.
Keep out any foreign objects.
In order to avoid fire or electric shock, do not allow foreign objects, such as metal and paper, to enter the product
from the vent holes.
For power cable/plug:
●Do not scratch, heat, or modify, including extending them
●Do not pull, put heavy stuff on them, or pinch them.
●Do not bend, twist, or tie them together forcefully.
If they are used in those states continuously, it may cause fire or electric shock. If power cables/plugs become
damaged, contact IDK.
Do not
disassemble
Do not repair, modify or disassemble.
Since the product includes high-voltage parts, those actions may cause fire or electric shock. For internal
inspections or repairs, contact IDK.
Do not touch
In the event of lighting or thunder, do not touch the main unit and cables such as
power cable and LAN cable.
Contact may cause electric shock
Instruction
For installation:
The product is intended to be installed by skilled technicians. For installation, please contact a system integrator
or IDK. Otherwise, it may cause fire, electric shock, injury, or property damage.
Set the power plug in a convenient place to unplug easily.
You can easily unplug in case of any extraordinary failure or abnormal situation, and it also helps for unplugging
when you do not use it for a long period.
Plug the power plug into appropriate outlet completely.
If the plug is plugged incompletely, it may overheat which causes electrical shock or fire. Do not use damaged
plug or loosened outlet.
Clean the power plug regularly.
If the plug is covered in dust, it may cause fire due to reduced insulating power.
Unplug
Unplug immediately if the product smokes, makes unusual noise, or smells.
If you continue to use the product under those situations, it may cause electric shock or fire. After confirming that
the product stops smoking, contact IDK.
Unplug immediately if you drop the product or if the cabinet is damaged.
If you continue to use the product under those situations, it may cause electrical shock or fire. For maintenance
and repair, contact IDK.
Unplug immediately if water or other objects are directed inside.
If you continue to use it under those situations, it may cause electrical shock or fire. For maintenance and repair,
contact IDK.
For connection
Instruction
Differences in ground potential among the product and peripheral devices may cause electric shock or damage
of the devices. When using cables to connect devices, including connection of long-distance transmission,
unplug the power cables of all related devices.
After connecting signal/control cables of each device, plug in the power cables of each device.
Warning

VAC-2000UHD / 4000UHD User’s Guide
6
For installation
For rack mount devices:
Instruction
Mount the product to the rack meeting EIA standards, and maintain spaces above and
below for air cooling. For your safety, attach an L-shape bracket in addition to the mount
bracket kit for the front panel to balance the weight.
For devices with rubber feet:
Instruction
Never insert only the screws into the holes after removing the rubber feet. It may lead to
damage when the screws contact electrical circuit or parts inside of the product.
To put the rubber feet back on, use only provided rubber feet and screws.
Altitude:
Instruction
Do not place the product at elevations of 2,000 meters (6562 feet) or higher above sea
level. Failure to do so may shorten the life of the internal parts and result in malfunctions.
Prohibition
Do not place the product in any place where it will be subjected to high
temperatures.
If the product is subjected to direct sunlight or high temperatures, it may cause fire.
Do not place the product in humid, oil smoke, or dusty place.
If the product is placed near humidifiers or dusty area, it may cause fire or electric shock.
Do not block the vent holes.
If ventilation slots are blocked, it may cause fire or failure due to internal heat.
Do not put heavy items on the product.
It may fall/turn over and lead to injury.
Do not exceed ratings of outlet and wiring devices.
If several plugs are put in an outlet, it may cause fire and electric shock.
Use only the provided AC adapter and power cable.
Do not use the provided AC adapter and power cable with other products.
If non-compliant adapter or power cables is used, it may cause fire or electrical shock. Use the supplied AC power
connection cable.
No wet hands
Do not plug or unplug with wet hands.
It may cause electrical shock.
Instruction
Use and store the product within the specified temperature/humidity range.
If the product is used outside the range continuously, it may cause fire or electric shock.
Turn off devices when they are connected to another device.
It may cause fire or electric shock.
Unplug
Unplug the power plug if you do not use the product for a long period.
In case of defect, it may cause fire.
Unplug the power plug before cleaning.
It may cause electric shock.
Caution

VAC-2000UHD / 4000UHD User’s Guide
7
Table of Contents
1Included items....................................................................................................................................... 8
2Product outline...................................................................................................................................... 9
3Features...............................................................................................................................................10
4Part names and descriptions................................................................................................................11
4.1 Front panel.....................................................................................................................................11
4.2 Rear panel......................................................................................................................................12

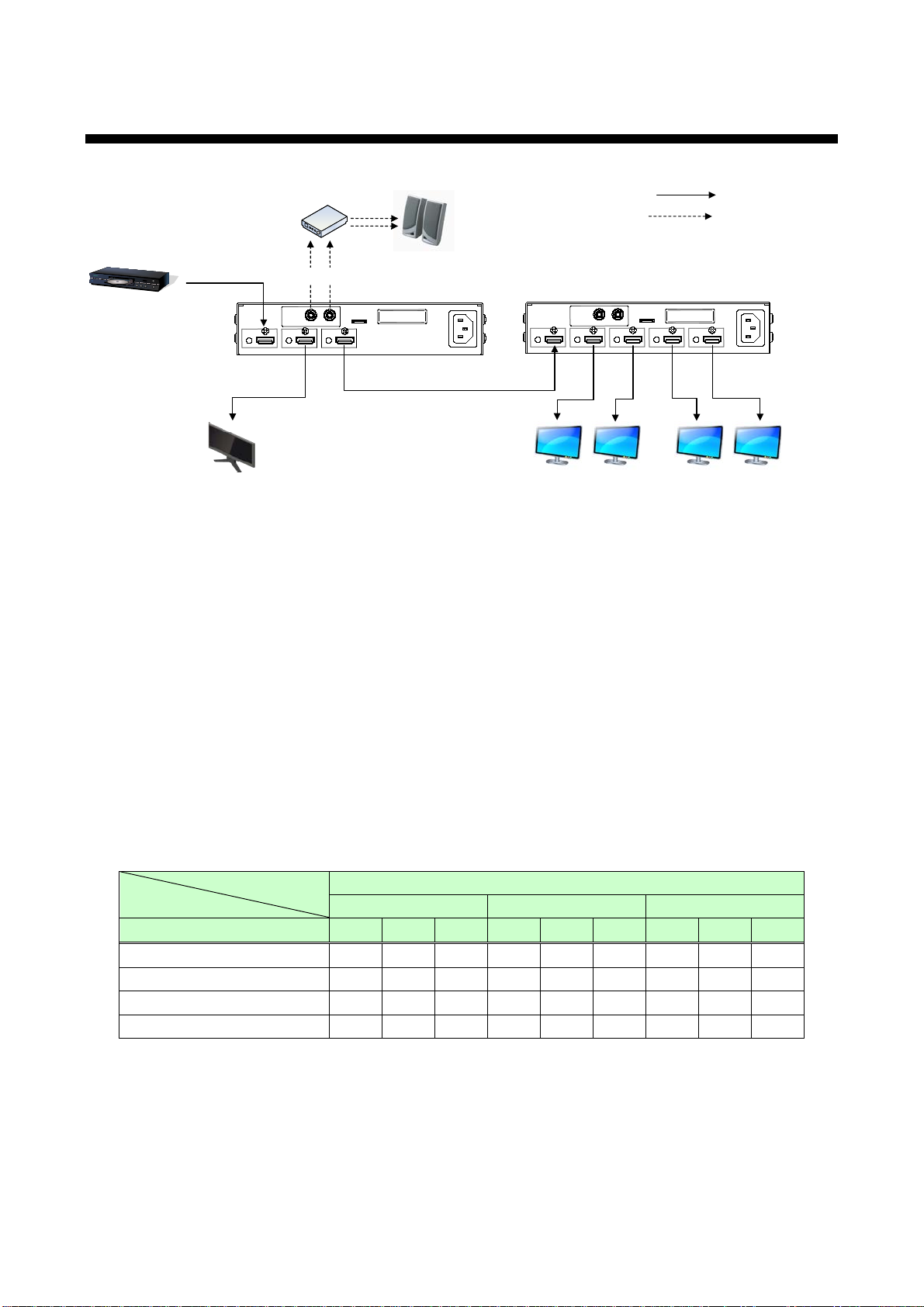

5Sample application...............................................................................................................................13
6Precautions before connection .............................................................................................................14
7Basic operation....................................................................................................................................15
7.1 Menu operations.............................................................................................................................15
7.2 Locking menu operation keys .........................................................................................................16
7.3 Initialization ....................................................................................................................................16
8Menus..................................................................................................................................................17
8.1 Menu list.........................................................................................................................................17
8.2 Setting input and output (Setting menu)..........................................................................................19
8.2.1 [ F01 to F03 ] Copying EDID....................................................................................................19
8.2.2 [ F10 ] Setting EDID resolution................................................................................................20
8.2.3 [ F12 ] Setting external EDID...................................................................................................23
8.2.4 [ F14 ] Setting copied EDID.....................................................................................................23
8.2.5 [ F16 ] No-signal input monitoring............................................................................................24
8.2.6 [ F20 ] Setting Deep Color.......................................................................................................25
8.2.7 [ F22 ] Setting PCM Audio.......................................................................................................25
8.2.8 [ F24 ] Setting AC-3 Dolby Digital Audio ..................................................................................25
8.2.9 [ F26 ] Setting AAC Audio........................................................................................................26
8.2.10 [ F28 ] Setting Dolby Digital Plus Audio....................................................................................26
8.2.11 [ F30 ] Setting DTS Audio........................................................................................................26
8.2.12 [ F32 ] Setting DTS-HD Audio..................................................................................................27
8.2.13 [ F34 ] Setting Dolby TrueHD Audio.........................................................................................27
8.2.14 [ F36 ] Setting Audio channel...................................................................................................28
8.2.15 [ F38 ] Copying CEC physical address copy of EDID...............................................................29
8.2.16 [ F42 ] Setting EDID WXGA.....................................................................................................29
8.2.17 [ F70 to F7n ] Setting audio output...........................................................................................29
8.2.18 [ F90 ] Displaying firmware version..........................................................................................30
8.2.19 [ F99 ] Setting maintenance/status display menu.....................................................................30
8.3 Checking operation (Maintenance menu)........................................................................................31
8.3.1 [ C01 ] Setting HDCP input......................................................................................................31
8.3.2 [ C10 to C1n ] Setting how long Hot plug is ignored.................................................................32
8.3.3 [ C20 to C2n ] Setting forced HDMI output mode.....................................................................33
8.3.4 [ C30 to C3n ] Setting output mode..........................................................................................34
8.4 Displaying input/output statuses (Status display menu)...................................................................35
8.4.1 [ L01 to L22 ] Displaying input information...............................................................................35
8.4.2 [ L30 to Lbn ] Displaying output information.............................................................................38
9Specifications.......................................................................................................................................40
9.1 Pin assignments.............................................................................................................................40
9.1.1 HDMI TypeA connector...........................................................................................................40
9.2 Product specification.......................................................................................................................41
10 Troubleshooting ...................................................................................................................................43

VAC-2000UHD / 4000UHD User’s Guide
8
1 Included items
Make sure all items below are included in the package.
If any items are missing or damaged, please contact us.
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
VAC main unit x 1
(Drawing: VAC-4000UHD)
Power cable (1.8m/5.9 feet) x1
Cable clamps
VAC-2000UHD …3 clamps
VAC-4000UHD …5 clamps
Rubber feet x 4
[Fig. 1.1] Included items
You can download the latest version of the User’s Guide from IDK’s website at:
http://www.idk.co.jp/en/index.html

VAC-2000UHD / 4000UHD User’s Guide
9
2 Product outline
The VAC-2000UHD and VAC-4000UHD are HDMI distribution which supports 4K@60 having four times the
resolution of full HD. These distributors include 1 HDMI connector for input, 2 (VAC-2000UHD) or 4
(VAC-4000UHD) HDMI connectors for output, and an analog audio output connector.
Input video signals are output from HDMI output connectors while digital audio signals are converted into
analog audio signals and output from the audio output connector.
The VAC-2000UHD and VAC-4000UHD supports HDCP 2.2 for HDMI signals.
HDMI / DVI
Up to 131 ft./40 m*
VAC-4000UHD
4K@60 video
Power amplifier
Analog audio
4 distribution
outputs
HDMI / DVI
Up to 131 ft./40 m*
4K monitor
4K@60 video
4K monitor
4K@60 video
HDCP 2.2
HDCP 2.2
4K monitor
4K@60 video
4K monitor
4K@60 video
HDCP 2.2
HDCP 2.2
HDCP 2.2
Speaker
BD player
*The maximum extension distance:
1080p@60: 131 ft./40 m; 4K@60: 39 ft./12 m
with cables supporting 18 Gbps transmission
ON
OFF
－＋
MENU SET
POWER SIGNAL K EY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIER for HDMI
[Fig. 2.1] Distributing video and audio (VAC-4000UHD)

VAC-2000UHD / 4000UHD User’s Guide
10
3 Features
■
Video
・1 HDMI input; 2 / 4 outputs (VAC-2000UHD / VAC-4000UHD)
・Up to 4K@60 (4:4:4) resolution
・HDCP 1.4 / 2.2
・HDR
・3D
・xvYCC
・Maximum input/output cable distance:
- 1080p@60: up to 131 ft. (40 m)
- 4K@60: up to 39 ft. (12 m) (using 18 Gbps supported High-Speed HDMI cable)
・Cascade connection
・Anti-snow
■
Audio
・Analog audio de-embedded
■
Others
・EDID emulation
・DDC buffering
・CEC: Pass-Through between IN and OUT1
・Displaying statues of Input/Output signals
・Connection Reset
EDID emulator
VAC-2000UHD
Analog audio
L/R unbalanced Output
１
Digital video/audio
HDMI DVI Outputs
2
Video/audio
Audio
Digital video/audio
HDMI DVI Input
１
D/A conversion
2 distributions
Video/audio
Up to
131 ft. (40 m)*
Up to
131 ft. (40 m)*
* The maximum extension distance:
1080p@60: 131 ft. (40 m); 4K@60: 39 ft. (12 m) (with cables supporting 18 Gbps transmission)
[Fig. 3.1] VAC-2000UHD diagram
EDID emulator
VAC-4000UHD
Analog audio
L/R unbalanced Output
１
Digital video/audio
HDMI DVI Outputs
4
Video/audio
Audio
Digital video/audio
HDMI DVI Input
１
D/A conversion
4 distributions
Video/audio
Up to
131 ft. (40 m)* Up to
131 ft. (40 m)*
* The maximum extension distance:
1080p@60: 131 ft. (40 m); 4K@60: 39 ft. (12 m) (with cables supporting 18 Gbps transmission)
[Fig. 3.2] VAC-4000UHD diagram

VAC-2000UHD / 4000UHD User’s Guide
11
4 Part names and descriptions
4.1 Front panel
② ⑤ ④ ③ ①
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
[Fig. 4.1] Panel drawing (VAC-4000UHD)
[Table 4.1] Part names and descriptions
#
Part name
Description
①
POWER key
Turns on/off the VAC.
The POWER LED lights green when the VAC is turned on.
②SIGNAL LED The LED lights yellow when video input signals are detected.
③Menu operation keys Selects and sets each menu.
④
Segment display
Displays menu number, setting number, and setting status.
⑤KEY LOCK LED Turns green when the menu operation keys are locked.
【
7.2 Locking menu operation keys
】

VAC-2000UHD / 4000UHD User’s Guide
12
4.2 Rear panel
①②⑥
④⑤
③
①⑥
④⑤
③
②
VAC-2000UHD
VAC-4000UHD
AC 100-240V 50/60Hz
UPDATE
S/N
IN
ANALOG
AUDIO
OUT 1 OUT 2
OUTPUT
R L
AC 100-240V 50/60Hz
UPDATE
S/N
IN
ANALOG
AUDIO
OUT 1 OUT 2 OUT 3
OUTPUT
R L
OUT 4
[Fig. 4.2] Panel drawing
[Table 4.2] Part names and descriptions
# Part name Description
①HDMI input connector Input connector for HDMI signals.
Connector for a source device such as a DVD/Blu-ray disc player.
②HDMI output connector
Output connector for HDMI signals. Connector for sink devices such as LCD monitors and projectors.
③HDMI cable fixing hole Holes for the supplied cable clamps to fix the HDMI cables.
【
6 Precautions before connection
】
④Audio output connector Analog output for audio of HDMI input signals.
Connector for an amplifier, speaker, mixer, or the like.
⑤
Connector for maintenance
Not used. Please do not connect anything; this connector is for
maintenance only.
⑥AC adapter connector Connector for the supplied AC adapter.

VAC-2000UHD / 4000UHD User’s Guide
13
5 Sample application
BD player VAC-2000UHD VAC-4000UHD
Power amplifier Speaker
4K HDMI monitors
CEC (OUT1)
HDMI cable
TV
AC 100-240V 50/60Hz
UPDATE
S/N
IN
ANALOG
AUDIO
OUT 1 OUT 2 OUT 3
OUTPUT
R L
OUT 4
Analog audio signals
HDMI / DVI signals
AC 100-240V 50/60Hz
UPDATE
S/N
IN
ANALOG
AUDIO
OUT 1 OUT 2
OUTPUT
R L
4K HDMI cable
Audio cable
4K HDMI cable
[Fig. 5.1] Cascade connection
At IDK, various cables, such as flexible HDMI cable, DVI cable, high-quality long cables and conversion
cables, are available. Please contact us for details as needed.
Use correct HDMI cable /HDMI-DVI conversion cable according to the system configuration. For analog audio,
use a commercial audio cable.
For 4K format video, the maximum TMDS data rate (transmission rate) is 18 Gbps. If you use a high-speed HDMI
cable, the rate becomes 10.2 Gbps and video cannot be displayed stably.
Use a cable supporting 18 Gbps high-speed transmission according to the 4K format. Since extension
distance depends on the cable type and characteristics of source and sink devices, we recommend that you
use a high-quality cable.
[Table 5.1] Cables for 4K format
TMDS data rate (Gbps)
RGB,YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
4K format 24 bit 30 bit 36 bit 24 bit 30 bit 36 bit 24 bit 30 bit 36 bit
3840x2160p (24 / 25 / 30) HS UH UH
HS HS HS NA
NA NA
4096x2160 (24 / 25 / 30)
HS
UH UH HS HS HS NA NA NA
3840x2160p (50 / 59.94 / 60) UH NA NA UH UH UH
HS
UH UH
4096x2160 (50 / 59.94 / 60) UH NA NA UH UH UH
HS
UH UH
UH: 18 Gbps ultra-high-speed cable HS: 10.2 Gbps transmission cable NA: Not available
Note:
If cables are extended using a cable joint (JJ), video may be interrupted or not be output.

VAC-2000UHD / 4000UHD User’s Guide
14
6 Precautions before connection
Follow the precautions below before connecting to external devices.
■Attaching rubber feet
1. Turn the VAC upside down and place it on a flat place.
2. Wipe the dirt off joint area.
3. Peal the release papers from rubber feet and place them on each corner of the VAC.
■
Installation
・Eliminate static electricity from your body before connecting cables.
・Do not place another VAC on the VAC.
・Do not block vent holes. Keep enough space (1.2 in. (30 mm) or more) around the product.
・Do not install the VAC in a closed space.
If you have to install the product to an EIA rack mount in closed space, add a ventilation to keep the
ambient temperature of 40 degrees C/104 degrees F or less. If inadequately vented, the life of parts
may be shortened and operations may be affected.
■
Cabling
・Read the manuals of external devices carefully
・Turn off the transmitter/receiver before connection.
・Insert the cable into the connector firmly and do not give the connector stress.
・Secure the HDMI cable using a cable clamp to prevent it from falling out of the device.
Attaching HDMI
cable
Removing HDMI
cable ①②③
Remove the clamp
while pressing here.
④
② ④ ⑤① ③
Clicking
[Fig. 6.1] Attaching/Removing cable clamp

VAC-2000UHD / 4000UHD User’s Guide
15
7 Basic operation
7.1 Menu operations
You can set all input/output settings of video and audio signals from menu operation keys.
Menu operation keys
Select the menu number first and then select the setting number.
If you do not operate for 60 seconds in each step, the light of the segment display will be turned off.
Setting procedure
1
Press the “SET” key. The segment
display lights.
2
Select the menu number using the
“+” and “-“ keys.
3
Press the “SET” key to apply the
menu number.
The set number is displayed.
4
Select the set number value using
the “+” and “-“ keys.
5
Press the “SET” key to apply the
setting. After that, the segment
display of Step 2 menu number
above is displayed.
If you do not press the “SET” key for
10 seconds, the number is not
applied and the segment display of
the step 2 is displayed. You have to
do the same operation from Step 2
again.
[Fig. 7.1] Menu key operation
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
1, 3
2
Selecting menu
number
Segment display
5
4
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
Selecting set
number

VAC-2000UHD / 4000UHD User’s Guide
16
7.2 Locking menu operation keys
Press and hold the “SET” key for 3 seconds or longer to set/cancel key lock.
If the VAC is powered off with keys locked, the key are still locked at the time of reboot
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
Menu operation keys will be locked by pressing the “SET”key for three seconds.
LED turns off LED lights
KEY LOCK KEY LOCK
[Fig. 7.2] Locking menu operation keys
7.3 Initialization
All input and output settings will be initialized by powering on while pressing the “SET” key.
Note:
Once settings are initialized, they cannot be restored to the previous settings.
All input and output settings will be initialized by powering on while pressing the “SET” key.
MENU MENU MENU MENU
ON
OFF
－＋
MENU SET
POWER SIGNAL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
[Fig. 7.3] Initialization

VAC-2000UHD / 4000UHD User’s Guide
17
8 Menus
Setup menus: setting video and audio signals in normal use
Maintenance menus: checking operation
Status display menus: displaying statuses of input signals and connection with sink devices
Note:
Normally, the maintenance menu and status display menu are not displayed as a default.
To display them, use the setting menu number [F99].
【8.2.19 [ F99 ] Setting maintenance/status display menu】
8.1 Menu list
■
Setup menu [Table 8.1] Setup menus
Menu
number Function Setting
Set value Default
F01 to F03 Copying EDID OUT1 to OUT2 / OUT4
*1
OUT1
F10 Setting EDID resolution (default) SVGA to UHDTV 1080p
F12 Setting external EDID OUT1 to OUT2 / OUT4
*1
OUT1
F14 [ F14 ] Setting copied EDID Copy data 1 to 3 Copy data 1
F16
[ F16 ] No-signal input monitoring
OFF / 2 to 15 [sec.]
10 [sec.]
F20
Setting Deep Color
24 / 30 / 36 [bit]
24 [bit]
F22 Setting PCM Audio 32 / 44.1 / 48 / 88.2 / 96
/ 192 [kHz] 48 [kHz]
F24
Setting AC-3 Dolby Digital Audio
OFF / ON
OFF
F26
Setting AAC Audio
OFF / ON
OFF
F28 Setting Dolby Digital Plus Audio OFF / ON OFF
F30 Setting DTS Audio OFF / ON OFF
F32 Setting DTS-HD Audio OFF / ON OFF
F34 Setting Dolby TrueHD Audio OFF / ON OFF
F36 Setting Audio channel 2 channels /
3 (2.1) channels /
6 (5.1) channels /
8 (7.1) channels
2 channels
*1 VAC-2000UHD:OUT2, VAC-4000UHD:OUT4

VAC-2000UHD / 4000UHD User’s Guide
18
Menu
number Function
Setting
Set value Default
F38 Copying CEC physical
address copy of EDID
Copy/No copy No copy
F42
Setting EDID WXGA
1366
×
768 / 1360
×
768
1360
×
768
F70 to F7n
*2
Setting audio output ON / OFF ON
F90 Displaying firmware version －－
F99 Setting maintenance/status
display menu
No display/Display/Always display No display
*2VAC-2000UHD: n=1, VAC-4000UHD: n=3
■
Maintenance menu [Table 8.2] Maintenance menus
Menu
number Function
Setting
Set value
Default
C01
Setting HDCP input
Enable HDCP 2.2 encryption/
Enable HDCP 1.4 encryption/
Disable HDCP encryption
Enable
HDCP 2.2
encryption
C10 to C1n*
Setting how long Hot plug is
ignored
OFF/2 to15 [sec.]
OFF
C20 to C2n
*
Setting forced HDMI output
mod oFF: DVI when reading EDID error.
Er1: HDMI (without SCDC) when
reading EDID error.
AL1: Always HDMI (without
SCDC).
Er2: HDMI (with SCDC) when
reading EDID error.
AL2: Always HDMI (with SCDC).
DVI when
reading
EDID error.
C30 to C3n*
Setting output mode
Automatic / DVI / RGB /
YCbCr 4:2:0 /
YCbCr 4:2:2 /
YCbCr 4:4:4
Automatic
*VAC-2000UHD: n=1, VAC-4000UHD: n=3
■
Status display menu [Table 8.3] Status display menus
Menu
number Function Setting
Set value Default
L01 to L22 [ L01 to L22 ] Displaying input
information
－－
L30 to Lbn*
Displaying output information
－ －
*VAC-2000UHD: n=1, VAC-4000UHD: n=3

VAC-2000UHD / 4000UHD User’s Guide
19
8.2 Setting input and output (Setting menu)
8.2.1 [ F01 to F03 ] Copying EDID
Note:
“[ ]” shows each menu number in this chapter.
EDID of sink devices can be read and stored, and the copied EDID can apply in the same way of internal
EDID.
Registering EDID:
1. Save the sink device EDID to a Copy Data (1 to 3): Menu number [F01 to F03]
2. Select the copy data you want to use: Menu number [F14]
3. Select the Copy EDID: Menu number [F10]
[Fig. 8.1] Copying EDID (VAC-4000UHD)
Menu numbers
F01 to F03: Copied data 1 to 3
Setting values
01 to 02:OUT1 to OUT2 (VAC-2000UHD) [Default] OUT1
01 to 04:OUT1 to OUT4 (VAC-4000UHD) [Default] OUT1
Note:
If cascade connection is employed, the source device will read the EDID of the source-device-side VAC. If
two or more distributors are connected between a sink device and source device, follow the procedure below
to read EDID data.
1. Copy the EDID of the sink device into the sink-device-side VAC and set it as “Copied EDID” or
“EXTERNAL (External EDID)”.
2. Copy the EDID of the sink-device-side VAC into the source-device-side VAC and set it as
“Copied EDID” or “EXTERNAL (External EDID)”.
Projector
VAC-4000UHD
(Sink device side)
VAC-2000UHD
(Source device side)
Laptop
ON
OFF
－＋
MENU SET
POWER SIGN AL KEY LOCK
VAC-4000UHD
DISTRIBUTION AMPLIFIERfor HDMI
ON
OFF
－＋
MENU SET
POWER SIGN AL KEY LOCK
VAC-2000UHD
DISTRIBUTION AMPLIFIERfor HDMI
[Fig. 8.2] Reading EDID in cascade connection
to
OUT 1
OUT 4
LC monitor
Copied data 1
Copied data 2
Copied data 3
Copied EDID
EXTERNAL EDID
Internal EDID
Blu-ray disc player Step 1Step 2Step 3

VAC-2000UHD / 4000UHD User’s Guide
20
8.2.2 [ F10 ] Setting EDID resolution
You can set the EDID to be sent to the source device:
In order to use a built-in EDID (setting values “03” to “28”), set the maximum resolution supported by the sink
device using setting values “03” to “28”.
Setting values [Table 8.4] The maximum resolution of EDID
Setting
values Maximum resolution Pixel Standard Remarks
01 EXTERNAL (External EDID) －－If no sink device is connected, the
previous setting will be applied.
02 Copy EDID －－If no collected data, its default is 03.
03 1080p(59.94 / 60) 1920×1080 HDTV Default
04 720p 1280×720
05 1080i 1920×1080
06 1080p (24 / 25 / 30 / 50) 1920×1080
07 SVGA 800×600 VESA
08 XGA 1024×768
09 VESA720 1280×720 For DVI device input
10 WXGA 1280×768
11 WXGA 1280×800
12 Quad-VGA 1280×960
13 SXGA 1280×1024
14 WXGA 1360×768、
1366×768 The number of pixels can be set in “8.2.16 Selecting EDID WXGA”.
15 SXGA+ 1400×1050
16 WXGA+ 1440×900
17 WXGA++ 1600×900 (RB)
18 UXGA 1600×1200
19 WSXGA 1680×1050
20 VESA1080 1920×1080 (RB), For DVI device input
21 WUXGA 1920×1200 (RB)
22 QWXGA 2048×1152 (RB)
23 WQHD 2560×1440 (RB)
24 WQXGA 2560×1600 (RB)
(RB)：Reduced Blanking
