IDROBASE AURORA User manual
Rev. 00 - 04/2014
Rev. 01 - 06/2017
cod. IT.0733
Manuale uso e manutenzione
IT
Use and maintenance manual
GB
IMPORTANTE!
Prima di installare e
utilizzare la macchi-
na è obbligatorio che
l’installatore e l’uti-
lizzatore leggano e
comprendano in tutte
le sue parti il presente
manuale.
Il manuale è parte inte-
grante della macchina e
deve obbligatoriamente
essere conservato per
futuri riferimenti no
alla demolizione della
macchina.
IMPORTANT!
Before installing and
using the machine im-
perative that the in-
staller and the user
read and understand all
parts of this manual.
The manual is an inte-
gral part of the machine
and must necessarily be
kept for future referen-
ce until the demolition
of the machine.
ENJOY YOUR LIFE - Night & Day
www.enjoyyourfurniture.com
www.idrobase.com
AURORA
Copyright ©2017 Idrobase Group. All rights reserved.
24
Thanking you for the preference you gave us, IDROBASE GROUP Srl is glad to include your rm in the list of its
preferred customers and relies that the use of this machine will be fully satisfactory.
This manual is intended to provide all instructions and precautions to be followed to properly use the machine
in safety and productivity; It is therefore appropriate that the operator consult this manual before using the
machine.
The manual must always be available to the operator and kept in good condition; is the user's responsibility to
worry about the training of personnel assigned to the use and maintenance for safety purposes . The replace-
ment of parts not manufactured or approved by the ngers IDROBASE GROUP Srl may affect the performance
or durability of the machine and create the potential risk to the machine itself or the staff, as well as make void
the warranty.
The descriptions and illustrations contained in this publication are not binding; IDROBASE GROUP Srl there-
fore reserves the right to make changes at any time, without obligation , to update the publication , to change
bodies , details, accessories supplies for further improvement, or for any other manufacturing and / or com-
mercial function greater safety.
The instructions, drawings , tables, and all that is contained in the following le are technical in nature and re-
served, for this reason, any information can not be communicated to third parties without written authorization
from IDROBASE GROUP Srl that is its sole owner.
THIS PRODUCT IS PROTECTED BY PATENT APPLICATION US DESIGN PAT. PEND. 29489687.
In case of dispute the valid jurisdiction is that of Padua (Italy).
GOOD JOB !
GB
Copyright ©2017 Idrobase Group. All rights reserved.
25
INDEX
GB
1 LAYOUT OF MANUAL
1.1 INFORMATION 26
2 APPLICATIONS
2.1 GENERAL WARNINGS 24
2.2 MACHINE IDENTIFICATION 24
2.3 WARRANTY 24
2.4 CONDITIONS FOR RETURN 25
2.5
CASES THAT RELIEVE THE MANUFACTURER OF ANY RESPONSIBILITY
25
2.6 SAFETY 25
2.7 SIMBOLS 27
2.8 GLOSSARY 28
2.9 NOTES ON THE LABELS 28
3 PRODUCT PRESENTATION
3.1 PURPOSE 29
3.2 COMPOSITION 29
4 TECHNICAL DATA AND SPECIFICATION
4.1 TECHNICAL DATA 30
5 UNPACKING
5.1 UNPACKING 31
5.2 TOWER PACK 31
5.3 BASE PACK 31
6 ASSEMBLY AND INSTALLATION 32
7 OPERATION AND USE
7.1 ELECTRICAL CONTROLS 35
7.2 RANGE APPLICATIONS 36
7.3 WORKING LIMITS 36
7.4 EATER CONNCTION TO THE MACHINE 36
7.5 LABELS 36
7.6 TRAINING 36
8 CLEANING AND DISINFECTING
8.1 CLEANING AND DISINFECTING 37
8.2 REINSTALLATION AND REUSE 37
8.3 DEMOLITION AND DISPOSAL 37
9 MAINTENANCE
9.1 MAINTENANCE 38
9.2 CLEANING NOZZLES 38
9.3 CLEANING WATER INTAKE FILTER AND TANK 38
9.4 ELECTRIC SYSTEM 39
9.5 WEEKLY MAINTENANCE 39
10 DESTRUCTION AND DISPOSAL 40
11 ELECTRICAL DIAGRAM 41
12 CAUSES AND SOLUTIONS 42
Copyright ©2017 Idrobase Group. All rights reserved.
26
1.1 INFORMATION
This manual is an essential document for the safe use of the equipment. It should be
kept in a safe place and must be accessible to the user / repairer to ensure the correct
use of the machine and thereby avoid any risks through incorrect Installation, misuse or
negligence.
We recommend to follow carefully the instructions below, as the manufacturer is not liable
for any damage caused to persons or property, or suffered from the machine when used
differently than what described, or if you do not comply with maintenance and safety
requirements.
This manual should always be available to the user and/or maintenance, which must be
informed about the correct use of the machine and any residual risks.
The instructions in this manual do not supersede the safety and technical data, installa-
tion and also use for operating, which are applied directly on the machine.
The user must follow the safety regulations to the country of installation, in addition to the
rules dictated by common sense.
You should not use the machine if you note any defects or damages that could compro-
mise the original security; the responsible for the installation, the user or maitenance
technician has to report any anomalies to the manufacturer.
The machine is built for specic applications. It should not be changed and/or used for
applications different than those specied in the eld of use.
Instructions, drawings, tables and all that is contained in the following documents are of
technical nature, and therefore any condential information can not be provided to third
parties without the written permission of IDROBASE GROUP Srl which is the sole owner.
Descriptions and illustrations contained in this publication do not mean demanding;
IDROBASE GROUP Srl therefore reserves the right to make changes at any time to bodies,
details, accessories supplies, appropriate for any manufacturing or commercial improve-
ment.
1 LAYOUT OF MANUAL
GB
Copyright ©2017 Idrobase Group. All rights reserved.
27
2 APPLICATIONS
2.1 GENERAL WARNINGS
BEFORE INSTALLING AND USING THE MACHINE IT IS COMPULSORY THAT THE INSTALLER
AND THE USERS READ AND UNDERSTAND ALL OF THE INFORMATION IN THIS MANUAL.
THIS MANUAL IS AN INTEGRAL PART OF THE MACHINE; IT MUST ALWAYS BE AVAILABLE
DURING THE NORMAL OPERATION OF THE MACHINE AND IT IS IMPERATIVE THAT IT IS RE
TAINED FOR FUTURE REFERENCE UNTIL THE DISPOSAL OF THE MACHINE.
THE COPYRIGHT OF THIS MANUAL “INSTRUCTION FOR INSTALLATION AND USE” IS THE
PROPERTY OF IDROBASE GROUP SRL. ALL OF THE INFORMATION TEXT, DRAWINGS, DIA
GRAMS, ETC. CONTAINED IN THIS MANUAL IS CONFIDENTIAL. NO PART OF THIS MANUAL
CAN BE REPRODUCED AND DISTRIBUTED EITHER IN PART OR COMPLETE BY ANY MEANS
OF REPRODUCTION, PHOTOCOPIES, MICROFILM, OR OTHER WITHOUT WRITTEN AUTHORI
ZATION FROM IDROBASE GROUP SRL.
2.2 MACHINE IDENTIFICATION
The machine is distinguished by a manufacturer’s plate
2.3 WARRANTY
All of our equipments are subjected to accurate and rigorous tests and are covered under
warranty in accordance with statutory law from manufacturing defects.
THE WARRANTY IS INVALIDATED IF THE USE OF THE MACHINE DOES NOT CONFORM TO
THE INSTRUCTIONS FOR USE CONTAINED IN THIS MANUAL, AND IF THE ORIGINAL COMPO
NENTS, ACCESSORIES, SPARE PARTS AND CONTROL SYSTEMS ARE NOT USED.
The warranty starts from the date of purchase within the meaning of the act concerning
warranty in the country of sale.
GB
IDROBASE GROUP S.r.l.
Via dell’Industria, 25
35010 BORGORICCO (PD) - ITALY
Tel. +39 049 9335903 r.a. Fax +39 049 9335922
Modello
Model Matricola
Production nr. Anno
Year
Volt Hz Watt Ampere
Pressione nominale
Nominal pressure
MODEL
VOLTAGE
DATE OF PRODUCTION
FREQUENCY POWER ABSORBED
NOMINAL
PRESSURE
CURRENT
ABSORBED
MANUFACTURER
NAME
PRODUCTION
NUMBER
Copyright ©2017 Idrobase Group. All rights reserved.
28
1 APPLICATIONS
IDROBASE GROUP SRL undertakes to repair or replace free of charge any parts that have
manufacturing faults within the warranty period. Faults not clearly due to materials or
manufacturing shall be examined at one of our Technical Assistance Centres or at our
headquarters and charged according to the results. The following are excluded from the
warranty: accidental damage due to transport, negligence or inappropriate treatment, in-
correct or improper use or installation, i.e. not complying to the instruction manual, and
any situations that do not depend on machine standards and operation, or on electrical
and equipment use. The warranty is invalidated if the equipment is repaired or tampered
with by unauthorized third parties. The equipment shall not be replaced nor the warranty
extended after it has been repaired for faults. The warranty does not cover cleaning the
working parts or replacing consumable components such as pump oil, nozzle, etc.
IDROBASE GROUP SRL IS NOT LIABLE FOR ANY DAMAGE TO PERSONS OR OBJECTS DUE TO
INCORRECT INSTALLATION OR IMPROPER USE OF THE EQUIPMENT.
2.4 CONDITIONS FOR RETURNS
It will be the responsibility of the end user to return the product to the retailer; or telepho-
ne for further information to the number
+39 049 93 35 136
2.5 CASES IN WHICH THE MANUFACTURER IS NOT LIABLE
The manufacturer is not liable for damage caused by the following:
•Improper use of the machine or use by untrained people.
•Use of non genuine spare parts.
•Non-compliance with maintenance.
•Unauthorized modications or operation.
•Non-observance, in total or part, of the instruction manual.
•Non-observance, in total or part, of the safety regulation in force in the country where
the machine is used.
READ AND SAVE THESE INSTRUCTIONS
2.6 SAFETY
AURORA is well-advanced from a technical point of view and for a proper installation, good
operation, proper use and maintenance, it needs trained, responsible staff who has to
comply with the following rules of safety and conduct.
•Do NOT run the pump without water. Do not run the pump with liquids with sand or other
solid particles that compromise the efcient running of the seals;
•USE the machine outdoors ONLY coverage;
•Do NOT expose the machine to freeze and the outside weather in general. Freezing can
cause severe damages to the pump and circuit. The prolonged downtime at temperatu-
res below 5°C can cause damages or break pump and pipes, it is better to do a complete
emptying;
•You MUST follow the rules imposed by the Fire Department or by local entrusted bodies.
•The electrical system connected to the machine MUST BE made in compliance with the
laws in force in the country of installation;
•It is RECOMMENDED the presence of a differential circuit breaker, with a sensitivity of 30
mA above the socket or power plant;
GB
Copyright ©2017 Idrobase Group. All rights reserved.
29
•The integrity and insulation of the electric cable and equipment MUST BE checked, be-
cause the work environment is necessarily exposed to water and humidity conditions
that preclude the natural system insulation;
•DO NOT pull the cord to remove the plug;
•DO NOT touch the plug with wet hands or feet!
•Avoid accidental operation. You MUST place the switch OFF before inserting or removing
the plug from the socket;
•DO NOT use the machine if the cable is damaged or worn; disconnect the device from the
network and contact an authorized service center;
•In dangerous situations, the machine should be stopped immediately.
•DO NOT install the machine near ammable materials (expecially on environments with
airborne particles: plastics, resins, acids, inks, etc.);
•DO NOT use paints, acids, solvents, oily or very dense liquids, and so on;
•The machine MUST BE used by a properly trained single operator;
•DO NOT remove or tamper with the safety devices and protection installed on the ma-
chine;
•DO NOT use the machine in the presence of unauthorized person or persons who are not
wearing suitable protective garments;
•It is RECOMMENDED not to place the machine on ramps or sloped oor, possibly remem-
ber to lock the wheels with the appropriate mechanisms;
•ARE OBLIGED to place the machine on a at and level for both installation and storage;
•During the handling of the machine on sloping surfaces, potholes or on particularly un-
stable ground there is a risk that the machine chutes. The movement of the machine
under the circumstances described above MAY RESULT in malfunction due to sudden
impact or overturning;
•If the machine will be put outside good precautions must be taken in order to PREVENT
the dangerous effect of weather conditions.
•KEEP the machine clean and tidy;
•Absolutely NO MOVE the machine during operation;
•Absolutely NO MOVE the machine when connected to mains water and electricity
•The table (see par. 3.2) MUST BE used to place objects to a total load under 5 kg. DO NOT
sit or rest
2.7 SYMBOLS
In this manual the symbols depicted describe important functions of the machine for the
installation, and for the use and disposal. For correct and safe use of the machine the ope-
rator must read carefully all parts of this manual paying special attention to the warning
symbols and manufacturer’s plate.
PAY ATTENTION TO SAFETY IN THE WORKPLACE!
FOLLOW THE INSTRUCTIONS DISPLAYED ON THE WARNING SIGNS. FAILURE TO DO SO MAY
CAUSE SEVERE INJURY OR ENDANGER PERSONAL SAFETY. ENSURE THAT THE SIGNS ARE
PRESENT AND LEGIBLE. IF THEY ARE NOT, THEY SHOULD BE FITTED OR REPLACED.
THIS MANUAL MUST BE READ BEFORE USING OR CARRYING OUT MAINTENANCE OR OTHER
OPERATIONS ON THE MACHINE. DO NOT ALLOW UNAUTHORIZED PERSONNEL TO USE THE
MACHINE.
2 APPLICATIONS
GB
Copyright ©2017 Idrobase Group. All rights reserved.
30
2.8 GLOSSARY
The following symbols advise the operator of dangerous situations or the important ope-
rations for the correct running of the machine.
WARNING SIGNS!
THIS MANUAL MUST BE READ BEFORE USING OR CARRYING OUT MAINTENANCE OR OTHER
OPERATIONS ON THE MACHINE.
INFORMATION!
THE INFORMATION CONTAINED IN THIS MANUAL SHOW THE RIGHT PROCEDURES FOR THE
CORRECT MAINTENANCE AND USE OF THE MACHINE
INFORMATION!
THE CAUTION INDICATES SPECIAL PROCEDURES THAT IF NOT OBSERVED CAN CAUSE DAMA
GE TO PERSONS OR PROPERTY.
WARNING!
MAINTENANCE OR REPAIRS MUST NEVER BE CARRIED OUT WHITE THE MACHINE IS LIVE/
SWITCHED ON. ALWAYS DISCONNECT FROM THE ELECTRICAL SUPPLY BEFORE CARRYING
OUT REPAIRS OR REMOVING THE COVER.
WARNING!
AVOID STORING OR USING THE MACHINE IN EXTREME TEMPERATURES. FROST MAY CAUSE
SERIOUS DAMAGE TO THE HIGH PRESSURE PUMP.
WARNING!
PROTECTIVE GARMENTS SHOULD BE WORN.
2.9 NOTES ON THE LABELS
Never remove the labels from the machine. If they have deteriorated, ask your retailer or
the manufacturer directly for a replacement.
THE MANUFACTURER IS NOT LIABLE IN ANY WAY IN THE EVENT OF ACCIDENTS OR BREAKA
GE DUE TO NONOBSERVANCE OF THE WARNINGS.
IN CASE OF LOSING THIS MANUAL OR ANY MISUNDERSTANDING CONTACT THE RETAILER
IMMEDIATELY.
THE STICKER SHOWING THE WAY OF USE AND RESTRICTIONS HAS NEVER TO BE REMOVED
FROM THE PLACE THEY ARE.
2 APPLICATIONS
GB
Copyright ©2017 Idrobase Group. All rights reserved.
31
3.1 PURPOSE
AURORA generate a ow of air and atomized water. It uses the principle of adiabatic cooling, the ambient tem-
perature is lowered by evaporation of the water spray.
The civil applications are:
•Gardens;
•Swimming pools;
•Terraces;
•Patio;
•Gazebo.
Through the use of suitable optional kits or models for each of these types achieves maximum performance.

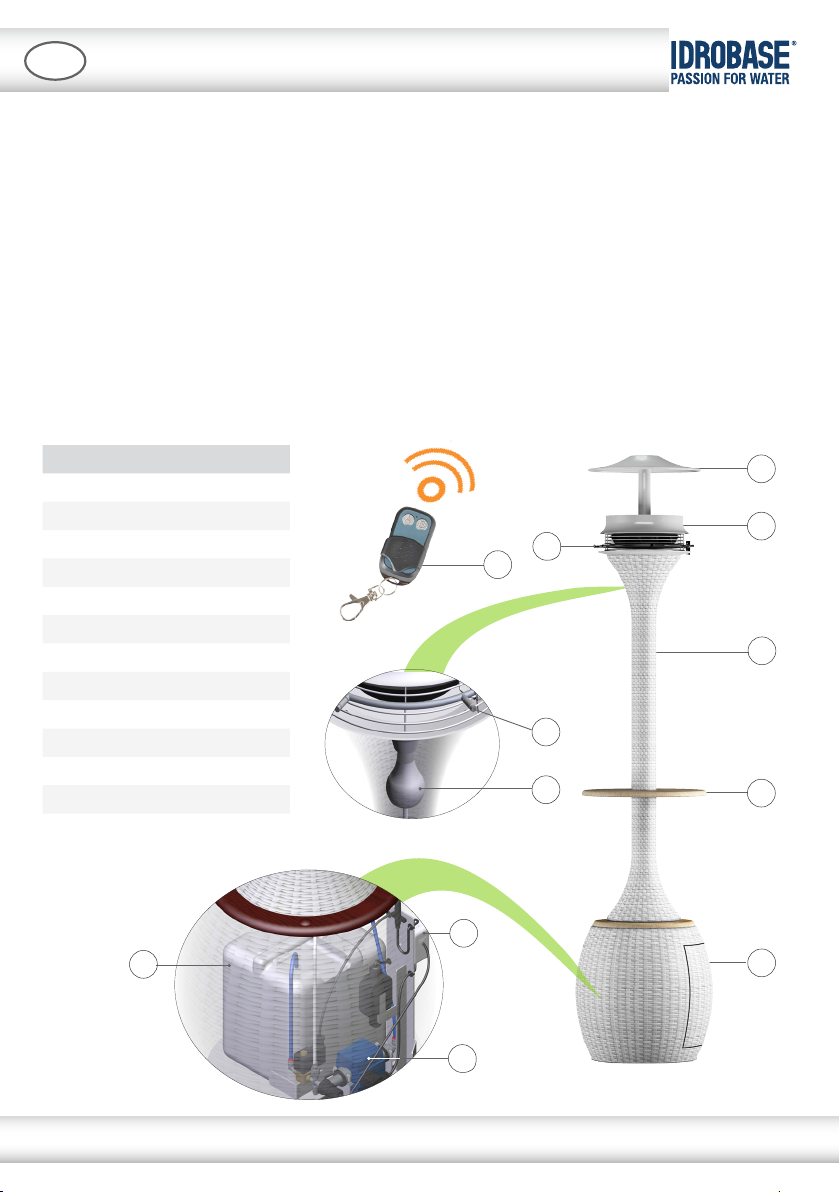

3.2 COMPOSITION
The main components of the machine are:
3 PRODUCT PRESENTATION
GB
4
12
1
2
5
11 6
7
3
9
10
8
POS. DESCRIZIONE
1CANOPY
2FAN
3RING
4NOZZLES
5RATTAN TOWER
6TABLE TOP
7RATTAN BASE
8WATER TANK
9 FOG DEVICE
10 CONTROL PANEL
11 LIGHTS
12 RADIO CONTROL (optional)
Copyright ©2017 Idrobase Group. All rights reserved.
32
GB
4.1 TECHNICAL DATA
The following table describes models and specications of the machine.
230 V VERSION
ZX.5130 AURORA
WHITE ZX.5140 AURORA
BROWN ZX.5150 AURORA
WOODEN
Weight 70 Kg
154 lb Voltage 230 V Nozzles
number 6
Max Load
Table Top 5 kg
11 lb Frequency 50 Hz Water
Tank 10 L
2,64 US gal
Absorption 0,8 A Max
Pressure 25 bar
362,6 psi
Noisiness 51 Db Power 120 W
0,16 HP Flow
rate 18 L/h
0,079 USGpm
INFORMATION!
TO GET THE PROPER EFFECT OF FOGGING MUST BE RESPECTED THE VALUES OF THE POWER SUPPLY.
2400 mm = 94,49 in
Ø 19,69 in
Ø 500 mm
Ø 21,65 in
Ø 550 mm
4 TECHNICAL DATA AND SPECIFICATIONS
Copyright ©2017 Idrobase Group. All rights reserved.
33

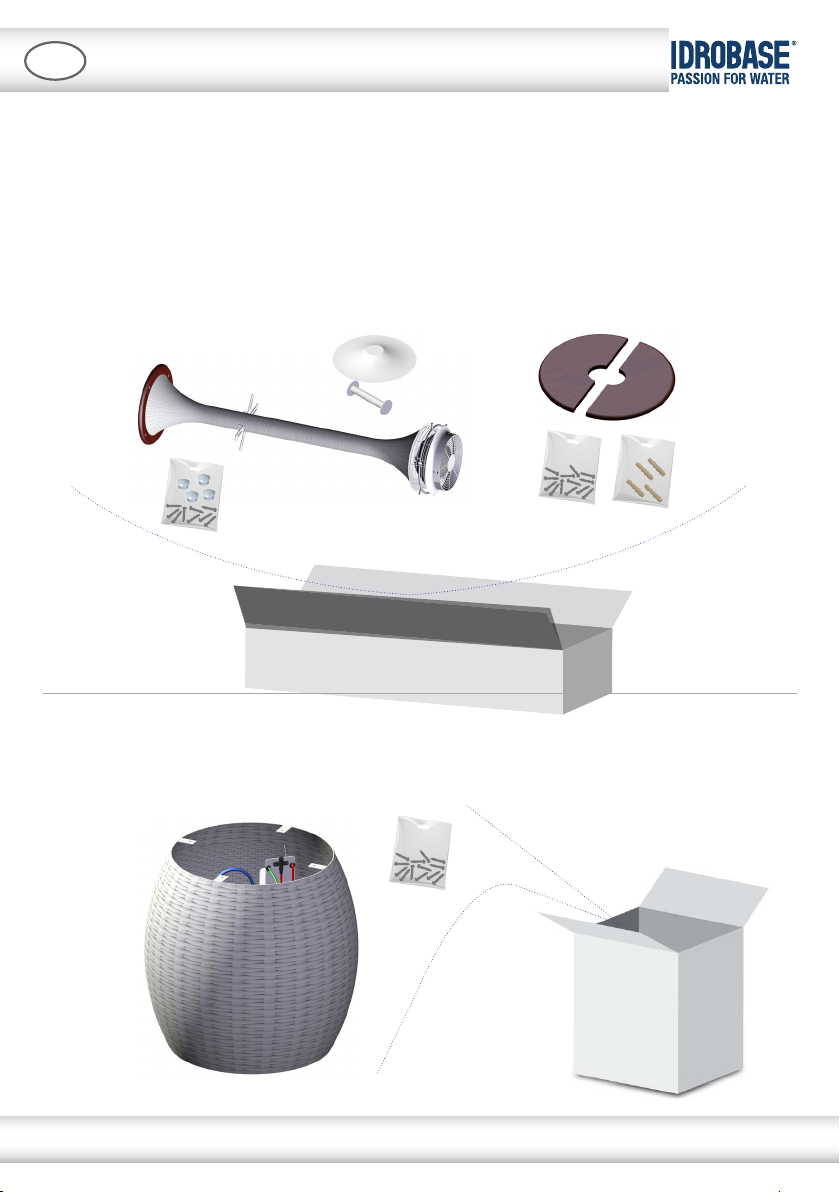

5.1 UNPACKING
AURORA is shipped in two parts, packed in customized packaging. After having unpacked the machine make
sure that the machine is complete, including all of the requested accessories.
5.2 TOWER PACK
•Rattan tower with fan, electric and hydraulic connection;
•Table (N.2 semitables with centering pins);
•Kit of screws for fan cover assembly;
•Kit of screws for tower assembly.
5.3 BASE PACK
•Rattan base with FOG device, control panel and tank;
•Screws kit.
GB
5 UNPACKING
Copyright ©2017 Idrobase Group. All rights reserved.
34
6 ASSEMBLY AND INSTALLATION
GB

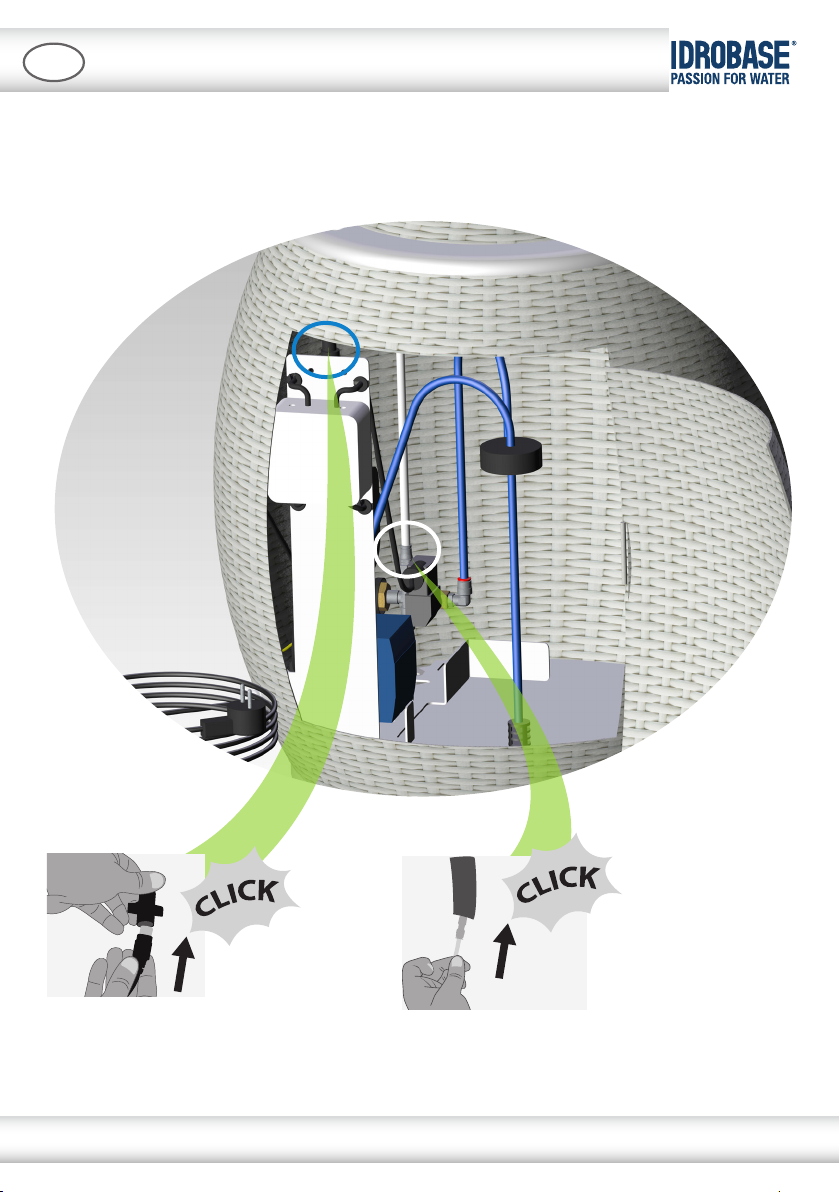

AFTER UNPACKED, PROCEDE WITH:
1. OPEN THE DOOR OF THE RATTAN BASE, GET OUT TANK AND CONNECT:
WATER PIPE
ELECTRIC CABLE
REPLACE TANK AND CLOSE THE DOOR OF THE RATTAN BASE
Copyright ©2017 Idrobase Group. All rights reserved.
35
6 ASSEMBLY AND INSTALLATION
GB
3. PLACE THE TOWER ABOVE THE RATTAN
BASE INSERTING IN THE MIDDLE HOLE, OF
RATTAN BASE, THE WATER CONNECTIONS
TUBE WHITE AND ELECTRICAL BLACK
CORD;
H2O
4. FIX THE TOWER TO THE BASE
TIGHTENING THE HEX SOCKET BUTTON
HEAD CAP SCREWS M6X35;
2. FIX FAN COVER AND FAN COVER
SUPPORT TO THE FAN WITH DOMED
CROSSRECESSED SCREWS M5X10;
5. INSERT THE HOLE CAPS.
1
2
4
5
3
Copyright ©2017 Idrobase Group. All rights reserved.
36
6 ASSEMBLY AND INSTALLATION
GB
5
6
7
6. INSERT THE CENTERING PINS IN THE
TWO SEMITABLES.
7. JOINTHETWOSEMITABLESPOSITIONED
ABOVE THE BRACKETS ATTACHED TO THE
RATTAN TOWER.
8. FIX SEMITABLES TIGHTENING THE HEX
SOCKET BUTTON HEAD CAP SCREWS M6X15
9. SCREW IN NOZZLES
THE INSTALLER MUST SECURELY TO THE FLOOR GROUND THE MACHINE WITH AT LEAST 3 SCREWS OF THE INSTALLER TO
CHOOSE THE METHOD SO AS NOT TO COMPROMIZE THE STABILITY OF STRUCTURE AND COMPONENTS IN IT.
Copyright ©2017 Idrobase Group. All rights reserved.
37
7 - OPERATION AND USE
GB
After lling the tank with clean water and plug connected to the power supply, turn on the machine by pressing
I.
MAKE SURE that the ow of water coming out from the nozzles ring is recovered and does not go to wet elec-
trical components;;
For cleaning and disinfecting the tank see chapter 10;
The sprayed water must evaporate all, there has to be wet in areas near the machine.

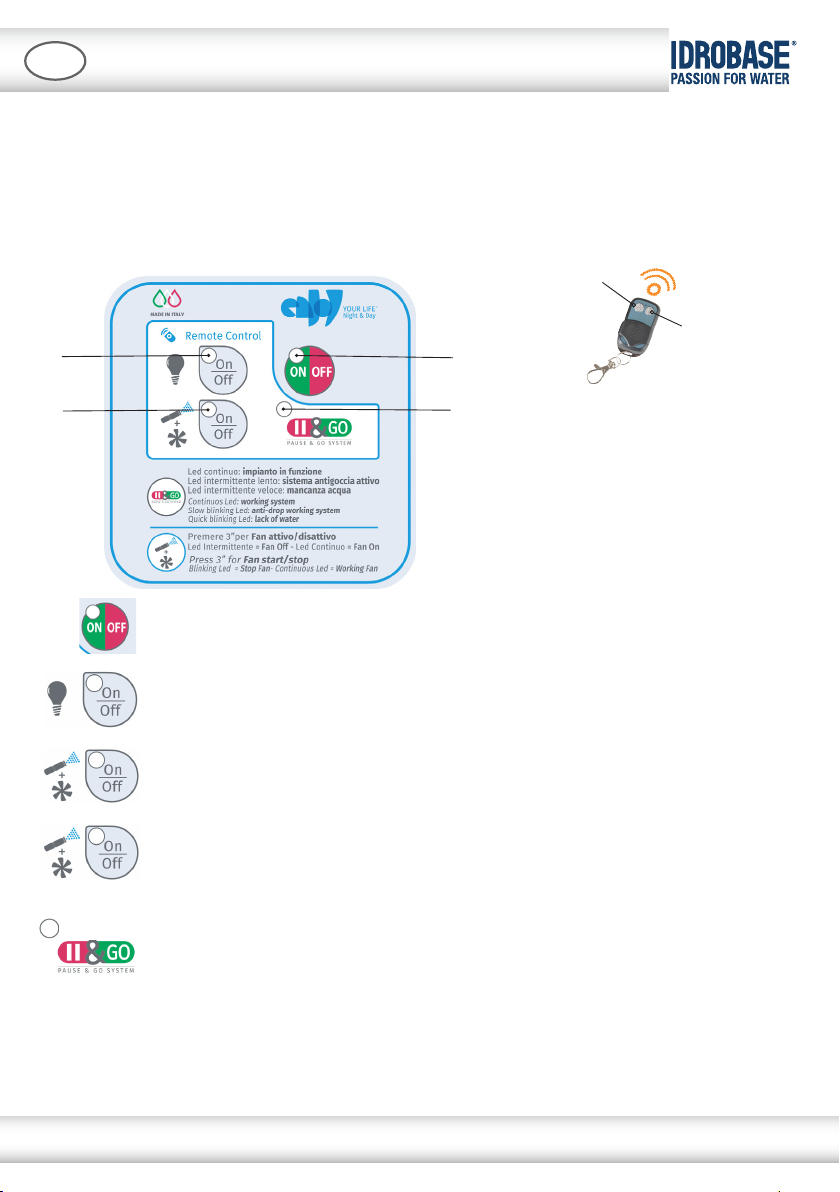

7.1 ELECTRICAL CONTROLS
ON / OFF MACHINE
Pressing this button, the MACHINE turns on or off.
The power of the machine is indicated by the LED.
ON / OFF LIGHTS
With module turned on by pressing this button, the LIGHTS will switch on or off.
The lighting of the lamps is indicated by the LED.
ON / OFF PUMP
With machine on, press this button, it enables or disables the operating cycle of the PUMP.
ON / OFF FAN
Pressing for 3 seconds this button, the FAN activates or deactivates. Fan working is indicated by
the LED continuous light, shutdown is signaled by LED ashing light
BLOCK PUMP
If, during operation of the pump there is no pressure in the line (tank empty or broken hydraulic
hose), the pump stops. This is indicated by the LED light ashing quickly.
After verifying the cause of the block (the tank is empty or broken plumbing pipe) and have in-
tervened to restore the operation of the machine, turn off and on by pressing the ON / OFF and
restart operating cycle of the pump pressing button ON / OFF PUMP.
ENABLING AND DISABLING RADIO CONTROL (Optional)
With machine turned on, if you press for 2 seconds the button ON / OFF, it enables or disables
the radio control. The activation of the radio control is indicated by the LED intermittent.
L
P
O
P
I
L
P O
A
MISTING
CONTROL B
LIGHT
CONTROL
FUNCTIONS OF REMOTE CONTROL (optio-
nal)
(A) button on the radio control turns on
/ off the misting, (B) button on the radio
control turns on / off the light.
N.B. If you turn off fan and remote con-
trol, they remain disabled even with tur-
ning the general power off and on.
I
Copyright ©2017 Idrobase Group. All rights reserved.
38
7 OPERATION AND USE
7.2 RANGE OF APPLICATIONS
•Cooling of internal and external areas (only coverage) such as: bars, restaurants, swi-
ming pools, discos, theme parks, meeting places, poultry farms, livestock farming, ma-
chine shop and industries.
•Humidication of internal and external areas .
WARNING!
DON'T USE IN ENVIRONMENTS WHERE EXPLOSIVE POWDERS ARE PRESENT. DON'T USE
TO DISTRIBUTE TOXIC CHEMICALS OR PRODUCTS THAT CAUSE HARM TO PEOPLE OR THE
ENVIRONMENT. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY DAMAGE CAUSED BY
IMPROPER OR INCORRECT USE OR FAILURE TO OBSERVE THE RULES SET OUT IN THIS
MANUAL.
7.3 WORKING LIMITS
Prolonged inactivity (machine stopped) with temperatures lower than 5°C (5 degrees cen-
tigrade) can cause damage or breakage to the pump, hoses, and to the parts in general. It
is therefore advisable to empty the system completely. For more information contact the
retailer or manufacturer.
7.4 WATER CONNECTION TO THE MACHINE
The machine is connected to the system using water hoses still closed dimensioned accor-
ding to the ow and pressure to which the system should work.
The pipes laid shall not have any bending.
Serial connection to the water supply is carried out by a female tting 3/8 "
7.5 LABELS
On the machine and manual signs and pictograms are shown in order to highlight or draw
any hazardous situations or behaviors to be followed for safe operation.
WARNING!
NEVER PUT ANY PART OF THE BODY AND / OR OBJECTS THROUGH THE OPENINGS OF THE
FAN, WHERE THERE IS A NEED, YOU MUST FIRST DISCONNECT THE POWER SUPPLY.
WARNING!
NEVER REMOVE THE SAFETY DEVICES WITHOUT FIRST DISCONNECTING THE VOLTAGE AND
ABSOLUTELY DO NOT TURN ON THE MACHINE WITHOUT THESE DEVICES.
7.6 TRAINING
It is the responsibility of the owner and/or supervisor to assign an operator and train him
in the use of the machine according to the instructions in this manual.
WARNING!
THE SYSTEM MUST BE USED ONLY BY A TRAINED OPERATOR, WHO USES THE MACHINE IN
ACCORDANCE WITH THE INSTRUCTIONS CONTAINED IN THIS MANUAL AND/OR THE MA
NUAL FOR ANY EXTERNAL EQUIPMENT. NO LIABILITY SHALL BE ACCEPTED FOR ANY IMPRO
PER USE OF THE MACHINE NOT ENVISAGED IN THIS MANUAL.
GB
Copyright ©2017 Idrobase Group. All rights reserved.
39
8 CLEANING AND DISINFECTING
8.1 CLEANING AND DISINFECTION
Every day the tank must be emptied and lled with clean water the next day.
After a period of inactivity of the system, before to reuse it, it is better to clean and disin-
fect whole the pipe line. For this operation contact a qualied technician or the retailer.
8.2 REINSTALLATION AND REUSE
To reuse the machine after a period of inactivity carry out the steps in section 9.
8.3 DESTRUCTION AND DISPOSAL
WARNING!
THE DESTRUCTION OF THE MACHINE MUST BE CARRIED OUT ONLY BY A TRAINED PERSON
OR BY A QUALIFIED TECHNICIAN.
When it has been decided to destroy the machine and render it unusable it is recom-
mended that all parts which could be dangerous are rendered safe, removing all of the
electrical components, while conforming to current legislation regarding the scrapping of
these materials. The various components should be brought to the appropriate recycling
centres.
WARNING!
THE DISPOSAL OF THE MACHINE MUST BE CARRIED OUT ACCORDING TO THE LAWS OF THE
COUNTRY IN WHICH IT IS TO BE DISPOSED.
FUR FURTHER INFORMATION CALL
+39 049 93 35 136
GB
Copyright ©2017 Idrobase Group. All rights reserved.
40
9 MAINTENANCE
WARNING!
EVERY TIME THE MACHINE IS CLEANED OR MAINTAINED IT MUST FIRST BE STOPPED BY
FOLLOWING THE STEPS DESCRIBED IN PARAGRAPH 8.4.
TO GUARANTEE MACHINE SAFETY, YOU ARE ADVISED TO USE ONLY SPARE PARTS AUTHORI
ZED BY THE MANUFACTURER. DO NOT CARRY OUT TEMPORARY OR DANGEROUS REPAIRS.
CAUTION!
DURING OPERATION, THE SYSTEM MUST MAINTAIN A NOISE LEVEL THAT COMPLIES WITH
LEGISLATION. FURTHERMORE, THERE MUST BE NO WATER LEAKAGE FROM THE PUMPING
MODULE OR THE LINE.
9.1 MAINTENANCE
MACHINES contain a high pressure water supply, an electric motion system and a control
system that need a big maintenance. Everything works, most of the time, in awful climatic
conditions: bad weather, humidity, ice, hot, hard and non-stop usage and, not always
adequate water, not always strained fuel.
The solution is preventing breakages. How to do it?
Simply replacing the components before they cause breakages.

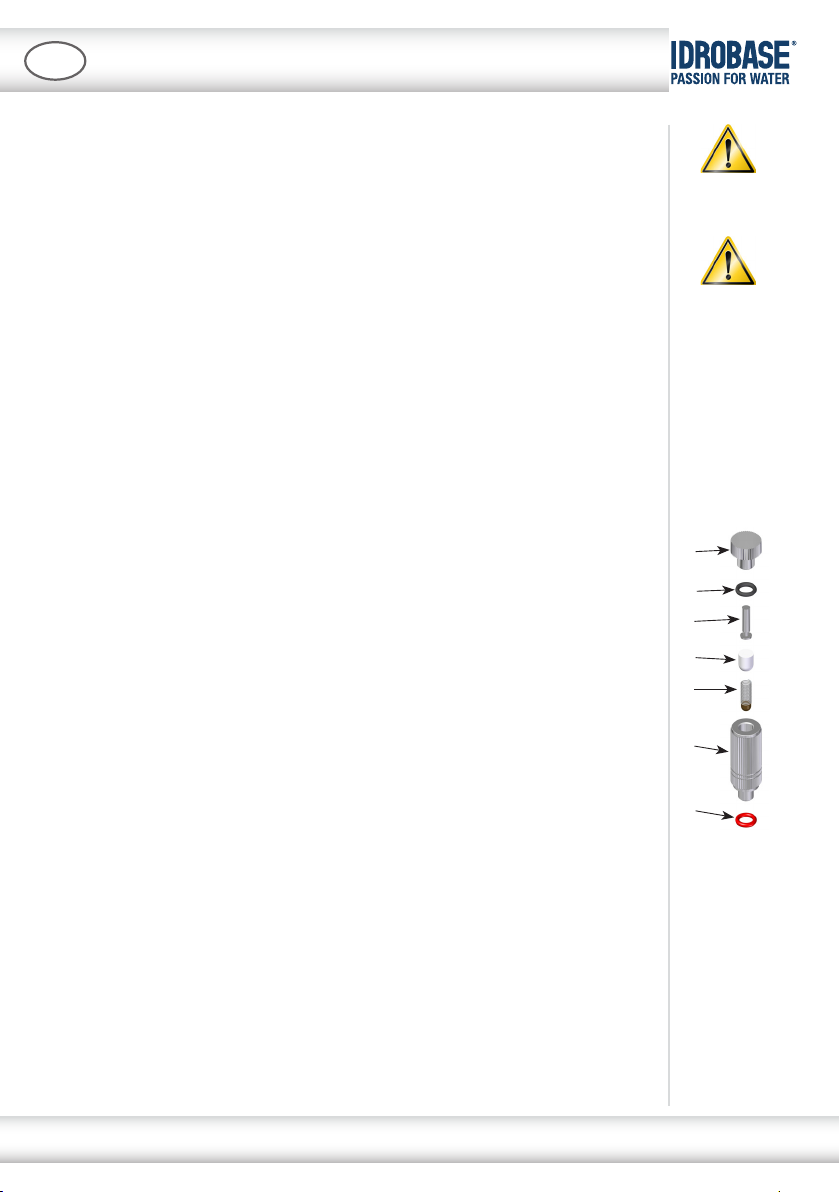

9.2 CLEANING NOZZLES
Check every 50 hours the proper functioning of the nozzles of the crown group that could
get clogged due to the formation of limestone or using unclean water. A nozzle is clogged
note because drips or has a spray angle is not uniform.
To clean the nozzle follow the procedure:
- Disassemble the nozzle unscrewing the stainless steel body (1);
- Soak for 4 hours in a mixture, 80% distilled water 20% white vinegar, the components
stainless steel body with o-ring (1), impeller plate (2), stainless steel spring with rubber
ball seal (3), stainless steel adapter with o-ring (4);
- DO NOT soak the lter (5), but clean it with air or replace depending on its wear;
- Reassemble the nozzle.
When replacing the nozzles in the nozzles ring do not tighten with excessive force. Each
contact tip stamped its own characteristics, ow and spray angle.
9.3 CLEANING WATER INTAKE FILTER AND TANK
Locate the water inlet lter connected to the water intake pipe and place inside the tank
and clean with sanitizing products.
Clean the tank that is located inside the rattan base, with sanitizing products.
GB
1
2
5
3
4
1
4
Copyright ©2017 Idrobase Group. All rights reserved.
41
9 MAINTENANCE
9.4 ELECTRIC SYSTEM
Check annually the functioning of the electrical system and check the fastening of the
links. The change of temperature and possible vibrations can cause loosening of the elec-
trical connections with its overheating.
WARNING!
IT IS GOOD TO REMEMBER THAT THE MAINTENANCE CARRIED OUT PROPERLY, CAN MINIMI
ZE THE DOWNTIME DUE TO FAILURE.
A REPAIR DONE IN A TIMELY MANNER TO AVOID FURTHER DETERIORATION.
USE AS MUCH AS POSSIBLE, ORIGINAL SPARE PARTS.
9.5 WEEKLY MAINTENANCE
•Power cable in good condition
•Water pipes and ttings in optimum condition and undamaged.
Replacing the nozzles that spray visually unevenly even after they are cleaned.
GB
Copyright ©2017 Idrobase Group. All rights reserved.
42
10 DESTRUCTION DISPOSAL
GB
WARNING!
THE DESTRUCTION OF THE MACHINE MUST BE CARRIED OUT ONLY BY A TRAINED PERSON
OR BY A QUALIFIED TECHNICIAN.
When it has been decided to destroy the machine and to render it unusable, It is recom-
mended that all parts which could be dangerous are rendered safe, removing all of the
electrical components, while conforming to current legislation regarding the scrapping of
these materials. The various components should be brought to the appropriate recycling
centres.
WARNING!
THE DISPOSAL OF THE MACHINE MUST BE CARRIED OUT ACCORDING TO THE LAWS OF THE
COUNTRY IN WHICH IT IS TO BE DISPOSED.
Copyright ©2017 Idrobase Group. All rights reserved.
Table of contents
