IDW GD-14 User manual

990 N. Amelia Avenue, San Dimas, CA 91773 • www.idw-usa.com
ofce 909.447.8254 • fax [phone] • toll free 877.307.2665
GD-14
Double Door
beverage Cooler
Instruction Manual
Manual is for the
following models:
GD-14-C13EB

GD-14
Innovative DisplayWorks
2
TABLE OF CONTENTS
Parts & Identication................................................. 3
Safety Precautions ................................................... 4
Features ................................................................... 5
Instructions ............................................................... 5
Ambient Environment ............................................... 5
Preparation Before Operation................................... 6
Replacing the Interior Light....................................... 7
Replacing the Door LED Lights ................................ 8
Replacing the Canopy Light ..................................... 9
Startup, Operation & Temperature Adjustment....... 10
Repair & Maintenance for Refrigeration Drawer..... 10
Condenser Maintenance .........................................11
Maintenance............................................................11
Canopy Graphics Replacement.............................. 12
Setting Up Power Cord Holder ............................... 12
Troubleshooting...................................................... 13
After-Sales Service................................................. 13
Circuit Diagram....................................................... 14
FOR YOUR FUTURE REFERENCE
■Thank you for using our product. This manual will guide you in getting the best use of your cooler.
■Remember to record the model and serial number located on the back of the cooler.
■Staple your receipt to your manual. You will need it to obtain Warranty Service.
Model #:
Serial #:
Date of Purchase:
Manual is for the following models:
GD-14-C13EB
GD-14
Instruction Manual

Instructional Manual GD-14
Innovative DisplayWorks
43
23. Inside fan cover (2)
24. Evaporator fan (2)
25. Top right trim
26. Top left trim
27. Door gasket (2)
28. Lampshade (2)
29. Left glass door
30. Right glass door
31. Side LED light (8)
32. Lamp wire (4)
33. Long lamp wire (2)
34. Bottom right trim
35. Bottom left trim
36. Rubber cover (2)
37. Front grill
38. Front grill clip (2)
39. Compressor base
40. Condenser
41. Condenser fan
42. Fan cover
43. Compressor connection pipe
44. Drip pan
SAFETY PRECAUTIONS
When using this appliance, always follow the basic safety precautions:
1. Read the entire User’s Manual before operating this appliance.
2. Use this appliance only for its intended purpose as described in this User’s Manual.
3. This cooler must be properly installed in accordance with the installation instructions before being used.
See grounding instructions on page 6.
4. Never unplug your cooler by pulling on the power cord. Always grasp the plug rmly and pull it straight out
from the outlet.
5. Unplug your cooler before cleaning or making any repairs. Note: If for any reason this product requires service,
we strongly recommend that a certied technician perform the service.
6. Immediately repair or replace all electrical cords that have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.
7. This cooler should not be recessed or built into an enclosed cabinet. It is designed for freestanding
installation only.
8. Do not operate or store your cooler near or around explosive fumes, gasoline or other ammable vapors
and liquids.
9. Setting the temperature control to the 0 position does not remove power to the light circuit, perimeter
heaters, or evaporator fans.
Please save these instructions!
DANGER!
Proper Disposal of the Refrigerator
To prevent any risk of child entrapment when discarding your cooler remove the doors and leave the shelves in
place so that children cannot easily climb inside.
PRE-CAUTION, NON-OPERATING COOLERS SHOULD HAVE:
1. Glass door removed.
2. Shelves kept in place in order to prevent any small child from climbing inside cooler.
FOR PROPER DISPOSAL OF COOLER: Distributors / retailers need to contact a qualied service technician:
1. To recover all Freon/refrigerant from the cooler
2. To remove the compressor or remove the oil from the compressor
Then the distributor/ retailer can contact their local metal recycling center to pick up the remaining cabinet,
shelves, etc. By law, disposal of hazardous wastes may be subject to nes and imprisonment under the
provisions of the environmental regulations. For more information please visit: http://www.epa.gov/osw/hazard/
index.htm
1. Cabinet
2. Interior LED
3. Interior lights cover
4. Interior lampshade board (2)
5. Canopy LED
6. Left top hinge
7. Right top hinge
8. Canopy top bracket
9. Canopy
10. Canopy blanking cap
11. Canopy liner
12. Canopy bottom bracket
13. Evaporator bracket (2)
14. Evaporator
15. Wire Sleeve
16. Outlet pipe
17. Outlet pipe cover
18. Inner drip pan
19. Drip pan plate
20. Switch (2)
21. Thermostat
22. Thermostat mark
45. Outlet pipe
46. Filter connection
47. Compressor
48. Capacitor
49. Starter relay
50. Overload protector
51. Shelf (4)
52. Shelf clip (16)
53. Shelf strip (4)
54. Clip
55. Filter bracket assembly
56. Filter
57. Cabinet bracket
58. Caster (4)
59. Beam plate
60. Heating wire
61. Beam trim
62. Foam insulation
63. Beam
64. Right bottom hinge
65. Combined connection wire
66. Side plate (2)
1
4
3
2
白色
白色
1
2
3
4
5
6
7
89
10
11
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
25
26
27
28
29
33
32
30
34
35
36 37 38
31
84
12
59
60
61
62
63
13 14 15
16
17
18
19
20
21
22
23
24
39
40
41
42
43
44
46
47
49
50
45
48
54
57
58
55
56
51
52
53

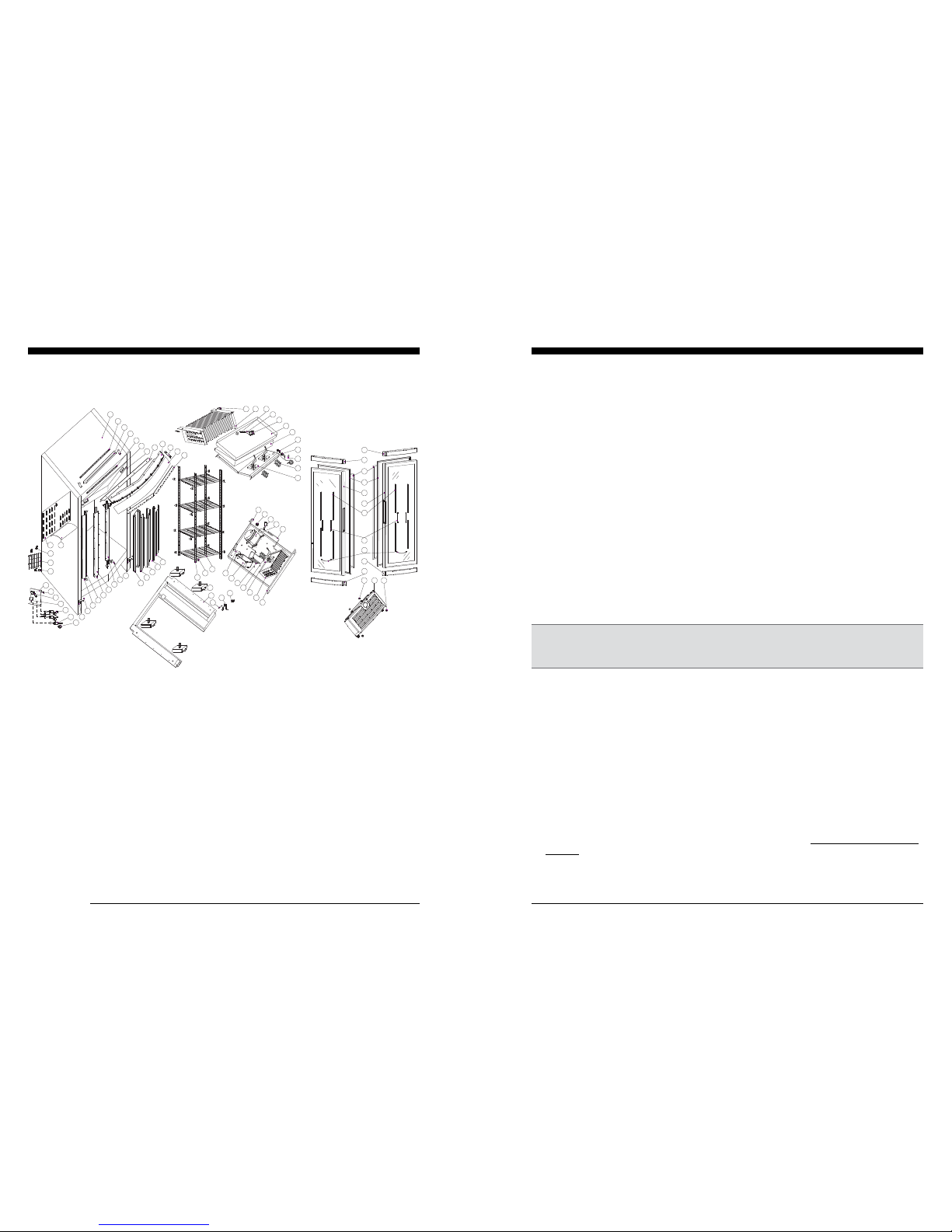

PARTS & IDENTIFICATION
67. Middle plate
68. Water hose
69. Side plate
70. Circle pipe
71. Nylon washer (2)
72. Left bottom hinge
73. Transformer box (3)
74. Transformer #1
75. Transformer #2
76. Defrost timer
77. Junction box
78. Retaining plate bracket
79. Retaining plate
80. Power Cord
81. Back grill
82. Hang line stents
83. Rearbafeplate
84. Front plate (2)

Instructional Manual GD-14
Innovative DisplayWorks
65
PREPARATION PRIOR TO OPERATION
• Remove all packaging materials before using cooler.
This includes: foam pedestal, adhesive tape (used to x accessories) and protective gaskets.
• Inspect cooler for concealed damage. Immediately le a claim with the freight carrier if there is damage.
IDW is not responsible for damage incurred during shipping.
• For proper operation, place the cooler on a dry, level surface.
• Clean the interior surface with a soft cloth and lukewarm water before operation.
• Keep cooler in an upright position for 30 minutes prior to use.
• IDW requires that a sole use circuit be dedicated for the unit. Failure to do so voids warranty.
WARNING: Do not use extension cords.
WARNING: Compressor warranties are void if compressor burns out due to low voltage.
WARNING: Power supply cord should not be removed or altered in any way.
Shelving Installation
• Position all four shelf clips equal in distance from the
oor for at shelves.
• Hook shelf clips on shelf strip.
• Place shelf on shelf clips.
FEATURES
• Designed with an elegant shape and quick refrigeration speed, this commercial-grade product is an
ideal choice for shopping malls, supermarkets, hotels, etc.
• Transparent glass doors are built with hollow, toughened glass that provides a high level of heat
insulation. Clear doors allow for high product visibility.
• The forced air system allows for fast cooling speeds, which helps maintain a consistent temperature.
• Adjustable shelves allow for a wide variety of products to be stocked.
• The refrigeration unit is designed for easy access, allowing for fast and simple repairs.
• This equipment is intended for storage and display of non-hazardous packaged product.
INSTRUCTIONS
Ambient Environment
• Place cooler on an even surface to reduce vibration and noise.
• To transport, do not tilt the cooler beyond a 45 degree angle.
• Do not place cooler in direct sunlight or near any heat sources.
• Do not place cooler in environment temperatures that exceed 109°F.
• Do not place cooler in below normal temperatures.
• Do not place cooler in extreme humid environments, this may cause components to rust.
• Do not place cooler near constant running or splattering water, this may cause immediate damage to
refrigeration system.
• Must allow at least 2” between rear of cooler and wall for proper ventilation and heat dissipation of
cooler.
• Do not place furniture or other articles with sharp edges near the cooler in order to prevent damage to
the glass door.

Instructional Manual GD-14
Innovative DisplayWorks
REPLACING THE DOOR LED LIGHTS
1 Unplug the cooler.
2 Remove light cover.
3 Disconnect top light strand.
4 Disconnect middle light strand.
5 Unscrew light strand.
REPLACING THE INTERIOR LIGHT
1 Unscrew (4) screws using a Philip’s screwdriver and remove the plastic cover.
5 To install LED lights follow the above directions in reverse order.
2 Disconnect the lights.
4 Remove LED light strand.
3 Unscrew (3) screws using a Phillip’s screwdriver.
87
6 Remove entire light strand.
7 To install LED lights follow the above instructions in reverse order.
Notes: If there are any malfunctions with the main control panel of LED lights,
please contact a professional for replacement.

Instructional Manual GD-14
Innovative DisplayWorks
STARTUP, OPERATION AND TEMPERATURE ADJUSTMENT
Operation
• Prior to stocking cooler with product, it should be operated empty for half an hour.
Temperature Adjustment
REPAIR AND MAINTENANCE FOR REFRIGERATION DRAWER
* A CERTIFIED TECHNICIAN IS REQUIRED TO REPAIR ALL REFRIGERATION COMPONENTS FOR
WARRANTY PURPOSES.
For convenient repair, the refrigeration components (compressor, evaporator, condenser, evaporation fan,
condensation fan and lter) are designed using a split system; any component can be easily replaced.
Replacement procedure is as follows:
1 Unplug the unit.
2 Remove the screws from the front grill, and then remove the grill.
• GD-14 performance testing position of the thermostat is around 3.5-5.
3 Using a screwdriver, remove screws
from refrigeration drawer.
4 Slide the Refrigeration Drawer out to easily access refrigeration components.
Remove the component to replace or repair.
5 After repair, re-install all parts using the reverse procedure.
REPLACING THE CANOPY LIGHT
1 Unscrew the Graphics Holder on the Left Hand Side of the Top Canopy
2 Carefully slide out the entire Graphics piece.
6 To install LED lights follow the above directions in reverse order.
3 Disconnect the lights.
5 Remove LED light strand.
4 Unscrew (3) screws using a Phillip’s screwdriver.
109

Instructional Manual GD-14
Innovative DisplayWorks
CONDENSER MAINTENANCE
It is essential to keep the condenser coils clean and free of dust and debris at all times. It is required to
periodically clean the condenser coils with a soft bristle brush or vacuum-cleaner to properly
maintain the refrigeration system. Failure to clean the condenser at regular intervals
may cause failure of the refrigeration system and could void the warranty.
1 Remove the rubber cap from the front Grill.
2 Using a small Phillips head screwdriver, remove the three screws as shown.
3 The front plastic grill can now be removed by pulling it up.
4 Using plastic bristle brush, carefully clean the coil being
aware that coils can bend or be damaged if too much
force is used - shown left.
5 Replace grill and utilize the Phillips
screwdriver to tighten the screws into place,
replace the rubber caps.
MAINTENANCE - Cleaning Shutdown Questions and Answers
Cleaning and Maintenance
1 Unplug the cooler before cleaning.
2 Use a soft cloth or sponge with water or soap (non-corrosive mild detergent), while cleaning.
After cleaning, wipe the cooler using dry cloth to keep the cooler from rusting.
3 Do not spray water on the cooler, and do not use hard or steel brushes to clean the cooler.
4 Do not use organic solvents, boiling water, washing powder or acid while cleaning.
If the cooler’s power will be off for a long period of time, unplug it, clean as instructed above, and keep door
open until dry.
CANOPY GRAPHICS REPLACEMENT
1 Unscrew the Graphics Holder on the Left Hand Side of the Top Canopy
2 Carefully slide out the entire Graphics piece.
3 Replace with a new Graphics piece.
4 Carefully insert and slide in the new Graphics piece.
5 Fix the Graphics Holder by fastening the screw.
SETTING UP SPACER & POWER CORD HOLDERS
The GD-14 is supplied with one set (2 pieces) of Spacers to hold the extra
length of Power Cord (shown in picture below)
1 Take out the two Spacers and screws supplied in the
Accessory Pack shipped with the Cooler.
2 Use a Philip’s screw driver to x the two Spacers at
positions as shown in picture below.
1211

Instructional Manual GD-14
Innovative DisplayWorks

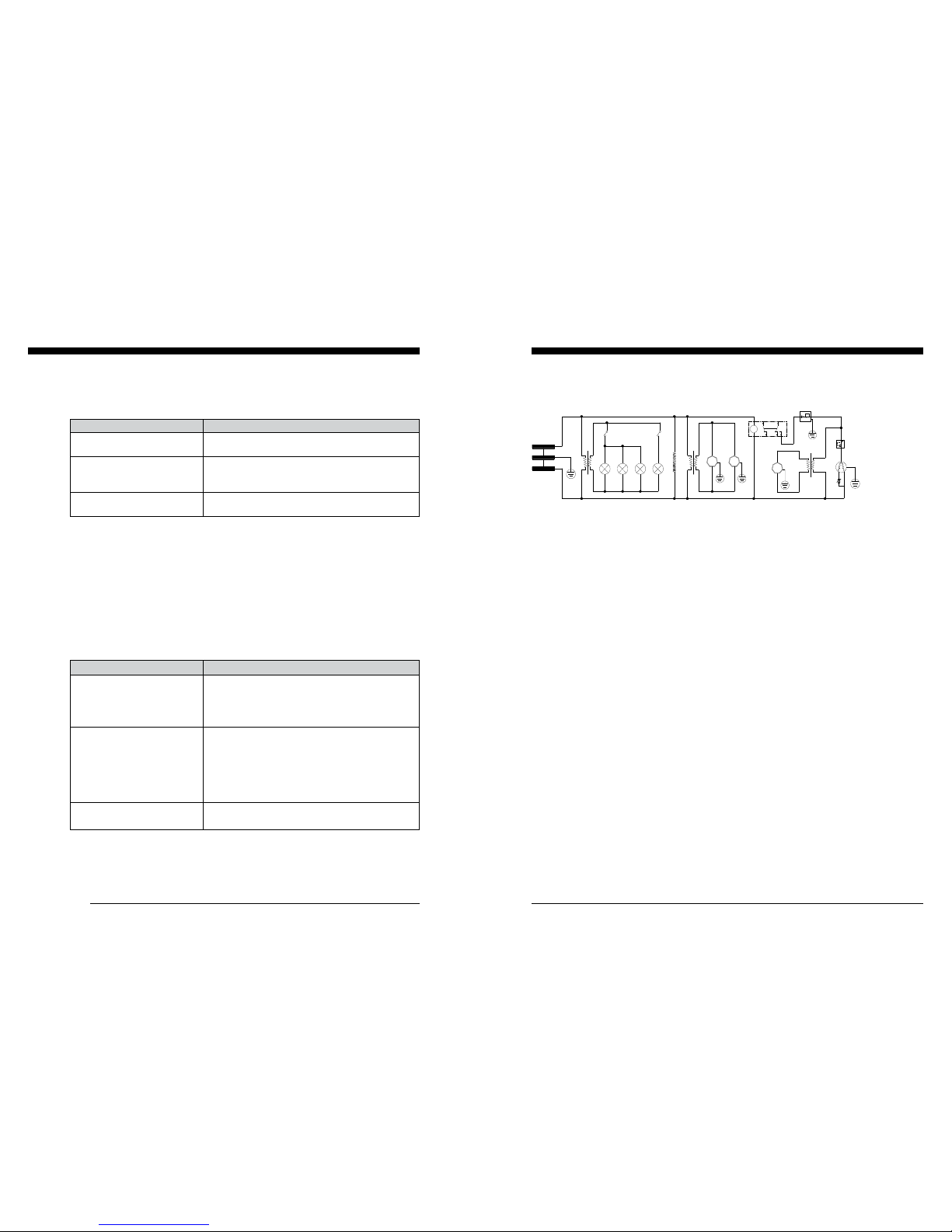

Troubleshooting
The following are not Malfunctions:
Issues Solutions
Liquid owing noise within cooler This liquid is the sound of the cooling agent owing through
the pipes.
Refrigeration system is shutdown for
longer periods of time while tempera-
ture inside is still very low.
This refrigerator has a strong level of heat preservation and
can maintain a relatively ambient temperature.
Condensation on glass door This may be due to a high indoor humidity or a low inside
temperature value may be set. Wipe the door dry with a towel.
1 This refrigerator has been designed and manufactured according to National standards. If there are
any questions during use, refer to this operation manual to help troubleshoot problems.
2 When disposing of the cooler, please remove the door and lock assembly to avoid children accidentally
becoming trapped inside the cooler.
After Sales Service
Any product has the possibility of malfunction. Please observe the cooler’s operation and any changes to
product being stored. If there are any abnormal cases, refer to the table below. If there is still no change
after following the below instructions, please inform our service center in a timely manner to avoid a further
loss of the unit.
Issues Solutions
Cooler is not functioning. Please check power supply:
• Fuse damage
• The plug is not securely inserted into the wall socket
• Check for low voltage
Cooler is not keeping product cool. • Provide ample space between all products to ensure
proper circulation of air.
• Keep unit away from direct sunlight or other heating
source.
• Keep door closed as often as possible.
• Be certain cooler is not touching external objects or walls.
Excessive noise • Be certain the cooler is placed on a level surface.
• Be certain cooler is not touching external objects or walls.
GD-14 CIRCUIT DIAGRAM
1413
XP L
N
S
1
1
L
3
L
4
L
S
2
L
2
F
M
1
I
M
I
T
1
T
2
CO
G
E
T
3
M
I
t
SAT
4
3
2
1
M
D
2
F
F
3
H
XP-Plug
CO-Compressor
G-Startup
E-Outstanding safeguard
SAT-Temperature control
D-Defroster Timer
F
1 、 F 2 -Inner fan
F
3 -Motor fan
L 1 、 L 2 -Door LED Lamp
L
3 -Inner LED Lamp
L
4 -Light box LED Lamp
T
1 -LED Lamp Adaptor
T
2 -Inner fan Adaptor
T
3 -Motor fan Adaptor
S 1 -Door LED Switch
S
2 -Inner LED Switch
H-Heating wire
XP - Plug L1, L2 - Door LED Lamp
CO - Compressor L3 - Inner LED Lamp
G - Start Relay L4 - Light Box LED Lamp
E - Overload T1 - LED Lamp Adaptor
SAT - Thermostat T2 - Inner Fan Adaptor
D - Defrost Timer T3 - Motor Fan Adaptor
F1, F2 - Inner Fan S1 - Door LED Switch
F3 - Condenser Fan S2 - Inner LED Switch
H - Heat Strip

Innovative DisplayWorks, Inc.
990 N. Amelia Avenue, San Dimas, CA 91773
toll free: 877.307.2665
ofce: 909.447.8254
fax: [phone]
www.idw-usa.com
