Ignite COMMUTER User manual

HOW TO ASSEMBLE
YOUR BIKE
COMMUTER
(Elecric Bike)

1. Open the carton and remove the bike. If you remove the
basket rst you’ll be able to remove the entire bike as a single
piece.
2. This is how it will look once out of the box. Remove all foam
packaging, and cable ties. Take care to only remove the
cable ties.
2
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102

3. Once foam packaging and cable ties have been removed this
is how it will look.
4. Using the tool-kit provided, remove the 4 screws on the stem
to get ready to install the handlebars.
3
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL
Basket
Tool kit
Front Wheel
Pedals
Front Wheel
Quick Release
Charger
Front Mudguard

5. Install the handlebars against the stem and then replace the
4 screws to lock in the handlebars.
6. It should look like this.
4
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102

7. You can adjust the angle of the handlebars by losing o󰀨 this
screw and adjusting. Make sure this screw is tight to lock you
handlebars in place.
8. Optional: If you want to install the front mud-guard, remove
the front light by undoing this screw and removing the nut on
the other side.
5
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL

9. Assemble the mudguard, the clip with a hole on it at the top
of the mud guard goes between the front fork, and the light
assembly.
10. It should look like this. Re-tighten this screw and nut on the
other end to lock it in place.
6
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102

11. Adjust the front light so it looks like this picture and then
tighten up the screw. This will allow for enough space to
install the front basket.
12. Optional: If installing the front basket, remove these 4
screws.
7
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL

8
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102
13. Install the front basket and then re-install these 4 screws. 14. It’s now a good time to ip the bike upside down. It will make
it much easier for the next steps. A handy tip is to use some
of the foam packaging to make sure the screen doesn’t get
scratched on the ground.

9
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL
15. If you’ve installed the mud-guard, undo these screws on
each side of the fork, place the mud-guard arm in front of
the hole and re-install the screws on either side.
16. Next step is to install the front wheel. Take note of the gap
here between the brake pads – this is where the disc brake
will sit when you put the front wheel in.

10
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102

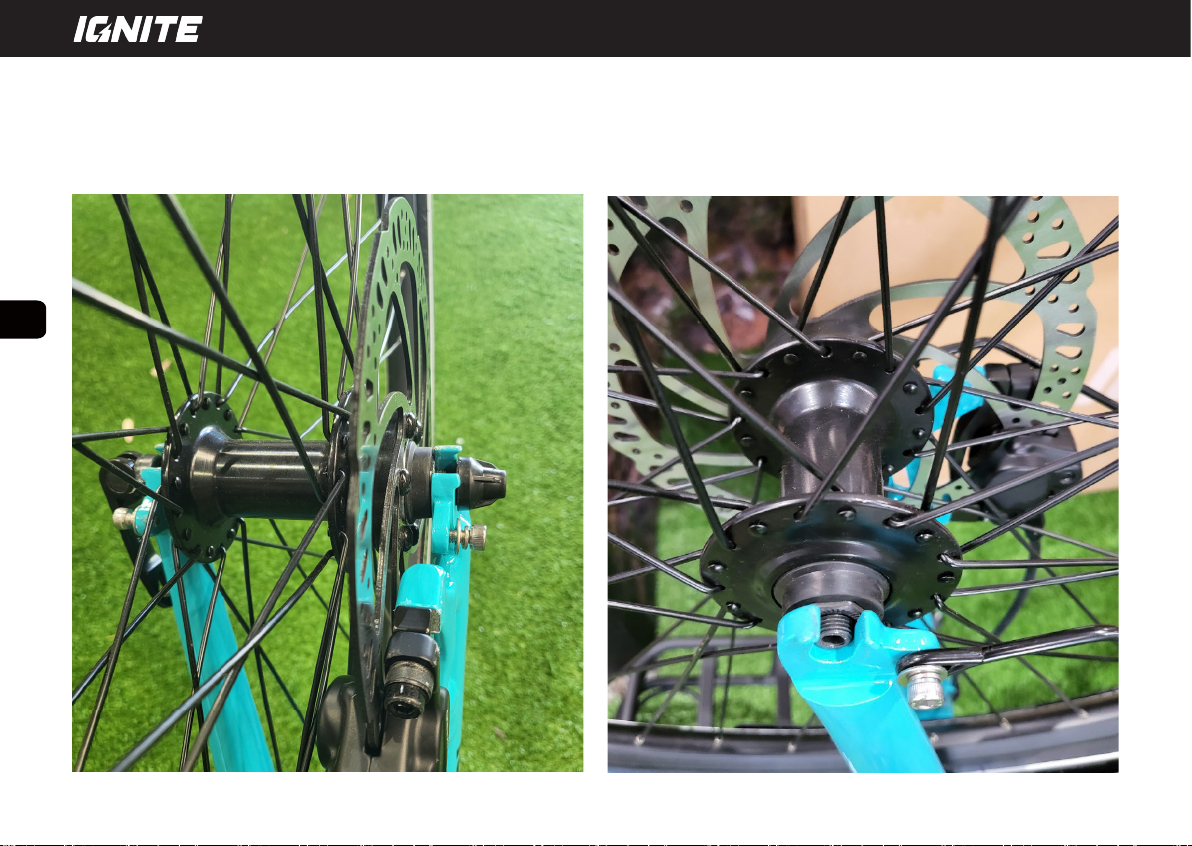

17. Gently place the front wheel into the forks. The disc brake
will sit between the brake pads and the wheel hub will rest
inside the forks.
18. This is how it should look.

11
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL
19. Place the front wheel quick release mechanism through the
entire front assembly so that it looks like this.
20. On the other side, put in the spring and the end cap. Now
simultaneously tighten both sides by counter-rotating the
quick release handle on one side and the end cap on this
side.

12
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102
21. Assemble the pedals. Take note that now that your bike is
upside down the pedal facing you will be the right one. It
should look like this.
22. Tighten the pedal with the special tool located in your tool
kit. Then repeat for the other side.

13
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL
23. Now is a good time to ll your tyres with air. We recommend
45psi but refer to your tyre side-wall for exact details.
24. Adjust your seat to the correct height. Make sure this screw
is tight, and the push in the quick release lever to lock it in
place.

14
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102

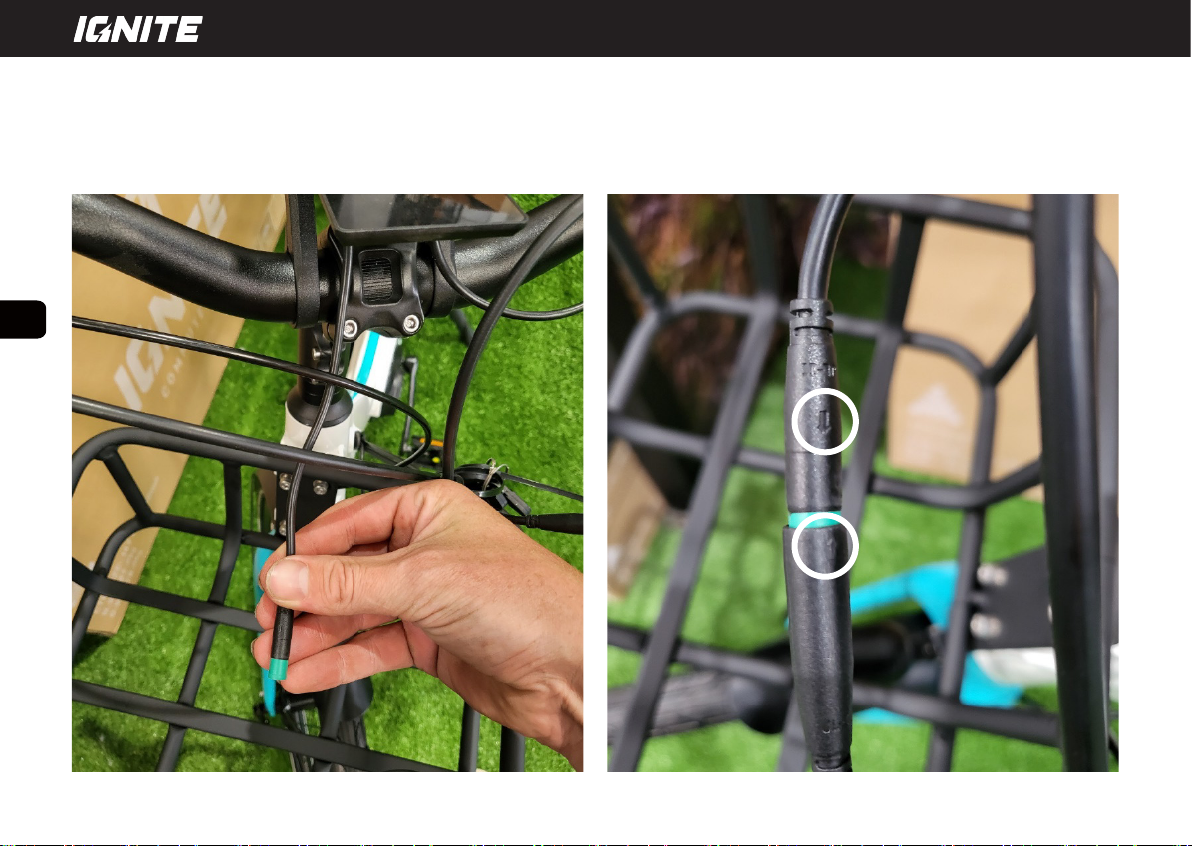

25. Now it’s time to connect the electrics together. It’s a simple
joiner and will bring your eBike to life. With one hand hold
the cable coming from the screen with the green plug. With
the other, nd the female socket to join together.
26. Align the arrows together and push the cables to make
the connection. All of the colour green should disappear to
ensure a good connection.

15
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL
27. To power on your eBike press and hold the power button for
a couple of seconds.
28. This is how your screen will look once turned on.

16
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102
29. These are your keys. One set is for your battery so you can
lock it in place, the other set is for your in-built lock (behind
your seat)
30. This is your in-built lock.

17
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL
31. By undoing this plug you’ll nd your charging point, and also
your USB outlet point (handy for charging up your other
devices)
32. Your charger simply plugs into the wall and then into your
battery. You can leave the battery on the bike, or simply
remove your battery (by putting in the key and then turning
the key. Note that your back pedal-arm will need to face the
rear of the bike to allow your battery to pop out easily.

18
EN
32 Relationship : 1 Nm =8.9 lbf.in =10.2 kgf.cm
Brakes
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Brake
Lever (Flat Bar)
53
-60
6
-6.8
61
-69
Brake
Lever (Drop Bar)
55
-80
6.2
-9
63
-92
Disc
Rotor to Hub (M5 bolts)
18
-35
2
-4
21
-40
Caliper
Mount
55
-70
6.2
-7.9
63
-81
Wheels
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Free
Hub Body
305
-434
34.5
-49
352
-499
Cassette
Sprocket Lockring
260
-434
29.4
-49
299
-499
Front
Axel Nuts
180
20.3
207
Rear
Axel Nuts
260
-390
29.4
-44.1
299
-449
Drivetrain
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Pedal
into Crank
307
34.7
353
Crank
Bolt (Spline and Square Spindles)
300
-395
33.9
-44.6
345
-454
Bottom
Bracket (External Shell)
610
-700
40
-50
702
-805
Bottom
Bracket (Cartridge and Cup-and-Cone)
435
-610
49.1
-68.9
500
-702
Others
Component
lbf.in
Newton
Meters (Nm)
kgf.cm
Steerer
Clamp Bolt (Stem)
70
-89
8
-10
80
-102
Top
Cap Bolt
35
-53 4-6 41-62
Handlebar
Clamp Bolts (4 Clamp Bolts)
36
-53
4
-6
41
-62
Saddle
Rail Clamp
70
-89
8
-10
80
-102
33. All done! Give everything a quick check-over per the usual
manual and once all OK it’s time to go exploring!

19
3
Thank you for choosing an Ignite e-Bike. This manual has been designed to help get a better understanding of you Commuter eBike.
The Commuter eBike is compliant to Australian standards (EN15194).
Items in carton:
When you open the carton, please check if the following items are inside. If not, please contact with your agent.
1. Introduction
EN
Charger -1pcs Pedal -1pair Manual -1pcs
USER MANUAL
