igus i.Sense CF.D User manual
Table of contents
2/13
Manual i.Sense CF.D - V 1.1
Table of contents
1Introduction ...................................................................................................... 3
2Safety Notices, Protective Measures and Guidelines ................................... 4
2.1 Important Notes................................................................................. 4
2.2 Qualified personnel ........................................................................... 4
2.3 Electromagnetic compatibility............................................................ 5
3Product ............................................................................................................. 5
3.1 Modes ............................................................................................... 5
3.2 Specifications .................................................................................... 6
4Installation ........................................................................................................ 7
4.1 Mechanical installation ...................................................................... 7
4.2 Electrical installation.......................................................................... 7
4.2.1 Selection of power supply ................................................................. 7
4.2.2 Plug assignment and sensor connection........................................... 7
5Configuration mode ......................................................................................... 8
a. New Connection................................................................................ 8
b. Saved Networks ................................................................................ 8
c. Exit .................................................................................................... 8
d. Update............................................................................................... 8
6Commissioning ................................................................................................ 8
6.1 Adjusting the threshold value (i.Cee:plus II user interface) ............... 9
7Warnings and errors .......................................................................................11
8Maintenance ....................................................................................................11
9Troubleshooting..............................................................................................12
10 FAQs ................................................................................................................12
11 Accessories.....................................................................................................12
12 Abbreviations ..................................................................................................12
13 Definition..........................................................................................................12
14 Service .............................................................................................................13
Introduction
3/13
Manual i.Sense CF.D - V 1.1
Thank you
For deciding for our product i.Sense CF. D!
With i.Sense CF. D it is possible to monitor the cable quality of a network cable according to CAT specification without victim
cores. Following the way the product works is installed is described.
The product handed over is a BETA product, which means that CE conformity is not given, and some technical details may be
different in the final product.
If you have any further questions, do not hesitate to contact our customer service. The contact details can be found on p.13.
Have fun with i.Sense CF.D!
The following information boards will appear a few times in the manual, they are classified so that the degree and type of hazard
are marked.
Safety instructions marked with DANGER indicate an immediate danger situation.
Failure to comply with the information inevitably leads to a serious or even fatal accident.
DANGER!
Safety instructions marked with WARNING indicate a possible dangerous situation.
Failure to comply with the notice may lead to a serious or even fatal accident or damage to property.
WARNING!
Safety instructions marked with CAUTION indicate any dangerous situation.
Failure to comply with the notice may result in an accident or property damage.
CAUTION!
Safety instructions marked with NOTE indicate a possible dangerous situation.
Failure to comply with the notice may result in property damage.
General information and explanations are also marked in this way.
NOTE!
1 Introduction
The igus®smart plastics predictive maintenance concept makes statements about the service life of igus®products and
continuously compares them with the values determined by igus®in the laboratory and the condition of the products.
i.Sense CF.D is a set of two microprocessor-based modules, which are equipped with an input and an output port and are
installed in the line to be measured.
i.Sense CF.D is not a safety component within the meaning of the Machinery Directive and must not be part of the safety concept.
i.Sense CF.D is not a safety component within the meaning of the Machinery Directive and offers no protection
against personal injury.
Failure to do so can lead to serious property, damage and personal injury.
CAUTION!
Safety Notices, Protective Measures and Guidelines
4/13
Manual i.Sense CF.D - V 1.1
2 Safety Notices, Protective Measures and Guidelines
2.1 Important Notes
Read this manual carefully before commissioning the i.Sense CF.D. Familiarize yourself with the safety instructions and make
sure that the required protective measures are followed.
This manual has been prepared to the best of our knowledge and belief. It is used for technical documentation and to support the
user during commissioning. The warnings and safety instructions as well as instructions issued by igus®regarding i.Sense CF.D
have to be passed on to the end user if i.Sense CF.D is used as part of an overall system.
igus®GmbH only assumes a warranty for products from igus®in accordance with the standards, norms and specifications in
this manual. The warranty extends exclusively to the exchange or repair of a defective i.Sense CF.D. No liability is assumed for
consequential damages and consequential errors.
igus®GmbH assumes no responsibility for the integration of the i.Sense CF.D into the overall system.The responsibility for this
lies with the system designer or the end user. Please note the information under
"Qualified personnel".
igus®GmbH assumes no liability for personal injury or property damage resulting from incorrect use or unauthorized technical
changes to the i.Sense CF.D.
igus®GmbH reserves the right to make changes and optimizations to the product or technical documentation at any time without
prior notice.
The i.Sense CF.D may only be used if:
- All installation instructions and safety instructions mentioned in this manual have been followed.
- The housing has been professionally installed in accordance with valid ESD & EMC regulations.
- No changes have been made to an i.Sense CF.D and it is in a technically perfect condition.
- The operating limits indicated in the technical data (p.6) are complied with.
2.2 Qualified personnel
Sebastian Probst
The i.Sense CF.D may only be operated by a qualified specialist.
- The staff must have read and understood this manual and any existing additional documentation.
- Personnel must be familiar with all relevant applicable standards, regulations and accident prevention regulations.
- Whereas the training of the personnel must enable them to foresee or identify any dangers which may arise in the use of
the control system;
- Personnel must be able to ensure the safety of persons and objects when using the sensor unit in the overall system.
- Personnel must be trained in the handling of ESD sensitive equipment and take all necessary precautions.
Product
5/13
Manual i.Sense CF.D - V 1.1
2.3 Electromagnetic compatibility
- Risk of injury due to interference of signals and devices
Disturbed signals can cause unforeseen device actions.
Perform wiring according to EMC guidelines. Failure to comply with these precautions may result in death, serious injury
or material damage.
WARNING!
EMC measures
Effects
Device
assembly
Use cable clamps for shield support,
connect metallic parts over a large area
Good conductivity due to flat contact
Add switching devices such as contactors,
relays or solenoid valves with interference
suppression combination or spark
extinguishing elements (e.g. diodes,
varistors, RC links).
Reduce mutual interference coupling.
Wiring
Keep cables as short as possible
Avoid capacitive and inductive interference couplings
Do not lay sensor cables and signal cables
together with cables for DC and AC voltage
above 60 V in a cable duct.
Avoidance of mutual interference coupling
Ground shields of digital signal lines on both
sides over a large area or via conductive
connector housings.
Avoid interference with control cables, reduce emissions.
3 Product
3.1 Modes
Mode
Description
Config mode
- Updates and firmware reset
Measuring mode
- Determination of the data after start of the measurement, setting of the measurement
parameters
Product
6/13
Manual i.Sense CF.D - V 1.1

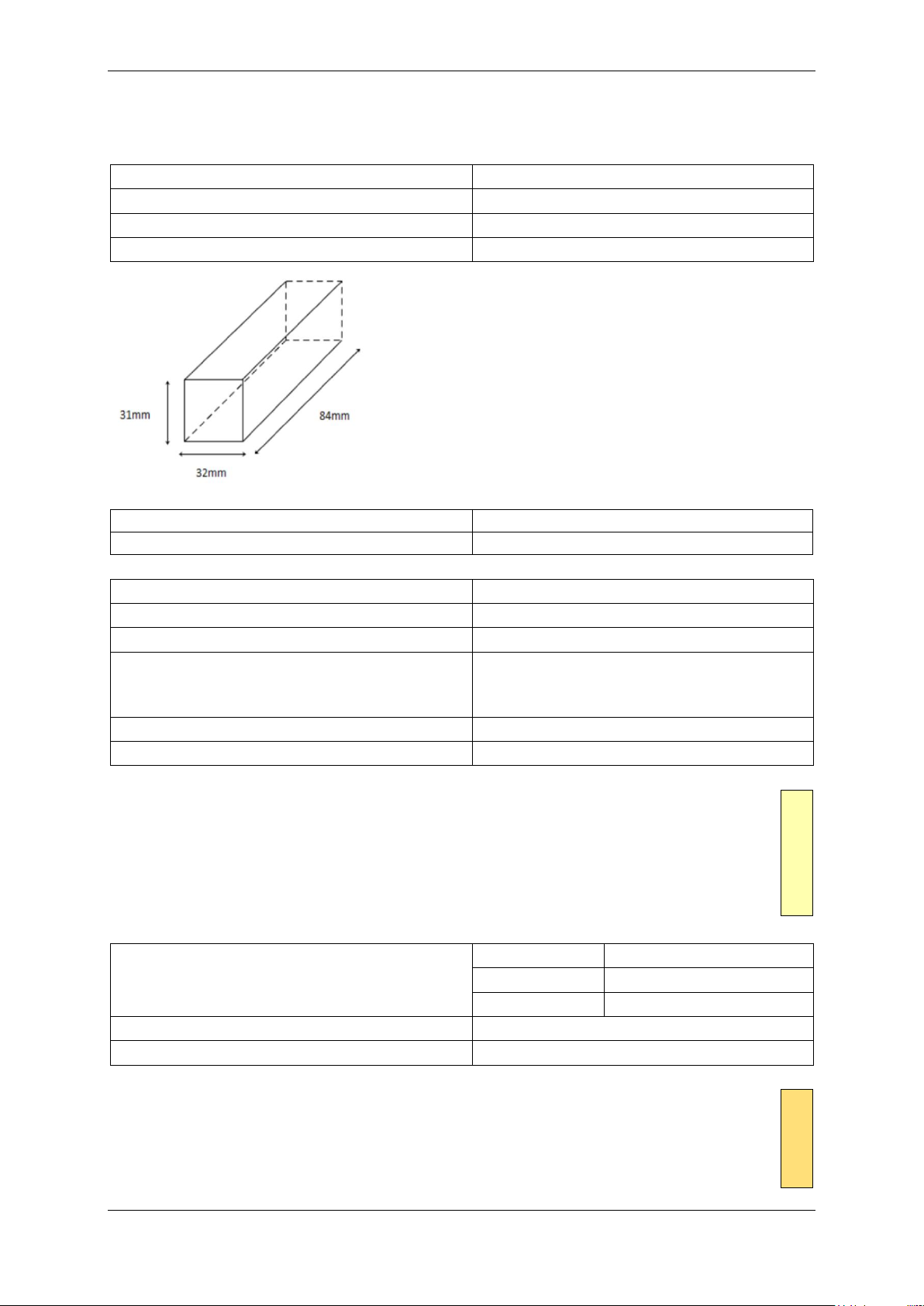

3.2 Specifications
Mechanical Specifications
D x W x H in millimeters
31 x 32 x 84 mm
Weight in grams
Approx. 50 g
Fastening / Assembly
Built into network transmission cable
Case
Black or golden aluminum housing
Interfaces
UART
5V 115200 baud, 8N1, no parity
Ethernet
100 Mbit/s, connection of the line to be measured
Electrical Specifications
Power supply
5 V DC
Rated current
0.15 A
Measurement interval
1s –24h
Configuration optionen
- Measurement interval (in seconds)
- Measuring frequency/ measuring channel (0 - 9)
- Output power
Frequency band
868... 886 MHz
Output power
3... 100 mW
- Risk of destruction
An operating voltage above the voltage specified in the technical data destroys the i.Sense CF.D. Select an operating
voltage that is within the voltage range specified in the technical data.
Be aware of possible disturbances and induced voltages caused by other consumers and/or motors and plan appropriate
safety reserves and countermeasures. Make sure that your power supply is back-proof if the logic and load voltage are
supplied from the same power supply or transformer
CAUTION!
Ambient conditions
Temperature range
Operation
-20... 40 °C
Storage
-40... 45 °C
Transport
-40... 45°C
Relative humidity
≤ 90%, non-condensing
Protection
IP 30/ DIN EN 60529
- Risk of malfunctions
- Fire
- Danger of explosion
- Risk of electric shock
Operate i.Sense CF. D not in water, humid environments or in aggressive, flammable or explosive atmospheres.
WARNING!
Installation
7/13
Manual i.Sense CF.D - V 1.1
4 Installation
4.1 Mechanical installation
- Installing modules in network cable
- Stickers symbolize direction
- e-chain®on stickers in the direction of the cable to be measured, screen on stickers
in the direction of the further transmission path (switch/consumer)
- Avoid heat build-up, provide sufficient ventilation
- Protect from moisture
4.2 Electrical installation
- Risk of electric shock
- Danger of electric arcs
- Injury driving
- Risk of component destruction
Always turn off the power supply before disconnecting or establishing electrical connections in the system. Secure the
power supply against re-activation.
After turning off, wait at least 5 minutes for the capacitors to discharge. Check the absence of voltage before working in
the system.
Occurrence of electric arcs in the case of electrical connections that are not properly installed. To i.Sense CF.D
connected cables must not have exposed and stripped wire ends. In addition, ensure that all connections are securely
seated.
WARNING!
4.2.1 Selection of power supply
Information on suitable power supply in technical data,connection via USB.
4.2.2 Plug assignment and sensor connection
The plug connections run according to the scheme as described below:
Connection
Ethernet in
USB-cable
Ethernet out
i.Sense CF.D
A minimum distance of 2m
must be maintained
between the two modules.
NOTE!
Commissioning
8/13
Manual i.Sense CF.D - V 1.1
Installation scheme
5 Configuration mode
1) Press and hold the button for about 10 seconds until LED magenta lights up
2) Connecting the phone/PC to the WiFi network "Master-Calm-xxxx" or "Client-
Calm-xxxx".
3) Wait for a pop-up browser to open with the web page and portal
4) In the portal there is a menu hidden behind the icon with the three horizontal
lines. Within this menu there are four options. Three of them are directly visible,
one is hidden for the time being.
a. New Connection:
Lists WiFi networks in range. After entering the correct password, the module connects to the
network. If the connection is disconnected, reload the page or perform the same step again.
Although this does not help, the distance from module to WLAN access point may be too large,
reduce distance
b. Saved Networks:
Lists the networks that have already been connected and allows you to connect to them faster.
c. Exit:
Closes the portal and resumes normal operation of the sensor.
d. Update:
Only visible when the module is connected to a WiFi network that contains an Internet connection.
List of available updates appears,by clicking these and the update button the update is loaded. A
progress bar appears. After a successful update, the device returns to measuring mode.
6 Commissioning
- Connecting the master module to i.Cee:plus II via USB
- Power the client module
- Setting the baud rate etc.
- Commands:
o0 Overview list
o7 one-time measurement
o15 start permanent measurement
oStop 100 permanent measurements
oSet 200 transmit power
oSet 300 measurement intervals
oSet 400 transmission channel
o500 Overview of settings made
- Start measurement, Works with i.Cee:plus II via plug and play

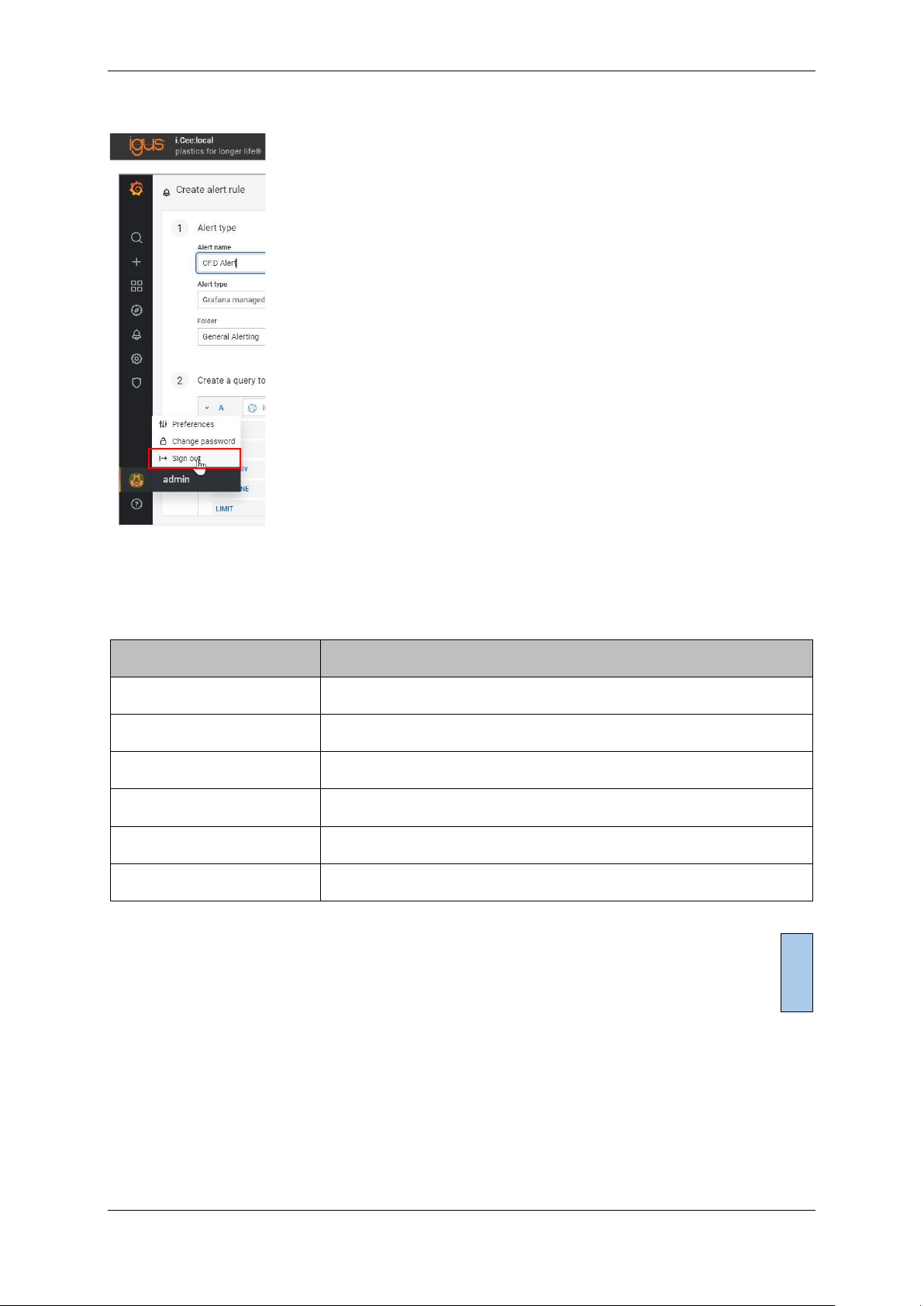

- Adjusting the threshold in Grafana
When using multiple CF. D
Sets in the immediate
vicinity, the radio channels
must be adjusted.
NOTE!
By default, the set returns
new values once per second.
This can be adjusted up to a
maximum value of once a
day.
NOTE!
When using long cables, an
adjustment of the power is
necessary.
NOTE!
If no connection to the
network is possible, reduce
the distance until connection
is possible.
NOTE!
Commissioning
9/13
Manual i.Sense CF.D - V 1.1
6.1 Adjusting the threshold value (i.Cee:plus II user interface)
1) Login (Grafana)
2) Change the numeric color display on the right (red box) by clicking On Edit
3) Confirm by clicking on Apply and Save
Login Grafana
User: admin
Password: Com17Sperce
NOTE!
Commissioning
10/13
Manual i.Sense CF.D - V 1.1
4) Change alerting rule
5) Adjust threshhold
Maintenance
11/13
Manual i.Sense CF.D - V 1.1
6) Log out after saving and reload page
7 Warnings and errors
Alerts
LED
(lights up)
Description
Green+
Button LED
Device works properly
Green/red (alternating) +
Button LED
Device boots up
red +
Button LED
An error has occurred
Magenta + Button LED
Device is in configuration mode
Off+
Button LED
μ controller is not working properly
None
Device is disconnected from power supply
8 Maintenance
For optimal functioning, updates are available at irregularintervalsthat can be installed via
configurationmode.
A Wi-Fi Internet
connection is required to
install the updates
NOTE!
Definition
12/13
Manual i.Sense CF.D - V 1.1
9 Troubleshooting
- Unable to connect to the user interface
oTry again
oRestart devices and then try again
oOtherwise, contact Customer Service (p.13)
- The device does not collect sensor data, what now?
oCheck all connectors and restart the system.
oOtherwise, contact Customer Service (p.13)
- CF.D-Sets interfere each other
oChange the channel
- Device determines very high values, but not "no link", when cable is connected and value seems not to be logical
oIncrease the distance between master and client module
10 FAQs
- How do you retrieve the determined sensor data?
oUnder Sensorics History of the i.Cee:plus II user interface
- Is it possible to download the data from the user interface?
oIn CF.D XY-diagram there is a point data, there a CSV file is downloadable
11 Accessories
Sensors
Article
Cable length
[m]
Quantity
USB extension line
5
2
5V DC USB power
adapter
--
1
i.Cee:plus II
--
1
12 Abbreviations
Abbreviation
Description
EMC
Electromagnetic compatibility
ESD
Electrostatic discharge (Elektrostatische Entladung)
GUI
Graphical User Interface
PLC
Programmable Logic Controller (Speicherprogrammierbare Steuerung)
13 Definition
Concept
Description
Configmode
Update and Reset Mode
Measuring
mode
Normal operation, measurement
Service
13/13
Manual i.Sense CF.D - V 1.1
14 Service
Customer service
de-smartplastics-serv[email protected]
+49 (0) 2203 9649 9806
Technical support for igus®smart plastics
Documentation/FW
https://www.igus.de/info/isense-cf-d-ohne-opferadern
Download manuals, FW updates and certificates
Website smart Plastics
https://www.igus.de/info/vorausschauende-wartung-smart-plastics
Possibility to order sensors, processing units and other accessories
Contact
www.igus.de
+49 (0) 2203-9649-0F
Legal notice
© 2021
All rights at
igus®GmbH
Spicher Str. 1a
51147 Cologne
Sebastian Probst
Table of contents
Other igus Industrial Equipment manuals
