OPERATING INSTRUCTIONS
SIMpull™ Flange
READ AND UNDERSTAND ALL INSTRUCTIONS
AND SAFETY INFORMATION IN THIS MANUAL
BEFORE OPERATING OR
SERVICING THIS TOOL
2017
Patent US9617112
LOADED
34``
32``
30``
28``
26``
24``
22``
C17
N15
N7
N11
N5
USE ONLYON
LEVEL SURFACES
No, non
DO NOT LAY
ON FLANGE
No, non
ALWAYS ENGAGE
CHOCKS UNLESS
REEL IS IN MOTION
Yes,sí, oui
HANDLE WITH CARE
Yes,sí, oui
09/17
SIMpull™ Flange Manual

1
TABLE OF CONTENTS
Important Safety Information .................................................3-5
Description of Operation............................................................5
Identification...............................................................................6
Setup and Operation......................…….….……….................7-8
Specifications.............................................................................8
2
SAFETY ALERT SYMBOLS
These symbols
are used to call attention to hazards or unsafe
practices related that could result in injury or property damage.
The three safety words defined below indicate the severity of the
hazard. The message after the signal word provides information
for preventing or avoiding the hazard.
DANGER - immediate hazards that if not avoided WILL
result in severe injury or death
WARNING - Hazards that if not avoided COULD result in
severe injury or death
CAUTION - Hazards or unsafe practices that, if not
avoided MAY result in severe injury or death
SAFETY FIRST
Safety is essential in the use and maintenance of Southwire Con-
tractor Equipment. This instruction manual and any markings on the
tool provide information for avoiding hazards and unsafe practices
related to the use of this tool. Observe all the safety information
provided.

• Only qualified persons should use the SIMpull™ Flange.
• Wear eye protection, hard hat, cut resistant gloves and safety
toe shoes when using this tool.
• Do not use tool when tired or under the influence of drugs,
alcohol, or medication.
• Keep body parts and loose clothing away from moving parts.
• Always follow safety procedures as shown in this manual.
• Use this tool for the manufacturer`s intended purpose only.
Use other than that described in this manual could result in injury
or property damage.
• Only qualified personnel should use this equipment.
• Keep all decals clean and legible, and replace when necessary.
FAILURE TO OBSERVE THESE WARNINGS COULD
RESULT IN SEVERE INJURY OR DEATH.
FAILURE TO OBSERVE THESE CAUTIONS WILL RESULT IN
INJURY OR PROPERTY DAMAGE.
FAILURE TO OBSERVE THESE WARNINGS COULD
RESULT IN SEVERE INJURY OR DEATH.
• Read and understand all instructions and safety information in
this manual before operating or servicing this tool.
3
IMPORTANT SAFETY INFORMATION
4
IMPORTANT SAFETY INFORMATION
DANGER: Electrical Shock Hazards
• This is not an insulated tool, contact with live circuits will
result in severe injury or death.
WARNING:
WARNING
WARNING: Personal Safety Hazards
Tool Use Hazards
• Do not operate this tool while wearing loose fitting clothing.
Retain long hair.
• Using excessive force may result in injury or damage to the tool.
If excessive force is required, check and verify proper set up
instructions.
WARNING: Entanglement Hazard
FAILURE TO OBSERVE THESE CAUTIONS MAY RESULT
IN INJURY OR PROPERTY DAMAGE.
• Do not use if there is damage to reel arbor as this can prevent
flange from locking into the reel properly and cause tool
malfunction.
• 3” reel arbor required for proper installation.
• If tool is in disrepair, DO NOT USE. Have tool serviced at an
Authorized Southwire Repair Center.
Make sure bystanders are clear of the work area when flange is in
motion. Nearby personnel can be injured if run over by flange and
reel.
CAUTION
FAILURE TO OBSERVE THESE WARNINGS COULD
RESULT IN SEVERE INJURY OR DEATH.
FAILURE TO OBSERVE THESE CAUTIONS COULD RESULT
IN INJURY OR PROPERTY DAMAGE.

DESCRIPTION OF OPERATION
IMPORTANT SAFETY INFORMATION
5 6

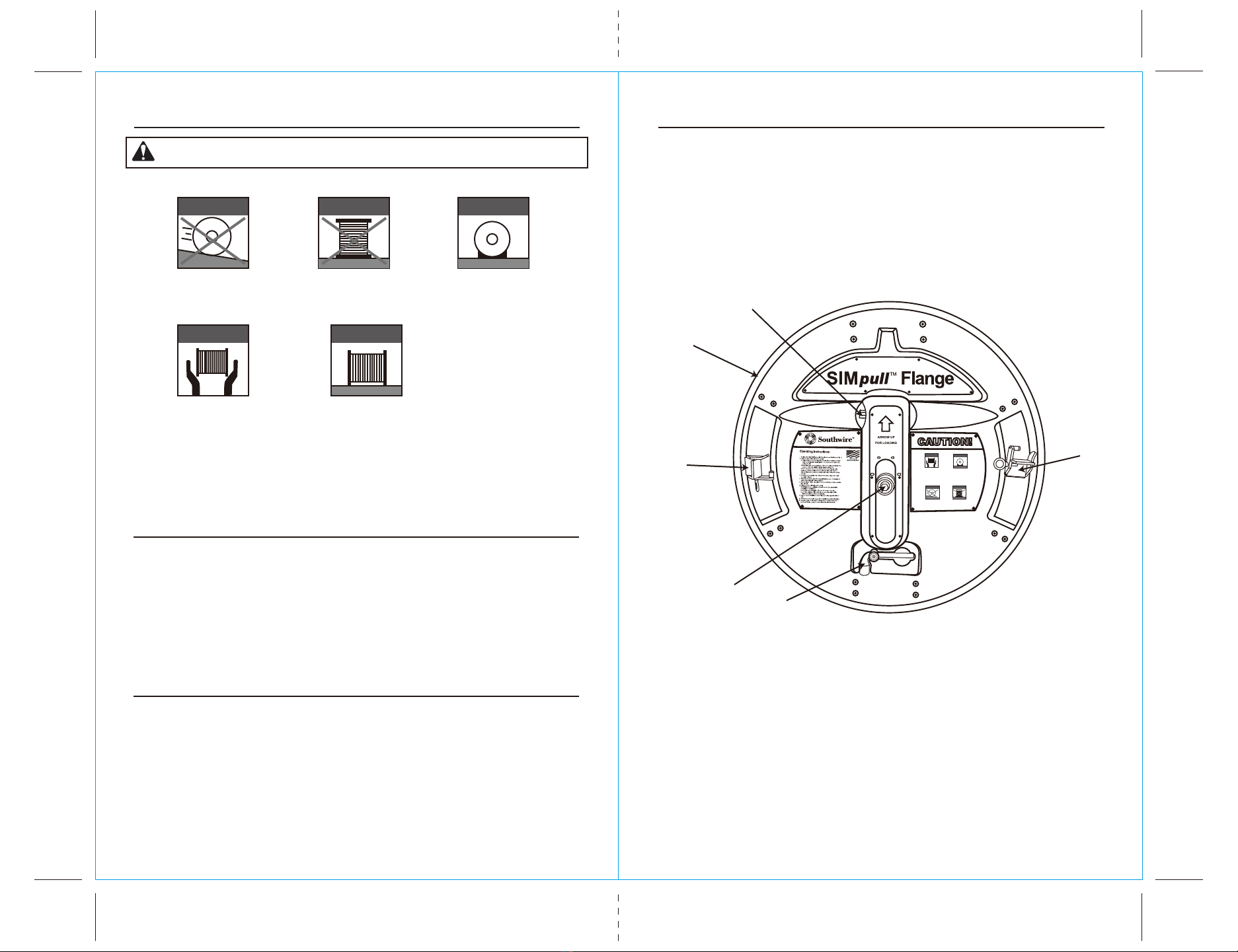

IDENTIFICATION
PURPOSE OF THIS MANUAL
1. Flange
2. Chock
3. Hub Screw
4. ¾” Wrench
5. Screw Jack
The SIMpull™ Flange’s shaft less design, safely allows one person
to turn a wooden reel up to 34 in. and 2000 lbs. into a time saving,
field-installable solution that removes the need to handle heavy jack
stands. Each flange rotates independently, and allows free move-
ment of loaded wooden reels. The SIMpull™ Flange is reusable in
the field and can be installed on multiple reels throughout the
jobsite
This manual is intended to familiarize all personnel with the safe
operation and maintenance procedures for the following Southwire
Tools and Equipment: SIMpull™ Flange.
Keep this manual available to all personnel. Replacement manuals
are available upon request at no charge at
www.southwiretools.com.
CAUTION: General Safety Information
FAILURE TO OBSERVE THESE CAUTIONS MAY RESULT
IN INJURY OR PROPERTY DAMAGE.
LOADED
34``
32``
30``
28``
26``
24``
22``
C17
N15
N7
N11
N5
1
2
3
4
2
5
USE ONLY ON
LEVEL SURFACES
DO NOT LAY
ON FLANGE
No, non No, non
ALWAYS ENGAGE
CHOCKS UNLESS
REEL IS IN MOTION
Yes, sí, oui
HANDLE WITH CARE
Yes, sí, oui
SHIP UPRIGHT
Yes, sí, oui
USE ONLY ON
LEVEL SURFACES
No, non
DO NOT LAY
ON FLANGE
No, non
ALWAYS ENGAGE
CHOCKS UNLESS
REEL IS IN MOTION
Yes, sí, oui
HANDLE WITH CARE
Yes, sí, oui

7 8

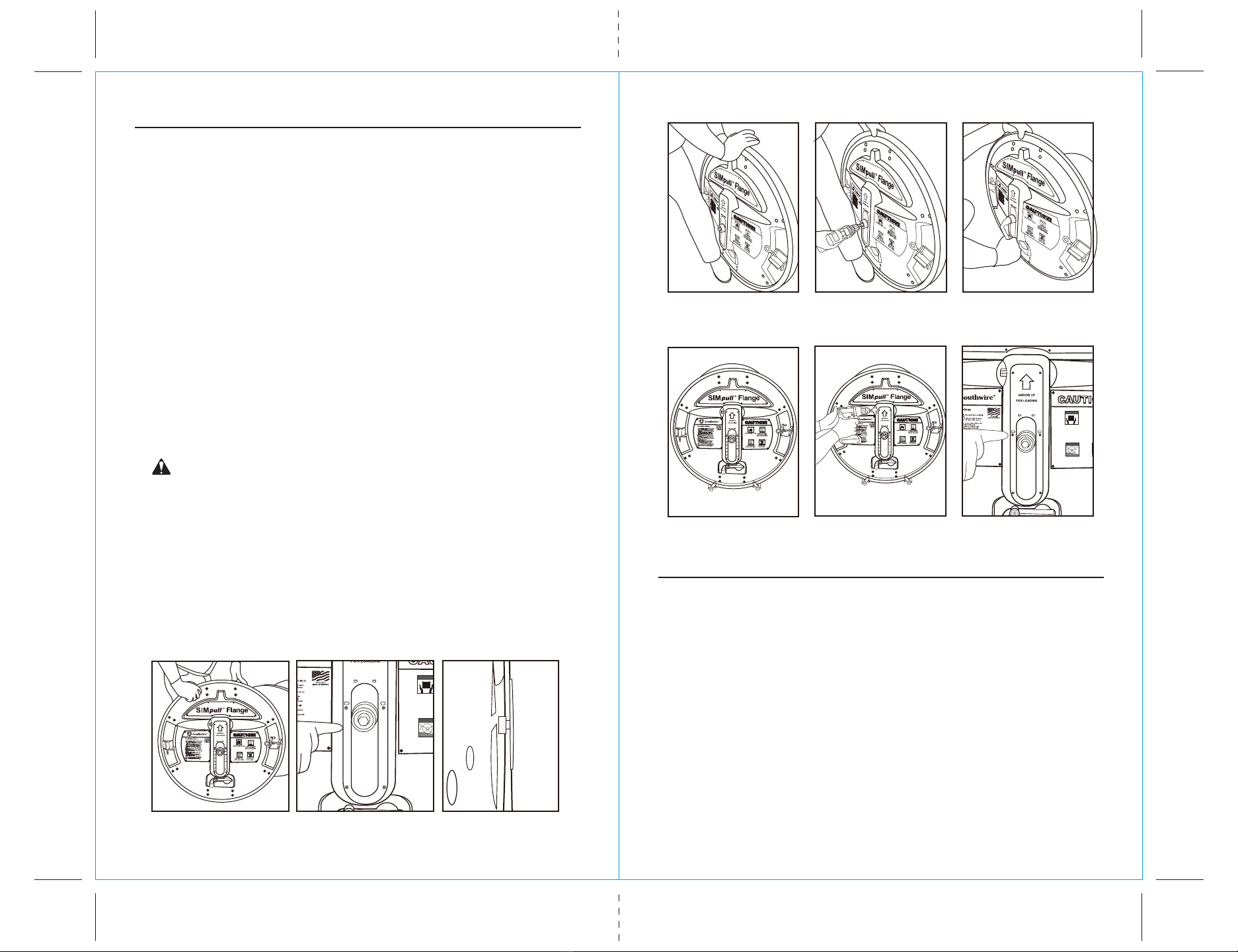

SET UP AND OPERATION
NOTE: IMPACT WRENCH IS NOT RECOMMENDED
SPECIFICATIONS
• Model# SPF-01
• Stock # 64-86-49-01
• Height –36”
• Width – 36”
• Depth – 2-1/8”
• Weight – 52lbs individual (104lbs per set)
• Capacity – 2000lb Wooden Reel
The SIMpull™ Flange is compatible with:
• Arbor Hole- 3” Only
• Minimum Reel Diameter- 22”
• Maximum Reel Diameter- 34”
• Minimum Reel Thickness- 5/8”
• Maximum Load Capacity- 2000lbs
1. Position the SIMpull™ Flange with the black arrows facing up
(Fig 1).
2. Using a power drill, with a ¾” socket:
A. Actuate the screw jack aligning the aluminum color hub arrow
with the designated reel height or reel name on the attached
scale (Fig 2).
B. Insert the hub lock completely in the arbor hole and tighten the
screw on the hub until it is firmly attached (Fig 3-4).
NOTE: Use your foot to brace the bottom of the flange while
applying pressure to the top of the flange with your hand to
ensure flange is completely seated before tightening hub screw
(Fig 3A)
3. Confirm the hub is tight by using ¾” wrench turning ½ to 1 full
revolution (Fig 5).
4. Place the 2 chocks with the magnets facing up, on the front and
back of the SIMpull™ Flange (Fig 6).
5. Repeat steps 1 thru 4 to attach the second flange on the opposite
side of reel.
6. Using a power drill with a ¾” socket:
WARNING: Ensure drill clutch is set below 20 to prevent
the possibility of wrist injury.
A. Actuate the screw jack to lift reel off the floor (Fig 7).
B. Continue lifting until the aluminum hub arrow aligns with
loaded position on the scale (Fig 8).
7. Repeat steps 6 to lift the second flange on the opposite side of
reel.
8. Remove the chocks to transport the reel to the desired location.
9. Always chock the SIMpull™ Flange when storing reel and/or
paying off reels, to prevent any unintentional movement.
Fig. 1 Fig. 2 Fig. 3
Fig. 3A Fig. 4 Fig. 5
Fig. 6 Fig. 7 Fig. 8
LOADED
34``
32``
30``
28``
26``
24``
22``
C17
N15
N7
N11
N5
USE ONLY ON
LEVEL SURFACES
No, non
DO NOT LAY
ON FLANGE
No, non
ALWAYS ENGAGE
CHOCKS UNLESS
REEL IS IN MOTION
Yes, sí, oui
HANDLE WITH CARE
Yes, sí, oui
LOADED
34``
32``
30``
28``
26``
24``
22``
C17
N15
N7
N11
N5
USE ONLY ON
LEVEL SURFACES
No, non
DO NOT LAY
ON FLANGE
No, non
ALWAYS ENGAGE
CHOCKS UNLESS
REEL IS IN MOTION
Yes, sí, oui
HANDLE WITH CARE
Yes, sí, oui

Warranty Claim Information/How Do You Get Service?
For all warranty, customer service, and product return authorizations and inquiries,
please contact Southwire’s Tools & Assembled Products at:
Southwire Tools & Assembled Products
840 Old Bremen Road
Carrollton, GA, 30117
Phone Number: 1.855.SW.Tools
Repair Your Product When it is Out of Warranty
Southwire is happy to provide information about where a purchaser can send a product for
repair at consumers’ own expense, please contact 1.855.SW.tools or visit
www.southwiretools.com/tools/home.do for more information about servicing for Southwire
Products.
WARRANTY ON
SOUTHWIRE CONTRACTOR EQUIPMENT
What Does This Warranty Cover?
Five-Year Limited Warranty on Contractor Equipment
Under Southwire’s Contractor Equipment 5-Year Limited Warranty, Southwire Company, LLC
warrants that all Southwire Contractor Equipment will be free from manufacturer defects for a
period of five (5) years from the date of the original end user’s purchase. However, electrical
components and consumable parts such as ropes, blades, dies, draw studs, grips, are
excluded from this 5-Year Limited Warranty and are subject to the One -Year warranty terms.
Under this 5-Year Limited Warranty, the following are also excluded and Southwire
Company, LLC will have no liability for any of the following: normal wear and tear resulting
from product use and damage arising out of misuse, abuse, modification, and improper
product maintenance. This warranty also does not cover Southwire Contractor Equipment
products that have been modified by any party other than Southwire Company, LLC or its
authorized third party designee. This 5-Year Limited Warranty is not transferrable to or
enforceable by any person other than the product’s original end user.
One-Year Limited Warranty on Electrical Components and Consumable
Parts (with 5-Year warranty)
Under Southwire’s 1-Year Limited Warranty, Southwire Company, LLC warrants that all
electrical components and consumable parts such as ropes, blades, dies, draw studs, grips
will be free from manufacturer defects for a period of one-year from the date of the original
end user’s purchase. Under this 1-Year Limited Warranty, Southwire Company, LLC will have
no liability for any of the following: normal wear and tear resulting from product use and
damage arising out of misuse, abuse, modification, and improper product maintenance. This
warranty also does not cover Southwire electrical components and consumable parts that
have been modified by any party other than Southwire Company, LLC or its authorized third
party designee. This 1-Year Limited Warranty is not transferrable to or enforceable by any
person other than the product’s original end user.
Exclusion of Incidental, Consequential, Indirect, Special and Punitive Damages
SOUTHWIRE MAKES NO WARRANTY THAT SOUTHWIRE CONTRACTOR EQUIPMENT PRODUCTS WILL BE
MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. SOUTHWIRE MAKES NO OTHER WARRANTY,
EXPRESSED OR IMPLIED, OTHER THAN THE RELEVANT WARRANTY SPECIFICALLY SET FORTH IN THIS
WARRANTY SECTION. SOUTHWIRE WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES FOR ANY BREACH OF THIS LIMITED LIFETIME WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
1. All warranty claims must be approved by Southwire’s Tools & Assembled Products
Warranty Department prior to return of product. If Southwire determines that a product is
defective, Southwire will, at its option, repair or replace defective products or defective
product components, free of charge.
2. Upon approval, Southwire will issue a Product Return Authorization Form which will include
instructions on how and where to return the product. The product serial number and the
original date of delivery must be set forth on the Product Return Authorization Form.
3. Southwire will cover standard freight charges (Ground Courier Rate) incurred in connection
with products that Southwire ultimately determines to be defective.
4. All defective components and defective products that Southwire replaces under these
Warranties will become Southwire’s property and will be retained by Southwire.
