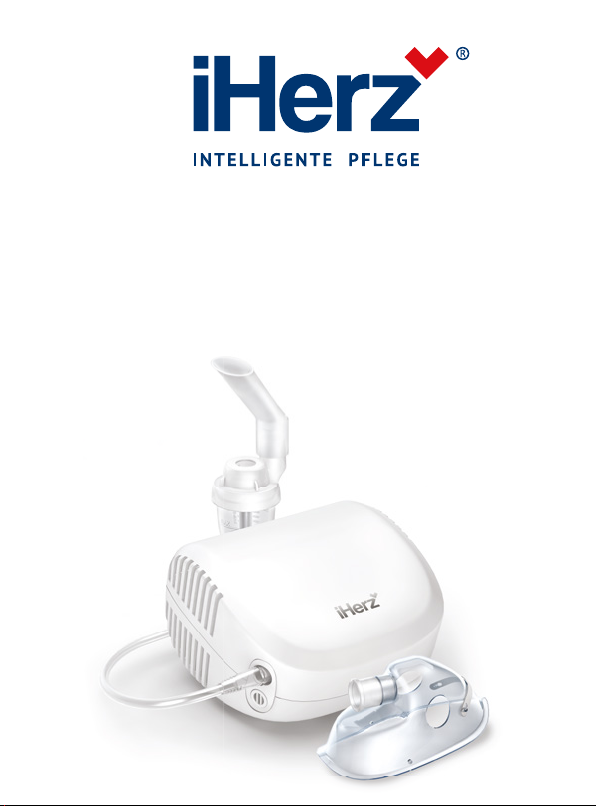

iHerz iWind User manual

NEBULIZER SYSTEM
compressor
model iWind

2
DEAR IHERZ®COMPRESSOR NEBULIZER OWNER
Thank you for choosing iHerz®Compressor Nebulizer model iWind. We
are sure that having appraised worthily the high quality and reliability of
this device you will become a regular user of the products of German
trademark iHerz®.
Your nebulizer is intended for use in treatment of asthma, COPD and
other respiratory ailments in which an aerosolized medication is required
during therapy. Aerosol easily and quickly comes to both upper and lower
respiratory tracks.
Before starting to use the compressor nebulizer, please, study the user’s
manual carefully. Following the rules stated in the user’s manual will
provide for the faultless operation of the compressor nebulizer for a long
period of time.
For all questions concerning the unit, please, contact
service centre of distributor of trademark iHerz® in your country.

EN
3
INTRODUCTION
What is a nebulizer and how does it work?
The compressor nebulizer system is a device that turns a liquid drug into
a ne aerosol under the inuence of the compressed air. Aerosol con-
tains large and small particles. When breathing the gravity makes the
larger particles accumulate on the walls of the upper respiratory passages
while the smaller particles have enough time to reach the lower bronchial
branches. Therefore the drug comes to all parts of the patient’s bronchial
tree, including the smallest bronchi and alveoli, and gets into the blood
vessels on the walls of the alveoli in big therapeutic dozes with tiny or
none side e󰀨ects.
What is nebulizing therapy used for?
Nebulizer systems are used by the patients with:
• acute respiratory diseases,
• obstructive pulmonary disease,
• chronic inammatory processes in respiratory passages such as
chronic bronchitis, bronchial asthma (incl. chronic or unstable ones,
exacerbation of asthma), chronic pharyngitis,
• respiratory passages infections,
• abnormalities in secretion quality and secreting in bronchi,
• di󰀨erent types of coughing.
What are the advantages of nebulizing therapy?
Nebulizing therapy gives a possibility to quickly e󰀨ect the inammatory
zone by big drug dozes which increases the inuence of the treatment and
reduces the risk of side e󰀨ects to other organs. Nebulizing therapy is the
easiest way of inhalation treatment and it is also an economical means of
treatments from the point of view of purposeful use of drug. Aerosol treat-
ment with the help of nebulizing systems can be used for children, adults
and inrm patients.

4
BEFORE STARTING TO USE THE UNIT
Important Safety Information
Please read the information in the instruction manual and any other litera-
ture included with the product before using the device. It is important to
follow all instructions in this manual including Safety instructions. Failure
to follow the instructions may result in potentially hazardous situation re-
sulting in serious injury.
• For type, dose, and regime of medication follow the instructions of your
doctor or respiratory therapist.
• If you feel anything unusual during use, stop using the device immedi-
ately and consult your doctor.
• Clean and disinfect the nebulizer kit, mask, mouthpiece or nosepiece
before using them for the rst time after purchase.
• If the device has not been used for a long period of time, or if more than
one person uses the same device, clean and disinfect the nebulizer kit,
mask, mouthpiece or nosepiece before using them.
• Be sure to wash the parts after use, and ensure that they are thoroughly
disinfected and dried, and stored in a clean location in a sealed bag.
• Do not store the nebulizer kit parts while there is moisture, medicine,
cleaning solution or medication remaining inside.
• Do not use or store the device where it may be exposed to high humid-
ity, noxious fumes ,volatile substances, ammable gases, heat sources,
corrosive uids and gases.
• Do not cover the compressor with a blanket, pillow, towel, or any other
type of cover during use. Do not block the ventilation slots. Never place
the device where the ventilation slots may be obstructed during operation.
Keep the air openings free of lint, hair and the like.
• Never place the device on a soft surface, such as a bed or couch, where
the ventilation slots may be blocked.
• Do not block the air lter cover.
• Use fresh medication each time, always dispose of any remaining medi-
cation after use.
• Do not use in anesthetic or ventilator breathing circuits.
• Do not use attachments not recommended by the manufacturer.
• Do not operate unit in a backpack or carrying bag.
• Never plug ,unplug or handle the device with wet hands.
• The compressor and power cord are not waterproof. Do not spill water or

EN
5
other liquids on these parts.
• Do not immerse the compressor in water or other liquid.
• Do not operate the device with a damaged power cord or plug.
• Keep the power cord away from heated surfaces.
• Do not use while bathing.
• Do not place or store product where it can fall or be pulled into a tub or sink.
• Never submerge the unit in water; should this accidentally occur, unplug
immediately do not reach for the submerged unit, always unplug rst. After
removing the unit from water, do not use again, ensure it is returned to an
authorized service dealer.
• The product should never be left unattended when plugged in.
• Do not use this product with a DC to AC converter, or with any AC voltage
and/or frequency other than specied.
• If necessary, use adapters or extension leads which conform to the
safety standards in force, paying attention not be exceed the rated current
value and maximum power value indicated on the adapter.
• The power cord and air tube should be kept away from children, invalids
it may cause strangulation hazard.
• Provide close supervision when this device is used by, on, or near chil-
dren or invalids, or persons who cannot express their consent.
• Do not use the device while sleeping or if drowsy.
• Keep the device and accessories out of the reach of unsupervised in-
fants and children. The device may contain small pieces that can be swal-
lowed and cause choking hazard.
• Make sure that the parts are attached correctly.
• Make sure that the air lter is clean. If the air lter has changed color, or
has been used on average for more than 60 days, replace it with a new one.
• Do not tilt the nebulizer kit at an angle of greater than 45 degrees in all
directions shake it while in use.
• Do not use or store the device while the air tube is creased or kinked.
• Use only original nebulizer parts, air tube, air lter and air lter cover
The medicine cup can take 10 ml medicine but it is recommended to add
no more than 7 ml medicine.
• Do not subject the device or the parts to any strong shocks such as drop-
ping the device on the oor.
• Do not distort the vaporizer head (ba󰀪e), or jab the nozzle of the medica-
tion tank with a pin or any sharp object.
• Do not insert ngers or objects inside the compressor.
• Do not disassemble or attempt to repair the device there are no user
serviceable parts inside.
• Do not use a microwave oven, dish dryer or hair dryer to dry the device

6
or the parts.
• Approved for human use only.
• When using the device, the main unit may become hot. Do not touch the
main unit for other than necessary operation such as turning o󰀨 the power
while nebulizing.
• To avoid injury to the nose mucosa, do not squeeze the nosepiece into
the back of the nose.
• Do not use Ethylene Oxide Gas disinfection or low temperature plasma
sterilizer to disinfect the device.
• Always unplug the device from the power outlet after use and before cleaning.
• Plug the device into the appropriate voltage outlet. Do not overload pow-
er outlets or use extension cords.
• Do not misuse the power cord.
• Do not wind the power cord around the compressor.
• Changes or modications will void the user warranty.
• Do not pull the power cord strongly.
• Do not carry the device with the power cord.
• Inspect the device and parts before using them each time, and check that
there are no problem. In particular, be sure to check the following:
That the nozzle or air tube are not damaged.
That the nozzle is not blocked.
That the compressor operates normally.
• When using this device, there will be some noise and vibration caused
by the pump in the compressor. There will also be some noise caused by
the emission of compressed air from the nebulizer kit. This is normal and
does not indicate a malfunction.
• Operate the device only as intended. Do not use the device for any other
purpose.
• Make sure that the air tube is securely attached to the compressor and
nebulizer kit, and does not come loose.
• To completely isolate the device from the power source unplug the plug
from the power source.

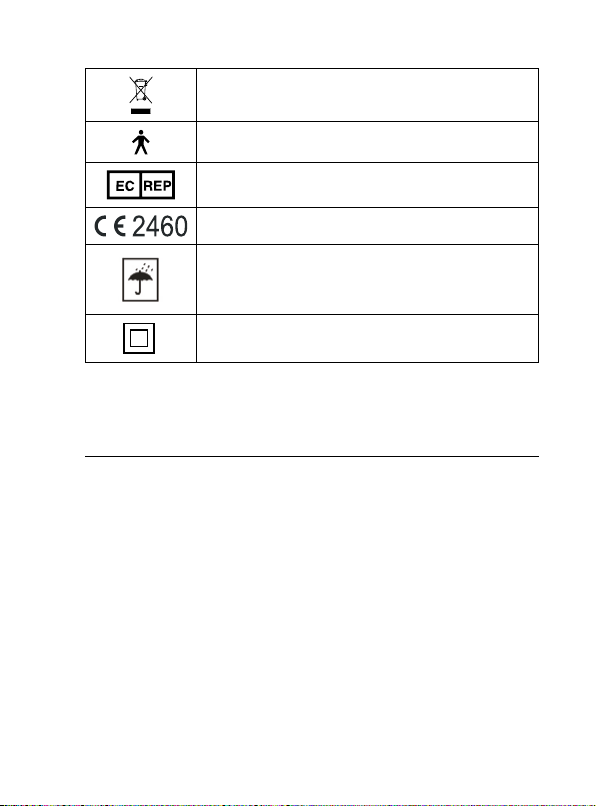

This product or its accessories should not be disposed of with
other household wastes at the end of its durable life.
Users are advised to check their local waste disposal guidelines
for correct separation and disposal of the device and accessories
KEEP THIS INSTRUCTION MANUAL DURING THE WHOLE SERVICE LIFE OF
THE UNIT

EN
7

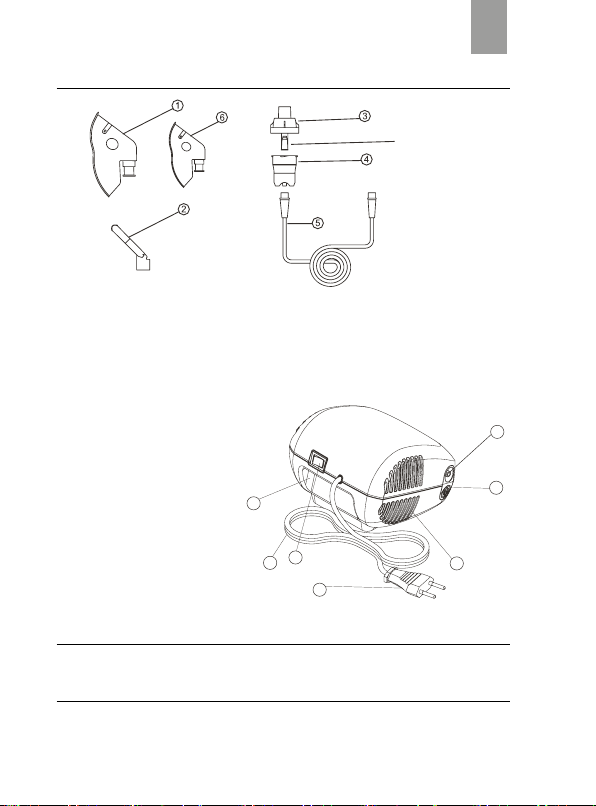

Unit Identication
1. Adult mask
2. Adult mouthpiece
3. Medicine bottle cap with integrated ba󰀪e
4. Medicine bottle cup
5. Air tube
6. Child mask
7. Power switch
8. Filter
9. Air-outlet connector
10. Carrying handle space
11. Power cord
12. Power plug
13. Ventilation slot
CARRYING OUT NEBULIZING THERAPY
Assembling the Unit operate of the unit
Before initial operation, your nebulizer should be cleaned following clean-
11
12
13
8
9
10
7
Baffle
Integrated

8
ing instructions, or as recommended by your Physician.
• Make sure the power switch is in the “OFF” position.
• Unwrap power cord.
• Place compressor so that the rubber feet are resting on a level, sturdy
surface and upon which the controls can be easily reached when seat-
ed. Never block the air openings of the product or place it on a bed or
couch where the air openings may be blocked.
• Plug power cord into an appropriate wall outlet.
Compressor/nebulizer must be operated on the specied power
source to avoid risk of electric shock and damage to the com-
pressor. See instrument bottom panel for power details.
Wash hands. Ensure hands are dry.
• Assemble clean nebulizer parts by
placing ba󰀪e down in medication cup.
• Open the medicine cup cap and put the
medicine from medicine vial into the
medicine cup (А). Close the medicine
cup cap tightly (В).
• Attach one end of the tube to the
medicine cup (С).
• Connect another end of the nebulizer
tubing to the compressor air-outlet
connector (D).
(NOTE: during high humidity weather
conditions, condensation, water build
up can occur in the nebulizer tubing).
• Assemble mouthpiece, or mask and
T-piece (if applicable) and insert into the
top of the nebulizer cap (E, F).
• Press the power switch “ON” position
to start the compressor as aerosol being to ow, inhale deeply and
slowly, hold & then exhale slowly. Follow instructions as given by your
physician. If treatment needs to be interrupted, simply press power
switch “OFF”.
• When treatment is complete, turn unit “OFF” by pressing the power
switch to the “OFF” position. Unplug the unit from the wall power outlet.
AB
CD
EF

EN
9
Clean the appliance & accessories as indicated.
• It may happen that during the use of the nebulizer visible humidity de-
posits form in the connection tube disconnect the tube from the nebu-
lizer and let it dry using the compressor air ow.
Some nebulizers are rated for intermittent operations. Please
do not operate continuously for more than rated time. See
instrument bottom panel for details.
Allow specied o󰀨 period for instrument to cool before resuming
use.
• The nebulizer is made with high quality of plastic which is safe for use.
However due to variety and continuous evolution of the drugs, the pos-
sibility of a chemical interaction cannot be excluded. Once opened, the
drug should be used as soon as possible, and prolonged contact be-
tween drug and nebulizer should be avoided.
The use of essential oils can cause damage to the Nebulizer.
Changing the Air Filter

10
Filter should be changed every 6 months or sooner if lter discolors.
• Remove lter by turning the lter cover anticlockwise and pulling out
of the unit. Discard old lter.
• Replace with a new lter Additional lters should be purchased from
your provider.
• Push new lter into position. Turn the lter cover clockwise to t in
position.
• You can use a small coin or at screwdriver to open lter.
Caution: Do not reuse or wash lter or substitute any other material such
as cotton for a air-inlet lter. It will result in compressor damage.
UNIT MAINTENANCE
All parts of the nebulizer kit, except tubing, should be cleaned according
to the following instructions. Your physician may specify a certain cleaning
procedure. If so, follow their recommendations.
To prevent possible risk of infection from contaminated
medication, cleaning of the nebulizer is recommended after each
aerosol treatment. Disinfecting is recommended once a day.
Clean after Every Use
With power switch in the “OFF” position, unplug power plug.
Disconnect tubing from the air-inlet connector and set aside.
Disassemble mouthpiece, or mask from cap. Open nebulizer by turning
cap counter clock wise and removing ba󰀪e.
Wash all items, except tubing, in a warm water / dishwashing detergent
solution. Rinse under warm tap water, remove detergent residue. Allow
to air dry.
Disinfect Daily
Using a clean container or bowl, soak items for 30 minutes in three parts
warm water & one part medical bacterial-germicidal disinfectant available
through your provider. With clean hands, remove items from disinfectant
solution, rinse under warm tap water, and air dry on clean paper towel.

EN
11
Store in a zip lock bag.
Keep the outer surface of the tubing dust free by wiping regularly. Nebu-
lizer tubing does not have to be washed because only ltered air passes
through it.
Note: Do not towel dry nebulizer parts, this could cause contamination.
It is recommended to replace the medication nebulizer medicine cup
once a year or as directed by your doctor.
The Nebulizer kit is recommended for single patient use only to prevent
cross infection.
To prevent possible risk of infection from contaminated cleaning
solutions, always prepare fresh solution, for each cleaning cycle
and discard solution after each use.
Clean the nebulizer kit before using for rst time after purchase.
Compressor Сleaning
• With power switch in the “OFF” position, unplug power from wall outlet plug.
• Wipe outside of the compressor cabinet with a clean damp cloth to
keep dust free.
Do not submerge in water, doing so will result in compressor damage.
Maintenance
Electric shock hazard. Do not disassemble compressor cabinet. All
disassembly and maintenance must be done by a qualied service
provider.
To completely isolate the device from the power source unplug the power
plug from the power source.
Functional test
• Before use check the parts are connected properly and securely
• The connections are not loose
• There is no damage to the parts
• The nozzle and tube is not blocked or and the compressor operated
normally

12
Troubleshooting
Problem Cause Remedy
Compressor does not
start when the power
switch is pressed
Power plug is not
plugged into a power
outlet
Check that the plug
is inserted in a power
outlet. Unplug then
reinsert the plug if
necessary.
Power is not present
in the power outlet
socket
Check that there
is power in the
power outlet, also
check the power
present
is same type
as instructed in the
machine bottom panel
The device is
abnormally loud
Air lter is covered
or dirty
Attach the air lter
cover correctly
The device is very
hot
Сompressor are
covered, ventilation
slots are blocked
Do not cover the
compressor with any
type of cover during
use. Do not block
the ventilation slots.
No Nebulization or
low nebulization rate,
when the power is
on and machine is
working
No or low medicine in
medicine cup
Add the correct
amount of
medication to the
medication tank.
Ba󰀪e missing or not
assembled correctly
(not applicable in
nebulizer bottle with
ba󰀪e integrated)
Attach the vaporizer
head correctly.

EN
13
Nebulizer kit is
assembled incorrectly
Assemble the
nebulizer kit correctly.
Nozzle is blocked Make sure that the
nozzle is free of
blockages.
Nebulizer kit is tilted at
a sharp angle
Make sure that the
nebulizer kit is not
tilted at an angle
of more than 45
degrees.
The air tube is folded,
creased or damaged or
blocked
Make sure that the
air tube does not
contain kinks. Make
sure that air tube is
free of blockages
Air lter is dirty Replace the air lter
with a new one.
Note: If the suggested remedy does not solve the problem, do not
try to repair the device. Shut o󰀨 the device for about 1 hour and
then restart the machine. If the problem persists contact your authorized
service provider. Do not disassemble the unit yourself, no user serviceable
parts inside, risk of electric shock.
Before servicing by authorized service personnel. To completely isolate
the device from the power source unplug the plug from the power source.
TECHNICAL SPECIFICATIONS
Power 220 V AC, 50Hz
Power max 100 VA
Compressor air output 2.5 bar, 8 LPM approximate
Medicine Bottle capacity 8 ml / max, 2ml - 7ml recommended
Nebulization rate 0.2 ml / min - 0,4 ml / min typical
(Weight loss Method)

14
Particle size (MMAD) Approx 2-5 μm
Aerosol Output // Rate 0.3ml (2ml, 1% NaF) //
0.15ml/min (2ml, 1% NaF)
Noise level (At 1 m ) 55 dBA
Operation cycles 30 min on then 30 min. o󰀨
Operating requirements Temperature min. +10oC - max 40oC
humidity min. 30-85% RH, Pressure
min. 600 hPa, max. 1060 hPa
Storage & transport requirements Temperature min. -10oC - max 60oC
requirements humidity min. 10%, max
95% RH Non condensing, Pressure
min. 600 hPa, max. 1060 hPa
Dimension of compressor
(L x W x H)
140mm x 146mm x 101mm
Products weight 1.35 Kg approximate
Standard accessories Compressor nebulizer machine
Adult mask
Child mask
Filter 2 pcs
Air tube
Medical cup
Mouthpiece
* The specications and the outer design are subject to change for im-
provement reasons without previous notice.
Electromagnetic compatibility
This aerosol therapy unit is designed to meet the current requirements for
electromagnetic compatibility. However if you suspect that the unit is inter-
fering with the operation of your TV, radio or other electrical appliance, try
relocating the unit until the interference ceases. Alternatively try plugging
the unit into a di󰀨erent power socket. The manufacturer reserves the right
to introduce technical changes. Do not use devices that generate strong
electromagnetic elds near this device. It may result in incorrect operation
and potentially hazardous situation.
This medical device conrms to EN60601-1-2:2007 standard for electro-
magnetic immunity and emissions.

EN
15

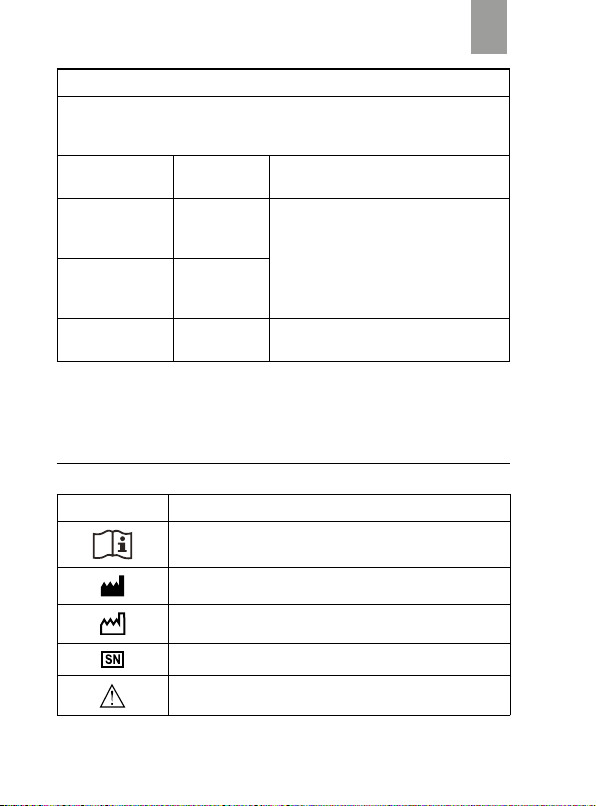

Guidance and manufacturer's declaration (electromagnetic emissions)
The nebulizer intended for use in the electromagnetic environment
specied below. The customer or user of the nebulizer must ensure
device usage in such an environment.
Emission tests Compliance Electromagnetic Environment
- Guidance
Harmonic emis-
sions
IEC 61000-3-2
Class A The nebulizer is suitable for use in
any premises, including residential
and those that directly connected to
the public low-voltage power sup-
ply network, which is used to supply
homes and buildings.
Voltage uc-
tuations/ icker
IEC 61000-3-3
Complies
Emissions RC
CISPR 14-1
Complies Nebulizer is not intended for the ac-
cession of other equipment.
This equipment consists only of simple electrical components that do not
contain any electronic circuits that generate or use frequencies above
9 kHz, and therefore cannot obstruct or interfere with the devices function-
ing nearby.
SYMBOL INFORMATION
SYMBOL REFERENT
Refer to the User Manual
Manufacturer
Manufacturing date
Serial number
Caution, consult accompanying documents

16
Not for general waste
Type B
European representative
CE mark
Keep dry
Double Insulated
Degree of safety in the presence of ammable anesthetics or oxygen:
No AP/APG (not suitable for use in the presence of ammable anesthetics
or oxygen).
WARRANTY
This device is guaranteed for 2 years from the date of purchase. The war-
ranty does not cover the accessories supplied with the device and those
parts subject to normal wear and tear. The warranty is only valid upon
presentation of the warranty card with purchase date and stamp of trade
organization.
• Should the unit be damaged due to user misuse or negligence, the
manufacturer or authorized dealers shall not be responsible for it.
• All assembly, extension, adjustment or repair of this unit must be
performed only by the authorized service center of iHerz®distributor in
your country.
• For repairs or spare parts, please, contact the authorized service
center of iHerz®distributor in your country.
