iHerz iFlow User manual

NEBULIZER SYSTEM
compressor
model iFlow
del
iFlow

COMPRESSOR NEBULIZER SYSTEM
Model iFlow
User manual (4-16)
ИНГАЛЯТОР КОМПРЕССОРНЫЙ
Модель iFlow
Инструкция пользователя (17-31)
ІНГАЛЯТОР КОМПРЕСОРНИЙ iHERZ
Модель iFlow
Інструкція із застосування (32-45)
RU
UA
EN

4
DEAR IHERZ®COMPRESSOR NEBULIZER OWNER
Thank you for choosing iHerz®Compressor Nebulizer model iFlow. We
are sure that having appraised worthily the high quality and reliability of
this device you will become a regular user of iHerz® products.
Your nebulizer is intended for use in the treatment of asthma, COPD and
other respiratory ailments in which an aerosolized medication is required
during therapy. Aerosol easily and quickly comes to both upper and lower
respiratory tracts.
Before starting to use the compressor nebulizer, please, study the user
manual carefully. Following the rules stated in the user manual will provide
the faultless operation of the compressor nebulizer for a long period of
time.
For all questions concerning the unit, please, contact a service
centre of iHerz® distributor in your country.

EN
5
TABLE OF CONTENTS
INTRODUCTION .................................................................................... 6
What Is a Nebulizer and How Does It Work? .......................................... 6
What Is Nebulizing Therapy Used For?................................................... 6
What Are the Advantages of Nebulizing Therapy?.................................. 6
BEFORE STARTING TO USE THE UNIT .............................................. 7
Important Safety Information ................................................................... 7
Working Principle .................................................................................... 8
Unit and Accessories .............................................................................. 9
Nebulizer Kit ......................................................................................... 10
CARRYING OUT NEBULIZING THERAPY ......................................... 10
Filling the Medicine Cup ........................................................................ 10
Operating the Unit ..................................................................................11
Changing the Air Filter............................................................................11
UNIT MAINTENANCE .......................................................................... 12
Cleaning of the Mouthpiece .................................................................. 12
Cleaning of the Nebulizer Kit................................................................. 12
Contamination by Microbes................................................................... 12
Troubleshooting..................................................................................... 13
TECHNICAL SPECIFICATIONS........................................................... 14
SYMBOL DESCRIPTION...................................................................... 15
WARRANTY.......................................................................................... 16

6
INTRODUCTION
What Is a Nebulizer and How Does It Work?
The compressor nebulizer system is a device that turns a liquid drug into
a ne aerosol under the inuence of the compressed air. Aerosol con-
tains large and small particles. When breathing, the gravity makes the
larger particles accumulate on the walls of the upper respiratory passages
while the smaller particles have enough time to reach the lower bronchial
branches. Therefore the drug comes to all parts of the patient’s bronchial
tree, including the smallest bronchi and alveoli, and gets into the blood
vessels on the walls of the alveoli in big therapeutic dozes with tiny or
none side e󰀨ects.
What Is Nebulizing Therapy Used For?
Nebulizer systems are used by the patients with:
• acute respiratory diseases,
• obstructive pulmonary disease,
• chronic inammatory processes in respiratory passages, such as
chronic bronchitis, bronchial asthma (incl. chronic or unstable ones,
exacerbation of asthma), chronic pharyngitis,
• respiratory passage infections,
• abnormalities in secretion quality and secreting in bronchi,
• di󰀨erent types of coughing.
What Are the Advantages of Nebulizing Therapy?
Nebulizing therapy gives a possibility to quickly act upon the inammatory
zone by big drug dozes which increases the inuence of the treatment and
reduces the risk of side e󰀨ects to other organs. Nebulizing therapy is the
easiest way of inhalation treatment and it is also an economical means of
treatments from the point of view of purposeful use of drug. Aerosol treat-
ment with the help of nebulizing systems can be used for children, adults
and inrm patients.

EN
7
BEFORE STARTING TO USE THE UNIT
Important Safety Information
• Carefully read the instructions before use. Keep this instruction manual
for future references.
• Use the device only as an inhalator for therapeutic purposes. Medicine
type, mode and time of application should be prescribed by your doctor.
Installation operations have to be done according to the instruction in this
handbook and only for the uses declared by the constructor.
• This device is unsuitable for use with inammable anaesthetic mixtures
containing air, oxygen or nitrogen protoxide.
• Always disconnect the device from the main socket after use and before
cleaning operations.
• Do not touch the device if it accidentally falls into the water. Unplug it
immediately and do not use afterwards. Contact one of authorized service
centers.
• Do not touch the device with wet hands.
• During use, make sure that the unit is placed on a at and stable surface.
• Do not use the device when a patient is sleeping.
• Contact the service center for any maintenance, do not open the device.
If the device does not work properly turn it o󰀨 and consult the user manual.
• Do not leave any packaging materials (plastic bags, cardboard boxes,
and so on) within reach of children to prevent dangers.
• Keep accessories out of reach of children. Children and people with re-
duced physical or mental capacities need to use the device only under
close surveillance of an adult who has read this instruction manual. Keep
the medicine cup out of reach of children under 36 months because it
contains small parts that could be ingested.
• Always disconnect the device from the main socket when it is not used.
• It is recommended to use one personal medication set of accessories.
• Do not leave pharmaceutical residual in the medicine cup and/or in the
accessories at the end of the therapy.
• Cleaning and/or maintenance must be done only after turning o󰀨 the
device and unplugging the power cord from the outlet.
• Do not pull the cable or appliance in order to remove the plug.
• This is a medical device for use on medical prescription. Must be run
as indicated in this user instructions. It’s important that patients read and
understand the information for use and maintenance of the unit. Contact

8
your dealer or service centre for any questions.
• If the equipment’s plug does not t the socket, contact a qualied techni-
cian to substitute the plug. Do not use multiple sockets and/or extensions.
• Do not obstruct the air intake.
• The installation must be done according to the instructions and use de-
clared by the manufacturer. Improper installation and/or improper use may
cause damage to people, animals or things. The manufacturer can not be
held responsible.
• Do not use the device while bathing and showering.
• Do not expose the device to the action of dust, heat (that could deform
the housings), sunlight or other atmospheric agents that could compro-
mise the safety of the device itself.
• Do not use the device nearby sources of potential interference (example:
heat sources like replaces, electric or gas heaters; steam
sources like boilers or kettles, electromagnetic radiation sources like mi-
crowave ovens, Wi-Fi devices).
• Keep away from pets that could contaminate the surface in contact with
the patient or in general hinder the right performance of the therapy.
• The appliance generates compressed air. Side e󰀨ects could come from
the intolerance to the medicine used.
Electric devices must be disposed of in accordance with the locally
applicable regulations, not with domestic waste.
KEEP THIS INSTRUCTION MANUAL DURING THE WHOLE SERVICE LIFE OF
THE UNIT
Working Principle
This unit is compact, simple to operate and convenient to carry. It uses an
oil-free, single-cylinder piston pump to produce air pressure. The airow
created by the compressor comes out of the jet outlet and then enters the
WARNING: Please use only those drugs that were prescribed to you
by your doctor, DO NOT execute self-treatment and DO NOT change
the methods/frequency prescribed without consulting your doctor.

EN
9
nebulizer kit. The airow pathway into and out of the compressor unit is
illustrated in the gure below.

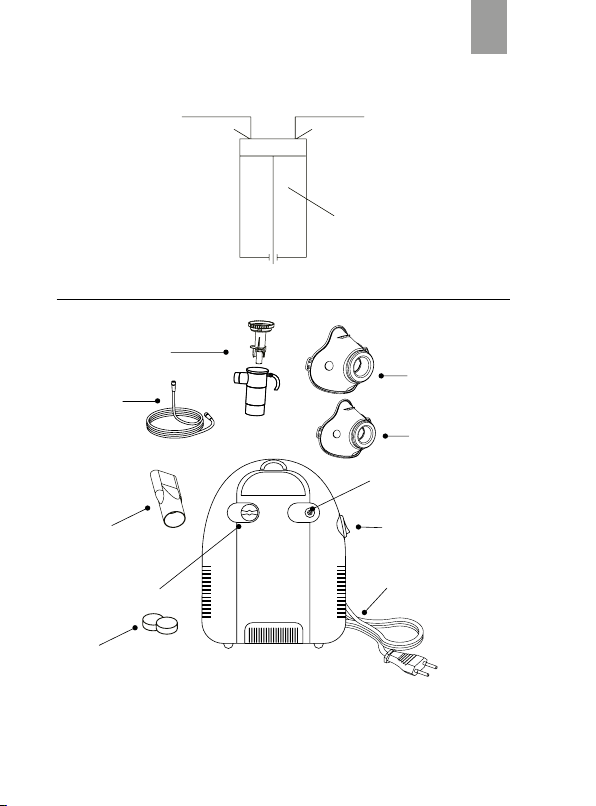

Unit and Accessories
A
ir Filter
Inlet Outlet
Compressor
Jet Outlet
Filter & Cover
Medication cup
A
ir tube
Mouthpiece
Adult mask
Child mask
Tube connector
Power switch
Electric
power cord
Spare air filters
(2 pcs)

10

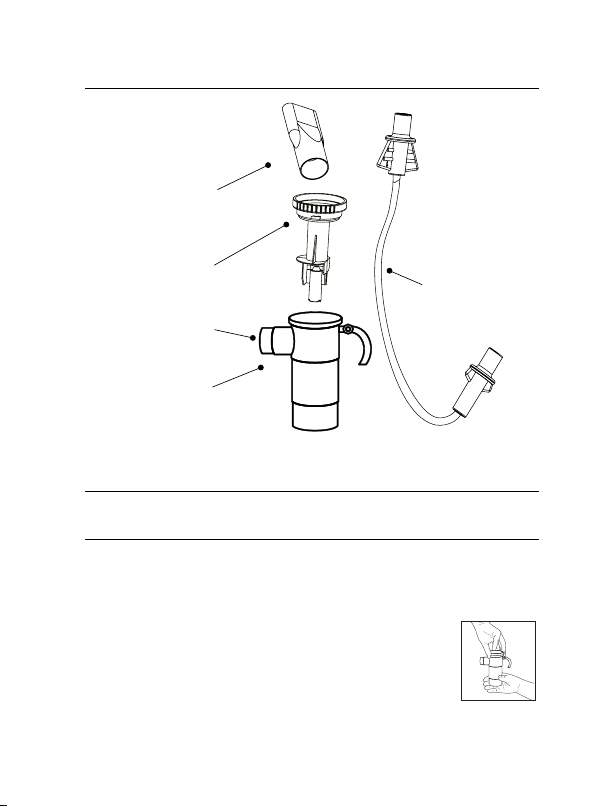

Nebulizer Kit
CARRYING OUT NEBULIZING THERAPY
Filling the Medicine Cup
Follow the cleaning instructions in this manual under "Unit Maintenance"
prior to using your nebulizer for the rst time or after it has been stored for
an extended period of time.
1. Place the compressor on a at, stable surface within reach.

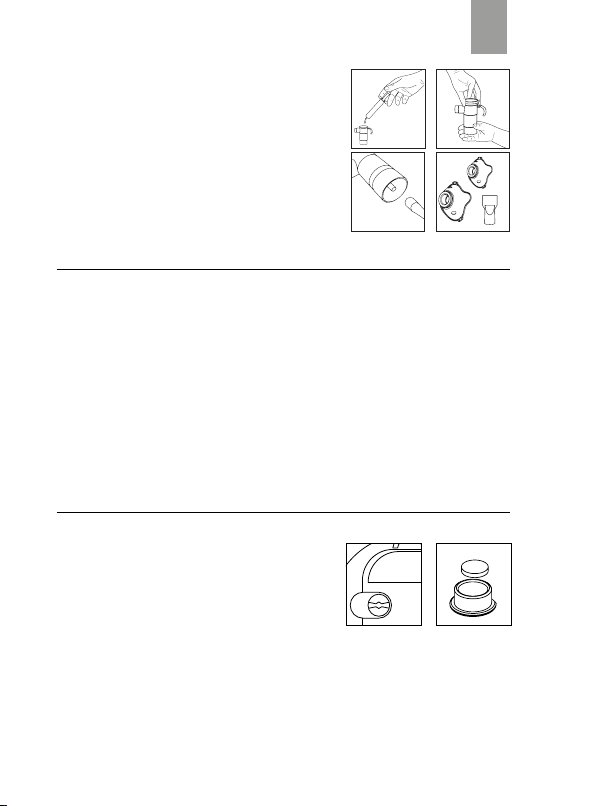

2. Gently open the medication cup unscrewing its cover (g-
ure A).
3. Add the prescribed amount of medication into the medica-
tion cup. Be sure that the medicine does not exceed the up-
per notch of 8 mL (gure B).
4. Reassemble the nebulizer cup by carefully twisting the medication cup
Air hose
Mouthpiece
Cap
Spray nozzle
Medicine
container
A
BC
DE

EN
11
and cover together. Make sure that the two parts
t securely (gure C). The stem inside the medi-
cation cup inserts into the cap's neck.
5. Connect one end of the air tube to the medi-
cation cup and the other end to the connector
on the device (gure D).
6. Install the needed accessory on the medicine
cup: adult or pediatric mask, or mouthpiece (g-
ure E). Note: The mouthpiece is to be used for
oral inhalation only.
Operating the Unit
To operate the Nebulizer, do the following:
• Plug in the compressor but do not connect the nebulizer kit yet. Make
sure that the air lter is attached to the compressor.
• Turn on the power switch.
• After the compressor runs properly for 1-2 minutes, connect the jet outlet
of the compressor to the inlet of the nebulizer kit by the air hose.
• Begin treatment according to your physician’s instructions. Inhale and
exhale naturally. Be sure to stop when the medicine is used up.
• When you have nished, turn the compressor unit o󰀨 before
you disconnect the air hose.
Changing the Air Filter
The lter should be replaced after 100 hours
of use or when it turns grey. For lter replac-
ing, carefully pull the lid out of its housing.
Remove the old lter and t in a new one.
Install the lter holder back in its hous-
ing, making sure that it is securely xed.
Use the lters supplied by the manufacture only .
RECOMMENDATIONS FOR CARRYING OUT NEBULIZING THERAPY:
• Sit down in a comfortable and upright position.
• If a mask (adult or pediatric) is used, be sure that it securely adheres
to the face. Mask has holes for the air ow during the expiration.
A
BC
DE

12
• Breathe easy and have a short pause at the end of each breath.
• Therapeutic application ends when the medicine comes out in a
discontinuous mode (spluttering).
• When using the mouthpiece, do not tilt the medicine cup over 45°.
UNIT MAINTENANCE
After each therapy remove the device from the socket and clean the de-
vice and the accessories. Attention: use only the accessories supplied
with the product, other accessories can lead to ine󰀨ective therapy.
Cleaning of the Mouthpiece
Use drinking water to clean carefully this accessory. It can be sterilized by
immersion in a chemical disinfectant (oxidizing electrolytic chloride), fol-
lowing disinfectant manufacturer’s instructions and rinsed o󰀨 with drinking
water. Leave to dry naturally in a clean place.
Cleaning of the Nebulizer Kit
After use, open two parts, wash with soap and hot water or soak in warm
water for 15 minutes and rinse it carefully. Remove excess of water with
a soft, clean and dry cloth and leave to dry naturally in a clean place. For
more thorough, hygienic cleaning, add some vinegar into the water. It is
recommended to use one personal medicine cup for each patient, to be
used for 6 months or 120 treatments. Do not use boiling water to clean
the nebulizer kit. Carefully wash masks and hoses with disinfectant solu-
tion only.
Contamination by Microbes
In case of pathologies of microbial or viral origin, where infection is possible, the
device and its accessories should not be shared among patients.

EN
13
Troubleshooting
PROBLEM FACTOR SOLUTION
Too much noise No lter in the unit. Put a lter in the unit.
The nebulizer
does not run
Compressor switch
is o󰀨. Turn the unit on.
Nebulizer was not
cleaned after its previ-
ous use.
Clean the unit.
Air hose is bent. Remove any bends or
kinks in the air hose.
The lter is clogged. Replace the lter.
No medication is left.
Add the appropriate
amount of medication pre-
scribed by your physician
to the cup.
The cap is not at-
tached properly. Reattach the cap.
Water drops have
formed in the air
hose.
The medication was
overlled.
Add appropriate amount
of medication to cup, con-
nect the air hose to the air
compressor, and turn the
unit on.
The nebulizer kit was
washed but not dried.
Open and close the nebu-
lizer kit repeatedly until the
drops disappear.
NOTE: If the device is not functioning correctly in spite of inspections
e󰀨ected, contact the iHerz®service center in your country.

14
TECHNICAL SPECIFICATIONS
Model iFlow
Power 230 V AC, 50/60Hz
Power consumption below 65W
Nebulizer ow 6 L
Compressor Flow ≥8 L
Medicine container capacity 2-8 mL
Particle size 0.5 to 6 microns
MMAD 2.44 microns
Average nebulization rate ≥0.2 mL/min
Residue amount 0.15 mL
Noise level below 65dBA
Operation mode 30 minutes on, 30 minutes o󰀨
Max pressure range ≥32 Psi, ≥220 Kpa, ≥2.2 Bar
Operation pressure range ≥10 Psi, ≥70 Kpa, ≥0.7 Bar
Operating temperature range 10 °C to 40 °C (50 °F to 104 °F)
Operation humidity 10% to 95% RH
Storage temperature range -20 °C to 70 °C (-4 °F to 158 °F)
Storage humidity range 10% to 95% RH
Dimension (L x W x H) 167 x 142x 93 mm
Weight 1.46 Kg
Protection against electric shock Class II equipment
Degree of safety in the presence of
ammable anesthetics or oxygen
No AP/APG (not suitable for use in
the presence of ammable anes-
thetics or oxygen)
Contents Compressor nebulizer machine,
medication cup, adult mask, pedi-
atric mask, mouthpiece, air tube,
spare air lters (2 pcs)

EN
15
This device has an expected service life of about 2.000 ther-
apy cycles, based on an average therapy duration of 8 min.
Electromedical devices require special care. It is essential that the devices
are installed and used in accordance with the manufacturer's specications,
taking into account the requirements of electromagnetic compatibility. There
is a potential risk of electromagnetic interference with other devices, in par-
ticular with other devices for analysis and treatment. Radio and mobile tele-
communications devices or portable RF equipment (mobile phones or wire-
less connections) may interfere with the operation of electromedical device.
The specications and the outer design are subject to changing for im-
provement reasons without previous notice.
SYMBOL DESCRIPTION
SYMBOL MEANING SYMBOL MEANING
Alternating current 0413 CE mark
Double insulation
Do not use the appliance
when taking a bath or
shower
BF applied part ON Device is ON
Obligation to read instruction OFF Device is OFF
General warning symbol Keep dry
IP 21
Protection against solid
and liquid bodies penetra-
tion (protected against solid
bodies over 12 mm; protected
against access with a nger;
protected against vertically
falling water drops).
Temperature limitation

16
This product (including its
related accessories) must be
delivered at the end of its ser-
vice lifeto an electronic waste
disposal/recycling facility by
the user or dealer.
Manufacturing date
Manufacturer European representative
Serial number Direct current
WARRANTY
The guarantee of this device is valid for 1 year from the date of purchase.
The warranty does not cover consumable materials, and those parts sub-
ject to normal wear and tear. The warranty is only valid upon presentation
of the warranty card with purchase date and stamp of trade organization
and receipt.
Should the unit be damaged due to user misuse or negligence, the man-
ufacturer or authorized dealers shall not be responsible for any loss or
damage to the unit. All assembly, extension, adjustment or repair of this
unit must be performed only by the authorized service center of iHerz®
distributor in your country. For repairs or spare parts purchase, please,
contact the authorized service center of iHerz®distributor in your country.

17
RU
УВАЖАЕМЫЙ ВЛАДЕЛЕЦ КОМПРЕССОРНОГО ИНГАЛЯТОРА
IHERZ®
Благодарим вас за выбор небулайзера iHerz® модели iFlow. Мы уве-
рены, что, по достоинству оценив качество данного прибора, вы ста-
нете постоянным пользователем продукции торговой марки iHerz®.
Ваш небулайзер предназначен для лечения астмы, хронических об-
структивных заболеваний легких и других респираторных заболева-
ний путем превращения жидких лекарственных средств в аэрозоль,
который быстро и легко проникает как в верхние, так и в нижние ды-
хательные пути.
Перед тем как начать пользоваться небулайзером, пожалуйста, вни-
мательно прочитайте инструкцию. Соблюдение требований, перечис-
ленных в ней, обеспечит бесперебойную работу небулайзера в тече-
ние длительного времени. По всем вопросам относительно данного
продукта, пожалуйста, обращайтесь к официальному представителю
или в сервисный центр ТМ iHerz® в вашей стране.

18
СОДЕРЖАНИЕ
ВВЕДЕНИЕ .......................................................................................... 19
Что такое небулайзер и как он работает?.......................................... 19
Когда применяется небулайзерная терапия?.................................... 19
Преимущества небулайзерной терапии ............................................ 19
ПОДГОТОВКА ПРИБОРА К ИСПОЛЬЗОВАНИЮ ............................ 20
Важная информация по безопасности............................................... 20
Принцип работы .................................................................................. 22
Прибор и аксессуары .......................................................................... 23
Камера небулайзера............................................................................ 24
ПРОВЕДЕНИЕ НЕБУЛАЙЗЕРНОЙ ТЕРАПИИ ................................. 24
Наполнение чашки для лекарств ....................................................... 24
Эксплуатация прибора........................................................................ 25
Замена воздушного фильтра .............................................................. 25
ОБСЛУЖИВАНИЕ ПРИБОРА............................................................. 26
Очистка загубника .............................................................................. 26
Очистка емкости для медикаментов.................................................. 26
Загрязнение микробами ..................................................................... 27
Устранение неисправностей .............................................................. 27
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ ПРИБОРА .............................. 28
ОПИСАНИЕ СИМВОЛОВ.................................................................... 30
ГАРАНТИЯ ........................................................................................... 31

19
RU
ВВЕДЕНИЕ
Что такое небулайзер и как он работает?
Компрессорный небулайзер представляет собой прибор, который
преобразует жидкое лекарственное вещество в мелкодисперсный
аэрозоль под воздействием сжатого воздуха. Аэрозоль содержит
крупные и мелкие частицы. При дыхании под воздействием силы
тяжести крупные частицы оседают на стенках верхних дыхательных
путей, а мелкие частицы успевают достичь нижних отделов бронхов.
Таким образом, лекарственное вещество попадает во все отделы
бронхиального дерева, включая самые мелкие бронхи и альвеолы, а
также проникает в кровеносные сосуды в стенках альвеол в высоких
терапевтических дозах при незначительных или нулевых побочных
эффектах.
Когда применяется небулайзерная терапия?
Небулайзерную терапию применяют при:
• острых респираторных заболеваниях;
• обструктивных заболеваниях легких;
• хронических воспалительных процессах дыхательных путей,
таких как хронический бронхит, бронхиальная астма (в т. ч.
при хронической, нестабильной, при тяжелом обострении БА),
хроническом фарингите;
• инфекциях дыхательных путей;
• нарушении качества секрета и его отделения в бронхах;
• различных видах кашля.
Преимущества небулайзерной терапии
Небулайзерная терапия дает возможность быстрого воздействия
на зону воспаления высокими дозами лекарства, что повышает
эффективность проводимого лечения и снижает риск побочных
действий на другие органы. Небулайзерная терапия является
наиболее экономичным способом лечения с точки зрения целевого

20
расходования лекарственного вещества, широко применяется для
детей, пожилых людей, ослабленных пациентов.
ПОДГОТОВКА ПРИБОРА К
ИСПОЛЬЗОВАНИЮ
Важная информация по безопасности
• Перед использованием внимательно прочтите инструкцию.
Сохраните ее для дальнейшего использования в случае
необходимости.
• Используйте устройство только как ингалятор в терапевтических
целях. Тип лекарственного средства, режим и время использования
- согласно медицинским предписаниям. Сборка прибора должна
быть произведена строго в соответствии с указаниями в данном
руководстве и только в целях, заявленных производителем.
• Данный прибор не подходит для использования с
воспламеняющимися анестезирующими смесями, содержащими
воздух, кислород или оксид азота.
• Держите шнур подальше от горячих поверхностей.
• Всегда выключаете прибор из розетки после использования и перед
проведением очистки.
• Не прикасайтесь к прибору, если он случайно упадет в воду.
Отключите его от источника электропитания и не используйте его.
Свяжитесь с авторизированным сервисным центром.
• Не прикасайтесь к прибору влажными руками.
• Во время использования, убедитесь, что прибор стоит на ровной и
устойчивой поверхности.
• Не используйте прибор, когда пациент спит.
• Обращайтесь по всем вопросам обслуживания в сервисный центр.
Не вскрывайте прибор. Если прибор не работает должным образом,
выключите его и просмотрите инструкцию по эксплуатации.
• Не оставляйте какие-либо упаковочные материалы (пластиковые
пакеты, картонные коробки и т. д.) в доступном для детей месте во
избежание опасных ситуаций.
• Храните аксессуары в недоступном для детей месте. Использование
прибора детьми и людьми с ограниченными физическими или
умственными способностями следует осуществлять под пристальным
