Baynhams PeRSo 3.0 User manual

PeRSo 3.0 User Manual
Powered Air-Purifying Respirator
Please read these instructions carefully before using the equipment
Incorrect use can result in risk to life and health

1. INTRODUCTION
This respiratory system is intended to be used to provide protection when the user works
in a contaminated environment. The equipment is able to filter the contaminated air via
the filter built in to the blower and then supply fresh air from breathing tube to the
respirator hood so that the user can continuously work in a contaminated environment.
It is a combined face and breathing protection device for increased safety and comfort
whilst performing tasks. Please read these instructions carefully before unpacking.
2. APPROVALS
The system complies with the requirements of PPE Regulation 2016/425 and European
Standard EN 12941: 1998+A2:2008 class TH3 P R S L. The Respiratory System is
designed to provide a supply of filtered air via a breathing tube to a fabric headpiece. The
equipment can be used in an environment that requires a class TH3P breathing
protection device. It protects against particulate contamination.
All components used in the Respiratory System must be manufacturer approved parts,
and must be used in accordance with the instructions in this manual.
1. The approval is not valid if the product is incorrectly used together
with non-approved parts or components.
2. Only the particle filter and pre-filter can be used together with
this system. Filters from other manufacturers should not be used.
3.WARNING AND LIMITATIONS TO USE
Before each use, inspect the Respirator System for damage and verify it operates
properly. Before using the Respirator System, test air flow to verify it is providing an
adequate volume of air.
Always wear the Respirator System and do not remove the hood or turn off the air filter
unit until outside the contaminated area, otherwise, there is a risk of high concentration
of CO2 and reduced oxygen level in the hood, and little to no protection is given.
If you are not sure about the concentration of pollution, or about equipment performance,
ask the company safety officer.

The manufacturer is not responsible for injury due to the following
incorrect use or incorrect choice of equipment.
Warning:
This respirator device should be used by trained personal and qualified personnel only.
Before using the devices ensure you have understood that at very high work rates the
pressure in the device may become negative at peak inhalation flow.
Before and during using the device, attention shall be drawn to possible incorrect use
and, where appropriate, the possibility of looped hoses and/or cables becoming
entangled.
Before or during use of the device, if the device is in the power-off state no respiratory
protection is to be expected.
Please leave the work place and remove the headgear, when the device is in the power-
off state a rapid build-up of carbon dioxide and depletion of oxygen within the hood may
occur.
The filters shall only be fitted to the blower unit and not directly to the helmet/hood.
The user should not confuse the markings on a filter relating to any standard other than
EN 12941 with the classification of this device when used with this filter.
DO NOT use PERSO 3.0 with the blower unit switched off.
DO NOT use PERSO 3.0 in an atmosphere that is immediately hazardous to user
hygiene or health and/or has oxygen content of less than 19.5% or contains unknown
substances.
DO NOT use PERSO 3.0 in an explosive atmosphere.
DO NOT use PERSO 3.0 in confined spaces or areas of poor ventilation
DO NOT use PERSO 3.0 in high winds.
DO NOT alter or modify in any way.
DO NOT touch any of the moving parts.
DO NOT allow water or other liquids to enter the impeller chamber, the filter or battery
compartment.

4. UNPACKING/ASSEMBLY
Check that correct components have been supplied, as in figure 1.
Check that the apparatus is complete, undamaged and correctly assembled.
Any damaged or defective parts must be replaced before use.
FIGURE 1
The package must include:
1. The air fed hood
2. The respiratory protection system (blower unit + filter + waist belt)
3. Lithium-ion battery
4. The tube and end fittings
5. The shoulder harness
6. The air flow tester
7. The lithium-ion battery charger
If any of the above components are not included in your kit, please contact the supplier
immediately.

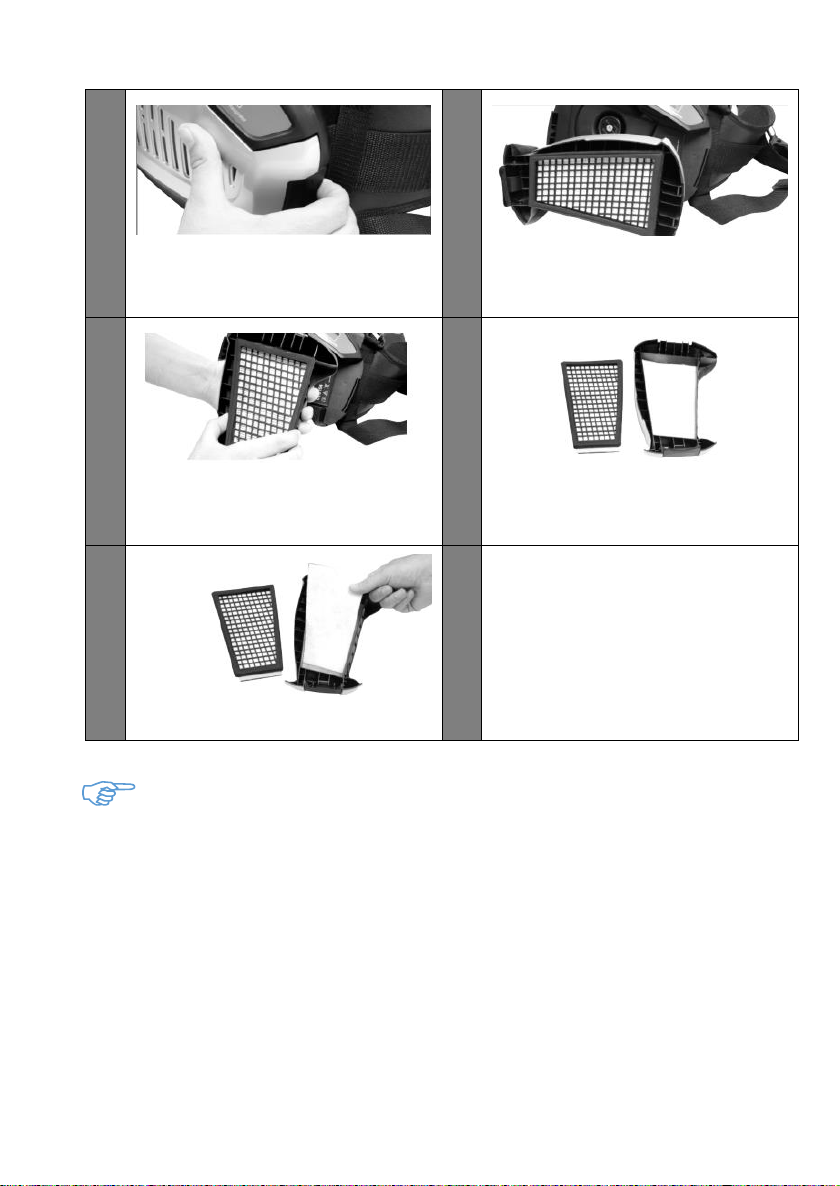

4.1 Filter replacement
1
Remove the filter cover by pressing in the
latch of the filter cover.
2
The filter cover is released.
3
Remove the used filter by lifting it out from
the filter cover.
4
5
Remove the pre-filter.
The pre-filter and filter expected lifetime is 12 months. When
under intensive use, check the filter cleanliness periodically and
if needed, change them more often than every 12 months.

4.2 Installing the battery/Charging
1
Slide the battery towards the back of the
filtration unit.
2
Make sure that the battery is locked in
position.
3
The battery can be charged on the filtration unit or separately.
The battery is partially charged when delivered. It must be
charged to 100% (4 bars) before first use.
It is recommended to charge the battery to 100% before each use.
The charger must not be used for anything other than it was designed for. Do not
charge the battery in a potentially explosive area. The charger must
only be used indoors.
The charger regulates the charge automatically, once the battery is fully
charged, the charger will maintain the charge at 100%.
The charge time is 3 to 4 hours.
The battery will discharge after long storage periods. Always
charge the battery if the device has been stored for more than 15
days. When the battery is new or has been stored for more than
3 months, charge it and discharge it at least twice in a row to reach
the nominal/rated charge capacity.

Battery charge :
1.Connect the battery to the charger. The connector is above the battery.
2.Connect the charger to the mains.
3.The state of charge is displayed via a red LED on the mains charger.
4.Once the charge is finished: the red LED switches off and a green LED switches
on.
5.Disconnect the charger from the mains (do not keep the charger plugged in to
the mains if it’s not in use).

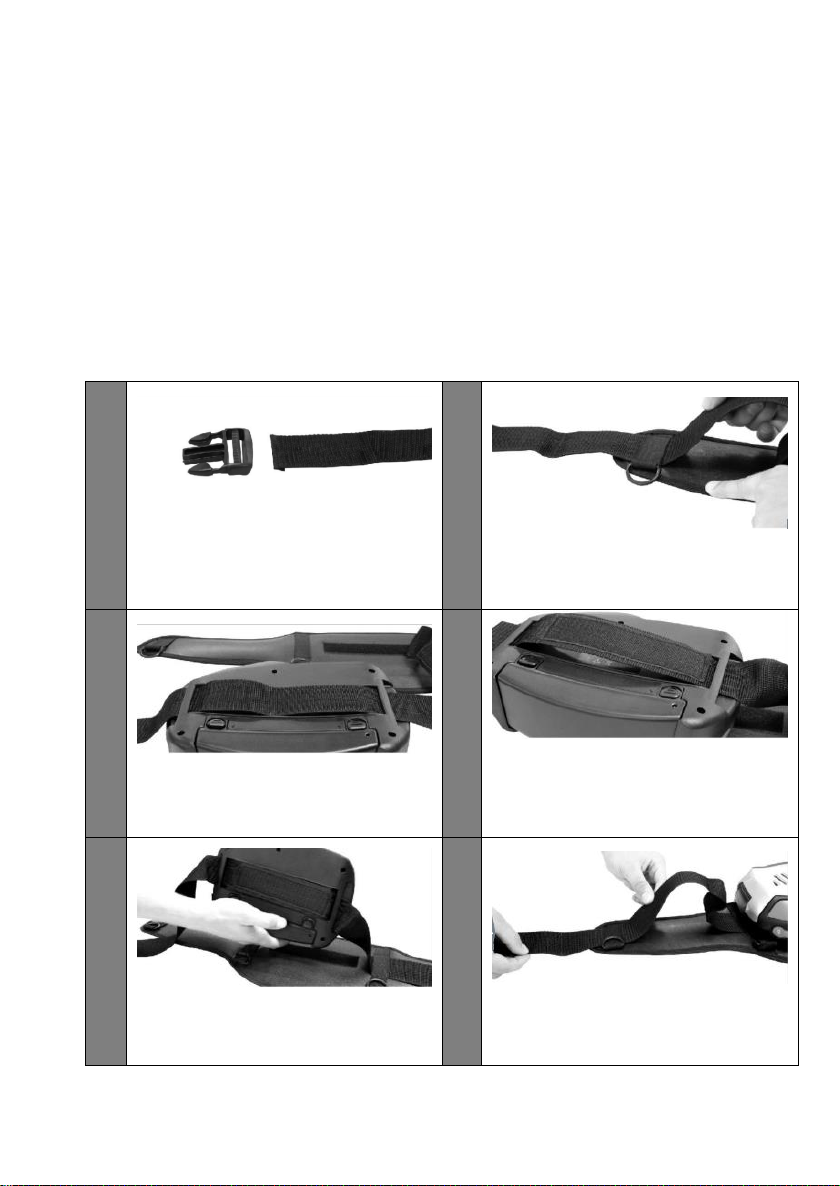

4.3 Installing the respirator system on the belt
1
Remove the belt’s release buckle.
2
Remove the fastening belt from the waist
connector’s 2 belt loops.
3
Pass the belt through the respirator system’s
2 belt loops.
4
Position the Velcro® between the 2 loops.
5
Flip the filtration system and attach to the
Velcro on the belt.
6
Put the fastening belt back through the 2 belt
loops.

7
Put the buckle back.
8
Attach the harness to the belt’s 4 plastic
rings.
Make sure the belt is securely fastened.
4.4 Connecting the tube
1
Connect the air tube to the respirator system
and twist it clockwise to lock its position.
2
Connect the other end of the tube to the
headgear in the same way.
1.Check that the respirator tube is firmly connected. If the tube is broken,
replace it.
All components must be installed/ used in accordance with this manual if
the equipment is to offer the specified protection. If any component is
missing, or if anything is not clear, contact the supplier.

5. BEFORE USE/ FITTING

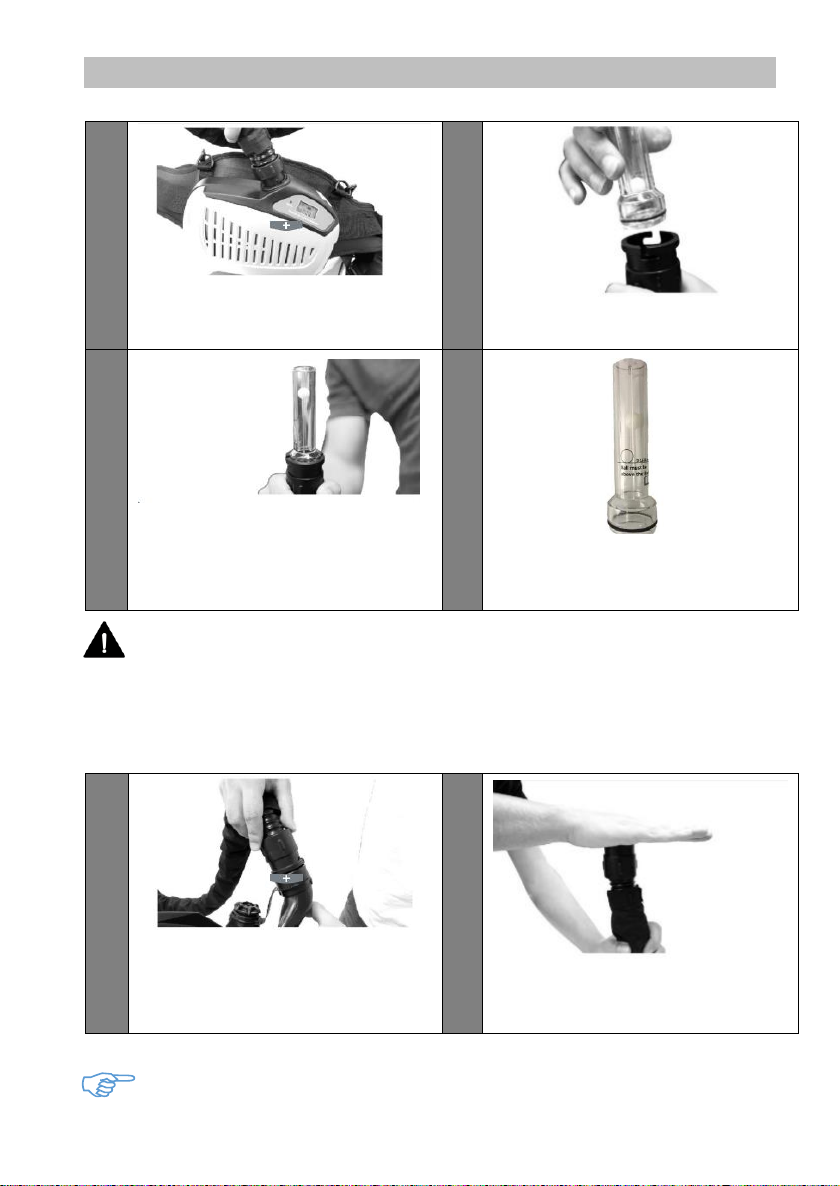

5.1 Air flow test
1
Connect thebreathing tube to the blower unit
and twist it clockwise to lock it.
2
Insert the flowmeter at the top of the tube.
3
Press the ON button and maintain the tube
in a vertical position at eyes’height.
4
The air flow is sufficient if the marble reaches
the minimum flow level O.
1. The airflow must be tested before using.
2. If the marble can’t reach the minimum flow level, don’t use the system.
Change the filter or the battery and retest the air flow.
5.2 Air flow alarm test
1
Remove the tube from the hood and press
the ON button.
2
Cover the air output with your hand and wait
approximately 15 seconds.
If the alarm does not work, please repair or change Respirator System

6. LCD and Operation

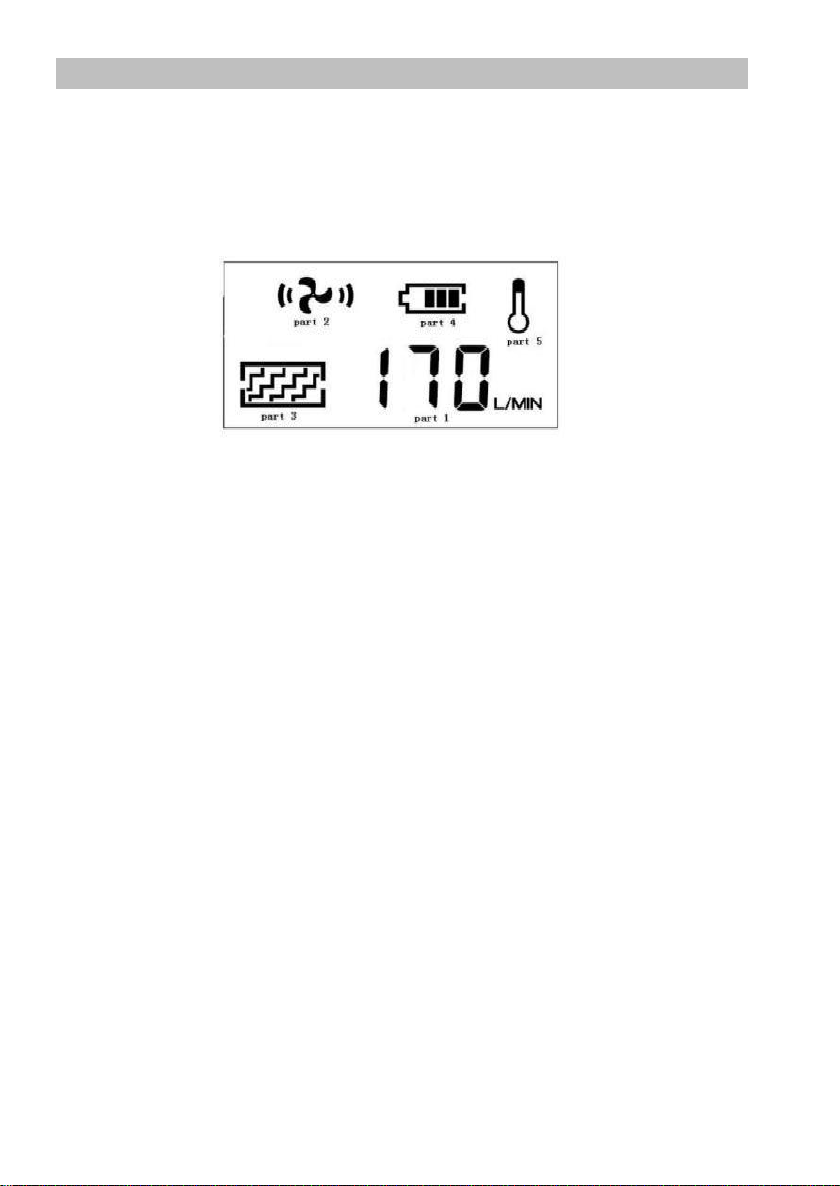

6.1 LCD display screen
There is a LCD display screen on PERSO 3.0 unit to show the PERSO 3.0 operating
status (FIGURE 3).
FIGURE 3
Part 1 shows the current air flow rate.
Part 2 shows the level of the airflow.
Part 3 shows the filter condition.
Part 4 shows the battery.
Part 5 shows the temperature of the battery.
Any of them will flash if there are PERSO 3.0 malfunctions.

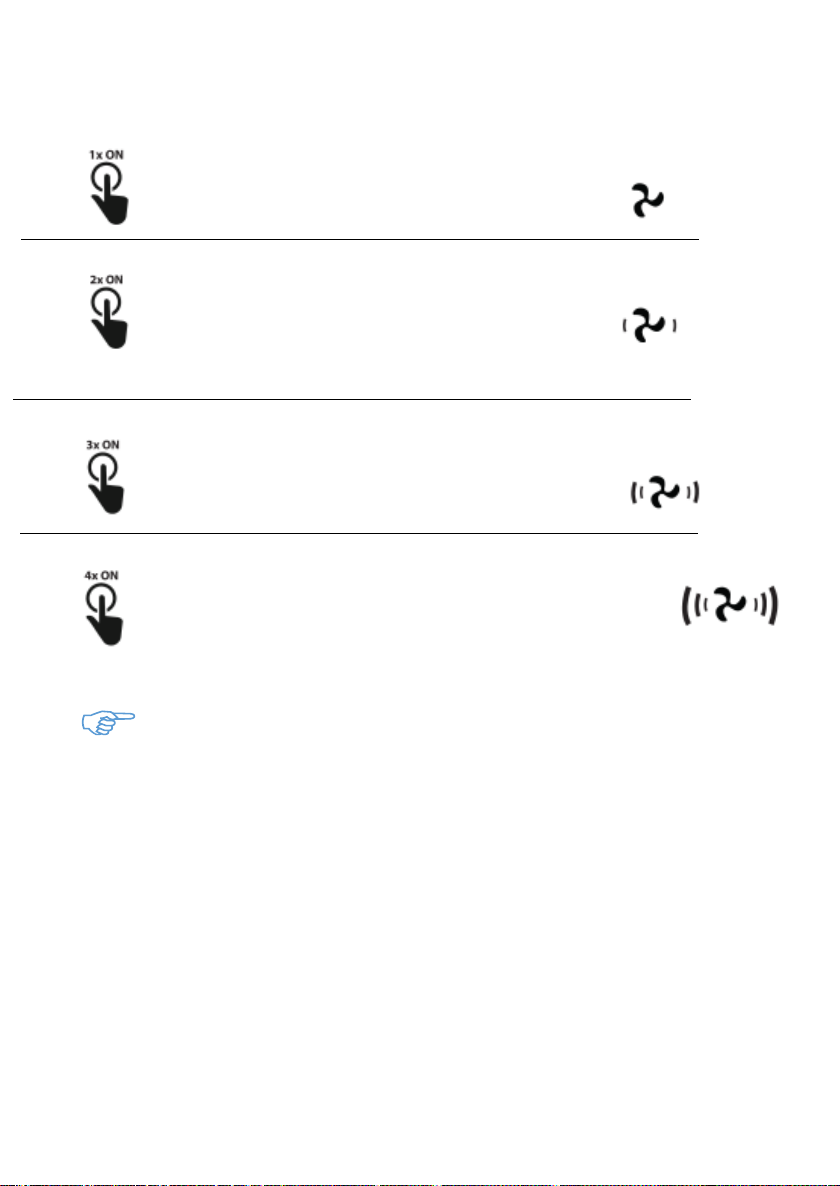

6.2 Operation
Switch the device on by pressing the ON button once.
Press the ON button once again, the air flow is at level 1
(~170L/min).
Press the ON button once again, the air flow is at level 2 (~200L/min).
Press the ON button once again, the air flow is at level 3 (~230L/min).
Press the ON button once again, the air flow reverts to level 1 (~170L/min).
1. To turn off the blower unit, long press the OFF button for more than 3
seconds.
2. The Respirator system will enter sleep mode if the blower unit has turned off for
more than 30 minutes. Pressing the ON button can activate the system.
3. The Respiratory system must be operated in the temperature range of
-5℃ to +55℃ and relative humidity less than 90%RH.

7. PARTS LIST
7.1 PERSO 3.0
Drawing No.
Part No.
Description
1
P3-01 01T 008
Hood
2
P3-04 01T 001
Filter Cover
3
P3-04 03T 001
Pre-filter
4
P3-04 04T 001
Filter
5
P3-04 05T 001
Blower Unit
6
P3-05 01T 001
Waist Belt
7
P3-05 02T 001
Shoulder Harness
8
P3-03 01T 001
Standard Battery
P3-03 01T 002
Heavy Duty Battery(Optional)
9
P3-06 01T 001
Breathing Tube
10
P3-06 03T 001
Battery Charger
11
P3-06 04T 001
Air Flow Tester

8. MAINTANCE & STORAGE
Inspect the equipment daily and check for any sign of malfunction.
8.1 Maintenance
The Respirator system unit must be checked regularly and must be changed if it is
damaged and could cause leakage.
The filter must be changed if it is broken, or it is blocked and does not give enough airflow.
The breathing tube must be changed if it is broken or deformed.
The battery must be charged when the low battery alarm rings.
Use a soft cloth to wipe the external surfaces. Don’t use water!
The filter should be replaced together with the pre-filter.
8.2 Storage
The Respirator system must be stored in a dry, clean area, in the temperature range of -
10℃ to +55℃ and relative humidity less than 90%RH.
If the equipment is stored at temperature below 0℃, the battery must be allowed to warm
up to achieve full battery capacity. The equipment must be protected from dust, particles
and other contamination.
If the equipment is not used for a long time, the battery should be fully charged, removed
from the Respirator system unit and stored separately.
Transport the equipment with original packaging box and away from direct sunlight.

9. TROUBLE SHOOTING
Problem
Probable cause
Action
Fault code «E01»
+
blinks
1.Motor is stuck
2.Motor is damaged
3.Blower structure failure
caused by outer force
4.Circuit failure
Check and remove physical
failure and restart the system.
Return to dealer if LCD still
shows E01
Fault code «E02»
+
blinks
1.Motor is damaged
2.Motor impeller rubs blower
shell
3.Circuit has excessive
current.
Check and remove physical
failure and restart the system.
Return to dealer if LCD still
shows E02
blinks
+ blinks
+ alarm sounds
Low battery
Charge the battery
blinks
+ blinks
+ alarm sounds
Filter blocked
Tube blocked
Remove obstruction, change the
filter
Clean tube
blinks +alarm sounds
Battery high temperature
Stop working and rest
No air flow, no alarm
1. No power
2.Battery contact damaged
Charge the battery
Check battery contact
Battery run time is too short
1.Battery is not fully charged
2. Filter is blocked
3. Battery is damaged
Charge the battery
Remove obstruction, change
filter
Change battery
Air supply to hood smells
unusual
1. Filter broken
2. Tube broken
3. Hood damaged
Leave current area immediately.
1. Change filter
2. Change tube
3. Change hood
Supply insufficient air to hood
1. Breathing tube broken off
2. Breathing tube broken
3. Filter is blocked
1. Check tube connection to hood
and Respirator system unit
2. change breathing tube
3.Remove obstruction, change
filter

10. SPECIFICATION
Size
(Blower Assembly)
9-2/5 x 6-1/2 x 2-3/4 in. (240 x 165 x 70 mm)
Weight
1.2KG
Particle Filter
1*TH3 P R SL
Air Flow
Manufacturer minimum design flow rate: 165L/min
Airflow :
Level 1: 170L/min
Level 2: 200L/min
Level 3: 230L/min
Noise Level
Max 75dB
Operate Temperature
23℉ to 131℉ (-5℃~55℃)
Storage temperature
14℉ to 131℉ (-10℃~55℃)
Battery Type
Standard Battery Rechargeable Li-ION 4400mAh
Optional:
Heavy Duty Battery Rechargeable Li-ION 6800mAh
Expected Battery
Operation Time
Standard Battery
Level 1>8h
Level 2>6h
Level 3>4h
Heavy Duty Battery(Optional)
Level 1>14h
Level 2>12h
Level 3>9h
Battery Charging Time
3.5 Hours
5 Hours
Battery Life
500 Charges
Run Time Dependent On Air Flow Rate and Filter Load.
LCD Display
Air flow level and data
Battery capacity
Filter status
Belt Size
35-2/5 x 51-2/5 in. (900mm to 1300mm)

11. MARKING EXPLANATION
Powered filtering device:
● EN 12941:1998 Respiratory protective devices- Powered filtering devices
incorporating a helmet or hood- Requirements, testing, marking.
● TH3 P R (SL) classification of the unit. “TH3” defines the level of protection,
“P R” indicates the filter type (“P”= Particle filter, “R”= Reusable type of
particle filters) and “SL” reflects the filter has been tested against particles of
liquid and solid matter.
Warning sound indication
This PERSO 3.0 PAPR has sound alarm function.
Each grid stands for a period of 100ms. Gray is the beep sound and blank grid is a quiet
period. If several continued grids are in gray then there’s a continuous beep sound.
For example, when the current is overloaded, the system sounds like
beep~beep~beep~~~~~.

Symbols:
=Read instructions before use
0194= CE mark followed by number of notified body who carried
out module D surveillance.
Warranty:
The PERSO 3.0 Blower unit is guaranteed for a period of 12 months from date of
purchase against mechanical or electrical defects.
The PERSO 3.0 battery is guaranteed for a period of 6 months from the date of purchase.
The company undertakes to exchange or repair without charge, any part found to be
defective within this period alternatively and at its discretion. The Company may replace.
This guarantee is subject to:
The PERSO 3.0 unit has been used solely for the purpose for which it is intended.
The PERSO 3.0 unit has not been subject to misuse, accident, modification or repair.
In the event of a claim, contact the retailer from which the PERSO 3.0 unit was purchased.
The guarantee does not cover normal wear and tear.
