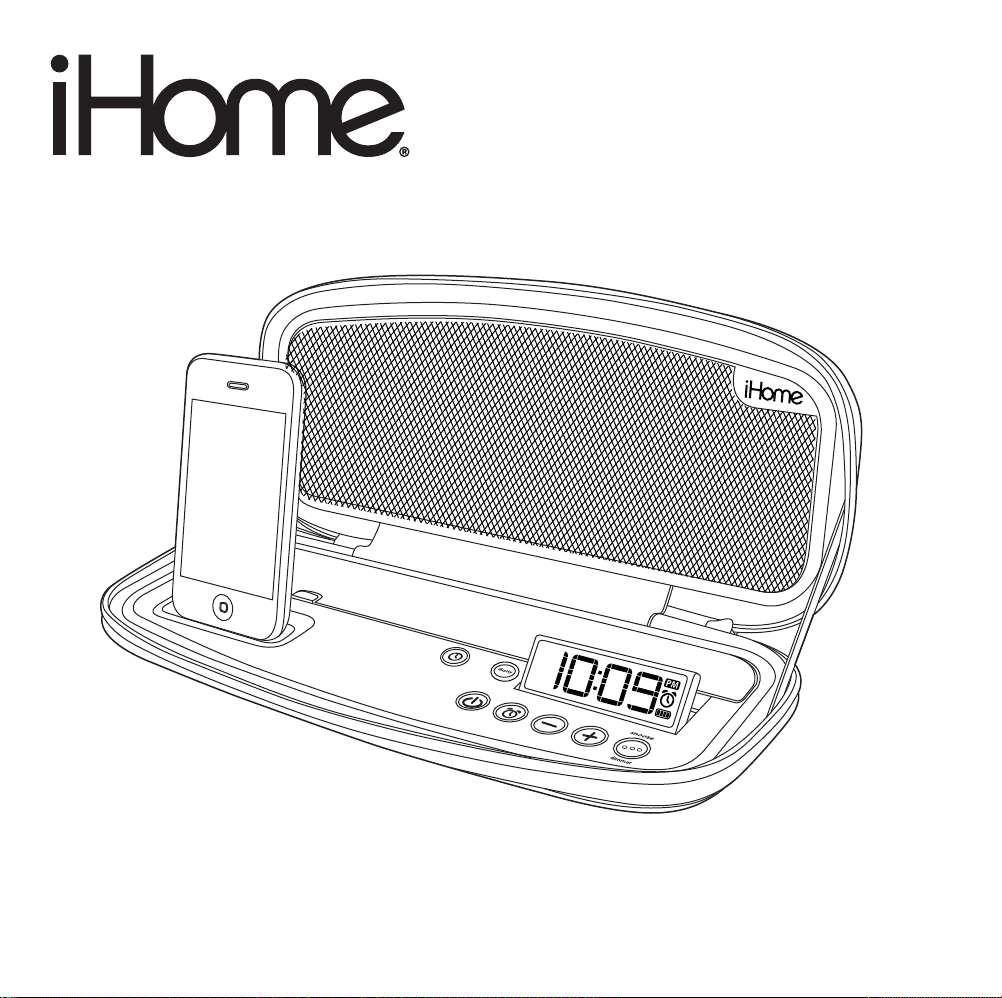

Ihome Ip38 User manual

Model iP38

Portable Stereo Alarm Clock

Speaker Case for your iPod®/

iPhone®

Questions? Visit www.ihomeaudio.com

Model:iP38(USEnglishversion)

Printcolor:Blacktextonwhitepaper

Sizeofmanual:178mmWx178mmH

Date:Mar15,2010 P1

Table of Contents

4-5

iP38 Quick Start

Controls and Indicators

Getting Started with your iP38

Using the iP38

A Consumer Guide to Product Safety

Trouble Shooting

Warranty Information

Table of Contents

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material

should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene,

thinner or similar materials can damage the surface of the unit.

Maintenance

FCC Information

This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits

provide reasonable protection against radio and TV interference in a residential area.

However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference

you can try one or more of the following corrective measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the radio or TV.

• Use outlets on different electrical circuits for the equipment and the radio or TV.

• Consult your dealer or an experienced radio/television technician if the problem still exists.

Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s

warranty and void your FCC authorization to operate it.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Battery Information

For Models Requiring More Than One Battery

• Do not mix with used or other battery types/brands

• Replace all cells at the same time

• Do not open batteries

• Do not dispose of in fire

• Do not heat above 75ºC (167ºF)

• Do not expose contents to water

• Do not charge or recharge

• Do not install backwards

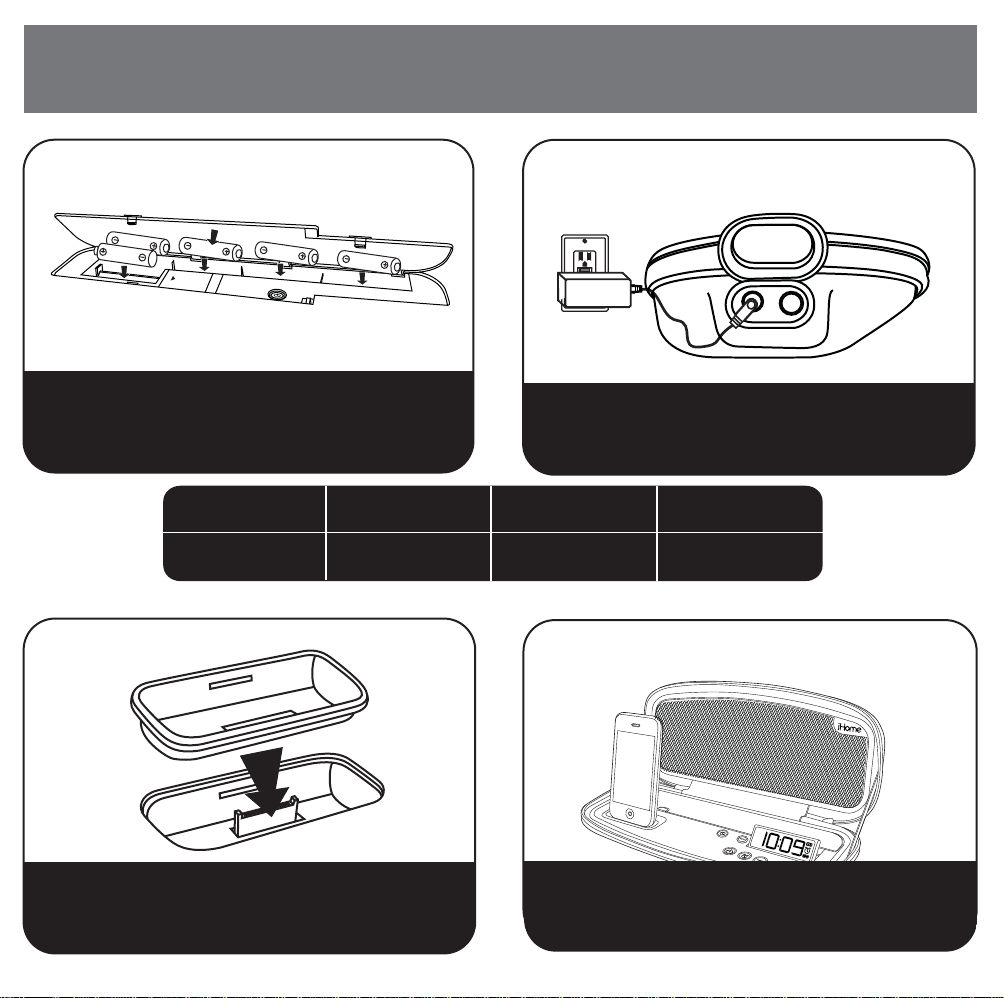

iP38 Quick Start

1:batteries

Open battery compartment located inside unit. Insert 5

“AA” batteries (not included) as indicated on diagram.

Unit can now play iPod/iPhone. Batteries will not charge

iPod/iPhone.

4:iPod/iPhone

NOTE: If you do not have an insert for your iPod, please visit

www.ihomeaudio.com or call iHome toll free at 800-288-2792 to purchase one

3:inserts

Select the dock insert for your iPod/iPhone model from the

table above and place insert in dock.

Never dock an iPod/iPhone without an insert in place.

iPod touch 2G

insert 16

iPod touch 2G

For this

iPhone/iPod

Use this insert

iPhone 3G/3GS

iPhone 3G

insert 15

iPod nano 5G

insert 18

iPod nano 5G

Gently place iPod/iPhone on the connector plug in dock.

Press Power Button to ON. Unit and iPod/iPhone will

turn on. Adjust volume by pressing the +or –Button.

2:AC adaptor

Connect AC adaptor to the DC jack (left side of iP38) and

plug the other end into a working wall socket to charge and

play iPod/iPhone. Does not charge batteries.

RESET

TEST

Controls and Indicators

Front Panel

Dock

Speakers

Power/Alarm Reset Button

Alarm Button

Volume “_”

(lowers volume)

Volume “+”

(raises volume)

Battery Compartment Door

Backup Battery

Compartment (under door)

Snooze/Dimmer

Button

Display Button

Time Set/Time Sync Button

Side Panel

Line-in Jack

AC Adaptor Jack

Press display button to release

catch and flip up display

Press display down for travel

Time Display

PM Indicator

Alarm Indicator

Battery Level Indicator

Battery backup

indicator

iP38 Display

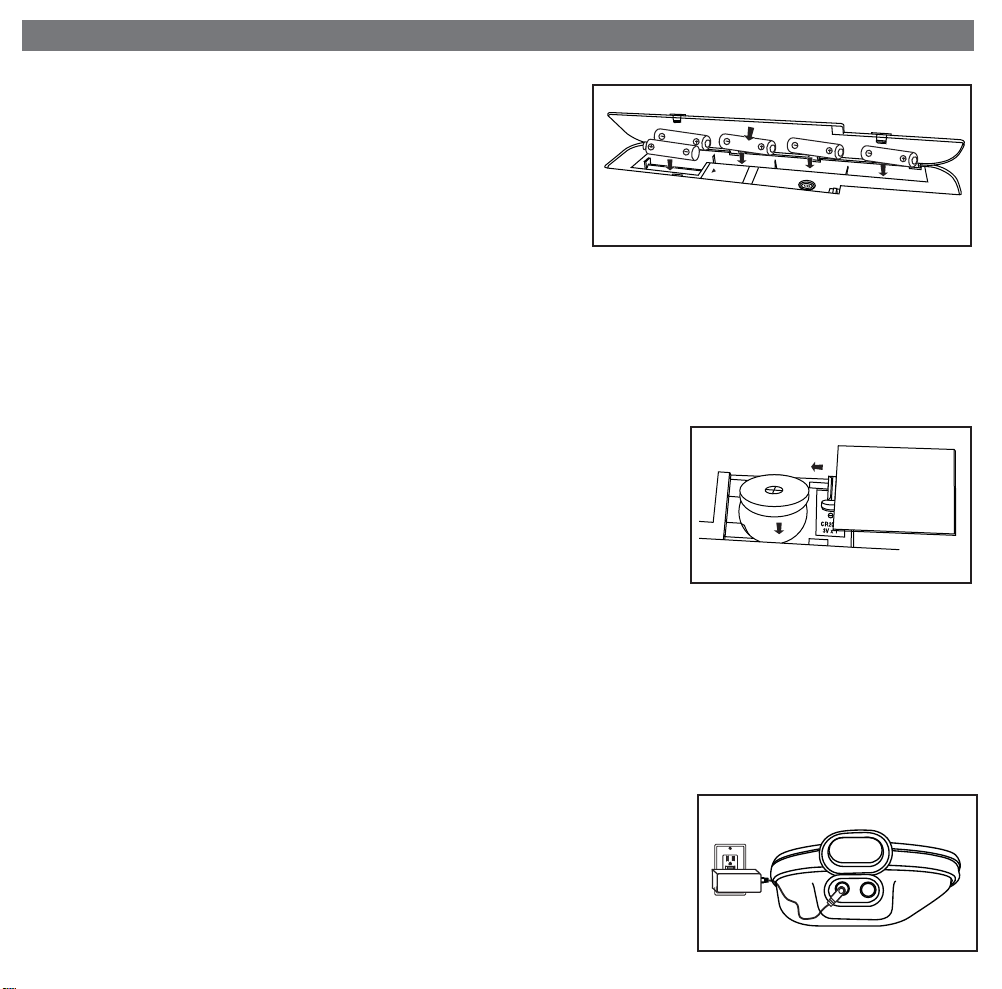

Installing/Replacing Speaker Batteries

FOR PORTABLE LISTENING

When music becomes weak or distorted, change batteries

1. Open the battery compartment cover located inside the unit.

2. Insert 5 “AA” (LR6) batteries, checking the +and –ends of the

batteries match the drawings inside the battery compartments.

We recommend the use of alkaline batteries for longer life. Different

types of batteries or new and used batteries are not to be mixed.

3. Close the battery compartment cover.

NOTE: Unit will not charge iPod/iPhone while operating on battery power

Battery Information

• Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.

• Make sure you dispose of batteries properly (see your local regulations).

Installing/Replacing Backup Battery

The iP38 uses a backup battery system to provide continuous alarm operation and

clock settings in the event of a power failure. The backup battery is included. If the

Backup Battery Low Icon (located on the upper left of the display) is flashing, it is

time to replace the backup battery. Please make sure the AC adaptor is connected,

otherwise all settings may be lost during battery replacement.

Open the backup battery compartment cover located inside the main battery

compartment. Insert 1 “CR2032” battery with the”+” side facing up as indicated.

Replace battery compartment cover and main battery compartment cover.

WARNING: Lithium batteries can explode or cause burns if disassembled, shorted, recharged, exposed

to water, fire, or high temperatures. Do not place loose batteries in a pocket, purse, or other container

containing metal objects, mix with used or other battery types, or store with hazardous or combustible

materials. Store in cool, dry, ventilated area. Follow applicable laws and regulations for transport and

disposal.

Connecting the AC Adaptor

For home operation and to charge your iPhone/iPod, connect the AC adaptor cable

plug into the DC jack located under the black tab on the left side of the unit, then plug

the AC adaptor into a working wall outlet. When connected to the AC adaptor, the

iP38 charges and lets you play your iPod/iPhone.

NOTE: This AC adaptor is for use with the iP38 only. To avoid damage, do not use

other adaptors with the iP38.

Getting Started with your iP38

Battery Compartment

RESET

TEST

Using iP38

Setting Time and Clock Display Format

1. Press and hold the Button (located to the left of the display in the battery compartment) for 2 seconds until the

display flashes.

2. Press +or –Button to select 12 Hour or 24 hour clock display format. Press the Button again for clock setting.

3. Press +or –Button to adjust to correct time. Hold the buttons for a few seconds to advance or reverse rapidly.

Remember to set the correct AM or PM time. The PM Indicator is located on the upper right hand side of the time digits;

there is no AM indicator).

Using Time Sync to Set Clock from iPhone/iPod

The iP38 allows you to sync its clock with the time from your iPhone/iPod.

1. Make sure the iP38 is off. Dock your iPhone/iPod into the iP38 using the proper insert (see table on page 1).

2. Press the Button. “SYNC” will flash on the display until sync is completed. Two beeps will indicate sync is complete.

Note: the iPhone cannot sync to exact seconds; you may see up to 59 seconds difference between iP38 and synced

iPhone/iPod.

Using the Alarm

Setting the Alarm

1. Press and hold the Button until the current alarm time flashes.

2. Press the +or -Button to set the desired alarm time. Hold the buttons for a few seconds to advance or reverse rapidly.

Remember to set the correct AM or PM time.

2. Press the Button to confirm alarm time (or no button press within 10 seconds) to exit alarm setting mode.

The alarm will be armed and the alarm icon will remain on the display, indicating the alarm is active.

3. If no iPhone/iPod is docked or detected, the iP38 will automatically change to buzzer alarm.

Reviewing and Turning Alarm Function On and Off

1. Press the Button once to review the set alarm time. This also toggles the alarm off (the alarm icon will disappear).

2. Press the Button again to re-arm the alarm; the alarm icon will appear again in the display.

Resetting the Alarm to Come on the Next Day

1. When the alarm is sounding, press the Button to stop the alarm and reset it to come on the following day

Using iP38

Alarm Time Cycle and Snooze Operation

Alarm Time Cycle

1. When using AC power, the alarm time cycle is 1 hour. To save battery power, the alarm time cycle is shorter when using

battery power (iPhone/iPod alarm cycle is 15 minutes and wake to buzzer is 3 minutes during battery operation).

2. Press the Snooze/Dimmer Button after the alarm sounds. The alarm will be silenced and come on again after 9 minutes.

Snooze can be pressed several times during the alarm time cycle.

Sure Alarm

The iP38 has a sure alarm feature. If the backup battery is installed, the buzzer alarm will still sound in the event of a power

failure.

Charging your IPhone/iPod

Note: Please make sure you are using the correct insert for your iPhone or iPod (see Install iPod Insert) and that it is properly

docked into the iP38. Failure to do so may damage your iPod.

1. While your iPhone or iPod is docked in the unit and the unit is connected to AC power, it recharges (until fully charged).

Note that other non-docking iPods will NOT charge.

Playing your iPhone/iPod

1. Press the Button to play iPhone/iPod and the display will show “On” for a while to show the iP38 is on.

2. Press the +or –Button to adjust the volume.

3. To skip tracks or select different artists, albums, genres, etc., use the click wheel controls on your Ipod or the touch

screen controls on your iPhone or iPod touch.

4. To switch off the unit, press the Button once more. Display will show “Off” for a while and both the iP38 and your

iPhone/iPod will turn off

Using the Line-in Jack

1. Plug one end of the audio patch cord (not included) into the headphone or line-out jack on your nondocking iPod or

other audio device and the other end of the patch cord into the iP38 Line-in Jack.

2. Press the Button.The display will show “On” for a while to show iP38 is on.

3. Turn on your audio device and put it in play mode.

4. Press the +or –Button on the iP38 to adjust the volume. You may need to adjust your device’s volume too.

5. To switch off the unit, press the Button once more. The display will show “Off” for a while and the

iP38 will turn off. Remember to shut off your device, too.

NOTE: Do not play an audio device through the line-in jack while an iPhone or iPod is docked or you may hear audio from

both.

Dimmer Operation

During normal operation, press the Snooze/Dimmer Button to control the brightness of the LCD display.

A Consumer Guide to Product Safety

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However,

improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully

before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in

these instructions and on the unit.

1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink,

laundry tub, swimming pool or in a wet basement.

2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For

example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it

should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through

the ventilation openings.

3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances

(including amplifiers) that produce heat.

4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions

or as marked on the appliance.

5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched

by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where

it is plugged into an AC socket.

6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual for cleaning

instructions.

7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings

or vents located on the product.

8. Attachments – Do not use attachments not recommended by the product manufacturer.

9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable

system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage

to the product due to lightning and power-line surges.

10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in

a risk of fire or electric shock.

11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:

A. the power supply cable or plug has been damaged.

B. objects have fallen into or liquid has been spilled into the enclosure.

C. the unit has been exposed to rain.

D. the unit has been dropped or the enclosure damaged.

E. the unit exhibits a marked change in performance or does not operate normally.

12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the power

cable should be unplugged from the unit to prevent damage or corrosion.

13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating

instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

Questions? Visit www.ihomeaudio.com

or call 1-800-288-2792 Toll Free

Trouble Shooting

P10

Symptom Possible Problem Solution

Unit doesn’t respond

(no power) AC adaptor isn’t plugged into a wall outlet

or the connector is not plugged into the

power supply jack on the back of the dock

Plug the AC adaptor into a wall outlet and plug the

connector into the supply jack on the unit

Wall outlet is not functioning or switched off Plug another device into the same outlet to confirm the outlet

is working. Make sure any associated power switch is ON

iPod/iPhone does not

dock properly

Using no or wrong iPod/iPhone insert

Make sure the dock insert is the proper fit for your iPod/iPhone

iPod/iPhone not installed properly Remove your iPod/iPhone from the dock and check for

obstruction on the connectors in the dock and on your

iPod/iPhone. Make sure there is no “skin” or case on the

iPod/iPhone. Then reseat it in the dock.

iPod/iPhone does

not respond to the

unit

iPod/iPhone is not installed properly Remove your iPod/iPhone from the dock and check for

obstruction on the connectors in the dock and on your

iPod. Then reseat it in the dock.

Your iPod/iPhone software is too old Upgrade software on your iPod/iPhone via iTunes

iPod/iPhone is locked up Please make sure your iPod/iPhone is working properly

before docking into the unit. Please refer to your

iPod/iPhone manual for details.

Using 1st or 2nd generation iPod, iPod

shuffle or other devices. Unit cannot control those iPod models or other devices.

Use the Line-in jack to play these devices.

Batteries are weak or dead Replace with new batteries

If your iPod/iPhone is not used for some

time, it may enter deep sleep mode

iPod/iPhone battery is run down or is too weak

Press the Menu button on your iPod/iPhone

Charge your iPod/iPhone for about 5 minutes

iPod/iPhone does not

come on immediately

iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from defects

in workmanship and materials, under normal use and conditions, for a period of 1 year from the date of original purchase.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this

fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI Technologies will

repair or, at its discretion, replace this product without charge (except for a $10.00 charge for handling, packing, return UPS/postage, and

insurance). This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center listed

below. The product must include proof of purchase, including date of purchase. The fee for service without proof of purchase is $35.00.

Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective batteries are

the most common cause of problems encountered.

If service is still required:

Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.

Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.

Enclose a check or money order payable to the order of SDI Technologies, for the sum of $10.00 ($35.00 without proof of purchase).

Send the unit prepaid and insured, to the Factory Service Center listed below.

Consumer Repair Department

SDI Technologies Inc.

1330 Goodyear Drive

El Paso, TX 79936-6420

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have

been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii)

cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes (if applicable); (iv)

the cost of shipping this product to the Factory Service Center and its return to the owner.

This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser.

In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable
