Iiyama ProLite 1531SAW User manual

ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.
USER MANUAL

ENGLISH

ENGLISH
 We reserve the right to change specifi cations without notice.
 All trademarks used in this user manual are the property of their respective owners.
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of diff erent countries from there.
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC
Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU
“RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
Model No. : PLT1500, PLT1531, PLT1532, PLT1700, PLT1731, PLT1900, PLT1931

ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY ..........................................................................1
SAFETY PRECAUTIONS ..............................................................1
SPECIAL NOTES ON LCD MONITORS .......................................3
CUSTOMER SERVICE .................................................................3
CLEANING ....................................................................................3
BEFORE YOU OPERATE THE MONITOR ........................................4
FEATURES ....................................................................................4
CHECKING THE CONTENTS OF THE PACKAGE ......................5
SPECIAL NOTES ON TOUCH PANEL ..........................................5
WALL MOUNTING ........................................................................5
BUILT-IN EQUIPMENT ..................................................................5
CONTROLS AND CONNECTORS ................................................6
CONNECTING YOUR MONITOR .................................................7
COMPUTER SETTING .................................................................8
ADJUSTING THE VIEWING ANGLE ...........................................8
OPERATING THE MONITOR .............................................................9
ADJUSTMENT MENU CONTENTS ............................................10
SCREEN ADJUSTMENTS ..........................................................15
POWER MANAGEMENT FEATURE ...........................................18
TROUBLE SHOOTING ....................................................................19
RECYCLING INFORMATION ...........................................................20
APPENDIX ......................................................................................21
SPECIFICATIONS : ProLite T1531SR ........................................21
SPECIFICATIONS : ProLite T1531SAW .....................................22
SPECIFICATIONS : ProLite T1532SR ........................................23
SPECIFICATIONS : ProLite T1731SR ........................................24
SPECIFICATIONS : ProLite T1731SAW .....................................25
SPECIFICATIONS : ProLite T1931SR ........................................26
SPECIFICATIONS : ProLite T1931SAW .....................................27
DIMENSIONS :
ProLite T1531SR
/ ProLite T1531SAW / ProLite T1532SR ........... 28
DIMENSIONS : ProLite T1731SR / ProLite T1731SAW ..............28
DIMENSIONS : ProLite T1931SR / ProLite T1931SAW ..............28
COMPLIANT TIMING ..................................................................29

ENGLISH
FOR YOUR SAFETY 1
FOR YOUR SAFETY
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerous and can cause fi re or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
fi re or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
any object inside may cause fi re, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fi re or electric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specifi ed power supply. Use of an incorrect voltage will
cause malfunction and may cause fi re or electric shock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fi re or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
SAFETY PRECAUTIONS

ENGLISH
2 FOR YOUR SAFETY
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the
sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
fi re. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the
cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fi re
or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft
material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal
cable is disconnected. If you do not disconnect them, it may cause fi re or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to
avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable
itself as this may cause fi re or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.
REMARK FOR 24/7 USAGE
This product is not specifi cally designed for 24/7 usage in all environments.
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
OTHERS

ENGLISH
FOR YOUR SAFETY 3
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE 
When you first turn on the LCD monitor, the picture may not fit in the display area
because of the type of computer that is used. In this case, adjust the picture position to
the correct position.

You may find slightly uneven brightness on the screen depending on the desktop
pattern you use.

Due to the nature of the LCD screen, an afterimage of the previous screen may remain
after switching the image, when the same image is displayed for hours. In this case, the
screen is recovered slowly by changing the image or turning off the Power Switch for
hours.
SPECIAL NOTES ON LCD MONITORS
WARNING
NOTE
CLEANING

If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.

To protect the Touch screen surface, do not scratch or rub the screen with a hard
object.

Never use any of the following strong solvents. These will damage the cabinet and
the Touch screen surface.
Abrasive cleaner Wax Solvent

Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
TOUCH
SCREEN
Touch screen surface may be cleaned using a soft clean cloth moistened with mild
window glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.
NOTE 
If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.
CUSTOMER SERVICE

ENGLISH
4 BEFORE YOU OPERATE THE MONITOR
BEFORE YOU OPERATE THE MONITOR
FEATURES
 Supports Resolutions up to 1024 × 768 :
ProLite T1531SR / ProLit T1531SAW / ProLite T1532SR
 Supports Resolutions up to 1280 × 1024 :
ProLite T1731SR / ProLite T1731SAW / ProLite T1931SR / ProLite T1931SAW
 High Contrast 700:1 (Typical) / Brightness 300cd/m2 (Typical: with Touch panel)
: ProLite T1531SR / ProLite T1532SR
 High Contrast 700:1 (Typical) / Brightness 340cd/m2 (Typical: with Touch panel)
: ProLit T1531SAW
 High Contrast 1000:1 (Typical) / Brightness 200cd/m2 (Typical: with Touch
panel) : ProLite T1731SR / ProLite T1931SR
 High Contrast 1000:1 (Typical) / Brightness 230cd/m2 (Typical: with Touch
panel) : ProLite T1731SAW / ProLite T1931SAW
 Digital Character Smoothing
 Automatic Set-up
 Stereo Speakers
2 × 1W Stereo Speakers

Plug & Play VESA DDC2B Compliant
Windows® XP/Vista/7/8/8.1/10 Compliant
 Power Management (VESA DPMS Compliant)
 VESA Mounting Standard (100mm×100mm) Compliant
 Keyhole for Security Lock
 IP54 Standard Compliant (Only front face)
 Windows 8 / 8.1 / 10 touch environment
Basic touch operations can be performed under Windows 8 / 8.1 / 10.
However, please be informed that full touch functionality and normal operational performance are
not guaranteed.
 When upgraded from Windows 8 / 8.1 to Windows 10
You need to start a dedicated software.
Please contact your dealer or iiyama service center.
 When used from Windows 10
Please install a driver same as Windows 7 from attached Touch Panel Driver Disk.
If you are using the USB connection, you can operate without installing the driver.

ENGLISH
BEFORE YOU OPERATE THE MONITOR 5
The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyama offi ce.
*1 The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/
250V must be used. However, all guarantees and warranties are void for any
problems or damage caused by a power cable not supplied by iiyama.
*2 This CD-ROM contains the touch screen driver software.
Install the Touch Panel Driver Disk after connecting the computer to the monitor with
USB Cable. For the details, see Readme fi le in the Touch Panel Driver Disk.
Basically, if you are using Windows7 or above OS to connect via USB, you can
operate without installing the driver.
 Power Cable*1
HDMI Cable  DisplayPort Cable

USB Cable  Audio Cable  Screw (M3x6mm)

Touch Panel Driver Disk (CD-ROM)*2  Safety Guide
 Quick Start Guide 
CHECKING THE CONTENTS OF THE PACKAGE
CAUTION
When you use with the wall mounting, in
consideration of thickness of the mounting stage,
tighten the M4 Screw with washer which “L” length
is 8mm to fasten the monitor. Using the screw
longer than this may cause electric shock or
damage because it may contact with the electrical
parts inside the monitor.
WALL MOUNTING Screw
Chassis
Mounting Stage
L
WARNING
Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch.
This could invalidate any remaining warranty.
We recommend to use a plastic stylus (tip R0.8 or over) or fi nger.
SPECIAL NOTES ON TOUCH PANEL
This product is not designed for the purpose of being used in high temperature
environment.
If the product is placed in an external cabinet, you need to design cooling fans
and vents to keep the temperature low enough to fit in the product temperature
specifi cation.
BUILT-IN EQUIPMENT
WARNING

ENGLISH
6 BEFORE YOU OPERATE THE MONITOR

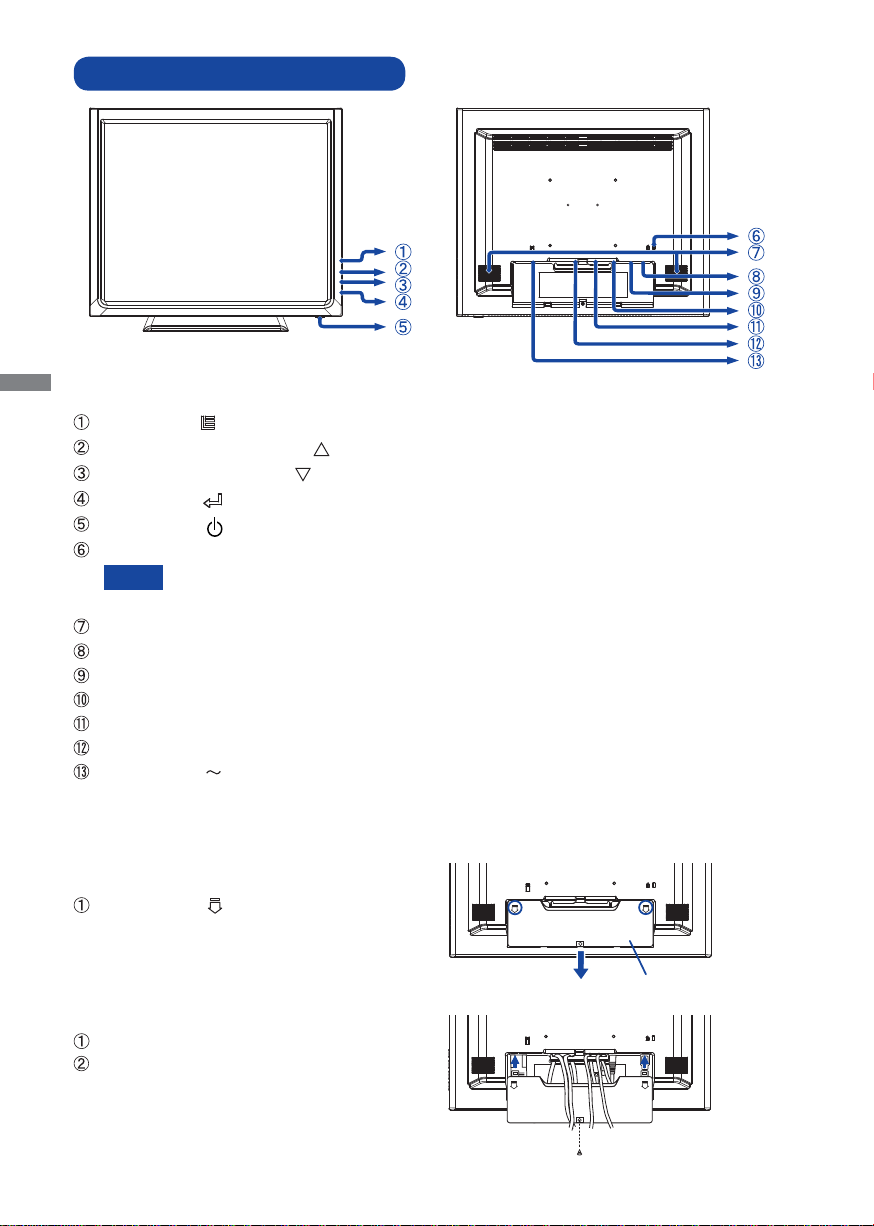

CONTROLS AND CONNECTORS
Menu Button ( )
Scroll Up / Brightness Button ( )
Scroll Down / Mute Button ( )
Select Button ( )
Power Switch ( )
Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
Speakers
USB Connector (USB)
Audio Connector (AUDIO)
VGA Connector(VGA)
HDMI Connector (HDMI)
DisplayPort Connector (DP)
AC Connector( : Alternating current) (AC IN)
NOTE
<Front> <Back>
[Fitting and Removal of Cable Cover]
● Removal
Press and hold on the Cable Cover and
remove the Cable Cover.
● Fitting
Place the Cable Cover.
Fix the Monitor with the Cable Cover
by the screw fi rmly.
Cable Cover
Screw (accessory)

ENGLISH
BEFORE YOU OPERATE THE MONITOR 7
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off .
Connect the computer to the monitor with the signal cable.
Connect the computer to the monitor with the USB Cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
audio features.
Connect the Power Cable to the monitor fi rst and then to the power supply.
Turn on your monitor and computer.
 The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regional iiyama offi ce.
 For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama offi ce for a suitable adaptor.
 Make sure you tighten the fi nger screws at each end of the Signal Cable.
[Example of Connection]
Cable Holder
Cable Holes
[Collect Cables]
Put the cables through the cable holder and holes.
Collect cables at the back of the stand.
NOTE
Power Cable (Accessory)
Audio Cable (Accessory)
Computer
VGA Cable (Not included)*
HDMI Cable (Accessory)
USB Cable (Accessory)
DisplayPort Cable (Accessory)
<Back>
* VGA cable is not supplied with the monitor. If you use low quality VGA cable, it may cause a result
of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you
wish to connect the monitor via the VGA input.

ENGLISH
8 BEFORE YOU OPERATE THE MONITOR
 Signal Timing
Change to the desired signal timing listed on page 29: COMPLIANT TIMING.
 Windows XP/Vista/7/8/8.1/10 Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs
on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with
the Signal Cable supplied.
For installation on Windows XP: The monitor Information File for iiyama monitors may be
necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com

For additional information on how to download the driver for your touch screen monitor,
please access the internet site noted above.

Monitor Drivers are not required in most cases for Macintosh or Unix operating
systems. For further information, please contact your computer dealer fi rst for advice.
COMPUTER SETTING
NOTE
ADJUSTING THE VIEWING ANGLE
 For optimal viewing it is recommended to look at the full
face of the monitor.
 Hold the panel so that the monitor does not topple when
you change the monitor’s angle.
 You are able to adjust the monitor’s angle up to 90
degrees upward, 5 degrees downward.
 Do not touch the LCD screen when you change
the angle. It may cause damage or break the
LCD screen.
 Careful attention is required not to catch your
fi ngers or hands when you change the angle.
 Procedure for turning ON the Power Switch
Turn ON the monitor fi rst, and then the computer.

Touch screen driver software
Touch screen driver software and system may not start when you start your computer while
touching the screen.
Touch screen driver software may not run due to the power saving function depending on the
BIOS of your computer. In this case, set the power saving function to off .
90°
5°
NOTE

ENGLISH
OPERATING THE MONITOR 9
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the
COMPLIANT TIMING shown on page 29. You are also able to adjust the picture by following
the button operation shown below. For more detailed adjustments, see page 15 for SCREEN
ADJUSTMENTS.
Press the Button to start the On Screen Display feature. There are additional Menu
items which can be switched by using the / Buttons.
Select the Menu item which contains the adjustment icon relating to the adjustment
you want to make. Use the Buttons to highlight the desired adjustment icon.
Use the / Buttons to make the appropriate adjustment or setting.
Press the Button to leave the menu, and the settings you just made would be
automatically saved.

When button operations are aborted during adjustment, On-Screen Display disappears when the
time set for the OSD TIMEOUT has passed.

button can be used to return previous menu item.

Any changes are automatically saved in the memory when the On Screen Display
disappears.
Turning off the power should be avoided while using the Menu.

Adjustments for H/V-POSITION, H-SIZE and FINE are saved for each signal timing. Except for
these adjustments, all other adjustments have only one setting which applies to all signal timings.
NOTE
For example, to correct for vertical position, select Menu item of . Then, select V-POSITION
by using the Buttons.
Use the / Buttons to change the vertical position settings. The vertical position of the overall
display should be changing accordingly while you are doing this.
Press the Button lastly, it ends, any changes are saved in the memory.
CONTRAST
BRIGHTNESS
1280x1024
FH: 63KHz FV: 59.9Hz
AUTO ADJUST
H-POSITION
V-POSITION
H-SIZE
FINE
100

ENGLISH
10 OPERATING THE MONITOR

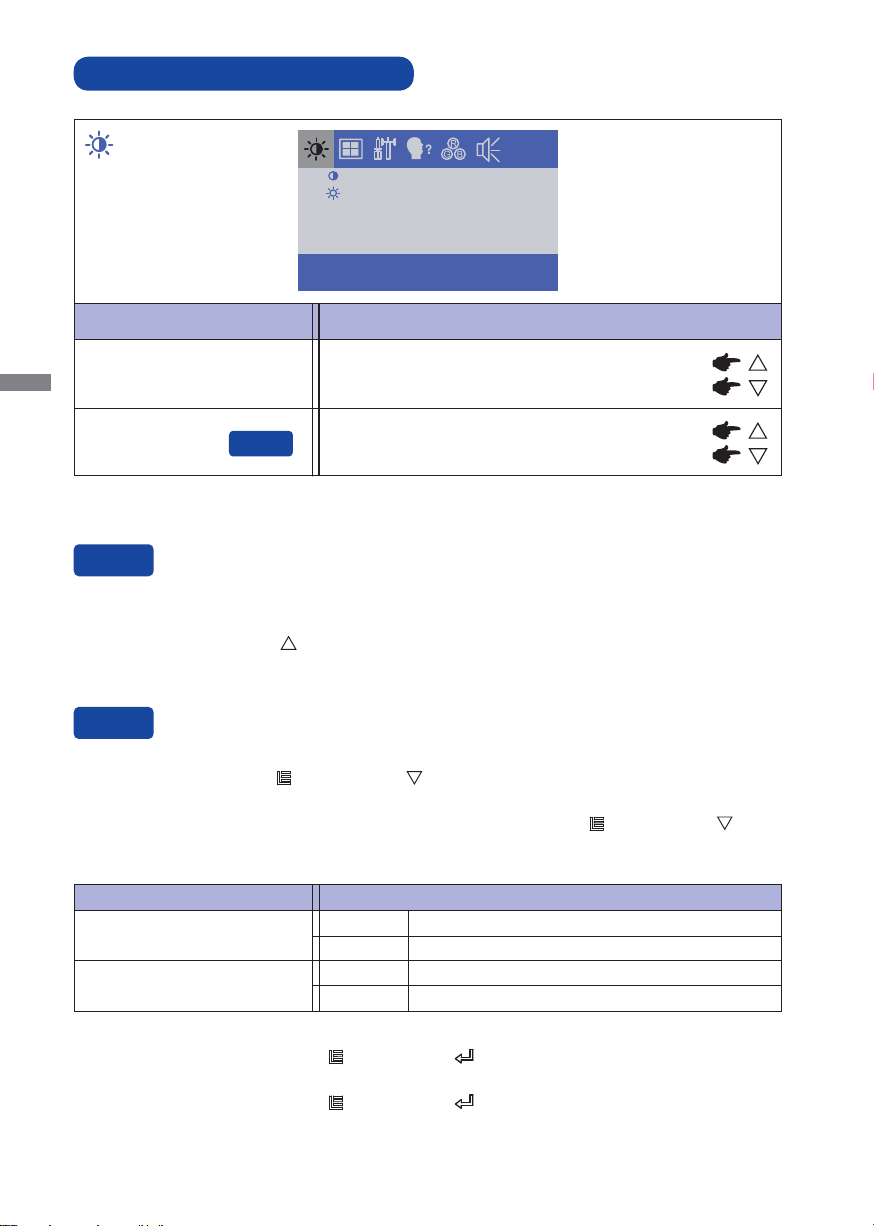

ADJUSTMENT MENU CONTENTS
Adjustment Item Problem / Option Button to Press
Too dark
Too bright
BRIGHTNESS *
CONTRAST Too dull
Too intense
* Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
bright.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

BRIGHTNESS: Press the Button when the Menu is not displayed.
Direct
Direct
CONTRAST
BRIGHTNESS
1280x1024
FH: 63KHz FV: 59.9Hz
Adjustment Item Problem / Option
OSD
POWER UNLOCK
LOCK The POWER SWITCH is Locked.
The POWER SWITCH is Unlocked.
UNLOCK
LOCK The OSD menu is Locked.
The OSD menu is Unlocked.

TOUCH FUNCTION DISABLE:
ON: Pressing and holding of the Button and the Button at the same time when the Menu is
not displayed, massage "TOUCH DISABLE" will appear on the top right corner.
OFF: Pressing and holding of the Button and the Button at the same time for about 5
seconds when the Menu is not displayed, till "TOUCH DISABLE" disappears.
Direct

LOCK MODE:
Simultaneously press the button and the button when an image is displayed through VGA,
HDMI or DisplayPort.
* The OSD menu is not displayed when the OSD is locked. Press the button and the button
simultaneously again.
The following OSD menu is displayed.

ENGLISH
OPERATING THE MONITOR 11
Adjustment Item Problem / Option Button to Press
FINE *2
H-SIZE *2
Too left
Too right
Too low
Too high
H-POSITION
V-POSITION
Too narrow
Too wide
To correct fl ickering text or lines
AUTO ADJUST *1Adjust H/V-POSITION, H-SIZE and FINE automatically.
*1 For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 15 for
SCREEN ADJUSTMENTS.
*2 See page 15 for SCREEN ADJUSTMENTS.
Only Analog Input AUTO ADJUST
H-POSITION
V-POSITION
H-SIZE
FINE

ENGLISH
12 OPERATING THE MONITOR
OSD H-POSITION
OSD V-POSITION
OSD TIMEOUT
RESET
INPUT SELECT
OSD TIMEOUT
OSD H-POSITION OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration time
between 5 and 60 seconds.
Adjustment Item Problem / Option Button to Press
OSD V-POSITION
RESET Factory-preset data is restored.
INPUT SELECT
However it will automatically be selected when just one source is using.
In Power Management Mode input switching is disabled.
Input source is fi xed, not selected automatically when VGA, HDMI and DisplayPort which
are selected.
Select the analog input.
Select the digital(HDMI) input.
VGA
HDMI
NOTE
Search for an available input source and select
automatically.
Auto
Direct
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

INPUT SELECT: Pressing and holding of the Button for about 5 seconds when the Menu
is not displayed. When both VGA, HDMI and DisplayPort signal inputs are
connected to a signal source, you can switch between them by successively
pressing the Button.
Direct
Select the digital(DisplayPort) input. DisplayPort

ENGLISH
OPERATING THE MONITOR 13
ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO
ESPAÑOL
Adjustment Item Problem / Option Button to Press
OSD LANGUAGE
ENGLISH
DEUTSCH
English
German
FRANÇAIS French Japanese
ITALIANO Italian Simplifi ed Chinese
ESPAÑOL Spanish
Traditional Chinese
9300
6500
5500
7500
USER
RED
GREEN
BLUE
94
90
100
Adjustment Item Problem / Option Button to Press
Greenish white
Yellowish white
GREEN
RED Too weak
Too strong
User
Reddish white
Bluish white9300
COLOR TEMP.
5500
6500
7500
BLUE

ENGLISH
14 OPERATING THE MONITOR
VOLUME
MUTE
Adjustment Item Problem / Option Button to Press
VOLUME Too soft
Too loud
MUTE
OFF
ON Turn off the sound temporarily.
Return the sound volume to the previous level.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

MUTE : Press the Button when the Menu is not displayed.
: MUTE ON
: MUTE OFF
Direct
Direct

ENGLISH
OPERATING THE MONITOR 15
SCREEN ADJUSTMENTS
 The screen adjustments described in this manual are designed to set image position and minimize
fl icker or blur for the particular computer in use.
 ProLite T1531 and ProLite T1532 series are designed to provide the best performance at resolution
of 1024 × 768, but can not provide the best at resolutions of less than 1024 × 768 because the
picture is automatically stretched to fi t the full screen. It is recommended to operate at resolution of
1024 × 768 in normal use.
 ProLite T1731 and ProLite T1931 series are designed to provide the best performance at resolution
of 1280 × 1024, but can not provide the best at resolutions of less than 1280 × 1024 because the
picture is automatically stretched to fi t the full screen. It is recommended to operate at resolution of
1280 × 1024 in normal use.
 Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to
the screen enlargement process.
 It is preferable to adjust the image position and frequency with the monitor controls, rather than
the computer software or utilities.
 Perform adjustments after a warm-up period of at least thirty minutes.

Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.
 The Auto Adjust may not work correctly when displaying the picture other than the screen
adjustment pattern. In this case, manual adjustments are required.
There are two ways to adjust the screen. One way is automatic adjustment for H/V-POSITION,
H-SIZE and FINE. The other way is performing each adjustment manually.
Perform the Auto Adjust first when the monitor is connected to a new computer, or resolution is
changed. If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing
the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the
screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com).
Adjust the image by following the procedure below to get the desired picture.
This manual explains adjustment under Windows® OS.
Display the picture at the optimum resolution.
Enter the Test.bmp (screen adjustment pattern) to wallpaper.
 Consult the appropriate documentation for doing this.
 Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in
the wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the
setting of “Stretch desktop wallpaper to fi t the screen”.
[Adjustment pattern]
Zebra pattern
Color bar
Picture frame
NOTE
Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

ENGLISH
16 OPERATING THE MONITOR
1) Adjust the H-POSITION so that the left side of the picture frame will move to the left
edge of the display area.
 When the left side of the picture frame moves apart from the left edge of the display
area during the H-SIZE adjustment, adjust steps 1) and 2).
 Another way to make the H-SIZE adjustment is to correct the vertical wavy lines in
the zebra pattern.
 The picture may fl icker during the H-SIZE, H/V-POSITION adjustment.
 In case the picture frame is bigger or smaller than the data display area after the
H-SIZE adjustment, repeat steps from .
2) Stretch the right side of the picture frame to the right edge of the display area by
adjusting the H-SIZE.
Press the Button. (AUTO ADJUST)
Adjust the image manually by following procedure below when the screen has a fl icker or
blur, or the picture does not fi t in the display area after performing the Auto Adjust.
Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the
display area.
NOTE
