Ikan V5600 Deluxe Kit User manual

INTRODUCTION
Thank you for purchasing the ikan V5600 Deluxe Kit. We know that you will be satisfied with our “V” series monitors.
Please visit www.ikancorp.com for more information on our current and future products including our award-winning
fluorescent studio lights and light accessories.
PACKAGE INCLUDES
V5600 5.6” TFT LCD Monitor
AC Power Adapter
Component Breakout Cable
AV Breakout Cable
Shoe Mount
 SC56 Soft Case
Compatible DV Battery
Compatible DV Battery Charger
GETTING STARTED
1. Powering The Monitor.
− Plug the AC adapter into the power input jack located on the right side of the rear of the monitor.
− AC107 DV battery adapter is included to provide for an additional power option.
2. Connecting The Video Source
− The V5600 allows you to connect your video cables directly to the rear of the monitor, with support for
SD/HD Component, Composite (A/V), and HDMI.

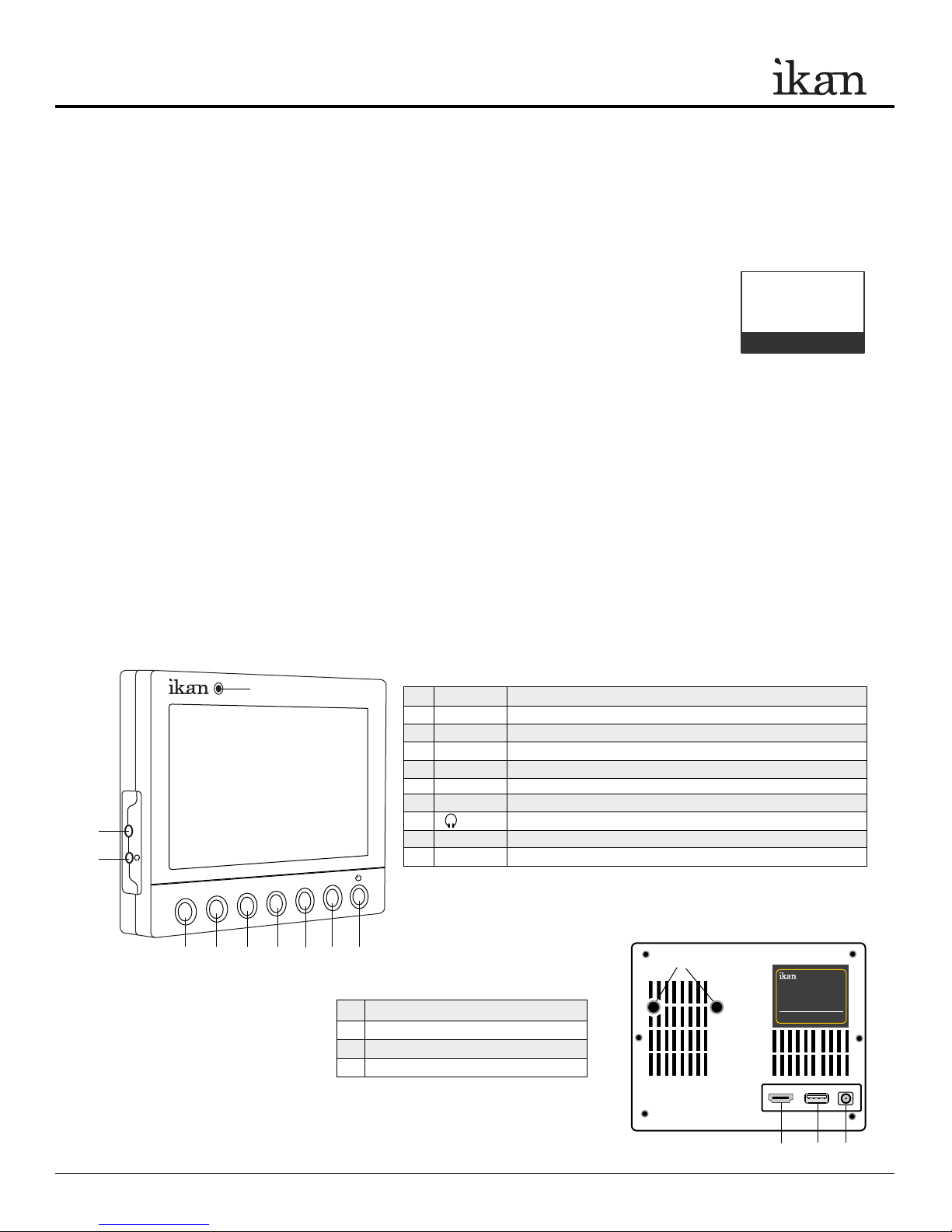

MONITOR DIAGRAMS
Checked by
 AC107 DV Battery Adapter (Check one)
AC107S Sony "L" Series
AC107S-U Sony "BP-U" Series
AC107C Canon "900" Series
AC107P Panasonic "D54" Series
Mounting Plate
1 x M4x.07 x 8mm Metric Socket Head Screws
2 x Phillips Head Screw
Hex Key
QUICK START GUIDE / V5600 Deluxe Kit
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. [email protected] © 2009 ikan Corporation. All right reserved. www.ikancorp.com
1. POWER Power switch
2. MENU Access to all monitor settings: Brightness, Hue, etc.
3. > Volume up. In MENU mode, toggle as up adjust setting
4. < Volume down. In MENU mode, toggle as down adjust setting
5. ASPECT Aspect ratio: 4:3 or 16:9
6. INPUT A/V (Composite), SD/HD Component, HDMI
7. GUIDES On-screen guide: 4:3 or 16:9
8. Headphone out
9. AV AV Connector
10. LAMP Power signal indicator
1. DC 12V-24V Power Connection
2. Component YUV
3. HDMI Input
4. Mounting Plate Holes
1
2
3
4567
8
9
10
1
2
3
4
V5600
GUIDES INPUT ASPECT < > MENU
AV
HIGH DEFINITION
ON-CAMERA TFT LCD MONITOR
Model: V5600
Picture Size: 5.6 inch
Resolution: 1024 x 600
Aspect Ration: 16:9 /4:3
Color System: NTSC
Operating Volts: DC 12V - 24V
Signal Input: 480i/p 720p 1080i
ikan corp
www.ikancorp.com MADE IN CHINA
HDMI YUV 12~24V IN

CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (** Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. [email protected] © 2009 ikan Corporation. All right reserved. www.ikancorp.com
ASSEMBLY INSTRUCTION
Phillips Head Screws
M4x.07 x 8mm
Screw
AC107
V5600
IBS970
1
2
Hex Key
