IKEA SMAKRIK EM User manual
1
SMAKRIK
EM
2
INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulso-
ry. The manufacturer will accept no re-
sponsibility for injury to persons, animals
or damage to objects arising from the
non-observance of this requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to ob
serve these instructions
DONOT OPERATE THIS APPLIANCE if it has a
damaged mains cord or plug, if it is not
working properly, or if it has been dam-
aged or dropped. Do not immerse the
mains cord or plug in water. Keep the
cord away from hot surfaces. Electrical
shock, re or other hazards may result.
CHECK THAT THE VOLTAGE on the rating
plate corresponds to the voltage in your
home.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.
THIS APPLIANCE IS DESIGNED TO WORK
in ambient temperatures above
freezing point of water (0°C).
If residual water is allowed to
freeze, the appliance may be
damaged.
3
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE LIQUIDS in or
near the appliance. Fumes can create a
re hazard or explosion.
DONOT LEAVE THE APPLIANCE UNATTENDED
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the appliance
under adult supervision and after ade-
quate instructions have been given, so that
the child is able to use the appliance in a
safe way and understands the hazards of
improper use.
THIS APPLIANCE IS NOT INTENDED FOR use by per-
sons (including children) with reduced
physical, sensory or mental capabilities,
unless used under the supervision of a per-
son responsible for their safety.
ACCESSIBLE PARTS MAY BECOME HOT during use,
young children should be kept away.
DONOT USE corrosive chemicals or vapors
in this appliance. This type of appliance
is specically designed to heat water. It
is not designed for industrial or labora-
tory use.
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent
burns, when touching hot parts.
THIS APPLIANCE IS DESIGNED TO MAKE COFFEE or heat
drinks. Be careful to avoid being scalded by
sprays of water or steam or due to improper
use of the appliance.
4
ACCESSORIES & PARTS
CONTROL PANEL
STEAM KNOB
WATER TANK
POWER CABLE
STEAM/HOT WATER TUBE
DRIP MESH
DRIP TRAY
CAPPUCCINO MAKER
NOZZLE
BOILER OUTLET
PRESSER
FILTER HOLDER
LARGE TWO-CUP FILTER
SMALL ONE-CUP OR POD FILTER
STEAM SELECTOR BUTTON
COFFEE/HOT WATER BUTTON
ON/OFF BUTTON
ON LIGHT
TEMPERATURE OK LIGHT (COFFEE
OR HOT WATER)
STEAM INDICATOR LIGHT
5
1
2
FILLING THE WATER TANK
ALTERNATIVELY, you can preheat more rapidly by
proceeding as follows:
1. TURN THE APPLIANCE on by pressing the ON/OFF
BUTTON AND ATTACH THE FILTER HOLDER TO THE APPLI-
ANCE WITHOUT ADDING GROUND COFFEE.
2. PLACE ACUP UNDER THE FILTER HOLDER. Use the
same cup as will be used to prepare the coee
in order to preheat it.
3. WAIT FOR THE OK INDICATOR
LIGHT to come on, then imme-
diately press the coee knob.
Run the water o until the OK
indicator light goes out, then
interrupt delivery by pressing the
coee button again.
4. EMPTY THE CUP. Wait until the OK
indicator light comes on again then
repeat the same operation. (It is normal for a
small and harmless pu of steam to be given
o when removing the lter holder).

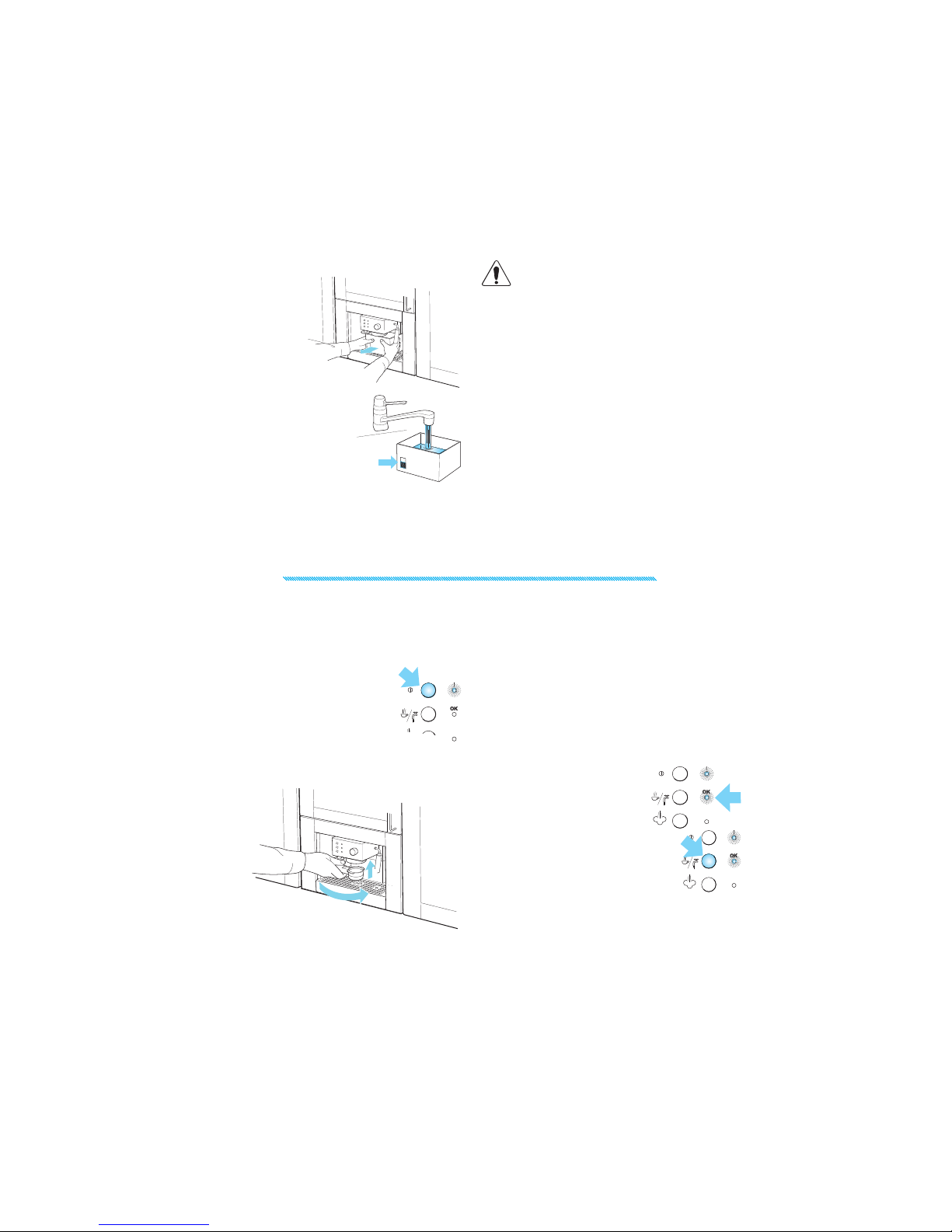

REMOVE THE WATERTANK by pulling it out (to-
wards the front).
NEVER USE THE APPLIANCE WITHOUT WATER IN
THE TANK and always remember to top up
when the level drops to a couple of centime-
tres from the bottom.
FILL THE TANK with fresh
clean water taking care
not to exceed the MAX
level. Ret the tank.
PREHEATING THE COFFEE UNIT
TOOBTAIN ESPRESSO COFFEE at the right tempera-
ture, the coee machine must be preheated.
Press the ON/O button at least 15
to 30 minutes before making the
coee, making sure the lter holder
is attached to the appliance (check
that the steam knob is closed).
TOATTACH THE FILTER HOLDER, position it under the
boiler outlet
with the han-
dle towards
the left,
push it
upwards
and at the
same time rotate the
handle rmly towards the right.
WAIT FOR HALF AN HOUR, then make the coee as
described in the following section.
6
1
2
1. AFTER PREHEATING the appliance as described
above, place the ground coee lter
in the lter holder, making sure the
projection is correctly inserted in
the slot. Use the smaller lter to
make one coee or the larg-
er lter to make two coees.
HOW TO PREPARE ESPRESSO COFFEE USING THE FILTER HOLDER FOR
GROUND COFFEE
2. TOMAKE ASINGLE COFFEE ONLY, place one level
measure (about 7 g) of ground cof-
fee in the lter. To prepare two cof-
fees, place two loosely lled
measures (about 6+6 g)
of ground coee in the l-
ter. Fill the lter a little at a time to prevent the
ground coee from overowing.
IMPORTANT: for correct operation, before
adding the ground coee to the lter holder,
clean the lter from residues of ground coee
from the previous infusion.
5. PLACE THE CUP or cups under the lter holder
spouts.
You are rec-
ommended to
heat the cups
before making
the coee by
rinsing them
with a little hot wa-
ter or placing them to warm on
the top plate for at least 15 - 20 minutes.
6. MAKE SURE THE OK LIGHT IS ON
(if o, wait until it comes on),
then press the coee button.
When the required quantity of
coee has been run o, press
the same button again. (You should
not run o coee for more than 45
seconds at a time).
7. TOREMOVE THE FILTER HOLDER, rotate the handle
from right to left.
IMPORTANT: to avoid splashes, never remove
the lter holder while the appliance is deliver-
ing coee.
8. TOELIMINATE THE USED COFFEE GROUNDS, block
the lter in place using the lever incor-
porated in the handle and empty
the coee by turning the l-
ter holder upside down and
tapping.
9. TOTURN THE COFFEE MACHINE OFF,
press the ON/OFF button.
IMPORTANT: the rst time the
appliance is used, all accessories
and the internal circuits must be
washed through by making at least
ve coees without using ground coee.
3. DISTRIBUTE THE GROUND COFFEE evenly and press
lightly with the
presser
NB: Correct
pressing of the
ground coee
is essen-
tial to
obtain a
good espresso. If pressing is ex-
cessive, coee delivery will be slow and the
froth will be dark. If pressing is too light, coee
delivery will be too rapid and the froth will be
skimpy and light coloured.
4. REMOVE ANY
EXCESS COFFEE
from the rim
of the l-
ter hold-
er and
attach the l-
ter holder to the appli-
ance. Rotate rmly to avoid leaks of
water.
7
1
2
HOW TO PREPARE ESPRESSO COFFEE USING PODS
1. PREHEAT THE APPLIANCE as described in the sec-
tion “PREHEATING THE COFFEE UNIT”, making
sure the lter holder is attached. This obtains a
hotter coee.

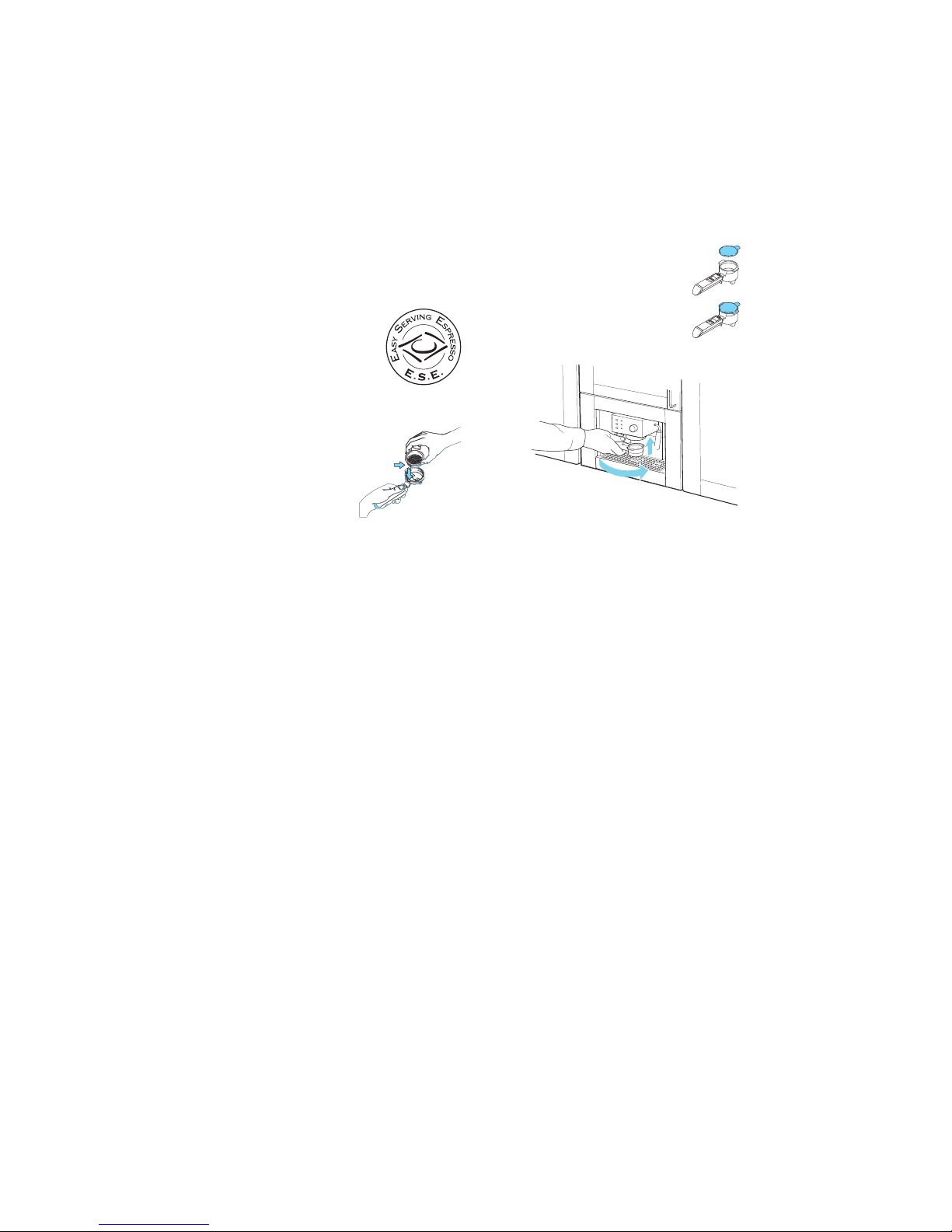

NB: Use pods conforming to the
ESE standard indicated on the
pack with the following logo:
THE ESE STANDARD is a system ac-
cepted by leading pod producers
and enables espresso coee to be prepared
simply and cleanly.
2. PLACE THE SMALL FILTER (1 cup or pods)
in the lter holder, making sure the
projection is correctly inserted in
the slot.
3. INSERT APOD, centring it as far as possible
on the lter. Always follow the instruc-
tions on the pod pack to position the
pod on the lter correctly.
4. ATTACH THE FILTER HOLDER to the appliance. Al-
ways rotate
as far as it will
go.
5. PROCEED AS in points 5, 6 and 7 in the previ-
ous paragraph.
8

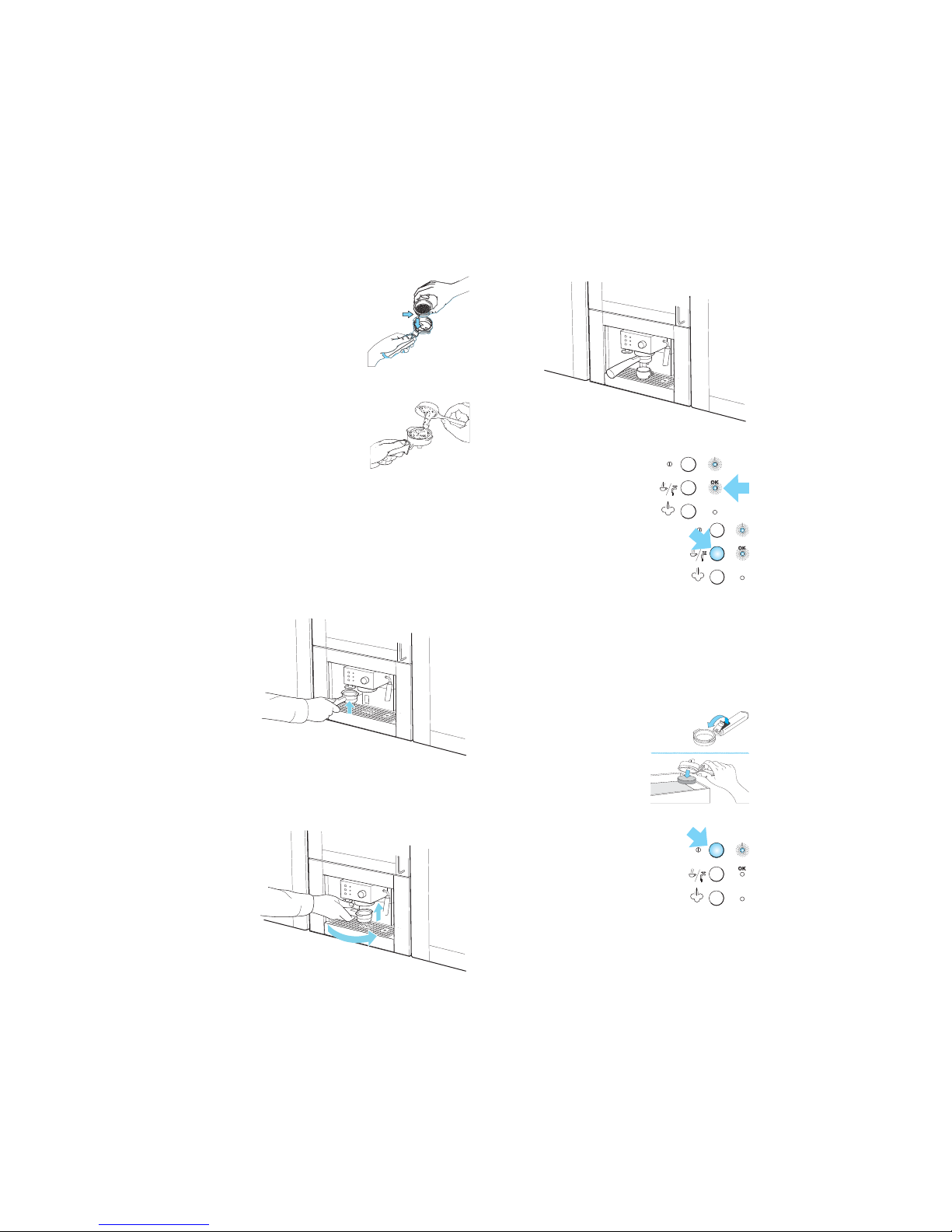

HOW TO MAKE CAPPUCCINO COFFEE
1. PREPARE THE ESPRESSO COFFEES as described in
the previous paragraphs, using suciently
large cups.
2. PRESS THE STEAM BUTTON and wait
for the OK light to come on. This in-
dicates that the boiler has reached
the ideal temperature for steam
production.
3. INTHE MEANTIME, ll a recipi-
ent with about 100 grams of
milk for each cappuccino to be
prepared. The milk must be at
refrigerator temperature (not
hot!). In choosing the size of the recipient, bear
in mind that the milk doubles or triples
in volume.
NB: YOU ARE RECOMMENDED TO USE
SEMISKIMMED MILK AT REFRIGERATOR
TEMPERATURE.
4. PLACE THE RECIPIENT containing the
milk under the cappuccino maker.
7. POUR THE FROTHED MILK into the cups contain-
ing the espresso coee prepared previously.
The cappuccino is ready. Sweeten to taste and,
if desired, sprinkle the froth with a little cocoa
powder.
NB: To prepare more than one cappuccino,
rst make all the coees then at the end pre-
pare the frothed milk for all the cappuccinos.
NB: to make coee again after the milk has
been frothed, cool down the boiler rst or the
coee will be burnt. To cool it, place a contain-
er under the boiler outlet, press the steam but-
ton and run o water until the OK light goes
out. Make the coee as described in the previ-
ous paragraphs.
5. DIP THE CAPPUCCINO MAKER into
the milk for about 5 mm and
turn the steam knob anti-
clockwise, taking care not to
immerse the raised line on the
cappuccino maker (indicated by
the arrow).
Turn the steam knob at least a half turn anti-
clockwise. Steam is discharged from the cap-
puccino maker, giving the milk a creamy frothy
appearance. To obtain a creamier froth, dip the
cappuccino maker into the milk and rotate the
container with slow movements from the bot-
tom upwards.
6. WHEN THE REQUIRED TEMPERATURE
IS REACHED (60°C is ideal), interrupt
steam delivery by rotating the
steam knob clockwise and at the
same time pressing
the steam button.
9
IMPORTANT: always clean the cappuccino
maker after use. Proceed as follows:
1. DISCHARGE ALITTLE STEAM for a few seconds by
rotat-
ing the
steam
knob.
This
emp-
ties any
milk left
inside the
steam spout.
IMPORTANT: To ensure hygiene,
you are recommended to follow this pro-
cedure each time you make cappuccino to
avoid milk stagnating in the milk circuit.
3. REMOVE THE NOZZLE from the steam
tube by pulling it downwards.

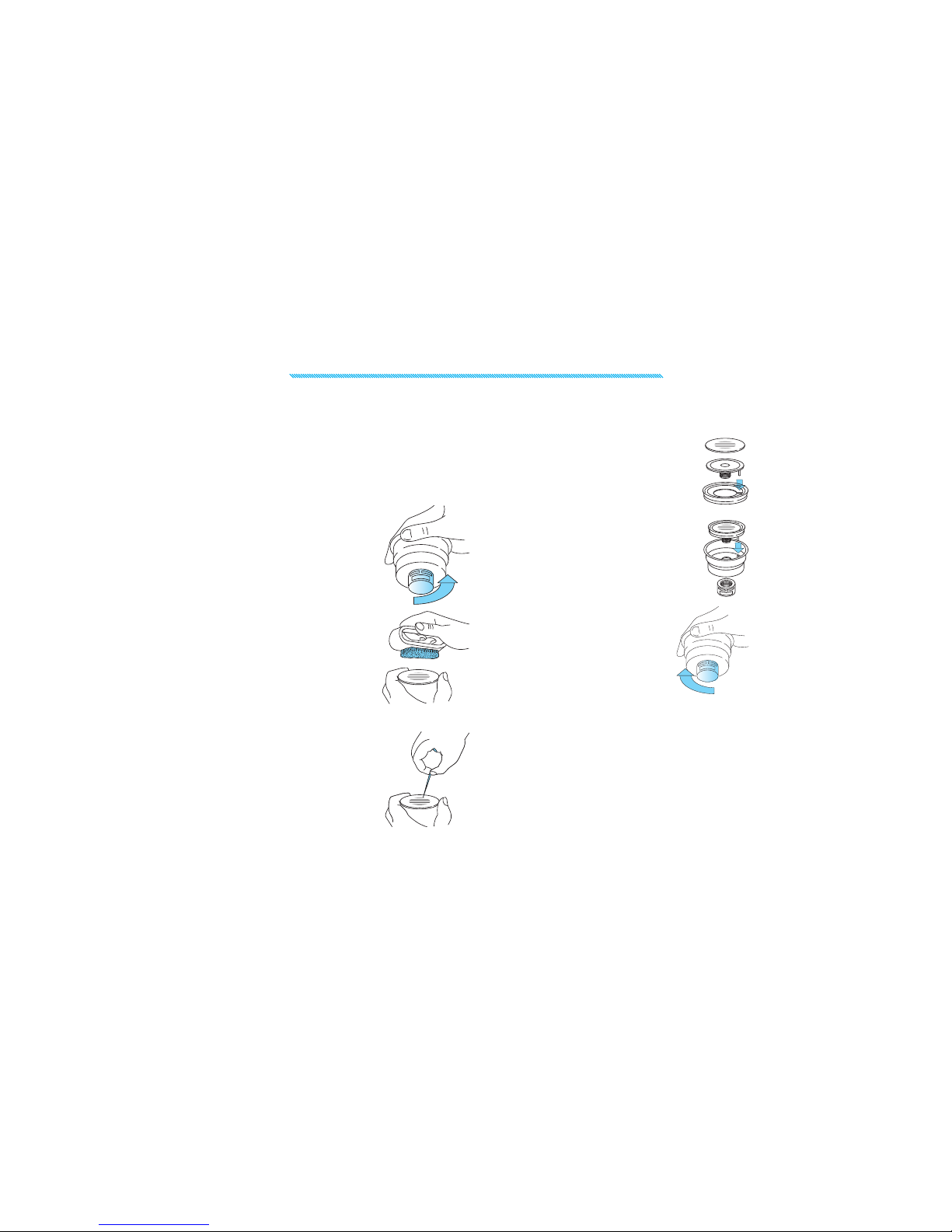

4. WASH THE CAPPUCCINO MAKER and
steam nozzle thoroughly with warm
water.

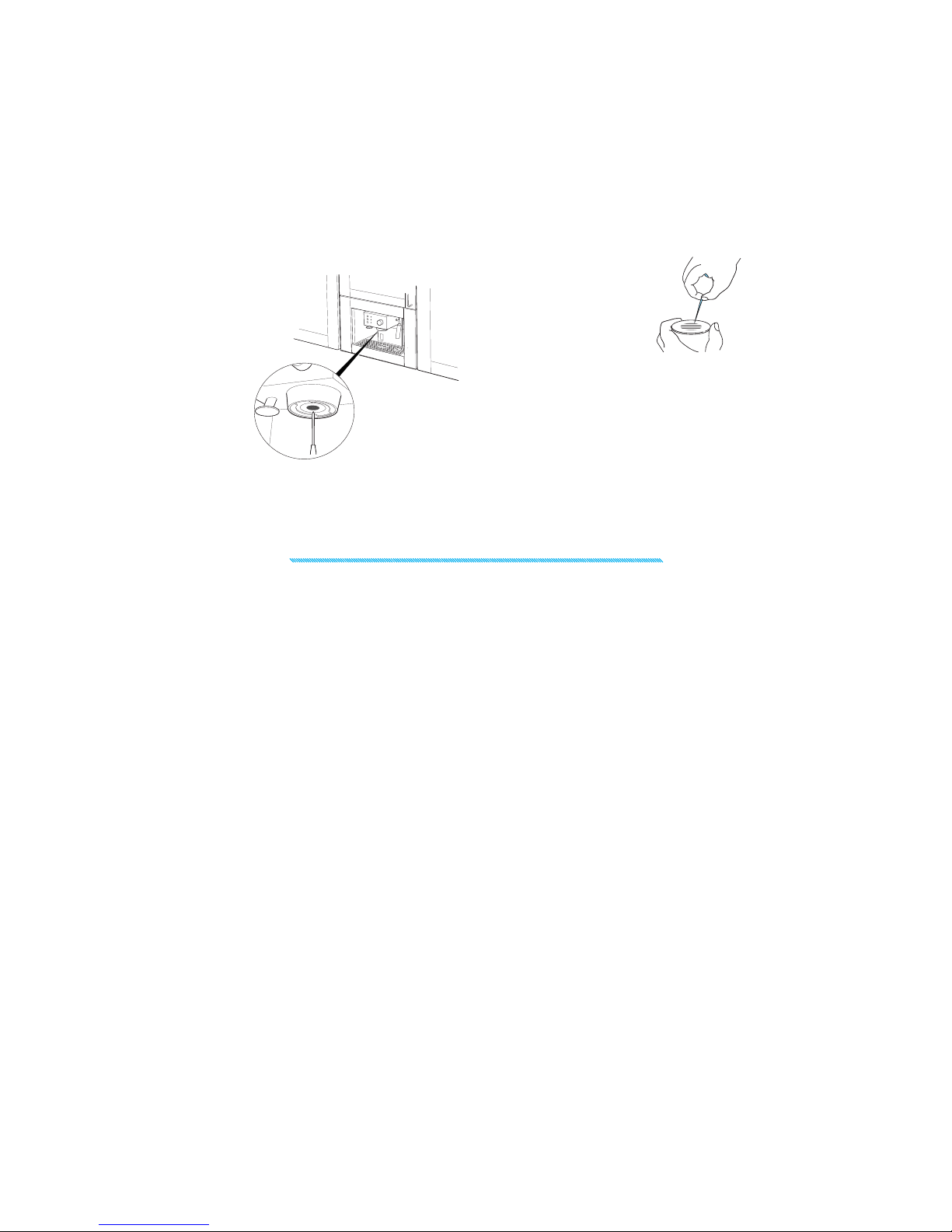

5. MAKE SURE the two holes shown
in are not blocked. If necessary,
clean with a pin.
6. REPLACE THE STEAM NOZZLE by in-
serting it onto the steam tube
and rotating rmly towards the
top of the tube.
7. REPLACE THE CAPPUCCINO MAKER by
inserting it and rotating anticlockwise.
HOT WATER PRODUCTION
1. TURN THE APPLIANCE ON by pressing
the ON/OFF button. Wait until the
OK indicator light comes on.
2. PLACE ARECIPIENT under the cappuccino mak-
er.
3. PRESS THE COFFEE BUTTON and at the same time
turn the steam knob anticlockwise.
Water comes out of the cappucci-
no maker;
4. TOINTERRUPT DELIVERY OF HOT WATER, close the
steam knob by rotating clockwise
and press the coee button again.
(You should not run o hot water
for more than 45 seconds at a time).
2. WITH ONE HAND, HOLD THE CAP-
PUCCINO TUBE FIRMLY and with the
other unscrew the cappuccino
maker itself by rotating clock-
wise and extracting downwards.
10
CLEANING AND MAINTENANCE
1. BEFORE PERFORMING ANY CLEANING operations,
leave the appliance to cool down and unplug
from the mains socket.
2. DONOT USE SOLVENTS OR ABRASIVE cleaning
products to clean the appliance. A soft, damp
cloth is sucient.
3. EMPTY AND WASH the drip tray and drip mesh
frequently.
4. CLEAN THE WATER TANK regularly.
IMPORTANT: Never immerse the appliance in
water. It is an electrical appliance.
CLEANING THE FILTER HOLDER
ABOUT EVERY 200 COFFEES, clean the lter holder
for ground coee as follows:
Remove the filter with frother
Clean the inside of the filter holder Never
wash in a dishwasher
Unscrew the cap of the frother
by turning anticlockwise
Remove the frother from
the container by pushing it
from the cap end
Remove the gasket
RINSE ALL COMPONENTS and clean
the metal lter thoroughly in
hot water using a brush.
MAKE SURE the holes in the metal lter are not
blocked. If necessary, clean with a
pin.
Replace the filter and gasket on
the plastic disk Make sure to in
sert the pin on the plastic disk into
the hole in the gasket indicated by
the arrow
Replace the assembly in the steel
filter container making sure the
pin is inserted in the hole in the
support
Finally screw on the cap by
turning clockwise Failure to
clean as described above in
validates the guarantee
11
CLEANING THE BOILER OUTLET
ABOUT EVERY 300 COFFEES, the espresso boil-
er outlet must be
cleaned as follows:
1. MAKE SURE the ap-
pliance is not hot and
that it is unplugged
from the mains.
DESCALING
3. CLEAN THE BOILER with a damp cloth
4. CLEAN THE OUTLET thoroughly in
hot water using a brush. Make sure
the holes are not blocked. If neces-
sary, clean with a pin.
5. RINSE UNDER RUNNING WATER, rubbing all the
time.
6. SCREW THE BOILER OUTLET BACK ON. Failure to
clean as described above invalidates the guar-
antee.
YOU ARE RECOMMENDED TO DESCALE the coee ma-
chine about every 200 coees or a maximum
of every two months.
YOU SHOULD USE ACOMMERCIALLY AVAILABLE PROD-
UCT SPECIFICALLY FOR DESCALING ESPRESSO COFFEE MA-
CHINES.
IFSUCH APRODUCT IS NOT AVAILABLE, proceed as fol-
lows.
1. FILL THE TANK with half a litre of water.
2. DISSOLVE 2 spoonfuls (about 30 grams) of cit-
ric acid (obtainable from chemist’s or drug
stores)
3. PRESS THE ON/OFF BUTTON and wait for the OK
indicator light to come on.
4. MAKE SURE the lter holder is not attached
and position a recipient under the boiler out-
let.
5. PRESS THE COFFEE BUTTON, half empty the tank
by turning the steam knob every now and
then to run o a little solution. Stop run-o by
pressing the button again.
6. TURN THE APPLIANCE OFF.
7. LEAVE THE SOLUTION TO WORK for 15 minutes
then turn the appliance on again.
8. PRESS THE COFFEE BUTTON to empty the tank
completely.
9. TOELIMINATE RESIDUES of solution and scale,
rinse the tank well, ll with clean water (with-
out citric acid) and replace in position.
10. PRESS THE COFFEE BUTTON and run the water
o until the tank is completely empty, turn the
steam knob every now and then to run o a lit-
tle water.
11. INTERRUPT water run-o and repeat opera-
tions 9, 10 and 11 again. Repair of damage to
the coee machine caused by scale is not cov-
ered by the guarantee unless descaling is per-
formed regularly as described above.
2. USING ASCREWDRIVER, unscrew the screw xing
the espresso boiler outlet lter
12
NOESPRESSO COFFEE IS DELIVERED No water in the tank
The holes in the fil
ter holder spouts are
blocked
The espresso boiler outlet
is blocked
The filter is blocked
The tank is incorrectly in
serted
PROBLEM POSSIBLE CAUSE SOLUTION
Fill the tank with water
Clean the spout holes
Clean as described in the
chapter “Cleaning the
boiler outlet”
Clean as described in the
section “cleaning the filter
holder”
Insert tank correctly
THE ESPRESSO COFFEE DRIPS from
the edges of the lter holder
rather than the holes.
The filter holder is insert
ed incorrectly
The espresso boiler gas
ket has lost elasticity
The holes in the filter
holder spouts
Attach the filter holder
correctly and rotate firmly
as far as it will go
Have the espresso boiler
gasket elasticity replaced
at a service centre
Clean the spout holes
THE ESPRESSO COFFEE IS COLD The espresso OK indicator
light was not on when the
coffe switch was pressed
No preheating performed
The cups were not pre
heated
Wait until the OK light
comes on not on when
the coffee switch was
pressed
Preheat as described in
the paragraph “Preheat
ing the appliance”
Preheat the cups by rins
ing them in hot water or
leaving them to rest for
at least minutes on
the cup warmer tray on
the lid
THE PUMP IS EXCESSIVELY NOISY The water tank is empty
The tank is incorrectly in
serted
Fill tank
Insert tank correctly
13
THE COFFEE FROTH IS TOO LIGHT
(delivered from the spout too
fast)
PROBLEM POSSIBLE CAUSE SOLUTION
The ground coffee is
not pressed down firmly
enough
There is not enough
ground coffee
The ground coffee is too
coarse
Incorrect type of ground
coffee
Press the ground coffee
down more firmly
Increase the quantity of
ground coffee
Use ground coffee for
espresso coffee ma
chines only
Change the type of
ground coffee
THE COFFEE FROTH IS TOO DARK
(delivered from the spout too
slowly)
The ground coffee is
pressed down too firmly
There is too much ground
coffee
The espresso boiler outlet
is blocked
The filter is blocked
The ground coffee is too
fine
The coffee is damp or
ground too fine
Incorrect type of ground
coffee
Press the coffee down less
firmly
Reduce the quantity of
ground coffee
Clean as described in the
chapter “Cleaning the
boiler outlet”
Clean as described in the
section “cleaning the fil
ter holder”
Use ground coffee for
espresso coffee machines
only
Use only ground coffee
for espresso coffee ma
chines Make sure it is not
damp
Change the type of
ground coffee
NOMILK FROTH IS FORMED WHEN
MAKING CAPPUCCINO
Milk not cold enough
Cappuccino maker dirty
Always use semiskimmed
milk at refrigerator tem
perature
Thoroughly clean the
holes in the cappucci
no maker in
particular
those indi
cated by the
arrows
14
15
16
GB
4619-694-56513
ENVIRONMENTAL HINTS
THE PACKINGBOX may be fully recy-
cled as conrmed by the recy-
cling symbol. Follow local
disposal regulations. Keep
potentially hazardous pack-
aging (plastic bags, polysty-
rene etc.) out of the reach of children.
THIS APPLIANCE is marked according to the Euro-
pean directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE). By ensuring
this product is disposed of correctly, you will
help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product.
THE SYMBOL on the product, or on the docu-
ments accompanying the
product, indicates that this
appliance may not be treat-
ed as household waste. In-
stead it shall be handed over
to the applicable collection
point for the recycling of elec-
trical and electronic equip-
ment.
DISPOSAL must be carried
out in accordance with lo-
cal environmental regula-
tions for waste disposal.
For more detailed information about treat
ment recovery and recycling of this prod
uct please contact your local city office your
household waste disposal service or the shop
where you purchased the product
Before scrapping cut off the mains cord so
that the appliance cannot be connected to the
mains
TROUBLE SHOOTING GUIDE
WHEN CALLINGFOR SERVICE, please give the se-
rial number and type number of the appli-
ance (see Service label). Consult your warranty
booklet for further advice.
IFTHE MAINS CORD NEEDS REPLACINGit should
be replaced by the original mains cord,
which is available via our service organi-
zation. The mains cord may only be re-
placed by a trained service technician.
SERVICE ONLY TO BE CARRIED OUT
BY ATRAINED SERVICE TECHNICIAN.
It is hazardous for anyone oth-
er than a trained person to car-
ry out any service or repair op-
eration, which involves the
removal of any cover.
DONOT REMOVE ANY COVER.
SUPPLY VOLTAGE220 - 230 V/50 HZ
RATED POWER INPUT 110 0 W
FUSE 10 A (UK 13 A)
OUTER DIMENSIONS (HXWXD) 348 X595 X305
Table of contents
Other IKEA Coffee Maker manuals
