IKEA IUD9500VX0 User manual

for
||||® by
WHIRLPOOL
CORPORATION
INSTALLATIONINSTRUCTIONS
UNDERCOUNTERDISHWASHER
PLASTICGIANT TUBMODELS
INSTRUCTIONSD'INSTALLATION
I,AVE-VAISSELLEENCASTRE
MODELESA TRESGRANDE CUVE EN PLASTIQUE
TABLEOF CONTENTS
DISHWASHER SAFETY ............................................................................. 2
INSTALLATION REQUIREMENTS ........................................................... 3
Tools and Parts ....................................................................................... 3
Location Requirements ........................................................................... 3
Drain Requirements ................................................................................ 4
Water Supply Requirements ................................................................... 5
Electrical Requirements .......................................................................... 5
INSTALLATION INSTRUCTIONS ............................................................. 5
Prepare Cabinet Opening
Using existing utility hookups ................................................................. 5
Prepare Cabinet Opening Where There Are No Existing
Utility Hookups ........................................................................................ 7

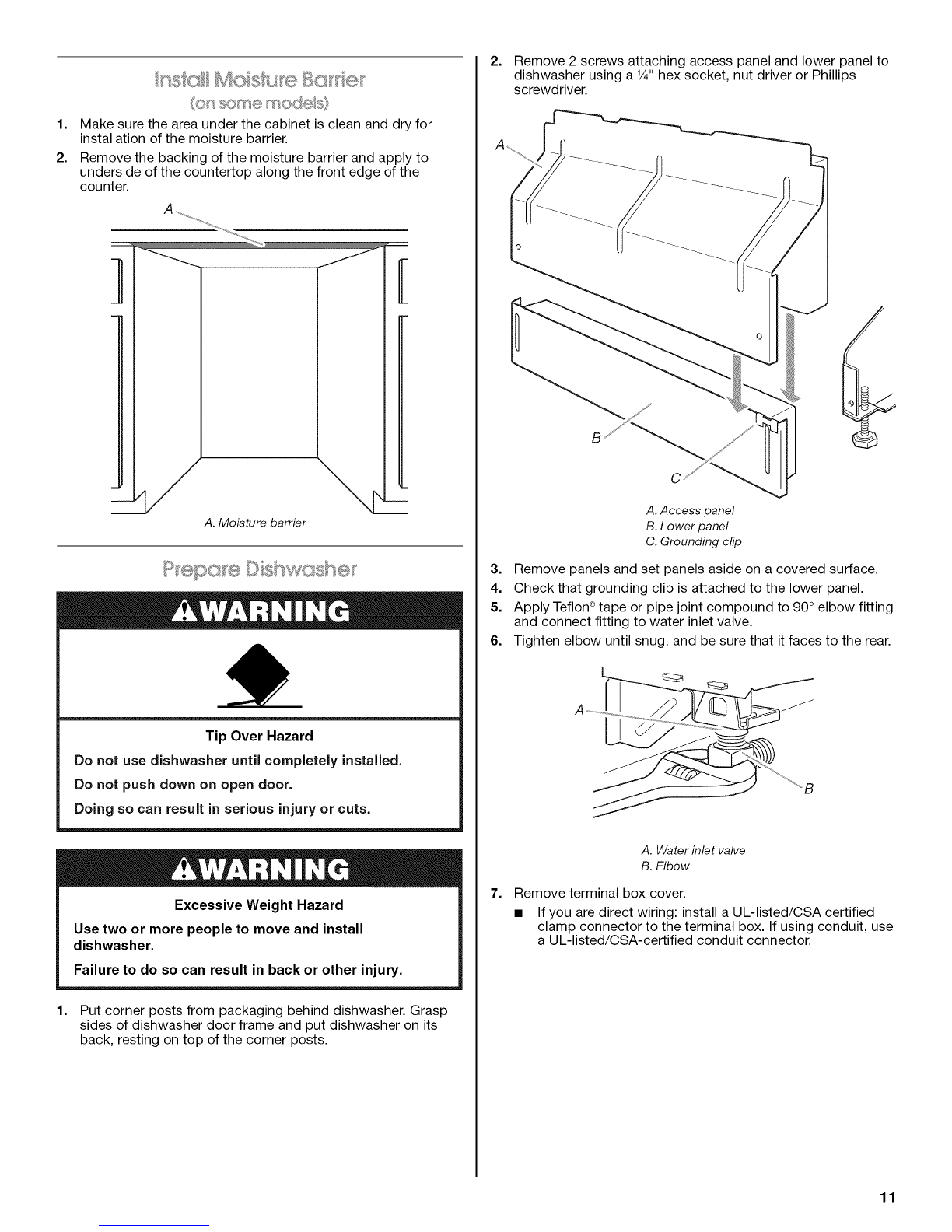

Install Moisture Barrier ............................................................................ 11
Prepare Dishwasher ................................................................................ 11
Install the Door Handle ........................................................................... 12

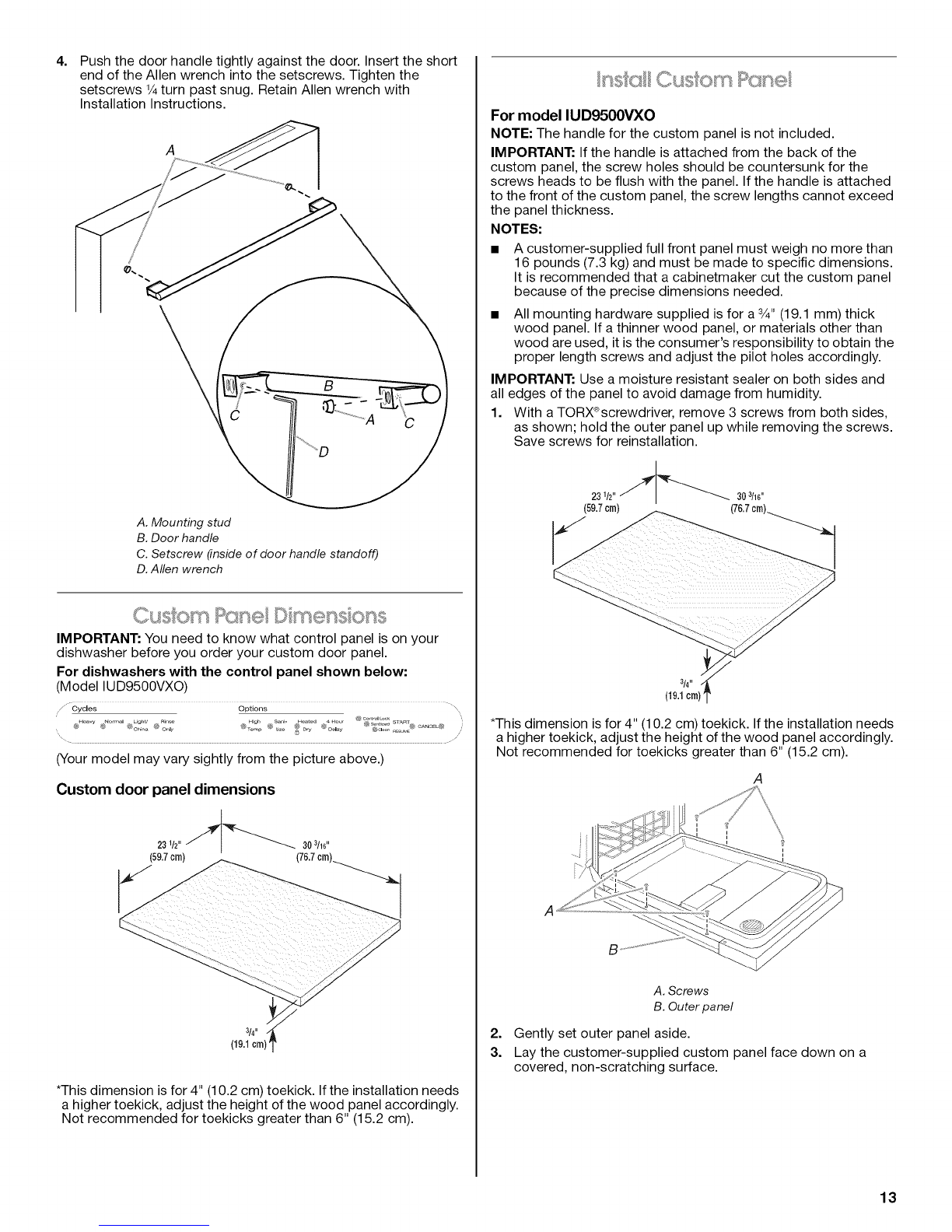

Custom Panel Dimensions ..................................................................... 13

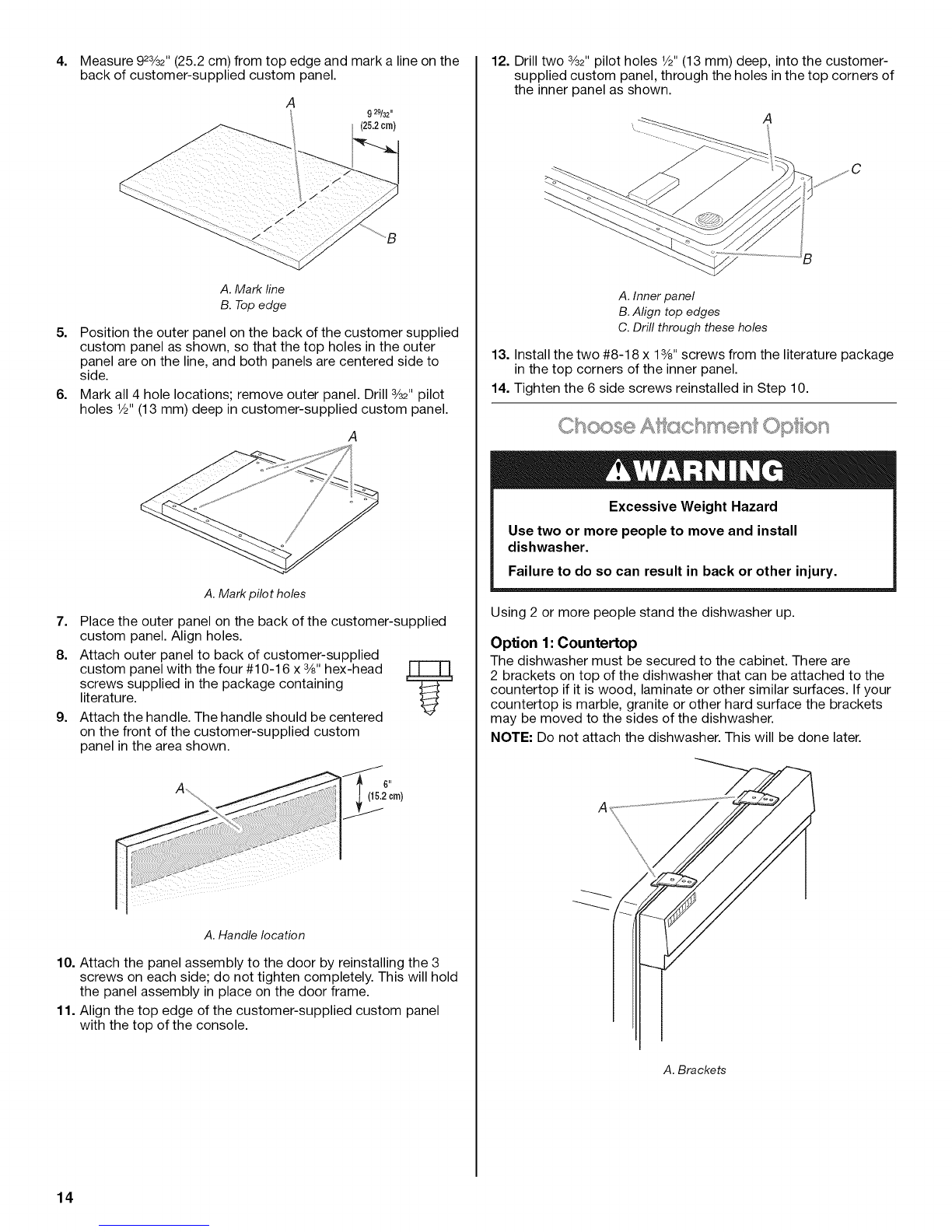

Install Custom Panel ............................................................................... 13

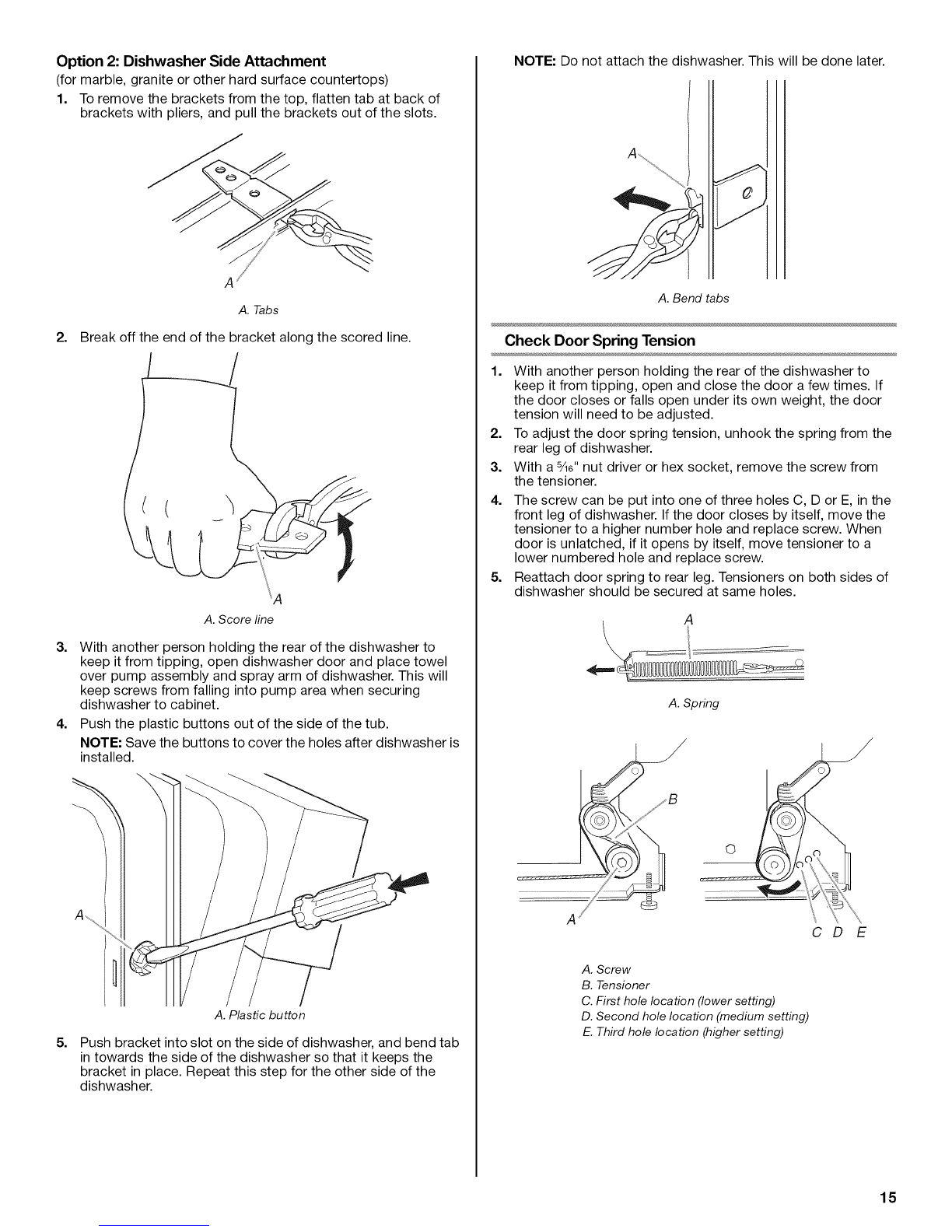

Choose Attachment Option .................................................................... 14

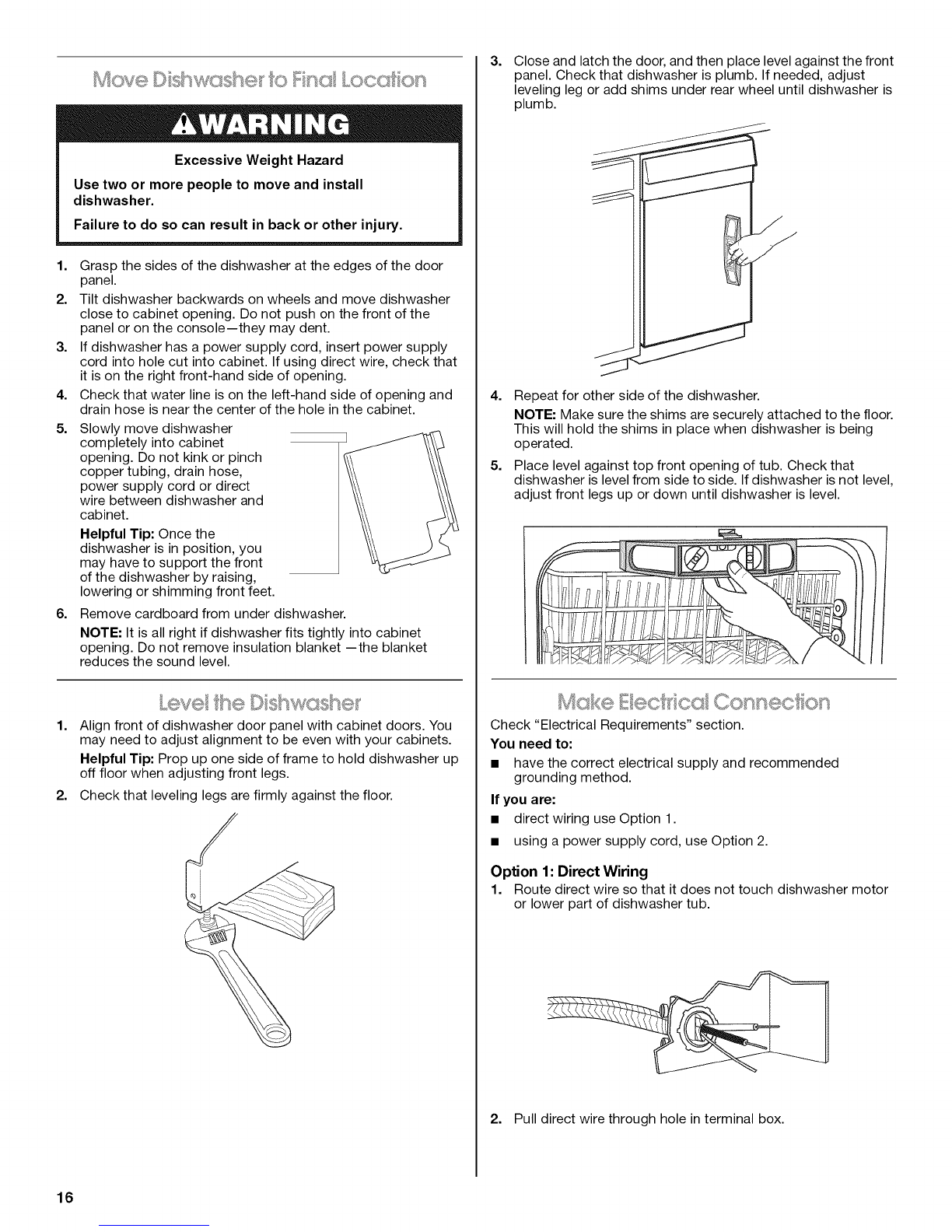

Move Dishwasher to Final Location ....................................................... 16
Level the Dishwasher .............................................................................. 16

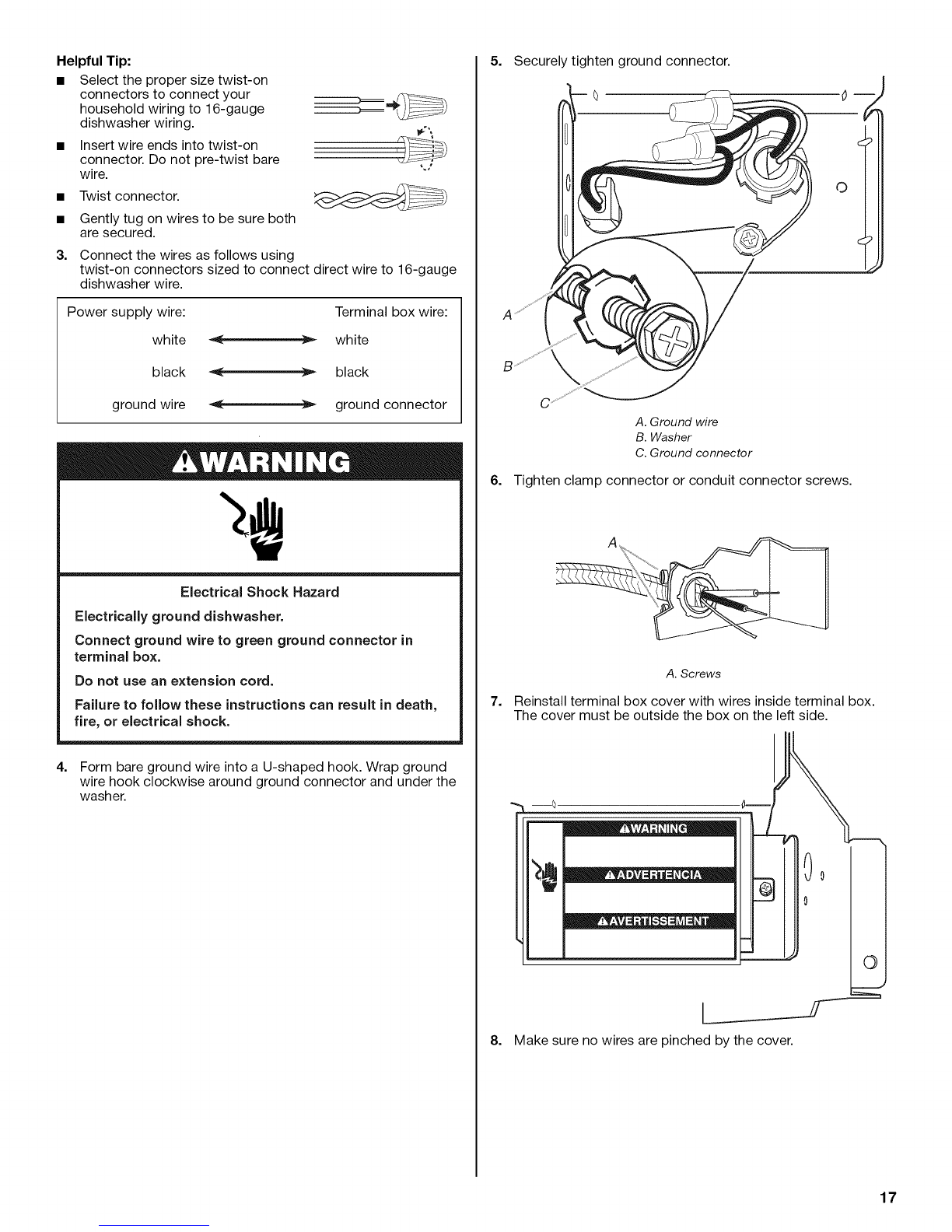

Make Electrical Connection .................................................................... 16

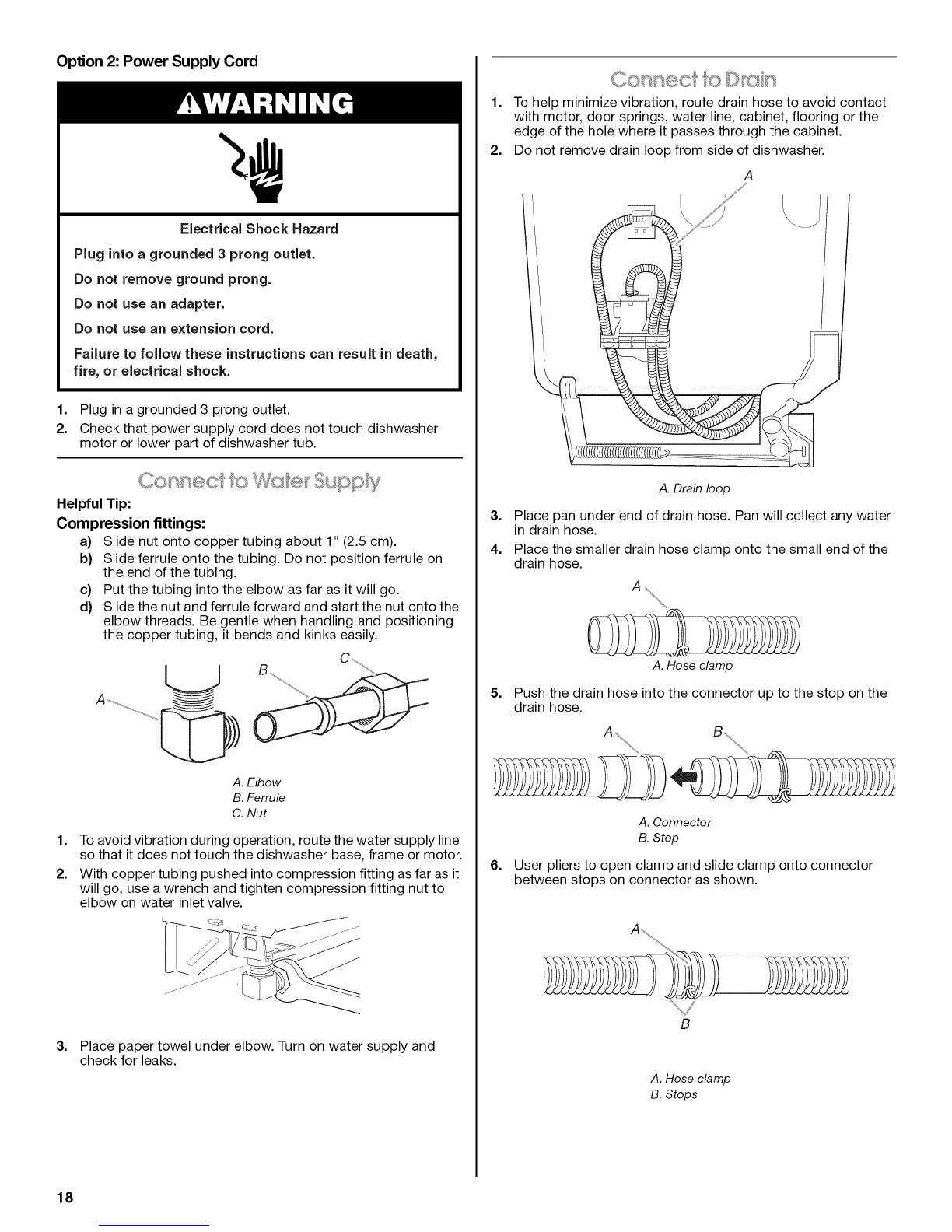

Connect to Water Supply ....................................................................... 18

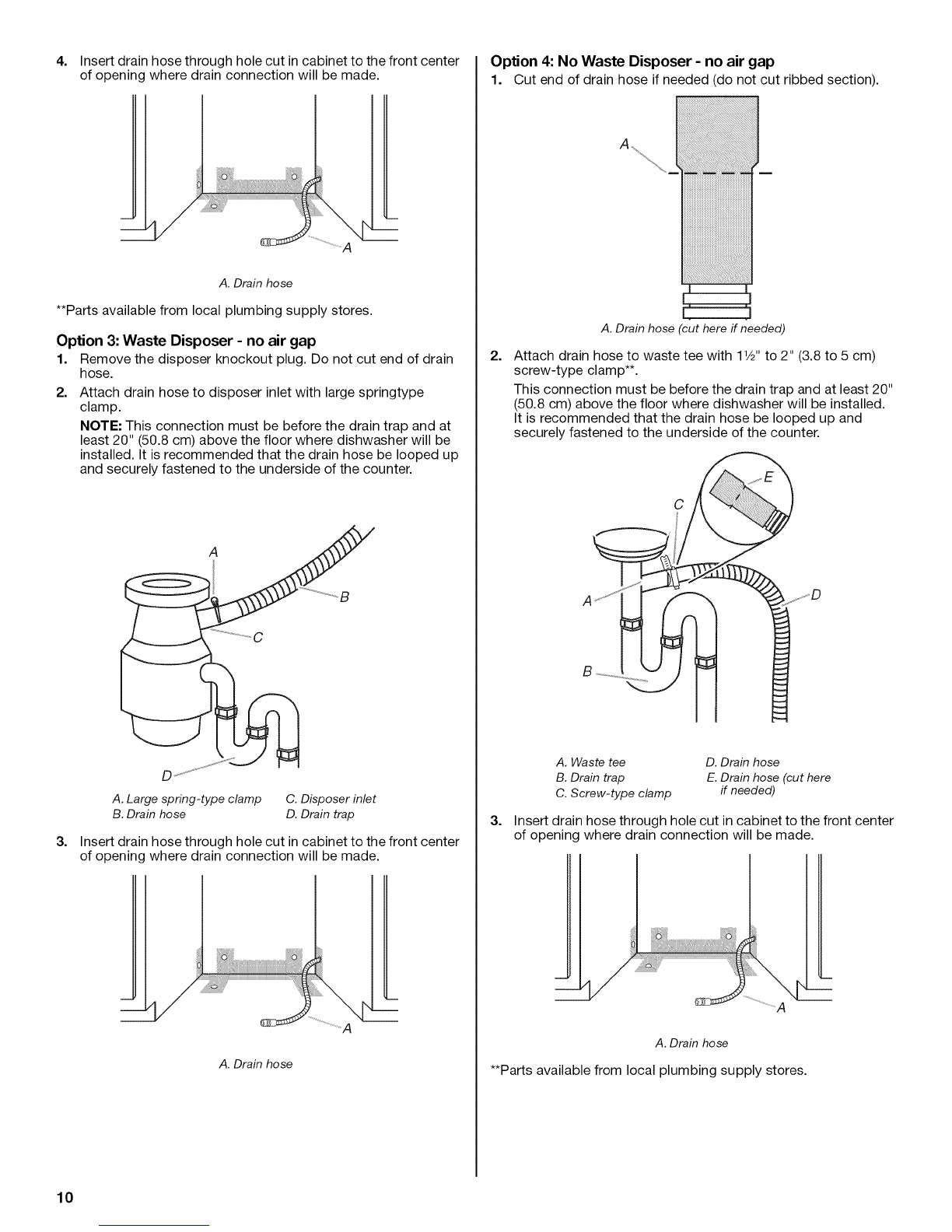

Connect to Drain ..................................................................................... 18

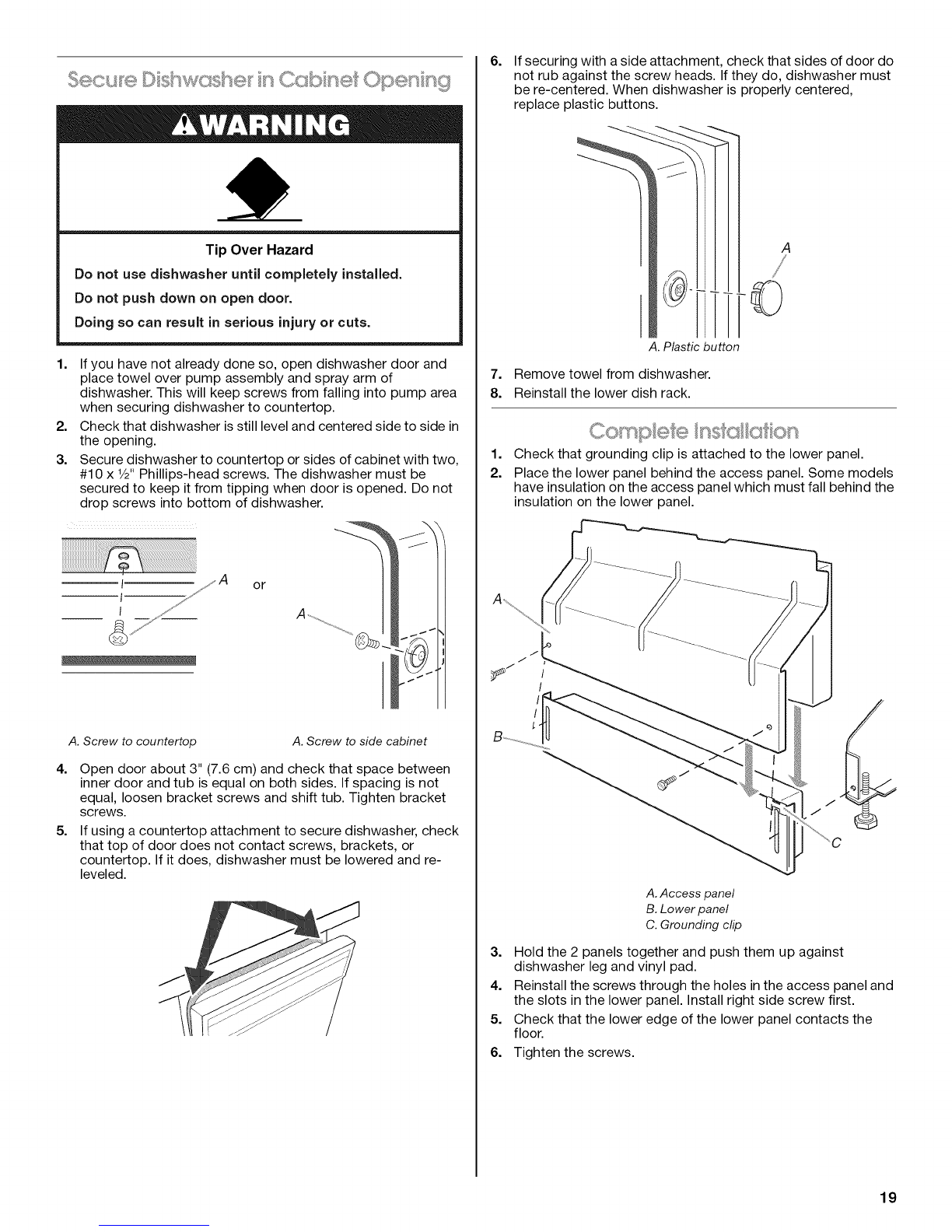

Secure Dishwasher in Cabinet Opening ................................................. 19

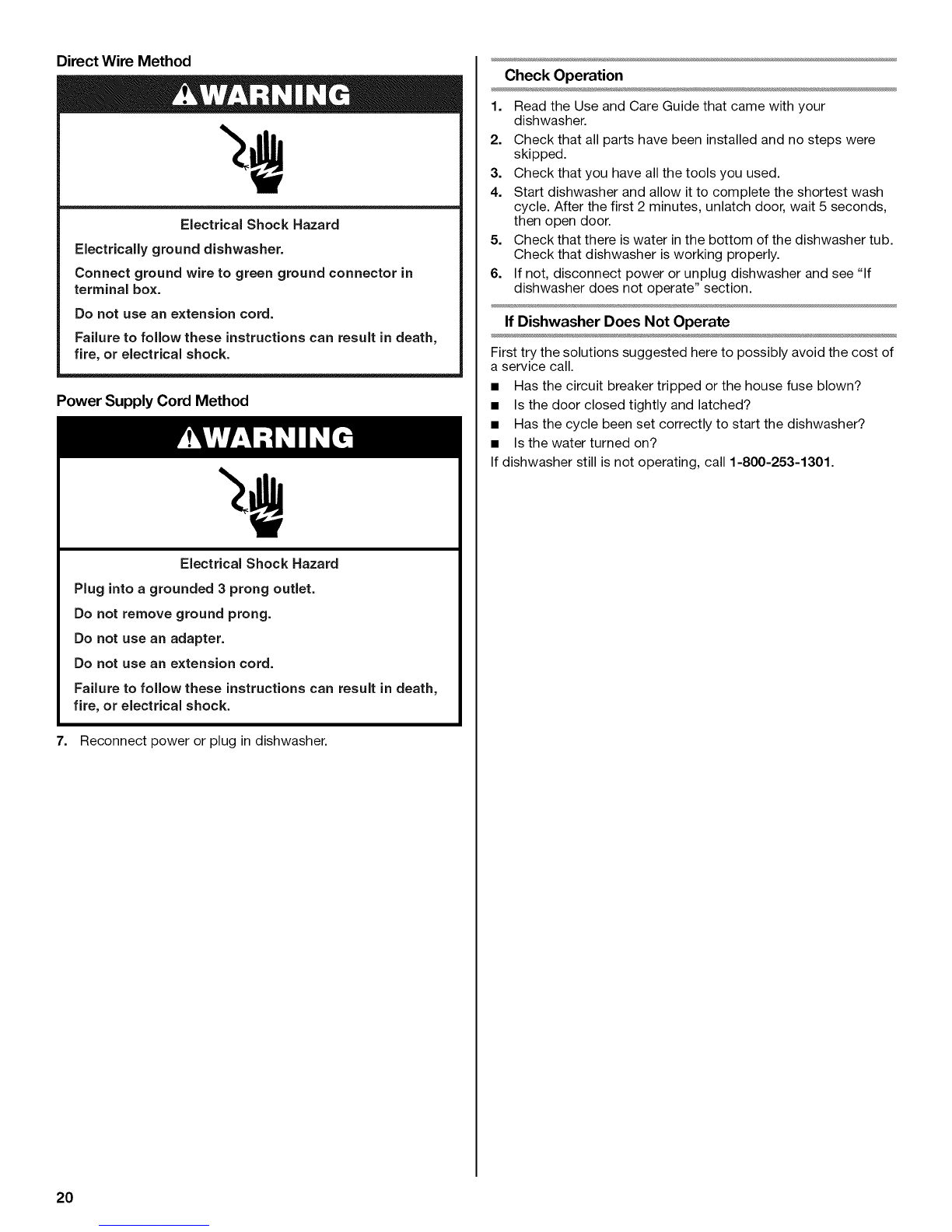

Complete Installation .............................................................................. 19
TABLEDESMATIERES
SleCURITle DU LAVE-VAISSELLE ............................................................ 21
EXlGENCES D'INSTALLATION ................................................................ 22
Outils et pieces ....................................................................................... 22
Exigences d'emplacement ..................................................................... 22
Exigences concernant I'evacuation ........................................................ 23
Specifications de I'alimentation en eau.................................................. 24
Specifications electriques ....................................................................... 24
INSTRUCTIONS D'INSTALLATION ......................................................... 24
Amenagement de la cavite d'encastrement du
placard Utilisation des moyens de raccordement preexistants ............ 24
Preparation de I'espace d'encastrement du
placard non dot6 de moyens de raccordement .................................... 27
Installation de la barri_re anti-humidit6 .................................................. 30
Preparation du lave-vaisselle ................................................................. 31
Installation de la poign_e de porte ......................................................... 32
Dimensions du panneau personnalis6 ................................................... 33
Installation de panneau personnalise ..................................................... 33
Choose I'option d'attachement .............................................................. 34
Deplacer le lave-vaisselle jusqu'& son emplacement final ..................... 36
Etablissement de I'aplomb du lave-vaisselle ......................................... 36
Raccordement electrique ....................................................................... 36
Raccordement &la canalisation d'eau ................................................... 38
Raccordement &I'evacuation ................................................................. 38
Fixation du lave-vaisselle dans I'espace d'encastrement ..................... 39
Achever I'installation ............................................................................... 39
W10199609A

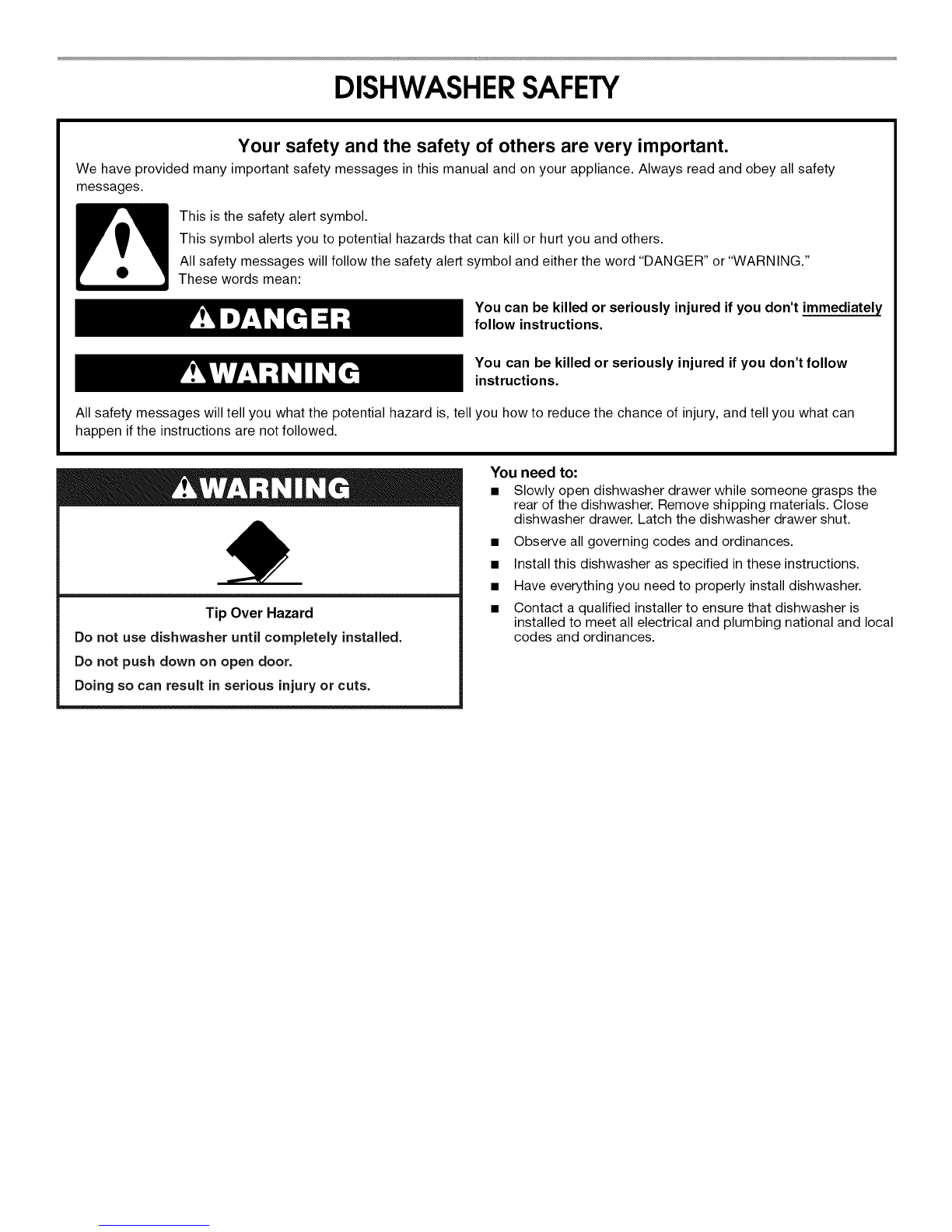

DISHWASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
You need to:
• Slowly open dishwasher drawer while someone grasps the
rear of the dishwasher. Remove shipping materials. Close
dishwasher drawer. Latch the dishwasher drawer shut.
• Observe all governing codes and ordinances.
• Install this dishwasher as specified in these instructions.
• Have everything you need to properly install dishwasher.
• Contact a qualified installer to ensure that dishwasher is
installed to meet all electrical and plumbing national and local
codes and ordinances.

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
• Pliers
• Phillips screwdriver
• Flat-blade screwdriver
• _e" and 1¼,,nut drivers or
hex sockets
• Measuring tape or ruler
• 11/2"hole saw bit
• Twist-on wire connectors
[proper size to connect
household wiring to 16-
gauge wiring in
dishwasher] (2)
• 15 TORX®tscrewdriver
(if installing custom front
panels)
• 10" adjustable wrench
(opens to 11/8"[2.9 cm])
• Utility knife
• Level
• Cordless drill
• 8/8"open-end wrench
• Flashlight
• Shallow pan
• Wood block
• Bath towel
Parts needed
• 90° elbow with 3/8"N.RT.
external threads on one
end. (The other end must
fit your water supply line.)
• Teflon®tttape or pipe joint
compound
Shims
#10 x 1/2"wood screws
(if installing custom front
panels) (4)
Tools needed (new installation)
• Cordless drill •
• 1/2",3/4"and 11/2"hole saw •
bits
Small tubing center
Wire stripper
1V2"to 2" screw-type
clamp (if connecting to
waste-tee)
Parts needed (new installation)
• Copper tubing (3/8" •
recommended) or
• Flexible stainless steel
braided fill line
Clamp connector or
conduit connector
(to fit a 7/8"[2.2 cm]
diameter hole)
Parts supplied
B
A. Drain hose clamps [1 large and 1 small] (2)
B. #10 x1/2"Phillips-head screws (2)
C. Drain hose
t®TORXis a registeredtrademark ofAcument Intellectual Properties,LLC
tt®Teflon is a registered trademark of E.I. Dupont de Nemours and
Company.
Additional parts supplied (top-venting models only)
• Bottom sound pad (located in lower rack)
• Moisture barrier tape
Make sure all these parts are included. If not, call
1-800-253-1301.
See separate parts list for accessories available for your
dishwasher.
Do not run drain lines, water lines or electrical wiring where they
can interfere with or contact the dishwasher motor or legs.
The location where the dishwasher will be installed must provide
clearance between motor and flooring. Motor should not touch
the floor.
Do not install dishwasher over carpeted flooring.
Shelter dishwasher and water lines leading to dishwasher against
freezing. Damage from freezing is not covered by the warranty.
A side panel kit is available from your dealer for installing your
dishwasher at the end of your cabinetry.
A moisture barrier accessory (Part Number 4896277) is available
from your dealer for installing underneath the countertop, but is
not required. Call 1-800-258-1801 for ordering.
Check location where the dishwasher will be installed. The
location must provide:
• Easy access to water, electricity and drain.
• Convenient access for loading and unloading dishes. Corner
locations require a 2" (5.1 cm) minimum clearance between
the side of the dishwasher door and the wall or cabinet.
• Square opening for proper orientation.
• Cabinet front perpendicular to floor.
• Level floor. If the floor at the front of the dishwasher is not
level with the rear of the opening, shims may be needed to
level the dishwasher.
NOTE: To avoid shifting during dishwasher operation, shims
must be securely attached to the floor.
If the dishwasher will be left unused for a period of time or it is in
a location where it may be subject to freezing, have it winterized
by authorized service personnel.
Make sure pipes, wires and drain hose are within the shaded area
shown in the "Cutout dimensions" section.
Helpful Tip: Ifthe floor in the dishwasher opening is uneven
(example: tile flooring only partway into opening), accurately
measure the dimensions and level the dishwasher.

Product Dimensions
Side View
247/8'' (63.2 cm) _J
A.................-_----- 24v2" (62.2 cnl) ------------__ j
]...........
(86cm)
J--_- 21"(53.3_,.)--_J
A. _" (1.9 cm) insulation may be compressed
(not used on all models)
B. 33 _" (86 cm) minimum with wheels
removed
Rear View
237/8''(60.6cm)
Installation Clearances
Cutout dimensions
=
24" (61 cm] _
(8.3 cm) (8.3 cm)
31/2" 5V_"
9" 2"
22.9 cm) (5.1 cm) (25
24"
(61 cm] _
(5.1 cm)
(7 cm) (8.3 cm) (8.3 cm) (7 cm)
34"
(86.4 cm) _
==
Cut holes in shaded area of cabinet walls or floor as specified below:
Water line - ½" (1.3 cm)
Drain line -1½" (3.8 cm)
Direct wire - _" (1.9 cm)
Power supply cord -1½" (3.8 cm)
*Measured from the lowest point on the underside of the
countertop. May be reduced to 337/8'' (86 cm) by removing the
wheels from the dishwasher.
**Minimum, measured from narrowest point of opening.
***May be increased to 68/8'' (16.6 cm) if height of opening is 341/2''
(87.6 cm) at its lowest point.
Use the new drain hose supplied with your dishwasher. If this
is not long enough, use a new drain hose with maximum
length of 12 ft (3.7 m) that meets all current AHAM/IAPMO test
standards, is resistant to heat and detergent, and fits the
1" (2.5 cm) drain connector of the dishwasher.
Connect drain hose to waste tee or disposer inlet above drain
trap in house plumbing and 20" (50.8 cm) minimum above the
floor. It is recommended that the drain hose either be looped
up and securely fastened to the underside of the counter, or
be connected to an air gap.
Use a drain air gap if the drain hose is connected to house
plumbing lower than 20" (50.8 cm) above the subfloor or floor.
Use 1/2"(1.3 cm) minimum I.D. drain line fittings.

• A hot water line with 20-120 psi (138-862 kPa) water pressure.
• 120°F (49°C) water temperature at dishwasher.
• Flexible stainless steel braided fill line V2"[1.27 cm] minimum
plastic tubing is not recommended).
Contact a qualified electrician.
Ensure that the electrical installation is adequate and in
conformance with all national and local codes and ordinances.
You must have:
• 120-volt, 60 Hz, AC-only, 15- or 20-amp fused electrical
supply.
• Copper wire only.
We recommend:
• A time-delay fuse or circuit breaker.
• A separate circuit.
If direct wiring dishwasher:
• Use flexible, armored or nonmetallic sheathed, copper wire
with grounding wire that meets the wiring requirements for
your home and local codes and ordinances.
• Use strain relief method provided with house wiring junction
box or install a UL-listed/CSA-certified clamp connector to the
house wiring junction box. If using conduit, use a
UL-listed/CSA-certified conduit connector.
If connecting dishwasher with apower supply cord:
• Use Power Supply Cord Kit (Part Number 4317824) marked
for use with dishwashers. Kit contents include:
• Voltex, Inc., UL listed 16 gauge 3 wire power supply cord
with 3 prong grounded plug.
• Neer C-500 7/8"strain relief.
• 3 wire connectors.
• Part Number 302797 grommet.
Follow the kit instructions for installing the power supply cord.
Power supply cord must plug into amating 3 prong, grounded
outlet, located in the cabinet next to the dishwasher opening.
Outlet must meet all local codes and ordinances.
INSTALLATIONINSTRUCTIONS
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
1. Disconnect power.
2. Turn off water supply.
1=
Follow the steps in the section if you are installing the
dishwasher in an existing cabinet opening with utility
hookups.
If you are installing the dishwasher in a cabinet opening that
does not have utility hookups, follow the steps under "Prepare
cabinet opening where there are no existing utility hookups"
section.
Check that the water line reaches to the front left-hand side of
the opening where the water connection will be made.
.........................
A. Water line
B. Direct wire
2. Check that the direct wire reaches to the front right-hand side
of opening where the electrical connection will be made.
If the water line and direct line wire reach far enough into the
opening, proceed to the next section, "Install the Drain Hose." If
they do not reach far enough, follow the steps under "Prepare the
Cabinet Opening Where There are no Existing Utility Hookups."
Install the Drain Hose
IMPORTANT: Always use a new drain hose even when installing a
new replacement dishwasher.
1. Drill a 1V2"(3.8 cm) diameter hole in the cabinet wall or floor on
the side of the opening closest to the sink.
2. Connect drain hose to waste tee or waste disposer using one
of the following methods:
• Option 1, Waste disposer- with air gap
• Option 2, No waste disposer- with air gap
• Option 3, Waste disposer- no air gap*
• Option 4, No waste disposer- no air gap*
*An air gap is recommended.
Helpful Tip: To reduce the vibration of the hose, keep the hose
away from the floor and the edge of the hole where it passes
through the cabinet.
